EVALUATING PERFORMANCE OPTIMIZATIONS OF

LARGE-SCALE GENOMIC SEQUENCE SEARCH APPLICATIONS

USING SST/MACRO

Tae-Hyuk Ahn

, Damian Dechev

2,3

, Heshan Lin

, Helgi Adalsteinsson

and Curtis Janssen

Department of Computer Science, Virginia Tech, VA 24061, Blacksburg, U.S.A.

Department of Electrical Engineering and Computer Science, University of Central Florida, FL 32816, Orlando, U.S.A.

Scalable Computing R&D Department, Sandia National Laboratories, CA 94551, Livermore, U.S.A.

Keywords:

Exascale architecture simulator, mpiBLAST, Performance and scalability modeling.

Abstract:

The next decade will see a rapid evolution of HPC node architectures as power and cooling constraints are

limiting increases in microprocessor clock speeds and constraining data movement. Future and current HPC

applications will have to change and adapt as node architectures evolve. The application of advanced cycle

accurate node architecture simulators will play a crucial role for the design and optimization of future data

intensive applications. In this paper, we present our simulation-based framework for analyzing the scalability

and performance of a number of critical optimizations of a massively parallel genomic search application,

mpiBLAST, using an advanced macroscale simulator (SST/macro). In this paper we report the use of our

framework for the evaluation of three potential improvements of mpiBLAST: enabling high-performance par-

allel output, an approach for caching database fragments in memory, and a methodology for pre-distributing

database segments. In our experimental setup, we performed query sequence matching on the genome of the

yellow fever mosquito, Aedes aegypti.

1 INTRODUCTION

The exponential growth of data intensive applica-

tions and the necessity for complex and massive

data analysis have elevated modern large-scale par-

allel computing technology and demand. Future

High-Performance Computing (HPC) systems will go

through a rapid evolution of node architectures as

power and cooling constraints are limiting increases

in microprocessor clock speeds. Consequently com-

puter architects are trying to increase signiﬁcantly the

on-chip parallelism to keep up with the demands for

fast performance and high volume of data process-

ing. Multiple cores on a chip is no longer cutting edge

technologydue to this hardware paradigm shift. In the

new Top 500 supercomputer list published in March

2011, more than 99% of supercomputers are multi-

core processors (Top500, 2011). As hardware has

evolved, software applications must adapt and gain

the capability of effectively running multiple tasks si-

multaneously through parallel methods. It is of criti-

cal importance to provide an accurate estimate of an

application’s performance in a massively parallel sys-

tem both for predicting the most effective design of a

multi-core large-scale architecture as well as for op-

timizing and ﬁne-tuning the software application to

efﬁciently execute in such a highly concurrent envi-

ronment.

A key element of the strategy as we move for-

ward is the co-design of applications, architectures,

and programming environments, to navigate the in-

creasingly daunting constraint-space for feasible ex-

ascale system design. The complexity of designing

large-scale computer systems has motivated the de-

velopment and utilization of a large number of cycle-

accurate hardware and system simulators (Janssen

et al., 2010; Underwood et al., 2007; Sherwood et al.,

2002). There is a pressing need to develop accu-

rate code analysis and system simulation platforms

to insert application developers directly into the de-

sign process for HPC systems in the exascale era. It

is of signiﬁcant importance to build the simulation

platforms for accurate emulation of the hardware ar-

chitectures of the next decade and their design con-

Ahn T., Dechev D., Lin H., Adalsteinsson H. and Janssen C..

EVALUATING PERFORMANCE OPTIMIZATIONS OF LARGE-SCALE GENOMIC SEQUENCE SEARCH APPLICATIONS USING SST/MACRO.

DOI: 10.5220/0003600200650073

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

65-73

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Application Threads Discrete Event Simulator

(Lightweight Threads)

P roces s

C a llbacks

E vents

C a llbacks

S imulatorInterface

K ernels

S ervers

R eques t

T race

S keleton

C P U

Network

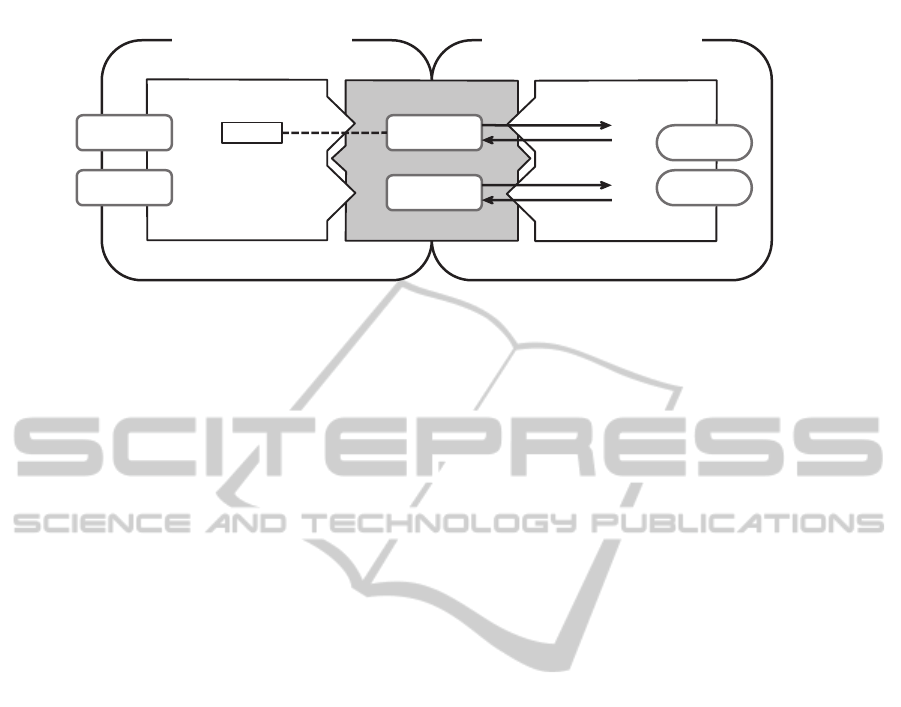

Figure 1: SST/macro Simulation Framework.

straints. This will enable computer scientists to en-

gage early in the design and utilization of effective

programming models.

Three well-known approaches have been inves-

tigated for estimating large-scale performance. The

most common approach is direct execution of the full

application on the target system (Prakash et al., 2000;

Riesen, 2006; Zheng et al., 2005). This simulation

approach uses virtual time unlike normal benchmark-

ing that uses real time. Here, performance is modeled

by using a processor model and communication work

in addition to simulated time for a modeled network.

Another approach is tracing the program in order to

collect information about how it communicates and

executes (Zheng et al., 2005). The resulting trace ﬁle

contains computation time and actual network trafﬁc.

Tracing provides high levels of evaluation accuracy,

but cannot be easily scaled to a different number of

processors. A third approach is to implement a model

skeleton program that is a simple curtailed version of

the full application but provides enough information

to simulate realistic activity (Susukita et al., 2008;

Adve et al., 2002). This approach has the advantage

that the bulk of the computational complexity can be

replaced by simple calls with statistical timing infor-

mation. What makes this approach challenging is the

necessity to develop a model skeleton program based

on a complex scientiﬁc HPC application that often in-

cludes a large number of HPC computational methods

and libraries, sophisticated communication and syn-

chronization patterns, and architecture-speciﬁc opti-

mizations. Moreover, it is difﬁcult to analyze and

predict the runtime statistics for domain-speciﬁc ap-

plications using heuristic algorithms. The skeleton

application provides a powerful method for evaluat-

ing the scalability and efﬁciency over various archi-

tectures of moderate or extreme scales. For example

by running skeleton applications, the Structural Sim-

ulation Toolkit’s macroscale simulator (SST/macro)

(Janssen et al., 2010; SST/Macro, 2011) has been able

to model application performance at levels of paral-

lelism that are not obtainable on any known existing

HPC system.

In this work we present the design and application

of a discrete event simulation-based framework for

analyzing the scalability and performance of a num-

ber of optimizations of mpiBLAST. mpiBLAST (Dar-

ling et al., 2003) is an open-source parallel imple-

mentation of the National Center for Biotechnology

Information’s (NCBI) Basic Local Alignment Search

Tool (BLAST) (Altschul et al., 1990). BLAST is the

most widely used genomic sequence alignment algo-

rithm. Though a heuristic method is employed to im-

prove computational efﬁciency, computation time is

debilitating because of the rapid growth of sequence

data. A parallel version of BLAST, mpiBLAST, uses

a database segment approach. The design of mpi-

BLAST has been revised a number of times to better

address the challenges of distributed result processing

(Lin et al., 2005), hierarchical architectures (Thorsen

et al., 2007), include further dynamic load balancing

optimizations, and I/O optimizations (Lin et al., 2008;

Lin et al., 2011). Our simulation-based framework

allows programmers to better address the challenges

of executing genomic sequence alignment algorithms

on many-core architectures and at the same time gain

important insights regarding the effectiveness of the

mentioned mpiBLAST optimization techniques. This

allows both scientists, library developers, and hard-

ware architecture designers to evaluate the scalability

and performance of a data intensive application on a

wide variety of multi-core architectures, ranging from

a regular cluster machine to a future many-core petas-

cale supercomputer. Our approach can help in several

ways including:

• enhance the evolution of the software application

by performing further architecture-speciﬁc opti-

mizations to meet the challenges of the communi-

cation and synchronization bottlenecks of the new

multiprocessor architectures,

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

• adapt the hardware set-up to better facilitate the

computational and communication patterns of the

application,

• evaluate the effectiveness and associated trade-

offs of any future co-design evolution of the ap-

plication software and the hardware platform.

In this paper, we present the application of SST/-

macro, an event-driven cycle-accurate macroscale

simulator, for estimating and predicting the perfor-

mance of large-scale parallel bioinformatics applica-

tions based on mpiBLAST. SST/macro has been re-

cently developed and released by the Scalable Com-

puting R&D Department at Sandia National Labs and

is a fully component-based open source project that

is freely available to the research and academic com-

munity (SST/Macro, 2011). We demonstrate the use

of SST/macro and its trace-driven simulation that is

based on DUMPI (Janssen et al., 2010), a custom-

built MPI tracing library developed as a part of the

SST/macro simulator. We also present a methodology

for constructing SST/macro skeleton programs based

on mpiBLAST.

The rest of this work is organized as follows: Sec-

tion 2 introduces the event-driven SST/macro sim-

ulator that is at the core of our simulation frame-

work, Section 3 discusses the mpiBLAST algorithm

for parallel genome sequence matching and the pos-

sible optimizations of mpiBLAST, Section 4 presents

in details the methodology of collecting DUMPI trace

ﬁles and our approach for implementing mpiBLAST-

based skeleton models as well as our experimental

set-up and results, and Section 5 concludes this pa-

per.

2 EVENT-DRIVEN

MACROSCALE SIMULATION

We begin with a discussion of the high-level design

and functionality of the SST macroscale simulator

that is at the core of our framework. The overall net-

work topology and model are presented in brief. Then

we discuss MPI modeling through skeleton applica-

tions and MPI trace ﬁles.

The purpose of a large number of simulation

tools and strategies is to help design new hardware

platforms and better applications in HPC comput-

ing. The macroscale version of the Structural Simula-

tion Toolkit is an architectural simulator that permits

coarse-grained study of data intensive parallel scien-

tiﬁc applications. SST/macro has a modular struc-

ture implemented in C++ (Stroustrup, 2000), allow-

ing ﬂexible addition of new components and modiﬁ-

cations. Figure 1 shows the highlight of the design of

the SST/macro simulator. The simulator makes use

of extremely lightweight application threads, allow-

ing it to maintain simultaneous task counts ranging

into the millions. Task threads create communication

and compute kernels, then interact with the simula-

tor’s back-end by pushing kernels down to the inter-

face layer. The interface layer generates simulation

events and handles the scheduling of resulting events

to the simulator back-end. The interface layer imple-

ments servers to manage the interaction with the net-

work model in the context of the application. SST/-

macro supports two execution modes: skeleton ap-

plication execution and trace-drivensimulation mode.

The processor layer receives callbacks when the ker-

nels are completed.

Recent growth of large-scale systems has made

evaluation of communication loads across complex

networks vital. SST/macro is capable of simulating

and evaluating advanced network workload with di-

verse topology and routing. The simulator currently

supports torus, fat-free, hypercube, Clos, and gamma

topologies, all described further in (Dally and Towles,

2003). Moreover, the general frameworkof a network

can be easily evaluated with network parameters such

as bandwidth and latency, thus allowing the capture

of actual trade-offs between ﬁdelity and runtime of a

system’s network. The routing algorithms are static in

SST/macro, i.e., messages between two processors al-

ways follow the same path regardless of network sta-

tus. The modularity of the simulator makes deﬁning

new connections easy.

2.1 The MPI Model

The Message Passing Interface (MPI) is a message

passing library interface speciﬁcation for a distributed

parallel memory system (MPI, 2009). MPI primarily

allows message-passing communication from the ad-

dress space of one process to that of another process.

MPI is not a language, and all MPI operations are

expressed as functions, subroutines, or methods, ac-

cording to the appropriate language bindings, for C,

C++, and FORTRAN. The main advantages of MPI

are portability and usability. The standard includes

two main privileges: point-to-point message passing

and collective operations. A number of important

MPI functions involve communication between two

speciﬁc processes based on point-to-point operations.

MPI speciﬁes mechanisms for both blocking and non-

blocking point-to-point communication mechanisms.

A procedure is blocking if returning from the proce-

dure indicates the user is allowed to reuse resources

speciﬁed in the call and a procedure is nonblocking if

EVALUATING PERFORMANCE OPTIMIZATIONS OF LARGE-SCALE GENOMIC SEQUENCE SEARCH

APPLICATIONS USING SST/MACRO

the procedure may return before the operation com-

pletes. Collective operation is deﬁned as communica-

tion that involves groups of processors to invoke the

procedure. These include such operations as all-to-all

(all processes contribute and receive the result), all-

to-one (all processes contribute to the result and one

process receives the result), and one-to-all (one pro-

cess contributes to the result and all processes receive

the result).

In the SST/macro simulator, lightweight applica-

tion threads perform MPI operations. SST/macro im-

plements a complete simulated MPI which skeleton

applications can use to emulate node communication

in a direct manner. SST/macro has been used to test

the performance impact of proposed extensions to the

MPI standard. A simple processor model is added

to provide timings for processor workload and data

movement within each node. SST includes a network

layer that supports a large array of interconnects. The

application trace and CPU model helps to determine

when a computation operation completes and sched-

ules a completion event. The SST/macro components

provide a complete performance estimation environ-

ment for HPC platforms.

2.2 Trace File Simulation

In the trace ﬁle simulation approach, an application

is executed and proﬁled in order to extract a wealth

of information about its execution pattern such as the

average instruction mix, memory access patterns, and

communication mechanisms and bottlenecks. The

network utilization on a per-link basis is also esti-

mated. The generated trace ﬁle contains data such

as the time spent in computation and the commu-

nication footprints between processors. SST/macro

supports two trace ﬁle formats: Open Trace Format

(OTF) (Kn¨upfer et al., 2006) and DUMPI (Janssen

et al., 2010). OTF is a trace deﬁnition and representa-

tion format designed for use with large-scale parallel

platforms. The authors in (Kn¨upfer et al., 2006) iden-

tify three main design goals of OTF: openness, ﬂex-

ibility, and performance. DUMPI is a custom trace

format developed as a part of the SST/macro simula-

tor. Both of the trace formats record execution infor-

mation by linking the target application with a library

that uses the PMPI (Mintchev and Getov, 1997) in-

terface to intercept MPI calls. The DUMPI format

is designed to record more detailed information com-

pared to OTF, including the full signature of all MPI-1

and MPI-2 calls. In addtion, DUMPI trace ﬁles store

information regarding the return values and the MPI

requests, which allows error checking and MPI op-

eration matching. DUMPI ﬁles also provide proces-

sor hardware performance counter information using

the Performance Application Programming Interface

(PAPI) (Janssen et al., 2010), which allows informa-

tion such as cache misses and ﬂoating point opera-

tions to be logged.

2.3 Skeleton Application Simulation

The main advantage of trace ﬁle driven simulation is

accuracy, especially if the planned runtime system is

known in details. However, a main difﬁculty is the

fact that it requires the execution of the actual appli-

cation that could often be data intensive and of high

computational complexity. Moreover, trace ﬁle sim-

ulation is not capable of predicting performance on

future hardware platforms, as the generated trace ﬁles

are speciﬁc to the execution environment.

Skeleton applications are simpliﬁed models of ac-

tual HPC programs with enough communication and

computation information to simulate the application’s

behavior. One method of implementing a skeleton ap-

plication is to replace portions of the code performing

computations with system calls that instruct the sim-

ulator to account for the time implicitly. Since the

performance models can be embedded in the skeleton

application and real calculations are not performed,

the simulator requires signiﬁcantly less computational

cost than simulating the entire system. Skeleton ap-

plication simulation can also evaluate efﬁciency and

scalability at extremely different scales, which pro-

vides a powerful option for performance prediction

of non-existing super-scalar systems. Though driving

the simulator with a skeleton application is a pow-

erful approach for evaluating the application’s scal-

ability and efﬁciency, it requires extensive efforts for

programmers to implement the skeleton models for

a large-scale parallel program. The effort is justi-

ﬁed by the difﬁculty of predicting computation time

for complex applications such as mpiBLAST. mpi-

BLAST search time varies greatly across the same

size database and query, because the computation

time depends on the number of positive matches

found in a query. Match location can also affect the

execution time.

Figure 2 shows the implementation of an MPI

ping-pong skeleton application in which pairwise

ranks communicate with each other. As shown in Fig-

ure 2, skeleton application implementations for the

SST/macro are very similar to the native MPI im-

plementation with the exception of the syntax of the

MPI calls. In addition to replacing the communica-

tion calls, we can replace computation parts with sys-

tem calls such as compute(...), which reduce simula-

tion time dramatically.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

void

mpipingpong ::run() {

timestamp start = mpi()->init();

mpicomm world = mpi()->comm_world();

mpitype type = mpitype::mpi_double;

int

rank = world.rank().id;

int

size = world.size().id;

/ / With an odd number of nodes ,

/ / rank ( size −1) s i t s out

(!((size % 2)&&(rank+1 >= size))){

/ / partner nodes 0<=>1, 2<=>3, etc .

mpiid peer(rank ˆ 1);

mpiapi::const_mpistatus_t stat;

for

(

int

half_cycle = 0;

half_cycle < 2 * num_iter;

++half_cycle) {

((half_cycle + rank) & 1)

mpi()->send(count, type , peer ,

tag, world);

else

mpi()->recv(count, type , peer ,

tag, world , stat);

}

timestamp done = mpi()->finalize();

}

Figure 2: Core execution loop of the MPI ping-pong skele-

ton application.

3 mpiBLAST

This section lays out the core design and function-

ality of mpiBLAST. Furthermore, we discuss the I/O

and computation scheduling optimization proposed to

mpiBLAST.

3.1 The Fundamental Design of

mpiBLAST

In bioinformatics, a sequence alignment is an es-

sential mechanism for the discovery of evolutionary

relationships between sequences. One of the most

widely used alignment search algorithms is BLAST

(Basic Local Alignment Search Tool) (Altschul et al.,

1990; Altschul et al., 1997). The BLAST algorithm

searches for similarities between a set of query se-

quences and large databases of protein or nucleotide

sequences. The BLAST algorithm is a heuristic

search method for ﬁnding locally optimal alignments

or HSP (high scoring pair) with a score of at least

the speciﬁed threshold. The algorithm seeks words of

length W that score at least T when aligned with the

query and scored with a substitution matrix. Words

in the database that score T or greater are extended

in both directions in an attempt to ﬁnd a locally opti-

mal un-gapped alignment or HSP (high scoring pair)

with a score of at least E value lower than the spec-

iﬁed threshold. HSPs that meet these criteria will be

reported, provided they do not exceed the cutoff value

speciﬁed for the number of descriptions and/or align-

ments to report.

Today, the number of stored genomic sequences

is increasing dramatically, which demands higher

parallelization of sequence alignment tools. More-

over, next-generation sequencing, a new generation of

non-Sanger-based sequencing technologies, has pre-

sented new challenges and opportunities in data inten-

sive computing (Schuster, 2007). Many parallel ap-

proaches for BLAST have been investigated (Braun

et al., 2001; Bjornson et al., 2002; Mathog, 2003;

Lin et al., 2005), and mpiBLAST is an open-source,

widely used parallel implementation of the NCBI

BLAST toolkit.

The original design of mpiBLAST follows a

database segmentation approach with a master/-

worker system. It works by initially dividing up

the database into multiple fragments. This pre-

processing step is called

mpiformatdb

. The mas-

ter uses a greedy algorithm to assign and distribute

pre-partitioned database chunks to worker processors.

Each worker then concurrently performs a BLAST

search on its assigned database fragment in paral-

lel. The master server receives the results from each

worker, merges them, and writes the output ﬁle. mpi-

BLAST achieves an effective speedup when the num-

ber of processors is small or moderate. However, mpi-

BLAST suffers from non-search overheads when the

number of processors increases and the database size

varies. Additionally, the centralized output process-

ing design can greatly hamper the scalability of mpi-

BLAST.

3.2 Optimizations of mpiBLAST

Hierarchical Architecture. mpiBLAST expands

the original master-worker design to hierarchical de-

sign, which organizes all processes into equal-sized

partitions by a supermaster process. The supermas-

ter process manages assigning tasks to different par-

titions and handling inter-partition load balancing.

There is one master processor for each partition that

is responsible for coordinating both computation and

I/O scheduling with many workers in a partition. This

hierarchical design has an advantage in massive-scale

parallel machines as it distributes the workload well

across multiple partitions.

Dynamic Load Balancing Design. It is difﬁcult to

estimate the execution time of BLAST because search

time is extremely variable and thus unpredictable

EVALUATING PERFORMANCE OPTIMIZATIONS OF LARGE-SCALE GENOMIC SEQUENCE SEARCH

APPLICATIONS USING SST/MACRO

(Gardner et al., 2006). Therefore a greedy scheduling

algorithm for ﬁne-grained task assignment to idle pro-

cesses is necessary. To avoid load imbalance while re-

ducing the scheduling overhead, mpiBLAST adopts a

dynamic worker group management approach where

the masters dynamically maintain a window of out-

standing tasks. Whenever a worker ﬁnishes its tasks,

it requests further assignments from its master. With

query prefetching, the master requests the next query

segment when the total number of outstanding tasks

in the window falls under a certain threshold.

Parallel I/O Strategy. Massive data I/O can lead

to performance bottlenecks especially for data driven

applications such as mpiBLAST. To deal with this

challenge, mpiBLAST pre-distributes database frag-

ments to workers before the search begins. Workers

cache database fragments in memory instead of lo-

cal storage. This is recommended on diskless plat-

forms where there is no local storage attached to each

processor. By default, mpiBLAST uses the master

process to collect and write results within a parti-

tion, which may not be suitable for massively paral-

lel sequential search. Asynchronous parallel output

writing techniques optimize concurrent noncontigu-

ous output access without inducing synchronization

overhead which result from traditional collective out-

put techniques.

4 EXPERIMENTAL RESULTS

We chose to identify and use freely available datasets

for executing our mpiBLAST-based simulation anal-

ysis. In our experimental set-up we run mpiBLAST

on the genome of the yellow fever mosquito, Aedes

aegypti, which has been investigated by biologists

for spreading dengue and yellow fever viruses. The

genome database can be downloaded freely from the

source in (Vectorbase, 2010) and has a suitable size

of 1.4GB for testing on both our local machine and

the cluster system. We use 1MB sequences randomly

sampled from the Aedes aegypti transcriptome dataset

because such query sequences match well with the

genome’s characteristics.

In our experiments, we relied on DUMPI to fa-

cilitate more detailed tracing of MPI calls than was

available from other trace programs. The results of

a DUMPI proﬁling run consists of two ﬁle formats.

One is an ASCII metaﬁle for the entire run, and the

other is a binary trace ﬁle for each node. The metaﬁle

is a simple key/value ASCII ﬁle that is intended to

be human-readable and to facilitate grouping related

trace ﬁles together. Each trace ﬁle consists of a 64-

bit lead-in magic number and 8 data records. In order

to trace an application with DUMPI, a collection of

DUMPI libraries are linked to the application when

it is executed in the system. Afterwards, several exe-

cutables built on DUMPI repository are used to ana-

lyze the DUMPI trace ﬁles.

In our experimental setup we have traced and an-

alyzed the mpiBLAST implementation described in

Section 3. The current open-source version of mpi-

BLAST has several options for parallel input/ouput

of data. We have simulated and tested three optimiza-

tions as described below:

• Optimization 1 (--use-parallel-write), enabling high-

performance parallel output: by default, mpiBLAST

uses the master process to collect and write results

within a partition. This is the most portable output

solution and should work on any ﬁle system. How-

ever, using the parallel-write solution is highly rec-

ommended on platforms with fast network intercon-

nection and high-throughput shared ﬁle systems.

• Optimization 2 (--use-virtual-frags), enabling work-

ers to cache database fragments in memory instead

of on local storage: this is recommended on diskless

platforms where there is no local storage attaching

to each processor.

• Optimization 3 (--predistribute-db), pre-distributing

database fragments to workers before the search be-

gins: especially useful in reducing data input time

when multiple database replicas need to be dis-

tributed to workers.

We have traced a large number of mpiBLAST ex-

perimental executions with the SST/macro simula-

tor to validate the simulator and predict the appli-

cation’s performance on a large-scale parallel ma-

chine. We executed our SST/macro simulation of the

mpiBLAST application on two different platforms:

a multi-core Linux machine and a distributed mem-

ory cluster system. The local machine consisted of a

2.66GHz Intel Core(TM)2 Duo CPU and 2GB mem-

ory. The cluster system is composed of 113 nodes,

where each node contains two 3.2GHz Intel Xeon

CPU and 2GB memory.

4.1 Validation of SST/macro with

mpiBLAST

SST/macro has been recently released (SST/Macro,

2011) and it has not yet been exposed to testing out-

side of its development environment at Sandia Na-

tional Labs. For this reason, in this section we brieﬂy

mention our ﬁndings in our efforts to validate the

accuracy of the SST/macro simulator. The simula-

tor was validated with mpiBLAST results using de-

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

0 10 20 30 40 50 60 70

200

400

600

800

1000

1200

1400

Number of Processors

Time (sec)

Local−Observed

Local−Simulated

Cluster−Observed

Cluster−Simulated

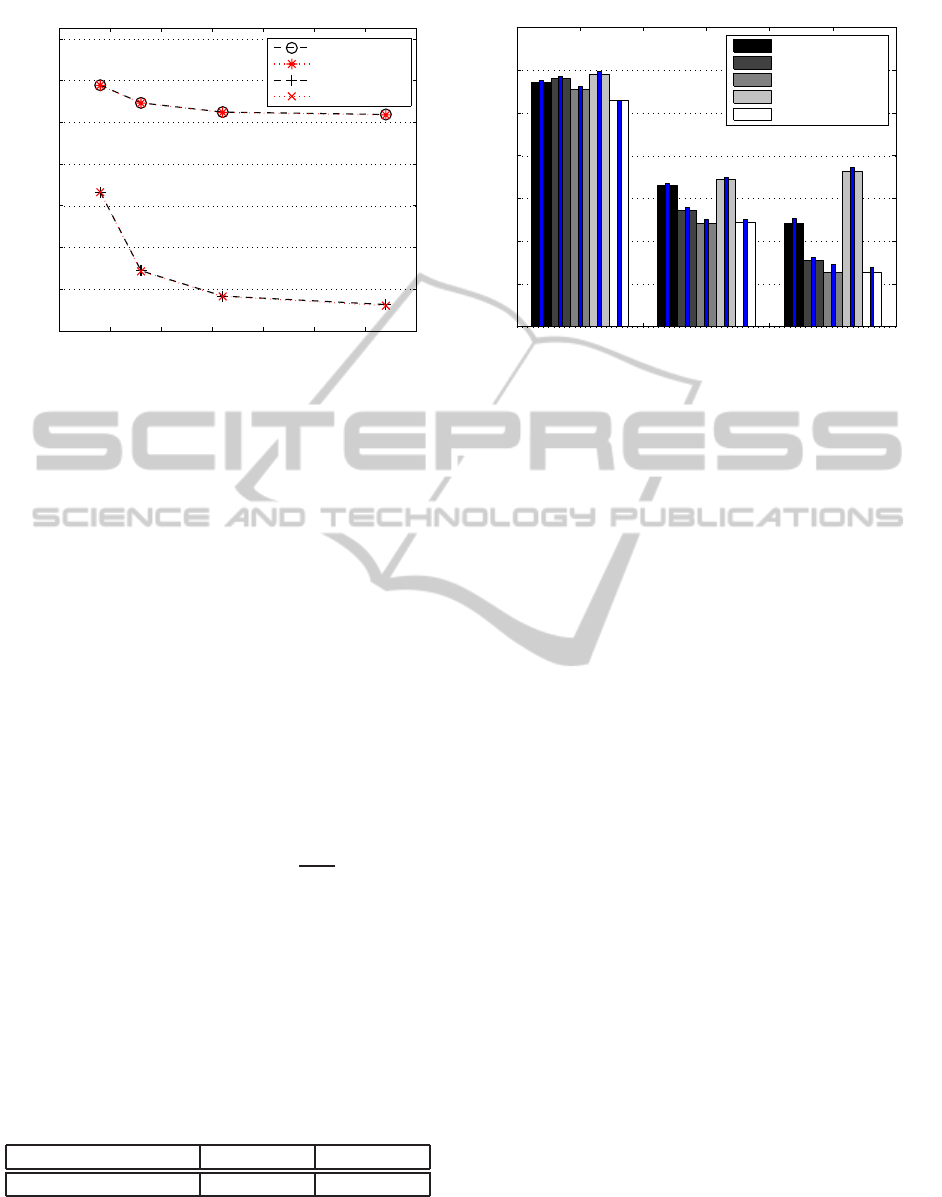

Figure 3: Comparison of observed and simulated runtimes

both on the local machine and the cluster system.

fault bandwidth (2.5 GB/s) and latency (1.3 µs) on

both testing environments. We used processor counts

from 8 to 64, and traces were collected using the

lightweight DUMPI library. Figure 3 shows the simu-

lated walltime versus the elapsed realtime for the sim-

ulation driven by these DUMPI traces.

We applied the concept of K-L divergence

(Emmert-Streib and Dehmer, 2008) to evaluate the

similarity between the results from observed and sim-

ulated run time across the tested systems. K-L diver-

gence is a non-commutativemeasure of the difference

between two samples P and Q typically P represent-

ing the “true” distribution and Q representing arbi-

trary distribution. Therefore we set P as simulation

results and Q as SST/macro DUMPI-driven runtimes

with varying total CPUs. The K-L divergence is de-

ﬁned to be

(P||Q) =

∑

P(i)log

P(i)

Q(i)

(1)

where Q(i) 6= 0. A smaller value of the K-L diver-

gence variable signiﬁes greater similarity between the

two distributions.

Table 1 shows the K-L divergence distance. We

carefully analyzed the resulting K-L distance and

found out that the SST/macro trace clock times are

very close to real simulation wall-times on both the

local machine and the cluster system.

Table 1: The absolute distance and K-L divergence.

Method Local Cluster

K-L divergence 6.09 11.55

16 32 64

100

150

200

250

300

350

Number of Processors

Time (sec)

No Optimization

Optimization 1

Optimization 2

Optimization 3

Optimization 1+2+3

Figure 4: Scalability of 5 different optimization strategies

on a 113-node cluster system. Regular bars represent SST/-

macro DUMPI-driven simulation times with different opti-

mizations and the core bars represent observed time.

4.2 Simulation of mpiBLAST

Optimizations

To evaluate the various optimizations of mpiBLAST

that we mentionedearlier in this section, we run SST/-

macro and collected the simulation DUMPI traces

using 16, 32, and 64 processors on the cluster sys-

tem. Figure 4 shows the scalability and efﬁciency of

each approach. The y-axis shows the total execution

time in seconds for all processes of each approach,

and the x-axis represents the number of processors

that we used for our simulation runs. In our dia-

gram we use the following notations: Optimization 1

is the enabling of parallel output, Optimization 2 uses

virtual fragments, and Optimization 3 pre-distributes

database to workers before search begins. In addition,

we also tested a version that includes all three mpi-

BLAST reﬁnements named Optimization 1+2+3, and

a version that excludes all optimizations named No

Optimizations. The simulation results indicate that for

our selected genome analysis, the sequence matching

of the Aedes aegypti genome using sequences of size

1MB, Optimization 2: the use of virtual fragments

provides the best scalability and efﬁciency. Optimiza-

tion 2 leads to a speed-up of a factor of 2 or more

compared to our No Optimization solution when exe-

cuted on 64 nodes of our cluster system. This ﬁnding

is not surprising given the exponential increase of the

cost of accessing global memory with the increase of

the participating compute nodes. Enabling the master

process to collect and write output (Optimization 1)

also led to a performance increase by about a factor

of 2 on our 64 node execution. Our tests indicated th-

EVALUATING PERFORMANCE OPTIMIZATIONS OF LARGE-SCALE GENOMIC SEQUENCE SEARCH

APPLICATIONS USING SST/MACRO

at in all execution scenarios the use of static work

pre-distribution alone (Optimization 3) led to a sig-

niﬁcant overhead in our genome sequencing analy-

sis and slowed down the execution time. However,

when combined with Optimization 1 and Optimiza-

tion 2, static work pre-distribution did not lead to per-

formance loss and even helped increase the speed of

execution in certain scenarios. Enabling Optimization

2 helped in achieving faster execution in the tests we

performed using 16 and 32 nodes, however the ob-

served speed-up was not as signiﬁcantly high as with

the scenario with 64 nodes. Intuitively, this result

demonstrates that Optimization 2 provides excellent

scalability, however, due to the overhead of comput-

ing the fragments, the methodology is effective only

when we have a system with a higher degree of par-

allelism. The graph in Figure 4 shows the same trend

for Optimization 1, where enabling parallel output

even deteriorated the execution time for the scenario

of using 16 cluster nodes.

5 CONCLUSIONS

The application of hardware/software co-design has

been a feature of embedded system designs for a long

time. So far, hardware/software co-design techniques

have found little application in the ﬁeld of high-

performance computing. The multi-core paradigm

shift has left both software engineers and computer

architects with a lot of challenging dilemmas. The

application of hardware/software co-design for HPC

systems will allow for a bi-directional optimization of

design parameters where software speciﬁcations and

behavior drive hardware design decisions and hard-

ware constraints are better understood and accounted

for in the implementationof effectiveapplication soft-

ware. The use of cycle accurate simulation tools

provides the data and insights to estimate the per-

formance impact on an HPC applications when it is

subjected to certain architectural constraints. In this

work we demonstrated the application of a newly de-

veloped open-source cycle-accurate macroscale sim-

ulator (SST/macro) for the evaluation and optimiza-

tion of data intensive genome sequence matching al-

gorithms. We performed both trace-driven simula-

tion and simulation based on application modeling.

In our experimental set-up, we run an mpiBLAST

sequence matching algorithm using 1MB sequences

of the genome of the yellow fever mosquito, Aedes

aegypti. Using this data intensive application as

a canonical example, we validated the accuracy of

SST/macro. In addition, the analysis of our perfor-

mance data indicated that the use of dynamic data fr-

agmentation leads to signiﬁcant performance gains

and high scalability on a distributed memory clus-

ter system. The framework we have presented in

this work allows for the evaluation and optimization

of mpiBLAST application on a wide variety of plat-

forms, ranging from a conventional workstation to a

system allowing levels of parallelism that are not ob-

tainable by existing supercomputers. This simulation

ability can play a crucial role for the effective de-

sign and implementation of large-scale data intensive

applications to be executed on the future multi-core

hardware platforms, that often could include a wide

variety of features including a heterogenous design of

CPUs, GPUs, and even FPGAs. In our future work,

we intend to further develop and distribute a full-scale

SST/macro model implementation of the entire mpi-

BLAST library and make it available as a part of the

SST/macro simulation distribution.

ACKNOWLEDGEMENTS

We express our gratitude to our team members of the

SST/macroscale simulator team at Sandia National

Laboratories, Livermore, CA: Scott Cranford, David

Evensky, Joe Kenny, Nicole Lemaster, Jackson Mayo,

and Ali Pinar. In addition, we thank Adrian Sandu

from Virginia Tech and Philip Bell from the Univer-

sity of Central Florida, and the anonymous referees

from SIMULTECH 2011 for providing helpful com-

ments and suggestions.

REFERENCES

Adve, V., Bagrodia, R., Deelman, E., and Sakellar-

iou, R. (2002). Compiler-optimized simulation of

large-scale applications on high performance architec-

tures. Journal of Parallel and Distributed Computing,

62(3):393–426.

Altschul, S., Gish, W., Miller, W., Myers, E., and Lipman,

D. (1990). Basic local alignment search tool. Journal

of Molecular Biology, 215:403–410.

Altschul, S., Madden, T., Sch¨affer, A., Zhang, J., Zhang,

Z., Miller, W., and Lipman, D. (1997). Gapped

BLAST and PSI-BLAST: a new generation of protein

database search programs. Nucleic Acids Research,

25(17):3389–3402.

Bjornson, R., Sherman, A., Weston, S., Willard, N., and

Wing, J. (2002). TurboBLAST(r): A Parallel Im-

plementation of BLAST Built on the TurboHub. In

Proc. International Parallel and Distributed Process-

ing Symposium (IPDPS’02), pages 183–190.

Braun, R., Pedretti, K., Casavant, T., Scheetz, T., Birkett,

C., and Roberts, C. (2001). Parallelization of Local

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

BLAST Service on Workstation Clusters. Future Gen-

eration Computer Systems, 17(6):745–754.

Dally, W. and Towles, B. (2003). Principles and Practices

of Interconnection Networks. Morgan Kaufmann Pub-

lishers Inc., San Francisco, CA, USA.

Darling, A., Carey, L., and Feng, W. (2003). The Design,

Implementation, and Evaluation of mpiBLAST. In

Proceedings of ClusterWorld 2003.

Emmert-Streib, F. and Dehmer, M. (2008). Information

Theory and Statistical Learning. Springer Publishing

Company, Incorporated.

Gardner, M., Feng, W., Archuleta, J., Lin, H., and Ma, X.

(2006). Parallel Genomic Sequence-Searching on an

Ad-Hoc Grid: Experiences, Lessons learned, and Im-

plications. In IEEE/ACM International Conference

for High-Performance Computing, Networking, Stor-

age and Analysis (SC’06).

Janssen, C., Adalsteinsson, H., Cranford, S., Kenny, J.,

Pinar, A., Evensky, D., and Mayo, J. (2010). A Simu-

lator for Large-Scale Parallel Computer Architectures.

Inter. Jour. of Distributed Systems and Technologies,

1(2):57–73.

Kn¨upfer, A., R.B., Brunst, H., Mix, H., and Nagel, W.

(2006). Introducing the Open Trace Format (OTF).

In Alexandrov, V., van Albada, G., Sloot, P., and Don-

garra, J., editors, Int. Conf. on Computational Science,

volume 3992 of Lecture Notes in Computer Science,

pages 526–533. Springer.

Lin, H., Balaji, P., Poole, R., Sosa, C., Ma, X., and Feng, W.

(2008). Massively Parallel Genomic Sequence Search

on the Blue Gene/P Architecture. In Proc. ACM/IEEE

conference on Supercomputing (SC’08), pages 33:1–

33:11, Piscataway, NJ, USA. IEEE Press.

Lin, H., Ma, X., Chandramohan, P., Geist, A., and Sam-

atova, N. (2005). Efﬁcient Data Access for Par-

allel BLAST. In Proc. International Parallel and

Distributed Processing Symposium (IPDPS’05), page

72.2, Washington, DC, USA. IEEE Computer Society.

Lin, H., Ma, X., Feng, W., and Samatova, N. (2011). Co-

ordinating Computation and I/O in Massively Parallel

Sequence Search. IEEE Transactions on Parallel and

Distributed Systems, 22(4):529–543.

Mathog, D. (2003). Parallel BLAST on split databases.

Bioinformatics, 19(14):1865–1866.

Mintchev, S. and Getov, V. (1997). PMPI: High-Level Mes-

sage Passing in Fortran 77 and C. In Proc. Inter. Con-

ference and Exhibition on High-Performance Com-

puting and Networking (HPCN Europe ’97), pages

603–614, London, UK. Springer-Verlag.

MPI (2009). MPI (Message Passing Interface) standards

documents, errata, and archives of the MPI Forum.

http://www.mpi-forum.org.

Prakash, S., Deelman, E., and Bagrodia, R. (2000).

Asynchronous Parallel Simulation of Parallel Pro-

grams. IEEE Transactions on Software Engineering,

26(5):385–400.

Riesen, R. (2006). A Hybrid MPI Simulator. In IEEE Inter.

Conf. on Cluster Computing 2006, pages 1–9.

Schuster, S. (2007). Next-generation sequencing transforms

today’s biology. Nature Methods, 5(1):16–18.

Sherwood, T., Perelman, E., and Hamerly, G. (2002). Auto-

matically Characterizing Large Scale Program Behav-

ior. In 10th International Conference on Architectural

Support for Programming Languages and Operating

Systems (ASPLOS 2002), pages 45–57.

SST/Macro (2011). SST: The Structural Sim-

ulation Toolkit, SST/macro the Macroscale

Components, Open Source Release.

http://sst.sandia.gov/about sstmacro.html.

Stroustrup, B. (2000). The C++ Programming Lan-

guage. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Susukita, R., Ando, H., Aoyagi, M., Honda, H., Inadomi,

Y., Inoue, K., Ishizuki, S., Kimura, Y., Komatsu, H.,

Kurokawa, M., Murakami, K. J., Shibamura, H., Ya-

mamura, S., and Yu, Y. (2008). Performance predic-

tion of large-scale parallell system and application us-

ing macro-level simulation. In Proc. ACM/IEEE con-

ference on Supercomputing SC ’08, pages 20:1–20:9,

Piscataway, NJ, USA. IEEE Press.

Thorsen, O., Smith, B., Sosa, C., Jiang, K., Lin, H., Peters,

A., and Feng, W. (2007). Parallel genomic sequence-

search on a massively parallel system. In Proc. Int.

Conf. on Computing Frontiers (CF ’07), pages 59–68,

New York, NY, USA. ACM.

Top500 (2011). Top 500 SuperComputers Ranking at

March 2011. http://www.top500.org.

Underwood, K. D., Levenhagen, M., and Rodrigues, A.

(2007). Simulating Red Storm: Challenges and Suc-

cesses in Building a System Simulation. In Proc. In-

ternational Parallel and Distributed Processing Sym-

posium (IPDPS’07), pages 1–10, Los Alamitos, CA,

USA. IEEE Computer Society.

Vectorbase (2010). NIAID Bioinformatics Resource Cen-

ter for Invertebrate Vectors of Human Pathogens.

http://www.vectorbase.org.

Zheng, G., Wilmarth, T., Jagadishprasad, P., and Kal´e, L.

(2005). Simulation-based performance prediction for

large parallel machines. Int. Jour. Parallel Program.,

33(2):183–207.

EVALUATING PERFORMANCE OPTIMIZATIONS OF LARGE-SCALE GENOMIC SEQUENCE SEARCH

APPLICATIONS USING SST/MACRO
