A SIMULATOR OF A MOBILE AD-HOC NETWORK

IN A HOSTILE ENVIRONMENT

Davide Cannone

, Maurizio Naldi

, Giuseppe F. Italiano

and Andrea Brancaleoni

Dipartimento di Informatica Sistemi Produzione, Universit`a di Roma Tor Vergata, Via del Politecnico 1, 00133 Rome, Italy

Elettronica SpA, Via Tiburtina Valeria Km 13,700, 00131 Rome, Italy

Keywords:

Mobile ad-hoc networks, Cyber-warfare.

Abstract:

Mobile Ad-Hoc Networks (MANETs) allow to connect mobile devices in the absence of any ﬁxed commu-

nications infrastructure. The routing function may be disrupted under cyber-attacks. We have developed a

network simulator, based on the publicly available platform Ns2, to evaluate the performance of a number of

routing protocols in MANETs under cyber attacks. For two simulation scenarios, considering respectively De-

nial of Service and Fabrication attacks, and Impersonation and Interception attacks, the Fisheye State Routing

protocol and the Zone Routing Protocol exhibit the best performance.

1 INTRODUCTION

Mobile Ad Hoc Networks (MANETs) are wireless

networks where the nodes are mobile and play both

the role of endnodes and routers, and no ﬁxed infras-

tructure exists. The topology is continually changing

because of the movements of nodes, which create new

radio links and break existing ones. Each node relies

on the cooperation of other nodes to have its pack-

ets delivered to destination. Such networks have their

main application domain in harsh environments, such

as rescue operations or military battleﬁelds.

MANETs are however prone to a number of prob-

lems: radio links may break, so that connectivity is

not guaranteed, and are anyway prone to eavesdrop-

ping and jamming/spooﬁng attacks. A relevant ﬁeld

of analysis, especially for military applications, is the

robustness of MANETs to cyber-attacks. However,

so far only a few researchers have analysed the per-

formance of MANETs in a hostile environment (Cole

et al., 2005; Abdelhafez et al., 2007).

Our aim is to analyse the operations of a MANET

in a tactical context, where the mobile nodes are ex-

posed to cyber-attacks on the battleﬁeld. We have

chosen a simulation approach, which allows us to

model a wide variety of scenarios. Our simulator is

based on the open NS2 platform (Issariyakul and Hos-

sain, 2009), relying in turn on C++ and OTcl (Object-

oriented Tool Command Language). The main fea-

ture of our simulator are its focus on cyber-attacks (an

issue so far neglected in most analyses) and its capa-

bility to simulate the full protocol stack. In this paper

we provide an overviewof the ﬁrst version of the sim-

ulator, and report early results on use of the simulator

to analyse the resilience of a MANET to cyber-attacks

in the battleﬁeld.

The paper is organized as follows. In Section 2

we provide a macro view of the simulator’s structure,

and then we devote Sections 3-4 to the most relevant

modules of the simulator. In Section 5 we describe

the different kinds of cyber-attacks. In Sections 6 and

7, where we describe respectively the simulation sce-

nario and the simulation results.

2 THE STRUCTURE OF THE

SIMULATOR

Our analysis relies on the use of a simulator, for

whose development we have used the NS2 platform.

We have used a modular architecture, where ev-

ery module incorporates models for a different as-

pect of MANET operations, to achieve customizabil-

ity, reusability (every module is written in C++, to

port functions to other applications with little or no

changes), maintainability (problems due to new mod-

ules are easier to isolate and ﬁx when the core is sta-

ble), and extensibility (we can add new features just

by adding new modules).

A major feature of our simulator is the capabil-

ity to simulate all the layers of the Internet Protocol

413

Cannone D., Naldi M., F. Italiano G. and Brancaleoni A..

A SIMULATOR OF A MOBILE AD-HOC NETWORK IN A HOSTILE ENVIRONMENT.

DOI: 10.5220/0003600304130417

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

413-417

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Suite. Namely, we start from the physical layer (by

simulating the radio link) and go all the way up to

the Application Layer. The network layer uses IPv4,

while both TCP and UDP can be used for the Trans-

port Layer. The modules that have been developed

speciﬁcally for this simulator currently cover the fol-

lowing aspects: mobility, physical layer, routing, and

threats.

In addition, special care has been taken to allow a

vivid representation of the simulator’s output, a lack-

ing feature in NS2 (Kurkowski et al., 2005b). For

that purpose, in addition to using the Tcl/TK-based

built-in animation tool Nam, we have resorted to iN-

Spect, a C++ OpenGLbased visualization tool that

allows animation of wireless networks (Kurkowski

et al., 2005a).

3 MOBILITY MODELS AND

CONNECTIVITY

A key characteristic of a MANET is the mobility of its

nodes. A number of models havebeen proposed in the

literature, which suit different situations (Camp et al.,

2002). In the military context the nodes are physically

located aboard tanks or other military vehicles, and

we expect them to move quite orderly, with all the

vehicles following a group leader.

For that purpose we use a hierarchical mobility

model, where we ﬁrst describe the model of the set

of vehicles (hence of nodes) as a group, and then

the movement of individual nodes with respect to the

group. We have adopted the Reference Point Group

Mobility Model (RPGM) for the relationship between

the group movement and the individual movements

(Hong et al., 1999), the Random Waypoint model for

the group as a whole (Broch et al., 1998), and a ran-

dom walk for the movement of each individual node

with respect to its reference position.

The connectivity between any two nodes keeps

changing because they move and the radio link be-

tween them may break. The network is fully con-

nected if any pair of nodes is connected through at

least one chain of wireless links. In the current ver-

sion of the simulator we consider a wireless link to

exist if the two following conditions are satisﬁed:

1. Positive power budget on the link connecting the

transmitter and the receiver;

2. Distance between transmitter and receiver lower

than the radio horizon.

In order to assess the ﬁrst condition, we have em-

ployed the Egli propagation model, a reﬁnement of

the inverse fourth-power model through a multiplica-

tive term that reduces the received power proportion-

ally to the square of the operating frequency (Parsons,

2000).

4 MAC AND ROUTING

PROTOCOLS

After having deﬁned both the kinetic characteristics

of mobile nodes and the conditions for the existence

of radio links among them in Section 3, we now con-

sider the functions pertaining to Layers 2 and 3 of the

ISO/OSI protocol stack, namely the MAC (Medium

Access Control) and routing protocols.

For the MAC protocol we have chosen the IEEE

802.11 protocol (Crow et al., 1997), since it is the

most widely used for MANETs and has been fully

standardized.

As to the routing protocol, we have considered the

following selection of routing protocols:

• Destination-Sequenced Distance-Vector (DSDV);

• Ad-Hoc On-Demand Distance Vector (AODV);

• Dynamic Source Routing (DSR);

• Zone Routing Protocol (ZRP);

• Fisheye State Routing (FSR).

Two of them are proactive protocols (DSDV and

FSR), two are reactive (AODV and DSR), and one

is hybrid (ZRP).

5 THREAT MODELS

We wish to study the performance of a MANET in a

hostile enviroment, where adversaries aim at down-

grading the performance of the network. A taxonomy

of cyber attacks in MANETs has been consolidated in

(Djenouri et al., 2005). In this section we describe our

threat models.

In the current version of our simulator we assume

that an adversary can take control of one or more

friendly nodes, replacing them with a malicious node.

Malicious nodes are at least as computationally strong

as the friendly ones; they are able both to send packets

(fake packets) and to receive them (intercepted pack-

ets), and may cooperate to attack the system, by com-

municating on a reserved wireless channel. On the

other hand, friendly nodes cannot detect malicious

nodes and organize a defense.

We grouped cyber attacks in four main categories

(see Figure 1, where nodes marked with a X represent

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

414

malicious nodes, and dotted lines represent commu-

nication channels with a malicious node):

• Denial of Service. The adversary overloads the

network, so that it begins to misbehave. In our

simulator this attack is simulated by replacing a

friendly node with a malicious one, with the ma-

licious node sending a costant ﬂow of messages

towards a target friendly node.

• Fabrication. The attacker fabricates and sends

spurious messages. In our simulator this attack

is simulated by inserting a malicious node near a

friendly one and tagging as fake all the packets

sent by that node.

• Interception. The attacker does not interfere with

the network operations, but eavesdrops packets.

In our simulator this attack is simulated by tag-

ging a friendly node and all the incoming packets

as intercepted.

• Impersonation. The attacker mimics a target

node, intercepting its messages and sending pack-

ets signed by it (a.k.a. Man in the Middle). In our

simulator this attack is simulated by replacing a

friendly node with a malicious one, and tagging

all the packets sent as fake, and all the incoming

packets as intercepted.

In order to evaluate the impact of a cyber attack

against the system under investigation, we compute

the percentage of the overall fake packets received by

any friendly node, and the percentage of the overall

packets intercepted by the adversary. Both are mea-

sured at the routing layer.

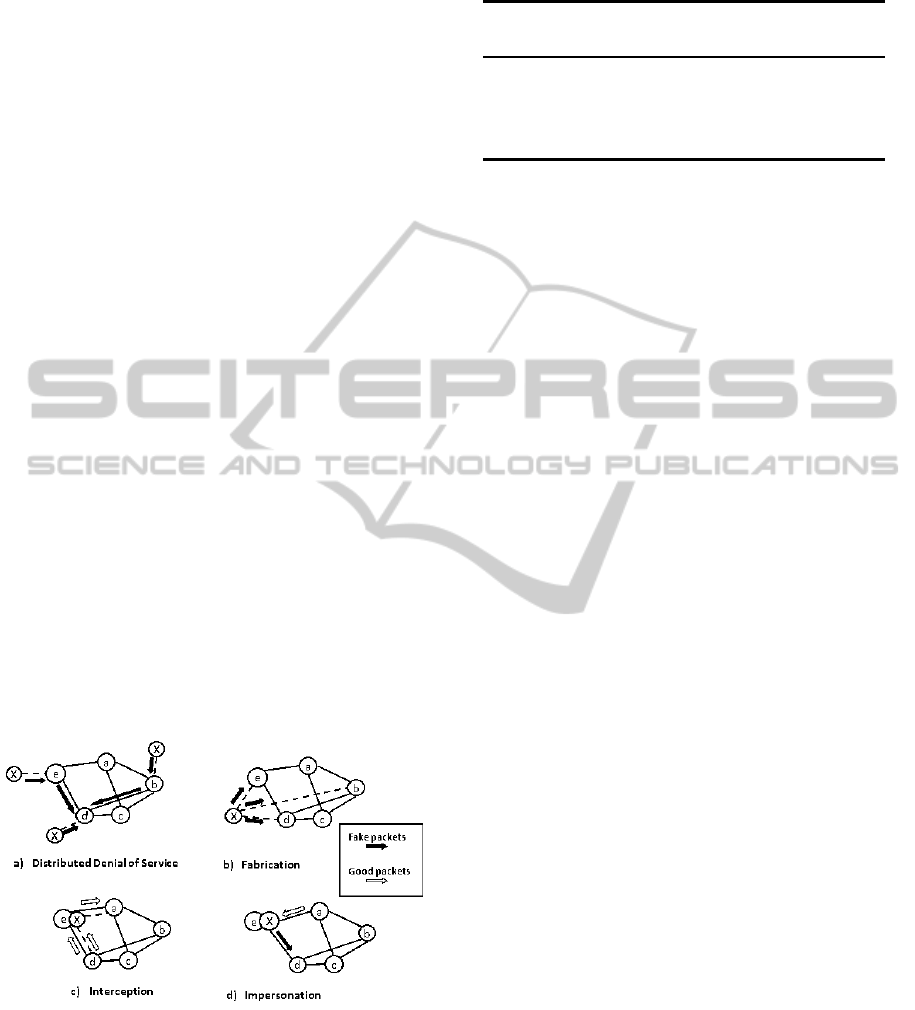

Figure 1: Threats models.

By varying properties of these four attacks and

combining them, we can represent a number of differ-

ent attacks. For example, in the Impersonation attack,

when the malicious node does not fabricate any fake

packet, this can represent a sinkhole attack (Karlof

and Wagner, 2003).

Table 1: Number of malicious nodes in the two scenarios.

Creation Listening

Scenario Scenario

DoS Fixed/Mobile 1/2 1/0

Fabric. Fixed/Mobile 0/2 1/0

Impers. Fixed/Mobile 1/0 2/0

Interc. Fixed 0/1 1/2

6 THE SIMULATION SCENARIOS

In order to test our simulator we have deﬁned a re-

alistic simulation scenario. We assume that the geo-

graphical enviroment is nearly ﬂat (there are no rel-

evant obstacles either for movements or signal prop-

agation) and the nodes move within a square region

with sides of 10 kilometers. There are 15 nodes, ei-

ther ﬁxed or mobile. The ﬁxed nodes represent base

station, located at 2.5 meters above the ground and

with random position. The mobile nodes represent

slow vehicles at ground height, with speeds uniformly

distributed between 20 km/h and 40 km/h; they move

in groups of two, starting from a random position, and

following the RPGM mobility model with a random

pause ranging between 4 and 10 seconds.

Every node communicates through bidirectional

wireless channels. The transmitter has a power of 30

W, at the frequency of 900 MHz, and uses an omni-

directional antenna. The receiving threshold has been

set so that any two nodes are connected if their dis-

tance is lower than 2 km.

Any node can generate trafﬁc network towards

any other node: the network trafﬁc matrix has ran-

dom entries, with every ﬂow having a probability of

50% to exist. Every node spawns packets with an av-

erage size of 1000 bytes according to an On/Off pro-

cess with exponential distributions for both On and

Off times, and an average rate of 1 Mbit/s.

We have deﬁned two scenarios of cyber attacks

(see Table 1), named Creation Scenario and Listening

Scenario. The former is an aggressive attack against

the network, composed mostly of malicious nodes

performing Denial of Service and Fabrication attacks.

The latter is instead composed mostly of malicious

nodes performing Impersonation and Interception at-

tacks.

7 SIMULATION RESULTS

Both attack scenarios were simulated as ten replicas

of 1000 seconds each. In Figure 2 we report the re-

A SIMULATOR OF A MOBILE AD-HOC NETWORK IN A HOSTILE ENVIRONMENT

415

Table 2: Simulation results in the Creation/Listening Scenario.

Parameter AODV DSR DSDV FSR ZRP

Avg. connectivity (%) 79.97/83.27 91.40/89.83 83.84/90.90 94.17/88.01 81.37/94.18

Avg. goodput (kbps) 250.64/315.42 240.26/275.73 206.99/359.25 220.21/361.98 263.05/299.72

Pkt delivery ratio (%) 95.14/94.02 94.13/87.63 96.07/96.63 96.32/96.67 95.22/95.27

Avg delay (ms) 231.2/190.3 350/271 162.7/162.1 169.7/166.8 165.2/161.7

Interc. packets (%) 2.95/12.83 1.12/11.24 7.05/17.01 5.72/13.23 4.57/13.64

Fake packets (%) 37.54/0.94 15.09/0.82 43.25/0.67 22.69/0.43 14.85/1.29

sults. Next we comment the results separately for

each metric.

The goodput (expressed in kbps) is the amount of

useful data received in the time unit, excluding rout-

ing information and duplicates. As we can expect,

the goodput is worse in the Creation Scenario than

in the Listening Scenario (even with a 42% reduction

in goodput for DSDV), while DSR e ZRP have simi-

lar performance under the two attack scenarios, with

a goodput reduced by about 12.5%. Reactive proto-

cols have better goodput values than proactive proto-

cols in the Creation Scenario: the routing informa-

tion in reactive protocols becomes quickly obsolete,

and nodes get new information as soon as they is-

sue new requests, while in proactive protocols nodes

trust their routing tables until the next information ex-

change. The performance of the ZRP protocol is not

bad, probably thanks to its hybrid nature.

The delay (expressed in milliseconds) is the time

between the sending of a message and its complete

reception by its recipient. We see that the average de-

lay is generally larger in the Creation Scenario than in

the Listening case. However, the growth is apprecia-

ble in AODV and DSR (nearly 30%), but negligible

for the other three protocols. It addition, we note that

proactive protocols have an average delay lower than

reactive protocols (penalized by the Route Discovery

mechanism), with performances of DSDV a little bet-

ter than FSR and ZRP.

The percentage of intercepted packets is the ra-

tio of all intercepted packets received by malicious

nodes, and the number of packets not tagged as fake.

This metric represents the probability that the attacker

gets routing information. It is strongly inﬂuenced by

the routing protocol, in particular by the mechanism

used by a node to share its own routing tables. Proac-

tive protocols send their routing tables at regular in-

tervals, and continuosly provide the attacker with up-

to-date infos on the network status. That’s the rea-

son for the bad performance of DSDV. FSR and ZRP

seem have a similar behavior in the number of packets

sent to the attacker,with FSR slightly better than ZRP,

probably because the amount of shared data in FSR is

inversely proportional to the distance of the recipient.

The percentage of fake packets is the ratio of all

fake packets received by friendly nodes, and the num-

ber of packets received by friendly nodes (excluding

packets received by malicious nodes). This metric

represent the probability that a friendly node receives

spoofed or corrupted packets. ZRP seems to have the

best perfomances: a malicious node, that does not

want to be detected and decides to show a routing be-

havior like a friendly node, will be limited in sending

fake packets by the hop radius of ZRP.

8 CONCLUSIONS

We have developed a simulator for MANETs, based

on NS2, and have evaluated its performances in a hos-

tile enviroment through two scenarios that included

attackers with different capabilities.

The results show that DSR performs badly in sce-

narios with large trafﬁc, with DSDV being the second

worst. DSDV exhibits a large percentage of fake and

intercepted) packets, while FSR and ZRP have the

best security performance. For the reference scenar-

ios considered here, the hybrid protocol ZRP seems to

be a good choice, though different values of the radius

can led to very different results.

REFERENCES

Abdelhafez, M., Riley, G., Cole, R. G., and Phamdo, N.

(2007). Modeling and Simulations of TCP MANET

Worms. In Proceedings of the 21st International

Workshop on Principles of Advanced and Distributed

Simulation, PADS ’07, pages 123–130.

Broch, J., Maltz, D. A., Johnson, D. B., Hu, Y.-C., and

Jetcheva, J. G. (1998). A performance comparison of

multi-hop wireless ad hoc network routing protocols.

In MOBICOM, pages 85–97.

Camp, T., Boleng, J., and Davies, V. (2002). A survey of

mobility models for ad hoc network research. Wireless

Communications and Mobile Computing, 2(5):483–

502.

Cole, R., Phamdo, N., Rajab, M., and Terzis, A. (2005).

Requirements on worm mitigation technologies in

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

416

MANETS. In Principles of Advanced and Distributed

Simulation, 2005. PADS 2005. Workshop on, pages

207 – 214.

Crow, B., Widjaja, I., Kim, L., and Sakai, P. (1997). Ieee

802.11 wireless local area networks. Communications

Magazine, IEEE, 35(9):116 –126.

Djenouri, D., Khelladi, L., and Badache, A. (2005). A sur-

vey of security issues in mobile ad hoc and sensor net-

works. Communications Surveys & Tutorials, IEEE,

7(4):2–28.

Hong, X., Gerla, M., Pei, G., and Chiang, C.-C. (1999). A

group mobility model for ad hoc wireless networks. In

Proceedings of the 2nd ACM international workshop

on Modeling, analysis and simulation of wireless and

mobile systems, MSWiM ’99, pages 53–60.

Issariyakul, T. and Hossain, E. (2009). Introduction to Net-

work Simulator NS2. Springer.

Karlof, C. and Wagner, D. (2003). Secure routing in wire-

less sensor networks: Attacks and countermeasures.

Ad hoc networks, 1(2-3):293–315.

Kurkowski, S., Camp, T., and Colagrosso, M. (2005a). A vi-

sualization and animation tool for NS-2 wireless sim-

ulations: iNSpect. In Proceedings of the 13th An-

nual Meeting of the IEEE International Symposium on

Modeling, Analysis, and Simulation of Computer and

Telecommunication Systems (MASCOTS), pages 503–

506.

Kurkowski, S., Camp, T., and Colagrosso, M. (2005b).

MANET simulation studies: the incredibles. Mobile

Computing and Communications Review, 9(4):50–61.

Parsons, J. (2000). The Mobile Radio Propagation Channel.

J. Wiley.

A SIMULATOR OF A MOBILE AD-HOC NETWORK IN A HOSTILE ENVIRONMENT

417
