ARTIFICIAL IMMUNITY-BASED CORRELATION SYSTEM

Guillermo Suarez-Tangil, Esther Palomar, Sergio Pastrana and Arturo Ribagorda

Department of Computer Science, University Carlos III of Madrid, Avda. Universidad 30, 28911 Madrid, Spain

Keywords:

Artiﬁcial immune system, Event correlation, Security event information management system, Intelligent rule

generation, Adaptive system.

Abstract:

Security information event management (SIEM) technologies focus on developing effective methods and tools

to assist network administrators during the whole network security management. Though there is a vast

number of novel initiatives and contributions in providing adaptiveness and intelligence in this research ﬁeld,

there are still many problems that need be solved. In particular, event correlation are currently emerging as

an essential ﬁeld to be optimized specially due to the widespread adoption of botnets to launch attacks. This

position paper explores the biological immune system’s characteristics of learning and memory to solve the

semi-automatic generation of event correlation rules by applying Artiﬁcial Immune Systems (AISs).

1 PROBLEM STATEMENT

Nowadays, network security management has to deal

with two main critical tasks: On the one hand, dif-

ferent security data sources (known as sensors), e.g.

intrusion detection systems (IDSs), ﬁrewalls, server

logs, to name a few produce high amounts of het-

erogeneous information, generally difﬁcult to under-

stand. Moreover, attackers may use IDS-stimulators

to disguise their intrusions by hiding attacks into an

alert storm (Mutz et al., 2003). On the other hand,

the continuous evolution of attacks, specially recent

distributed, multi–step attacks, poses a challenge to

the network infrastructure as these attacks may be not

noticed when they are inspected separately.

To encounter these challenges, cooperation among

these sensors becomes essential for the former, whilst

event correlation appears as the best palliative for

the latter. Security Information and Event Manage-

ment (SIEM) systems, as a holistic solution, help to

gather, organize and correlate security network infor-

mation as well as reducing the amount of time spent

by security administrators. A typical SIEM architec-

ture facilitates experts to supervise the security status

of an organization. However, current SIEM systems

lack of an efﬁcient mechanism to generate correlation

rules and cannot adaptively predict novel attacks ei-

ther (Anuar et al., 2010).

By providing an intelligent adaptability to the cor-

relation engine, we envision that time spent on de-

tecting zero-day attacks can be signiﬁcantly reduced.

For instance, various works focused on the applica-

tion of Artiﬁcial Intelligence (AI) techniques to par-

tially optimize IDSs. For example, neural networks

(NN), widely used for optimizing classiﬁcation prob-

lems (Ripley, 1994) have been also applied to im-

prove misuse ﬁltering and malicious pattern recogni-

tion (Lippmann and Cunningham, 2000). Moreover,

Evolutionary Computation is especially suitable for

those problems in which a cost–effort trade–off exists

such as event correlation (Suarez-Tangil et al., 2009).

2 POSITION STATEMENT

As very promising solutions which are emerging by

some sort of biological inspiration, Artiﬁcial Immune

Systems

(AISs) have been proven to contribute im-

portant beneﬁts to different areas within computer se-

curity, since efﬁcient abstractions of processes were

found in the mid 1980s by (Farmer et al., 1986). In

particular, several works focus on analyzing how im-

munological concepts may be applied to intrusion de-

tection (Kim et al., 2007), pattern recognition and

The immune network theory was ﬁrst introduced by Jerne

(Jerne, 1974) as a way to explain the memory and learning capa-

bilities exhibited by the immune system. This theory has inspired a

subﬁeld of optimization algorithms as many other ﬁelds unrelated

to biological immunology.

422

Suarez-Tangil G., Palomar E., Pastrana S. and Ribagorda A..

ARTIFICIAL IMMUNITY-BASED CORRELATION SYSTEM.

DOI: 10.5220/0003610604220425

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 422-425

ISBN: 978-989-8425-71-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

classiﬁcation (Carter, 2000), to name a few. Perhaps

the main advantage of AISs is that not only super-

vised learning is possible (Watkins et al., 2004), but

also unsupervised (De Castro and Timmis, 2002) in-

deed. In this position paper, we extend the typical

architecture of a SIEM system to efﬁciently introduce

an adaptive learning framework upon the correlation

process, considering the following statements:

• Generally, the existing SIEM tools present limita-

tions and contextual constrains. In addition, cur-

rent SIEM frameworks deploy their own architec-

ture. We propose a global framework which inte-

grates the most promising research advances and

formalizes a uniﬁed architecture design towards

an intelligent correlation system.

• The strategy of combining intelligence and self–

adaptation to optimize different types of comput-

ing services is emerging as a robust and efﬁcient

approach. Therefore, AIS-based SIEM systems

will facilitate an adaptive correlation of novel

multi–step attacks.

• Authors in (Hofmeyr and Forrest, 2000) propose

LISYS, a framework for applying AIS to network

security. Our approach presents two main differ-

ences. On the one hand, LISYS applies an AIS

architecture to Network Intrusion Detection Sys-

tem (NIDS) whereas our application domain con-

siders a centralized SIEM. Speciﬁcally, our ap-

proach could receive inputs from LISYS as a sen-

sor to correlate complex multi-step attacks. On

the other hand, our approach adds honeynets in or-

der to minimize human intervention as far as pos-

sible. To the best of our knowledge, the AIS has

not been relevant to the context of security event

correlation by applying SIEM.

The rest of the paper is organized as follows.

Section 3 describes the foundations of our work–in–

progress, establishing the AIS entities needed to in-

troduce an adaptive learning component into a tradi-

tional event correlation engine. Finally, in Section 4

we establish the main conclusions as well as the im-

mediate future work.

3 AN ARTIFICIALLY IMMUNE

SIEM ARCHITECTURE

We envision the construction of a SIEM system using

an artiﬁcial immune network model as a three-layer

architecture (Fig. 1) comprising the following build-

ing blocks:

• The physical barrier offers a physical protection

PHYSICAL

BARRIER

(IPS)

INNATE

IMMUNE

SYSTEM

(IDS)

ADAPTIVE IMMUNE SYSTEM (ILS)

IMMUNOLOGICAL MEMORY

PATTERN

RECOGNITION

RECEPTOR

Internet

DMZ Traffic

Darknet

Traffic

Patterns

Incoming

Traffic

Figure 1: An event correlation framework based on AIS.

against pathogens attacking the system as some

sort of prevention layer.

• The Innate Immune System (present at birth in hu-

mans) deploysimmune agents which are in charge

of protecting the system against invaders as well

as providing pattern recognition mechanisms.

• The Adaptive Immune System deﬁnes the logic

to learn, adapt and memorize antigens and secrete

the appropriate anti-body (i.e. correlation rules).

The complex adaptive system is the main focus of

interest here that involves diverse and multiple inter-

connected elements, which tend to provide capacity

to change and learn from experience. Several works

have partially applied AIS to speciﬁc domains. An in-

teresting approach for mapping the immunity entities

and process on to the development of computational

models is presented in (Dasgupta, 2006). In the fol-

lowing sections we further elaborate on the essential

concepts which leads to an AIS-based implementa-

tion.

3.1 Application Domain

We should consider the event correlation process from

two different viewpoints:

Deﬁnition 3.1 (Automatic Supervision). The process

to extract the knowledge related to a novel attack

without human intervention. Each extraction will

form temporal correlation rules.

Deﬁnition 3.2 (Expert Supervision). An expert

guides the process to extract knowledge related to a

novel attack and forms a permanent correlation rule.

For the sake of completeness, we include the fol-

lowing basic concepts:

Deﬁnition 3.3 (Event Fingerprint). Set of attributes

which identiﬁes certain event’s properties. The speci-

ﬁcation of these attrib. depends on the SIEM system.

Event correlation aims at obtaining the ﬁngerprint

of a series of aggregated events. Thus,

ARTIFICIAL IMMUNITY-BASED CORRELATION SYSTEM

423

Deﬁnition 3.4 (Event Aggregation). Event aggrega-

tion gathers together a collection of events which ful-

ﬁll particular premises.

Deﬁnition 3.5 (Event Correlation). Probabilistically

deﬁne the relationship between a set of aggregated

events.

And consequently,

Deﬁnition 3.6 (Correlation Fingerprint). Represents

a correlation produced as a response of the successful

relationship between a set of attributes.

We position that intruder’s actions swiftly evolve

to become more effective, as well as more sophisti-

cated generations of malware, i.e. polymorphic mal-

ware. In this regard, malware-analysis tools inte-

grated along with an adaptive learning system will in-

tegrate our architecture to automatically generate spe-

ciﬁc correlation-ﬁngerprints’.

Deﬁnition 3.7 (Darknet). Also known as network

telescope, is a system used to observe different large-

scale events by monitoring unused network addresses.

Therefore, we can generate fake interactions with

the intruder by emulating common exposed services.

We assume here that despite aforementioned intrusion

evasions, user’s habits and used services will tend to

behavealike. Thus, evolvedmalware will still interact

with our emulated services. Honeynet projects can be

used in this regard (Spitzner, 2003).

3.2 Representation

A key principle within an AIS is now introduced,

namely the proteins.

Deﬁnition 3.8 (Proteins). Artiﬁcial immune theory

deﬁnes the concept of secreting proteins as the mech-

anism used to detect non–self pathogens –malicious

cells– which in turn are destroyed by antibodies. Pro-

teins constitute the parameters to monitor and then

distinguish self and non-self behaviors.

Now, two approaches for representing the appli-

cation domain are possible: (i) when nodes represent

the proteins role, and/or (ii) when events act as the

subject to monitor. The former focuses on learning

about the nodes which exhibit anomalousbehavior. In

this context, honest and misbehaving nodes embody

self and non-self cells respectively. A major draw-

back of this approach is that compromised nodes gen-

erally produce both types of trafﬁc, and therefore this

could cause serious problems of false classiﬁcation.

However, the alternative seems promising as identify-

ing the events related to a certain attack present more

similarities with traditional SIEM procedures.

We formulate the bases of the artiﬁcial immune

representation (see Fig. 2) as follows. The examined

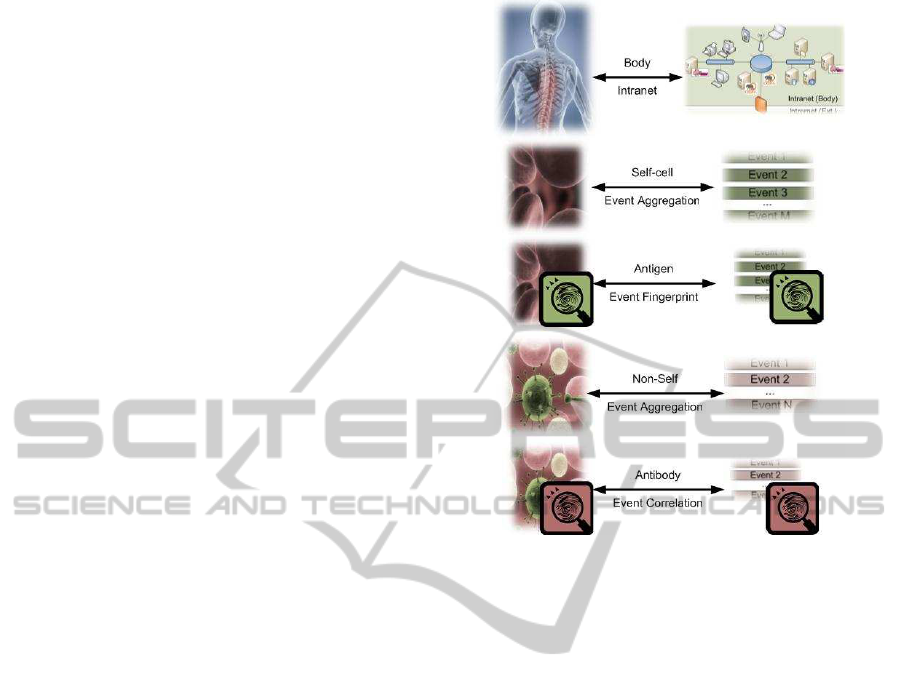

Figure 2: Mapping between immune and correlation enti-

ties.

network depicts the biological body and the events

produced on the AIS will be represented as proteins.

Events can be classiﬁed as either self or non-self

events. Thus, authorized activity will be classiﬁed

as self by sensors and the opposite is cataloged as

non–self. Additionally, on the one hand, an antigen

is a series of events that matches an event ﬁngerprint.

And on the other hand the antibody is the pattern (or

rule) responsible of identifying a speciﬁc sequence of

events. Therefore,

Claim 3.1 (Proteins). Proteins are the network ac-

tivity monitored by sensors connecting to a central

SIEM. Proteins identify correlation ﬁngerprints.

3.3 Immune Algorithm

In this section, we position the artiﬁcial immune algo-

rithm as a three-phase protocol which combines tradi-

tional IDS concepts, data mining, honeynets and, just

when strictly needed, the expert supervision, as fol-

lows:

I Initial Innate Immune Deﬁnition. In this

phase, the expert must deﬁne a range of val-

ues for the collection of correlation ﬁngerprints.

These values will act as discriminators for self

cells. How to implement the appropriate value

on the corresponding correlation ﬁngerprint is

SECRYPT 2011 - International Conference on Security and Cryptography

424

critical. To this regard, existing repositories for

known attacks and their associated correlation

rules may be useful. Generally, this repository

is named Gene Library and is essential for the

process below.

II Adaptive Algorithm. The adaptive algorithm

produces a number of correlation ﬁngerprints

that will be used to learn new correlation rules.

The basis of this algorithm relies on the AIS

principles –random adaptations will produce new

patterns by applying (i) antibody secretion, (ii)

negative selection, (iii) pathogen match, and (iv)

clonal selection based on afﬁnity mutation.

III Adaptive Immunological Memory Consolida-

tion. New correlation ﬁngerprints are consoli-

dated based on the following knowledge extrac-

tion: using the expertise of the administrator and

automation techniques. On the one hand, the

expert has to manually inspect and validate the

correlation rules in terms of their accuracy. On

the other hand, honeynets seem the best candi-

date to assist the automated consolidation pro-

cess. Speciﬁcally, generated ﬁngerprints will be

validated using the non-self activity reported on

the darknet at the beginning. If any of the ﬁnger-

prints matches then the immunological memory

(associated to each correlation) will be increased.

4 CONCLUSIONS

In this position paper, we have discussed the appli-

cation of AIS techniques to optimize current SIEM

systems. To this regard, we propose an adaptive im-

mune correlation system to be included into a typi-

cal SIEM architecture. Our global objective is to efﬁ-

ciently generate correlation rules and adaptively pre-

dict novel multi-step attacks. Our proposal comprises

various strategies already used in intrusion detection,

data mining, honeynetsand, just when strictly needed,

the expert supervision. Our hope is that this position

paper will, directly or indirectly, inspire new direc-

tions on applying intelligence to security event corre-

lation.

REFERENCES

Anuar, N., Papadaki, M., Furnell, S., and Clarke, N. (2010).

An investigation and survey of response options for

Intrusion Response Systems. In Information Security

for South Africa (ISSA), 2010, pages 1–8. IEEE.

Carter, J. H. (2000). The immune system as a model for

pattern recognition and classiﬁcation. Journal of the

American Medical Informatics Association: JAMIA,

7(1):28–41.

Dasgupta, D. (2006). Advances in ais. IEEE Comp. Intelli-

gent Magazine, 1(4):40–49.

De Castro, L. and Timmis, J. (2002). Artiﬁcial immune

systems: a new computational intelligence approach.

Springer Verlag.

Farmer, J. D., Packard, N. H., and Perelson, A. S. (1986).

The immune system, adaptation, and machine learn-

ing. Physica D: Nonlinear Phen., 22(1-3):187–204.

Hofmeyr, S. A. and Forrest, S. (2000). Architecture for an

artiﬁcial immune system. Evolutionary computation,

8(4):443–73.

Jerne, N. K. (1974). Towards a network theory of the im-

mune system. Ann. Immunol., 125C:373–389.

Kim, J., Bentley, P., Aickelin, U., Greensmith, J., Tedesco,

G., and Twycross, J. (2007). Immune system ap-

proaches to intrusion detection–a review. Natural

computing, 6(4):413–466.

Lippmann, R. P. and Cunningham, R. K. (2000). Improv-

ing intrusion detection performance using keyword

selection and neural networks. Computer Networks,

34(4):597–603. Recent Advances in IDS.

Mutz, D., Vigna, G., and Kemmerer, R. (2003). An Expe-

rience Developing an IDS Stimulator for the Black-

Box Testing of Network Intrusion Detection Systems.

In Proc. of the 2003 Computer Security Applications

Conf., Las Vegas, Nevada.

Ripley, B. (1994). Neural networks and related methods for

classiﬁcation. Journal of the Royal Statistical Society,

56(3):409–456.

Spitzner, L. (2003). The honeynet project: Trapping the

hackers. IEEE Security and Privacy, pages 15–23.

Suarez-Tangil, G., Palomar, E., Fuentes, J. D., Blasco, J.,

and Ribagorda, A. (2009). Automatic rule generation

based on genetic programming for event correlation.

In Computational Intelligence in Security for Infor-

mation, Advances in Soft Computing, pages 127–134,

Burgos, Spain. Heidelberg, Springer Berlin.

Watkins, A., Timmis, J., and Boggess, L. (2004). Artiﬁcial

Immune Recognition System: An Immune-Inspired

Supervised Learning Algorithm. Genetic Program-

ming and Evolvable Machines, 5(3):291–317.

ARTIFICIAL IMMUNITY-BASED CORRELATION SYSTEM

425
