IMPROVING E-HEALTH SECURITY THROUGH TRUST

NEGOTIATION

Mahmoud Elkhodr, Seyed Shahrestani and Hon Cheung

School of Computing and Mathematics, University of Western Sydney

Locked Bag 1797, Penrith South, DC NSW 2751, Australia

Keywords: Trust Negotiation, e-health Security, Remote Health Monitoring, Mobile Application, TLS Protocol.

Abstract: To achieve higher levels of efficiency and to improve the quality of care, remote monitoring systems for

elderly offer interesting solutions. The data collected by the monitoring system are transmitted to the

healthcare provider and stored on the healthcare provider’s server in the form of patients’ Electronic Health

Records (EHR). It is important to secure the transmission of the patient’s EHR between the healthcare

provider server and the mobile device being used by the healthcare professional, as their communication is

normally via unsecure networks, such as the Internet. The approaches proposed in this study ensure that

patients’ EHRs are only disclosed to the authorized healthcare professionals, on the registered devices and

at the appropriate locations. To achieve these security requirements, building on the strengths of Transport

Layer Security (TLS) protocol, a trust negotiation approach is proposed. For verification purposes, a mobile

application is also constructed. The experimental works confirm that by applying the proposed approach,

significant improvements in the security of the remote health monitoring systems can be achieved.

1 INTRODUCTION

Elderly remote monitoring systems offer interesting

solutions and improve the quality of care. A remote

health monitoring system provides platform

assistance to the elderly in their homes or other

monitored locations. Monitoring patients can help

with early detection of problems and can increase

their chances of survival. It will also help healthcare

providers to react before a serious medical

condition, such as a heart attack or diabetic

emergency occurs (Kim et al., 2010). There are other

associated benefits from the use of remote health

monitoring systems specifically for people who live

in remote locations or are too ill to visit hospitals or

medical offices. Although, a remote monitoring

system is an opportunity for improving the

healthcare sector; there are a number of limitations

involved. In order for this technology to become

feasible, challenges exist. These challenges relate to

the deployment of this technology and to issues,

such as resource constraints, user mobility, cost,

heterogeneity of devices, scalability, security and

privacy. The proposed approaches in this study

address the security and privacy issues generated

from the use of remote health monitoring systems.

They ensure that patients’ EHRs are only disclosed

to the authorized healthcare professionals, on the

registered devices and at the appropriate locations.

Also, they ensure the confidentiality of information

by securing its transmission, using Transport Layer

Security (TLS) as the underlying protocol. Building

on the strengths of this protocol, a trust negotiation

approach is developed in section 2. In section 3, the

proposed approaches are developed in a mobile

application which demonstrates the achievement of

the identified security requirements. Trust

negotiation is the term used for exchanging the

digital credentials between a client and server for the

purpose of authenticating healthcare professionals to

the server in remote health monitoring systems. It is

a process of establishing trust between two

negotiating entities based on their credentials. Trust

negotiation can be based on different approaches:

simple, trial informed and advanced (Seamons,

2004). In e-health security, trust negotiation has

been previously addressed. The purpose behind its

usage is to improve the scalability of the healthcare

system, by enhancing the authentication and access

control mechanisms (Vawdrey et al., 2003). In

another research, trust negotiation method is used to

establish a secure session between strangers (Asokan

172

Elkhodr M., Shahrestani S. and Cheung H..

IMPROVING E-HEALTH SECURITY THROUGH TRUST NEGOTIATION .

DOI: 10.5220/0003613701720177

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 172-177

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

and Tarkkala, 2005). Users, in this study, enter an ad

hoc network and provide authentication through the

use of a digital certificate; which authenticates them

and their access devices. However, this model is

only considered suitable for a small scope

authentication system. Other studies, introduced

Dynamic Trust Negotiations (DTN) which aims at

establishing trust between strangers (Ajayi et al.,

2007). This trust is achieved through the use of

intermediate trusted entities. Iterative exchange of

credentials method is also used to establish a mutual

trust between the negotiating parties (Han et al.,

2009). This process is referred as automated trust

negotiation. Automated trust negotiation is based on

what an entity has and does not rely only on the

person’s identity.

2 TRUST NEGOTIATION

For creating secure sessions, the TLS protocol is

used. TLS renders security for communication

covering networks, typically the Internet. It

enciphers the sections of network connections at the

application layer in order to guarantee end-to-end

communication at the transport layer. The TLS

Protocol can be extended to include trust

negotiation; which enhances the security of this

protocol. The extension process makes access

control decisions based on attributes rather than on

identities. This presents a solution for distributed

environments, where identity based solutions are not

enough. A person’s attributes can be in the form of a

job title, annual salary, citizenship or others; while,

server attributes can include privacy policy, role,

membership and others. To enhance the security of

remote monitoring systems, Ubiquitous Health Trust

Protocol (UHTP) is presented. This protocol

combines trust negotiation with the TLS version 1.0

protocol. UHTP establishes a secure session, using

the TLS handshake, between the healthcare

professional’s mobile device and the healthcare

provider’s server. Building on the strengths of the

TLS protocol, a trust negotiation approach is

developed. This approach authenticates the person

receiving the care, the person administering it, the

mobile device used in accessing the health

information, as well as the location where the

healthcare is administered. This ensures that

patients’ EHRs are only disclosed to the authorized

healthcare professionals, on the registered devices

and at the appropriate locations. These are the three

levels of verification performed in this approach as

shown in figure 1.

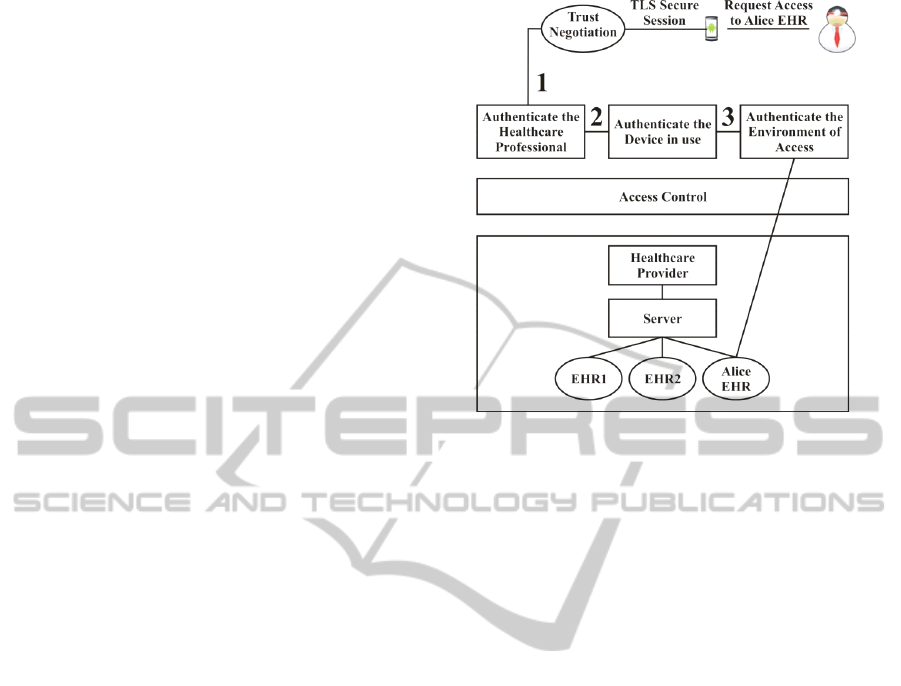

Figure 1: The Three Levels of Trust Negotiation.

2.1 Authenticating the Healthcare

Professional

This level aims to verify the healthcare professional

to the healthcare provider server. In this process both

negotiators are assumed to know the requirements

necessary for requesting/granting access to patients’

EHRs. Therefore, the healthcare provider’s server

will be expecting to receive the username and

password of the healthcare professional when

requesting access to EHR, these are the steps 1 to 4

shown in figure 2. The server must also be

configured to receive and support this request.

Digital credentials are the attributes exchanged

between the client and the server for the purpose of

verification. It encapsulates the credentials being

exchanged; in this case the username and password.

In UHTP, providing the identity of the healthcare

professional is not enough to be granted access to

EHR, access to EHR is only granted after the

completion of the three levels of authentication and

after verifying access control rights applied on the

server. Figure 2 details the process of authenticating

the healthcare professional to the server.

2.2 The Device Authentication

In this level, trust negotiation proceeds into

authenticating the mobile device used by the health-

care professional. The process of authenticating the

device in use runs silently in the background without

the user interference. Authenticating the device in

use requires the exchange of digital credentials

IMPROVING E-HEALTH SECURITY THROUGH TRUST NEGOTIATION

173

Trust Negotiation- Start

Start TLS Session:

1- Server  Client: Finish (encrypted)

Start trust negotiation Level 1- Healthcare Professional Authentication

2- Client  Server: ClientHello Begin trust negotiation process

3- Server  Client: SeverHello

4- Digital Credentials

4.1 Client 

erver: Digital Credentials (Username and Password). Move to

Step 5

4.2 Nothing sent from client:

Server  Client: Session expires. End trust Negotiation

UHTP Server Verification:

5- Server: Username check

5.1 Username found then proceeds to Step 6

5.2 Else: Server  Client: Unauthorized login; move to Step 7

6- Server: Password check

6.1 Password corresponds to username then proceeds to Step 8

6.2 Else: Server  Client: Unauthorized login; move to Step 7

End of Server Verification

7- Server: Unauthorized login

7.1 Server  Client: Halt()

7.2 Server  Client: move back to Step 3

8- Server: Proceed1(). Start Level 2 of trust Negotiation

End Level 1

Figure 2: Level 1 of Trust Negotiation

related to the device itself this time. The digital

credentials can be in the form of attributes related to

the device. They allow a particular device to be

identified among others. The International Mobile

Equipment Identity (IMIE) number is an example of

a digital credential that can be used to identify one

mobile device from another. IMIE is a unique

number used for identifying mobile devices. The

same requirements used for authenticating the

healthcare professional also apply in authenticating

the device in use. The server must be configured to

request these digital credentials and must know the

list of authorized mobile devices. This will allow the

server to compare between the received digital

credentials and the pre-registered list of digital

credentials stored in the server. Analyzing and

comparing these credentials enables the server to

make a decision of whether or not to authenticate the

device. This process of authentication is given in

figure 3. In Step 3 the client send the device in use’s

digital credentials which are the Mobile IMIE and

the SIM serial numbers to the server for the purpose

of authenticating the device in use.

2.3 The Environment of Access

Verification

The environment of access is the location of the

healthcare professional at the time where access to

EHR was originally initiated. Verifying the

environment of access is the last step in the trust

negotiation process which needs to be achieved. The

successful completion of the trust negotiation

approach guarantees that patients’ EHR were trusted

to the appropriate device, at the right place and

received by the authorized person. Yet,

authenticating all these players is not sufficient for

the release of patients’ EHR. There is still a need to

meet the rights and policies enforced on the server

for the purpose of controlling access to EHR.

Therefore, in verifying the environment of access,

we check if a particular healthcare professional is

present at the monitored person’s location. The

assumption is that this healthcare professional is

located at the monitored person’s location

performing a medical examination or other

healthcare activities. Thus, access to the monitored

patient’s EHR is required by this healthcare

professional. To achieve this verification, two

requirements need to be met. First, we need to get

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

174

Trust Negotiation

Start Level 2

evice in use (DU) authentication. Still

within the current TLS session

1- Server  Client: Request DU Digital Credentials

2- Digital Credentials

2.1 Client  Server: Digital credentials (IMIE and others). Move to Step 3

2.2 (Nothing sent from client)

Server  Client: Session expires. End trust Negotiation

UHTP Server Verification:

3- Server: DU Digital Credential check

3.1 Server: CheckCredential(). If it returns “True”; moves to Step 5

3.2 Else: Server  Client: Unauthorized login; proceeds to Step 4

End of Server Verification

4- Server: Unauthorized login

4.1 Server  Client: Halt()

Server: Proceed 2(). Start Level 3 of trust negotiation.

Figure 3: Level 2 of Trust Negotiation.

Figure 4: Level 3 of Trust Negotiation.

the location where access to EHR has been initiated.

Second, we need to check if the collected location

corresponds to the monitored person’s pre-registered

address on the server. Hence, the monitored person’s

location must be known to the server prior to the

deployment of the remote monitoring system, as

well. This process of verification is achieved

through the use of a “Match Location (ML)”

function illustrated in Figure 4.

The algorithm for level 3 of UHTP trust

negotiation is given in figure 5. For a given location,

the healthcare professional can only access the EHR

of the monitored persons who are monitored at this

particular location. These are the Steps 1, 2, 3 and 4

from the algorithm shown in figure 5. The Match

Location (ML) function, through Steps 4 and 5,

returns true if the location of the healthcare

professional, sent earlier in Step 2, matches or falls

IMPROVING E-HEALTH SECURITY THROUGH TRUST NEGOTIATION

175

Trust Negotiation- Start- Still within the current TLS session

Proceed2(): Server: Start Level 3

Start trust negotiation level 3- Environment of Access authentication

1- Server  Client: Request the environment of access Digital Credentials

2- Digital Credentials

2.1 Client  Server: Digital credentials (GPS location). Move to Step 3

2.2 Nothing sent from Client:

Server  Client: Session expires. End trust Negotiation

3- Request access to a particular EHR:

3.1 Client  Server: request access to the EHR of a particular monitored

person. Move to Step 4

3.2 Nothing sent from Client:

Server  Client: Session expires. End trust Negotiation

UHTP Level 3 Server Verification:

4- Match Location function: Server: ML()

4.1 (If True) Server: Move to Step 6.

4.2 (If false) Server: Move to Step 5

5- Server: Unauthorized login

5.1 Server  Client: Halt()

6- Server: RBAC().

6.1 (If True) Server: Assign role, permission. Move to Step 8.

6.2 (If false) Server: Move to Step 7

7- Server: Unauthorized login

7.1 Server  Client: Unauthorized access (No permission to access

resource)

7.2 Server: Move back to Step 3.

8- Server  Client: Done()

Figure 5: Trust Negotiation Level 3 Algorithm.

within the allowed range of the pre-registered

location of the monitored person. In case the

verification of the location fails, the ML function

returns false (Step 4.2) and trust negotiation fails.

Verifying the location of the healthcare professional

is made by verifying the GPS longitude and latitude

parameters of the device in use. The longitude and

latitude are the digital credentials exchanged

between the client and the server. If the function ML

returned true, Level 3 of trust negotiation proceeds

into checking RBAC access rights. RBAC defines

the access rights applied on a particular healthcare

professional and the permission assigned to access a

particular EHR. RBAC works by controlling the

healthcare professionals’ access to EHR based on

their roles and the permission attached. As an

example: after identifying a particular healthcare

professional, the server will be able to identify

whether this healthcare professional is a doctor,

nurse or someone else. Therefore, granting access to

a particular EHR will be based on this process of

identification. These are the Steps 6 and 7 shown in

figure 5.

3 THE EXPERIMENTAL

RESULTS

Ubiquitous Health Trust Protocol (UHTP) was

implemented as part of a mobile application which

runs on the Android operating system, as shown in

Figure 6. The application (the App) is modelled in

terms of a client and server architecture wherein a

client requests information from a server. The server

typically responds with the requested information.

Implementing trust negotiation on the server

required the implementation of a server API. This

API acts as a web service. It has the responsibility of

handling incoming messages from the client and

outgoing messages from the server. This is achieved

by using the HTTP request methods. Therefore, the

API re-uses the messages and the methods already

defined in the HTTP protocol, such as the method

HTTPPost. For instance, this method is used to send

the username and password of the healthcare

professional, the mobile IMIE and the SIM serial

numbers as well as the location parameters (the GPS

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

176

longitude and latitude) to the server. The server API

also has the responsibility of reading and parsing the

client’s message and responding accordingly.

To remotely access the EHR of a particular

monitored person, the healthcare professionals use

the App installed on their Android mobile devices

and enter their usernames and passwords to logon to

the App. Subsequently, the App carries out, in a

transparent manner to the healthcare professional,

the UHTP trust negotiation process; which involves

the three levels of authentication previously

described. It silently performs the authentication

process within a secure session. This guarantees the

encryption of the messages exchanged between the

client and the server. If trust negotiation succeeds

and the healthcare professional has sufficient rights

to access the requested EHR, then access will be

granted. This application was tested to be fully

functional running on an Android mobile device

emulator. It can be installed on a wide range of

mobile devices running Android as an operating

system. It can also operate on wireless connections

and mobile infrastructure. This application has

demonstrated the successful integration of trust

negotiation and the TLS protocol. These

experimental works confirm that by applying the

proposed trust negotiation approach, the expected

analysis results can be achieved. The developed

application is also practical and easy to adopt, as

users are not required to have any additional

knowledge or expertise in the use of the underlying

technologies. The results collected from this

experiment show significant improvements in

overcoming security concerns. The improvements in

the security of the remote monitoring systems are

achieved by providing extra protective features to

the access control and authorization process before

the release of any data over unsecured network.

4 CONCLUSIONS

The approaches proposed in this study ensure that

patients’ EHRs are only disclosed to the authorized

healthcare professional, on the registered device and

at the appropriate locations. They ensure the

confidentiality of information, by securing its

transmission, using Transport Layer Security (TLS)

as the underlying protocol. Building on the strengths

of this protocol, a trust negotiation approach is

developed. This approach authenticates the person

receiving the care, the person administering it, the

mobile device used in accessing the health

information, as well as the location where the

healthcare is administered. However, this study did

not address the security issues arising from the use

of the remote monitoring system on the patient’s

side. Future research needs to take a more holistic

view for elderly health monitoring.

REFERENCES

Ajayi, O., Sinnott, R. & Stell, A. 2007. Formalising

Dynamic Trust Negotiations in Decentralised

Collaborative e-Health Systems. In: Availability,

Reliability and Security, 2007 ARES 2007. The Second

International Conference on, 10-13 April 2007 2007.

3-10.

Asokan, N. & Tarkkala, L. 2005. Issues in initializing

security. In: Signal Processing and Information

Technology, 2005. Proceedings of the Fifth IEEE

International Symposium on, 21-21 Dec. 2005. 460-

465.

Han, R.-F., Wang, H.-X., Wang, Y.-H. & Zuo, K.-L. 2009.

Membership-Based Access Control for Trust

Negotiation in Open Systems. In: Information

Assurance and Security, 2009, IAS '09. Fifth

International Conference on, 18-20 Aug. 2009. 189-

192.

Kim, J., Choi, H.-S., Wang, H., Agoulmine, N., Deerv, M.

J. & Hong, J. W.-K. 2010. POSTECH's U-Health

Smart Home for elderly monitoring and support. In:

World of Wireless Mobile and Multimedia Networks

(WoWMoM), 2010 IEEE International Symposium on

a, 2010. 1-6.

Seamons, K. 2004. TrustBuilder: Automated Trust

Negotiation in Open Systems. 3rd Annual PKI R&D

Workshop. Gaithersburg- Brigham Young University.

Vawdrey, D. K., Sundelin, T. L., Seamons, K. E. &

Knutson, C. D. 2003. Trust negotiation for

authentication and authorization in healthcare

information systems. In: Engineering in Medicine and

Biology Society, 2003. Proceedings of the 25th Annual

International Conference of the IEEE, 17-21 Sept.

2003. 1406-1409 Vol.2

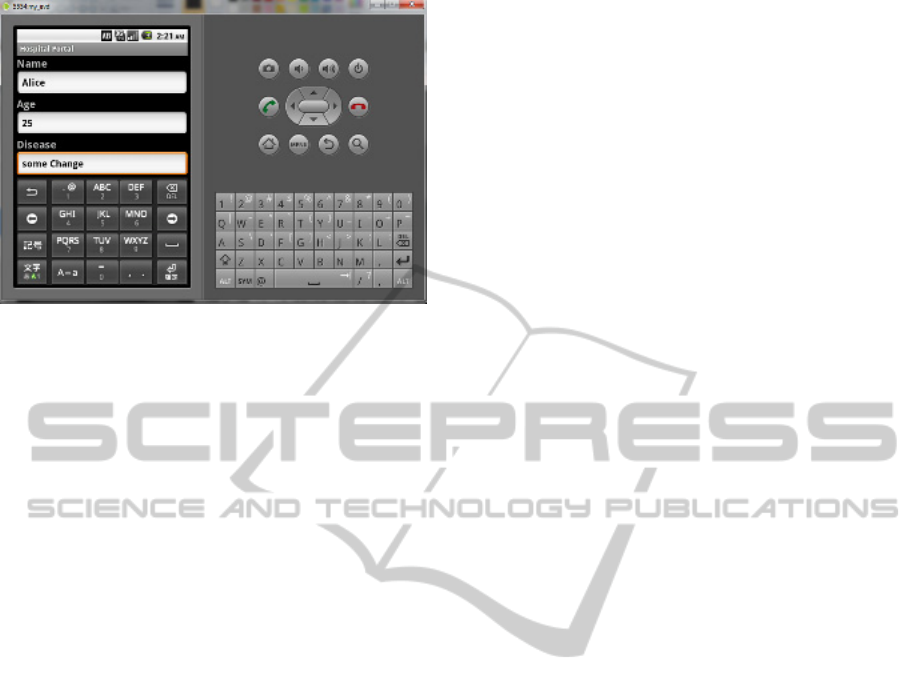

Figure 6: The App’s screen shot.

IMPROVING E-HEALTH SECURITY THROUGH TRUST NEGOTIATION

177
