MODEL DRIVEN DEVELOPMENT OF CONTEXT-AWARE

SERVICES USING PARAMETERIZED TRANSFORMATION

Slimane Hammoudi

ESEO 4, Rue Merlet de la Boulaye, B.P. 9249 009, Angers Cedex 01, France

Keywords: Context Aware Services, Model Driven Development, Service Platform, Parameterized transformation.

Abstract: Context-aware development has been an emergent subject of many research works in ubiquitous computing.

Few of them propose Model Driven Development (MDD) as an approach for context-aware application

development. Many focus on context capture and adaptation by the use of legacy architectures and others

artefacts to bind context with application logic. This work proposes a new approach called COMODE

(Context Aware Model Driven Development) which advocates Model Driven Development to promote

reuse, adaptability and interoperability for context-aware application development on service platforms. In

this paper we focus on the transformation issue and propose a parameterized transformation as a new

approach for model driven development of context-aware services.

1 INTRODUCTION

Traditional computing applications are often static

and inflexible. They are designed to run on a

specific device, offer a number of predetermined

functions to the user and have contextual

dependencies embedded in them. Such application

models are not suited to operate in a pervasive

computing environment, which is characterized by

richness of context, by the mobility of users and

devices (PDAs, smartphones,…) and by the

appearance and disappearance of resources over

time (Vukovic, 2004). Nowadays, where ubiquitous

(pervasive) computing, based on context-awareness,

takes a very important place in daily life, it becomes

necessary to develop context-aware applications

providing adequate services for the users by taking

into account their multiple contexts. The design of

these pervasive applications which must adapt to

different contexts (Dey, 2001) can be developed

using Service Oriented Architecture (SOA). Indeed,

the loose coupling and interoperability inherent to

SOA may provide context-aware services (Grassi,

2007). Based on the SOA paradigm, various

research works for the development of context-

aware services were carried out by proposing

different approaches and methodologies (Kapitsaki,

2009). However, in most of the approaches there is a

lack of generic methodology for formalizing the

development activity for this type of services, thus

making it very cumbersome and time consuming.

Recently, some research proposals have advocated

Model Driven Development (MDD) as an approach

for context-aware services development (DeFarias,

2007). MDD allows the development of services by

separating context information from business logic

in a set of different abstraction model constructions

and by using different transformation techniques.

MDD has many important benefits as concerns

separation, reuse of models and interoperability

(Vale, 2008). In this paper we propose a new

approach called COMODE which advocates Model

Driven Development to promote reuse, adaptability

and interoperability for context-aware application

development on service platforms. We focus our

discussion on the transformation process and we

propose a parameterized transformation technique to

weave context information with business logic at

model level. The remaining of this article is

structured as follows: section 2 presents our

proposed approach COMODE through its

architecture, section 3 presents the transformation

process and Section 4 illustrates our approach

through an example of context-aware mobile

service. Section 5 concludes this paper and

discusses the perspectives.

244

Hammoudi S..

MODEL DRIVEN DEVELOPMENT OF CONTEXT-AWARE SERVICES USING PARAMETERIZED TRANSFORMATION.

DOI: 10.5220/0003618202440248

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 244-248

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 COMODE: PRINCIPLE

AND ARCHITECTURE

Our approach COMODE is based on the principle of

separation of concerns, and emphasizes this

principle during the design of context-aware

application. The different concerns are represented

by independent models. Figure 1 illustrates on the

one hand the principle and the main components of

our approach (a) and on the other hand the

COMODE architecture based on five views (b).

Our five architecture views are inspired from the

standard EDOC-ECA (OMG, 2004) views that in

turn are directly taken from the Reference Model of

Open Distributed Processing RM-ODP (ODP, 1995)

The EDOC-ECA views are: the Enterprise view, the

Computational view, the Information view, the

Engineering view and the Technology view. More

details concerning these views are presented in

(ODP, 1995). We have adapted these views to treat

the different requirements of the development of

distributed context aware applications, in an

independent way i.e., context definition,

representation, adaptation, reasoning and binding.

According to figure 1 (b), the Business, Context and

Composition Views are expressed by PIM models,

i.e., these models abstract platforms details.

The Business View is based on the Enterprise

Viewpoint and it focuses on business logic, roles and

activities. The Context View is based on the

Information Viewpoint and it is responsible for

defining context information, capturing,

representation and interpretation. This View is also

responsible for defining context-aware elements, i.e.,

software elements that realize activities based on

context information (components and operations).

The Composition View establishes the link between

Business logic and Context logic, i.e., how business

statements and contextual activities will be executed

harmoniously to provide relevant results for user

needs. The Adaptation and Service Views are

expressed in PSM models. They are based on the

Engineering Viewpoint, i.e., they specify target

platforms details, middleware technologies,

connectors, protocols and others platform specific

requirements. These views are specific to an abstract

platform but they are not dependable of a particular

platform (Service platform versus J2EE platform).

In this paper we are concerned by the composition

view and we will discuss in the next section a

transformation mechanism to integrate the context

into the business logic of an application using a

model driven approach.

3 TRANSFORMATION

APPROACH

The separation of concerns (business and context) is

emphasized at the model level of our approach

where PIM and context models are defined

independently, and then merged by suitable

transformation techniques. Two types of

transformations are involved in our proposal. The

first type of transformation called Parameterized

transformation allows weaving context information

with business logic at model level. We have

investigated (Vale, 2008); (Monfort, 2009)

(a): Principle and the main components (b) Five architecture views

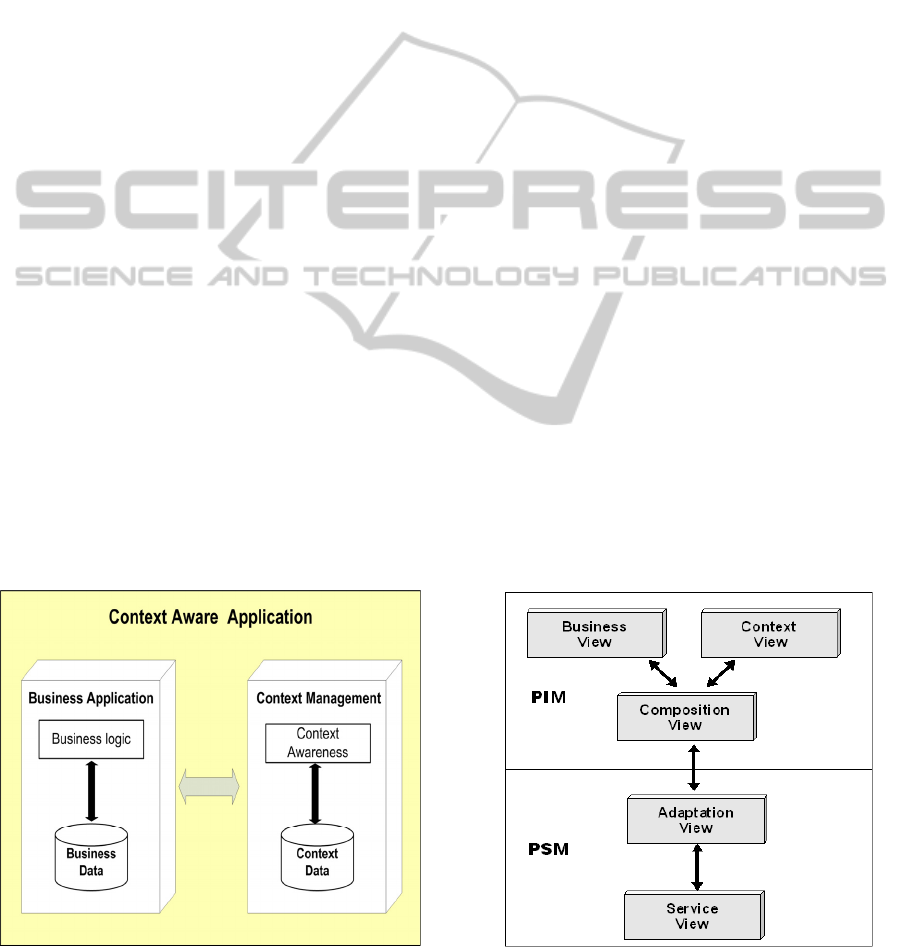

Figure 1: Main components and architecture of a context-aware application in COMODE.

MODEL DRIVEN DEVELOPMENT OF CONTEXT-AWARE SERVICES USING PARAMETERIZED

TRANSFORMATION

245

this type of transformation which is not sufficiently

explored nowadays and for which there is no

standard transformation language. We will discuss

shortly this type of transformation. A CPIM model

(Contextual Platform Independent Model) is then

obtained and fits together business requirements with

contextual data. The second type of transformation is

the traditional transformation technique using a

language such as QVT, which operates in two steps,

mapping specification followed by transformation

definition. Parameterized transformation is based on

parameter paradigm (Frankel, 2003) (Vale, 2009).

The OMG (OMG, 2001) has defined the concept of

parameter as follows:

“A parameter specifies how arguments are passed

into or out of an invocation of a behavioral feature

like an operation. The type and multiplicity of a

parameter restrict what values can be passed, how

many, and whether the values are ordered”.

In (Frankel, 2003), David Frankel mentions the

importance of parameterization in model operations

using the association of tagged values with PIM and

PSM models. Tagging model elements allows the

model language to easily filter out some specific

elements. Transformation by parameter could be used

to improve new functionalities (values, properties,

operations) or to change the application behavior

(activities). In our approach, we are convinced that

parameterized transformation focusing on PIM to

PIM transformations is the fitted solution. The

designer must specify the parameters to be inserted

during the transformation phase. In our proposition

these parameters represent the context and the

transformation process will join this context

information into the business application (PIM) as

illustrated in Figure 2. A PIM model can be

developed without contextual details. User name,

profiles, device type, location can be added as

parameters in transformations. The same PIM can be

re-transformed and refined many times adding,

deleting or updating context information. The

designer has to specify into the application model the

elements that will receive the context information. A

mark, identified by the symbol #, is given for these

elements to be recognized by the transformation

engine. The marked elements represent context-

aware elements, in others words, the model elements

that can be contextualized.

The transformation language must support

parameterization. In our case the parameters can be a

Context Property and/or a Context Data Type. We

use templates to specify which elements in the

application model are potentially context-aware. A

detailed discussion about our approach is presented

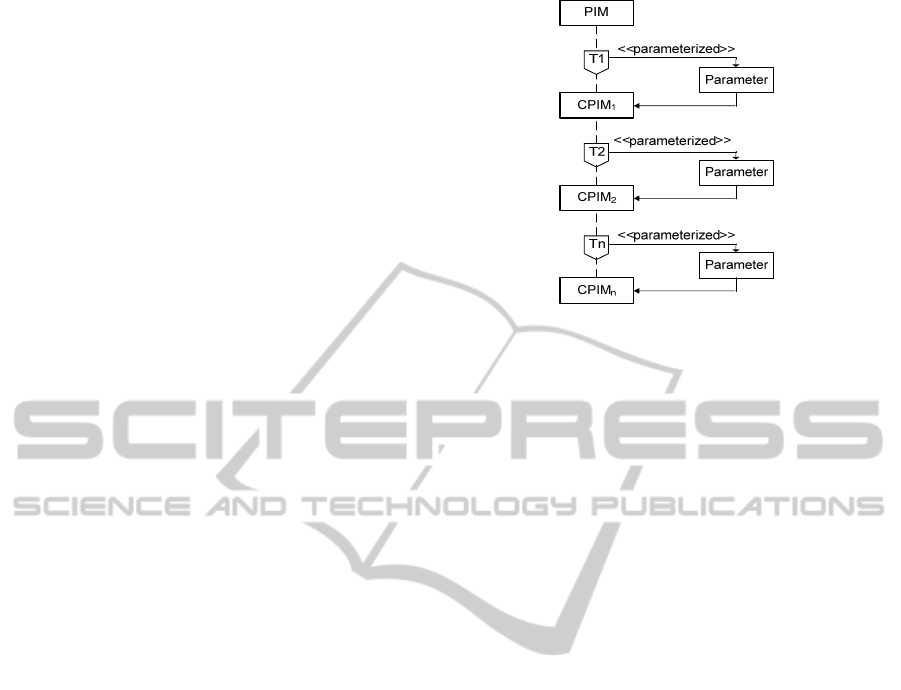

Figure 2: Parameterized Transformation.

in (Monfort, 2011). The transformation engine must

navigate through the PIM model to verify the

parameters and the elements marked and then make

the transformation consisting in an update of

contextual properties in the PIM. Template parameter

(Vale, 09) is an element used to specify how

classifiers, packages and operations can be

parameterized. UML 2.0 states that any model

element can be templateable. For independent

context-aware models we need to identify context

elements that could be parameterable. A

parameterable element is an element that can be

exposed as a formal parameter for a template, or

specified as an actual parameter in the binding of the

TEMPLATE (VALE, 09). A context parameter can be

expressed as a constraint and compared with the

element’s signature in the template parameter. This

operation is named the matching operation.

4 CASE STUDY

In order to illustrate the parameterized transformation

technique allowing the weaving of context

information with business logic, we take an example

of a service provider named FunFinder. Using this

service provider, a mobile user can find attractions in

a city according to two principles:

• The user specify only the wished service

(example: A restaurant)

• The system uses in a transparent manner all the

relevant information (context) in order to give to

the user the most adapted answers.

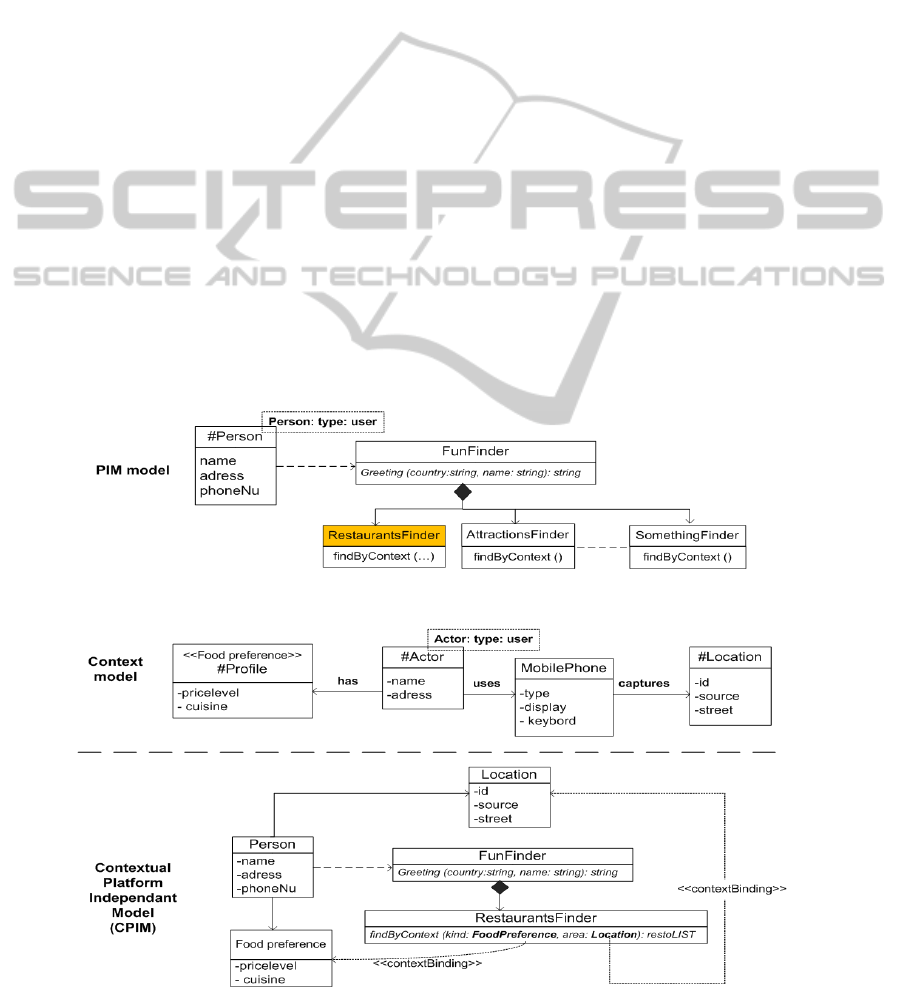

Figure 3 shows an example illustrating the

parameterized transformation technique. Three

models are presented: The business logic model

(PIM) of the service provider FunFinder, the context

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

246

model in the middle, and finally the merging model

CPIM. In this example we are particularly interested

in a restaurant finding for a mobile user.

Initially, in the business model a greeting service

is invoked that greets the user with a welcome

message in his native language. Then, the user

invokes the RestaurantsFinder service to find a

restaurant. The findByContext ( ) method whose

parameters are defined in a CPIM model, allow to

find a restaurant with two contextual parameters: the

user culinary preference as well as its location. The

context model groups the relevant contextual entities

for the RestaurantsFinder service. We thus have an

actor which represents the mobile user with in one

side his profile limited to his culinary preferences,

and in another side, also his mobile phone allowing

giving anytime the user location. In order to

implement the transformation process allowing to

weave the context model and the business logic

model, the designers of the two models should update

respectively the PIM model and the context model

according to figure 9 as follows:

9 In the business logic model, elements that

represent context are marked and if necessary a

template may precise their generic type. In our

example the designer mark the person class as a

main contextual entity and use a template to

precise the generic type of this class: user.

9 In the context model, all the relevant contextual

entities for the RestaurantsFinder service are

marked. Thus, the actor, its culinary profile and

its location are marked. The template linked to

the actor class allows defining the generic type

of this class. The MobilePhone class has not

been marked as it doesn’t impact in the process

of finding a restaurant. It’s the class location

which intervenes in the process of finding a

restaurant.

The parameterized transformation process takes as

input the two models: PIM and context, and execute a

matching operation between these models. The

person class (marked) from a PIM model is aligned

with the class actor from a context model as they

have the same generic type user. The alignment

process produces a CPIM model composed by all the

relevant classes involved in the RestaurantsFinder

service. The parameters of the method

findByContexte (FoodPreference and Location) of

RestaurantsFinder class will be linked to the two

classes FoodPreference and Location, in order to find

restaurants according to the data from these two

classes.

Figure 3: Parameterized transformations for context weaving.

MODEL DRIVEN DEVELOPMENT OF CONTEXT-AWARE SERVICES USING PARAMETERIZED

TRANSFORMATION

247

5 CONCLUSIONS

In this work we have investigated the development of

context-aware services in a mobile environment and

we have proposed an approach called COMODE to

develop these services according to a model driven

approach. Mobile services are traditional services

delivered via mobile devices, such as mobile phones

or PDA's. Mobile services can also be specifically

tailored to the needs of mobile users. A context-

aware mobile service is adapted to the current

situation of the user. The goal of a context-aware

service is to support the user by providing him with

the right service at the right moment. If the user

context changes, the context-aware service should

self-adapt or be adapted to the new context. A

context-aware service is autonomous and tries to

support the user without too much interaction with a

computing device. Several approaches have been

proposed to answer the challenges of mobile and

context-aware service development. However, most

of these approaches merge context information and

context-aware activities with business logic. We

promote context independence by the MDD concerns

separation. Context models are defined

independently of business logic models and context

aware statements are defined in individual

components developed independently of application

ones.

We have proposed a model driven context-aware

approach aiming to support service adaptability. The

main features of our approach are:

• Context modeling allows to provide information

and situation which intervene in the process of

service adaptability.

• Services are unaware of their context and the

context aware mechanisms adapt themselves to

the current environment according to the current

context. Context-dependent behaviors are

extracted into "context services" and weaved with

the base service during execution.

• Using model driven development, context models

are built as independent pieces of application

models and at different abstraction levels then

attached by suitable transformation techniques.

Parameterized transformation techniques allow the

binding of context information to a service at a model

level, and therefore, allows specifying which

behavior should be weaved at execution level.

REFERENCES

De Farias, C. R. G., Pires, L. F., and van Sinderen, M.

(2007). A MOF Metamodel for the Development of

Context-Aware Mobile Applications. In Proceeding of

the 22nd ACM Symposium on Applied Computing

(SAC'07) pages: 947 - 952.

Dey, A. K. (2001). Understanding and Using Context.

Personal and Ubiquitous Computing 5, 1, 4-7.

Frankel S. David. (2003). Model Driven Architecture:

Applying MDA to Enterprise Computing, Wiley

Publishing, Inc.

Vincenzo Grassi and Andrea Sindico, Towards model

driven design of service-based context-aware

applications, ACM (2007), pp. 69-74

Kapitsaki, G. M., Prezerakos, G. N., Tselikas, N. D. et

Venieris, I. S. (2009). Context-aware service

engineering : A survey. Journal of Systems and

Software, 82(8):1285–1297.

Matthias, B., Dustdar, S., and Rosenberg, F. (2007). A

survey on context-aware systems. International

Journal of ad Hoc and ubiquitous Computing, 2007.

Mary, B., and Patrick, B. (2005). Understanding context

before to use it. In 5th International and

Interdisciplinary Conference on Modeling and Using

Context vol. 3554 of Lectures Notes in Artificial

Intelligence, Springer-Verlag, pp. 29-40.

Monfort, V., Hammoudi, S. When Parameterized MDD

Supports Aspect Based SOA , IJEBR 2011,

International Journal of e-Business Research (To

appear).

Monfort, V., Hammoudi, S. ICSOC, Towards Adaptable

SOA: Model Driven Development, Context and

Aspect The 7th International Conference on Service

Oriented Computing, November 23-27 2009,

Stockholm, Sweden.

OMG (Object Management Group). (2001). Model Driven

Architecture (MDA), OMG document number

ormsc/2001-07-01.

Vale, S., Hammoudi, S. Model Driven Development of

Context-aware Service Oriented Architecture. In

PerGrid’08, July 16-18, 2008 - São Paulo – Brazil.

Vale, S., Hammoudi, S., Context-aware Model Driven

Development by Parameterized Transformation

Proceedings of MDISIS, 2008.

Maja Vukovic and Peter Robinson, Adaptive, planning

based, web service composition for context awareness,

Advances in Pervasive Computing (2004), pp. 247-252

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

248
