A THEORETICAL FRAMEWORK FOR EXPLAINING

AGENT BEHAVIOR

Maaike Harbers

1,2

, Karel van den Bosch

and John-Jules Meyer

Utrecht University, P.O.Box 80.089, 3508TB, Utrecht, The Netherlands

TNO Human Factors, P.O.Box 23, 3769ZG, Soesterberg, The Netherlands

Keywords:

Explanation, Agent-based modeling, Social simulation.

Abstract:

To understand emergent processes in multi-agent-based simulations it is important to study the global pro-

cesses in a simulation as well as the processes on the agent level. The behavior of individual agents is easier

to understand when they are able to explain their own behavior. In this paper, a theoretical framework for

explaining agent behavior is proposed. By distinguishing different types and contexts of explanations, the

framework aims to support the development of explainable agents. The framework is based on an examination

of explanation literature, and experiences with developing explainable agents for virtual training. The use of

the framework is illustrated by an example about the development of a negotiation agent.

1 INTRODUCTION

Social simulations provide the opportunity to investi-

gate the relation between the behavior of individuals

and emerging social phenomena like crowd behavior,

cooperation and reputation. To fully understand the

social phenomena that arise, not only the macro pro-

cesses should be studied, but also the behavior of the

single agents. For instance, a crowd can start to move

because all agents are running towards something or

because they are following one leader. Another exam-

ple is cooperation, which may emerge because agents

behave in an altruistic or self-interested way. More

insight in the behavior of individual agents is facili-

tated when the agents are explainable, that is, able to

explain their own behavior.

Some social patterns emerge out of agents mod-

eled by a few simple if-then rules only, and their be-

havior can be explained by their rules and interaction

with the environment. The behavior of more complex

agents that, besides merely reactivebehavior, also dis-

play proactive behavior is more variable, and harder

to predict and understand. In particular in simulations

with proactive agents, the similarities or contradic-

tions in the explanations of different agents can help

to understand the overall processes (Harbers et al.,

2010b).

In order to explain agent behavior, it is important

to choose an appropriate behavior representation mo-

del. For instance, it is easier generate understandable

explanations of agent behavior when the underlying

social and psychological processes are represented,

rather than the chemical. To support the design of ex-

plainable agents simulating human behavior, we pro-

pose a theoretical framework for explaining agent be-

havior (Section 3). The resulting explanations of indi-

vidual agents can be used to better understand emer-

gent phenomena in social simulations. The frame-

work is based on an examination of explanation liter-

ature (Section 2), and on our experiences with devel-

oping explainable agents for virtual training. We will

illustrate the framework with an example (Section 4).

2 EXPLANATION RESEARCH

In psychological literature, Malle’s framework about

how people explain behavior is one of the most elabo-

rate (Malle, 1999). The framework distinguishes four

modes of explanation (see Figure 1). Unintentional

behavior is explained by causes, e.g. she woke up be-

cause she heard the alarm. Intentional behavior is al-

ways preceded by an intention. Intentions themselves

only yield useless explanations like ‘she did x because

she intended to do x’. However, the reasons for an

intention, i.e. the actor’s beliefs and goals, do form

useful explanations. The third explanation mode con-

cerns causal histories, explaining the origin of beliefs

228

Harbers M., van den Bosch K. and Meyer J..

A THEORETICAL FRAMEWORK FOR EXPLAINING AGENT BEHAVIOR.

DOI: 10.5220/0003620102280231

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

228-231

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

and goals. The fourth mode, enabling factors, con-

sider the capabilities of the actor, e.g. he ﬁnished the

assignment because he worked hard. Malle states that

most explanations for intentional behavior are reason

explanations.

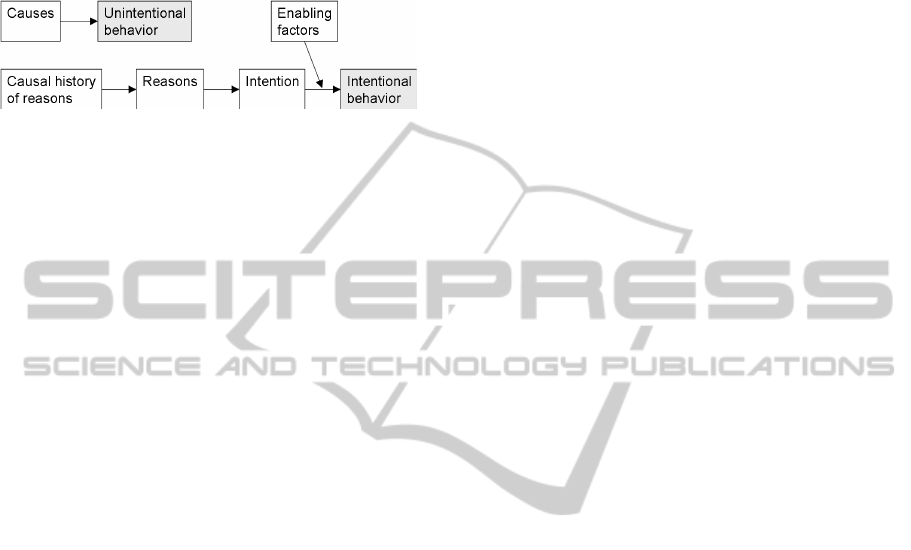

Figure 1: Malle’s four modes of explaining behavior.

In argumentation for practical reasoning, argu-

mentation about what is most sensible to do is stud-

ied. This is closely related to explanation of behav-

ior, as arguments for a certain action can also be used

to explain that action. Atkinson et al proposed the

following argumentation scheme for practical reason-

ing (Atkinson et al., 2006). In the circumstances R,

we should perform action A, to achieve new circum-

stances S, which will realize some goal G, which will

promote some value V. The scheme provides a moti-

vation of an action, but can also be used to explain an

action. For instance, I go to the supermarket (A) be-

cause I am at home (R) and after going there I will be

at the supermarket (S), where I can to buy food (G) so

that I can feel healthy (V).

The explanation of agent behavior is studied in

the domain of virtual training. In virtual training,

agents play the role of team member, colleague or op-

ponent of the user. Explaining the behavior of such

agents gives the user insight in the reasons for oth-

ers’ actions and helps him to better understand played

training scenarios. There are several proposals of

explanation components that explain agent behavior

in virtual training systems (Johnson, 1994; Van Lent

et al., 2004; Gomboc et al., 2005). Developers noticed

that training simulations differ in their ‘explanation-

friendliness’, that is, the availability and suitability of

information that is delivered to the explanation mod-

ule (Core et al., 2006). At best, agent behavior is

represented by goals and the preconditions and ef-

fects of actions, and behavior can automatically be

imported. In the worst case, behavior is represented

by procedural rules, and a manually built representa-

tion of the behaviors has to be made. In earlier work,

we proposed an approach for explainable agents for

virtual training in which explanation capabilities are

integrated in the agent model (Harbers et al., 2010a).

Though that poses certain requirements on agent de-

sign, the quality of explanations no longer depends on

the explanation-friendliness of a training simulation.

3 THE FRAMEWORK

Though it is impossible to represent all explaining

factors of agent behavior in a model, it is possible to

choose an agent model and represent behavior tacti-

cally, such that most concepts in the representation

can be reused for explanation. To guide this agent de-

velopment process it is helpful to be aware of different

possible explanations for an action. In this section we

therefore present a theoretical framework for explain-

ing agent behavior. The framework distinguishes ﬁve

different ways to explain an action of an agent, and on

top of that, different contexts of explanation. Com-

pared to Malle’s framework and Atkinson’s argumen-

tation scheme discussed in the previous section, our

framework distinguishes more types of explanations.

3.1 Five Questions

To discuss the various ways to explain an agent

action, we introduce the following ﬁve subquestions

of the question: Why did you perform this action?

• What goal did you try to achieve?

• Why do you want to achieve this goal?

• Why does this action achieve that goal?

• Why did you perform the action at this particular

time point?

• Why did you perform this action and not another?

The ﬁrst question considers the goal behind an

action, or in other words, it refers to the desired

effects of the action. An explanation is for instance,

I called a friend to wish him a happy birthday. Both

Malle’s and Atkinson’s frameworks distinguished

goals as an explanation or argumentation type.

The second question, why do you want to achieve

this goal, concerns the reasons behind a goal. For

instance, I called my friend because I know that he

appreciates phone calls for his birthday. In Malle’s

frameworksuch explanations are called causal history

explanations, and they are similar to values in Atkin-

son’s scheme. In a goal hierarchy, a goal above a goal

provides a reason for a goal, however, as we will see

later, these are not always useful.

The third question, why does this action achieve

that goal, can be answered by domain knowledge, e.g.

terminology or the function of a tool. The domain

knowledge required in our example is rather common,

but an explanation of this type would be: I called my

friend because calling someone allows one to talk to

that person. This category is not distinguished in the

frameworks of Malle and Atkinson.

The fourth question concerns the timing of an ac-

A THEORETICAL FRAMEWORK FOR EXPLAINING AGENT BEHAVIOR

229

tion. Possible answers to this question are the event

that triggered the action, or the events that made it

possible to perform the action. In our example, I

called my friend because today is his birthday. The

timing of an action may be explained by an enabling

factor such as distinguished in Malle’s framework, but

Malle’s enabling factors explanations do not involve

triggers like someone’s birthday.

The ﬁfth and last question asks why this particu-

lar action was performed and not another. The answer

may concern multiple possibilities, e.g. I called my

friend because I did not have the time to visit him,

or preferences, e.g. I called my friend because I be-

lieve that calling is more personal than sending an

email. Explanations referring to multiple possibilities

are similar to the enabling factors in Malle’s frame-

work, but preferencesare not. Explanations with pref-

erences are similar to values in Atkinson’s scheme.

3.2 Contexts of Explanation

We have distinguished ﬁve different questions, but of-

ten there are multiple possible answers to these ques-

tions. For instance, I leave a note at your desk because

I want you to ﬁnd it, but also because I want to remind

you of something. Both explanations in the example

contain a goal. To account for different possible ex-

planations of the same type we introduce the notion

of an explanation context. An explanation uses con-

cepts in a certain domain or from a certain descrip-

tion level. Explanation contexts are for instance the

physical context, psychological context, social con-

text, organizational context, etc. A physical context

of explanation refers to explanations in terms of po-

sitions of agents and objects, and physical events in

the environment. A psychological context refers to

characteristics of the agent such as personality traits,

emotions, preferences and values. A social context

refers to aspects like mental states attributed to other

agents, and trust in others. An organizational context

refers to an agent’s role, its tasks, its power relation to

others, procedures, rules and norms. The two expla-

nations for putting a note at your desk, ‘so you will

ﬁnd it’ and ‘to remind you of something’, concern a

physical and social context, respectively.

3.3 Use of the Framework

The purpose of the framework is to support ex-

plainable agent development. Developers can use

the framework to determine which questions within

which explanation context(s) an agent should be able

to answer. Being aware of an agent’s explanation

requirements will facilitate the choice for an agent

model, and subsequently, design choices that must

be made within the model. The development is an

interaction process between subject matter experts

and programmers, where subject matter experts have

knowledge about desired explanation types and pro-

cesses that bring about certain behavior,and program-

mers know which agent models and architectures are

available to represent agent behavior.

It may happen that some information needed for

explanation is not necessary for the generation of be-

havior, or simply does not ﬁt in the agent’s behavior

representation. In that case, extra information needs

to be added to the behavior representation, like justi-

ﬁcations for reasoning steps are added to expert sys-

tems. Then still, choosing an appropriate representa-

tion will facilitate the addition of explaining elements

to the model.

4 ILLUSTRATION

In this section we illustrate the use of the proposed

framework with an example about the development of

an agent for virtual negotiation training

. The train-

ing scenario involvesa negotiation about terms of em-

ployment and involves two players, a human player

who has the role of employer and a virtual agent play-

ing the future employee. The scenario focuses on the

joint exploration phase of the negotiation, in which

negotiation partners explore each others’ wishes. An

often made mistake is that people only explore each

others’ preferences on issues, e.g. the height of a

salary, and forget to ask about the other’s interests,

e.g. the need of enough money to pay the mortgage.

By exploring someone’s interests, alternative solu-

tions can be found that are proﬁtable for both partners,

e.g. a lower monthly salary but with a yearly bonus.

Figure 2 shows our ﬁrst version of the future em-

ployee agent, modeled as a goal hierarchy. Note that

only the agent’s goals and actions (in gray) are dis-

played, and not its beliefs. The actions in the hierar-

chy can be explained by their underlying goals. For

instance, the action to propose 40 hours per week is

explained by the goal that you want to explore each

other’s wishes on working hours because you want to

explore all wishes. The acceptance of a good bid is

explained by the goal that you want to go through the

bidding phase. These explanations seem rather use-

less. After examining the goal hierarchy according to

the framework, we realized that we had used a proce-

dural context, whereas we wanted explanations from

a psychological perspective.

The training was developed at the TU Delft as part of

the pocket negotiator project

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

230

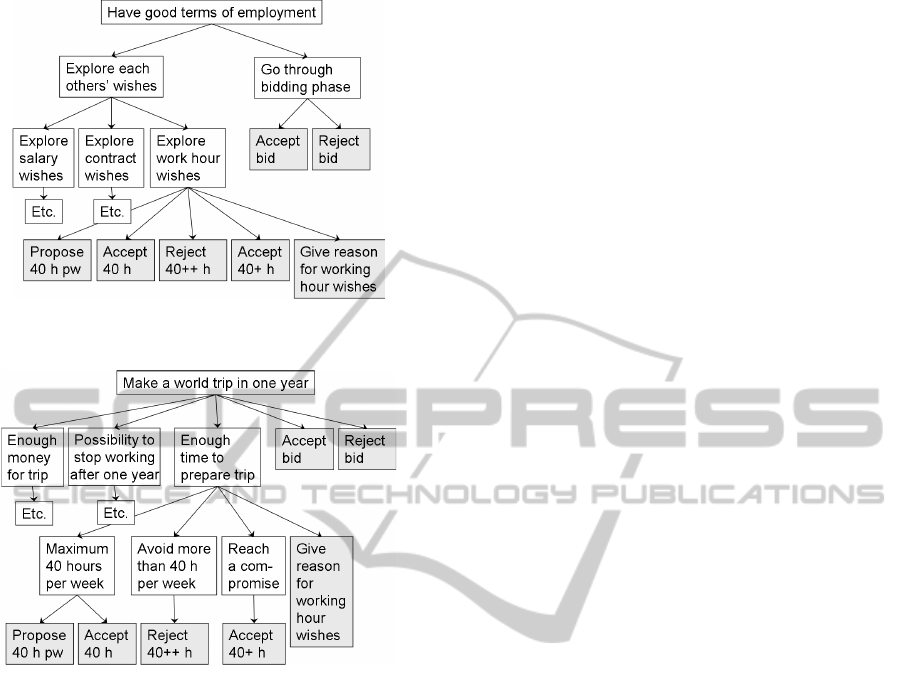

Figure 2: First model of the negotiation agent.

Figure 3: Second model of the negotiation agent.

Figure 3 shows a new version of the goal hier-

archy in which the agent’s personal preferences and

goals are taken into account. The actions (gray) in

this model are the same as in the original one. But

though both models generate exactly the same behav-

ior, the explanations of the actions are different. In

the new model, for instance, the action to propose 40

hours per week is explained by the goal that you want

to work with a maximum of 40 hours per week be-

cause you want to have enough time to prepare your

trip. And the action of accepting a good bid is ex-

plained by the goal that you want to make a world

trip in a year. On face validity, these explanations are

much more useful than the previous ones.

5 CONCLUSIONS

To summarize, we have presented a theoretical frame-

work for explaining agent behavior with different ex-

planation types and contexts. When modeling an ex-

plainable agent, the framework can be used as a guide

for the choice for an appropriate agent model, and

choices about the representation of the agent’s be-

havior. This should result in agents that can provide

useful explanations in the domain or applications for

which they are intended, and lead to better under-

standing of individual agent behavior in social simu-

lations. A next step will be to aggregate explanations

of individual agents into one, more global explanation

about emergent phenomena in social simulations.

ACKNOWLEDGEMENTS

The authors thank Joost Broekens for his contribution

to the development of both negotiation agents in Sec-

tion 4. This research has been supported by the GATE

project, funded by the Netherlands Organization for

Scientiﬁc Research (NWO) and the Netherlands ICT

Research and Innovation Authority (ICT Regie).

REFERENCES

Atkinson, K., Bench-Capon, T., and McBurney, P. (2006).

Computational representation of practical argument.

Synthese, 152(2):157–206.

Core, M., Lane, H., Van Lent, M., Gomboc, D., Solomon,

S., and Rosenberg, M. (2006). Building explainable

artiﬁcial intelligence systems. In AAAI.

Gomboc, D., Solomon, S., Core, M. G., Lane, H. C., and

van Lent, M. (2005). Design recommendations to sup-

port automated explanation and tutoring. In Proc. of

BRIMS 2005, Universal City, CA.

Harbers, M., Bosch, K. v. d., and Meyer, J.-J. (2010a). De-

sign and evaluation of explainable BDI agents. In Pro-

ceedings of IAT 2010, volume 2, pages 125–132.

Harbers, M., Bosch, K. v. d., and Meyer, J.-J. (2010b). Ex-

plaining simulations through self explaining agents.

Journal of Artiﬁcial Societies and Social Simulation,

12(1)(4).

Johnson, L. (1994). Agents that learn to explain themselves.

In Proceedings of the Conference on AI, pages 1257–

1263.

Malle, B. (1999). How people explain behavior: A new the-

oretical framework. Personality and Social Psychol-

ogy Review, 3(1):23–48.

Van Lent, M., Fisher, W., and Mancuso, M. (2004). An ex-

plainable artiﬁcial intelligence system for small-unit

tactical behavior. In Proc. of IAAA 2004, Menlo Park,

CA. AAAI Press.

A THEORETICAL FRAMEWORK FOR EXPLAINING AGENT BEHAVIOR

231
