A PLAN EXECUTION MODEL FOR MOBILE

PERSONAL ASSISTANTS

Incheol Kim and Huikyung Oh

Department of Computer Science, Kyonggi University, San 94-6, Yiui-Dong, Youngtong-Gu, Suwon, Korea

Keywords: Plan Execution Model, Smart Script System, Mobile Personal Assistant, Dynamic World, Events.

Abstract: This paper proposes a plan execution model suitable for dynamic mobile computing environments and

presents a smart script system developed based on the model. The smart script system includes a script

language which describes the task knowledge of mobile personal assistants and an execution engine which

is designed to execute scripts dynamically according to task goals and environmental changes. In addition,

this paper evaluates the usefulness and performance of the smart script system by implementing Smart

Reservation as an application.

1 INTRODUCTION

Recently, with the rapid spread of smart mobile

devices including smart phones and tablet PCs, there

are many studies being conducted on mobile

personal assistants that offer a wide range of

convenient services for users (Gruber, 2009, Morley

and Myers, 2004). Mobile personal assistants are

assumed to perform the given tasks autonomously or

semi-autonomously for their users, so they should be

able to execute their own task plans properly

responding to dynamics of the physical and

information environments where they are working.

To implement those intelligent mobile personal

assistants, a high-efficiency reactive plan execution

system should be developed (Ingrand and Py, 2009,

Gregory et al, 2001).

This paper proposes a plan execution model

suitable for dynamic mobile computing

environments and presents a smart script system

developed based on the model. The smart script

system includes a script language which describes

the task knowledge of mobile personal assistants and

an execution engine which is intended to execute

scripts dynamically according to task goals and

environmental changes. Lastly, the usefulness and

performance of the smart script system are evaluated

by implementing an application called Smart

Reservation.

2 PLAN EXECUTION MODEL

In this paper, the smart script system was developed

based on the following plan model and plan

execution model:

p = (ID, Name, Type, Body, Comment), where

ID = an identification number,

Name = a plan name,

Type = an event-driven plan, goal-driven plan,

or command-driven plan,

Body = a set of actions such as <a

…, a

Comment = a description about the plan.

The plan model p can represent three different plan

types: Event-driven plans p

are automatically

executed when a particular event takes place; goal-

driven plans p

are intended to accomplish specific

goals and command-driven plans p

can be

selectively and immediately executed anytime as

needed.

The plan execution model (PEM) for the smart

script system is defined as follows:

PEM = (P, S, W, U, I, N, T), where

P: A set of plans, P = P

∪ P

= event-driven plans,

= goal-driven plans, and

= command-driven plans.

S: A sensor designed to sense the events that

occur in an external environment,

S : E → 2F, where E = a set of events and

232

Kim I. and Oh H..

A PLAN EXECUTION MODEL FOR MOBILE PERSONAL ASSISTANTS .

DOI: 10.5220/0003620602320235

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

232-235

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

F = a set of facts.

W: A set of facts representing the current status

of an environment (i.e., a world model),

F ⊆ W

U: Control commands associated with plan

execution,

u ∈ {execute_plan, stop_plan,

activate_plan, deactivate_plan, ...}

I: An interpreter designed to decide which plan

to execute,

I(W, u, P) = p, when the plan p∈P has its

preconditions satisfied with the current

world model "W٧ PRECOND(p)" or is

associated with a user command "u∈U."

N: An intention structure designed to manage

the process in which a decided plan is

actually executed,

N(p)=SUCCESS(DO(a

))? N(p') : STOP(p),

when BODY_SEQ(p)=<a

, a

, ..., a

BODY_SEQ(p')=<a

, a

, ..., a

Action a

∈A

T: An effector designed to change an

environment by completing each of actions

which constitute a plan, T : A → E

PEM provides rich, expressive plan representations,

a wide range of useful plan execution semantics,

reactivity to environmental changes, support for user

interaction in runtime.

3 SMART SCRIPT LANGUAGE

A smart script language was designed based on the

plan and execution models mentioned above. The

smart script language allows users to use a wide

range of built-in variables and other user-defined

variables. In this language, the status of an

environment is expressed as a set of facts.

Fact ::=” (“ Variable Value “)”

In other words, a single fact is expressed as a

variable and its current value, like (%SMSRA "02-

123-3456"). The set of actions available in the

scripting language consists of control actions and

effective actions. The control actions which

determine the order of execution include goal

actions, script actions, IF actions, ENDIF actions,

WHILE actions, ENDWHILE actions,

WAITUNTIL actions, WAIT actions, SUCCESS

actions, FAIL actions and SET actions. The goal

action is to add a new subgoal; the script action is to

request the execution of a new script; and the SET

action is to assign a value to a user-defined variable.

The smart script language provides a variety of

effective actions including speaking (SPEAK),

making a phone call (CALL), sending a text

message (SENDSMS), and playing a music file

(PLAYMUSIC).

Three different types of script (command-driven,

event-driven and goal-driven) can be defined in the

smart script language. The command-driven scripts

mean those scripts that users are able to execute

themselves.

Command-driven Script

::= "(" "script" Script-Name

[":context" Condition-List]

":body" Action-List

[":comment" Description] ")"

The event-driven scripts are automatically

executed in response to a specific event taking place

in an external environment.

Event-driven Script

::= "(" "script" Script-Name

":precondition" Condition-List

[":context" Condition-List]

":body" Action-List

[":comment" Description] ")"

The goal-driven scripts are defined as those

scripts that can be automatically selected and

executed to accomplish a goal, once the goal is set

out by a user or a higher-level script.

Goal-driven Script

::= "(" "script" Script-Name

":goal Goal

[":precondition" Condition-List]

[":context" Condition-List]

":body" Action-List

[":comment" Description] ")"

The smart script program is composed of three

different components: goal declaration, fact

declaration, and script declaration.

Script Program ::=

[ Goal-Declaration ]

[ Fact-Declaration ]

Script-Definition

Goal-Declaration ::=

"(" "goals" Goal-Action-List ")"

Fact-Declaration ::=

"(" "facts" Fact-List ")"

Script-Definition ::=

"(" "scripts" Script-List ")"

A PLAN EXECUTION MODEL FOR MOBILE PERSONAL ASSISTANTS

233

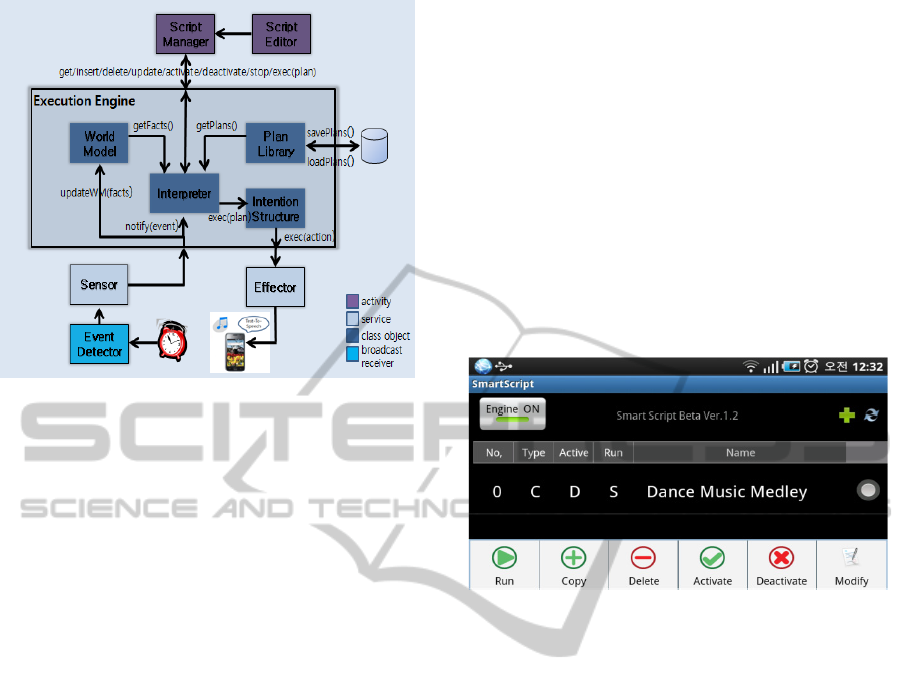

igure 1: Architecture of the smart script system.

4 SMART SCRIPT SYSTEM

As shown in Figure 1, the smart script system

consists of the Execution Engine which controls the

automatic execution of scripts, the Sensor which

receives diverse event and status information from

environments, the Effector which is responsible for

the execution of individual basic tasks or actions, the

Script Editor which allows users to edit or modify

scripts, and the Script Manager which allows users

to monitor and control the execution of scripts in

real time. The Sensor detects a variety of events that

may occur in smartphone environments, including

text-message arrival, phone ringing, WiFi detection

and schedule notification, and works to update an

internal World Model of the Execution Engine based

on new facts associated with those events.

The Execution Engine responsible for the

execution of scripts has internal components with

different roles, such as World Model, Plan Library,

Interpreter, and Intention Structure. The World

Model manifests the current status of the system in

which scripts are being executed, by saving and

updating the environmental status or user-entered

data detected by the sensor or data on the results of

each basic task/action executed. In the Plan Library,

user-defined scripts are stored in an execution

waiting status, and whenever necessary, it stores

scripts in a database or brings up the stored scripts

from the database. The Interpreter, based on the

facts of the World Model, checks whether the

preconditions of individual event-driven scripts in

the Plan Library are satisfied or whether each goal-

driven script is matched with a user-supplied task

goal and plays the role of choosing a script to be

executed next. The Intention Structure, with the

script chosen by the Interpreter, performs script-

intended tasks by executing in sequence the basic

tasks/actions described in the body of the script. The

Execution Engine has been designed as an Android

service so that it can start the quick execution of

scripts whenever the script-associated events occur.

While the Execution Engine executes the logical

decision-making process of the smart script system,

the Effector executes each of basic tasks/actions

actually as requested by the Execution Engine with

existing s/w tools such as web browsers, calendars

and email programs or its own programs

implemented with Android API

Figure 2: Screenshot of the script manager.

The Script Manager provides the main user interface

of the smart script system. Users can execute one of

the command-driven scripts through the script

manager, suspend running scripts, or

activate/inactivate event-driven scripts. In this way

they can control the scripts in real time. In addition,

with the help of the Script Editor, they can create

copy, modify or delete scripts. Taking into account

the limited size of smart phones' screen and

keyboard, the Script Editor has been programmed to

minimize users' keyboard entries by applying

graphic icons and menu selections to most editing

procedures. Figure 2 shows the screenshot of the

Script Manager.

5 APPLICATION

In order to examine the performance and usefulness

of the smart script system developed in this work,

Smart Reservation has been created based on this

system. Smart Reservation is an application which

finds a nearby restaurant and makes reservations for

smart phone users in semi-autonomous way. Smart

Reservation can get the user's location information

from GPS to search for nearby restaurants and have

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

234

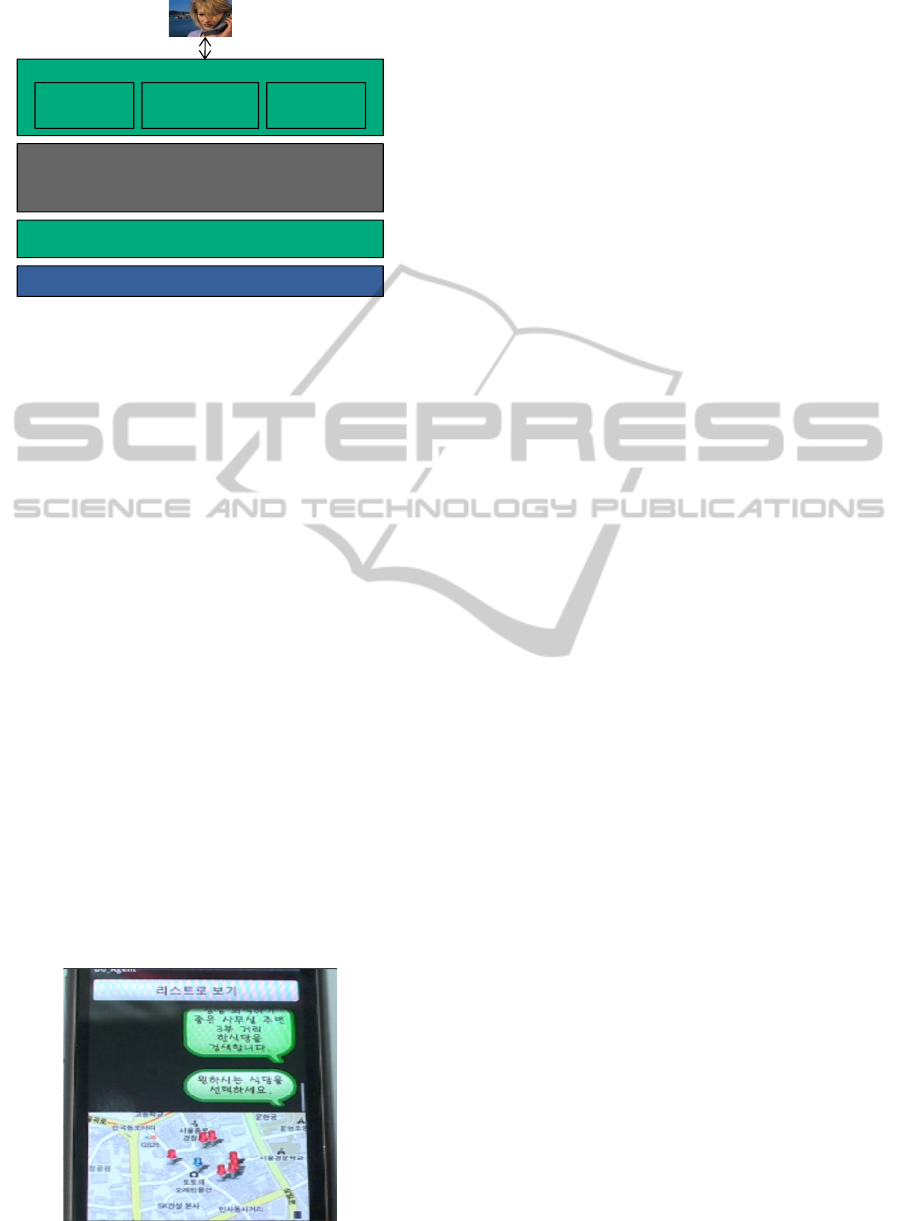

Figure 3: S/W organization of Smart Reservation.

the user's voice queries entered. This application

translates the user's voice query into a SPARQL

form of semantic query and then sends the query to a

remote restaurant information server via web service.

Based on the search results from the information

server, it marks restaurant locations on the map

using Google Maps mashups and even helps make

online reservations at the user's desired restaurant.

Smart Reservation, as illustrated in Figure 3, has

been developed based on the smart script system,

and accordingly the key task knowledge of Smart

Reservation is expressed as scripts which are

executed by the smart script execution engine. We

implemented unique some state variables and

actions for Smart Reservation using an open API

and web service calls. Additionally, we created a

new user interface which supports voice-based

interactions in view of user convenience. Figure 4

shows a screenshot of Smart Reservation. Even

though the implementation of Smart Reservation is

currently limited to the use of information on

restaurants in Insa-Dong, Seoul, it was enough to

ensure the usefulness and performance of the smart

script system as a framework which enables a

variety of mobile personal assistants to be very

effectively developed.

Figure 4: Screenshot of Smart Reservation.

6 CONCLUSIONS

This paper proposed the plan execution model and

presented the design and implementation of a smart

script system based on this model. Due to reactivity

and goal-orientation of the underlying model, the

smart script system can respond very quickly to

changes in mobile computing environments and

provides the robust framework for implementing

various mobile personal assistants.

ACKNOWLEDGEMENTS

This work was supported by the GRRC program of

Gyeonggi province.

REFERENCES

Gruber, T., 2009. Siri: A Virtual Personal Assistant,

Keynote Presentation at the Semantic Technology

Conference(SemTech-09).

Morley, D., Myers, K., 2004. The SPARK Agent

Framework, Proc. of the AAMAS-04, pp. 712-719.

Ingrand, F., Py, F., 2009. Proc. of the 4th Workshop on

Planning and Plan Execution for Real-World Systems,

ICAPS-09.

Gregory, N. M., et al, 2001. IDEA: Planning at the Core of

Autonomous Agents, Proc. of AAAI-01.

User Interface

Voice

Query

Google Map

Mashup

Task Executive

(Smart Script Execution Engine)

Functional S/W Components

(for calling Open APIs & Web Services)

Android-Enabled Mobile Platforms

Location

Finder

A PLAN EXECUTION MODEL FOR MOBILE PERSONAL ASSISTANTS

235
