HUMAN-ROBOT COOPERATION SYSTEM USING SHARED

CYBER SPACE THAT CONNECTS TO REAL WORLD

Development of SocioIntelliGenesis Simulator SIGVerse toward HRI

Tetsunari Inamura

1,2

National Institute of Informatics, Tokyo, Japan

The Graduate University for Advanced Studies, Hayama, Japan

Keywords:

Intelligent robots, Human-robot interaction.

Abstract:

I focus on a synthetic research on elucidation of genesis of social intelligence – physical interaction between

body and environment, social interaction between agents and role of evolution and so on –, with aiming to

understand intelligence of humans and robots. For such an approach, we have set interdisciplinal discussions

with wide viewpoint for various research ﬁeld such as cognitive science, developmental psycology, brain

science, evolutionary biology and robotics. In this approach, two interactions should be considered; physical

interaction between agents and environments and social interaction between agents. However there is no

integrated system with dynamics, perception, and social communication simulations. In this paper, I propose

such a simulation environment called SIGVerse and potential to develop Human Robot Interaction systems

that bridges real environment/users and cyber space based on the SIGVerse. As examples of the HRI systems

based on SIGVerse, I introduce three applications.

1 INTRODUCTION

Understanding the mechanism of intelligence in hu-

man beings and animals is one of the most important

approaches to developing intelligent robot systems.

Since the mechanisms of such real-life intelligent sys-

tems are so complex, such as the physical interactions

between agents and their environment and the so-

cial interactions between agents, comprehension and

knowledge in many peripheral ﬁelds are required. To

acquire a better understanding of human and robotic

intelligence, I focus on a synthetic approach to re-

search into the elucidation of the genesis of social

intelligence, to cover aspects such as physical inter-

actions between bodies and their environments, social

interactions between agents, and the role of evolution.

According to the concept, SIGVerse(Inamura, 2010)

the simulateor platform to realize synthetic simulation

experiments has been proposed.

The SIGVerse simulator can be accessed from any

client computers by general public with easy inter-

face. Everyone can send their own physical agents

that have sensors, actuators and software modules for

behavior decision. The agents automatically decide

their behaviorbased on the software and acquired sen-

sor information; then act in the virtual world with con-

sideration of physical law, because the physical em-

bodiment is recently regarded as important issue to

developintelligent robots and agents. Everyagent can

also make communicate with each other via voice and

text modalities. Using such an environment, it is pos-

sible to hold interdisciplinary discussions from wide

viewpoint covering various research ﬁelds, such as

cognitive science, developmental psychology, brain

science, evolutionary biology, and robotics.

In this paper, I propose an expansion usage of

the SIGVerse simulator to connect real world and

cyber world to evaluate human robot interaction ex-

periments. Robotics research which uses expensive

humanoid robots often costs much time and budget;

however, many users can join human-robot interac-

tion world using the SIGVerse simulator. Through

several examples of interactive application, I show the

feasibility of this system.

429

Inamura T..

HUMAN-ROBOT COOPERATION SYSTEM USING SHARED CYBER SPACE THAT CONNECTS TO REAL WORLD - Development of SocioIntelliGe-

nesis Simulator SIGVerse toward HRI.

DOI: 10.5220/0003620904290434

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

429-434

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 INTEGRATED SIMULATION

BETWEEN DYNAMICS,

PERCEPTION AND

COMMUNICATION

Many robot simulation systems are being devel-

oped around the world, to simulate the dynam-

ics of robot systems. One well-known example

is the Open Architecture Humanoid Robotics Plat-

form (OpenHRP)(Kanehiro et al., 2002), which is

a humanoid robot simulator developed by the Ad-

vanced Institute of Science and Technology (AIST),

the University of Tokyo, and the Manufacturing Sci-

ence and Technology Center (MSTC). This simula-

tor has become popular not only in Japan but also

abroad, to promote research into humanoid robot con-

trol. The latest version of the simulation, called

OpenHRP3(Nakaoka et al., 3647), is currently be-

ing developed by AIST, the University of Tokyo,

and General Robotix Inc. Another example is We-

bots(Michel, 2004), which is a commercial prod-

uct. This system enables users to simulate multi-

robot environments with dynamics calculations. The

Player/Stage/Gazebo suite(Gerkey et al., 2003) is

freeware and is also well-known. Microsoft also has

released Robotics Studio(Jackson, 2007) to develop a

software of autonomous agents from the similar back-

ground. These systems provide multi-agent environ-

ments with dynamics simulations, but there hasn’t

been much consideration of the simulation of sen-

sor perceptions. Since the communication simula-

tions between agents provided in these packages are

just simple signal transfers, it is difﬁcult to use them

to simulate the effects of the physical conditions of

the agents for dialogue-based communicationabilities

and qualities.

Meanwhile, large-scale multi-agent systems are

gaining attention from the social sciences ﬁeld. One

of the examples is GPGSiM(Ishiguro, 2007). In

the ﬁeld of language evolution, a system that has

been proposed simulates language transmission be-

tween agents which is based on a repeatable learning

model(Kirby and Hurford, 2002), However, such sim-

ulators do not consider the physical perception layer

such as visual and auditory sensors, nor the physical

communication layer such as limitations of commu-

nications based on the condition of each agent. The

integration of dynamics, perception, and communica-

tion in the simulation world will play a great role in

this social sciences ﬁeld.

The proposed SIGVerse simulator(Inamura, 2010)

combines dynamics, physical perceptions, and com-

munications for a multi-agent system. One of the

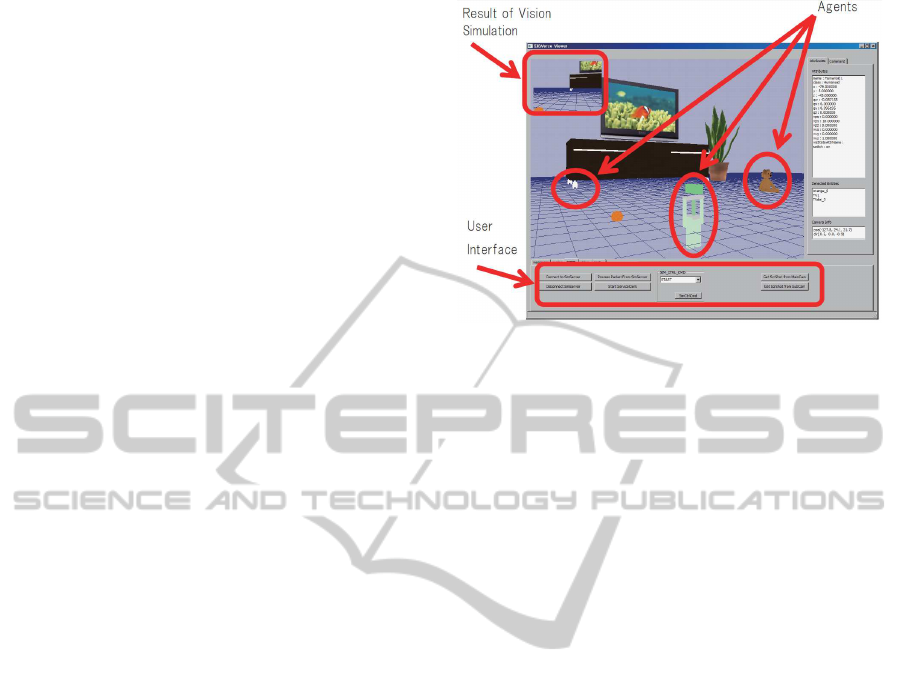

Figure 1: A screenshot of user interface.

effective applications of this system is that machine

learning experiments for real robots. Machine learn-

ing systems such as reinforcement learning for real

robots often cost much time and trials; however it is

easy to reduce the learning time to attend the SIG-

Verse simulator to make communicate with other ex-

pert robots which has already acquired a skill of the

target problem. With the communication between two

robots and fast physical experiments, the rookie robot

can grow up within short time.

This simulator consits of major three parts; Dy-

namics simulation, Perception simulation and Com-

munication simulation.

2.1 Dynamics Simulation

The Open Dynamics Engine (ODE)(Smith, 2004) is

used for dynamic simulations of interactions between

agents and objects. Basically, the motions of each

agent and object are calculated by the dynamics en-

gine, but the user can control the calculations to re-

duce simulation costs. A switch ﬂag can be set for

each object and agent to turn off the dynamics calcu-

lations if required.

2.2 Perception Simulation

This system can provide the senses of vision, sound,

force, and touch. OpenGL is used for visual simula-

tions, to provide each agent with a pixel map that is

a visual image derived from the viewpoint and ﬁeld

of view of that agent. In this case, the perception

simulation has several levels that control the abstract

level of perception. At a highly abstract perception

level, the user is sent symbolized visual information,

which comprises data such as the color, shape, size,

and position of each object within sight, together with

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

430

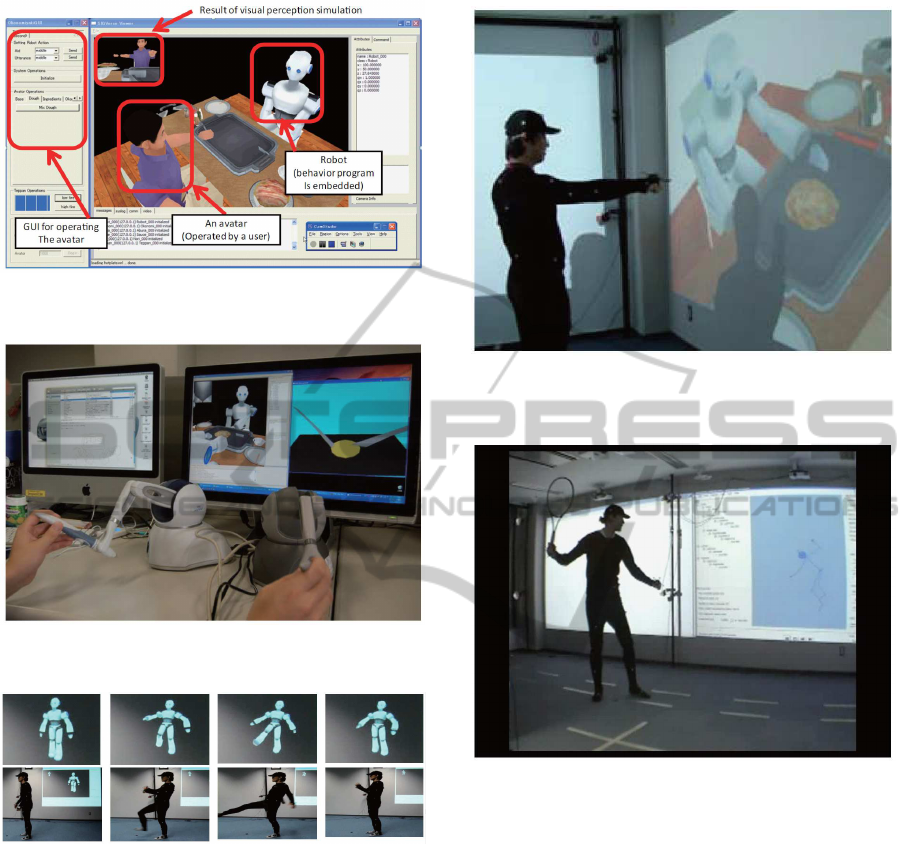

Figure 2: GUI interface for a cooperation task on SIGVerse.

Figure 3: A haptic interface to handle an “okonomiyaki”.

Figure 4: Realtime measurement and display of human mo-

tion pattern.

characteristic information on the name and ID num-

ber of each object. The visual perception processing

also considers occlusions so that if an object is be-

hind another object, the perception processing omits

the hidden object from the list.

For the sense of touch, it is possible to acquire

force and torque information between objects that has

been calculated mainly by ODE.

2.3 Communication Simulation

In simulating the sense of hearing, every agents can

make communications with audio data. I also enabled

the effect of the volume of sound attenuating in in-

Figure 5: Embodied interaction system for a okonomiyaki

task on SIGVerse.

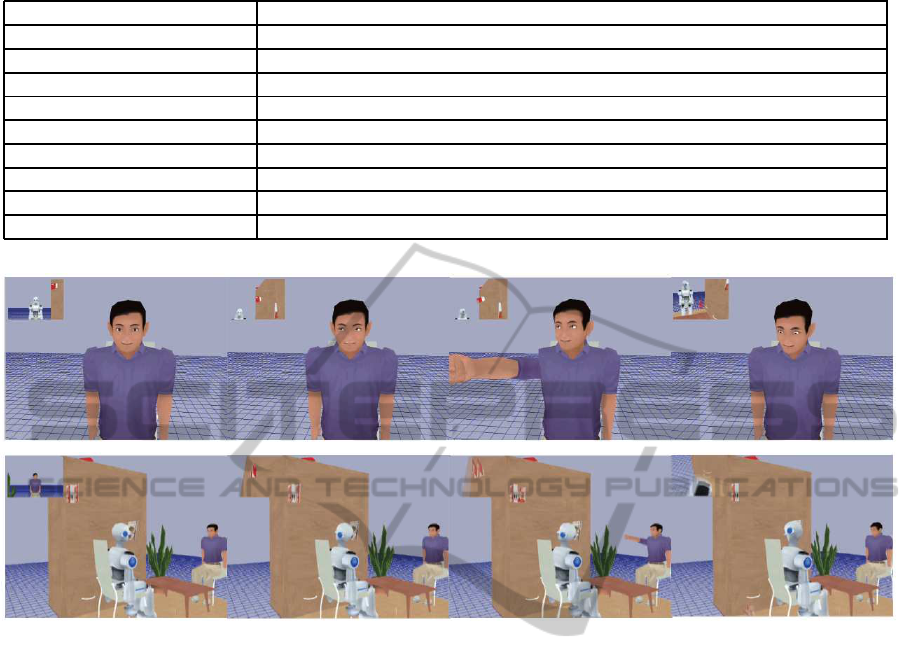

Figure 6: Experiment on motion coaching application using

the SIGVerse.

verse relationship with the square of distance, based

on a setting of a condition that the voice emitted by an

agent becomes more difﬁcult to hear with distance. It

is also possible to set the system so that only voices

within a certain threshold distance are acquired.

With this system, not only can agents within the

virtual environment communicate with each other, it

is also possible to provide a function that enables in-

teractions between the virtual environment and users

in the real world. An example of the display of the

virtual environment is shown in Figure 2.

2.4 Simulator Conﬁguration

This simulator has a server/client format, with dy-

namics calculations being mainly done on a central

server system. Bodies that use perception and per-

form actions are called ”agents”, and robot and human

HUMAN-ROBOT COOPERATION SYSTEM USING SHARED CYBER SPACE THAT CONNECTS TO REAL

WORLD - Development of SocioIntelliGenesis Simulator SIGVerse toward HRI

431

avatars are available as agents. The previously de-

scribed perception and communication functions can

be enabled by using dedicated C++ APIs to deﬁne the

actions of agents. Some of the APIs that can be used

are listed in Table 1. In the future, I plan to extend the

programming beyond just C++ to include interpreter

languages such as Python. The avatars do not just be-

have as programmed—they can also act on the basis

of instructions given to them by operators in real time.

To simulate perception, it is necessary to spread

the load so the system is conﬁgured to enable calcula-

tions not just by the server system but also by individ-

ually installed perception simulation servers. More

speciﬁcally, the module that provides a pixel map of

an image to simulate the sense of sight is operated

by the perception simulation server, not the central

server.

The conﬁguration of the SIGVerse software is

shown in Figure 3.

3 EXAMPLE OF SIGVERSE USE

A feature of SIGVerse is the way in which dynamic

calculations, perception simulations, and communica-

tion simulations can be done simultaneously. In this

section, I describe an example of humans and robots

working in partnership to execute a task, and another

example of multi-agent system, as examples of appli-

cations that fully utilize all three of these functions.

3.1 Use as Evaluation of

Human-machine Cooperation

The objectives of the developers who use this sim-

ulation are to determine how to develop the intelli-

gence of a robot that can execute a task in partnership

with a human, and how to implement efﬁcient coop-

erative behavior. The developers created decision and

action modules for the robot while adopting various

different models and hypotheses, and have conﬁrmed

their performance on the simulator. During the simu-

lation, cooperation is required between a real-life hu-

man and a robot, which cannot be implemented oth-

erwise without purchasing and developing a life-size

humanoid robot. In this simulation, the operator who

is in partnership with the robot manipulates an avatar

in a virtual environment to reproduce cooperative ac-

tions between a user and a humanoid robot. An intel-

ligence module created by the developers uses virtual

equivalents of the senses of sight and hearing to com-

prehend the situation within that space and recognize

the state of the user, performs dynamic calculations

to control arms, and also simulates communications

between the avatar and the robot. Expanding on this

kind of usage example will not only further research

into simple human-machine cooperation, it will also

enable the construction of a research and teaching

system with a competitive base for applications such

as Robocup(Kitano et al., 1998).

Taking the above application as an example, I im-

plemented a situation in which a human being and a

robot cooperate in the task of ”cooking okonomiyaki”

in SIGVerse (”okonomiyaki”is a popular cook-at-the-

table food in Japan, like a thick pancake). Examples

of the screens during the execution of this application

are shown in Figure 2. The GUI that the operator can

use has buttons such as ”ﬂip the pancake”, ”oil the

hotplate”, ”apply sauce”, and ”adjust the heat”.

Furthermore, providing immersive interface to

the users is very important to conduct realistic phy-

cophisical experiments throught the simulator. Fig.3

shows an example in which the user can operate

the cooking devices with haptic interface PHANToM

Omni to manipulate the “okonomiyaki”.

The objectiveof the task is to cooperate in cooking

the okonomiyaki as fast as possible, without burning

it. The operator basically uses the GUI to propel the

work forward, but the robot continuously judges the

current situation and, if it considers it can do some-

thing in parallel with the work that the operator is do-

ing, asks the operator questions such as ”Should I oil

the hotplate now?” or ”Should I turn the heat down?”

It then executes those jobs while viewing the opera-

tor’s responses. Figure 2 shows a scene in which the

avatar in the virtual environment is about to ﬂip the

pancake based on the operator’s instructions with a

help of robot agent.

I performed experiments on two cases: one in

which the operator performed all of the steps through

the GUI, and one in which the robot did suitable parts

of the operator’s work instead. In the ﬁrst case in

which the operator did all of the work, the task re-

quired three minutes 14 seconds before it was ﬁn-

ished, but in the second case involving cooperation,

the task took one minute 58 seconds to complete. In

this manner, it is possible to make effective use of

this system as a tool for quantitatively evaluating the

human-machine cooperation systems.

3.2 Introduction of Immersive

Interaction Space for the SIGVerse

Above applications used an usual display interface

such as web browser worked on personal computer.

However, if the aim of the application is to treat natu-

ral and real motion patterns of whole body that should

connect real world and cyber world, interface devices

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

432

Table 1: Lists of available API functions.

setJointAngle (arg1, arg2) Set the angle of joint arg1 be arg2

setJointTorque (arg1, arg2) Set the torque of joint arg1 be arg2

getPosition Get 3D position of the target object

getRawSound Get audio information cast by other agents

sendRawSound Utter speech as sound information

sendText(text, distance) Cast a text message text to agents who are existing within a distance distance

captureView Get pixel map as a visual sensor from eyesight of an agent

detectEntities(arg) List up all of the agents which is seen by an agent arg

getObj(arg) Get ID number of an object arg

getObjAttribution(arg1, arg2) Get attribution value for attribute arg2 of an aobject arg1

Figure 7: Experiment on joint attention between human and robot. The robot observes direction of the user’s eyes. Using

joint attention, the robot could avoid the falling object from a shelf.

would be a bottleneck. To solve this problem, an

immersiveinteraction system named SD-GRIS(Kwon

and Inamura, 2010) was developed and integrated to

the SIGVerse system. The SD-GRIS can project all-

around view of SIGVerse world to surrounding dis-

plays. Additionally, an optical motion capturing sys-

tem is installed in the display space. User can interact

with virtual agents with gestures and such as intuitive

instruction system with mobile robot agents(Kwon

and Inamura, 2010) as shown in Fig.5, that is previous

Okonomiyaki application.

As an application of human-robot interaction us-

ing the immersive system is robotic motion coaching

system(Okuno and Inamura, 2010), in which a robot

trains human beings to be able to perform good sports

motions even though the subjects are beginners. A

trainer, that is a virtual humanoid robot, performs a

target motion. A human as a subject imitates the per-

formed motion; the virtual robot evaluate the human’s

motion as trainer. If the human’s performance was

far from the target motion, the robot modify the next

performance according to the human’s error to let the

human’s performance be biased to the target motion.

Currently, a optical motion capturing system is used

for the training application; however, simple and con-

venient device such as Kinect was connected to the

system, training could be applied for general public

who are connecting to the system from all over the

world. An outlook of the motion coaching experi-

ment is shown in Fig.6. This is another potential of

the proposed system.

3.3 Joint Attention

Another signiﬁcant function is to simulate direction

of eyes of each agent. One of the important element

in human-robot interaction is to recognize and control

direction of eyes to establish joint attention for natural

intaraction. Each agent in this system has a propety of

eyes’ direction. If a user ware eye tracker with HMD

device, the information would be sent to the simu-

lation system; the avator’s direction of eyes is con-

trolled by the real information. Since the surrounding

scene image is displayed on the HMD, the user can

behave if the user was standing just in front of the

robot in the virtual SIGVerse world. Fig.7 shows a

HUMAN-ROBOT COOPERATION SYSTEM USING SHARED CYBER SPACE THAT CONNECTS TO REAL

WORLD - Development of SocioIntelliGenesis Simulator SIGVerse toward HRI

433

sequence of experiment on establishment of joint at-

tention between virtual robot and user.

4 CONCLUSIONS

I have proposed the concept of a simulation platform

in which dynamic simulations of bodies, simulations

of senses, and simulations of social communications

are integrated into the same system, as an approach to

the interdisciplinary research necessary for compre-

hending the mechanism of intelligence in human be-

ings and robots, and reported on the implementation

of a prototype system named the SIGVerse(Inamura,

2010).

In this paper, an expansion usage of the SIGVerse

was introduced to promote researches on human-

robot interaction. Usual human-robot interaction ex-

periments tend to work on only one user and one

robot. However, it is important to perform wide and

long term experiments with a lot of users and mul-

tiple robots to discuss social intelligence. Addition-

ally, not only simple interface such as web browser,

but also natural and rich interface such as whole body

motion and eyesight are important to performe natural

human-robot interaction. Through several functions

and applications, I showed the feasibility of applying

the SIGVerse to this grand challenge for human-robot

interaction.

REFERENCES

Gerkey, B., Vaughan, R. T., and Howard, A. (2003). The

player/stage project: Tools for multi-robot and dis-

tributed sensor systems. In Proceedings of the 11th

International Conference on Advanced Robotics, page

317323.

Inamura, T. (2010). Simulator platform that enables so-

cial interaction simulation sigverse: Sociointelligen-

esis simulator. In Proc. of IEEE/SICE International

Symposium on System Integration, page 212217.

Ishiguro, K. (2007). Trade liberalization and bureauplural-

ism in japan: Two-level game analysis. technical re-

port 53. Technical report, Kobe University Economic

Review.

Jackson, J. (2007). Microsoft robotics studio: A technical

introduction. IEEE Robotics & Automation Magazine,

14(4):82–87.

Kanehiro, F., Fujiwara, K., Kajita, S., Yokoi, K., Kaneko,

K., Hirukawa, H., Nakamura, Y., and Yamane, K.

(2002). Open architecture humanoid robotics plat-

form. In Proceedings of the 2002 IEEE International

Conference on Robotics & Automation, page 2430.

Kirby, S. and Hurford, J. (2002). Simulating the Evolu-

tion of Language, chapter The emergence of linguistic

structure: An overview of the iterated learning model.,

page 121148. Springer Verlag.

Kitano, H., Asada, M., Kuniyoshi, Y., Noda, I., Osawai, E.,

and Matsubara, H. (1998). Lecture Notes in Computer

Science, volume 1395, chapter Robocup: A challenge

problem for ai and robotics., page 119. Springer.

Kwon, O. and Inamura, T. (2010). Surrounding display and

gesture based robot interaction space to enhance user

perception for teleoperated robots. In Intl Conf. on

Advanced Mechatronics, page 277282.

Michel, O. (2004). Webots: Professional mobile robot sim-

ulation. International Journal of Advanced Robotic

Systems, 1(1):394.

Nakaoka, S., Hattori, S., Kanehiro, F., Kajita, S., and

Hirukawa, H. (36413647). Constraint-based dynamics

simulator for humanoid robots with shock absorbing

mechanisms. In Proceedings of the 2007 IEEE/RSJ

International Conference on Intelligent Robots and

Systems.

Okuno, K. and Inamura, T. (2010). A research on motion

coaching for human beings by a robotics system that

uses emphatic motion and verbal attention. In Hu-

manoids 2010 Workshop on Humanoid Robots Learn-

ing from Human Interaction.

Smith, R. (2004). Open dynamics engine v0.5 user guide.

http://www.ode.org/.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

434
