REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT

COLOR PROBABILITY FOR VIRTUAL REALITY

APPLICATIONS

Chutisant Kerdvibulvech

Department of Information and Communication Technology, Rangsit University

52/347 Muang-Ake, Paholyothin Rd. Lak-Hok, 12000, Pathum Thani, Thailand

Keywords: Real-time System, Adaptive Learning, Visualizing System, Color Probability, Virtual Reality.

Abstract: Segmentation is not a trivial task, especially in challenging situations such as outdoor area. In this paper, we

develop an adaptive learning system to segment an object robustly. By using the on-line adaptation of color

probabilities, the proposed method presents several specific features: it is able to cope with illumination

changes even in the outdoor area, and also it can be done in real-time. Bayes’ rule and Bayesian classifier is

employed to calculate the probability of an object color. Representative experimental results are also

presented and discussed. The system presented can be further used to develop the real-time game of

augmented reality in virtual spaces.

1 BACKGROUND

Computer vision is the technology of machines that

see and analyze scientifically. Research about color

segmentation and a model of color is a very popular

topic, due to the popularity of virtual reality and

augmented reality recently. Basically, a model of

color relates to the selection of the color space is

usually mentioned and used previously. Many color

spaces have been proposed including RGB (Jebara

and Pentland, 1997), normalized RGB (Kim et al,

1998), YCrCb (Chai and Ngan, 1998), etc. Color

spaces efficiently separating the chrominance from

the luminance components of color are typically

considered preferable. Previous method is to find the

proper threshold values of each color model, e.g.

HSV (Gonzalez and Woods, 2002). Another recent

method used (Cabrol et al, 2005) color region

segmentation followed by a color classication and

region. After they segmented, they use it for

RoboCup application, i.e. four-legged league or an

industrial conveyor wheeled robot. However, by

using these previous methods, it is not able to cope

with considerable luminance changes effectively.

This paper proposes a real-time system using a

Bayesian classifier that is bootstrapped with a small

set of training data and refined through an off-line

iterative training procedure (Argyros and Lourakis,

2004). We calculate the color probabilities being

object color. The learning process is composed of

two phases.

In the first phase, the color probability is

obtained from a small number of training images

during an off-line pre-process. The color

representation used in this process is YUV 4:2:2

(Jack, 2004). This color space contains a luminance

component (Y) and two color components (UV).

The main advantage for using the YUV space is that

the luminance and the color information are

independent. Thus, it is easy to separate the

chrominance from the luminance components of

color. As object tones differ mostly in chrominance

and less in intensity, by employing only

chrominance-dependent components of color, one

can achieve some degree of robustness to changes in

luminance.

In the second phase, we gradually update the

probability automatically and adaptively from the

additional training data images. However, the Y-

component of this representation is not employed for

two reasons. Firstly, the Y-component corresponds

to the luminance of an image pixel. By omitting this

component, the developed classifier becomes less

sensitive to luminance changes. Secondly, compared

to a 3D color representation (YUV), a 2D color

representation (UV) is lower in dimensions and,

200

Kerdvibulvech C..

REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY APPLICATIONS.

DOI: 10.5220/0003622802000204

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

200-204

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

therefore, less demanding in terms of memory

storage and processing costs. This disregard of the

luminance value has also been shown to be useful in

detection and tracking of faces (Hua at al, 2002) and

color night vision (Shi at al, 2007).

In our proposed method, we set that the adapting

process can be disabled as soon as the achieved

training is deemed sufficient. Therefore, when we

start to learn the on-line object color adaptation, we

assume that there is enough object area in the image.

As soon as the on-line adapting process is enough as

we prefer (i.e. the object color probability converges

to a proper value), we manually stop the adapting

process. In this way, after finishing the on-line

learning process, although the object area disappears

from the scene, it does not affect the object color

probability.

Therefore, this method allows us to get accurate

color probability of the object from only a small set

of manually prepared training images. This is

because the additional object region does not need to

be segmented manually. Also, because of the

adaptive learning, it can be used robustly with

changing luminance during the on-line operation.

2 METHOD

This section will explain the method we used for

segmenting the object region. We calculate the color

probabilities being object color adaptively. The

learning process is composed of two phases.

2.1 Off-line Learning

During an off-line phase, a small set of training

input images is selected, on which a human operator

manually delineates object-colored regions, as

shown in Figure 1.

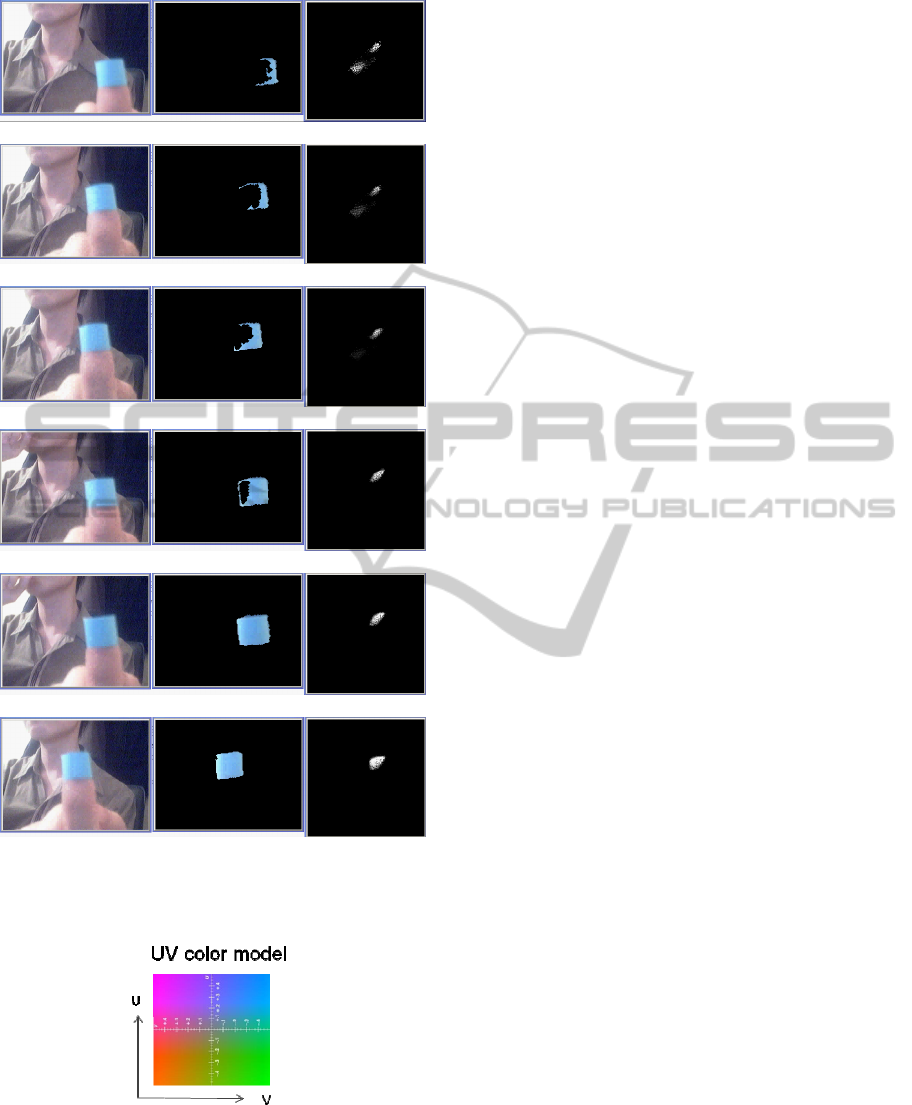

Figure 1: Off-line learning process.

Following this, assuming that image pixels with

coordinates (x,y) have color values c = c(x,y),

training data are used to calculate:

(i) The prior probability P(o) of having object color

o in an image. This is the ratio of the object-colored

pixels in the training set to the total number of pixels

of whole training images.

(ii) The prior probability P(c) of the occurrence of

each color in an image. This is computed as the ratio

of the number of occurrences of each color c to the

total number of image points in the training set.

(iii) The conditional probability P(c|o) of an object

being color c. This is defined as the ratio of the

number of occurrences of a color c within the object-

colored areas to the number of object-colored image

points in the training set.

By employing Bayes’ rule, the probability P(o|c) of

a color c being an object color can be computed by

using

(|)()

(|)

()

Pc oPo

Po c

(1)

This equation determines the probability of a certain

image pixel being object-colored using a lookup

table indexed with the pixel’s color. The resultant

probability map thresholds are then set to be

threshold

max

and threshold

min

, where all pixels

with probability P(o|c) >

max

are considered as

being object-colored—these pixels constitute seeds

of potential object-colored blobs—and image pixels

with probabilities P(o|c) >

min

where

min

max

are the neighbors of object-colored image pixels

being recursively added to each color blob. The

rationale behind this region growing operation is that

an image pixel with relatively low probability of

being object-colored should be considered as a

neighbor of an image pixel with high probability of

being object-colored. Smaller and larger threshold

values cause the false object detection. For example,

if we choose the threshold value

max

that is too

big, we cannot detect any pixels that constitute the

seeds of potential object blobs. Therefore, the values

for

max

and

min

should be determined by test

experiments (we use 0.5 and 0.15, respectively, in

this experiment). A standard connected component

labelling algorithm (i.e. depth-first search) is then

responsible for assigning different labels to the

image pixels of different blobs.

Size filtering on the derived connected components

is also performed to eliminate small isolated blobs

that are attributed to noise and do not correspond to

interesting object-colored regions. Hence, connected

components that consist of less than the threshold

size are assumed to be noise and then rejected from

further consideration. Each of the remaining

connected components corresponds to an object-

REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY

APPLICATIONS

201

colored blob. In this step, we choose the biggest

region as an object-colored blob.

2.2 Adaptive Learning System

Training is an off-line procedure that does not affect

the on-line performance of the tracker. Nevertheless,

the compilation of a sufficiently representative

training set is a time-consuming and labor-intensive

process. To cope with this problem, an adaptive

training procedure has been developed. Training is

performed on a small set of seed images for which a

human provides ground truth by defining object-

colored regions. Following this, detection together

with hysteresis thresholding is used to continuously

update the prior probabilities P(o), P(c) and P(c|o)

based on a larger image data set. The updated prior

probabilities are used to classify pixels of these

images into object-colored and non-object-colored

ones. The final training of the classifier is then

performed based on the training set resulting from

user editing. This process for adapting the prior

probabilities P(o), P(c) and P(c|o) can either be

disabled as soon as the achieved training is deemed

sufficient for the purposes of the tracker, or continue

as more input images are fed to the system.

The success of the color detection depends

crucially on whether or not the luminance conditions

during the on-line operation of the detector are

similar to those during the acquisition of the training

data set. Despite the fact that using the UV color

representation model has certain luminance

independent characteristics, the object color detector

may produce poor results if the luminance

conditions during on-line operation are considerably

different to those used in the training set. Thus, a

means of adapting the representation of object-

colored image pixels according to the recent history

of detected colored pixels is required. To solve this

problem, object color detection maintains two sets of

prior probabilities (Zabulis et al, 2009). The first set

consists of P(o), P(c), P(c|o) that have been

computed off-line from the training set. The second

is made up of

)(oP

)(cP

)|( ocP

corresponding to the P(o), P(c), P(c|o) that the

system gathers during the W most recent frames

respectively. Obviously, the second set better

reflects the “recent” appearance of object-colored

objects and is therefore better adapted to the current

luminance conditions. Object color detection is then

performed based on the following moving average

formula:

(|) (|) ((1 ) (|))

oc Poc P oc

=+−

(2)

where

)|( coP

represents the adapted probability

of a color c being an object color. P(o|c) and

)|( coP

are both given by Equation (1) but

involve prior probabilities that have been computed

from the whole training set [for P(o|c)] and from the

detection results in the last W frames [for

)|( coP

is a sensitivity parameter that controls the

influence of the training set in the detection process

)10(

≤

. If

, then the object color detection

takes into account only the training set (35 images in

the off-line training set), and no adaptation takes

place; if

is close to zero, then the object color

detection becomes very reactive, relying strongly on

the recent past for deriving a model of the immediate

future. W is the number of history frames. If W value

is too high, the length of history frames will be too

long; if W value is set too low, the history for

adaptation will be too short. In our implementation,

we set

= 0.8 and W = 5 which gave good results

in the tests that have been carried out.

Thus, the object color probability can be determined

adaptively. By using on-line adaptation of object

color probabilities, the classifier is easily able to

cope with considerable luminance changes, and also

it is able to segment the object even in the case of a

dynamic background.

3 RESULTS

In this section, representative results from our

experiment are shown. Figure 2 provides a few

representative snapshots of the experiment. The

reported experiment is based on a sequence that has

been acquired with USB camera at a resolution of

320x240 pixels. This process is done in real time

and on-line. The experimental room is outdoor area

(balcony). Note that the training set (35 images in

the off-line training set) was collected from the

indoor area. So the luminance change makes it much

more challenging.

The left window depicts the input images. The

middle window shows the output images. The right

window represents the object probability map in the

U and V axis in color model, as depicted in Figure 3.

In the initial stage (frame 15), when the

experiment starts, the object color probability does

not converge to a proper value. In other words, the

color probability is scattering. So the segmented

output cannot be achieved well because it uses only

from the off-line data set which the lighting is

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

202

Frame 15

Frame 35

Frame 55

Frame 75

Frame 95

Frame 115

Figure 2: Object segmentation based on the color

probability: from off-line learning to adaptive learning.

Figure 3: U and V axis in color model.

extremely different. At frame 35, frame 55 and

frame 75, after performing the adaptive learning

process, the object color probability gradually

converges to a proper value. Thus, the result

becomes better. Later on at frame 95 and frame 115,

the result can be achieved robustly. The lighting

used to test between off-line (at indoor area) and on-

line (at outdoor area) is obviously different.

However, it can be observed that the 2D segmented

result of object can be still determined without

effects of different light sources in each

representative frame. This is because a Bayesian

classifier and an on-line adaptation of color

probabilities are utilized to deal with this.

4 CONCLUSIONS

In this paper, we have developed an adaptive

learning system which is performed by using a

Bayesian classifier and the online adaptation of

object color probabilities. This method is to

effectively deal with any illumination changes both

indoor and outdoor areas. Furthermore, the

computation time of the method is real-time. The

result of the proposed method is the segmenting of

objects to be able a human-computer interaction

system for virtual reality and augmented reality

environments. Our future work is to apply this

process to a real-life augmented reality application.

In the future, we intend to further refine this

problem.

ACKNOWLEDGEMENTS

The work presented in this paper is supported in part

by a Grant-in-Aid from the Research Institute of

Rangsit university.

REFERENCES

Argyros, A. A., Lourakis, M. I. A., 2004. Real time

Tracking of Multiple Skin-Colored Objects with a

Possibly Moving Camera. European Conference on

Computer Vision.

Cabrol, A. D., Bonnin, P., Costis, T., Hugel, V., Blazevic,

P. (2005). A New Video Rate Region Color

Segmentation and Classication for Sony Legged

RoboCup Application. Lecture Notes in Computer

Science. RoboCup.

Chai, D., Ngan, K. N., 1998. Locating facial region of a

head-and-shoulders color image. 3rd IEEE

International Conference on Automatic Face and

Gesture Recognition (FG’98).

Gonzalez, R., Woods, R. E., 2002. Digital Image

REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY

APPLICATIONS

203

Processing. 2 ed, Prentice Hall Press., ISBN 0-201-

18075-8.

Hua, R. C. K., Silva, L. C. D., Vadakkepat, P., 2002.

Detection and Tracking of Faces in Real-Time

Environments. International Conference on Imaging

Science, Systems, and Technology.

Jack, K., 2004. Video demystified, Elsevier science, 4th

edition.

Jebara, T. S., Pentland, A., 1997. Parameterized structure

from motion for 3D adaptive feedback tracking of

faces,” IEEE Conference on Computer Vision and

Pattern Recognition.

Kim, S. H., Kim, N. K., Ahn, S. C. and Kim, H. G., 1998.

Object oriented face detection using range and color

information. 3rd IEEE International Conference on

Automatic Face and Gesture Recognition.

Shi, S., Wang, L., Jin, W., Zhao, Y., 2007. Color night

vision based on color transfer in YUV color space.

International Symposium on Photoelectronic

Detection and Imaging.

Zabulis, X., Baltzakis, H., Argyros, A. A., 2009. Vision-

based Hand Gesture Recognition for Human-

Computer Interaction, In "The Universal Access

Handbook", Lawrence Erlbaum Associates, Inc.

(LEA), Series on "Human Factors and Ergonomics",

ISBN: 978-0-8058-6280-5.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

204
