UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE

FRAMEWORK FOR ONTOLOGY EVALUATION

A Case Study on BioSTORM

H. Hlomani, M. G. Gillespie, D. Kotowski and D. A. Stacey

School of Computer Science, University of Guelph, 50 Stone Road East, Guelph, Canada

Keywords:

Ontologies, Ontology capture, Ontology evaluation, Knowledge engineering, Knowledge identiﬁcation,

BioSTORM, Context, Adaptability, Knowledge base.

Abstract:

With the advent of such platforms as Service Oriented Architecture (SOA) and the open source community

came the possibility of accessing free software/services. These may be in the form of web services, coded

algorithms, legacy systems, etc. Users are able to deﬁne workﬂows through the combination of these software

components with the aide of systems known as Ontology Driven Compositional Systems (ODCS). These

systems have ontologies as their fundamental components that provide the knowledge bases that provide the

rich descriptions of the ODCS components. Since these ontologies underlie ODCS, greater efforts must be

spent in the engineering of these artifacts. We have thus proposed a knowledge identiﬁcation framework that

can be used as a guide within ontology engineering methodologies to perform such tasks as ontology capture

and evaluation. In this paper we demonstrate the usage of this framework in a case study to evaluate the

ontologies deﬁned in the BioSTORM project. We do this by using a checklist (founded on the knowledge

identiﬁcation framework) through which we can evaluate the adaptability of the context of an ontology.

1 INTRODUCTION

With the advent of such platforms as Service Ori-

ented Architecture (SOA) and the open source com-

munity came the possibility of accessing free soft-

ware/services. These may be in the form of web ser-

vices, coded algorithms, legacy systems, etc. While

these may be self-contained and providing some use-

ful function, a more complex (combination of one

or more) form of these services may provide some

added value. With the aide of computers, users would

compose (either automatically or semi-automatically)

a resultant system by discovering, ranking, selecting

and orchestrating previously implemented software to

achieve their goal. This technique is referred to as

Compositional Systems.

Current research has focused on Ontology Driven

Compositional Systems, a variant of compositional

systems that employs a central knowledge base to

provide rich descriptions of its components (Arpinar

et al., 2005; Cardoso and Sheth, 2005; Crubezy et al.,

2005; Gillespie et al., 2010; Hlomani and Stacey,

2009). This knowledge base is made mostly of se-

mantic web technologies referred to as ontologies.

These are formal representation of knowledge throu-

gh the deﬁnition of concepts within a domain and the

relationships between these concepts (Gruber, 1993).

Since ontologies underlie ODCS and other seman-

tic web based systems, there has been substantial re-

search on the creation of uniﬁed ontologies. This is,

however, proving to be a daunting task since each se-

mantic web implementation often has its own mod-

elling perspective (Gillespie et al., 2011; Burstein and

Mcdermott, 2005). This difﬁculty then cascades to

knowledge engineering processes such as knowledge

identiﬁcation, ontology capture and ontology evalu-

ation. To handle this shortcoming we proposed (in

our previous work (Gillespie et al., 2011)) a gener-

alized knowledge identiﬁcation framework that could

be used within ontology engineering methodologies

to capture possible knowledge that could be repre-

sented in ontological models for ODCSs.

In this paper, we conduct a case study on BIOS-

TORM ontologies. We do this by using the knowl-

edge identiﬁcation framework to evaluate the ontolo-

gies paying particular interest to the adaptability of

the context of the categories of knowledge within the

framework.

167

Hlomani H., G. Gillespie M., Kotowski D. and A. Stacey D..

UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE FRAMEWORK FOR ONTOLOGY EVALUATION - A Case Study on BioSTORM.

DOI: 10.5220/0003631901670175

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2011), pages 167-175

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 BACKGROUND

2.1 Ontology Engineering

From the moment that ontologies have become a prac-

tical choice for representing knowledge within soft-

ware, there has been great effort by researchers and

the software community to formalize their creation

and development process (Gillespie et al., 2011).

From this rose the notion of knowledge engineering

and the formalization of the knowledge meta-process.

(Sure et al., 2009) presented a generalized

”Knowledge Meta Process” method for creation, re-

ﬁnement and maintenance of ontologies (i.e. knowl-

edge engineering). This process involves several

steps: Feasibility Study, Kick-off, Reﬁnement, Evalu-

ation, and Application/Evolution. The ﬁrst two steps

focus mostly on understanding a set knowledge re-

quirements (i.e, Kick-off) required to be represented

in a ontology-driven application, and the last three

steps focus on iteratively reﬁning, evaluating, and

evolving the knowledge representations for an appli-

cation. All steps/phases of an ontology development

process present their own unique characteristics, how-

ever the main focus always addresses the represented

knowledge. For the context of our case-study, we

have decided to focus on considering ontology evalu-

ation techniques.

2.2 Ontology Evaluation

To deﬁne ontology evaluation two important concepts

should be considered: the role ontologies play within

applications (e.g. ODCS) and perception. (Brank

et al., 2005) view ontologies as the “piece” that

shifted the focus of information systems from “data

processing” towards “concept processing”. Hence

system components are given context through the def-

inition of their semantics. Ontologies are built as con-

ceptualizations of a domain and hence are based on

one’s view of the domain. (Brank et al., 2005) ar-

gue that it is therefore possible for several ontologies

to conceptualize the same domain. Given this, focus

must then be given to evaluating ontologies not only

for their correctness but their suitability as well.

There is no consensus on the “best” or preferred

ontology evaluation approach, however, there are sev-

eral variables that can inﬂuence the decision to use

a speciﬁc methodology. These include: the purpose

of the evaluation, where the ontology is to be used

and the aspects of the ontology to be evaluated (Brank

et al., 2005). Each of these evaluation approaches will

be classiﬁed as: golden standard comparison, evalua-

tion of the application using the ontology, comparison

to source data about a modelled domain, or as human

performed assessment of predeﬁned criteria, standard

or requirement (Vrande

c, 2009; Brank et al., 2005).

In addition to the above mentioned categorizations

of approaches to ontology evaluation, (Brank et al.,

2005) proposes a grouping of these approaches based

on aspects of the ontology (also known as the level of

evaluation (Vrande

c, 2009)). Their argument is that

an ontology is a fairly complex structure and hence it

would be more practical to evaluate each level sepa-

rately rather than a holistic approach. These include:

a.) Lexical, vocabulary, concept, data. b.) Hierarchy,

taxonomy. c.) Other semantic relations. d.) Context,

application. e.) Syntactic f.) Structure, architecture,

design. With that said, utilizing our knowledge frame-

work presented in Section 2.3, an ontology evaluation

process can focus on an aspect that best ﬁts the goal

of the developer/evaluator.

2.3 Knowledge Identiﬁcation

Framework

We recently presented a knowledge identiﬁcation

framework (Gillespie et al., 2011) in hopes of improv-

ing the engineering of ontologies for ODCSs. The

framework could act as a complimentary guide dur-

ing an engineering methodology. Figure 1 illustrates

our proposal.

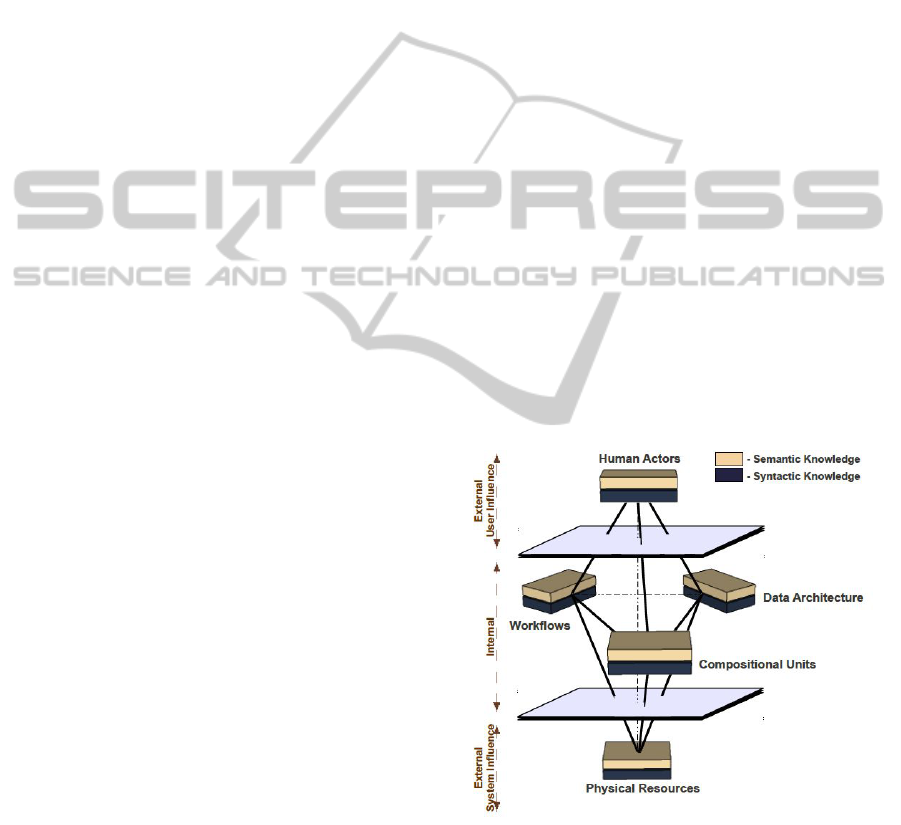

Figure 1: A proposed framework to guide engineers in the

identiﬁcation of ontological knowledge driving ODCS pro-

cesses (Gillespie et al., 2011).

Within this framework, ﬁve different categories of

knowledge can be represented within the ontologies

that drive an ODCS: Human Actors, Compositional

Units, Workﬂow, Data Architecture, and Physical

Resources. With a stronger deﬁnitions provided

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

168

in (Gillespie et al., 2011), the ﬁve categories are

described in this paper as the following:

Human Actors. The representation of knowledge

that identiﬁes various types of human users who in-

teract with an ODCS in some fashion (e.g. end-users,

software developers, domain-experts, etc.)

Compositional Units. The representation of knowl-

edge that identiﬁes previously implemented pieces

of software that could be composed into a resultant

system (e.g. algorithms, web services, distributed

agents, etc.)

Workﬂow. The representation of knowledge that

identiﬁes the process ﬂow of different compositional

units to complete a given objective/task/goal (e.g. the

composition of a data aggregation script, statistical

model, and data plot module to complete a modelling

workﬂow).

Data Architecture. The representation of knowledge

that identiﬁes the various forms of data sources and

speciﬁcations that could be input, output, or ﬂow

through the resultant system and the individual com-

positional units within it (e.g. a CSV ﬁle containing

emergency department visit time-series data).

Physical Resources. The representation of knowl-

edge that identiﬁes physical executional environments

that could systematically execute a constructed resul-

tant system by an ODCS (e.g. a personal computer

with a speciﬁc operating system or a supercomputer

with a large number of processors).

To complement the ﬁve categories of knowledge

depicted in Figure 1, three more conceptual consider-

ations are illustrated: human and system inﬂuences,

syntactic and semantic knowledge representation and

the relationships between the different categories of

knowledge.

A differentiation between syntactic and semantic

knowledge representation is illustrated in Figure 1.

Essentially, entities of knowledge that are described

as ”syntactic” would represent physical objects con-

sidered within an ODCS (e.g., algorithm, web service,

data source, data set, person, a computer server, etc.),

where ”semantic” knowledge entities would repre-

sent the ’realization’ of the syntactic entities (e.g.,

programming language, functional purpose, dimen-

sions/structure of data, human actor role, operating

system environment, etc.) In terms of semantic rep-

resentation, ﬁve sub-types can be considered: func-

tion, data, execution, quality, and trust. Gillespie et al

(2011) and Cardoso (2005) describe these further.

Finally, the framework identiﬁes the relationships

between the categories of knowledge. These relation-

ships can also be described as either syntactic or se-

mantic.

3 UTILIZATION OF THE

FRAMEWORK FOR

ONTOLOGY EVALUATION

As stated in Section 2.3, the framework performs

as a tool to facilitate effective ontology engineering

methodologies for ODCS ontological knowledge. In

this section we suggest how the framework can be uti-

lized in the context of ontology evaluation by present-

ing a knowledge framework checklist. This checklist

can be applied by any ontology engineer who is in-

vestigating the ontological knowledge for an ODCS.

Following the work of (Brank et al., 2005),

(Vrande

c, 2009) provided a description of different

aspects of ontology evaluation. As discussed in sec-

tion 2.2, one of these aspect is context. Our focus

for this paper is to evaluate the adaptability of con-

text. Context is deﬁned in terms of considering the

aspects of the ontology in relation to other variables

in its environment (Vrande

c, 2009). ODCS-speciﬁc

examples may include human inﬂuence, an applica-

tion using the ontology, a data source the ontology

describes, etc. Due to the high-level categorical repre-

sentation that the knowledge identiﬁcation framework

provides, context is the aspect of ontology evaluation

that best ﬁts our assessment.

An ontology evaluation is assessed by how

well a given aspect satisﬁes certain criteria/metrics

(Vrande

c, 2009). In terms of the knowledge frame-

work and the nature of ODCS applications, adapt-

ability is considered. In (Gillespie et al., 2011), we

argued that the framework can assist with questions

such as “How can ontological knowledge represented

in ODCS ‘A’ be utilized or integrated into the on-

tologies for ODCS ‘B’?”. Adaptability deals with

the extent to which the ontology can be extended

and/or specialized without breaking or removal of ex-

isting axioms (Vrande

c, 2009). Therefore, within

this ontology evaluation example we plan to assess

the adaptability of the context in a speciﬁc ODCS’s

ontologies.

3.1 Evaluation Checklist: A Concept

from Software Quality Assurance

Within the software engineering industry, long stand-

ing initiatives have been put in place for software

quality assurance (SQA) (International Standards Or-

ganization, 2001; McCall et al., 1977). One of the

main SQA standards calls for the development of soft-

UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE FRAMEWORK FOR ONTOLOGY EVALUATION - A

Case Study on BioSTORM

169

ware that is strongly portable. In the investigation

of portability, standards usually isolate that a soft-

ware developer or quality assurance professional must

consider dynamics such as adaptability and ﬂexibility

(McCall et al., 1977). This concept is strongly related

to the ontology evaluation focus we wish to pursue.

During the review of software quality assurance

evaluation methods, we discovered the persistent uti-

lization of checklists to quickly illustrate the aspects

of SQA that have and have not been satisﬁed by a

piece of software (Ince, 1995). Large companies and

organizations (such as (NASA, 2011)) utilize check-

lists to hold themselves accountable in the produc-

tion of high quality products and services. Acknowl-

edging the usefulness of this tool, we constructed a

checklist that assists with the speciﬁc focus of our on-

tology evaluation (i.e. adaptability of context), us-

ing our framework as the structure for the checklist

document.

3.2 From the Framework: Ontology

Evaluation Checklist for ODCS

In section 2.2 we observed that an ontology evalu-

ation strategy considers and is affected by variables

such as the purpose of the evaluation, and the aspect

of the ontology to be evaluated.

We also arrived at the conclusion that an ontol-

ogy evaluation process should focus on an aspect that

best ﬁts the goal of the evaluator and the structure of

the framework. Based on these notions, the structure

of the checklist deﬁned for the purpose of evaluating

the ontologies in this case study addresses the content

described in the knowledge identiﬁcation framework

(section 2.3). The evaluation of the adaptability of the

context of the ontologies is the focus for the check-

list and is structured as follows:Part A: ODCS & On-

tology Overview; Part B1-B5: Categories of Knowl-

edge(Syntax and Semantics); Part C: Internal Rela-

tionships; Part D: Human Actor Relationships; Part

E: Physical Resource Relationships; Part F: Overall

Assessment; Part G: Extra Space for Comments.

While the focus of this paper is on ontology evalu-

ation of existing ontologies it is possible to apply this

framework during the iterative process of developing

an ontology.

4 CASE STUDY: UTILIZATION

OF FRAMEWORK WITHIN AN

ONTOLOGY ENGINEERING

SCENARIO

This section presents the BioSTORM ontology eval-

uation case study. We start off by presenting an

overview of the steps. To conduct the case study,

an understanding of the BioSTORM prototype sys-

tem was needed. Therefore, we provide this overview

in section 4.2. This is followed by an assessment of

the adaptability of the ontology context . Finally a

presentation of the notable deductions from the case

study is presented. The checklist was utilized explic-

itly to address items 2-4 of section 4.1 while Part A

and B1 are illustrated in the Appendix.

4.1 Methodology: Running an

Evaluation with the Checklist

To run an effective ontology evaluation session we

aimed to utilize the proposed checklist as a pseudo-

research method. Based on its document structure the

following method was followed:

1. Visit the BioSTORM website (BioSTORM, 2009)

and download all of the ontologies and supporting

documentation and publications.

2. Before starting the checklist, read the related pub-

lications to understand the system-speciﬁc do-

main (i.e. composition software agents) and

the domain-speciﬁc application (i.e. syndromic

surveillance).

3. Run a preliminary overview evaluation by docu-

menting Part A of the checklist: ODCS & Ontol-

ogy Overview.

4. For each category of knowledge that exists within

the BioSTORM ontologies, document the respec-

tive Part B.

5. Next, consider the all possible relationships that

could exist between the categories of knowledge

in Parts C, D, and E.

6. Provide an overall assessment (in Part F) utilizing

the evaluation within the checklist document.

4.2 Biological Spatio-temporal

Outbreak Reasoning Module

(BioSTORM)

Syndromic surveillance is deﬁned as a type of surveil-

lance activity that uses health-related data (e.g. emer-

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

170

gency room visits, sales of over-the-counter medica-

tions, etc.) to establish the probability of a disease

outbreak that warrants a public health response. The

problem domain of syndromic surveillance is charac-

terized by the discovery of links between current data

and previously unrelated data (Nyulas et al., 2008;

Crubezy et al., 2005; Pincus and Musen, 2003). What

this implies is the requirement to integrate many di-

verse, heterogeneous and disparate data sources. It

also has the requirement of employing a varied num-

ber of computational methods/algorithms that can

reason about the data from these different sources.

The integration of the data source presents a ma-

jor challenge in terms of context. Each data source

and data concept has to be correctly understood less

it be misinterpreted with dire consequences. These

are the motivations for BIOSTORM, an experimental

prototype system implemented at Stanford University

that supports the conﬁguration, deployment and eval-

uation of analytic methods for the detection of out-

breaks. In this implementation, the quest to provide

context of data sources is done through the use of on-

tologies. The ontologies serves as a model through

which the semantics of data sources and their data can

be described thereby giving their context.

The BioSTORM implementation follows a JADE-

based system architecture that deploys a number of

agents that collaborate in analyzing data for outbreak

detection (Nyulas et al., 2008). This is a three layered

framework consisting of the knowledge layer, agent

platform, and the data source layer.

1. A Knowledge Layer consisting of a surveillance

method library, and their descriptive ontologies.

These ontologies and the methods API describe

the functionality of the system. Tasks, Methods

and Connectors are deﬁned in the ontology classes

to model communication paths. Algorithms are

also deﬁned to model related tasks.

2. An Agent Platform that generates system agents

based on the information retrieved from the

knowledge layer. They assume a data-driven en-

vironment where each agent may not be aware of

the producer or consumer of its information. Each

agent publishes its results on the blackboard and

consumes or uses information on the blackboard

as per its needs and is not aware of the existence

of other agents in the platform.

3. Data Source Layer. Based on the Data Source

ontology, this layer describes the environment

within which the agents interact.

A varied number of publications have resulted from

the research related to BioSTORM. These publica-

tions depicted different information about the ontolo-

gies which has lead to some confusion and difﬁculty

in evaluating the ontologies since the ontologies listed

in the publication do not resemble those available in

the BioSTORM repository.

4.3 Assessment of Adaptability of

Context

The assessment set out in this section focuses on Part

A and B1 of the checklist provided in the Appendix.

Note that aspects of the evaluation relating to Part A.1

and A.2 have been addressed in section 4.2.

4.3.1 A.5.ii: Difﬁcult Workﬂow Syntax

Knowledge

With the sm:Algorithm entity, a workﬂow is explic-

itly deﬁned by the utilization of an object property

titled sm#steps. An instance of an algorithm sm#steps

through sm#Tasks, sm#BranchPoints, and sm#Tag. In

this evaluation, we could not locate any depiction of

chronological ordering therefore we believe that the

workﬂow knowledge is heavily dependant on hard-

coded knowledge within the JADE multi-agent sys-

tem. This can also be attributed to the choice of ar-

chitecture (i.e. blackboard) which follows a parallel

and distributed pattern with agents publishing to and

using data on the blackboard.

4.3.2 B1.2.ii: JADE-CLASS Adaptability

The smj:JADE-CLASS is difﬁcult to adapt to the con-

text of other ODCS because it directly relates to a

JADE Software Agent instantiation. Most ODCS

would not utilize this multi-agent system, thus con-

textually this CU syntax knowledge entity is Difﬁcult

to adapt.

4.3.3 B1.4.iii: Adapt CU Function Semantics to

other ODCS Ontologies

The sm#Algorithm, sm#Task, and sm#Method classes

could be utilized in other CU representations for

other ODCS. Within their axiom relationships, an

sm#Algorithm primarily sm#steps through Tasks

(we are ignoring sm#BranchPoint and sm#Tag for

this checklist item). A sm#Task is composed

of sm#Methods and sub-sm#Algorithms, where the

methods could have more sub-sm#Tasks. If an ontol-

ogy engineer wished to adapt this structural compo-

sition, s/he must accept the detailed object property

relationship. In some cases, this may be too speciﬁc

depending on other ontological speciﬁcations.

UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE FRAMEWORK FOR ONTOLOGY EVALUATION - A

Case Study on BioSTORM

171

If this entity composition is favoured however, the

syndromic surveillance algorithms, tasks, and meth-

ods are deﬁned simply as sub-classes of the three

abstracted sm#Algorithm, sm#Task, and sm#Method

entities. Thus, other application domains could eas-

ily utilize these entities by engineering their own

domain-speciﬁc classes.

4.3.4 Other Notable Deductions

As depicted in Part A.1 and A.5.iii of the check-list,

the BioSTORM data source ontology represents the

semantic deﬁnitions of data (e.g. datatype, data struc-

ture, temporal and spatial dimensions, etc.). These

description are not domain speciﬁc and thus any data

used for any type of software will have these charac-

teristics. This renders these descriptions adaptable to

a different context.

Throughout the case study a recurring point was

observed: if a user wishes to use a JADE multi-agent

system, these ontologies would allow for quick imple-

mentation, however outside of that speciﬁcation uti-

lizing some aspects of these ontologies could prove

difﬁcult. Having said that, some aspects of the ontolo-

gies can be seamlessly adapted to a different applica-

tion. This conclusion was drawn based on the obser-

vations detailed in B1.4.i in the checklist that iden-

tiﬁes the modelling of top classes as “meta-classes”

that can be further sub-classed to represent knowledge

in the relevant domain.

5 DISCUSSION AND

CONCLUSIONS

In this paper we described a knowledge identiﬁca-

tion framework developed in our previous work. This

framework emerged from the realization of a gap be-

tween existing ODCS and their ability to share knowl-

edge. Hence, the knowledge identiﬁcation frame-

work would guide ontology engineering methodolo-

gies with such tasks as requirements gathering, ontol-

ogy capture, and evaluation of ontologies for ODCS

speciﬁcally. In this paper we have demonstrated the

usage of the framework to evaluate the context of

BioSTORM ontologies by presenting a knowledge

framework checklist. The evaluation centred around

whether the context of the ontology is adaptable.

Challenges were encountered during the evalua-

tion process. These include the lack of documentation

and confusion where documentation was present due

to gaps that may have been created by revisions of

the ontologies. Through the usage of the developed

checklist, we were able to identify the categories of

knowledge that were and were not represented in the

ontologies. In this case study, the Human Actors and

Physical Resources categories were not represented.

We attribute this absence to the context and nature

of the application. BioSTORM is an agent-based im-

plementation and thus the agents will only operate in

their environment and nowhere else (in this case, the

JADE platform).

Throughout the case study we observed that the

descriptions provided were strongly tied to the JADE

multi-agent domain. Therefore if a user wishes to use

a JADE multi-agent system, these ontologies would

allow for quick implementation, however outside of

that speciﬁcation utilizing some aspects of this ontol-

ogy could prove difﬁcult. Having said that, we also

observed that some aspects of the ontologies can be

adapted to different contexts or used in a different

ODCS. An example of this is the CU functional se-

mantics. This is modelled through the deﬁnition of

the Algorithm, Task and Method as top level classes.

These classes can be further sub-classed to specialize

them so as to model the domain of interest.

It is important to recognize that although the

checklist can explicitly imitate an evaluation method-

ology it should not be used as such. We ob-

served through our experience that during an ontol-

ogy evaluation session, an analyst will ﬂuidly move

through the object properties between entities. Thus,

an analyst is consistently assessing different cate-

gories of knowledge and their respective relation-

ships during the session. The checklist proved to

be a tool that facilitated this dynamic. While we

have used the framework only for evaluation, it is

our postulation that an ontology engineer may use

this framework to guide him/her during the captur-

ing of valid ontologies as well. Due to space con-

straints not all material is covered in this paper. To

obtain a more comprehensive technical report visit:

http://www.ontology.socs.uoguelph.ca

REFERENCES

Arpinar, I. B., Zhang, R., Aleman-Meza, B., and Maduko,

A. (2005). Ontology-driven Web services composition

platform. Information Systems and e-Business Man-

agement, 3(2):175–199.

BioSTORM (2009). Welcome to BioSTORM-

Project Description. Available Online

http://biostorm.stanford.edu/.

Brank, J., Grobelnik, M., and Mladenic, D. (2005). A sur-

vey of ontology evaluation techniques. In Proceedings

of the Conference on Data Mining and Data Ware-

houses (SiKDD 2005), pages 166–170. Citeseer.

Burstein, M. H. and Mcdermott, D. V. (2005). Ontology

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

172

Translation for Interoperability Among Semantic Web

Services. AI Magazine, 26(1):71–82.

Cardoso, J. and Sheth, A. (2005). Introduction to Semantic

Web Services and Web Process Composition, volume

3387 of Lecture Notes in Computer Science. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Crubezy, M., Connor, M., Pincus, Z., Musen, M., and Buck-

eridge, D. (2005). Ontology-Centered Syndromic

Surveillance for BioTerrorism. IEEE Intelligent Sys-

tems, pages 26–35.

Gillespie, M. G., Hlomani, H., and Stacey, D. A. (2011). A

Knowledge Identiﬁcation Framework for Engineering

Ontologies in System Composition Processes. In 12th

IEEE Conference on Information Reuse and Integra-

tion (IRI 2011) to appear, Las Vegas.

Gillespie, M. G., Stacey, D. A., and Crawford, S. S.

(2010). Satisfying User Expectations in Ontology-

Driven Compositional Systems: A Case Study in Fish

Population Modelling. In International Conference of

Knowledge Engineering and Ontology Development,

Valencia.

Gruber, T. R. (1993). A translational approach to portable

ontology speciﬁcations. Knowledge Acquisition,

5(2):199–220.

Hlomani, H. and Stacey, D. A. (2009). An ontology driven

approach to software systems composition. In Inter-

national Conference of Knowledge Engineering and

Ontology Development, pages 254–260. INSTICC.

Ince, D. C. (1995). Introduction to Software Quality As-

surance and Its Implementation. McGraw-Hill, New

York, NY, USA.

International Standards Organization (2001). ISO/IEC

9126:2001.

McCall, J., Richards, P., and Walters, G. (1977). Factors in

Software Quality, RADC TR-77-369, volume I, II, III.

US Rome Air Development Center Reports.

NASA (2011). Software Qual-

ity. Available online http://sw-

assurance.gsfc.nasa.gov/disciplines/quality/index.php.

Nyulas, C. I., O’Connor, M. J., Tu, S. W., Buckeridge,

D. L., Okhmatovskaia, A., and Musen, M. a. (2008).

An Ontology-Driven Framework for Deploying JADE

Agent Systems. 2008 IEEE/WIC/ACM International

Conference on Web Intelligence and Intelligent Agent

Technology, pages 573–577.

Pincus, Z. and Musen, M. a. (2003). Contextualizing het-

erogeneous data for integration and inference. In

AMIA ... Annual Symposium proceedings / AMIA Sym-

posium. AMIA Symposium, pages 514–8.

Vrande

c, D. (2009). Ontology Evaluation, pages 293–

313. Springer Berlin Heidelberg, Berlin, Heidelberg.

APPENDIX

In completing the checklist, the user ﬁrst gives an

overview of the ODCS and the ontologies that under-

lie it (i.e. Part A of the checklist). This is done by

answering the questions deﬁned by indicating “Yes”

if the aspect is represented, “No” if it is not repre-

sented, “Diff” if there is difﬁculty in telling, “NA” or

“TBD” in the cases where further research needs to

be done. When the overview has been done, Part B of

the checklist can be completed. Note that Part B1 of

the checklist can be replicated to equally assess other

categories of knowledge as may be relevant.

UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE FRAMEWORK FOR ONTOLOGY EVALUATION - A

Case Study on BioSTORM

173

Table 1: Part A of our proposed checklist is an overview of the ODCS being investigated and its ontologies. The answers

within this table relate to our case study investigation of BioSTORM.

Yes/Diff/No

NA/TBD

Comments

Part A: ODCS & Ontology Overview

A.1 Does explicit documentation and publications exist to ex-

plain the application context of this ODCS?

Yes See Section 4.2

A.2 Does explicit documentation exist to describe the system

architecture of this ODCS?

Diff See Section 4.2

A.3 List and describe the different ontologies in the ODCS. Provide a

name-space acronym for each ontology.

– DataSource.owl (ds): provides descriptions for available data sources on the ‘blackboard’

to unify agents (with speciﬁc input/output) together in a process ﬂow

– SurveillanceMethods.owl (sm): describes the surveillance algorithms, tasks and methods

that are related to evaluation, outbreak detection, and simulation.

– SurveillanceEvaluations.owl (se): provides a description of an “evaluation analysis” (i.e.

conﬁgurations of outbreak detection and simulation)

– SurveillanceMethodJADEOntology.owl (smj): provides association between JADE agents

and surviellance algorithms/tasks/methods for evaluation, detection, and simulation

A.4 List the ontologies that are imported into ODCS

– temporal.owl: a World Wide Web Consortium (W3C) ontology to specify temporal com-

ponents and proportions.

– beangenerator.owl: an ontology utilized by the JADE multi-agent system and required for

the implementation of BioSTORM integrated with JADE.

– more TBD

A.5.i Is Compositional Unit Knowledge represented within the

ontologies? Comment whether it is syntax, semantic, or

both.

Yes Both

A.5.ii Is Workﬂow Knowledge represented within the ontologies?

Comment whether it is syntax, semantic, or both.

Diff Syntax, see Section

4.3

A.5.iii Is Data Architecture Knowledge represented within the on-

tologies? Comment whether it is syntax, semantic, or both.

Yes Semantic

A.5.ix Is Human Actor Knowledge represented within the ontolo-

gies? Comment whether it is syntax, semantic, or both.

A.5.x Is Physical Resources Knowledge represented within the

ontologies? Comment whether it is syntax, semantic, or

both.

A.6 Do relationships between the categories of knowledge ex-

ist?

Yes

A.6.i If yes, indicate which relationships (ten possible permutations)

– CU–DA (Compositional Units - Data Architecture)

– CU–WF (Compositional Units - Workﬂows)

– WF–DA (Workﬂows - Data Architecture)

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

174

Table 2: Part B1 of our proposed checklist is an investigation of Compositional Unit Knowledge. The answers within this

table relate to our case study investigation of BioSTORM. Note that not all checklist questions for this “part” are included

because this presentation is merely a proof-of-concept.

Yes/Diff/No

NA/TBD

Comments

Part B1: Compositional Unit (CU) Knowledge

Syntax

B1.1 Is the CU syntax knowledge explicitly represented in an on-

tology?

Yes

B1.1.i If yes, list and describe the classes/entities

– smj#JADE-CLASS: represents physical surveillance agents that can be executed on the

JADE multi-agent system

B1.1.ii If no, where is it represented? TBD

B1.2 Do explicit mappings to imported ontologies for the CU

syntax knowledge exist?

Yes

B1.2.i If yes, list the mappings

– smj#JADE-CLASS entity is an explicit mapping from beangenerator.owl to automatically

incorporate an ontology-deﬁned agent into the JADE execution tool-kit.

B1.2.ii Also if yes, are these imported classes/entities adaptable for

other ODCS?

No See Section 4.3

B1.3 For CU syntax knowledge, do other ODCS explicitly map

to this ODCS’s ontologies?

TBD

B1.3.i If yes, list the mappings and describe their adaptability. TBD

B1.3.ii Could the identiﬁed CU syntax knowledge be adapted into

candidate mappings for other ODCS ontologies?

NA only uses imported

entities

Semantic

B1.4 Is the context for CU Function Semantics explicitly repre-

sented in the ontologies?

Yes

B1.4.i If yes, list and describe the main classes/entities. Note how the seman-

tics describe the syntax classes/entities above.

– sm#AnalysisEntity: top-level class describing analysis actions for evaluation, outbreak

detection, and simulations.

– – sm#Algorithm: top-level representation of an evaluation, outbreak detection, or simula-

tion process

– – sm#Task: a composition of a series of methods to perform a certain action

– sm#Method: a top-level collection of Primitive Methods and TaskDecompositionMethods

– – sm#PrimitiveMethod: single execution statement with no sub-tasks required

– – sm#TaskDecompositonMethod: is a task (or sub-task) that is another series of methods

Note: All algorithms, task, and methods entities directly correlate to the semantic context of

a smj:JADE-CLASS.

B1.4.ii For Function semantics, do explicit mappings to imported

ontologies exist?

B1.4.iii Could the identiﬁed Function semantics be adapted into

candidate mappings for other ODCS ontologies?

Diff see Section 4.3

B1.5 Is the context for CU Data Semantics explicitly represented

in the ontologies?

Yes

B1.5.i If yes, list and describe the main classes/entities. Note how the seman-

tics describe the syntax classes/entities above.

– se#InputSpeciﬁcation & se#OutputSpeciﬁcation: representation of semantic context of in-

put/output into algorithms, tasks, and methods

B1.5.ii Do explicit mappings to imported ontologies exist? No

B1.6 Is the context for CU Execution Semantics explicitly repre-

sented in the ontologies?

No Note: same answer

for Quality and Trust

semantics

UTILIZING A COMPOSITIONAL SYSTEM KNOWLEDGE FRAMEWORK FOR ONTOLOGY EVALUATION - A

Case Study on BioSTORM

175
