TRACKING CLOUD ON THE INTERNET USING A CLOUD

INFRASTRUCTURE

Bill Karakostas

Centre for HCI Design, School of Informatics, City University, London, U.K.

Keywords: Cloud computing, Intelligent cargo, Transport logistics, Internet of things, REST web services.

Abstract: In this paper we identify requirements for cargo management, and propose a Cloud based infrastructure that

allows cargo tracking and monitoring in a transportation chain. The Cloud infrastructure provides services

for cargo registration, identity management and notification support using simple and uniform REST based

protocols.

1 BACKGROUND

Cargo (or ‘freight’) refers to goods carried between

two destinations, usually, for commercial reasons,

through a variety of transport routes (rail, land, ship,

air) and means (boxes, packages, containers,…)

carried by cargo ship, cargo airplane, rail, truck etc.

Apart from the senders and receivers of cargo, there

are several other stakeholders in the cargo

transportation process, including the cargo carriers,

insurers, authorities etc. Some of these stakeholders

are active participants in the process while others are

indirectly involved, but can still influence the

outcome of the process. Customs or port authorities

for example, while not directly participating in the

movement of cargo, can prohibit a cargo from

entering their jurisdiction, or confiscate it if it

violates certain regulations.

Consistent management and tracking of cargo

across transportation chains, requires coordination

between the involved shippers, logistics services

providers, authorities and other stakeholders.

Information pertinent to cargo management involves

aspects such as the origin and destination, contents,

and status such as its current location of the cargo.

Many applications and systems such as logistics

execution systems (LES) have been developed for

cargo management. Technologies for cargo location

tracking such as RFID tags, location devices (GPS),

presence sensors, and others have been also

developed and integrated in the above systems

(Dexler, 2008).

Despite such technological advances, some

activities of cargo management are still

performed

manually, and there are misalignments between the

different systems of the participants, as well as lack

of transparent, up to date and accurate information

about the cargo throughout the transportation chain.

In other words, truly globally accepted standards for

specifying cargo types, shipment points and load

units (such as pallets, containers and so on) are still

missing.

In this paper we identify the requirements for

cargo management and we propose a Cloud based

infrastructure that allows cargo tracking and

monitoring across a transportation chain. The rest of

the paper is organised as follows. Section 2

identifies business requirements for cargo tracking

and monitoring. Section 3 proposes a Cloud based

infrastructure that realises the previously identified

requirements. The final section of the paper

discusses how the approach described in this paper

can contribute towards the realisation of the concept

of ‘intelligent cargo.

2 BUSINESS REQUIREMENTS

FOR CARGO TRACKING

Systems for cargo management and monitoring need

to include the previously identified stakeholders in

the cargo management process, either as active

participants, observers or both. At some point, a new

stakeholder may become the active manager of the

388

Karakostas B..

TRACKING CLOUD ON THE INTERNET USING A CLOUD INFRASTRUCTURE.

DOI: 10.5220/0003646403880392

In Proceedings of the 6th International Conference on Software and Database Technologies (IWCCTA-2011), pages 388-392

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

process. When, for example, the cargo leaves the

shipper (customer) and becomes the responsibility of

the carrier (transporter), the later becomes the active

controller of the process, while the former becomes

an observer who wants to keep track of status of the

process.

Inter-organisational processes such as cargo

transport and management have been the target of e-

business technologies and systems such as EDI and

EDIFACT for the best part of the last three decades.

More recent e-logistics systems are XML based and

provide Internet and web based services for freight

transportation and management.

The problem that such systems face is that they

represent the interests of a single stakeholder. Even

when such systems provide interfaces to the other

stakeholders through portals, APIs, or web services,

such interfaces are controlled by a single

stakeholder, usually a large transport service

provider. Even community oriented cargo

management systems are also effectively limited in

this respect, because it is difficult to accommodate

every potential stakeholder in the cargo management

process.

The cargo business is characterised by a large

number of smaller operator companies and by the

lack of global IT standards. Multiple systems,

interfaces and protocols must therefore coexist and

interface with each other. A truly universal cargo

management infrastructure can only be built on the

principles of decentralisation, and peer to peer

relations rather than on (portal or other based)

centralised architectures.

Below, we identify requirements for a cargo

management infrastructure and classify them across

the categories of identity, context, and security/

privacy.

2.1 Identity

One of the main problems in cargo management is

associating a single identifier with the cargo

throughout the transportation process, and making

such identifier available to everyone authorised. This

identifier is the connecting link between the physical

(cargo) world and the information system world. As

in other e-business/ecommerce applications, identity

management is therefore a key part of effective

cargo management.

Cargo often undergoes physical changes as it is

moves through different locations and means of

transportation. It can for example, be repackaged or

moved to different load units such as tanks (liquid)

cargo or containers (dry cargo). A cargo

management infrastructure must associate an

identifier with the cargo it identifies, and persist that

identifier for any desired period of time, regardless

of changes to the cargo, its attributes, or its location

on the transport chain.

Proposals for such identifiers exist, for example

in the form of GSIN (Global Shipment Identification

Number). GSIN is the GS1 organisation’s

Identification Key, used to identify a grouping of

logistics units that comprise a shipment from one

consignor to one consignee (buyer) referencing a

despatch advice and/or Bill Of Lading

(www.gs1.org). Identifiers such as the GSIN can be

implemented as bar codes, or included within

messages used in EDI and other logistics systems.

The problems however with approaches like this

is that they require all parties systems to conform to

the same encoding format. Also, such identifiers do

not satisfy privacy requirements, as the identity of

the sender or recipient can be inferred from the

cargo identifier. Finally such identifiers do not

convey other information about the cargo such as

status/context, nor they indicate a way as to how

such information can be obtained.

Thus, we establish the requirement that a cargo

identifier needs to act as a direct key to an

information source, e.g. a record, file, document etc.

that contains cargo information. By ‘direct key’ we

mean that there should be no need to obtain

additional keys to access cargo information. Instead,

the cargo identifier should yield access to the values

of cargo properties and context variables (see next

section).

As said above, a problem with cargo

management is that cargo can change its physical

characteristics as it is moved between different

containers or gets repackaged. The ability for an

identifier to persist independently from the loading

unit containing the cargo is therefore essential.

2.2 Context

Cargo can be described by static properties (attribute

variables) and dynamic properties that comprise its

context. Cargo attributes are fairly static through the

life of the cargo and include properties such as

product code, description and values for its physical

properties such as dimensions, weight etc.

Cargo’s context is all the other entities that are

associated with the cargo at some point in time.

Since this set of entities is potentially enormous, for

practical purposes, we need to restrict it to a more

manageable subset that consists of other uniquely

identified entities. Effectively then, context is

TRACKING CLOUD ON THE INTERNET USING A CLOUD INFRASTRUCTURE

389

defined by entities that are related to the tracked

cargo entity via a containment association. Thus, a

cargo can be carried in a container (which is a

uniquely identified entity) that in turn is carried by a

truck (another uniquely identified entity), that is

transported in a ro-ro ship (yet another uniquely

identified entity).

Users should be able to employ context

information to search for a particular cargo. Suppose

that a user knows the identifier of the ship that

carries the cargo but has no other searchable

information about the cargo. Performing a search

based on the ship’s identifier will yield potentially a

very large number of cargo items (‘search hits’). The

number of search hits will be significantly lower

when we search using the truck’s identifier, and

even lower when searching by container identifier

(assuming a container carries several cargo items).

Thus, another requirement refers to the ability to

search for a cargo item by context, which however

for practical performance reasons, needs to be

restricted to a small subset of entities related to

cargo. Searches should give indication of the

number of potential ‘hits’ that a search by a

particular cargo is likely to result in (similar to

Google’s number of search hits).

2.3 Security and Privacy

Identifiers play also a key role in security and

privacy. In e-business, security requirements

frequently require being able to verify the identity of

the parties to a transaction. At the same time,

privacy requirements often require that the parties

not disclose any more information than necessary for

the transaction.

Updating cargo information is essential, as such

information may need to be corrected or updated,

due to changes in context such as time, location and

association with other entities.

One way to enforce security is to implement

views of the cargo entity that only suitable

authorised stakeholders have access to. Thus, a view

can be defined for the cargo recipient, while another

view can be defined for a Customs authority.

However, these views must be audited for

correctness ensuring that they only convey

authorised information and cannot be altered without

authorisation,

Another privacy requirement is that it should not

be possible to infer information about cargo

properties or stakeholders from the cargo identifier

alone. Thus, it should not be possible to infer for

example, who the shipper or received is, nor the

contents of the cargo, from the identifier name,

alone.

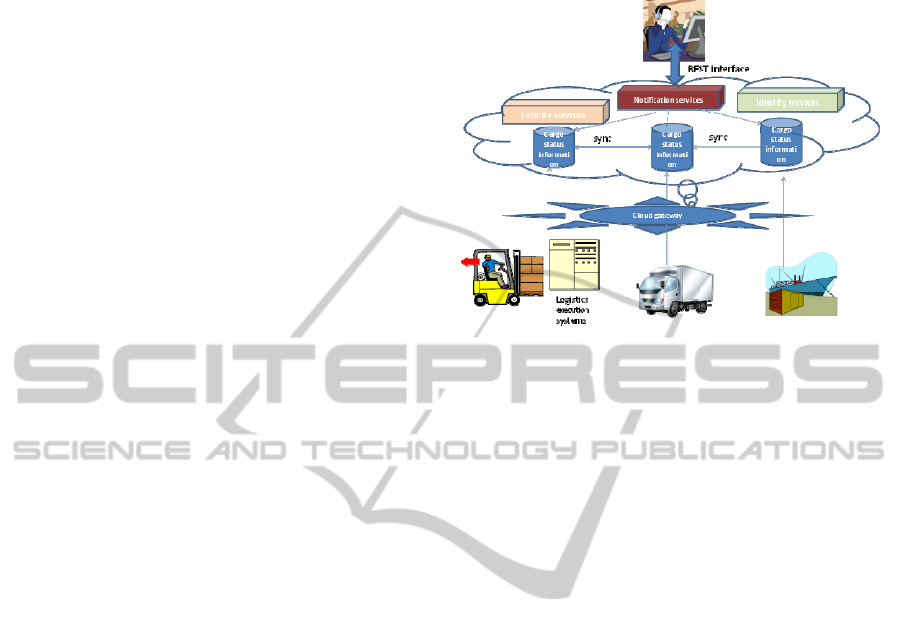

Figure 1: Cloud Infrastructure architecture.

3 A CLOUD INFRASTRUCTURE

FOR CARGO TRACKING

In this section we propose a Cloud infrastructure for

cargo monitoring. We use the term ‘Cloud’ to mean

that the users of this infrastructure do not need to

know where the cargo tracking services they use

originate from, as they appear to originate

‘somewhere on the Internet’ (Vaquero et al, 2009).

As shown in Figure 1, the Cloud based cargo

monitoring infrastructure is realised by a number of

technologies such as sensor (e.g. RFID and GPS)

networks that track cargo context, as well as by

logistics execution systems that track movement of

cargo in and out of warehouses. Such systems can

update cargo status information through Cloud

gateways. Gateways are points where a system that

handles the physical cargo can access the Cloud and

upload status updates. These updates are uploaded to

clusters of replicating online databases that

implement a common interface that follows the

REST philosophy for manipulating resources on the

Web (Fielding, 2000).

In addition, the above infrastructure provides

identity management and security services. The

company that registers a cargo with the system is

issued with a global identifier (UUID) that is

guaranteed to persist throughout the cargo

transportation process. Authorisation keys are

issued by the Cloud infrastructure allowing varying

levels of access to information about the cargo.

Thus a transport service provider is authorised for

certain items of information such as the type of

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

390

cargo, but perhaps not the exact contents of the

cargo. Cargo information can be accessed by using

such identifiers and keys through any HTTP based

systems, without needing to log on to dedicated

portals or other proprietary systems browsers. Since

they are based on the http protocol, all cargo

tracking services can be invoked using a URI syntax

such as

http://TOP LEVEL DOMAIN/<SERVICE

NAME>/<SERVICE PARAMETERS>

where the top domain name is a fixed

(unchangeable) URI that is assigned to the Cloud

infrastructure by an authority such as ICANN.

<SERVICE NAME> could be further qualified into

subdomains if the potential space of cargo related

services is large. A Cloud based directory of

services should also provide information about the

available services and be searchable using service

metadata.

Directory search parameters can include the

unique identifier of the cargo, and optionally the

name of one of its properties (attributes/context

variables).

For example, information about a cargo with

UUID

“6E09886B-DC6E-439F-82D1-7C83746352B”

can be accessed using the following HTTP GET

operation

GET

http://.../cargo/status/6E09886B-DC6E-

439F-82D1-7C83746352B

This will yield a data structure such as in Table

1. This contains important information about the

cargo such as sender and receiver, type and current

status. Note that this representation is in JSON

format (assuming it to be the default format of the

Cloud infrastructure). Alternative representations

e.g. in XML could be requested using syntax such as

the following

GET

http://.../cargo/status/6E09886B-DC6E-

439F-82D1-7C83746352B/_asXML

3.1 Cargo Registration Services

A user such as a shipper should be able to register a

new cargo with the Cloud infrastructure by

supplying the required parameters (using am HTTP

PUT command) to the cargo registration service.

As explained above, the Cloud service should

return a unique identifier for the cargo in the form of

a UUID, i.e. an identifier that is guaranteed to be

unique in the context of the transportation chain. The

service also will supply the cargo owner with a

digital key that certifies its ownership and is used to

authenticate and authorise further operations.

Table 1: Cargo information structure.

{

“UUID” : “6E09886B-DC6E-439F-82D1-

7C83746352B",

/the global unique identifier of

the cargo

“consignor” : { “GLN” :

7300011234566},

//the GLN identifier, according to

GS1 standard

“consignee” : {“GLN” :

7365566156190},

//same as for consignor

“consignment identification” : {

“GINC” : 7365566156191234513}

// again according to GS1 standard

“pick up Date Time” : “200907151500-

200907161200”,

“cargo type” : {“UN/CEFACT” :

“31”},

// Bottle gas according to UN/CEFACT

classification

“transport payment method” : “WE”

// (paid by buyer)

“total gross weight” : {“KGR” :

1500},

// weight in kilograms

“total gross volume” : {“MTQ” : 10},

// volume in metric tons

“status” : “dispatched”,

…

}

3.2 Notification Services

Authorised users should be able to register with

notification services for the cargo that they wish to

track. A number of parameters should be attached to

the service request that relate to cargo attribute or

context variables such as location. The following

example shows a request for notification for cargo

with id:

6E09886B-DC6E-439F-82D1-

7C83746352B

, when the cargo status becomes

‘delivered’

http://.../notifications/6E09886B-DC6E-

439F-82D1-7C83746352B?status=delivered

The Cloud infrastructure can operate several

types of notification services, for example email,

TRACKING CLOUD ON THE INTERNET USING A CLOUD INFRASTRUCTURE

391

SMS or URL callback ones.

3.3 Authorisation and Authentication

Services

The owner of the cargo (i.e. the shipper, agent etc.)

shall be granted full read access to the tracked cargo

information including its attributes and context

variables. Other users will be granted partial

information based on their role in the transportation

process. When another organisation takes over the

handling of cargo, it shall be supplied with the

UUID of the cargo (which, as said earlier, does not

give access to cargo information unless the requester

has a suitable key) as well as a digital key

authorising operations (GET, PUT, DELETE) to

certain cargo context variables. Thus, a carrier

company is given permission to access (GET) cargo

information such as physical properties (size,

weight) and to modify (POST) context variables

such as ‘contained in’ and ‘status’.

National authorities such as port authorities and

customs shall be given by the Cloud permanent keys

that have read access to cargo information, if the

cargo’s destination or intermediate stop involves

their jurisdiction.

Users who attempt to access or modify cargo

information without sufficient authorisation shall be

met with a HTTP 401 type error.

4 DISCUSSIONS AND FURTHER

RESEARCH

Recent research in transport and logistics has

proposed the concept of intelligent cargo

(Schumaker et al, 2010). Intelligent cargo has the

ability to self-identify, to detect its physical and

organizational context, and to play an active role in

transport processes, either by using own

computational resources or by connecting remotely

to web services platforms.

The infrastructure outlined in this paper

contributes towards the realisation of the concept of

intelligent cargo. In the Cloud architecture, the

location of the services is transparent to their

consumers, in other words users who wish to track

the status of a cargo do not need to know which

system holds such details. With current progress in

embedded computer and network systems and

sensors, the cargo tracking services described in the

previous section could be implemented directly by

the cargo itself (i.e. by a computer system embedded

in the palette or container of the cargo), rather by

some external logistics systems. Cargo could then

communicate directly with its context entities (e.g.

with containers, trucks etc.) using near field

communications (e.g. RFID) and collaborate with

them to carry out the transportation process. Of

course, resilience and availability of such services

are prerequisites, and the Cloud should provide

additional functionality for service replication and

backup.

In summary, this paper highlighted a Cloud

infrastructure that will overcome current limitations

of cargo management and allow seamless access to

information and services about cargo to a large,

heterogeneous and dynamic transportation chains.

ACKNOWLEDGEMENTS

Research reported in this paper has been partially

supported by EU project E-freight

(www.efreightproject.eu)

REFERENCES

Dexler, P. (2008) RFID Technology Can Help Manage

Fleet Loads. Business Fleet, March 2008.

Fielding, RT (2000) Architectural Styles and the Design of

Network-based Software Architectures. Ph.D

dissertation, University of California, Irvine.

GSIN (Global Shipment Identification Number)

Available from http://www.gs1.org/barcodes/technical/

idkeys/gsin

Schumaker, J., Gschweidi M., & Rieder, M. (2010)

EURIDICE – An enabler for intelligent cargo for the

logistics sector. Journal of Systemics, Cybernetics and

Informatics (volume 8 - number 2 - year 2010, pages:

18-28)

Vaquero, L. M, Rodero-Merino, L , Caceres, J. &

Lindner, M. (2009) A Break in the Clouds: Towards a

Cloud Definition ACM SIGCOMM Computer

Communication Review, Volume 39, Number 1,

January 2009

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

392
