MODELLING QUALITY ATTRIBUTES IN FEATURE MODELS

IN SOFTWARE PRODUCT LINE ENGINEERING

Guoheng Zhang, Huilin Ye and Yuqing Lin

School of Electrical Engineering and Computer Science, University of Newcastle, Callaghan 2308, NSW, Australia

Keywords: Quality attributes assessment, Non-functional requirement framework, Software product lines and analytic

hierarchical process.

Abstract: In software product line engineering, product configuration is the process of selecting the desired features

from a feature model based on customers’ functional requirements. The quality attribute assessments for a

configured product are neglected in most existing product configuration approaches. As we know, the key

issue of assessing quality attributes for a configured product is to measure the interdependencies between

functional features and quality attributes. To address this issue, we have proposed a quantitative-based

approach to establish the interdependencies based on analytic hierarchical process (AHP) in our previous

work. In this paper, we supplement our previous work from two aspects: first, we adapt non-functional

requirement (NFR) framework to identify quality attributes for a software product line and extend current

feature models to represent the identified quality attributes; second, we develop an evaluation method to

check the consistency of domain experts’ judgments to ensure the effectiveness of our approach. A

simplified tourist guide software product line is used as an example to illustrate our approach.

1 INTRODUCTION

A software product line (SPL) enables to create a

number of similar products by selecting and

composing the reusable software artefacts (Pohl,

2005). The commonalities and variabilities of SPL

members are identified during domain analysis and

modeled as features in a feature model (White,

2007). A feature model is mostly represented as a

feature tree where nodes represent features and

edges represent the selection relationships among

features. From a feature model, a specific member

product can be derived by selecting the desired

features based on customers’ requirements and

feature relationships specified in the feature model.

However, quality attributes, such as performance,

security and development cost, are usually handled

until the target product is produced and tested in the

system testing phase (Montagud, 2009). It is costly

to fix the problems if we find that the produced

product cannot meet the customers’ requirements on

quality attributes. Therefore, the quality attributes of

a target product should be assessed in the earliest

stage of product development in software product

lines—product configuration in a feature model.

The key issue of assessing quality attributes for a

configured product derived from a feature model is

to measure the different impacts on the quality

attribute imposed by different functional features. To

address this issue, we have developed a quantitative-

based approach which uses analytic hierarchical

process to measure the interdependencies between a

quality attribute and its correlated contributors, the

functional features which have impact on the quality

attribute (Zhang, 2010). Although the quality

attributes of a configured product can be easily

assessed based on the measured interdependencies,

the completeness and effectiveness of our approach

have not been fully achieved in our previous work.

In this paper, we aim to supplement our previous

work from two aspects: first, we will develop a

systematic method of identifying and representing

quality attributes that are critical for a software

product line using an adapted non-functional

requirements framework (Chung, 2000) to improve

the completeness of our approach; second, we will

develop an evaluation method of checking the

correctness of domain experts’ judgments to ensure

the effectiveness of our approach.

The rest of this paper is organized as follows:

Section 2 will introduce how to identify and

249

Zhang G., Ye H. and Lin Y..

MODELLING QUALITY ATTRIBUTES IN FEATURE MODELS IN SOFTWARE PRODUCT LINE ENGINEERING.

DOI: 10.5220/0003646602490254

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 249-254

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

represent quality attributes for a software product

line; Section 3 will briefly review our previous work

about how to measure the interdependencies

between functional features and quality attributes.

Section 4 will introduce an evaluation method to

check the correctness of domain experts’ judgments.

Section 5 illustrates how to assess quality attributes

for a configured product based on the measured

interdependencies. We conclude this paper and

identify the future work in Section 6.

2 IDENTIFYING AND

REPRESENTING QUALITY

ATTRIBUTES

In this section, we will propose a systematic

approach of identifying the most critical quality

attributes for the software systems in a software

product line (SPL) and represent the identified

quality attributes in feature models. An adapted non-

functional requirement (NFR) framework (Chung,

2000) is used to identify quality attributes and

current feature models are extended to represent the

identified quality attributes. A tourist guide SPL is

used as an example to illustrate our approach. Fig. 1

shows the feature model of the simplified tourist

guide SPL. The semantics of feature relationships

have been described in detail in our previous work

(Zhang, 2010).

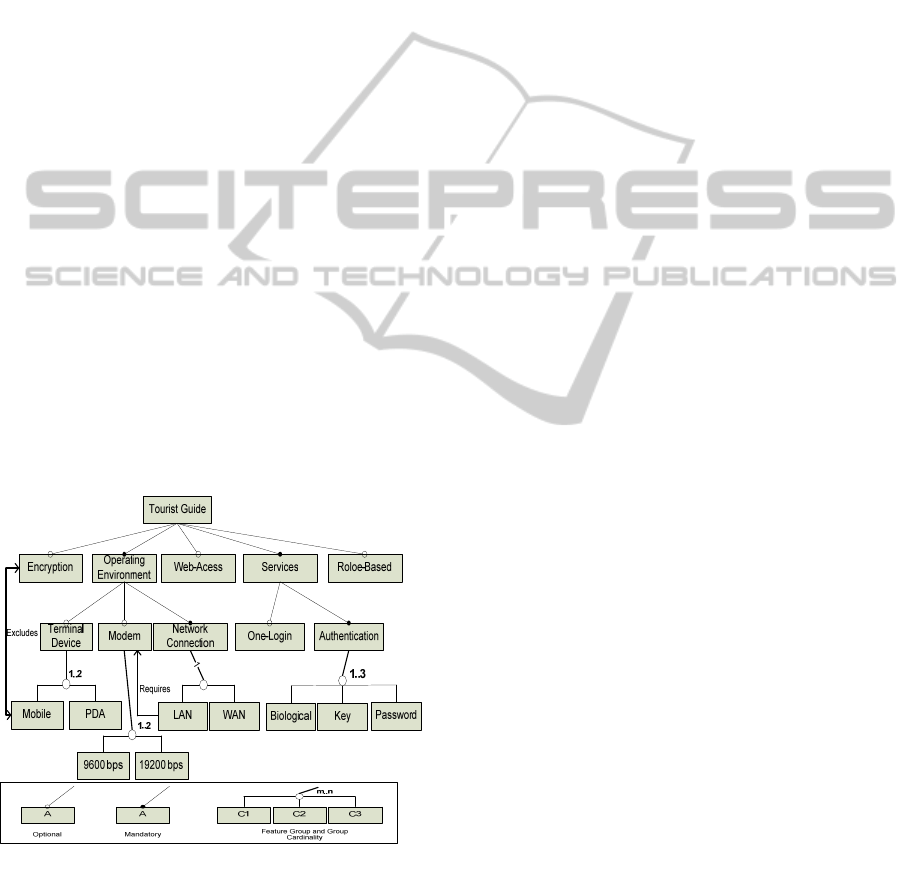

Figure 1: A feature model of tourist guide system SPL.

First, we identify the most critical quality

attributes for software product line members by

adapting NFR framework (Chung, 2000). It is

difficult and time-consuming for domain experts to

identify the quality attributes that are critical for

software systems in software product line because of

the elusive nature of quality attributes. The NFR

template from NFR framework provides detailed

classification and description for each specific

quality attribute, such as usability, availability,

reliability, performance, security, scalability,

modifiability, and reusability. In our approach, the

NFR template can be used as a checklist to identify

the most critical quality attributes for a software

product line.

The quality attributes identified from NFR

template are always abstract. The degree of

specificity of the identified abstract quality

attributes, such as security and performance, would

not permit non-functional requirements analysis and

we need to refine the abstract quality attributes into

more detailed quality attributes which have more

semantics. NFR framework provides a sort catalogue

for each abstract quality attribute based on the

development knowledge taken from the literature

and industrial experiences. A NFR sort catalogue

summarizes the potentially set of concepts (sorts) of

the quality attribute in a hierarchy and can serve as a

rich set of alternatives to choose from as well as

check-points to guard against omitting any important

concerns in quality attribute decomposition. If a sub-

quality attribute in the NFR sort catalogue is critical

for one or more product line members, in will be

included into the decomposition, otherwise it will be

excluded from the decomposition.

Finally, we represent the abstract quality

attributes and the refined sub-quality attributes in a

feature model. Kang et al. defined a feature as “the

prominent or distinctive user-visible aspect, quality

or characteristic of a software system or systems”

(Kang, 1998). Based on this definition, each quality

attribute can be modeled as a feature. Therefore, we

extend current feature models with a sub-feature tree

to represent quality attributes. This sub-feature tree

is named as quality attribute (QA) feature tree and its

included features are named as quality attribute (QA)

features. The root of the QA feature tree is the

overall quality attribute which represents the overall

“goodness” of the system. The second level of the

QA feature tree is formed by the abstract quality

attributes identified from NFR template. Typically,

performance, security, usability and availability are

the children of the root. Under each of these quality

attributes are specific quality attribute refinements.

The leaves of the QA feature tree are the detailed

sub-quality attributes that are concrete enough for

prioritization and analysis.

Following the above three steps, we identify

three abstract quality attributes performance, low

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

250

cost and security for the tourist guide software

product line, refine them into sub-quality attributes

and extend the original feature model with a sub-

quality attribute feature tree as illustrated in Fig. 2.

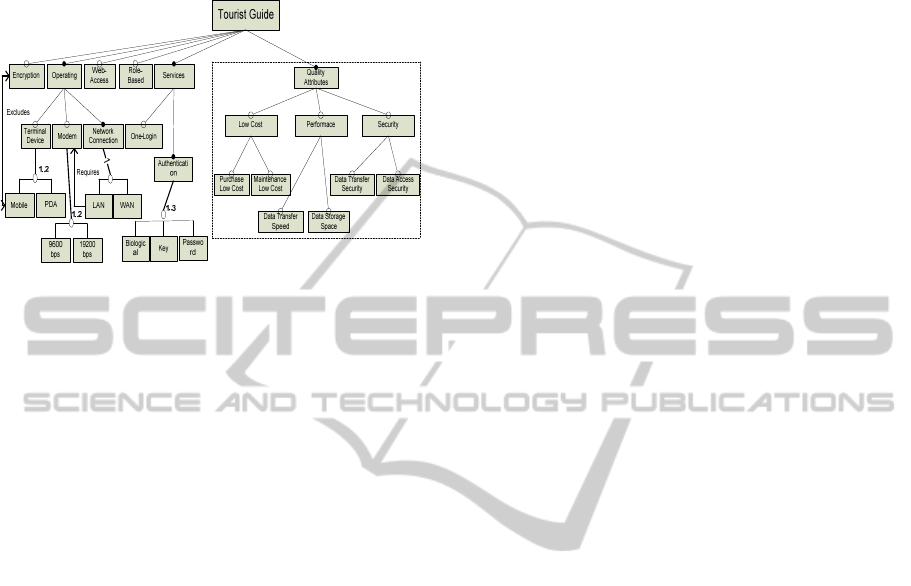

Figure 2: The extended feature model of tourist guide

SPL.

3 MEASURING THE

INTERDEPENDENCIES

In this section, we briefly review our previous

approach of measuring the interdependencies

between functional features and quality attributes

based on analytic hierarchical process. The

following steps need to be followed:

• identify the contributors, the functional

features that contribute to a quality attribute

(QA) feature

• prioritize the contributors of a QA feature

based on their relative importance to the

QA feature

• identify the relationships among functional

features with respect to contributing to the

QA feature

• calculate the overall impact of a configured

product with respect to the QA feature

The identification of the contributors of a quality

attribute is based on NFR framework (Chung, 2000)

and domain experts’ knowledge and experience. We

have identified the contributors of “data transfer

speed” (DTS) in tourist guide SPL as “Encryption”,

“PDA”, “Mobile”, “Modem19200”, “Modem9600”,

“LAN”, “WAN”. Among these contributors,

“Encryption” has negative impact on DTS and we

transform the negative impact of “Encryption” on

DTS when it is included into the product (selected

status) to a positive impact on DTS when it is

excluded from the product (deselected status). We

use ¬f to represent feature f in deselected status and

define the set of contributors of QA as RF (QA).

Thus we have: RF (DTS) = {LAN, WAN, PDA,

Mobile, Modem9600, Modem19200, ¬Encryption}.

In the second step, we adapt analytic hierarchical

process (AHP) (Hallowell, 2007), to prioritize the

identified contributors of QA based on their relative

importance for satisfying QA. A comparison matrix

is generated and the relative impact of individual

contributors on QA is calculated using AHP tools.

We use Relative Importance Value (RIV) to

represent the calculated relative impact of each

individual contributor on QA. The expression RIV

(QA, F) is used to represent the RIV of feature F on

QA if F has positive impact on QA in selected status

and RIV (QA, ¬F) is used to represent the RIV of

feature F on

QA when F has positive impact on QA

in deselected status. We have calculated the RIVs of

the contributors in RF (DTS), such as RIV (DTS,

¬Encryption) =15.45 and RIV (DTS, LAN) = 33.37.

Once we have calculated the relative impact of

individual contributors in RF (QA), we can calculate

the overall impact on QA made by a set of

contributors from RF (QA). We define the overall

impact as Overall Importance Value (OIV) and use

OIV (QA, fg) to represent the OIV of a set of

contributors (fg) which is a subset of RF (QA). As

the contributors often affect QA interdependently,

we defined four types of feature groups in our

approach: SumGp, AvgGp, MaxGp and MinGp to

indicate the relationships among the contributors in

RF (QA) with respect to affecting QA. The detailed

definitions of the above feature groups can be found

in our previous work (Zhang, 2010). In the RF

(DTS) we have identified four feature groups:

{¬Encryption} is a SumGp; {Modem19200,

Modem9600} and {PDA, Mobile} are two AvgGp;

and {LAN, WAN} is a MinGp.

A configured product may include a subset of RF

(QA) for satisficing QA and we define the set of

features which contribute to QA in a configured

product as a valid selection (VS) with respect to QA

and represented as VS (QA). Then the overall impact

of a configured product on QA can be considered as

the overall importance value of its included VS (QA).

The calculation of OIV (QA, VS (QA)) is based on

definitions of different feature groups and the

detailed calculation process can be found in (Zhang,

2010). The OIV is not intuitive for stakeholders to

understand. It must be compared with OIVs of all

other valid selections with respect to QA to represent

its relative QA level. We define the normalized

overall importance value (NOIV) which is in [0…1]

scale to represent the relative QA level of a valid

selection compared with other valid selections. The

MODELLING QUALITY ATTRIBUTES IN FEATURE MODELS IN SOFTWARE PRODUCT LINE ENGINEERING

251

detailed normalization method can be found in

(Zhang, 2010). Following our approach, for a valid

selection of DTS in the tourist guide SPL:

{LAN,

Modem 9600, ¬Encryption}, its OIV is 55.70 and its

NOIV is 0.89 which represents a relative high level

of DTS.

4 CHECKING DOMAIN

EXPERTS’ JUDGMENTS

Domain experts’ judgments are needed in our AHP-

based approach. If there are errors in domain

experts’ judgments, the relative importance values of

individual contributors of a quality attribute will be

incorrect. Based on the incorrect RIVs, the predicted

quality attributes for a configured product will be

wrong. Therefore, one critical issue of our approach

is to ensure the correctness of domain experts’

judgments.

In our AHP-based approach, domain experts

need to make judgments on n (n-1)/2 pair-wise

comparisons for n contributors of quality attribute

QA, X

, X

,…X

based on their contribution to QA.

The results of pair-wise comparisons are written into

a comparison matrix as shown in table 1 where C

represents the importance intensity value of

comparing X

with X

. A priority vector (PV) which

consists of the relative importance values of all the

contributors of QA involved in the comparison can

be calculated from the comparison matrix. Then we

use the relative importance values in PV to measure

the interdependencies between QA and its

contributors. Based on the interdependencies, we

can assess the QA level for any configured product.

Table 1: A comparison matrix made by domain experts.

...

−

…

1( 1)n

−

1 …

2( 1)n

−

… 1 … …

−

(1)nn

−

When making pair-wise comparisons in AHP

method, domain experts may make two kinds of

errors. Firstly, a domain expert may make

inconsistent pair-wise comparisons for the

contributors of QA. For example, in the comparison

matrix of table 1, if (C

>0) ∧(C

<0), there

will be conflicts among these three comparisons,

because we can deduce that C

is more important

than C

as C

>0 illustrates that C

is more important

than C

and C

>0 illustrates that C

is more

important than C

. However, this deduction conflicts

with C

<0 which means C

is less important than C

In this case, we say that the domain expert makes

inconsistent pair-wise comparisons.

Inconsistencies in one domain expert’s

judgments can be identified by checking the

consistency ratio (CR) of the comparison matrix.

AHP allows small inconsistency in judgements

because human is not always consistent. A CR

below 0.1 is acceptable (Hallowell, 2007). We also

adapt 0.1 as a borderline to check whether all the

pair-wise comparisons made by one domain expert

are consistent. The calculation of CR is supported by

most AHP tools. In our approach, if CR of a

comparison matrix is above 0.1, the domain expert

needs to identify the inconsistent pair-wise

comparisons and modify the comparison matrix until

the CR is below 0.1.

The second kind of errors that a domain expert

may make is the biased judgments. For example, a

feature X has significant contribution to a quality

attribute QA in one domain expert’s opinion.

However, X is not that important to QA in reality.

The RIV (QA, X) calculated based on the domain

expert’s judgment must be higher than its real value.

To avoid the biased judgments made by one domain

expert, we adapt two domain experts in our approach

and measure the consistency between two domain

experts’ judgments. Assume that two domain experts

generate two comparison matrixes: matrix

 and

matrix

 for the feature set X

, X

…X

and calculate

two priority vectors PV

and PV

respectively. The

NOIV

(QA, VS

) illustrates the NOIV of valid

selection VS

based on PV

while the NOIV

(QA,

) illustrates the NOIV of valid selection VS

based

on PV

. Then we use the following formula (1) to

measure the consistency between two domain

experts’ judgments.

((,) (,))

AD NOIV QA VS NOIV QA VS

=−

∑

(1)

The above formula represents the average

difference (AD) between the assessed QA levels

based on PV

and assessed QA levels based on PV

for all valid selections VS

from RF (QA). The

minimum value of AD is 0.0 when PV

and PV

are

completely same while the maximum value of AD is

1.0 when PV

and PV

are completely contrary. A

smaller AD can represent higher consistency

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

252

between two priority vectors and further illustrate

higher consistency between two domain experts’

judgments. Using our approach to assess quality

attributes, if the expression |NOIV (QA, VS

)-NOIV

(QA, VS

)|<0.1, we consider that VS

and VS

have the

same QA level. Then we can deduct that if AD is

less than 0.1, we consider that the assessed quality

attribute level based on PV

and the assessed quality

attribute level based on PV

are the same. Therefore,

the borderline of AD is 0.1. If the AD is higher than

0.1, the domain experts need to find the biased

judgments and modify the comparison matrix until

AD is less than 0.1.

5 ASSESS QUALITY

ATTRIBUTES

The interdependencies between qualities attribute

features and functional features are very complex.

We have design an xml-based representation schema

in (Zhang, 2010) to represent the interdependencies

between a QA feature and its contributors. Fig. 3

shows the representation schema of “data transfer

speed” in the tourist guide SPL. The semantics of

the elements and attributes in the representation

schema are described as follows:

• Element <QA> represents a quality attribute

feature QA.

• Element <Relevant Features> represent all the

contributors of QA in RF (QA).

• Element <Feature> under element <Relevant

Features> represents a contributor of QA. Its

attribute “name” illustrates the contributor name

and attribute “RIV” illustrates the relative

importance value of the contributor on QA.

• Element <Feature Groups> represents all the

feature groups in RF (QA).

• Element <FG> under element <Feature Groups>

represents a feature group. Its attribute “type”

illustrates the type of feature group and attribute

“included features” illustrates all the features in

the feature group.

• Element <VS_OIV> represents the overall

importance value of valid selections from RF

(QA). Its attribute “max_oiv” illustrate the

maximum OIV and attribute “min_oiv”

illustrates the minimum OIV among all the valid

selections.

Once we have the representation schema of the

measured interdependency between a quality

attribute feature and its contributors, we can assess

the level of quality attribute for any configured

product. A configured product can be represented as

a 2-tuple of the form (S, R) where S is the set of

features to be included and R is the set of features to

be removed. For a specific configured product PC =

(S, R), to assess its level on quality attribute QA, a

set of steps need to be followed based on the

representation schema of quality attributes.

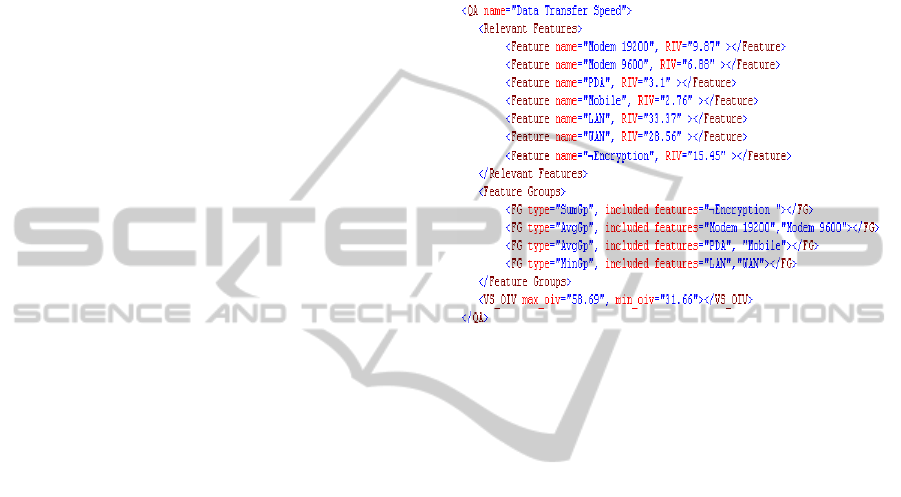

Figure 3: The representation schema for DTS.

• Identify Valid Selection. The first step is to

identify the valid selection VS with respect to QA

from the configured product PC using the

formula VS = (RF (QA) ∩ S) ∪ (RF (QA) ∩ R).

The feature set RF (QA) and the relative

importance value of each feature can be found

from the attribute “name” and “RIV” of element

“Feature” in the representation schema.

• Calculate OIV for Valid Selection. The second

step is to calculate the overall importance value

of the identified valid selection VS on quality

attribute QA using the formula OIV (QA, VS) =

Sum (OIV (QA, fg

∩ VS)) where fgi illustrates

one of the feature groups in RF (QA). The feature

groups can be found from the element “Feature

Groups”. The included features of a feature

group fg

and its type can be found from the

attribute “included features” and “type” of the

element “FG” in the representation schema. To

calculate OIV (QA, fg

∩ VS), we assume that vfg

= fg

∩ VS and use the following formulas to

calculate the OIVs.

OIV (QA, vfg

) = Sum (RIV (QA, f

) | fj

∈

vfg

∧

vfg

⊆

), if fg

is a SumGp.

OIV (QA, vfg

) = Average (RIV (QA, f

) | fj

∈

vfg

∧

vfg

⊆

), if fg

is an AvgGp.

OIV (QA, vfg

) = Maximum (RIV (QA, f

) | fj

∈

vfg

∧

vfg

⊆

), if fg

is a MaxGp.

MODELLING QUALITY ATTRIBUTES IN FEATURE MODELS IN SOFTWARE PRODUCT LINE ENGINEERING

253

OIV (QA, vfg

) = Minimum (RIV (QA, f

) | fj

∈

vfg

∧

vfg

⊆

), if fg

is a MinGp.

• Normalize OIV into NOIV. The third step is to

calculate the normalized overall importance

value (NOIV) of the valid selection VS with

respect to quality attribute QA using the

following formula (2). The expression MIN (OIV

(VS

)) can be found from the attribute “min_oiv”

of the element “VS_OIV” while the expression

MAX (OIV (VS

)) can be found from the attribute

“max_oiv” of the element “VS_OIV” in the

representation schema.

() ( ( ))

(,)

( ( )) ( ( ))

OIV VS MIN OIV VS

NOIV QA VS

AX OIV VS MIN OIV VS

−

(2)

Following the above three steps, we can assess

the level of QA for any configured product based on

the representation schema of QA. Assume that we

have a configured product: PC = ({network

connection, tourist guide, operating environment,

service, position detection, satellite, WAN, terminal

device, Mobile, PDA}, {LAN, Encryption,

authentication, modem, modem19200, modem

9600}). The valid selection VS with respect to DTS

can be identified from PC as {WAN, Mobile, PDA,

¬Encryption}. Then we divide VS into four groups:

vfg

, vfg

where vfg

= fg

∩ VS. Based on

the formulas in step two, we can calculate the OIV of

each group as well as the OIV of VS as 46.94. In the

final step, we normalize the calculated overall

importance value into NOIV using the formula in

step three as: NOIV (DTS, VS) = (46.94-31.66) /

(58.69-31.66) = 0.56 which represents a relative

medium DTS level.

6 CONCLUSIONS AND FUTURE

WORK

In this paper, we improve our previous work (Zhang,

2010) from two aspects: first, we improve the

completeness of our previous work by identifying

and representing the quality attributes of a software

product line using an adapted non-functional

requirement framework; second, we improve the

effectiveness of our previous work by developing a

method to check the correctness of domain experts’

judgments. After these two supplements, our

approach provides more efficient and precise quality

attribute assessments.

• The assessment is more efficient as we can easily

predict or assess the impact on a quality attribute

made by any combination of its contributors

without involving human effort to assess the

combinations one by one.

• The assessment is more precise than existing

approaches as domain experts can provide more

precise judgments in the pair-wise comparisons

of AHP method. The quality attribute level for a

configured product which is calculated based on

the pair-wise comparison results is more precise

than other approaches.

One limitation of our approach is that we cannot

identify the relationships between conflicting quality

attributes. During product configuration, quality

attributes can never be achieved in isolation. The

achievement of any one will have impact, sometimes

positive and sometimes negative, on the

achievement of others. The relationships between

conflicting quality attributes play an important role

when we aim to derive a product with desired

quality attributes. In the future, we aim to

understand the relationships between conflicting

quality attributes and concentrate on how to identify

the conflicting quality attributes and how to measure

their relationships.

REFERENCES

Klaus Pohl, Gunter Bockle and Frank van der Linden.,

2005. Software Product Line Engineering:

Foundations, Principles, and Techniques. Springer

Jules White and Douglas C. Schmidt, 2007. Automating

Product-Line Variant Selection for Mobile Devices. In

the 11th International Software Product Line

Conference.

Sonia Montagud and Silvia Abrahao, 2009. Gathering

Current Knowledge about Quality Evaluation in

Software Product Lines. In Software Product Line

Conference 2009.

Guoheng Zhang, Huilin Ye and Yuqing Lin, 2010. Quality

Attribute Assessment for Feature-Based Product

Configuration in Software Product Line, in Asian

Pacific Software Engineering Conference, Sydney,

Australia.

Lawrence Chung, Brian A Nixon, Eric Yu, John

Mylopoulos, 2000. Non-Functional Requirements in

Software Engineering. Kluwer Academic.

Kyo Chul Kang, G.C.S., J.A.Hess, W.E.Novak and

A.S.Petersem, 1990. Feature-Oriented Domain

Analysis (FODA) Feasibility Study, in Technical

Report CMU/SEI 90-TR-21.

David L. Hallowell, 2007. Analytical Hierarchical Process

(AHP)-Getting Oriented. ISixSigma.com Retrieved

2007-08-21.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

254
