AN OPEN-SOURCE C SHARP LIBRARY BASED ON OPENGL

FOR STEREOSCOPIC GRAPHIC APPLICATIONS DEVELOPMENT

Santiago Martín

, Liudmila Pupo

, Yoander Cabrera

and Ramón Rubio

Department of Manufacturing Engineering and Construction, University of Oviedo, Gijón, Spain

Department of Visualization and Virtual Reality, University of Informatics Sciences, Havana, Cuba

Keywords:

Computer graphics, Virtual reality, Stereoscopic applications.

Abstract:

The Graphics Library Stereo Vision engine (GLSVe) is a freely available open-source C] library based on

OpenGL. It has been designed to facilitate the creation, mainly by researchers or students, of graphic and

virtual reality prototypes incorporating stereoscopic representation. Its design will allow a stereoscopic graphic

application in an easy way and without previous theory knowledge. This is demonstrated to be a good training

for student’s motivation in order to learn the theoretical bases by means of experimentation. The observer,

the 3D pointer, the screen, the 3D sound and the graphics primitives are managed through different classes.

This allows easy implementation of virtual reality scenarios if a tracking system is available (including multi-

screen environments). Graphic primitives could have different appearance as they are seen by each observer

eye, allowing the development of software for optometry research. Different stereoscopic modes have been

implemented: side by side, cross eye, anaglyph, interlaced, alternated pages and dual stream. The article

describes the GLSVe architecture and main capabilities, as well as different application scenarios (virtual

reality environments; ophthalmology research; and visualization and compilation of geological photo pairs).

The GLSVe is distributed under the terms of the GNU Library General Public License agreement.

1 INTRODUCTION

Learning methods have evolved from master classes

to practical training due to industrial competitive re-

quirements (Clausen, 2005). Software packages and

virtual laboratories are especially useful in this new

way to learn. Nowadays it is common to include

them in teaching classes, especially in engineering

degrees, where the engineer expected to have intui-

tive knowledge of complex and very different sub-

jects(Palanichamy et al., 2004; Patryn and Pietruszko,

2005). Stereoscopic visualization and virtual reality

systems are interesting subjects to include in an en-

gineering degree (syllabus), in the senior year course,

as this topic uses previous and important mathematic

and geometric concepts. Historically, the ﬁrst step

in the development of computer vision theory has

been the understanding of human stereoscopic vision.

The difﬁculty of this subject makes advisable a suit-

able computer tool. A close example of this is a

package oriented to obtain disparity maps and three-

dimensional models based on stereo images (Castejón

et al., 2009).

On the other hand, scientists need software pack-

ages as an easy development prototypes tool to val-

idate their research. Regrettably, scientiﬁc software

is too often a closed source, leaving the user with a

black box performing magical operations. The open-

source revolution that has taken place in the world of

software development, perceived as being counterpro-

ductive for the overall scientiﬁc progress, faces these

limitations (Steven, 1999). Stereoscopic visualization

and virtual reality systems are subjects of research by

computer graphics scientists. Their results are applied

in different areas, like medical image, surgical plan-

ning and training (Kockro et al., 2007), ophthalmol-

ogy research (Waddingham et al., 2006), psychology,

scientiﬁc visualization, industrial design, chemistry

education (Limniou et al., 2008), geology or cartog-

raphy (Billen et al., 2008) . An open source package

oriented to easily develop stereoscopic graphic appli-

cations will be very well received by researchers of

these areas.

The creation of graphic prototypes, incorporat-

ing stereoscopic representation, is possible using an

API (Application Programming Interface) as aid, like

OpenGL or DirectX. However, any programmer who

wishes to develop these contents has to fully un-

205

Martín S., Pupo L., Cabrera Y. and Rubio R..

AN OPEN-SOURCE C SHARP LIBRARY BASED ON OPENGL FOR STEREOSCOPIC GRAPHIC APPLICATIONS DEVELOPMENT.

DOI: 10.5220/0003646902050210

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

205-210

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

derstand the rules governing stereoscopy which, be-

sides entailing a considerable additional effort, is a

possible source of errors. Some graphics card and

display device manufacturers have developed drivers

with stereo functions. These drivers generate two or

even more cameras from a single scene. The result is

a stereogram that can be displayed in devices that sup-

port the driver in question (shutter glasses, auto-stereo

monitors, etc.). Obviously, offering these drivers with

stereo functions represents a ﬁrst competitive advan-

tage for hardware manufacturers.

The problem is that these drivers are not multi-

platform and the programmer does not have total con-

trol of parameters associated with the stereo nature of

the scene. From this we can deduce the advantage of

deﬁning a library that eliminates the need for the pro-

grammer to make any calculations requiring mastery

of the theory of stereo vision.

With this in mind, a ﬁrst library was proposed by

our research team, named GLSV library (Graphics Li-

brary Stereo Vision) (Martín et al., 2009). It was a

set of auxiliary functions similar to the ones used in

OpenGL: gluLookAt was substituted by glsvLookAt;

gluPerspective by glsvPerspective; and so on. Thus

the use of GLSV does not require changing the way a

programmer develops applications development with

OpenGL.

Despite its interest, GLSV is not an object-

oriented library but a set of functions. It is not suitable

for beginner programmers, although expertise com-

puter graphics programmers would appreciate it. The

creation of graphic prototypes incorporating stereo-

scopic representation is feasible with GLSV and eas-

ier than with OpenGL, but it is not at all an easy or

quick task. GLSV does not seem to be the solution a

medical researcher is looking for. It is not what stu-

dents would like to use in an intensive course about

virtual reality systems.

Therefore, in this paper a new Graphics Library

Stereo Vision engine (GLSVe) is proposed. GLSVe

has been written in C] and based on OpenGL, and

it is distributed under the terms of the GNU Library

General Public License agreement.

The rest of this paper is organized as follows. Sec-

tion 2 describes functional and non functional require-

ments of the GLSVe library; Section 3 presents a de-

scription of the libraryt’s structure. The result of us-

ing the GLSVe library in different applications is pre-

sented in Section 4. Finally, Section 5 is devoted to

concluding remarks.

2 FUNCTIONAL AND NON

FUNCTIONAL

REQUIREMENTS

2.1 Functional Requirements

First of all, the observer, the 3D pointer, the screen,

the 3D audio and the graphics primitives are managed

through different classes. This functional requirement

allows implementation of virtual reality scenarios if

a tracking system is available. Viewport transforma-

tions are also implemented on its own class. This al-

lows having under control the conversion from pixel

to user unit.

Graphic primitives can have different appearance

as seen by each observer’s eye. This requirement al-

lows the development of software for optometry re-

search and it can be also used when a stereoscopic

photo pair is included in the virtual scene. Related

with this, once the library is compiled, the program-

mer can still deﬁne its own new graphic primitives.

Monoscopic mode and several stereoscopic modes

have been implemented: side by side, cross eye,

anaglyph (red-cyan, red-blue, red-green), interlaced,

alternated pages and dual stream (for Quadro graphic

cards) (Lipton, 1997).

Finally, as GLSVe evolves from GLSV, all the set

of GLSV functions are still accessible to the program-

mer.

2.2 Non-functional Requirements

GLSVe has been written in C] because this program-

ming language has been designed to be easily learned

and used by beginner programmers. C] was devel-

oped by Microsoft within the .NET initiative. Even

though, other considered simple and general-purpose

programming languages, like Visual Basic, an object-

oriented language. Although C] applications are in-

tended to be economical with regard to memory and

processing power requirements, the language was not

intended to compete directly on performance and size

with C. For example, managed memory cannot be ex-

plicitly freed; instead, it is automatically de-allocated.

Moreover memory address pointers can only be used

within blocks speciﬁcally marked as unsafe. The ref-

erence C] compiler is Microsoft Visual C] but there

are also other compilers, including open source ones.

GLSVe uses OpenGL as low level graphic pro-

gramming library. OpenGL is the pervasive standard

for the development of multiplatform applications. It

was developed by Silicon Graphics Inc. (SGI) in 1992

and it is still the reference for graphic application de-

velopers. Generally, programmers use OpenGL in

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

206

combination with other supplementary APIs in order

to generalize common functions. Thus, for exam-

ple, the GLU (OpenGL Utility) library provides some

functions to create complex objects and to easily man-

age the camera.

Currently there is no managed code library widely

known for working with OpenGL. For that reason,

it is necessary to use a wrapper for OpenGL or di-

rectly import the relevant methods into the assem-

bly. The solution selected in this project has been

the Tao Framework. It implements a OpenGL wrap-

per allowing to use it in the C] language. It has only

been necessary a small modiﬁcation to support dual

stream stereo mode for Quadro graphic cards. Tao

Framework also gives GLSVe access to SDL (Simple

DirectMedia Layer) and OpenAL (Open Audio Li-

brary). Non-functional requirements are graphically

summarized in Figure 1.

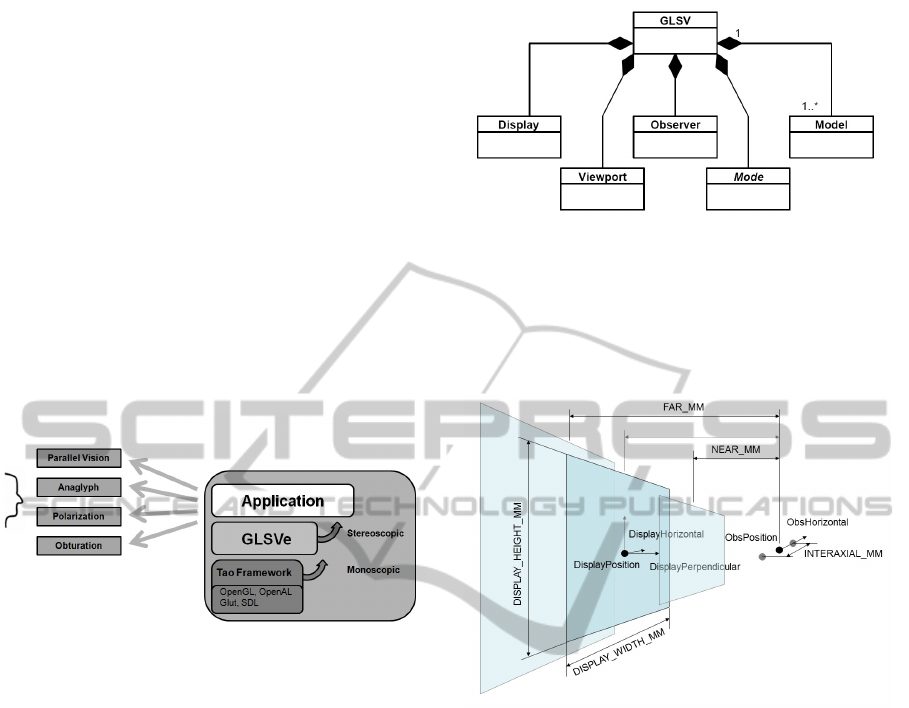

Figure 1: GLSVe context.

3 DESCRIPTION OF THE

LIBRARY’S STRUCTURE

3.1 Core Classes

GLSVe core classes are represented in Figure 2. The

main class is called like the old library, GLSV. This

is because all the functions deﬁned in the old library

are still accessible through it. Internally, it declares

objects of the rest of the classes: Observer, Display,

Viewport, Mode, and a list of Model. It invokes the

drawing of the scene using the currently active stereo-

scopic viewing mode.

The Observer class is deﬁned by the 3D positions

of its two eyes (Figure 3). Near and Far planes, which

represent in OpenGL the top and the base of the pyra-

mid frustum to be rendered, are also properties of the

Observer class. That distances are measured from

each eye to the perpendicular direction to the Display.

The Display class is deﬁned with 6 degrees of free-

dom and two dimensions. Both Observer and Dis-

play belong to a virtual space which dimensions can

be made equal to the ones in the real space. As view-

Figure 2: GLSVe core classes.

ing devices work in pixel, it is necessary to implement

a transformation between the Display’s dimensions in

the virtual space and its dimensions in pixels. View-

port class does that.

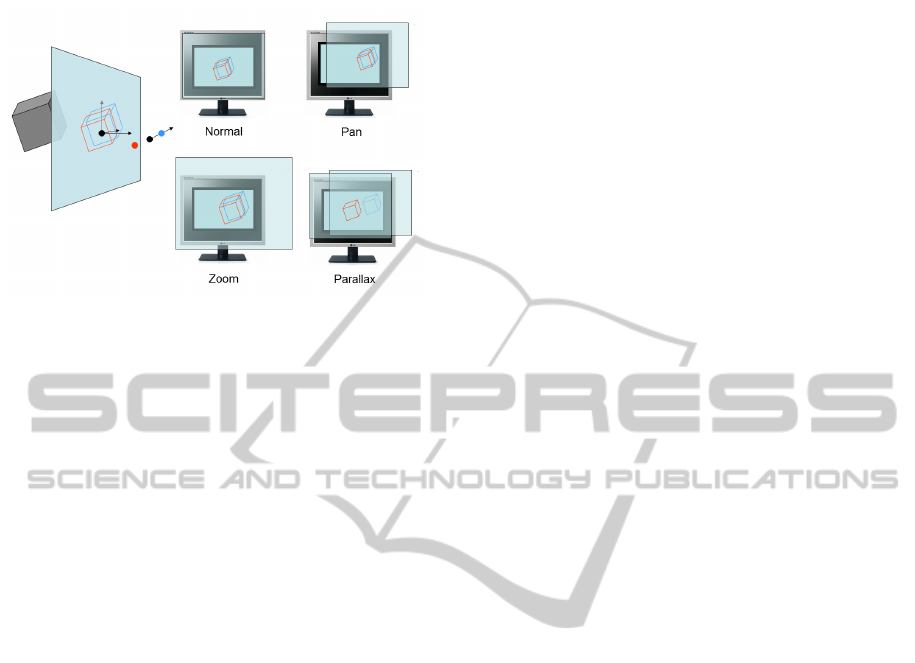

Figure 3: Observer and Display cases.

In a virtual reality prototype this would be enough.

But in other applications would be desirable another

transformations, like translation (pan), scaling (zoom)

and parallax. These transformations are properties

measured in pixels in the Viewport and in virtual units

in the Display. We must take into account that these

transformations break the virtual reality paradigm,

as they introduce geometric distortions in the per-

ceived 3D space. A translation (pan) entails mov-

ing the Display (or the Viewport) laterally, it dif-

fers from a lateral movement of the whole scene,

but the observer would tolerate it. A scaling (zoom)

transformation entails making the Display (or the

Viewport) bigger. If we use the property Viewport

zoom , we will be constrained by OpenGL limita-

tions (see GL_MAX_VIEWPORT_DIMS). Zoom is

not the same as making the scene bigger, but the ob-

server would tolerate it also. Finally, a parallax trans-

formation entails moving the left and right projections

in opposite directions. It is not the same as getting

closer to the scene, but again the observer would tol-

erate it. Figure 4 explains these transformations in the

AN OPEN-SOURCE C SHARP LIBRARY BASED ON OPENGL FOR STEREOSCOPIC GRAPHIC APPLICATIONS

DEVELOPMENT

207

Viewport implementation.

Figure 4: Viewport pan, zoom and parallax transforma-

tions.

The available visualization modes are deﬁned

in an abstract class, named Mode. We have

a monoscopic visualization mode and several

stereoscopic modes: SideBySideMode, CrossEye-

Mode, AnaglyphMode, InterlacedMode, MonoChan-

nelStereoMode (alternated pages) and QuadroStereo-

Mode (dual stream).

Finally, we have the graphics primitive. Each

graphic primitive is deﬁned on its own class, which

inherit attributes and behaviors from a parent class,

named Model. Each graphic primitive has three dif-

ferent drawing methods: left eye, right eye and head.

Moreover, they have also the properties VisibleLeft-

Eye and VisibleRightEye. In this way, graphic primi-

tives must have different appearance as they are seen

by each observer eye. OpenGL’s depth and blend tests

can be switched through the main class GLSV. Once

the blend test is activated, we can deﬁne graphics

primitives with a different alpha value for each eye.

This can be used in optometric software to study the

visual perception of a patient.

Anyway, once the library is compiled, the pro-

grammer can still deﬁne its own new graphic prim-

itives. Graphic primitives are organized in a Scene

Graph with Nodes. Parts of the 3D scene can be ro-

tated, translated and scaled thanks to the Nodes.

3.2 The 3D Pointer and Mouse

Interaction

M_Pointer3D is a singular subclass of Model. It rep-

resents the user pointer in the 3D virtual space. It

can have different appearances (Type property). Its

left and right projections can have constant size on

the screen if needed (ConstantSize property): as the

M_Pointer3D goes farther away, its size will be in-

creased to compensate the effect of the perspective.

Two new classes, MouseState and MouseEvents,

allow managing the pan/zoom/parallax transforma-

tions with the mouse. They also manage the XY

and Z (depth) movements of the M_Pointer3D. Mous-

eState stores the mouse changes on its proper-

ties. The public MouseEvent function (of the class

MouseEvents) receives an object MouseState and in-

terprets it. M_Pointer3D projections will move to

the center of the screen due to the perspective ef-

fect. If we want M_Pointer3D projections not to

move up or down, MouseEvents will compensate

these changes for us again. Finally, MouseEvents

guarantees also the coherence between the windows

coordinates of the mouse and the projected coordi-

nates of the M_Pointer3D.

3.3 Audio3D Class

A class named Audio3D has been deﬁned using Ope-

nAL, a free software cross-platform audio API. It is

designed for efﬁcient rendering of multichannel three

dimensional positional audio. The basic OpenAL ob-

jects are a Listener, a Source, and a Buffer. Each

buffer can be attached to one or more Sources, which

represent points in 3D space which are emitting audio.

There is always one Listener object (per audio con-

text), which represents the position where the sources

are heard rendering is done from the perspective of

the Listener.

Each Audio3D object can be played, stopped or

paused; it has a volume, a ﬁle path and a 3D position.

Moreover, it receives a copy of GLSV instance. Thus,

the Audio3D instance knows where the observer (lis-

tener) at any moment.

3.4 File Input/Output

X3D is the ISO standard XML-based ﬁle format for

representing 3D computer graphics, the successor to

the Virtual Reality Modelling Language (VRML). It

has been adopted as the main CAD format in this

project. The structure of the graphic primitives tree,

which uses the class M_Node : Model as said before,

is a direct interpretation of the X3D ﬁle format.

Although, at present, this module is not com-

pletely functional, its development is not a difﬁcult

task thanks to the System.Xml class available in .Net

C]. As example, the M_Mesh : Model has a public

function to read the data directly from a X3D ﬁle.

3.5 Interaction with Input Devices

The programmer can use other libraries in conjunc-

tion with GLSVe to face the development of more so-

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

208

phisticated software using VR devices. It is especially

interesting to implement the tracking option to control

the Observer properties and the Pointer3D position.

Simple examples of use have been developed using

the WiimoteLib (for the Nintendo Wiimote) and the

Touchless SDK (which permits to track color marks

with a web cam), both written in C].

4 APPLICATION RESULTS

The library is being used in different application sce-

narios, demonstrating its utility and versatility.

4.1 VISAGE: A Stereo Viewer and

Compilation Software Tool for

Geologic Works

The aim of this project is to deﬁne a suite of applica-

tions to solve the problem of seeing a stereo pair and

manually recover a 3D model. It was originally ori-

ented to geologic works, but it can be used in other

applications, like building restitution, medical image,

reverse engineering, etc (Martín et al., 2007).

VISAGE is written in .Net C] using the GLSVe

and the TAO Framework. The user can see pairs of

stereo photos (implemented as objects of PhotoPair

: Model class) with total control of all the variables

involved: intraocular distance, camera focal, cam-

era size, screen size, observer position. Translation

(pan), scaling (zoom) and parallax transformations

have been implemented using the Display class. Vec-

torial entities can be drawn using the mouse as a

3D pointer thanks to MouseState and MouseEvents

classes. The DXF format is used to export and import

those vectorial entities to or from a CAD program.

The reference system can be deﬁned by the user us-

ing the terrain coordinates module. VISAGE it’s able

to work with different stereoscopic modes.

The stereo pair used in VISAGE has been pre-

viously idealized, it is supposed. This means: to

solve the problems of intrinsic and extrinsic calibra-

tion problems of the stereo pair. Then a new pair of

photos can be generated without geometric distortion

and a common projection plane. Nowadays, this has

been implemented in a different tool, called STEREO

NORMALIZER, which uses the OpenCV library.

4.2 AMBLY: Medical Optometry

Treatment of amblyopia consists of forcing use of

the amblyopic eye, usually by patching the good eye.

It results in a better accuracy of the lazy eye after

the treatment, but the stereopsis is not improved (Si-

mons, 2005). Virtual Reality and Stereoscopic Vision

technologies can be used to design computer games

where each eye receives different signals of the vir-

tual world (Waddingham et al., 2006; Achtman et al.,

2008; Kozulin et al., 2009). This project consists in

the development of computer activities to improve the

vision of the child, not only the visual acuity of the

lazy eye but also the stereoscopic vision.

Although the project is in its initial stages, there

have been designed four different activities that

should be clinically validated. The ﬁrst activity mea-

sures the stereopsis. As in the classic TNO Test, a

dot stereogram is showed. The hidden shape must be

identiﬁed by the patient. The second activity trains

the lazy eye. The patient must look for a hidden ob-

ject in a ﬂat scene. Although the lazy eye sees per-

fectly the object, the healthy one is penalized. This

can achieved thanks to different drawing methods im-

plemented in the Models for each eye. The third and

fourth activities train the stereopsis ability. In the third

one the patient must look for a hidden object in a 3D

scene and in the fourth activity he/she must draw a

3D shape joining a set of 3D points. The mouse is

used again, as a 3D pointer thanks to MouseState and

MouseEvents classes.

The viewing format selected has been side by side.

The conversion among real units, virtual units and

pixels are well known thanks to the Viewport class.

The results of visual acuity can be presented to the

optometrist in seconds of arc.

4.3 Virtual Reality Room

The aim of this project is to build a multiwall vir-

tual reality stereo system using low cost hardware and

open-source libraries (CruzNeira et al., 1993; Johnson

et al., 2006).

The tracking system is implemented using the

Nintendo Wii Remote infrared cameras. Intrinsic and

extrinsic calibration camera is implemented using In-

tel OpenCV image processing library. Emgu CV

is used as .Net C] wrapper to the OpenCV library.

In the basic implementation, two wiimote cameras

are needed to track the Observer and the Pointer3D.

The observer is marked with at least two IR leds, as

GLSVe Observer class needs the positions of the two

eyes. The pointer is marked with at least one led, as

Pointer3D class needs only a 3D position.

In addition, a virtual device server has been devel-

oped. Different physical devices (data gloves, inertial

tracking, gaming controllers, etc.) can be connected

with the virtual server using XML messages. Finally,

a GLSVe based application connects to the server, re-

AN OPEN-SOURCE C SHARP LIBRARY BASED ON OPENGL FOR STEREOSCOPIC GRAPHIC APPLICATIONS

DEVELOPMENT

209

ceiving the data of the virtual device as XML mes-

sages. This architecture makes easier the interaction

with devices whose libraries are written in other lan-

guages. Moreover, the virtual server can be conﬁg-

ured as a tracking system. Several computers, each

one with its own screen and all running the same

GLSVe based application, are connected to the vir-

tual server, receiving the tracking data in a multiwall

conﬁguration.

5 CONCLUSIONS

We presented some details of a new open-source li-

brary designed to facilitate the creation of graphic and

virtual reality prototypes incorporating stereoscopic

representation. Different application scenarios have

been described to demonstrate the utility of the library

and to justify several aspects of its design. It is es-

pecially remarkable that graphic primitives can have

different appearance as they are seen by each observer

eye, allowing the development of software for optom-

etry research.

The GLSVe is freely available under the terms

of the GNU General Public License. Nowadays two

Universities are collaborating on its development, but

the project is open to other contributions. You can

download GLSVe with several examples of use from

the SourceForge website.

Besides its proven usability in research and pro-

duction of quality scientiﬁc software, the library has

also become a valuable tool for teaching virtual reality

concepts. Until now the library has been successfully

used in four university courses for computer engineer-

ing students.

ACKNOWLEDGEMENTS

This research has been possible thanks to the exis-

tence of the collaboration agreement between the Uni-

versity of Oviedo and the University of Informatics

Sciences of Havana.

REFERENCES

Achtman, R., Green, C., and Bavelier, D. (2008). Video

games as a tool to train visual skills. Restorative Neu-

rology and Neuroscience, 26:435–446.

Billen, M. I., Kreylos, O., Hamann, B., Jadamec, M. A.,

Kellogg, L. H., Staadt, O., and Dawn, Y. (2008).

Geoscience perspective on immersive 3d gridded data

visualization. Computers & Geosciences, 34:1056–

1072.

Castejón, C., Blanco, D., and Moreno, L. (2009). Friendly

interface to learn stereovision theory. Computer Ap-

plications in Engineering Education, 17(2):180–186.

Clausen, T. (2005). Guest editorial undergraduate engineer-

ing education challenged by the bologna declaration.

IEEE Trans Educ, 48(2):213–215.

CruzNeira, C., Sandin, D. J., and DeFanti, T. A. (1993).

Surround-screen projection-based virtual reality: The

design and implementation of the cave. pages 135–

142. 20th Annual Conference on Computer Graphics

and Interactive Techniques.

Johnson, A., Leigh, J., Morin, P., and Keken, P. (2006). Ge-

owall: Stereoscopic visualization for geoscience re-

search and education. Computer Graphics and Appli-

cations, IEEE 26 (6), pages 10–14.

Kockro, R. A., Stadie, A., Schwandt, E., Reisch, R., Char-

alampaki, C., Ng, I., Yeo, T. T., Hwang, P., Serra, L.,

and Perneczky (2007). Collaborative virtual reality

environment for neurosurgical planning and training.

Neurosurgery, 61:379–391.

Kozulin, P., Ames, S. L., and McBrien, N. A. (2009). Ef-

fects of a head-mounted display on the oculomotor

system of children. Optom Vis Sci, 86:845–856.

Limniou, M., Roberts, D., and Papadopoulos, N. (2008).

Full immersive virtual environment cave in chemistry

education. Computers & Education, 51:584–593.

Lipton, L. (1997). Stereo-vision formats for video and com-

puter graphics. Proc. SPIE, 3012(239).

Martín, S., García, S., Suárez, J., and Rubio, R. (2007). Vis-

age: A new stereo viewer and compilation software

tool for geologic works. 23rd International Applied

Geochemistry Symposium.

Martín, S., Suárez, J., Orea, R., Rubio, R., and Gallego,

R. (2009). Glsv: Graphics library stereo vision for

opengl. Virtual Reality, 13(1):51–57.

Palanichamy, C., Kumar, C. A., and Babu, S. (2004).

An educational package for environmentally friendly,

economic operation of power systems. Interna-

tional Journal of Electrical Engineering Education,

40(2):130–143.

Patryn, A. and Pietruszko, S. M. (2005). Didactic software

for solar cells and materials parameters analysis. Solar

Energy Materials and Solar Cells, 87(1-4):271 – 285.

International Conference on Physics, Chemistry and

Engineering.

Simons, K. (2005). Amblyopia characterization, treatment

and prophylaxis. Surv Ophthalmol, 50:123–166.

Steven, E. (1999). The cathedral and the bazaar.

Knowledge, Technology &; Policy, 12(3):23–49.

10.1007/s12130-999-1026-0.

Waddingham, P., Cobb, S., Eastgate, R., and Gregson, R.

(2006). Virtual reality for interactive binocular treat-

ment of amblyopia. volume 20, pages 370–374. 6th

Intl Conf. Disability, Virtual Reality & Assoc.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

210
