SEMANTIC ENRICHMENT OF CONTEXTUAL ADVERTISING

BY USING CONCEPTS

Giuliano Armano, Alessandro Giuliani and Eloisa Vargiu

Dept. of Electrical and Electronic Engineering, University of Cagliari, Cagliari, Italy

Keywords:

Contextual advertising, Recommender systems, Information ﬁltering.

Abstract:

This paper focuses on Contextual Advertising, which is devoted to display commercial ads within the content

of third-party Web pages. In the literature, several approaches estimate the relevance of an ad based only on

syntactic approaches. However, these approaches may lead to the choice of a remarkable number of irrelevant

ads. In order to solve these drawbacks, solutions that combine a semantic phase with a syntactic phase have

been proposed. Framed within this approach, we propose an approach that uses to a semantic network able

to supply commonsense knowledge. To this end, we developed and implemented a system that uses the Con-

ceptNet 3 database. To our best knowledge this is the ﬁrst attempt to use information provided by ConceptNet

in the ﬁeld of Contextual Advertising. Several experiments have been performed aimed at comparing the

proposed system with a state-of-the-art system. Preliminary results show that the proposed system performs

better.

1 INTRODUCTION

Nowadays, Web advertising is one of the major

sources of income for a large number of websites. Its

main goal is to suggest products and services to the

ever growing population of Internet users. A signif-

icant part of Web advertising consists of textual ads,

the ubiquitous short text messages usually marked as

sponsored links. There are two primary channels for

distributing ads: Sponsored Search (or Paid Search

Advertising) and Contextual Advertising (or Content

Match). Sponsored Search advertising displays ads

on the page returned from a Web search engine fol-

lowing a query; whereas Contextual Advertising (CA)

displays ads within the content of a generic, third

party, Web page. A commercial intermediary, namely

ad network, is usually in charge of optimizing the se-

lection of ads with the twofold goal of increasing rev-

enue and improving user experience. The ads are se-

lected and served by automated systems based on the

content displayed to the user.

In the literature, several approaches to CA esti-

mate the ad relevance based on co-occurrences of the

same words or phrases within the ad and within the

page. However, it is easy to note that targeting mech-

anisms based solely on phrases found within the text

of the page can lead to problems. In order to solve

them, matching mechanisms that combine a semantic

phase with the traditional syntactic phase have been

proposed (Broder et al., 2007).

In this paper, we propose a further semantic en-

richment that exploits ConceptNet (Liu and Singh,

2004). To this end, we devised and implemented a

system called ConCA (Concepts in Contextual Ad-

vertising). Experiments have been performed on the

BankSearch Dataset (Sinka and Corne, 2002) and the

baseline is the system proposed in (Armano et al.,

2011b). Preliminary results show that the proposed

system performs slightly better in terms of precision,

while preserving the real-time constraint.

The rest of the paper is organized as follows. Sec-

tion 2 recalls the CA problem. Section 3 presents a

typical solution adopted in practice that is based on

both a syntactic and a semantic approach. After re-

calling ConceptNet, Section 4 presents the proposed

approach. In Section 5, we present our experimen-

tal results. In Section 6, we survey the most relevant

work on CA and we compare them with the proposed

solution. Section 7 ends the paper with conclusions

and an overview of future work.

2 CONTEXTUAL ADVERTISING

CA is an interplay of four players (Broder et al.,

2007): (i) the advertiser, who provides the supply of

232

Armano G., Giuliani A. and Vargiu E..

SEMANTIC ENRICHMENT OF CONTEXTUAL ADVERTISING BY USING CONCEPTS.

DOI: 10.5220/0003657502240229

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2011), pages 224-229

ISBN: 978-989-8425-79-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

ads and organizes her/his activity around campaigns

which are deﬁned by a set of ads with a particular

temporal and thematic goal (e.g., sale of digital cam-

eras during the holiday season); (ii) the publisher, i.e.

the owner of the Web pages on which the advertising

is displayed, who is aimed at maximizing advertising

revenue while providing a good user experience; (iii)

the ad network, which, as a mediator between the ad-

vertiser and the publisher, selects the ads to display on

the Web pages; and (iv) the users, who visit the Web

pages of the publisher and interact with the ads.

Upon a request initiated by the user through an

HTTP get request, the Web server returns the re-

quested page. As the page is being displayed, a

JavaScript code embedded into the page (or loaded

from a server) sends to the ad network a request for

ads that contains the page URL and some additional

data. The ad network model aligns the interests of

publishers, advertisers and the network itself. In gen-

eral, user’s clicks bring beneﬁts to the publisher and

the ad network by providing revenue, and to the ad-

vertiser by bringing trafﬁc to the target web site.

Another perspective consists on addressing a CA

problem as a recommendation task. In fact, the task

of suggesting an ad to a Web page can be also viewed

as the task of recommending an item (the ad) to a user

(the Web page) (Armano and Vargiu, 2010).

3 A TYPICAL SOLUTION TO

CONTEXTUAL ADVERTISING

Our view of a generic solution to CA encompasses

four main tasks: (i) pre-processing; (ii) text summa-

rization; (iii) classiﬁcation; and (iv) matching. No-

tably, most of the state-of-the-art solutions are com-

pliant with this view.

Pre-processing is mainly aimed at transforming an

HTML document (a Web page or an ad) into an easy-

to-process document in plain-text format, while main-

taining important information.

Text summarization is aimed at generating a short

representation of the Web page with a negligible loss

of information.

To alleviate possible harmful effects of summa-

rization, both page excerpts and ads are classiﬁed ac-

cording to a given set of categories (Broder et al.,

2007). The corresponding Classiﬁcation-based Fea-

tures (CF) are then used in conjunction with the orig-

inal Bag of Words (BoW) provided by the text sum-

marization phase (Anagnostopoulos et al., 2007).

Matching is devoted to suggest ads (a) to the Web

page (p) according to a similarity score based on both

BoW and CF. In formula:

σ(p, a) = α ·sim

BoW

(p, a)+(1−α)·sim

(p, a) (1)

in which, α is a global parameter that permits to

control the impact of the syntactic component with re-

spect to the semantic one, whereas sim

BoW

(p, a) and

sim

(p, a) are cosine similarity scores between p

and a using BoW and CF, respectively.

4 IMPROVING CONTEXTUAL

ADVERTISING WITH

CONCEPTNET

As shown by Broder et al. (Broder et al., 2007), CA

systems can be improved using semantic information.

In particular, as recalled in the previous section, they

consider CF in conjunction with the BoW. Focusing

on the importance of semantics, we studied a further

semantic enrichment that uses concepts in conjunc-

tion with CF. To this end, we exploited the semantic

information provided by ConceptNet 3 (Havasi et al.,

2007). The proposed system, called ConCA (Con-

cepts in Contextual Advertising), integrates the Con-

ceptNet 3 database in the generic solution summa-

rized in Section 3.

4.1 ConceptNet

The Open Mind Common Sense (OMCS) project is a

distributed solution to the problem of commonsense

acquisition by enabling users to enter commonsense

into the system with no special training or knowledge

of computer science. In 2000, the OMCS project be-

gan to collect statements from untrained volunteers on

the Internet. These data have been used to automat-

ically build a semantic network, called ConceptNet

(Liu and Singh, 2004).

In ConceptNet, nodes are concepts and edges are

predicates. Concepts are aspects of the world that

people would talk about in natural language. They

correspond to selected constituents of the common-

sense statements that users have entered, and can rep-

resent noun phrases, verb phrases, adjective phrases,

or prepositional phrases. Predicates express relation-

ships between two concepts. They are extracted from

natural language statements enter by contributors, and

express relationships such as IsA, PartOf, LocationOf,

and UserFor. In addition, there are also some under-

speciﬁed relation types such as ConceptuallyRelat-

edTo, which means that a relationship exists between

two concepts without any other semantic explanation.

Predicates in ConceptNet are created by a pattern-

matching process. Each sentence is compared with an

ordered list of patterns, which are regular expressions

SEMANTIC ENRICHMENT OF CONTEXTUAL ADVERTISING BY USING CONCEPTS

233

that can also include additional constraints on phrase

types based on the output of a natural language tag-

ger and chunker. These patterns represent sentence

structures that are commonly used to express differ-

ent relationships. The phrases that ﬁll the slots in a

pattern will be turned into concepts. When a sentence

is matched against a pattern, the result is a “raw pred-

icate” that relates two strings of text. A normalization

process determines which two concepts these strings

correspond to, turning the raw predicate into an edge

of ConceptNet.

ConceptNet has been adopted in several applica-

tion ﬁelds. To our best knowledge this is the ﬁrst at-

tempt to use ConceptNet in CA.

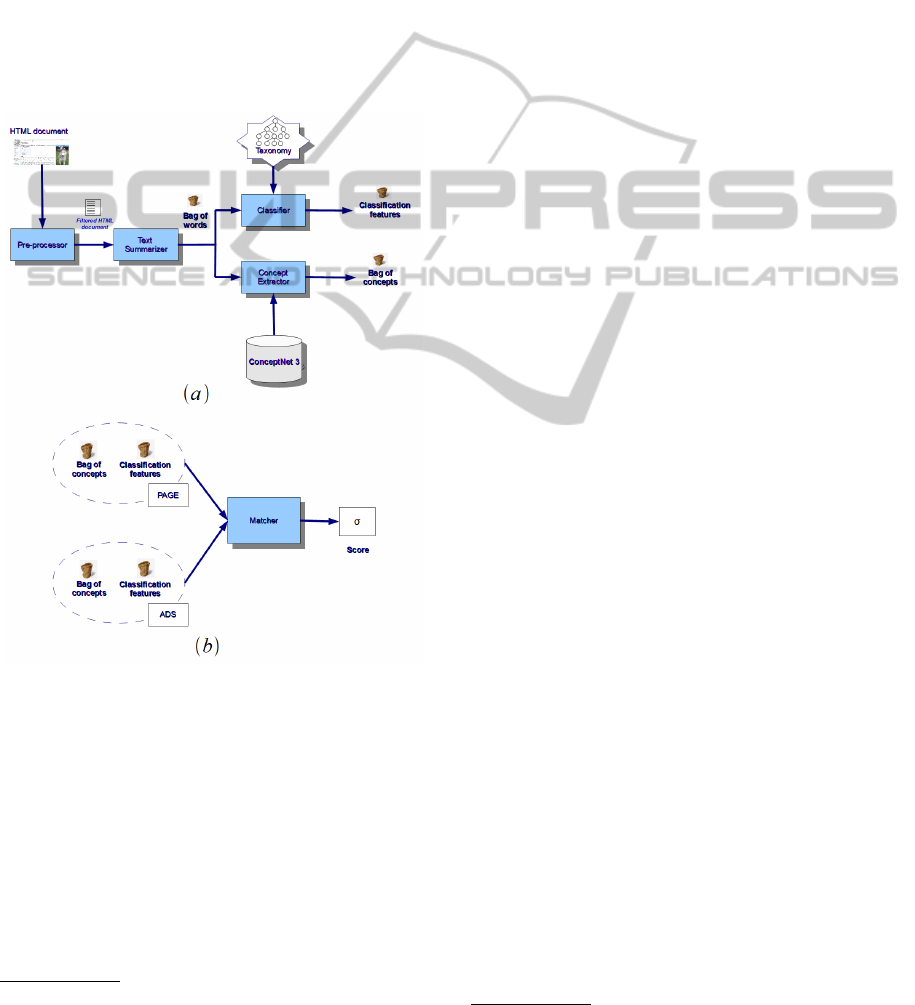

Figure 1: ConCA architecture.

4.2 ConCA

The system has been implemented in Java and, as

shown in Figure 1, it encompasses ﬁve main modules:

(i) Pre-processor; (ii) Text Summarizer; (iii) Classi-

ﬁer; (iv) Concept Extractor; (v) Matcher.

Pre-processor. To transform an HTML document

into an easy-to-process document in plain-text for-

mat, the pre-processor removes HTML tags and stop-

words

. First, any given HTML page is parsed to

To this end, the Jericho API for Java

has been adopted, described at the Web page:

identify and remove noisy elements, such as tags,

comments and other non-textual items. Then, stop-

words are removed from each textual excerpt. Fi-

nally, the document is typically tokenized and each

term stemmed.

Text Summarizer. It outputs a vector representa-

tion of the original HTML document as BoW, each

word being weighted by TF-IDF. According to our

previous comparative results (Armano et al., 2011b),

we implemented the text summarization technique

that has shown the best results, i.e., TFLP (Armano

et al., 2011a). This technique takes into account infor-

mation belonging to the Title, the First, and the Last

Paragraph of the Web document (the page or the ad).

Classiﬁer. To infer the topics of each page or ad,

they are classiﬁed according to a given taxonomy.

Each node of the taxonomy is ﬁrst represented with

its centroid. Each centroid component is deﬁned as a

sum of TF-IDF values of each component, normalized

by the number of documents in the class. Then each

document is classiﬁed by adopting the Rocchio classi-

ﬁer (Rocchio, 1971) with only positive examples and

no relevance feedback.

Concept Extractor. It takes the BoW representa-

tion as input and, for each term, queries the Concept-

Net 3 database to ﬁnd the related meaningful con-

cepts. Each element of the database is called asser-

tion, and is uniquely deﬁned by several attributes, for

instance:

• a pair of concepts, i.e., two linked nodes of Con-

ceptNet;

• the language of the concepts, e.g., English, Italian,

or French;

• the type of relation that connects the two concepts,

e.g., “IsA” or “PartOf”;

• the score, i.e., a value given by the users that rep-

resents the reliability of the assertion;

• the frequency, i.e., a textual value (ranging from

“never” to “always”) that expresses how often a

relation connects a given pair of concepts.

Conversely, each concept is also represented with

several attributes, e.g., words, language, and number

of assertions.

For each term, the Concept Extractor queries the

ConceptNet 3 database in order to obtain the set of

assertions that include the term, each being one of the

two concepts in the assertion. The resulting assertion

set is then ﬁltered in order to reduce noise. In partic-

ular, we consider only the assertions that satisfy the

following constraints:

http://jericho.htmlparser.net/docs/index.html.

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

234

• the language of the concepts is English;

• the type of the relation is “IsA” or “HasA”;

• the score given by users is greater than 1;

• the frequency is “positive”, e.g., assertions with

“never” are not considered.

As for concepts, only those with a number of asser-

tions greater than 3 are selected.

The output is a set of concepts with their occur-

rences, called Bag of Concepts (BoC). The BoC is

represented in a vector space, in which each feature is

weighted by TF-IDF.

Matcher. It is devoted to choose the relevant ads ac-

cording to a score based on the similarity between the

target page and each ad. Let us recall that in this work

we are interested in semantically enriching informa-

tion belonging to both pages and ads. To this end, we

calculate the score similarity taking into account CF

and BoC, without considering BoW. In formula:

σ(p, a) = α · sim

BoC

(p, a)+(1−α)·sim

(p, a) (2)

in which α is a global parameter that permits to con-

trol the impact of BoC with respect to CF, whereas

sim

BoC

(p, a) and sim

(p, a) are cosine similarity

scores between p and a using BoC and CF, respec-

tively.

5 EXPERIMENTS AND RESULTS

To perform experiments we used the BankSearch

Dataset (Sinka and Corne, 2002), built using the Open

Directory Project and Yahoo! categories

, consisting

of about 11000 Web pages classiﬁed by hand accord-

ing to 11 different classes that belong to a given taxon-

omy. In (Sinka and Corne, 2002), the authors shown

that this structure provides a good benchmark not only

for generic classiﬁcation/clustering methods, but also

for hierarchical techniques.

To perform experiments, we also built a repository

of ads, composed of 5 relevant company Web pages

for each class of the adopted taxonomy. In so doing,

there are 55 different ads in the repository.

To evaluate the performances of ConCA, our base-

line is the system adopted in (Armano et al., 2011b).

Let us note that this baseline system is an implemen-

tation of the model described in Section 3, in which

TFLP (Title, First and Last Paragraph summariza-

tion), is adopted as text summarization technique.

http://www.dmoz.org and http://www.yahoo.com, re-

spectively.

Five different experiments have been performed

for each system augmenting the suggested ads from 1

to 5. Results are then calculated in terms of the preci-

sion p@k, with k ∈ [1, 5]. For each experiment, Table

1 reports the results obtained by varying α. Accord-

ing to equation (2) a value of 0.0 means that only CF

are considered, whereas a value of 1.0 considers only

BoC in ConCA and BoW in the baseline system.

Results show that ConCA performs slightly bet-

ter than the baseline system. In particular, for both

systems, the best performance is obtained with a low

value of α (i.e., 0.1 for ConCA). It means that CF

have more impact than BoC in ConCA. Similarly, CF

have more impact than BoW in the baseline system.

Nevertheless, concepts positively affect results when

suggesting 1 or 5 ads. Since these preliminary results

are encouraging, we are currently performing exper-

iments that consider BoW, BoC, and CF in conjunc-

tion. In this way, we adopt both the syntactic and the

semantic contributions.

As a ﬁnal remark, running times for ConCA and

the baseline system are comparable, so that the real-

time constraint is preserved.

6 RELATED WORK

CA is the economic engine behind a large number of

non-transactional sites on the Web. A main factor for

the success in CA is the relevance to the surrounding

scenario. Each solution for CA evolved from search

advertising, where a search query matches with a bid

phrase of the ad. A natural extension of search adver-

tising is extracting phrases from the target page and

matching them with the bid phrases of ads. Yih et al.

(Yih et al., 2006) proposed a system for phrase ex-

traction, which uses a variety of features to determine

the importance of page phrases for advertising pur-

poses. To this end, the authors proposed a supervised

approach that relies on a training set built using a cor-

pus of pages in which relevant phrases have been an-

notated by hand. Since the repository of ads adopted

in our work is composed by Web pages of companies,

we do not take into account the phrase extraction but

resort only on extraction-based text summarization.

Ribeiro-Neto et al. (Ribeiro-Neto et al., 2005) ex-

amined a number of strategies to match pages and ads

based on extracted keywords. They represented both

pages and ads in a vector space and proposed sev-

eral strategies to improve the matching process. The

authors explored the use of different sections of ads

as a basis for the vector, mapping both page and ads

in the same space. Since there is a discrepancy be-

tween the vocabulary used in the pages and in the

SEMANTIC ENRICHMENT OF CONTEXTUAL ADVERTISING BY USING CONCEPTS

235

Table 1: Results of CA systems comparison.

Baseline System ConCA

α p@1 p@2 p@3 p@4 p@5 p@1 p@2 p@3 p@4 p@5

0.0 0.765 0.746 0.719 0.696 0.663 0.765 0.746 0.719 0.696 0.663

0.1 0.767 0.749 0.724 0.698 0.663 0.773 0.752 0.728 0.701 0.668

0.2 0.768 0.750 0.729 0.699 0.662 0.761 0.747 0.724 0.696 0.662

0.3 0.766 0.749 0.729 0.701 0.661 0.736 0.730 0.709 0.685 0.650

0.4 0.756 0.747 0.728 0.698 0.658 0.701 0.704 0.686 0.668 0.636

0.5 0.744 0.734 0.720 0.692 0.651 0.661 0.664 0.660 0.643 0.614

0.6 0.722 0.717 0.703 0.681 0.640 0.609 0.624 0.623 0.614 0.588

0.7 0.684 0.687 0.680 0.658 0.625 0.561 0.573 0.578 0.568 0.551

0.8 0.632 0.637 0.635 0.614 0.586 0.512 0.518 0.517 0.513 0.501

0.9 0.557 0.552 0.548 0.534 0.512 0.481 0.471 0.462 0.455 0.440

1.0 0.439 0.421 0.408 0.388 0.372 0.427 0.407 0.394 0.379 0.360

ads (the so called impedance mismatch), the authors

improved the matching precision by expanding the

page vocabulary with terms from similar pages. Ac-

cording to their work, we represent both pages and

ads in a vector space. Nevertheless, since our ads

are actually Web pages, we do not take into account

the impedance mismatch and we measure the direct

match of the page p and the ad a by calculating the

corresponding cosine similarity.

Broder et al. (Broder et al., 2007) classiﬁed both

pages and ads according to a given taxonomy and

matched ads to the page falling into the same node of

the taxonomy. Each node of the taxonomy is built as

a set of bid phrases or queries corresponding to a cer-

tain topic. This was the ﬁrst attempt to semantically

enrich CA by introducing the contribution given by

CF. Results shown a better accuracy than those per-

formed by systems based only on syntactic matching.

According to their results and taking into account the

effectiveness of adopting CF, ConCA implements the

same classiﬁer.

Nowadays, ad networks need to deal in real time

with a large amount of data, involving billions of

pages and ads. Therefore, several constraints must

be taken into account for building CA systems. In

particular, efﬁciency and computational costs are cru-

cial factors in the choice of methods and algorithms.

Anagnostopoulos et al. (Anagnostopoulos et al.,

2007) presented a methodology for Web advertising

in real time, focusing on the contributions of different

fragments of a Web page. This methodology allows

to identify short but informative excerpts of the Web

page by using several text summarization techniques,

in conjunction with the model developed in (Broder

et al., 2007). According to their work, in order to an-

alyze the entire body of Web pages on-the-ﬂy, also

ConCA performs a text summarization task.

In a previous work (Armano et al., 2011b), we

studied the impact of text summarization on CA and

proved that the best performances in terms of preci-

sion are obtained by using the TFLP technique (i.e., a

simple but effective extraction technique that consid-

ers the title, the ﬁrst and the last paragraph of a Web

page). In accordance with these results, the text sum-

marization module implemented in ConCA adopts the

TFLP technique.

Since bid phrases are basically search queries, an-

other relevant approach is to view CA as a prob-

lem of query expansion and rewriting. Murdock et

al. (Murdock et al., 2007) considered a statistical

machine translation model to overcome the problem

of the impedance mismatch between page and ads.

To this end, they proposed and developed a system

able to re-rank the ad candidates based on a noisy-

channel model. In a subsequent work, Ciaramita et

al. (Ciaramita et al., 2008) used a machine learning

approach, based on the model described in (Murdock

et al., 2007), to deﬁne an innovative set of features

able to extract the semantic correlations between the

page and ad vocabularies. According on this view,

we calculate the performance of ConCA resorting to

p@k, a classical measure adopted in query search,

which in this case represents the capability of the sys-

tem to suggest k relevant ads to a Web page.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we proposed a semantic enrichment of

Contextual Advertising, taking into account the con-

cepts extracted by ConceptNet 3. To this end, we de-

vised a system called ConCA. The system has been

evaluated in terms of precision by performing com-

parative experiments with a state-of-the-art system.

Results shown that the adoption of concepts positively

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

236

affects the choice of ads.

As for future work, we are studying the impact

of different combinations of features (BoW, BoC, and

CF) on the precision of ConCA. Furthermore, we

are investigating further semantic solutions aimed at

improving ConCA. In particular, we are investigat-

ing novel solutions to extract concepts, by adopting

WordNet (Miller, 1995) and/or Yago (Suchanek et al.,

2007). Moreover, we are planning to modify the clas-

siﬁer adopting the hierarchical text categorization so-

lution proposed in (Addis et al., 2010), instead of the

Rocchio classiﬁer. We deem that taking into account

the taxonomic relationship among classes would im-

prove the overall performance of the classiﬁer. We are

also about to calculate its performances with further

datasets, such as a larger dataset extracted by DMOZ.

ACKNOWLEDGEMENTS

This work has been partially supported by Hoplo srl.

We wish to thank, in particular, Ferdinando Licheri

and Roberto Murgia for their help and useful sugges-

tions.

REFERENCES

Addis, A., Armano, G., and Vargiu, E. (2010). Assessing

progressive ﬁltering to perform hierarchical text cat-

egorization in presence of input imbalance. In Pro-

ceedings of International Conference on Knowledge

Discovery and Information Retrieval (KDIR 2010).

Anagnostopoulos, A., Broder, A. Z., Gabrilovich, E., Josi-

fovski, V., and Riedel, L. (2007). Just-in-time con-

textual advertising. In CIKM ’07: Proceedings of

the sixteenth ACM conference on Conference on infor-

mation and knowledge management, pages 331–340,

New York, NY, USA. ACM.

Armano, G., Giuliani, A., and Vargiu, E. (2011a). Experi-

menting text summarization techniques for contextual

advertising. In IIR’11: Proceedings of the 2nd Italian

Information Retrieval (IIR) Workshop.

Armano, G., Giuliani, A., and Vargiu, E. (2011b). Studying

the impact of text summarization on contextual adver-

tising. In 8th International Workshop on Text-based

Information Retrieval.

Armano, G. and Vargiu, E. (2010). A unifying view of con-

textual advertising and recommender systems. In Pro-

ceedings of International Conference on Knowledge

Discovery and Information Retrieval (KDIR 2010),

pages 463–466.

Broder, A., Fontoura, M., Josifovski, V., and Riedel, L.

(2007). A semantic approach to contextual advertis-

ing. In SIGIR ’07: Proceedings of the 30th annual in-

ternational ACM SIGIR conference on Research and

development in information retrieval, pages 559–566,

New York, NY, USA. ACM.

Ciaramita, M., Murdock, V., and Plachouras, V. (2008). On-

line learning from click data for sponsored search. In

Proceeding of the 17th international conference on

World Wide Web, WWW ’08, pages 227–236, New

York, NY, USA. ACM.

Havasi, C., Speer, R., and Alonso, J. (2007). Conceptnet

3: a ﬂexible, multilingual semantic network for com-

mon sense knowledge. In Recent Advances in Natural

Language Processing, Borovets, Bulgaria.

Liu, H. and Singh, P. (2004). Conceptnet: A practical com-

monsense reasoning tool-kit. BT Technology Journal,

22:211–226.

Miller, G. A. (1995). Wordnet: A lexical database for en-

glish. Commun. ACM, 38(11):39–41.

Murdock, V., Ciaramita, M., and Plachouras, V. (2007).

A noisy-channel approach to contextual advertising.

In Proceedings of the 1st international workshop on

Data mining and audience intelligence for advertis-

ing, ADKDD ’07, pages 21–27, New York, NY, USA.

ACM.

Ribeiro-Neto, B., Cristo, M., Golgher, P. B., and Silva de

Moura, E. (2005). Impedance coupling in content-

targeted advertising. In SIGIR ’05: Proceedings of the

28th annual international ACM SIGIR conference on

Research and development in information retrieval,

pages 496–503, New York, NY, USA. ACM.

Rocchio, J. (1971). The SMART Retrieval System: Ex-

periments in Automatic Document Processing, chap-

ter Relevance feedback in information retrieval, pages

313–323. PrenticeHall.

Sinka, M. and Corne, D. (2002). A large benchmark dataset

for web document clustering. In Soft Computing Sys-

tems: Design, Management and Applications, Volume

87 of Frontiers in Artiﬁcial Intelligence and Applica-

tions, pages 881–890. Press.

Suchanek, F. M., Kasneci, G., and Weikum, G. (2007).

Yago: A Core of Semantic Knowledge. In 16th inter-

national World Wide Web conference (WWW 2007),

New York, NY, USA. ACM Press.

Yih, W.-t., Goodman, J., and Carvalho, V. R. (2006). Find-

ing advertising keywords on web pages. In WWW

’06: Proceedings of the 15th international conference

on World Wide Web, pages 213–222, New York, NY,

USA. ACM.

SEMANTIC ENRICHMENT OF CONTEXTUAL ADVERTISING BY USING CONCEPTS

237
