FROM 3D POINT CLOUDS TO SEMANTIC OBJECTS

An Ontology-based Detection Approach

Helmi Ben Hmida

1,2

, Christophe Cruz

, Frank Boochs

and Christophe Nicolle

Institut i3mainz, am Fachbereich 1 - Geoinformatik und Vermessung

Fachhochschule Mainz, Lucy-Hillebrand-Str. 2, 55128, Mainz, Germany

Laboratoire Le2i, UMR-5158 CNRS, Dep. Informatique IUT Dijon

7, Boulevard Docteur Petitjean, BP 17867, 21078, Dijon Cedex, France

Keywords: Geometric analysis, Topologic analysis, 3D processing algorithm, Semantic web, Knowledge modelling,

Ontology, 3D scene reconstruction, Object identification.

Abstract: This paper presents a knowledge-based detection of objects approach using the OWL ontology language,

the Semantic Web Rule Language, and 3D processing built-ins aiming at combining geometrical analysis of

3D point clouds and specialist’s knowledge. This combination allows the detection and the annotation of

objects contained in point clouds. The context of the study is the detection of railway objects such as

signals, technical cupboards, electric poles, etc. Thus, the resulting enriched and populated ontology, that

contains the annotations of objects in the point clouds, is used to feed a GIS systems or an IFC file for

architecture purposes.

1 INTRODUCTION

As object reconstruction is an important task for

many applications, considerable effort has already

been invested to reduce the impact of time

consuming, manual activities and to substitute them

by numerical algorithms. Actually, the automatic

processing of 3D point clouds can be very fast and

efficient, but often relies on significant interaction of

the user for controlling algorithms and verifying the

results. Alternatively, the manual processing is

intelligent and very precise since a human person

uses its own knowledge for detecting and identifying

objects in point clouds, but it is very time-

consuming and consequently inefficient and

expensive. In this context, we aim at inserting

business knowledge in automatic detection and

reconstruction algorithms in order to make the point

cloud processing more efficient and reliable.

Consequently, the WiDOP project (knowledge

based detection of objects in point clouds) aims at

making a step forward. The goal is to develop

efficient and intelligent methods for an automated

processing of terrestrial laser scanner data. In

contrast to existing approaches, the project consists

in using prior knowledge about the context and the

objects. This knowledge is extracted from databases,

CAD plans, Geographic Information Systems (GIS),

or domain experts. Therefore, this knowledge is the

basis for a selective knowledge-oriented detection.

The following paper is structured into section 2

which gives an overview of actual existing strategies

for reconstruction processes, section 3 explains the

general adopted architecture and the related

ontology structure, section 4 describe the domain

knowledge modelling, section 5 highlight the

annotation process, section 6 gives first results for a

real example and section 7 concludes and shows

next planned steps.

2 BACKGROUND

This section is composed of two parts. This first part

deals with the detection strategies described in the

literature for geometric modelling and object

recognition. The second part presents the knowledge

modelling which of value for our strategy.

2.1 Detection Strategies

Today, scene model creation process is largely a

manual procedure, which is time-consuming and

subjective. While there is a clear need for

255

Ben Hmida H., Cruz C., Boochs F. and Nicolle C..

FROM 3D POINT CLOUDS TO SEMANTIC OBJECTS - An Ontology-based Detection Approach.

DOI: 10.5220/0003660002550260

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2011), pages 255-260

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

automated, or even semi-automated methods to ease

the creation of as-built scene, research on the subject

is still in the very early stages. This survey shows

that many of the existing methods for geometric

modelling and object recognition can be important

for the process automation. Within the literature,

three main strategies are described where the first

one is based on human interaction with provided

software’s for point clouds classifications and

annotations. While the second strategy relies more

on the automatic data processing without any human

interaction by using different segmentation

techniques for features extraction. Finally, new

techniques present an improvement compared with

the cited ones by integrating semantic networks to

guide the reconstruction process.

2.1.1 Manual Supported Strategy

Actually, tools used for 3D reconstruction of objects

are still largely relying on human interaction. Here

the user might be supported in his construction

activity, but object interpretation, selection and

extraction of measurements has to be done

manually. That's why this processing is the most

time consuming way to come from a data set to

extracted objects (Leica Cyclone: 3D Point Cloud

Processing Software).

2.1.2 Semi-automatic and Automatic

Strategy

These methods present a real optimization within the

process compared of the manual ones. Within the

current section, we will not expose the problematic

from the automatism point of view, but these

methods are based on two main parts, geometry

extraction and annotation.

Basically, geometry extraction presents the

process of constructing a simplified representation

of a 3D shape such as a Signal or an Electric born

like in our case. The representation of geometric

shapes has been studied extensively, (Campbell &

Flynn, 2001). Once geometric elements are detected

and stored via a specific presentation, the second

core of the object detection and scene reconstruction

is object recognition, In fact, it presents the process

of labelling a set of data points or geometric

primitives extracted from the data with a named

object or object class. Whereas the geometry

modelling task would find a set of points to be a

vertical Bounding Box, the recognition task would

label that Box as a Signal. Object recognition

algorithms may label object instances of an exact

shape, or they may recognize classes of objects.

Research on recognition of specific building

components is still in its early stages. Methods in

this category are typically shape-based ones. They

aim at segmenting a scene into planar regions, for

example, and then use features derived from the

segments to recognize objects. This approach was

carried out by Rusu et al. by using heuristics to

detect walls, floors, ceilings, and cabinets in a

kitchen environment, (Rusu, 2008). A similar

approach was proposed by Pu and Vosselman to

model building façades, (Pu, 2009). One of the

challenges of recognition in the building context is

that many of the objects to be recognized are very

similar to objects of little relevance. Some

researchers have proposed qualifying the spatial

relationships between objects or geometric

primitives to reduce the ambiguity of recognition

results. Such approaches generate semantic labels of

geometric primitives, and test the validities of these

labels with a spatial relationship knowledge base.

Usually, such a knowledge model is represented by a

semantic network, (Nuchter, 2008). For instance, a

semantic net may specify the relationships between

entities such as “floors are orthogonal to walls and

doors, and parallel with ceilings”. Such validity

checking approaches provide ways to integrate

domain knowledge into the object recognition

process. Another approach for recognition is to first

detect objects that are easily recognizable, and then

use the context of these initial detections to facilitate

recognition of more challenging structures. For

example, Pu and Vosselman use characteristic

features, such as size, orientation, and relationships

to other prominent objects, to detect walls and roofs

(Pu, 2009). Then, a second stage detects windows

within each of the detected walls.

One strategy for reducing the search space of

object recognition algorithms is to utilize knowledge

about a specific facility, such as a CAD model or

floor plan of the original design. For instance, Yue et

al. overlay a design model of a facility with the as-

built point cloud to guide the process of identifying

which data points belong to specific objects and to

detect differences between the as-built and as-

designed condition (Yue, 2006). In such cases,

object recognition problem is simplified to be a

matching problem between the scene model entities

and the data points. Another similar approach is

presented in (Osche, 2008).

From the above mentioned works, we can deduce

that the problematic of 3D object detections and

scene reconstructions including standard algorithm

and semantic networks can produce first results.

Moreover such strategies suffer from the lack of

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

256

flexibility, efficiency and are in general hard coded.

Thus, the context and the algorithm which are part

of knowledge that are required to be used in

recognition process have to be modelled.

2.2 Knowledge Modelling

In recent years, formal ontology has been suggested

as a solution to the problem of 3D objects

reconstruction from 3D point clouds (Cruz et al.,

2007). In this area, ontology structure was defined as

a formal representation of knowledge by a set of

concepts within a domain, and the relationships

between those concepts. It is used to reason about

the entities within that domain, and may be used to

describe the domain. Conventionally, ontology

presents a "formal, explicit specification of a shared

conceptualization" (Gruber, 2005). Ontology

provides a shared vocabulary, which can be used to

model a domain. Through technologies known as

Semantic Web, most precisely the Ontology Web

Language (OWL) (MacGuiness and Harmelen,

2004), researcher are able to share and extends

knowledge through the scientific community. The

basic strength of formal ontology is their ability to

reason in a logical way based on Description Logics

DL. Lots of reasoners exist nowadays like Pellet

(Sirin et al., 2007), (Tasrkov and Harrocks, 2006)

and KAON (U. Hustadt, 2010). Despite the richness

of OWL's set of relational properties, the axioms

does not cover the full range of expressive

possibilities for object relationships that we might

find, since it is useful to declare relationship in term

of conditions or even rules. These rules are used

through different rules languages to enhance the

knowledge possess in an ontology. Some of the

evolved languages are related to the semantic web

rule language (SWRL) and advanced Jena rules

(Carroll et al., 2004). SWRL is a proposal as

a Semantic Web rules language, combining

sublanguages of the OWL Web Ontology Language

with the Rule Markup Language (Horrocks et al.,

2004). In addition, SWRL language specifies also a

library for mathematical built-ins functions which

can be applied to individuals. It includes numerical

comparison, simple arithmetic and string

manipulation.

In this project, domain ontologies are used to

define the concepts, and the necessary and sufficient

conditions that define the concepts. These conditions

are of value, because they are used to populate new

concepts. For instance, the concept

“Horizontal_BoudinBox” can be specialized into

“Wall” if it contains a “Window”. Consequently, the

concept “Wall” will be populated with all

“Horizontal_BoudinBox” if they are linked to a

“Window” or “OpeningElement” object (Vanland,

2008). In addition, the rules are used to compute

more complex results such as the topological

relationships between objects. For instance, the

intersection of two objects is used to determine if a

part of an object is inside of another object. The

ontology is than enriched with this new relationship.

The topological relation built-ins are not defined in

the SWRL language. Consequently, the language

was extended.

3 APPROACH OVERVIEW

This paper presents a knowledge based detection

approach using the OWL ontology language, the

Semantic Web Rule Language, and 3D processing

built-ins aiming at combining geometrical analysis

of 3D point clouds and specialist’s knowledge. This

combination allows the detection and the annotation

of objects contained in point clouds. The field of the

Deutsch Bahn railway scene is treated for object

detection. The objective of the system consists in

creating, from a set of point cloud files, from an

ontology that contains knowledge about the DB

railway objects, and from the knowledge about 3D

processing algorithms, an automatic process that

produces as output a set of tagged elements

contained in the point clouds.

The process enriches and populates the ontology

with individuals and relationships between these

new individuals. To represent these objects, a

VRML file (VRML Virtual Reality Modeling

Language, 1995) is generated. The resulting

ontology contains enough knowledge to feed a GIS

system, and to generate IFC file (IFC Model, 2008)

for CAD software, but this is out of the scope the

paper. The processing steps can be detailed within

the schema of Figure 1, where three main steps aim

at detecting and identifying objects.

(3) From 3D point clouds to geometric elements.

(4) From geometry to topologic relations.

(5) From geometric and/or topologic relations to

semantic elements annotation.

As intermediate steps, the different geometries

within a specific 3D point clouds are detected and

stored within the ontology structure. Once done, the

existent topological relations between the detected

geometries are qualified and then stored within the

same knowledge base. Finally, detected geometries

are annotated semantically, based on existing

FROM 3D POINT CLOUDS TO SEMANTIC OBJECTS - An Ontology-based Detection Approach

257

knowledge’s related to the geometric characteristics

and topologic relations.

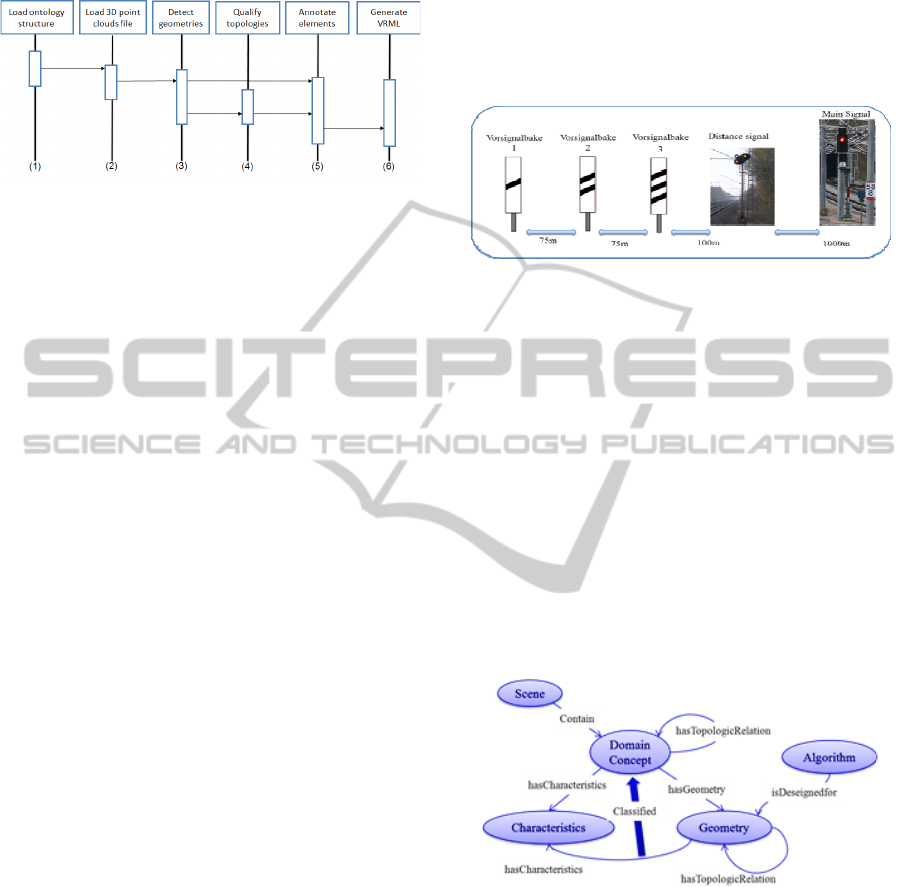

Figure 1: Sequence of the object detection application.

4 DOMAIN KNOWLEDGE

MODELLING

The domain ontology presents the core of WiDOP

project and provides a knowledge base to the created

application. The global schema of the modelled

ontology structure offers a suitable framework to

characterize the different Deutsche Bahn elements

from the 3D processing point of view.

The created knowledge base related to the

Deutsche Bahn scene has been inspired next to our

discussion with the domain expert and next to our

study based on the official Web site for the German

rail way specification ”http://stellwerke.de”. The

input ontology contains knowledge about the DB

railway objects and knowledge about 3D processing

algorithms. Consequently, the knowledge base is

divided into two layers, the layer of DB object

description and the layer of the algorithmic

description.

The sub-layer of scene knowledge is composed

by three main classes which are the Scene, the

domain concepts and the characteristics. In case of

Deutsche Bahn scene, this might comprise a list such

as: {Signals, Mast, Schalanlage, etc.}. Besides, the

importance of the other classes cannot be ignored.

The sub-layer of the geometrical knowledge

formulates the basic geometrical elements used

within the prototype. Actually, the annotation

elements step processes bounding boxes. Other

geometries especially lines and planes are more used

to characterize domain concepts elements by a list of

geometries. This information is used to create useful

descriptions that facilitate the object detection

process. The sub-layer of the topologic knowledge

represents topological relationships between scene

elements. For instance, a topological relation

between a distant signal and a main one can be

defined, as both have to be distant of 1 Km. The

qualification of topologic relations into the semantic

framework is done by means of topological Built-Ins

called “3DSWRL_Topologic_Built-Ins”. Further,

the object properties are also used to link an object

to others by a topologic relation. In general there are

a set of object properties in the ontology which have

their specialized properties for the specialized

activities, Figure 2.

Figure 2: Topologic rules.

Finally, the 3D processing algorithmic layer

contains all relevant aspects related to the 3D

processing algorithms. It´s integration into the

semantic framework is done by means of special

Built-Ins called “Processing Built-Ins”. They

manage the interaction between above mentioned

layers. In addition, it contains algorithm definitions,

properties, and geometries related to the each

defined algorithms.

An importance achievement is the detection and

the identification of objects which has linear

structure such as signal, indicator column, and

electric pole, etc., through utilizing their geometric

properties.

Figure 3

demonstrates the general layout

schema of the ontology.

Figure 3: Ontology general schema overview

The next section introduces an overview of the

approach undertaken in the WiDOP project to detect

and annotate semantically the different Deutsch

Bahn objects.

5 SEMANTIC ANNOTATION

PROCESS

It presents the process of affecting a semantic label

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

258

to the different geometries based on SWRL rules

and composed by three basic steps.

5.1 Point Cloud to Geometry

The first step aims at the geometric elements

detection. Thus, Semantic Web Rule Language

within extended built-ins for complex 3D processing

are used in order to detect geometry (e.g. Table 1).

Once done, the detected elements are used to

populate the ontology.

The “3Dswrlb:VerticalElementDetection” built-

ins aims at the detection of vertical elements.

The prototype of the designed Built-in is:

3D_swrlb_Processing:

VerticalElementDetection(?Vert, ?Dir)

where the first parameter presents the target object

class, and the last one presents the point clouds

directory defined within the created scene. Table 1

show the mapping between the 3D processing built-

ins, which are computer and translated to predicate,

and the corresponding class.

Table 1: 3D processing built-Ins mapping process.

Processing Built-Ins Correspondent class

3D_swrlb_Processing:

VerticalElementDetection(?V

ert,?Dir)

Vertical_BoundingBox(?x)

5.2 Geometries to Topology

Once geometries are detected, the second step, aims

at verifying certain topology properties between

detected geometries. Thus, 3D_Topologic built-ins

have been added in order to extend the SWRL

language. Topological rules are used to define

constrains between different elements. After parsing

the topologic built-ins and its execution, the result is

used to enrich the ontology with relationships

between individuals that verify the rules. Similarly

to the 3D processing built-ins, our engine translates

the rules with topological built-ins to standard rules,

Table 2.

Table 2: Example of topologic built-ins.

Processing Built-Ins

Correspondent object

property

3D_swrlb_Topology:Intersect(

?x, ?y)

Intersect (?x,?y)

5.3 Geometry and/or Topology to

Semantic

After the geometry and the topological relation de-

detection, swrl rules aim at qualifying and

annotating the different detected geometries. The

following example shows how a rule specifies the

class of a VerticalElement which is of type Mast

regarding its altitude. The altitude is highly relevant

only for this element.

3DProcessing_swrlb:VerticalElementDetec

tion(?Vert, ?dir) ^ altitude (?x, ?alt)

^swrlb:moreThan (?alt, 6) → Mast

(?Vert)

In case where geometric knowledge is not sufficient,

the topologic relationships between detected

geometries are helpful to manage the annotation

process. The following example shows how

semantic information about existing objects is used

conjunctly with topological relationships in order to

define the class of another object.

Mast (?vert1) ^ VerticalBB (?Vert2) ^

hasDistanceFrom (?vert1,?vert2, 50) →

Mast(?vert2)

6 CASE STUDY

For the demonstration of our system, 500 m from the

scanned point clouds related to Deutsch Bahn scene

in the city of Nürnberg was extracted. The whole

scene has been scanned using a terrestrial laser

scanner fixed within a train, resulting in a large point

cloud representing the surfaces of the scene objects.

Different swrl rules are processed. First, all

vertical elements will be searched in the area of

interest, and then topological relations between

detected geometries are qualified. To do, useful

topologies for geometry annotation are tested.

Topologic Built-Ins like

isConnected, touch,

Perpendicular, isDistantfrom are created. As

result, relations found between geometric elements

are propagated into the ontology, serving as an

improved knowledge base for further processing and

decision steps.

The last step consists in annotating the different

geometries. Vertical elements of certain

characteristics can be annotated directly. In more

sophisticated cases, the combination of semantic

information and topologic ones can deduce more

robust results by minimizing the false acceptation

rate. Finally, based on a list of SWRL rules, most of

detected geometries are annotated. In this example,

among 67 elements are classified as Masts, 21

SchaltAnlage, 34 basic signals and finally, 155

secondary signals, Figure 4.

FROM 3D POINT CLOUDS TO SEMANTIC OBJECTS - An Ontology-based Detection Approach

259

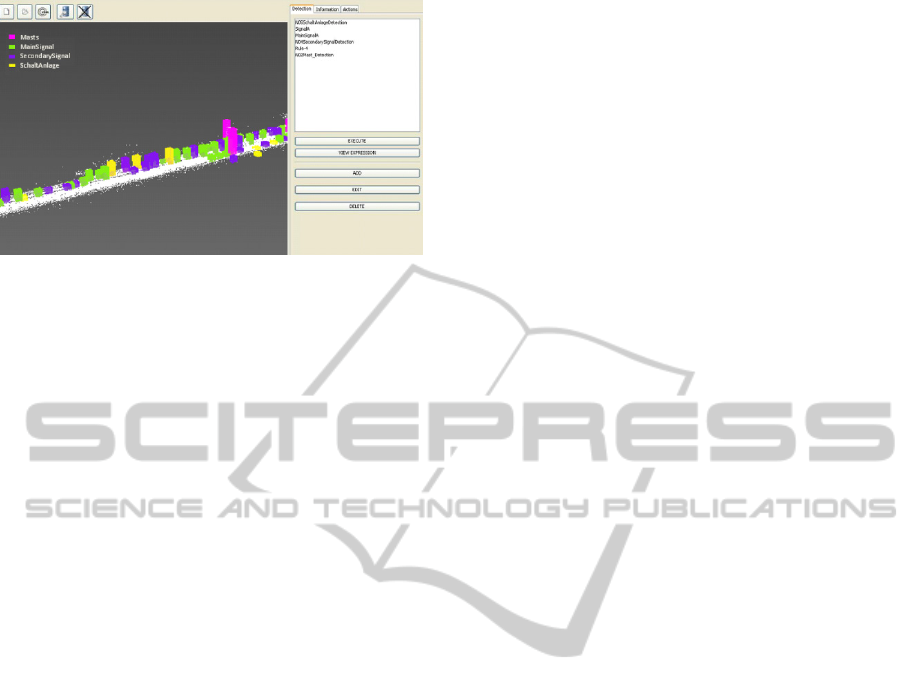

Figure 4: Detected and annotated elements visaliazation

within VRML language.

7 CONCLUSIONS

We have proposed a new solution to perform the

detection of objects from technical survey within the

laser scanner technology. The solution performs the

detection of objects in 3D point clouds by using

available knowledge about a specific domain (DB).

This prior knowledge modelled within ontology

SWRL rules are used to control the 3D processing

execution, the topologic qualification and finally to

annotate the detected elements in order to enrich the

ontology and to drive the detection of new objects.

Future work will include the integration of new

knowledge’s that can intervene within the annotation

process like the number of detected lines within each

bounding box and the update of the general platform

architecture, by ensure more communication

between the scene knowledge within the 3D

processing.

ACKNOWLEDGEMENTS

This paper presents work performed in the

framework of research project funded by the

German ministry of research and education under

contract No. 1758X09. The authors cordially thank

for this funding. Special thinks also for Hung

Truong for his contribution.

REFERENCES

VRML Virtual Reality Modeling Language. (1995, 04 17).

Retrieved from W3C: http://www.w3.org/

MarkUp/VRML/

Campbell, R. J., & Flynn, P. J. (2001). A survey of free-

form object representation and recognition techniques.

Computer Vision and Image Understanding, 81, pp.

166-210.

Carroll, J. J., Dickinson, I., Dollin, C., Reynolds, D.,

Seaborne, A., & Wilkinson, K. (2004). Jena:

implementing the semantic web recommendations.

Proceedings of the 13th international World Wide

Web conference on Alternate track papers & posters,

(pp. 74-83).

Cruz, C., Marzani, F., & Boochs, F. (2007). Ontology-

driven 3D reconstruction of architectural objects.

VISAPP (Special Sessions), pp. 47-54.

Gruber, T. (2005). What is an Ontology. Retrieved from

www-ksl.stanford.edu/kst/what-is-an-ontology.html.

Horrocks, I., Patel-Schneider, P. F., Boley, H., Tabet, S.,

Grosof, B., & Dean, M. (2004). SWRL: A semantic

web rule language combining OWL and RuleML.

W3C Member submission, 21.

Leica Cyclone: 3D Point Cloud Processing Software.

(n.d.). Retrieved 05 09, 2011, from Leica:

http://hds.leica-geosystems.com/en/Leica-

Cyclone_6515.htm

McGuinness, D. L., & Harmelen, F. v. (2004, February

10). OWL Web Ontologgy Language: Overview.

Retrieved December 2, 2009, from W3C

Recommendation: http://www.w3.org/TR/owl-

features/

Nuchter, A. a. (2008). Towards semantic maps for mobile

robots. Robotics and Autonomous Systems, pp. 915-

926.

Osche, F. a. (2008). Automated retrieval of 3D CAD

model objects in construction range images.

Automation in Construction, pp. 499-512.

Pu, S. a. (2009). Knowledge based reconstruction of

building models from terrestrial laser scanning data.

ISPRS Journal of Photogrammetry and Remote

Sensing, pp. 575-584.

Vanlande, R., N. (2008). IFC and building lifecycle

management. Automation in Construction, 18, pp. 70-

78.

Rusu, R. a. (2008). Towards 3D Point cloud based object

maps for household environments. Robotics and

Autonomous Systems, pp. 927-941.

Sirin, E., Parsia, B., Grau, B. C., Kalyanpur, A., & Katz,

Y. (2007). Pellet: A practical owl-dl reasoner. Web

Semantics: science, services and agents on the World

Wide Web, 5, 51-53.

Tsarkov, D., & Horrocks, I. (2006). FaCT++ description

logic reasoner: System description. Automated Rea-

soning, pp. 292-297.

Hustadt U., B. M. (2010). Retrieved from KAON2:

http://kaon2.semanticweb.org/

Yue, K. A. (2006). The ASDMCon project: The challenge

of detecting defects on construction sites., (p. IEEE

Computer Society).

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

260
