EXTRACTING THE MAIN CONTENT OF WEB DOCUMENTS

BASED ON A NAIVE SMOOTHING METHOD

Hadi Mohammadzadeh

, Thomas Gottron

, Franz Schweiggert

and Gholamreza Nakhaeizadeh

Institute of Applied Information Processing, University of Ulm, D-89069 Ulm, Germany

Institute for Web Science and Technologies, Universit¨at Koblenz-Landau, D-56070 Koblenz, Germany

Institute of Statistics, Econometrics and Mathematical Finance, University of Karlsruhe, D-76128 Karlsruhe, Germany

Keywords:

Main content extraction, Information extraction, Web mining, HTML web pages.

Abstract:

Extracting the main content of web documents, with high accuracy, is an important challenge for researchers

working on the web. In this paper, we present a novel language-independent method for extracting the main

content of web pages. Our method, called DANAg, in comparison with other main content extraction ap-

proaches has high performance in terms of effectiveness and efﬁciency. The extraction process of data DANAg

is divided into four phases. In the ﬁrst phase, we calculate the length of content and code of ﬁxed segments

in an HTML ﬁle. The second phase applies a naive smoothing method to highlight the segments forming

the main content. After that, we use a simple algorithm to recognize the boundary of the main content in an

HTML ﬁle. Finally, we feed the selected main content area to our parser in order to extract the main content

of the targeted web page.

1 INTRODUCTION

Content extraction is the process of identifying the

main content (MC) and/or removing the additional

items, such as advertisements, navigation bars, design

elements or legal disclaimers (Gottron, 2008). (Gib-

son et al., 2005) in 2005 estimated that around 40

to 50% of the data on the web are additional items.

The identiﬁcation of the MC is beneﬁcial for web

search engines. When crawling and indexing the web,

knowing the main content part of each web page can

be exploited for determining descriptive index terms

for a document. In addition, main content extraction

(MCE) is also applied in scenarios where a reduction

of a document to its main content is of advantage,

e.g. on devices that have limited storage or bandwidth

capacity, such as mobile phones, screen readers, etc,

(Rahman et al., 2001).

In the literature there are several approaches ad-

dressing MCE. (Gottron, 2008), (Moreno et al.,

2009), (Mohammadzadeh et al., 2011a), and (Mo-

hammadzadeh et al., 2011b) are recent examples.

(Mohammadzadeh et al., 2011b) proposed a novel al-

gorithm, called R2L, which is working only on spe-

cial languages, for example Arabic, Farsi, Urdu, and

Pashto. In (Mohammadzadeh et al., 2011a) we ex-

tended R2L and compared the new algorithm, called

DANA, with eleven algorithms proposed by (Gupta

et al., 2003), (Mantratzis et al., 2005), (Finn et al.,

2001), (Pinto et al., 2002), (Gottron, 2008), (Moreno

et al., 2009). The drawback of DANA and R2L is that

they are language-dependent. In this paper, we ex-

tend DANA and R2L and introduce DANAg which is

an accurate language-independent approach.

The rest of this paper is organized as follows. In

Section 2, we review related work. In Section 3,

where we introduce our algorithm, DANAg. Sec-

tion 4 shows the data sets, the evaluation method, and

the results and compares DANAg with the latest main

content extraction algorithm. In Section 5, we discuss

our conclusion and give some suggestions for future

work.

2 RELATED WORK

In this section based on the characteristics of MCE ,

all main content extraction algorithms can be catego-

rized into the following three groups:

470

Mohammadzadeh H., Gottron T., Schweiggert F. and Nakhaeizadeh G..

EXTRACTING THE MAIN CONTENT OF WEB DOCUMENTS BASED ON A NAIVE SMOOTHING METHOD.

DOI: 10.5220/0003665304620467

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2011), pages 462-467

ISBN: 978-989-8425-79-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2.1 Dom Tree based Methods

Three algorithms proposed by (Gupta et al., 2003),

(Mantratzis et al., 2005), (Cai et al., 2003), and (Deb-

nath et al., 2005) use DOM tree structure to extract

the MC area of web pages.

2.2 HTML based Methods

By using HTML tags, methods proposed by (Finn

et al., 2001), (Pinto et al., 2002), (Gottron, 2008),

(Moreno et al., 2009) , (Lin and Ho, 2002), and

(Weninger et al., 2010) are able to extract the MC of

web pages.

2.3 Methods based on Character

Encoding

(Mohammadzadeh et al., 2011b) proposed a new and

simple approach, called R2L, which is independent

from the DOM tree and HTML tags and was able

to extract the main content of special language web

pages, such as Arabic, Farsi, Urdu, and Pashto, writ-

ten from right to left. The proposed method relies on a

simple rule: the distinction between characters which

are used in English and characters used in languages

written from right to left. Hence in the ﬁrst step,

R2L separates and stores the R2L characters from En-

glish ones, in two different arrays of strings, and then

counts the number of these two groups of character

for each line of HTML ﬁle. In a second step, R2L

depicts a density diagram based on the length of En-

glish characters and R2L characters of each line to

determine the area comprising the main content of an

HTML ﬁle. It was shown that the area in the den-

sity diagram with high density of the R2L characters

and low density of the English characters contains the

main content of web page with high accuracy. Af-

ter R2L ﬁnds such a main content area, all the R2L

characters located in this area are detected as the main

content of the HTML ﬁle.

The shortcoming of R2L is that it only works

on special web pages. Moreover, it loses the Non-

R2L characters, for example English characters, of

the main content of each line of the HTML ﬁle be-

cause in the ﬁrst step when R2L separates characters,

it categorizes all Non-R2L characters incorrectly as

the English characters while some of these Non-R2L

characters are members of the main content.

(Mohammadzadeh et al., 2011a) introduced new

version of R2L, called DANA, with considerable ef-

fectiveness and compared this method to eleven es-

tablished main content extraction methods. DANA –

like the R2L approach – is language-dependent but

it could overcome the second drawback of the R2L,

losing the Non-R2L characters of the main content.

DANA comprises of three phases. The ﬁrst and the

second phase are, to a certain extent similar to the ﬁrst

and second steps of R2L. In the third phase, DANA

extracts the main content of the selected main content

area, which is produced in a second phase, using an

HTML parser used also in (Gottron, 2008) .

3 DANAg

In this section we explain DANAg, which is an ex-

tended and language-independent version of DANA.

We present our approach by categorizing it into one

preprocessing step and four phases as follow. Phases

two, three and four are to a certain extent similar to

the phases two and three in DANA as introduced by

(Mohammadzadeh et al., 2011a). Nevertheless, we

describe brieﬂy these phases for the sake of com-

pleteness. In the preprocessing step, all JavaScript

and CSS codes and comments are removed from the

HTML ﬁle, as they deﬁnitely do not contribute to

the main content and might negatively inﬂuence the

downstream analysis.

3.1 Calculating the Length of Content

and Code of Each Line

In the ﬁrst phase of the algorithm, our aim is to count

the number of characters comprising both the content

and the code of segments of the HTML ﬁle. As seg-

ments we use lines of a normalized source code repre-

sentation. First, we feed the HTML ﬁle to our parser

to extract all tokens representing the content of the

HTML ﬁle. Afterward, we search the extracted to-

kens, which are stored in an array of string, in the

HTML ﬁle to ﬁnd the line containing tokens. By this

method, we can ﬁnd the location of all tokens in the

HTML ﬁle, so we are able to count and store into two

one-dimensional arrays T1 and T2, respectively, the

number of characters used in content or code of each

line in an HTML ﬁle.

3.2 Smoothing

Our hypothesis is that in the main content area, the

number of characters used in content is greater than

the number of characters used in code, so we are in-

vestigating the HTML ﬁle to ﬁnd an area with this

characteristics. In doing this and to explain, more

clearly, our algorithm and for better understanding,

we draw a Cartesian diagram, Figure 1, in which for

each element of array T1 a verticalline is drawnabove

EXTRACTING THE MAIN CONTENT OF WEB DOCUMENTS BASED ON A NAIVE SMOOTHING METHOD

471

Figure 1: An example plot shows the number of characters

uesd in content and code in each line of an HTML ﬁle.

Figure 2: Smoothed diagram of Figure 2.

the x-axis and, similarly, for each element of array T2

a vertical line is depicted below the x-axis.

In Figure 1, the measurement unit for the x-axis

is the number of lines in the HTML ﬁle. The mea-

surement unit for the y-axis toward up and down is

the number of characters in code and content, respec-

tively, of each line of an HTML ﬁle.

Three kinds of regions can be observed in Figure

1. Regions like the one with label A consist mainly of

HTML tags because, mostly, there is no line above the

x-axis. The second type of regions, here labelled with

C, belongs to navigation menus and panels because it

can be seen both kinds of characters used in content

Table 1: Evaluation corpus of 9101 web pages.

Web site URL Size Languages

BBC http://www.bbc.co.uk/ 1000 English

Economist http://www.economist.com/ 250 English

Golem http://golem.de/ 1000 German

Heise http://www.heise.de/ 1000 German

Manual several 65 German, English

Republica http://wwwrepublica.it/ 1000 Italian

Slashdot http://slashdot.org/ 364 English

Spiegel http://www.spiegel.de/ 1000 German

Telepolis http://www.telepolis.de/ 1000 German

Wiki http://fa.wikipedia.org/ 1000 English

Yahoo http://news.yahoo.com/ 1000 English

Zdf http://www.heute.de/ 422 German

and code. Finally, there is only one region, labelled

B, in which the number of characters used in content

is much more than the number of characters used in

code.

To recognize region B easily, we depict Figure 2

using smoothing Formula 1. In Figure 2 for each col-

umn i, diff

is computed and then a vertical line is

drawn above or below the x-axis, respectively, if diff

is greater than or less than zero. As you see, many

columns above the x-axis which are parts of menu and

additional items are removed.

diff

= T1

− T2

+ T1

i+1

− T2

i+1

(1)

+ T1

i−1

− T2

i−1

Now, we count the number of characters for each

region above the x-axis and then among all regions

we specify the position of just one region with the

maximum number of characters as the ﬁrst paragraph

of the main content area.

3.3 Recognizing the Boundary of the

MC Area

After recognizing the ﬁrst paragraph of the main con-

tent area in the previous section, now we are going

to extract the other paragraphs of the main content

area. In doing this, the algorithm moves up and down

in the HTML ﬁle to discover all paragraphs making

the main content. We know in the HTML ﬁle and in

the area of the main content, there are some lines be-

tween each two paragraphs, which are not concerning

to the main content. In other words, there is a gap be-

tween each two paragraphs comprising the main con-

tent. We conﬁgure the gap parameter with a value

of 20. So after ﬁnding the ﬁrst paragraph, we are

extracting all paragraphs around the ﬁrst paragraph

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

472

Table 2: Evaluation results of Table 1 based on F1-measure.

BBC Economist Zdf Golem Heise Republica Spiegel Telepolis Yahoo Manual Slashdot Wikipedia

Plain 0.5950 0.6130 0.5140 0.5020 0.5750 0.7040 0.5490 0.9060 0.5820 0.3710 0.1060 0.8230

LQF 0.8260 0.7200 0.5780 0.8060 0.7870 0.8160 0.7750 0.9100 0.6700 0.3810 0.1270 0.7520

Crunch 0.7560 0.8150 0.7720 0.8370 0.8100 0.8870 0.7060 0.8590 0.7380 0.3820 0.1230 0.7250

DSC 0.9370 0.8810 0.8470 0.9580 0.8770 0.9250 0.9020 0.9020 0.7800 0.4030 0.2520 0.5940

TCCB 0.9140 0.9030 0.7450 0.9470 0.8210 0.9180 0.9100 0.9130 0.7580 0.4040 0.2690 0.6600

CCB 0.9230 0.9140 0.9290 0.9350 0.8410 0.9640 0.8580 0.9080 0.7420 0.4200 0.1600 0.4030

ACCB 0.9240 0.8900 0.9290 0.9590 0.9160 0.9680 0.8610 0.9080 0.7320 0.4190 0.1770 0.6820

Density 0.5754 0.8741 0.7081 0.8734 0.9060 0.3442 0.7609 0.8043 0.8856 0.3539 0.3622 0.7077

DANAg 0.9240 0.8996 0.9120 0.9794 0.9450 0.9704 0.9488 0.9317 0.9518 0.4012 0.2092 0.6455

with maximum 20 lines between each two consequent

paragraphs comprising the main content.

3.4 Extracting the Main Content

In the last phase of our algorithm, we feed the main

content area which is discovered in the previous phase

to a parser (Gottron, 2008). The output of the parser

is, following our hypothesis, the main content tokens

of the HTML ﬁle.

4 EXPERIMENTS

4.1 Data Set

As evaluation corpus we use 9,101 web pages from

different web sites (see Table 1). This dataset has been

introduced in (Gottron, 2008).

4.2 Evaluation Methodology

By applying the classical information retrieval perfor-

mance measures – Recall, Precision, and F1-measure,

(Gottron, 2007), and using Hirschberg’s algorithm

(Hirschberg, 1977), which ﬁnds longest common sub-

sequence between two strings, we calculate the accu-

racy of DANAg.

4.3 Results

The average F1 scores of DANAg and other MCE ap-

proaches show in Table 2 in three groups. In column

one, diffrent algorithms we compare with DANAg are

shown. Link quota ﬁlter (LQF) proposed by (Kaiser

et al., 2005) and used in Crunch framework which is

introduced by (Gupta et al., 2003). (Pinto et al., 2002)

construct Document Slope Curve (DSC) which is one

of the prominent solution for CE. Content Code Blur-

ring (CCB), Adapted Content Code Blurring (ACCB)

and Token based Content Code Blurring (TCCB) all

Figure 3: The original diagram of wikipedia.

Figure 4: The smoothed diagram of wikipedia.

introduced by (Gottron, 2008). And the last algo-

rithm, called Density, propose by (Moreno et al.,

2009). In each column, we highlight the highest F1

score, bold one, and the highest F1 score among all

algorithms except DANAg, italic value. The follow-

ing results are considerable.

• In the middle part of the Table 2, DANAg achieves

EXTRACTING THE MAIN CONTENT OF WEB DOCUMENTS BASED ON A NAIVE SMOOTHING METHOD

473

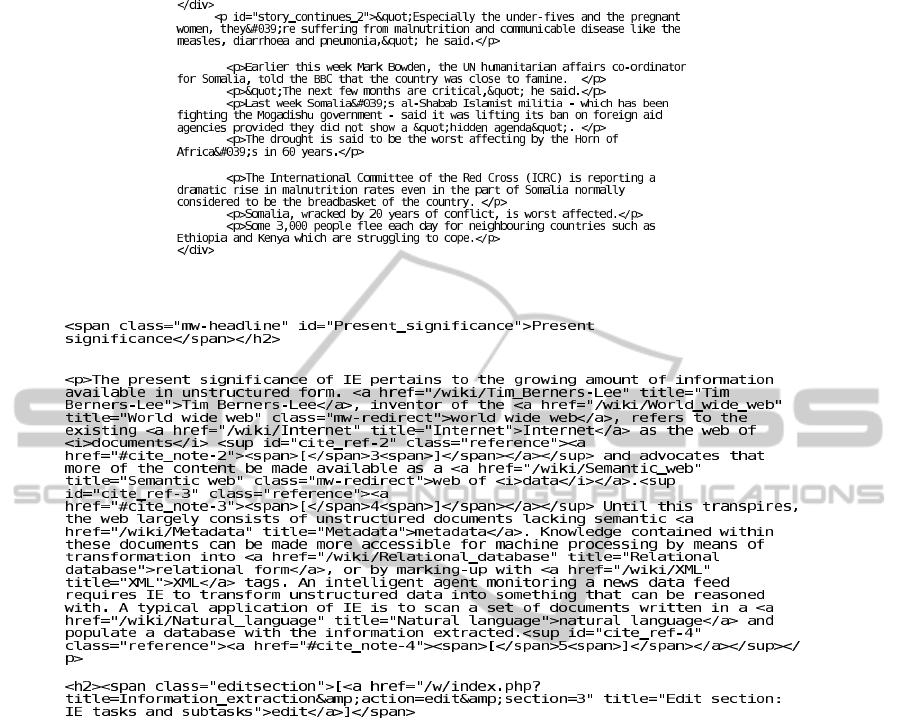

Figure 5: One Paragraph of BBC HTML ﬁle.

Figure 6: One Paragraph of Wikipedia HTML ﬁle.

F1 score higher than six web pages, golem, heise,

republica, spiegel, telepolis, and yahoo. As can

be seen, ACCB is the best algorithm, on three web

pages, between all other algorithms after DANAg.

• The left side of Table 2 shows three web pages

that DANAg achieves F1 score less than DSC,

CCB, and ACCB approaches. But as it can

be seen, the differences between F1 score of

DANAg and last three mentioned methods are

0.013, 0.0144, and 0.017 and it shows DANAg

could be acceptable on these web pages as well.

• In the right side of Table 2, we see three web

pages, manual, slashdot, and wikipedia which

DANAg and other algorithms could not achieve

considerable F1 score. For better explanation

about these web pages, we depict original and

smoothed diagrams of an example of wikipedia

web page, see Figure 3 and Figure 4. The recall,

precision and F1 scores of this web page achieved

by DANAg are 0.3636, 0.8889, and 0.5161, re-

spectively. In Figure 3, we determinted the main

content area that should be extracted, but Figure 4

shows that only small part of the web page was

obtained.

The Wikipedia web pages are fully structure be-

cause many HTML tags used in each line of the

Wikipedia HTML ﬁles in comparison with nor-

mal HTML ﬁles, for example BBC web pages. In

Figure 5 and Figure 6, we demonstrate one small

part of BBC and Wikipedia web pages. By look-

ing in these two ﬁgures we observe that the ra-

tio of HTML tags in the Wikipedia web pages are

more than the BBC web pages, so if we calculate

the length of content and code of each line in the

Wikipedia HTML ﬁle then the length of code is

greater than the length of content. Hence, formula

one guess, by mistake, these lines as the extrane-

ous items, not as the main contents. In contrast,

for normal web pages, such as BBC , formula one

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

474

could recognize the main content , correctly, be-

cause normal web pages are not fully structure.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we proposed DANAg: an extended

and especially language-independent new version of

DANA, with considerable effectiveness. Results

show that DANAg determines the main content with

high accuracy on many collected data sets. Achiev-

ing an average F1-measure > 0.90 on the test corpora

used in this paper, it outperforms the state of the art

methods in MCE.

In the future and for next research step, we will try

to extend DANAg to use machine learning methods

to group several areas in an HTML ﬁle contributing

to the main content of web pages. This allows for dis-

carding the parameter setting for gaps between main

content blocks and to overcome the problem observed

on certain documents in the evaluation corpora.

REFERENCES

Cai, D., Yu, S., Wen, J.-R., and Ma, W.-Y. (2003). Extract-

ing content structure for web pages based on visual

representation. In APWeb, volume 2642 of Lecture

Notes in Computer Science, pages 406–417. Springer.

Debnath, S., Mitra, P., and Giles, C. L. (2005). Identi-

fying content blocks from web documents. In Lec-

ture Notes in Computer Science, pages 285–293, NY,

USA. Springer.

Finn, A., Kushmerick, N., and Smyth, B. (2001). Fact or

ﬁction: Content classiﬁcation for digital libraries. In

Proceedings of the Second DELOS Network of Excel-

lence Workshop on Personalisation and Recommender

Systems in Digital Libraries, Dublin, Ireland.

Gibson, D., Punera, K., and Tomkins, A. (2005). The vol-

ume and evolution of web page templates. In WWW

’05: Special Interest Tracks and Posters of the 14th

International Conference on World Wide Web., pages

830–839, New York, NY, USA. ACM Press.

Gottron, T. (2007). Evaluating content extraction on html

documents. In Proceedings of the 2nd International

Conference on Internet Technologies and Applica-

tions, pages 123–132, University of Wales, UK.

Gottron, T. (2008). Content code blurring: A new approach

to content extraction. In 19th International Workshop

on Database and Expert Systems Applications, pages

29–33, Turin, Italy.

Gupta, S., Kaiser, G., Neistadt, D., and Grimm, P. (2003).

Dom-based content extraction of html documents. In

Proceedings of the 12th international conference on

World Wide Web, pages 207–214, New York, USA.

ACM.

Hirschberg, D. S. (1977). Algorithms for the longest com-

mon subsequence problem. J. ACM,24(4), pages 664–

675.

Kaiser, G., Gupta, S., and Stolfo, S. (2005). Extracting

context to improve accuracy for html content extrac-

tion. In Special Interest Tracks and Posters of the 14th

International conference on World Wide Web, pages

1114–1115.

Lin, S.-H. and Ho, J.-M. (2002). Discovering informative

content blocks from web documents. In KDD ’02:

Proceeding of the Eighth ACM SIGKDD International

Conference on Knowledge Discovery and Data Min-

ing, pages 588–593, New York, NY, USA. ACM.

Mantratzis, C., Orgun, M., and Cassidy, S. (2005). Sep-

arating xhtml content from navigation clutter using

dom-structure block analysis. In Proceedings of the

Sixteenth ACM Conference on Hypertext and Hyper-

media, pages 145–147, New York, USA. ACM.

Mohammadzadeh, H., Gottron, T., Schweiggert, F., and

Nakhaeizadeh, G. (2011a). A fast and accurate ap-

proach for main content extraction based on character

encoding. In TIR’11: Proccedings of the 8th Work-

shop on Text-based Information Retrieval., Toulouse,

France.

Mohammadzadeh, H., Schweiggert, F., and Nakhaeizadeh,

G. (2011b). Using utf-8 to extract main content

of right to left languages web pages. In ICSOFT

2011: Proceedings of the 6th International Confer-

ence on Software and Data Technologies., pages 243–

249, Seville, Spain.

Moreno, J. A., Deschacht, K., and Moens, M.-F. (2009).

Language independent content extraction from web

pages. In Proceeding of the 9th Dutch-Belgian Infor-

mation Retrieval Workshop, pages 50–55, Netherland.

Pinto, D., Branstein, M., Coleman, R., Croft, W. B., and

King, M. (2002). Quasm: a system for question an-

swering using semi-structured data. In Proceedings

of the 2nd ACM/IEEE-CS joint conference on Digital

libraries, pages 46–55, New York, USA. ACM.

Rahman, A. F. R., Alam, H., and Hartono, R. (2001). Con-

tent extraction from html documents. In WDA 2001:

Proceedings of the First International Workshop on

Web Document Analysis., pages 7–10.

Weninger, T., Hsu, W. H., and Han, J. (2010). CETR – con-

tent extraction via tag ratios. In Proceeding of Inter-

national World Wide Web Conference., Raleigh, USA.

EXTRACTING THE MAIN CONTENT OF WEB DOCUMENTS BASED ON A NAIVE SMOOTHING METHOD

475
