PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN

APPLICATIONS

Huy Pham and Deborah Stacey

School of Computer Science, University of Guelph, Guelph, Canada

Keywords:

Ontology-driven planning framework, Planning ontology, Rule-based reasoning in ontology, Ontology-driven

rule-based reasoning.

Abstract:

In this paper, we describe a practical and effective approach to incorporating goal-based reasoning into

ontology-driven applications. We present a reusable ontology-driven planning framework that could be used

for such a purpose, and provide detailed examples on how ontology-driven application designers can use this

framework to describe their planning problems, translate them into equivalent rule-based programs, execute

them on a planner, and get back the results. Several interesting practicality challenges are discussed, and

practical solutions are also proposed.

1 INTRODUCTION

Rule-based reasoning and ontological modelling are

two highly desirable features of a modern knowledge-

based system. Ontology provides the system with

the standardized medium needed to capture its knowl-

edge in a domain and application independent way,

while rule-based reasoning provides the system with

the ability to make purposeful decisions based on this

captured knowledge. Due to the clear advantages that

they offers, these two complimentary features are of-

ten expected to be brought together to build intelli-

gent and reusable knowledge-based systems. As it

has been widely reported in the literature however,

integrating rule-based reasoning into ontology-driven

applications has been a very challenging task.

Ontology is based on Description Logics, a

knowledge representation formalism designed pri-

marily for describing and reasoning about structural

knowledge, while rule-based planning is based pri-

marily on Logic Programming, a different formalism

best suited for non-monotonic reasoning. Reconcil-

ing these two formalisms is a non-trivial task for a

couple of reasons. First, Description Logics use the

open world assumption, in which a fact can not be

assumed to be false unless it was explicitly stated

so, while Logic Programming (i.e., Rules) uses the

closed world assumption. Second, incorporating fea-

ture from one language into the other often renders

the language undecidable, making automated reason-

ing in the language infeasible. Due to these inherent

difﬁculties, existing language-reconciliation ap-

proaches to integrating planning with ontological

modelling has had very limited succcess. While

several ad hoc integration approaches have also been

reported to have worked, a seamless and transparent

framework for integrating planning capabilities into

ontology-driven applications is still missing to the

best of our knowledge.

In this paper, we observe that while Ontology and

Description Logics do not provide built-in support for

the kind of reasoning needed for rule-based planning,

they are fully capable of describing planning prob-

lems. Based on this simple observation, we propose

an intuitive ontology-driven planning framework that

would allow ontology-driven application designers to

seamlessly and transparently bring planning capabili-

ties into their applications.

The paper is organized as follows. Section 2 in-

troduces the reader to knowledge-based planning, on-

tological modeling, as well as existing approaches to

combining knowledge-based planning with ontologi-

cal modelling. Section 3 describes our proposed ap-

proach and framework, and discusses the practical ad-

vantages that it offers. Section 4 and 5 dive into the

details of the proposed framework. Finally, Section 6

summarizes the discussion and discusses some future

works.

Pham H. and Stacey D..

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS.

DOI: 10.5220/0003668300990109

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2011), pages 99-109

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 PLANNING IN

ONTOLOGY-DRIVEN

APPLICATIONS

2.1 Planning

From a computational point of view, planning is the

task of coming up with a sequence of actions that

will achieve a given set of goals (Russell and Norvig,

2002). An intelligent trip planner, for example, is said

to be planning when it tries to put together a travel

plan for its user. This travel plan could look some-

thing like “Take the 9:15AM bus from the Guelph’s

main campus to Toronto’s Pearson airport, board

ﬂight AC357 to Paris’s Charles de Gaulle airport, take

a cab ride to the KEOD conference in Paris.” Each of

these travel step is called a (planning) action, and the

sequence as a whole is called a plan. To ﬁnd such a

plan, the trip planner needs to be able to reason about

several things. First, it needs to know when it can per-

form a particular action. Taking a bus ride, for exam-

ple, is only possible if the user is at a location on the

bus’s route. This constraint is called a precondition,

and can be different for each action. Also, performing

a particular action is expected to produce a certain set

of effects. Boarding a plane, for example, causes the

user’s location to change from the original airport to

the destination airport (ignoring the ﬂight duration).

When that happens, the world is said to have changed

its state, from one in which the user was at the orig-

inal airport, to one in which he is at the destination

airport. The trick, of course, is to ﬁnd a plan that once

executed, would result in a state (called the goal state)

in which the user is at his or her desired destination.

There might also be additional constraints regarding

cost, traveling time, wait time, number of hops, etc.

This task, for a software agent, is not as easy as it

would be for a human. To come up with such a plan,

the trip planner would have to search through a lot

of possible combinations of action sequences. As

the number of actions available in each step (aka, the

size of the action space) increases, or as the length

of the sequence (aka, plan size or planning horizon)

increases, the amount of search the planner has to do

increases combinatorically. For real-world problems,

where the number of actions can be in the hundreds

and plan size is in the tens, planning often becomes

a prohibitive expensive process, and some techniques

will need to be employed to cope with this complex-

ity. Among the most popular of these techniques is

to make use of domain heuristics and to make use of

the hierarchical structure of the problem. We describe

planning heuristics and hierarchical planning techni-

ques in more details in Section 4.3.

From the example above, we can see that simple

planning problems can be characterized by the fol-

lowing types of description:

• Actions: What are the available actions from

which a plan can be composed?

• Actions’ Pre-conditions: Under what circum-

tances an action is considered possible? (These

preconditions are used by the planner to avoid

putting together invalid plan.)

• Actions’ Effects (aka, Post-conditions): How

each of the workﬂow actions, when carried out,

will affect the world’s state?

• Initial State: How does the world look like ini-

tially?

• Goal State: What is the desired state of the

world?

• Planning Heuristics (User’s Advices): Advices

from the user on how the plan can be computed.

• Hierarchical Structure: Information on how the

problem can be broken down into smaller (and

easier) problems.

In Section 3 below, we describe how these types

of planning knowledge can be easily described using

a set of pre-deﬁned ontological constructs provided

by our framework.

2.2 Ontological vs Goal-based

Reasoning

From a logical perspective, both planning and onto-

logical reasoning boil down to, and can be accom-

plished by, the task of proving an entailment. In the

case of planning, the solution to the planning problem

(i.e., a valid plan) can be considered to be an existen-

tial proof for the following entailment:

KB  ∃p Valid(p) ∧ AchieveGoal(p)

where KB is the knowledge base representing the

planning problem and p = [a

, a

, . . . , a

] is the plan

the user is looking for. In the case of ontological rea-

soning, subsumption and instance checking boil down

to checking:

KB  C v D or KB  a : C

respectively.

By simple we mean planning problems that are deter-

ministic (i.e., all actions have deterministic outcomes), in-

staneous (i.e., actions are assumed to have no duration), lin-

ear (i.e., no concurrency), and static (i.e., the environment’s

dynamics remain static throughout the planning cycle).

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

100

From a more technical point of view, however,

these two types of reasoning are very different in na-

ture and, as a result, most knowledge representation

and reasoning formalisms typically support just one

type or the other. Traditionally, planning is supported

by rule-based formalisms that are based on Logic Pro-

gramming (e.g., Prolog) while ontological reasoning

are supported by object-oriented formalisms that are

based on Description Logics (e.g., Ontologies).

Many practical ontology-driven applications,

however, often require both types of reasoning and,

as a consequence, there has been a great deal of inter-

est in combining planning and ontological reasoning

into a single formalism. Unfortunately, as explained

in (Hitzler and Parsia, 2009), this is an inherently

non-trivial task. First, combining the two formalisms

leads to semantic-related issues because rule-based

formalisms typically assume a closed-world model

while description logics based formalisms assume an

open world model. Second, adding language features

from one formalism to the other often result in an un-

decidable language. In the next section, we brieﬂy

describes how existing approaches cope with these

challenges, and discuss the pros and cons of each ap-

proach.

2.3 Existing Works on Integrating

Planning into Ontology-driven

Applications

Generally speaking, existing works on integrating

planning into ontology-driven applications can be di-

vided into three main approaches: Language Modi-

ﬁcation, Parallel Modelling, and Translation. In the

ﬁrst approach, the underlying language (i.e., Descrip-

tion Logics) is modiﬁed or extended to support rule-

based reasoning. In the second approach, applica-

tion knowledge are described in ontologies, while

planning-related information are described separately

in a rule-based language. In the third approach,

planning-related knowledge are described using an

ontology, alongside with other application knowl-

edge, and translated into an executable rule-based

planning program. We describe these approaches in

more details below.

2.3.1 Language Modiﬁcation Approaches

Because ontological reasoning is a feature of on-

tologies, and planning is a feature of rule-based for-

malisms, it is a fair question to ask if rules and on-

tologies can be reasonably combined to produce a

more or less uniﬁed language in which both rule-

based and ontological reasonings are dually supported

in a seamless way. A lot of work in this direction have

been reported, and readers who are interested in this

topic are refered to (Hitzler and Parsia, 2009) for an

overview, and (Horrocks et al., 2004), (Grosof et al.,

2003), and (Motik and Rosati, 2008) for some better

known example approaches. Here, we will focus our

discussion instead on the pros and cons of such an ap-

proach.

Brieﬂy speaking, the main advantage of a lan-

guage modiﬁcation approach is that of theoretical ele-

gance. If successful, such a framework can serve as a

unifying formalism that combines features from both

rules and ontologies, two well-established knowledge

representation and reasoning formalisms. The main

disadvantage of this approach, however, is that it is

inherently difﬁcult, and success has been very lim-

ited so far (Hitzler and Parsia, 2009). In addition to

the semantic (i.e., open world vs closed world) and

complexity (i.e., decidable reasoning algorithms) is-

sues mentioned in the previous section, modifying or

extending a language often entails several other im-

portant tasks. First, adequate tooling support will

need to be provided for the new language. This in-

cludes efﬁcient reasoner implementations (assuming

the new language is decidable) and effective editors

for authoring models in the new language. Second,

adequate experience reports will also have to be pro-

vided. This includes, among other things, case studies

showing how such a formalism can be applied to solve

practical real-world problems.

Given the difﬁcult theoretical challenges above,

and given the fact that most works in this direction are

still in their early stages, it can be seen that language-

based approaches, while theoretically rewarding and

important, also have some disadvantages when con-

sidered as a mean for bringing planning to ontology-

driven applications.

2.3.2 Parallel Modelling Approaches

Another popular approach to bringing planning to

ontology-driven applications is the “parallel” ap-

proach in which planning and application knowledge

are kept separated in two parallel worlds: planning-

related knowledge are described in a (rule-based)

planning language, while other application knowl-

edge are described in ontologies. Integration is done

by querying the ontologies for the list of available

planning actions, and perhaps their pre-conditions,

and executing the planning program using these ac-

tions.

Several works from the ontology-driven workﬂow

composition community have been reported to follow

this approach. (Bernstein et al., 2005), (

akov

a et al.,

2008) and (Diamantini et al., 2009), for example, de-

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS

101

scribe three ontology-driven frameworks that employ

a planner to compose data mining (DM) workﬂows

(i.e., applications) from individual DM algorithms. In

these frameworks, DM algorithms – each of which is

considered a planning action – are ontologically de-

scribed using an ontology. A planning program would

then query this ontology to extract the list of available

algorithms, together with other relevant information

such as their pre-conditions, etc., and then compose

the workﬂows by putting these algorithms together.

While these frameworks have successfully

demonstrated the practical feasibility of employing a

planner to solve ontology-driven planning problems,

there is one important disadvantage in their approach.

Because planning-related knowledge was encoded in

a planning language instead of ontology, reusability

and interoperability of this knowledge is therefore

reduced

. To some degrees, this weakness defeats the

purpose and beneﬁts promised by an ontology-driven

approach.

2.3.3 Translation Approaches

Another promissing approach to bridging planning

and ontological modelling is to 1) use a dedicated

ontology to describe all planning-related information,

and then 2) use an automated translator to translate

these information into an executable planning pro-

gram that can be executed in a rule-based framework.

The ﬁrst part of this approach – describing the

planning problem using a dedicated planning ontol-

ogy, is represented by the work reported in (Raj-

pathak and Motta, 2004). In this paper, the authors

presented a generic planning ontology that can be

use to describe various types of planning problems.

This ontology contains all the basic planning concepts

such as Goals, Actions, Agents, Planning Constraints,

Pre/Post Condition, Reward/Cost, Optimization Cri-

teria and Preferences, Temporal ordering of Actions,

etc.

The second part of this approach – translating the

ontological description of the planning problem into

an executable planning program and executing it in

(Diamantini et al., 2009) encoded their planning pro-

gram in a generic and framework-independent planning lan-

guage called PDDL. This language, one could argue, could

be considered a form of ontology in itself, but for this dis-

cussion, we will restrict out interpretation of ontology to

just the Description Logics-based ontology language de-

ﬁned by the Semantics Web community.

(Gil et al., 2000) also describes a dedicated planning

ontology called PLANET. This ontology, however, was in-

tended to be a language for describing “plans” as opposed to

“planning problems” (the ﬁrst is a solution of the second),

and therefore is not directly related to our discussion.

a planning framework, has no existing representation

in the literature however. Despite its apparent abil-

ity to describe advanced planning problems, the work

reported in (Rajpathak and Motta, 2004) does not dis-

cuss how the planning problems, once described, can

be translated and executed in a planning engine to

produce the desired results. In doing so, a few impor-

tant practicality issues are to be expected. The ﬁrst

issue is that of translatability: How do one ensure that

all planning problem descriptions are translatable in

to equivalent rule-based programs? Because ontology

(i.e., Description Logics) and rules are two different

languages, there is the possibility that an ontological

description can not be translated into an equivalent

rule-based version. The second isssue is that of ef-

fectiveness: Assuming that the planning problem is

translatable into a rule-based program, how does one

ensure that it can be executed in an effective manner.

As already discussed in Section 2.1, real-world prob-

lems often result into planning problem that are be-

yond even the most capable planners, and an effective

planning framework needs to provide support for cop-

ing with this complexity.

In the remaining parts of this paper, we ad-

dress these practicality issues and present a complete

translation-based, ontology-driven planning frame-

work for ontology-driven applications.

3 A PRACTICAL

ONTOLOGY-DRIVEN

PLANNING FRAMEWORK

In this section, we propose an ontology-driven plan-

ning framework that completes and realizes the trans-

lation approach discussed in Section 2.3.3 above. Fig-

ure 1 illustrates the basic ideas of this framework.

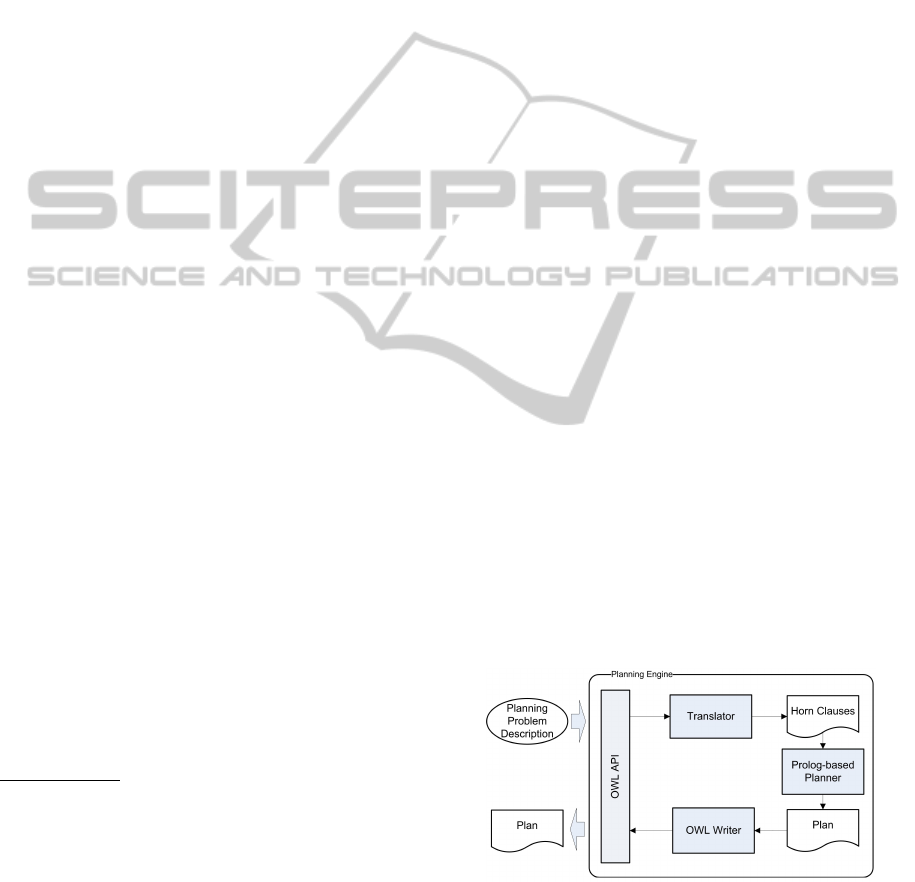

Figure 1: An ontology-driven planning engine. This en-

gine’s design illustrates the essence of our translation ap-

proach to integrating planning into ontology-driven appli-

cations. Detailed descriptions of the components shown are

found in Section 5 below.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

102

To use our framework, ontology-driven application

designers would use the ontological constructs that

are deﬁned by our Planning Ontology to describe their

planning problems into a knowledge base. The frame-

work will translate this problem description into an

equivalent executable program in Horn Logic, exe-

cute it in a Prolog-based planning engine, and return

a valid plan back to the user.

In Sections 4 and 5 below, we will go through in-

depth examples to illustrate how planning problems

can be described using the ontological constructs pro-

vided by the Planning Ontology, how these descrip-

tions are translated into executable programs and ex-

ecuted, as well as how the practicality issues such as

translatability, effectiveness and semantical conﬂicts

are addressed. For now, we would like to explain how

our framework would typically ﬁt into the overall de-

sign of an ontology-driven application, and the prac-

tical beneﬁts that it offers over existing approaches.

3.1 Overall Application Architecture

Figure 2 illustrates how our proposed framework

could be used to build ontology-driven planning ap-

plications in a reusable and practical way.

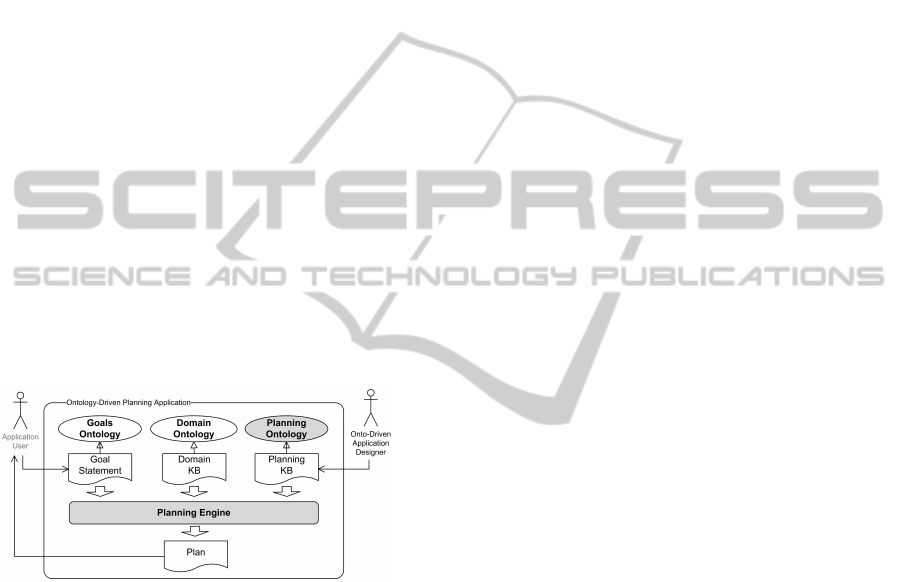

Figure 2: A generic architecture for building reusable

ontology-driven planning applications. The Planning On-

tology is described in details in Section 4. The Planning

Engine’s design is shown in Figure 1.

Using this architecture, an ontology-driven plan-

ning application would organize its application

knowledge into three separate parts.

First, a “Goal Ontology” is used to describe the

different goal statements that the user would provide

as inputs to the application. For the intelligent trip

planner example, these goal statements could look

something like “Find the fastest way to get from Uni-

versity of Guelph to the KEOD2011 conference” or

“Find a way to get from Paris to Nantes without ﬂy-

ing”, etc.

Second, a “Domain Ontology” is used to describe

all the relevant concepts of the domain in which the

application operates. In the trip planner application,

for example, the Domain KB will contain the descrip-

tions for all the ﬂights, bus and train routes, together

with supporting concept such as airports, train sta-

tions, bus stops, fares, cities, hotels, etc.

Finally, all planning-related knowledge needed to

drive the planner and build the plans is captured in the

Planning KB. This KB uses the ontological constructs

provided by the Planning Ontology to specify, among

other things, which domain concepts can be consid-

ered a planning action, what their pre-conditions are,

how the world will changes in response to each action

being performed, how the problem can be best solved,

etc.

3.1.1 Practical Advantages

Our proposed framework and its architecture offer

four main advantages over existing approaches.

First, because planning-related knowledge are

kept separated from the domain ontology and KB, this

ontology can be developed and maintained indepen-

dently from the planning application itself. This inde-

pendece not only makes the domain ontology simpler

to develop and maintain, but also makes it application

and purpose-independence, and therefore much more

resuable for future applications.

Second, because planning-related knowledge is

described in an ontology instead of a framework-

speciﬁc planning language, the resulting description

of the planning problem is completely independent

from the underlying planning framework, and there-

fore can be processed, translated, and executed by any

planning framework that are capable of processing

ontology-backed knowledge bases.

Third, by taking a translational approach, as op-

posed to a language modiﬁcation or extension ap-

proach, our framework is able to make use of exist-

ing and mature theoretical frameworks (Horn Logic)

and technologies (Prolog programming language) to

provide seamless goal-based reasoning capability in

ontology-driven applications.

Lastly, using our framework, the ontology-driven

application designer can continue to think and work

in the ontological modelling environment that he or

she is already comfortable with. Instead of having to

learn either a rule-based planning language or a new

extension to the ontological modeling language, the

application designer can simply decribe his planning

problem in his familiar ontology editing enviroment,

and have the framework handles all the mappings for

him.

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS

103

4 DESCRIBING PLANNING

PROBLEMS

In this section, we dive into the various ontological

constructs that are offered by the Planning Ontology,

and show how planning problems can be effectively

described in a fashion that is completely independent

from the underlying planning framework.

4.1 Basic Planning Constructs

The ﬁrst group of language constructs in the Planning

Ontology are those that are needed to describe the ba-

sic ingredients of the planning problem. Figure 3 will

be used as illustrate examples for these contructs.

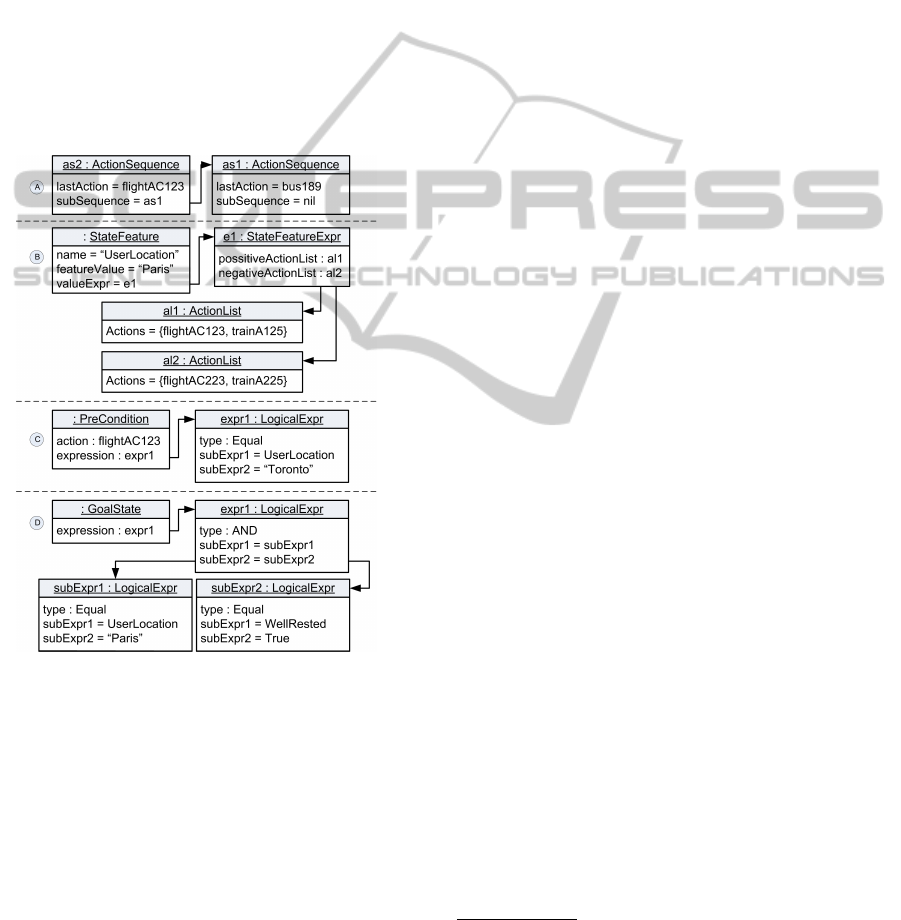

Figure 3: Examples showing how the basic ingredients of

the planning problem can be described using the Planning

Ontology.

4.1.1 Actions

Planning actions are described using the Action con-

cept in the Planning Ontology. In the trip plan-

ner application, for example, all ﬂights, bus routes,

train routes, as well as walk and getCoffee can all be

marked as actions. In particular, we assume, for the

purpose of our discussion below, that ﬂight AC123 is

Paris-bound ﬂight, train A125 is a Paris-bound train,

while ﬂight AC223 and train A225 are ﬂight and train

ride in the opposite directions.

4.1.2 Environment’s Dynamics

We follow the knowledge speciﬁcation approach de-

scribed in (Reiter, 2001) and describe the world’s state

using a pair of concepts: The ActionSequence con-

cept and the StateFeature concept

The ActionSequence concept is used to represent

a sequence of planning actions. “Take the 189 bus to

the airport and then board the AC123 ﬂight to Paris”,

for example, is a sequence of 2 actions, and can be

represented as shown in Figure 3.A.

The StateFeature concept is used to represent a

particular aspect of the world. The traveler’s loca-

tion, for example, is one such feature. As the traveler

moves around in her trip, her location changes, and

the StateFeature concept can be used to describe how

the traveler’s location change its value in response to

the various actions the traveler can take. As illustrated

in Figure 3.B, the traveler’s location will take on the

value of the ﬂight’s destination (e.g., “Paris”) if her

last action is either ﬂight AC123 or train A125 (i.e.,

two Paris-bound actions). These two actions are parts

of the PositiveActionList because, if taken, they cause

the StateFeature to take the speciﬁed value. Flight

AC223 and train A225, on the other hand, are on the

NegativeActionList because, if taken, they cause the

StateFeature to not take the speciﬁed value. In Sec-

tion 5 below, we will explain how this form of de-

scription is translated into a formal logical statement

For now, it sufﬁces to note that the PossitiveAction-

sList property needs to contain all the actions that

would cause the state feature to take the value speci-

ﬁed, and the NegativeActionList property need to list

all the actions that would cause the state feature to

change its value away from the speciﬁed value. All

other actions that have no effects on the feature value,

such as getCoffee or takeABreak, do not need to be

included in the description of state feature.

4.1.3 Actions’ Pre-conditions

Actions’ pre-conditions are described using the Pre-

Condition concept from the Planning Ontology. As

illustrated in Figure 3.C, the precondition for taking a

ﬂight is that the traveller is located in the same city as

the ﬂight’s departure airport. More complex precon-

ditions expression involving multiple state features

can be built up using the LogicalExpression concept

and its sub-concepts.

These are called Situation and Fluent in Reiter’s. We

use a different terminology to make it more relatable for ap-

plication designers who might not be familiar with Situation

Calculus.

This is called a Successor State Axiom in Reiter’s.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

104

4.1.4 Intial State and Goal State

The initial and goal states are also speciﬁed using the

LogicalExpression concept similar to the way precon-

dition expressions are speciﬁed. Figure 3.D show an

example goal state speciﬁcation that requires the user

to be both in Paris and well-rested.

4.2 Model Closure Constructs

One of the standard cautions one has to take when in-

tegrating goal-based reasoning with ontological mod-

elling is the open-world vs closed-world assumptions

conﬂict. Goal-based program’s KBs are closed-world

models (a fact can be assumed to be false if it has not

been stated otherwise), while ontological models are

open-world models (a fact cannot be assumed false

unless it was explicitly asserted). For the purpose of

describing planning problems, however, this is not a

practical issue – the appplication designer just have

to picture a closed world in his mind when describing

his planning problem. To help make it mentally ex-

plicit for the designer however, the Planning Ontology

provides ontological contructs that he can optionally

insert into the planning KB to logically (or mentally)

“close” the model down. The statement “No other

planning actions are available”, for example, when in-

serted into the KB, has the effect of ﬁnalizing the list

of already asserted planning actions, and hence pro-

vides a mental closure to the model.

4.3 Planning Effectiveness Constructs

4.3.1 Planning Heuristics

As we discussed earlier, real-world planning prob-

lems are often too complex for even the most ad-

vanced planners to solve exhaustively and an effective

and practical planning framework must provide con-

venient facilities and mechanisms for the application

designer to provide heuristic insights to the planner.

In our framework, this can be done via a mechanism

called partial programming, also described in (Reiter,

2001). The idea is that, instead of computing plans

from scratch, the planner would start from a partial

template that the system designer has provided. Be-

cause this template contains all the heuristic advices

from the designer, computing plans from this template

will be much faster and efﬁcient than computing one

from scratch.

In the trip planning problem, for instance, one

possible heuristic advice the system designer might

want to provide the planner is “If the traveller is at a

hub airport (where the number of connecting ﬂights

is larger than other smaller airports), then she should

either try to ﬁnd a direct ﬂight from that airport to the

destination, or ﬁnd a ﬂight to go to another hub air-

port”. This kind of advice helps the planner to avoid

sending the traveller from a hub airport to a local air-

port where she would get stuck and have to spend ex-

tra time to get back out.

We will describe how this heuristic advice can be

easily provided to the planner after explaining the list

of partial programming constructs that are provided

by the Planning Ontology.

• ActionTemplate: From a conceptual perspective,

this concept is used to represent a partial template

from which a full plan can be computed. From a

procedural perspective, this concept serves as the

equivalence of a procedure from a programming

language, except that this procedure might only

be partially speciﬁed. Each template has a body

which is a TemplateExpression (described below).

• TemplateExpression: This concept is use to de-

scribe the procedural details of an ActionTem-

plate. There are 4 main kinds of TemplateExpres-

sion:

– SequentialCompostion: This concept is used

to express the fact that a procedure is consist

of two sub procedures, one is to be executed

before the other.

– IfThenElse: This concept is used to express

the fact that a procedure is consist of two exclu-

sive branches. If a certain condition hold, the

ﬁrst branch is executed. Otherwise, the other

branch is.

– WhileLoop: This concept is used to express

the fact that a procedure is consist of a sub pro-

cedure that need to be repeatedly executed as

long as a certain condition holds.

– ChoicePoint: This concept is used to represent

the fact that a procedure is consist of two ex-

clusive sub procedures, and the planning engine

has the ﬂexibility of selecting either one. Using

this construct, the application designer can con-

vey to the planning engine that, instead of hav-

ing to consider all possible actions, it can nar-

row its choices to just the subset of sub-plans

speciﬁed in the choice point. The more insight

the designer has about the workﬂow composi-

tion problem, the more choice points he will put

in the template, and the less work the planner

has to do.

– Action: This is the simplest template expres-

sion possible. It represents the fact that fact a

procedure is consists of a single planning ac-

tion.

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS

105

Using these partial programming constructs, the

example heuristics advice above can be provided to

the planner as shown in Figure 4.

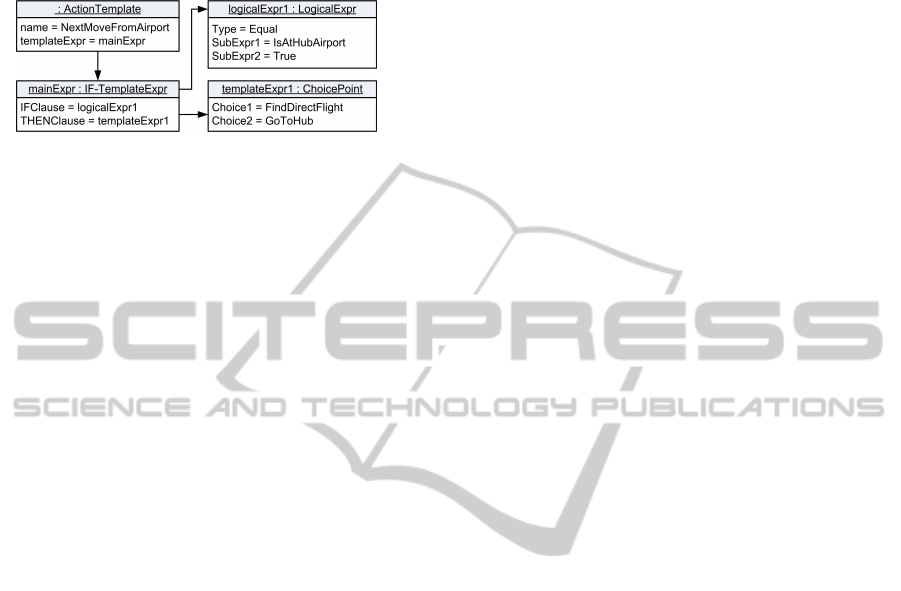

Figure 4: An example showing how planning heuristics can

be supplied to the planner using partial programming con-

structs.

4.3.2 Hierarchical Composition

Reaching the goal using only primitive actions often

requires very long plans (plans with very long se-

quences of actions) to be computed, and is often in-

feasible for practical real-world problems. One way

to get around this problem is to provide the planner

with some additional information about how the prob-

lem can be broken down into smaller problems so that

it can be solved more effectively. The main idea is

to quickly reach the goal state with a few large steps

ﬁrst, and then gradually ﬂesh these large steps out into

a more ﬁne-grained plan.

Our Planning Ontology provides support for hier-

archical planning through a language construct called

MacroAction. Using this construct, the system de-

signer can mark an arbitrary ActionTemplate (i.e.,

partial procedure) as a planning action, complete with

its own preconditions and effects. The planner can

then use these macro actions, alongside with other

regular actions in a seamless manner, to quickly com-

pute high-level plan satisfying the objective. Once

such plan has been successfully found, the macro ac-

tion can be iteratively ﬂeshed out into concrete sub-

plans.

5 TRANSLATING AND

EXECUTING PLANNING

PROBLEM DESCRIPTIONS

In this section, we describe how the each of the lan-

guage constructs discussed in Section 4 above are

mapped into an Horn clauses to make an executable

rule-based planning program, and provide an intuition

on why this mapping is alway possible. We will also

brieﬂy describe how the translated program can be ex-

ecuted using a custom Prolog-based planner to pro-

duce valid plans.

5.1 Translation

As described in Figure 1, our framework queries the

ontolgy knowledge bases and generate Horn clauses

from the asserted planning knowledge. In this section,

we will use Prolog’s syntax and notation to describe

these Horn clauses.

5.1.1 Translating Basic Planning Constructs

First, for each domain entity that are marked as a plan-

ning action, we generate a clause of the following

form:

action(actionConcept).

From our trip planner example, we have:

action(flight(FlightNo, Src, Dst)).

action(train(TrainNo, Src, Dst)).

action(getCoffee).

action(takeABreak).

Second, for each StateFeature assertion in the

model, we generate a rule of the form:

featureName(X, [A | ActionSequence]) :-

A = posAction1; ...; A = posActionM;

featureName(X, ActionSequence),

not A=negAction1, ..., not A=negActionN.

where semicolons mean OR in Prolog, and commas

mean AND. Also, M is the number of actions in the

PositiveActionList, and N is the number of actions in

the NegativeActionList. The UserLocation state fea-

ture assertion, for example, is translated as:

userLocation(paris, [A | ActionSequence]) :-

A = flightAC123; A = trainA125;

userLocation(paris, ActionSequence),

not A=flightAC223, not A=trainA225.

In English, this rule says that the UserLocation

feature will take on the value “Paris” if either of the

following is true: a) The last action in the action se-

quence is either ﬂight AC123 or train A125 (both of

which take the traveler to Paris), or b) The traveler

was in Paris before the last action was taken, and

that action is not ﬂightAC223 and trainA225 (both of

which would take the traveler out of Paris). All other

actions, such as getCoffee, or takeABreak, have no

effect on the value of this feature.

Third, for each precondition assertion, we would

generate a clause of the form:

poss(action, ActionSequence):-

logicalExpression.

e.g.:

poss(flight(FlightNo,Src,Dst),ActionSequence)

:-userLocation(X,ActionSequence),X = Src.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

106

which says that it is possible to select a ﬂight as the

next action if the user is located in the departure city

of the ﬂight.

Fourth, the intial and goal state description are

translated in a straight forward manner. For the trip

planning application, we have:

userLocation(guelph, []).

goalState(AS):-

userLocation(paris, AS),

wellRested(AS).

Finally, all model closure assertions are simply ig-

nored by the translator.

5.1.2 Translating Heuristic Advices

While descriptions of the basic planning ingredients

are translated directly into Prolog statements, user

heuristic advices (i.e., instances of the ActionTem-

plate concepts) are translated into an intermediate lan-

guage. We explain this translation below.

For each instance of the the ActionTemplate in the

ontology, we generated a text string of the following

form

PROCEDURE Name { Body }

where Name is the name of the ActionTemplate,

and Body is a text string representing the Template-

Expression of the ActionTemplate. Recall from Sec-

tion 4.3.1 that TemplateExpr can take several forms.

We shows the corresponding body texts that get gen-

erated for each form of TemplateExpr below.

Table 1: Translating Template Expressions. Uppercase let-

ters are keywords, while a, b and c are the subexpressions

of the TemplateExpressions.

TemplateExpr Generated Text

Seq. Comp. a ; b

IfThenElse IF c THEN a ELSE b ENDIF

WhileLoop WHILE c THEN a ENDWHILE

ChoicePoint a OR b

Simple Action a

The ActionTemplates shown in Figure 4, for ex-

ample, are translated into the following text:

PROCEDURE FindDirectFlight {

// Some code goes here

}

PROCEDURE GoToHub {

// Some code goes here

}

PROCEDURE NextMoveFromAirport {

IF (IsAtHubAirport)

THEN

Anonymous1

ENDIF

}

PROCEDURE Anonymous1 {

FindDirectFlight

GoToHub

}

Once all the heuristics advices (i.e., ActionTem-

plates) have been translated into intermediate code,

the translation engine then translate this code into a

Prolog program segment

. This translation is done

recursively using an expansion algorithm, whose

psuedo code is shown below:

Expand(expr)

{

structure = expr.GetTopLevelStructure()

swictch(structure){

case (a ; b):

return GenPrologStr(Expand(a),

",", Expand(b))

case (IF c THEN a ELSE b ENDIF):

return GenPrologStr(eval(c), ",",

Expand(a),

";", Expand(b))

case (a OR b)

return GenPrologStr(Expand(a),

";", Expand(b))

case (a)

return GenPrologStr(Expand(a))

}

Essentially, this algorithm recursively expands the

TemplateExpression into a (long) Prolog rule repre-

senting the a structure of a plan. This structure con-

tains all the actions that needed to be done, with some

“OR” operators inserted in between to allow the plan-

ner to make its own choice.

The intermediate code discussed earlier, for exam-

ple, is recursively expand into Prolog template state-

ment as follows:

Step1:

(isAtHubAirport(AS), anonymous1 ) ; true.

Step2:

(isAtHubAirport(AS),

(findDirectFlight ; goToHub)) ; true.

Step3:

...

This translation engine design borrows the macro ex-

pansion technique used by the GOLOG interpreter de-

scribed in (Reiter, 2001).

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS

107

5.2 Execution

Once the basic ingredients of the planning problem

description has been translated into a Prolog KB as

described in Section 5.1.1 and the heuristic advices

have been translated into an intermediate text ﬁle and

then into a Prolog template statement as described

in Section 5.1.2, the translated codes are merged

together into a single Prolog program, and can be

loaded for execution in Prolog.

The execution is handled by the predicate:

?- findPlan(Plan, templateStatement).

where Plan is an “output variable” and templateS-

tatement is the Prolog template statement discussed

above. If ﬁndPlan succeeds, Plan is initialized (uni-

ﬁed) with a sequence of actions conforming to the

templateStatement, except that all the branching rep-

resented by the “;” operator in templateStatement are

replaced with a single straight path.

5.3 Ensuring Translatability

We conclude this section with a discussion regarding

the translatatability of planning problem descriptions.

As with any translation approaches, one of the

main theoretical questions that is of importance to our

proposed approach is that of translatability – How do

one ensures that the planning problem descriptions

created by the ODWC system designer are always

translatable into an executable planning program in

Horn Logic? To answer to this question, a few obser-

vations are in order.

First, a well-deﬁned ontology can be thought of

as a form of language – The list concepts its provides

constitute the vocabulary of the language, while the

roles it deﬁnes dictates the ways in which the vocab-

ulary can be combined together to form statements.

Second, by carefully controlling the list of the con-

cepts and roles in the ontology, we can restrict or con-

trol the types of statements one can express using the

ontology.

With these observations in mind, one could see

that by being very selective and careful with the lan-

guague constructs in the Planning Ontology, we can

ensure that all possible workﬂow compostion prob-

lem descriptions are translatable to executable plan-

ning programs in Horn Logic. This, in fact, is the

main intuition behind our approach. Figure 5 provide

a visual illustration for this intuition.

In a future article, we will report whether or not

a formal proof of this intuition is possible. This is

still a work-in-progress, but our impression is that by

carefully analyzing the structures of these language

constructs, one would be able to prove, via structural

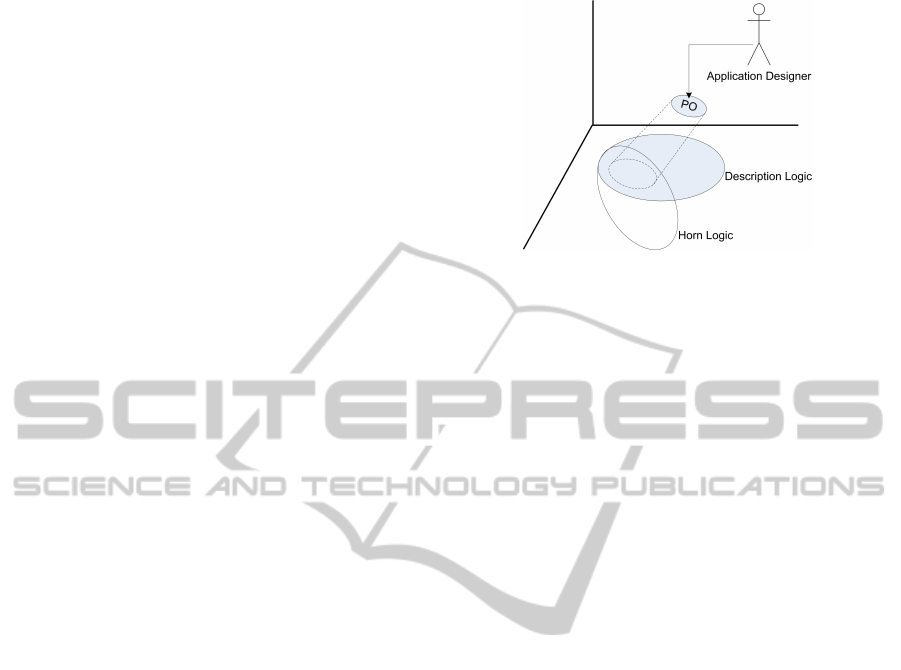

Figure 5: The primary intuition behind our proposed ap-

proach: the Planning Ontology acts as a restrainer that helps

ensure the description of the planning problem always falls

into a sub area of Description Logics that is translatable to

an executable program in Horn Logic

induction, that all planning problem expressed via our

Planning Ontology are translatable into equivalent ex-

ecutatable Horn programs.

6 SUMMARY

While Ontology and Description Logics do not pro-

vide built-in support for the type of rule-based rea-

soning needed to do logic-based planning, they are

fully capable of describing planning problems. We

believe that harnessing this descriptive power to build

an ontology-driven planning framework offers several

practical advantages over existing language extension

or adhoc integration approaches. First, it allows plan-

ning to be integrated into ontological modelling in

a seamless and transparent fashion: Ontology-driven

application designers do not need to pickup a new lan-

guage or formalism in order to bring planning capa-

bilities to their applications. All they need to do is

to simply describe the planning problem using their

familiar ontology modelling tools, and the frame-

work takes care of the rest. Also, because planning

knowledge are described in an ontology instead of a

framework-speciﬁc language, they are not only much

more reusable, but also can be processed and executed

by more planning frameworks.

In this paper, we provided a survey of existing ap-

proaches to integrating goal-based reasoning and on-

tological modeling, and provided some arguments for

an ontology-driven planning framework. We also pro-

vided a detailed discussion of our proposal for such

a framework and described how it can be used by

ontology-driven application designers to build intel-

ligent knowledge-based systems in a transparent and

reusable way.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

108

The next objective we have for the framework is a

formal proof on the translatability of planning prob-

lem descriptions. As discussed earlier in the paper,

we believe that this is possible with a careful analysis

of the structure of the language constructs provided

by the Planning Ontology.

For a further information on our framework,

the reader is invited to visit our website at

http://ontology.socs.uoguelph.ca.

REFERENCES

Bernstein, A., Provost, F., and Hill, S. (2005). Toward

intelligent assistance for a data mining process: An

ontology-based approach for cost-sensitive classiﬁca-

tion. IEEE Transactions on Knowledge and Data En-

gineering, 17:503–518.

Diamantini, C., Potena, D., and Storti, E. (2009). Ontology-

driven kdd process composition. In Proceedings

of the 8th International Symposium on Intelligent

Data Analysis: Advances in Intelligent Data Analy-

sis VIII, IDA ’09, pages 285–296, Berlin, Heidelberg.

Springer-Verlag.

Gil, Y., Gil, A., and Blythe, J. (2000). PLANET: A Share-

able and Reusable Ontology for Representing Plans.

In Proceedings of the AAAI Workshop on Representa-

tional Issues.

Grosof, B. N., Horrocks, I., Volz, R., and Decker, S. (2003).

Description logic programs: combining logic pro-

grams with description logic. In WWW ’03: Proceed-

ings of the 12th international conference on World

Wide Web, pages 48–57, New York, NY, USA. ACM.

Hitzler, P. and Parsia, B. (2009). Ontologies and rules.

In Bernus, P., Blazewics, J., Schmidt, G., Shaw,

M., Staab, S., and Studer, R., editors, Handbook on

Ontologies, International Handbooks on Information

Systems, pages 111–132. Springer Berlin Heidelberg.

Horrocks, I., Patel-Schneider, P. F., Boley, H., Tabet, S.,

Grosof, B., and Dean, M. (2004). SWRL: A Semantic

Web Rule Language Combining OWL and RuleML.

Technical report, World Wide Web Consortium.

Motik, B. and Rosati, R. (2008). Reconciling description

logics and rules. J. ACM, 57:30:1–30:62.

Rajpathak, D. and Motta, E. (2004). An Ontological For-

malization of the Planning Task. In Proceedings In-

ternational Conference on Formal Ontologies in In-

formation Systems (FOIS’04), Torino, Italy.

Reiter, R. (2001). Knowledge in Action: Logical Founda-

tions for Specifying and Implementing Dynamical Sys-

tems. The MIT Press, Massachusetts, MA, illustrated

edition edition.

Russell, S. J. and Norvig, P. (2002). Artiﬁcial Intelligence:

A Modern Approach (2nd Edition). Prentice Hall.

akov

a, M., K

remen, P.,

Zelezn

y, F., and Lavra

c, N.

(2008). Using ontological reasoning and planning

for data mining workﬂow composition. In SoKD:

ECML/PKDD 2008 workshop on Third Generation

Data Mining: Towards Service-oriented Knowledge

Discovery.

PRACTICAL GOAL-BASED REASONING IN ONTOLOGY-DRIVEN APPLICATIONS

109
