A LONG-TERM MEMORY APPROACH FOR DYNAMIC

MULTIOBJECTIVE EVOLUTIONARY ALGORITHMS

Alan D

ıaz-Manr

ıquez, Gregorio Toscano-Pulido and Ricardo Landa-Becerra

Information Technology Laboratory, CINVESTAV-Tamaulipas, Parque Cient

ıﬁco y Tecnol

ogico TECNOTAM

Km. 5.5 carretera Cd. Victoria-Soto La Marina, Cd. Victoria, Tamaulipas 87130, Mexico

Keywords:

Evolutionary algorithms, Dynamic multiobjective optimization.

Abstract:

A dynamic optimization problem (DOP) may involve two or more functions to be optimized simultaneously, as

well as constraints and parameters which can be changed over time, it is essential to have a response approach

to react when a change is detected. In the past, several memory-based approaches have been proposed in order

to solve single-objective dynamic problems. Such approaches use a long-term memory to store the best known

solution found so far before a change in the environment occurs, such that the solutions stored can be used

as seeds in subsequent environments. However, when we deal with a Dynamic Multiobjective Problems with

a Pareto-based evolutionary approach, it is natural to expect several traded-off solutions at each environment.

Hence, it would be prohibitive to incorporate a memory-based methodology into it. In this paper, we propose a

viable algorithm to incorporate a long-term memory into evolutionary multiobjective optimization approaches.

Results indicate that the proposed approach is competitive with respect to two previously proposed dynamic

multiobjective evolutionary approaches.

1 INTRODUCTION

Since life is dynamic, it is only natural to expect that

the problems from daily life are dynamics. A dy-

namic optimization problem may involve two or more

functions to be optimized simultaneously (also known

as dynamic multiobjective optimization problems, or

DMOPs for short), as well as constraints and parame-

ters which can be changed over time. Although the

study of this type of problems is not new, most of

the proposed approaches transform the original dy-

namic problem into many static optimization prob-

lems. The evolutionary computation community has

focused their efforts on designing approaches to solve

these problems without performing any transforma-

tion.

This work proposes to incorporate a change re-

sponse methodology into Dynamic Multiobjectve

Evolutionary Algorithms (DMOEAs). Such method-

ology uses a long-term memory which minimizes the

information to be stored in order to replicate a spe-

ciﬁc state of the search if it is needed in subsequent

environments.

The remain of this paper is organized as follows:

In Section 2, we present the dynamic multiobjective

state-of-the-art. Section 3 describes the proposed al-

gorithm and its conformed components. Section 4

presents the experiments and comparison of results.

Finally, Section 5 provides our conclusions as well as

some possible directions for future research.

2 RELATED WORK

Evolutionary algorithms have been successfully ap-

plied to solve DMOPs. Their success rate might be

directed for their population-based nature, since this

allows them to use the most of the previous discov-

ered knowledge in order to follow a change in the en-

vironment. Bingul (Bingul, 2007) solved a dynamic

multiobjective optimization problem (DMOP) using

an aggregating function approach with a Genetic Al-

gorithm (GA). Hatzakis and Wallace (Hatzakis and

Wallace, 2006) proposed a forward-looking approach

which combines a forecasting technique with an evo-

lutionary algorithm. Deb et al. proposed two mod-

iﬁcations to the NSGA-II in order to able it to han-

dle DMOPs. In the ﬁrst modiﬁcation, the population

is reinitialized while in the second, the population is

mutated depending on the type of change in the en-

vironment (Deb et al., 2006). Talukder and Kirley

(Talukder and Kirley, 2008) used a new variation op-

erator to follow the Pareto front in DMOPs.

333

Díaz Manríquez A., Toscano-Pulido G. and Landa-Becerra R..

A LONG-TERM MEMORY APPROACH FOR DYNAMIC MULTIOBJECTIVE EVOLUTIONARY ALGORITHMS.

DOI: 10.5220/0003675403330337

In Proceedings of the International Conference on Evolutionary Computation Theory and Applications (ECTA-2011), pages 333-337

ISBN: 978-989-8425-83-6

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

3 PROPOSED APPROACH

Since the natural behavior of a DMOP is to be chang-

ing, it is essential to perform a response action when

a change is detected. Several authors (Mori et al.,

1996; Branke, 1999; Branke et al., 2000) have pro-

posed memory-based approaches in order to solve

single-objective dynamic problems. Such approaches

store the best known solution found so far before

a change in the environment occurs and use such

stored solutions to be seeds in subsequent environ-

ments. However, when we deal with a DMOP using a

Pareto-based approach, it is natural to expect several

traded-off solutions for each environment. Hence, it

would be prohibitive to incorporate a memory-based

methodology into it. However, if we had a special

interpolation operator which could restore the previ-

ously known P F using only few points, then it would

be possible to have a memory-based multiobjective

optimization approach.

The basis of our proposal lays on the construction

of a special interpolation operator that will predict

several non-dominated solutions in order to connect

two points located on the extremes of the P F . We

adopt a methodology which uses a long-term mem-

ory that minimizes the information to be store in order

to reproduce a speciﬁc state of the search. Thereby,

the methodology uses such information as knowledge

in subsequent environments. However, it is neces-

sary to generate new knowledge from few points.

To achieve this goal we propose a method to gener-

ate non-dominated solutions between a pair of non-

dominated solutions. In this manner, if we choose the

extremes of the original P F , we will be able to gen-

erate solutions which presumable will belong to the

P F . The proposed operator to achieve works as fol-

lows:

3.1 Operator to Create Solutions from

the Extremes of a Bi-objective P F

Given two non-dominated points ~a = [a

,..., a

]

and

b = [b

,. .., b

]

, such that f

(~a) < f

(

b) ∧ f

(~a) >

(

b).

We want to ﬁnd the point~z ∈ P

whose evaluation

in the objective space

f (~z) is located between

f (~a)

and

f (

b) (i.e., f

(~a) < f

(~z) < f

(

b)∧ f

(~a) > f

(~z) >

(

b). The complete procedure to ﬁnd~z is shown be-

low:

Step 1. Construct a system of equations of the form

AX = C:

A =



(~a) f

(~a)

(

b) f

(



X =



... X



C =



... a

... b



Step 2. Solve the system of equations in order to ob-

tain X.

X = A

−1

C (1)

Step 3. Construct

(~z) with desired objectives. This

is performed increasing in ∆ the ﬁrst objective and

decreasing in ∆ the second one (using Equation 2).

(~z) =



(~a) + ∆ f

(~a) − ∆



(2)

Step 4. Multiply X by

(~z) in order to obtain the ~z

values (using Equation 3).

~z =

(~z)X (3)

Step 5. Once the~z value is computed, it is necessary

to evaluate it in order to calculate its true objective

values, i.e. to compute

f (~z). The new computed

point will serve as seed for the next point to be

generated.

This mechanism will be used until f

(~z) > f

(

b),

(i.e., when the current approximated point reach

the ﬁnal position).

With the aim to validate the current operator in

static environments, we selected 30 pairs of points

from several test functions (WFG1 to WFG9, ZDT1

to ZDT3 and Kursawe. Due to space limitations, and

also because of the scope of this paper, the details are

not provided here. However, the main conclusions of

such experiment are:

• The proposed operator was able to connect two

points in the decision variables space of the test

functions whose solutions evaluated in the objec-

tive function space became non-dominated.

• The proposed approach showed satisfactory re-

sults for: ZDT1 to ZDT3, WFG2 to WFG7 and

WFG9.

• The operator malfunctioned when optimizing the

Kursawe test functions due to the disconnection

of the problem in the parameter space. However,

when the extreme points of any connected region

in the parameter space were provided, then the

operator was able to approximate the portion of

the front belonged to such space. On the other

hand, when the operator was trying to approxi-

mate WFG1 and WFG8 did not work as we ex-

pected, since they are disconnected in the param-

eter space, so it was impossible to ﬁnd a path be-

tween two disconnected points in SP .

3.2 Methodology for Environmental

Change Response

Above we proposed an operator to generate solutions

between two points belonging to a connected region

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

334

in the parameter space. Given such operator, we

can develop an algorithm to reduce the information

needed to produce a Pareto by storing only two ex-

treme solutions by change in the enviroment. Below,

we present such methodology:

Once that the change in the environment is de-

tected, we can use the solutions previously stored in

the repository. First, the repository and the current

population should be re-evaluated such that we can

integrate them in order to obtain the overall extreme

points of the current Pareto front. From this two so-

lutions, we should create a ζ% new solutions using

the proposed operator (shown in Section 3.1). The

remain 100 − ζ% population will be randomly gen-

erated in order to incorporate diversity to the popula-

tion. This procedure is shown in Algorithm 1. Once

the response to the change is achieve. Then, we can

use the produced population with any MOEA. In this

case, we used the NSGA-II (Algorithm 2).

Algorithm 1: Response to an environmental change.

1: F = Non-dominated solutions of P

2: Report F

3: Extreme = extreme solutions from F

4: M = M ∪ Extreme

5: Reevaluate M and F

6: Obtain the extreme non-dominated solutions from M ∪ F

7: Replace a ζ% of F with new individuals generated with the

procedure shown in Section 3.1).

8: Generate 100 − ζ% randomly individuals

Algorithm 2: DNSGA-II-LTM.

1: t = 0

2: M =

3: Initialize the population P

4: F = nondominatedsorting(P

)

5: For each F

∈ F do

6: crowdingdistance(F

)

7: end for

8: repeat

9: if environmental change is detected then

10: Response to the change (Algorithm 1)

11: end if

12: P

t+1

= Elitism

13: t = t +1

14: until Termination criteria is fulﬁlled

4 EXPERIMENTS AND

COMPARISON OF RESULTS

In order to know how competitive is our approach, we

decided to compare our results with respect to those

obtained by the DNSGA II-A and the DNSGA II-B

(Deb et al., 2006). In order to have a fair comparison,

we hand-tuned each change to be activated every 500

evaluations of the objective function. For such sake,

we setup the following empirical tuning: Simulated

binary crossover (P

= 0.9, η

= 15), parameter-based

mutation (P

= 1/nvars,η

= 20), P = 100, ζ = 30.

Two test functions were taken from the specialized lit-

erature to compare our approaches and other two are

proposed by us. In order to allow a quantitative as-

sessment of the performance of a multiobjective op-

timization algorithm two standard performance mea-

sures were adopted: the Inverted Generational Dis-

tance (IGD) and the Hypervolume ratio (HVR).

The tests functions used for the algorithms are

FDA1 and FDA2, both were proposed by Farina et al.

(Farina et al., 2003), and the DZDT2 and DZDT3, are

proposed here. They are modiﬁcations to the ZDT2

and ZDT3, respectively and are shown in Table 1.

Table 1: Tests functions.

Dynamic Multiobjective Problems

DZDT2

(~x

) = x

, f

(~x) = g(~x

)



1 −



g(~x

)





G(t) = sin (0.5πt), t =

g(~x

) = 1 +

n−1

∑

i=2

− abs(G(t)))

τ is the generation counter and τ

is the num-

ber of generations that t is ﬁxed.

,. . . , x

∈ [0,1] and n = 30

DZDT3

(~x

) = x

, f

(~x) =

g(~x

)



1 −

g(~x

)

−

g(~x

)

sin(10πx

)



G(t) = sin (0.5πt), t =

g(~x

) = 1 +

n−1

∑

i=2

abs(x

− abs(G(t)))

τ is the generation counter and τ

is the num-

ber of generations that t is ﬁxed.

,. . . , x

∈ [0,1] and n = 30

We measured the number of generations that

requires our approach, the DNSGA-II-A and the

DNSGA-II-B to approximate the true P F at a IGD

distance of 0.01 during 100 changes. This procedure

was executed 100 times and the solutions obtained

were averaged. The we plotted the mean of such so-

lutions during the 100 changes. This experiment was

made in order to check if the use of memory can help

to the algorithm to decrease the number of genera-

tions needed to approximate to the true P F .

In Figure 1(a) we can see as the DNSGA-II-LTM

could stabilize its behavior over the time, in such a

way that it could reduce the number of generations

necessary to follow the P F of FDA1 (to a value of

IGD=0.01). Figures 1(c) and 1(d) show how the two

proposed problems were more difﬁcult that the two

problems taken from the literature, since the num-

ber of generations needed to reach the IGD=0.01 was

considerably higher, in these problems it is easy to

observe a similar behavior that the one observed in

A LONG-TERM MEMORY APPROACH FOR DYNAMIC MULTIOBJECTIVE EVOLUTIONARY ALGORITHMS

335

0 10 20 30 40 50 60 70 80 90 100

Number of generations

Changes

DNSGA-II-A

DNSGA-II-B

DNSGA-II-MEMORY

(a) FDA1

0 10 20 30 40 50 60 70 80 90 100

Number of generations

Changes

DNSGA-II-A

DNSGA-II-B

DNSGA-II-MEMORY

(b) FDA2

100

120

140

160

180

200

0 10 20 30 40 50 60 70 80 90 100

Number of generations

Changes

DNSGA-II-A

DNSGA-II-B

DNSGA-II-MEMORY

100

120

140

0 10 20 30 40 50 60 70 80 90 100

Number of generations

Changes

DNSGA-II-A

DNSGA-II-B

DNSGA-II-MEMORY

(d) DZDT3

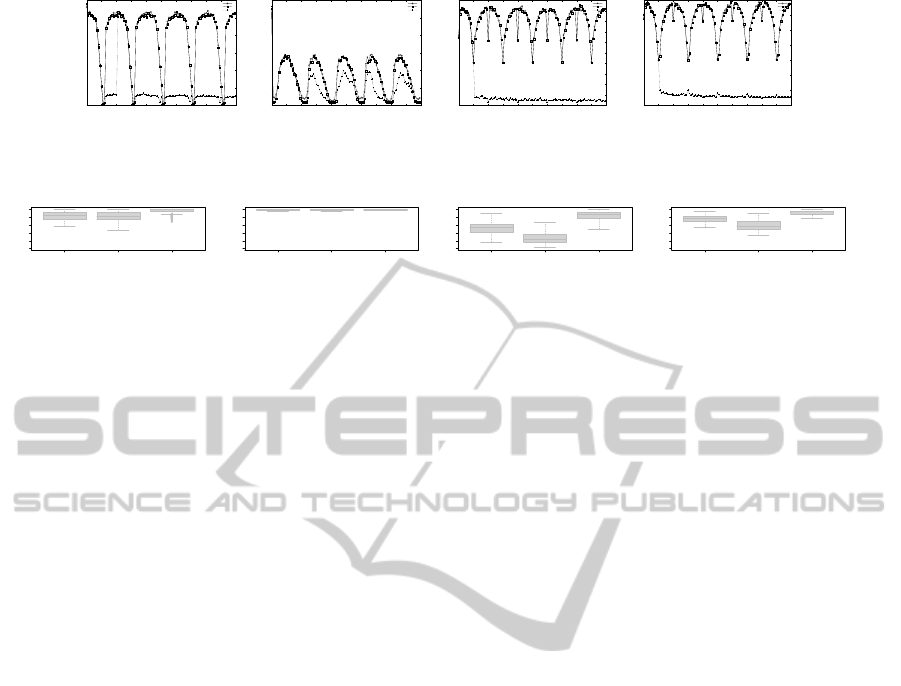

Figure 1: Number of generations required for approximate at the P F at a IGD of 0.01. Problem FDA1.

●

●●

●

DNSGA−II−A DNSGA−II−B DNSGA−II−MEMORY

0.0 0.2 0.4 0.6 0.8 1.0

Hipervolume ratio

Algoritmh

Hipervolume ratio

(a) FDA1

●

DNSGA−II−A DNSGA−II−B DNSGA−II−MEMORY

0.0 0.2 0.4 0.6 0.8 1.0

Hipervolume ratio

Algoritmh

Hipervolume ratio

(b) FDA2

●

DNSGA−II−A DNSGA−II−B DNSGA−II−MEMORY

0.0 0.2 0.4 0.6 0.8 1.0

Hipervolume ratio

Algoritmh

Hipervolume ratio

●

DNSGA−II−A DNSGA−II−B DNSGA−II−MEMORY

0.0 0.2 0.4 0.6 0.8 1.0

Hipervolume ratio

Algoritmh

Hipervolume ratio

(d) DZDT3

Figure 2: Boxplots of 100 executions for FDA1, FDA2D, DZDT2 and DZDT3 during 100 changes.

FDA1 (the algorithm DNSGA-II-LTM could stabilize

its behavior over the time).

In FDA2 the three algorithm presented a good be-

havior, but again, the DNSGA-II-LTM reduced the

number of generations needed to follow the P F at

a IGD of 0.01 (see Figure 1(b)).

Since results from IGD indicate that the pro-

posed modiﬁcation could outperform NSGA-II-A and

NSGA-II-B, we decided to perform a second experi-

ment. For this new experiment, we decided to mea-

sure the hypervolume ratio during 100 changes using

the three approaches (ours, the DNSGA-II-A and the

DNSGA-II-B). In order to present such results in a

friendly-comparison way, we decided to present them

as box-plot graphics which are shown in Figure 2.

From box-plots, we can see that the DNSGA-II-

LTM could reach to a hypervolume value close to

1.0 in most of the problems. The anomalous results

shown also in boxplots are due to the start of the

optimization process the algorithm had not sufﬁcient

knowledge in memory and therefore, it was more dif-

ﬁcult to follow the movement of the optimum. But

when the algorithm gained enough knowledge, the al-

gorithm could reach the P F most of the time.

5 CONCLUSIONS

According at the obtained result we can conclude that

the use of a long-term memory in dynamic multiob-

jective evolutionary algorithms reduces the number

of ﬁtness function evaluations needed to optimize a

DMOP. It should be clear that in order to use a long-

term memory-based approach is necessary to use a

method to reduce the amount of information of each

environment to be stored in order to avoid saturation

of the memory. The proposed approach to generate

solutions from two points (in a connected region in

the parameter space) can be used to store only two so-

lutions at each change of the environment. It should

be noted that this method was only tested for prob-

lems with two objective functions. However, we are

planning to explore more dimensions in the objective

space in the future.

ACKNOWLEDGEMENTS

The ﬁrst author gratefully acknowledges support from

CONACyT through project 105060. Also, this re-

search was partially funded by project number 51623

from “Fondo Mixto Conacyt-Gobierno del Estado

de Tamaulipas”. We would like to thank to Fondo

Mixto de Fomento a la Investigaci

on cient

ıﬁca y

Tecnol

ogica CONACyT - Gobierno del Estado de

Tamaulipas for their support to publish this paper.

REFERENCES

Bingul, Z. (2007). Adaptive Genetic Algorithms Applied to

Dynamic Multi-Objective Problems. Appl. Soft Com-

put., 7(3):791–799.

Branke, J. (1999). Memory enhanced evolutionary al-

gorithms for changing optimization problems. In

Congress on Evolutionary Computation CEC99,

pages 1875–1882. IEEE.

Branke, J., Kaussler, T., Schmidt, C., and Schmeck., H.

(2000). A multi-population approach to dynamic opti-

mization problems. In Adaptive Computing in Design

and Manufacturing, pages 299–307.

Deb, K., N., U. B. R., and Karthik, S. (2006). Dynamic

multi-objective optimization and decision-making us-

ing modiﬁed NSGA-II: A case study on hydro-thermal

power scheduling. In EMO, pages 803–817.

Farina, M., Deb, K., and Amato, P. (2003). Dynamic Mul-

tiobjective Optimization Problems: Test Cases, Ap-

proximation, and Applications. In Fonseca, C. M.,

Fleming, P. J., Zitzler, E., Deb, K., and Thiele, L., edi-

tors, Evolutionary Multi-Criterion Optimization. Sec-

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

336

ond International Conference, EMO 2003, pages 311–

326, Faro, Portugal. Springer. Lecture Notes in Com-

puter Science. Volume 2632.

Hatzakis, I. and Wallace, D. (2006). Dynamic Multi-

Objective Optimization with Evolutionary Algo-

rithms: A Forward-Looking Approach. In et al.,

M. K., editor, 2006 Genetic and Evolutionary Compu-

tation Conference (GECCO’2006), volume 2, pages

1201–1208, Seattle, Washington, USA. ACM Press.

ISBN 1-59593-186-4.

Mori, N., Imanishi, S., Kita, H., and Nishikawa, Y. (1996).

Adaptation to a changing environment by means of

the thermodynamical genetic algorithm. In Voigt, H.,

editor, Parallel Problem Solving from Nature, vol-

ume 1141 of LNCS, pages 513–522. Springer Verlag,

Berlin.

Talukder, A. K. A. and Kirley, M. (2008). A pareto follow-

ing variation operator for evolutionary dynamic multi-

objective optimization. In Proceedings of the IEEE

Congress on Evolutionary Computation 2008 (CEC

2008), Hong Kong, China. IEEE Press, Piscataway,

NJ.

A LONG-TERM MEMORY APPROACH FOR DYNAMIC MULTIOBJECTIVE EVOLUTIONARY ALGORITHMS

337
