COOPERATIVE QUESTION ANSWERING

FOR THE SEMANTIC WEB

Dora Melo

, Irene Pimenta Rodrigues

and Vitor Beires Nogueira

Instituto Polit

ecnico de Coimbra and CENTRIA, Coimbra, Portugal

Universidade de

Evora and CENTRIA,

Evora, Portugal

Keywords:

Natural language, Ontology, Question answering, Semantic web.

Abstract:

In this paper we propose a Cooperative Question Answering System that takes as input queries expressed in

natural language and is able to return a cooperative answer obtained from resources in the Semantic Web,

more speciﬁcally DBpedia databases represented in OWL/RDF. Moreover, when the DBpedia provides no

answer, we use the WordNet in order to build similar questions. Our system resorts to ontologies not only for

reasoning but also to ﬁnd answers and is independent of prior knowledge of the semantic resources by the user.

The natural language question is translated into its semantic representation and then answered by consulting

the semantics sources of information. If there are multiple answers to the question posed (or to the similar

questions for which DBpedia contains answers), they will be grouped according to their semantic meaning,

providing a more cooperative and clean answer to the user.

1 INTRODUCTION

Ontologies and the Semantic Web (Horrocks, 2008)

became a fundamental methodology to represent the

conceptual domains of knowledge and to promote

the capabilities of semantic Question Answering sys-

tems (Guo and Zhang, 2009). These systems by al-

lowing search in the structured large databases and

knowledge bases of the Semantic Web can be con-

sidered as an alternative or as a complement to the

current Web search.

There is a gap between users and the Semantic

Web: it is difﬁcult for end-users to understand the

complexity of the logic-based Semantic Web. There-

fore it is crucial to allow a common Web user to proﬁt

from the expressive power of Semantic Web data-

models while hiding its potential complexity. There

is a need for user-friendly interfaces that scale up to

the Web of Data and support end-users in querying

this heterogeneous information source.

Consistent with the role played by ontologies

in structuring semantic information on the Web,

ontology-based Question Answering systems allows

us to exploit the expressive power of ontologies and

go beyond the usual “keyword-based queries”.

Question Answering systems provide concise an-

swers to natural language question posed by users in

their own terminology, (Hirschman and Gaizauskas,

2001). Those answers must also be in natural lan-

guage in order to improve the system and provide a

better friendly-user interface.

In this paper we propose a Cooperative Question

Answering System that receives queries expressed in

natural language and is able to return a cooperative

answer, also in natural language, obtained from re-

sources on the Semantic Web (Ontologies and OWL2

Descriptions). The system starts a dialogue whenever

there is some question ambiguity or when it detects

that the answer is not what user expected. Our pro-

posal includes deep parsing, use of ontologies and

other web resources such as the WordNet (Fellbaum,

1998) and the DBpedia (Auer et al., 2007).

Our goal is to provide a system that is independent

of prior knowledge of the semantic resources by the

user and is able to answer cooperatively to questions

posed in natural language. This system maintains the

structure of the dialogue and this structure provides a

context for the interpretation of the questions and in-

cludes implicit content such as temporal-space knowl-

edge, entities and information useful for the prag-

matic interpretation like discourse entities used for

anaphora resolution.

This paper is organized as follows. First, in Sec-

tion 2, we introduce the proposed system, describing

the main components of its architecture. In parallel,

we present an example as an illustration of system

258

Melo D., Pimenta Rodrigues I. and Beires Nogueira V..

COOPERATIVE QUESTION ANSWERING FOR THE SEMANTIC WEB.

DOI: 10.5220/0003691202580263

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2011), pages 258-263

ISBN: 978-989-8425-81-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

functionality. Afterwards, in Section 3 we present re-

lated work, highlighting the main differences in the

proposed system. Finally, in Section 4, we present

the conclusions and the future work.

2 PROPOSED SYSTEM

Very brieﬂy, the proposed system receives a natu-

ral language question and translates into a semantic

representation using Discourse Representation Struc-

tures (DRS). Then, after consulting the semantics

sources of information, provides a natural language

answer. If there are multiple answers to the question

posed (or to the similar questions for which DBpedia

contains answers), they will be grouped according to

their semantic meaning, providing a more cooperative

and clean answer to the user. Therefore, we consider

that our system provides a user friendly interface.

The language chosen for our system was Prolog

with several extensions and libraries. Among the rea-

sons for such choice is the fact that there is a wide

range of libraries for querying and processing of on-

tologies OWL2, WordNet has an export for Prolog

and there are extensions that allow us to incorpo-

rate the notion of context into the reasoning process.

Moreover, Wielemaker (Wielemaker, 2005) provides

a study for query translation and optimization more

speciﬁcally the SeRQL RDF query language, where

queries are translated to Prolog goals, optimized by

reordering literals. Finally, in (Wielemaker et al.,

2007) the authors describe how to develop a Semantic

Web application entirely in Prolog.

Our system architecture is presented in Figure 1

and to help its understanding in the following subsec-

tions we describe the main components.

2.1 Semantic Interpretation

Semantic Interpretation, or Semantic Analysis, is

built using First-Order Predicate Logic extended with

generalized quantiﬁers. We take special care with

the discourse entities in order to have the appropri-

ate quantiﬁer introduced by the determinant interpre-

tation. The semantic representation is supported by

Discourse Representation Theory (Kamp and Reyle,

1993; Blackburn and Bos, 2005; Covington, 1988).

The semantic analysis rewrites a syntactic structure

of the question into a DRS. For us a DRS is a set of

referents, universally quantiﬁed variables and a set of

conditions (First-Order predicates).

The implementation of this component follows

an approach similar to the one for constructing

of a Question Answering system over documents

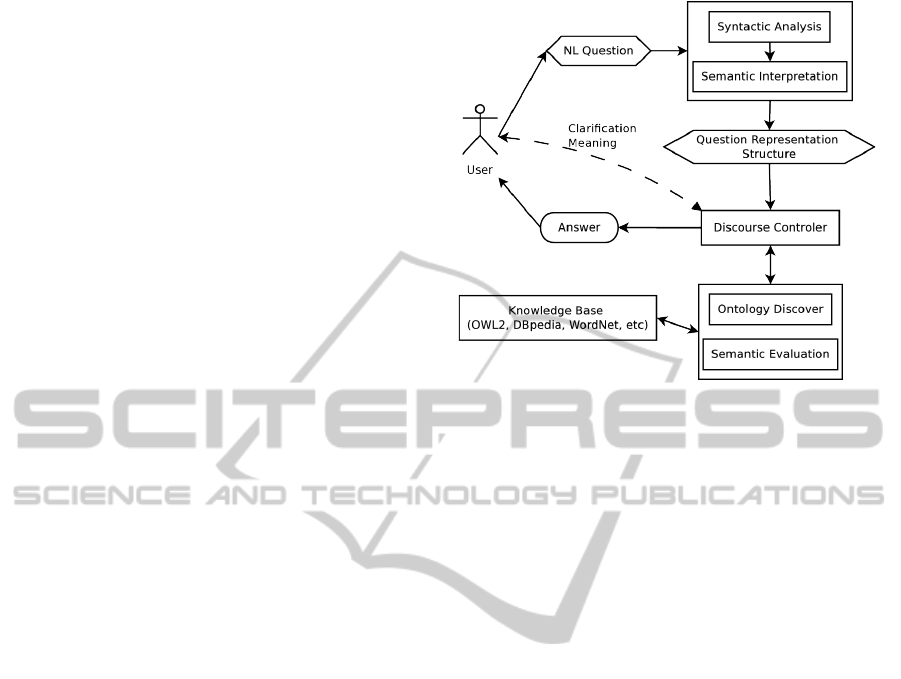

Figure 1: Question Answering System Architecture.

databases proposed in (Quaresma et al., 2006). The

system consists of two separate modules: prelimi-

nary analysis of the documents (information extrac-

tion) and processing questions (information retrieval).

The system is looking for processing the corpus and

the questions, supported by theories of computational

linguistics: syntactic analysis (grammatical restric-

tions), followed by semantic analysis using the the-

ory of discourse representation and ﬁnally the seman-

tic/pragmatic interpretation using ontology and logi-

cal inference.

As an illustration, consider the question ”All

French romantic writers have died?”. The syntactic

analysis generates a tree that is rewritten according to

a set of rules and integrated into a DRS. In our system,

it is stated by the Prolog fact:

drs([all-X],[(writer(X), french(X),

romantic(X)), died(X)]).

where X is a universally quantiﬁed (all) dis-

course entity that must verify all the question con-

ditions (writer(X), french(X), romantic(X)),

died(X)).

2.2 Ontology Discover

The Ontology Discover is guided by the Discourse

Controller to obtain the extension of sentence repre-

sentation along with the reasoning process. The rea-

soning context and the question meaning will change

whenever the Discourse Controller reaches a dead

end.

This system module looks for similarities between

labels by means of string-based, taking into account

COOPERATIVE QUESTION ANSWERING FOR THE SEMANTIC WEB

259

abbreviations, acronyms, domain and lexical knowl-

edge. To maximize recall, the ontology search looks

for classes or instances that have labels matching a

search term either exactly or partially and, if an an-

swer is not achieved, each term in the query is ex-

tended with its synonyms, hypernyms and hyponyms

obtained from WordNet (Witzig and Center, 2003).

Afterwards we extract a set of semantic resources

which may contain the information requested.

Continuing the example of the previous section,

in order to obtain the extension of sentence represen-

tation along the reasoning process, the system has to

ﬁnd the answers to the following questions:

• Which Classes or Properties represent the concept

’writer’?

The system ﬁnds the DBpedia

class Writer

with property domain Work and domain range

Person;

• Which Classes or Properties represent the concept

’french’?

The DBpedia has a class birthPlace

(an en-

tity of type ObjectProperty, with property domain

Person and domain range Place) that represents

the place where some person was born. The term

’french’ is also interpreted as a “person of France”

(obtain from WordNet), so the system also has to

ﬁnd the Classes or Properties of all similar mean-

ings to the initial term that could lead the system

to the correct answer;

• Which Classes or Properties represent the concept

’romantic’?

The system ﬁnds the DBpedia resource

Romanticism

(an entity of type Thing, an

instance of property movement

);

• Which Classes or Properties represent the concept

’died’?

The DBpedia Ontology is a shallow, cross-domain on-

tology, which has been manually created based on the

most commonly used infoboxes within Wikipedia. The

ontology currently covers over 272 classes which form a

subsumption hierarchy and are described by 1,300 differ-

ent properties. Each class is identiﬁed by a URI refer-

ence http://dbpedia.org/ontology/Name and each property

with http://dbpedia.org/property/property name URI refer-

ence. The DBpedia database provid more than 3.5 million

resources, each of them is identiﬁed by a URI reference

http://dbpedia.org/resource/Name, where Name is removed

from the URL whose source is the Wikipedia article, which

has the form http://en.wikipedia.org/wiki/Name.

http://dbpedia.org/ontology/Writer

http://dbpedia.org/ontology/birthPlace

http://dbpedia.org/page/Romanticism

http://dbpedia.org/property/movement

The Dpbedia has a class deathDate

(an entity

of type DatatypeProperty, with property domain

Person and domain range date) that represents the

death date of a person.

The next step is the construction of query(ies)

needed to verify the initial question. If the question

don’t have an answer, a set of similar questions is

constructed. Querying the WordNet, the system ob-

tains similar terms to those that compose the initial

question. This set of similar questions will enrich the

knowledge domain and helps the interpretation of the

original question or in the construction of its answer.

If this set of new questions leads the system to dif-

ferent answers, we are in the presence of an ambigu-

ity and the user is invoked to clarify it. If the sys-

tem did not ﬁnd any correspondence to a word and

its derivatives, the user is informed and can clarify

the system by reformulating the question or present-

ing others query(ies).

2.3 Semantic Evaluation

Semantic Evaluation is intended to be the pragmatic

evaluation step of the system, where the question se-

mantic is transformed into a constraint satisfaction

problem. This is achieved by adding conditions that

constraint the discourse entities. Moreover, this ex-

tra information (regarding the question interpretation)

can help the Discourse Controller to formulate a more

objective answer.

The Semantic/Pragmatic evaluation must reinter-

pret the semantic representation of the sentence based

on ontology considered in order to obtain the set of

facts that represent the information provided by the

question.

The process responsible for the Seman-

tic/Pragmatic interpretation receives the DRS of

the question and interprets it in a knowledge base

with rules derived from the ontology and the infor-

mation contained in the databases like as DBpedia

and WordNet.

Back to our example, to solve the constraint prob-

lem the Dialogue Controller generates and poses the

following questions to the Question Answering sys-

tem:

• Who are the French writers?

• Who are the French romantic writers?

• Who are the French romantic writers who died?

To answer this questions the system has to ﬁnd

all entities [X1, X2] such that X1 : writer(X1), X 2 :

f rench(X2), where X 1 ∩ X2 represents the entities

http://dbpedia.org/ontology/deathDate

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

260

that are “French writers”. Afterwards the system has

to ﬁnd the entities [X 3] such that X3 : romantic(X3)

and the evaluation of the expression X1 ∩ X2 ∩ X3

gives the entities that are “French romantic writers”.

Finally, the system has to ﬁnd all entities [X4]

belongs to the set A = X1 ∩ X2 ∩ X3 such that X4 :

died(X4) and evaluation the resulting set B = {X4 ∈

A : died(X4)} gives the entities that are “French ro-

mantic writers who died”.

The interpretation of the relations between the sets

A and B guides the system to the ﬁnal answer in the

following way:

• If A ∩ B =

0, then we can conclude that all French

romantic writers have died;

• Otherwise, the expression A ∩ B gives the set of

entities that are French romantic writers still alive.

After querying and searching in knowledge base,

the system concludes that the answer to initial ques-

tion ”All French romantic writers have died?” is “Yes,

all French romantic writers have died.”.

2.4 Discourse Controller

The Discourse Controller is a core component that is

invoked after the natural language question has been

transformed into its semantic representation. Essen-

tially the Discourse Controller tries to make sense of

the input query by looking at the structure of the on-

tology and the information available on the Semantic

Web, as well as using string similarity matching and

generic lexical resources such as WordNet.

The Dialogue Controller deals with the set of dis-

course entities and is able to compute the question

answer. It has to verify the question presupposition,

choose the sources of knowledge to be used and de-

cide when the answer has been achieved or to iterate

using new sources of knowledge. The decision of

when to relax a question in order to justify the answer

and when to clarify a question and how to clarify it

also taken by in this module.

Whenever the Discourse Controller isn’t sure how

to disambiguate between two or more possible terms

or relations in order to interpret a query, it starts a

dialogue with the user and asks him for disambigua-

tion. The clariﬁcation done by the user will be es-

sential for the Discourse Controller, this way obtain-

ing the right answer to the query posed by the user.

For instance, the question “Where is the Taj Mahal?”,

’Taj Mahal’ could be mapped into the name of a Mau-

soleum, a Casino Hotel or an Indian Restaurant and

only the user can clarify about the intended meaning.

The more cooperative and interactive the Discourse

Controller is, the closer it will be to the correct an-

swer.

Another important aspect of the Discourse Con-

troller is to provide a friendly answer to user. The

answer should be as closest to the natural language

as possible. For instance, the Question Answering

system has to respond “yes” or “no” when the user

posed the query “Is Barack Obama the President of

the USA?”. In this case, the answer will be “yes”.

However, the answer must be more informative for

the user. Some concepts are deﬁned in the temporal

context, even if implicitly, and the answer should be

more clear and informative. For instance, the term

’President’, in the context of the question, is deﬁned

as the title of head of state in some republics and has

an associated duration for the mandate, a start date

(date of election, date on taking ofﬁce), and an end

date of the mandate. So the answer to the question “Is

Barack Obama the President of the USA?” should be

“Yes, Barack Obama is the actual President of USA”,

that is more cooperative and informative.

For the cases where the answer to a question of

type Yes/No is “No”, the Discourse Controller will re-

turn a complete answer, clarifying the negation. If we

consider the question “All the capitals of Europe have

more than 200,000 inhabitants?” that have a “No” as

an answer, the system will construct the proper an-

swer that clarify the user and will return “No, 9 cap-

itals of Europe have less than or equal to 200,000 in-

habitants”.

If there are multiple answers to the question posed

by the user (or to the similar questions for which DB-

pedia contains answers), they will be grouped accord-

ing to their semantic meaning, providing a more co-

operative and clean answer to the user. To do so, the

discourse controller has to reason over the question

and construct the answer, well constructed questions

have always the right words that help in the answer

construction. For the question ”Where is the Taj Ma-

hal?” consider that the user is not able to clarify the

system about the ambiguity of the question: Taj Ma-

hal is a Mausoleum, a restaurant or Casino Hotel; or

that the user simply wants that the system returns all

possible answers. So when the system has all the an-

swers to all possible interpretations for the question

posed by the user, the Discourse Controller will not

list the answer in a random way, but will list the an-

swer according to their semantic mean:

Mausoleum Taj Mahal is in Agra, India

Casino hotel Taj Mahal is in Atlantic

City, NJ, USA

Indian Restaurant Taj Mahal is in New

Farm, Brisbane, Australia

Indian Restaurant Taj Mahal is in 7315

3rd Ave. - Brooklyn, NY, USA

Our dialoguing system has as main objective the

COOPERATIVE QUESTION ANSWERING FOR THE SEMANTIC WEB

261

use of interactive mechanism to obtain more objec-

tive and concrete answers. It is not used only to clar-

ify the problems of ambiguity, but also to help ﬁnd-

ing the path to obtain the correct answer. Making the

dialogue system more cooperative makes one able to

get closer to the answer desired by the user. In many

cases, the user is the only one who can help the system

in the deduction and interpretation of information.

3 RELATED WORK

The representation of questions with generalized

quantiﬁers as in (Rodrigues et al., 2009) allows the

use of various natural language quantiﬁers like all, at

least 3, none, etc. Moreover, the question evaluation

also resorts to logic programming with constraints.

A query language for OWL based on Prolog is

presented in (Almendros-Jim

enez, 2011). The au-

thors propose a way of deﬁning a query language

based on a fragment of Description Logic and a way

of mapping it into Prolog by means of logic rules.

An illustration of a Question Answering system

for Portuguese language that uses the Web as a

database, through meta-search on conventional search

engines can be seen in (Rabelo and Barros, 2004).

This system uses surface text patterns to ﬁnd answers

in the documents returned by search engines. Another

example of a Question Answering system where do-

main knowledge is represented by an ontology can be

found in (Guo and Zhang, 2008): it is presented an In-

terface System for Question Answering Chinese Na-

tural Language, that runs through a natural language

parser.

The paper (Nogueira and Abreu, 2007) describes

a declarative approach to represent and reason about

temporal contextual information. In this proposal

each question takes place in a temporal context and

that context is used to restrict the answer.

PowerAqua (Lopez and Motta, 2006; Lopez et al.,

2007a) is a multi-ontology-based Question Answer-

ing system that takes as input queries expressed in

natural language and is able to return answers drawn

from relevant distributed resources on the Semantic

Web. PowerAqua evolved from the earlier AquaLog

system (Lopez et al., 2007b). PowerAqua allows the

user to choose an ontology and then ask natural lan-

guage queries related to the domain covered by the

ontology. The system architecture and the reasoning

methods are completely domain-independent, rely-

ing on the semantics of the ontology, and the use of

generic lexical resources, such as WordNet.

Our proposal is a friendly, simple and cooperative

Question Answering system. The main difference is

the cooperative way that answers the natural language

questions posed by the user. We interact with the user

in order to disambiguate and/or to guide the path to

obtain the correct answer to the query posted, when-

ever this is possible to do by the reasoner. We also use

the cooperation to provide more informed answers.

The answers have to clarify what the system can infer

about the question from the knowledge domain.

4 CONCLUSIONS AND FUTURE

WORK

We presented a Cooperative Semantic Web Question

Answering system that receives queries expressed in

natural language and is able to return a cooperative

answer, also in natural language, obtained from Se-

mantic Web resources (Ontologies and OWL2 De-

scriptions). The system is able of dialoguing when the

question has some ambiguity or when it detects that

the answer is not what user expected. Our proposal in-

cludes deep parsing, use of ontologies and other web

resources such as the WordNet and the DBpedia.

As future work, we intend to answer questions that

are more elaborate and/or more difﬁcult. Moreover,

we also plan to extend to the Portuguese Natural Lan-

guage. For this purpose it will be necessary to enrich

the knowledge domain with concepts that may be de-

duced from the initial domain. Although the system

is intended to be domain independent it will be tested

in a number of domains, with special relevance to the

wine and the cinema since for these ﬁelds there are

many resources available in the Semantic Web. We

also plan to build a DRS generator, that builds the

question semantics and retains additional information

that allows the Discourse Controller to build a more

adequate cooperative answer. We contemplate enlarg-

ing the knowledge base with other ontologies in or-

der to support open domain Question Answering and

take advantage of the vast amount of heterogeneous

semantic data provided by the Semantic Web.

REFERENCES

Almendros-Jim

enez, J. M. (2011). A Prolog-based Query

Language for OWL. Electronic Notes in Theoretical

Computer Science, 271:3–22.

Auer, S., Bizer, C., Kobilarov, G., and Lehmann, J. (2007).

Dbpedia: A nucleus for a web of open data. The Se-

mantic Web, 4825(Springer):722–735.

Blackburn, P. and Bos, J. (2005). Representation and infer-

ence for natural language: A ﬁrst course in compu-

tational semantics. Center for the Study of Language

and Information.

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

262

Covington, M. A. (1988). From English to Prolog via Dis-

course Representation Theory ACMC Research Re-

port 01-0024 Introduction / Abstract. Representation

Theory, pages 1–35.

Fellbaum, C. (1998). WordNet: An electronic lexical

database. The MIT press.

Guo, Q. and Zhang, M. (2008). Question answering sys-

tem based on ontology and semantic web. In Proceed-

ings of the 3rd international conference on Rough sets

and knowledge technology, pages 652–659. Springer-

Verlag.

Guo, Q. and Zhang, M. (2009). Question answering

based on pervasive agent ontology and Semantic Web.

Knowledge-Based Systems, 22(6):443–448.

Horrocks, I. (2008). Ontologies and the semantic web.

Communications of the ACM, 51(12):58.

Kamp, H. and Reyle, U. (1993). From Discourse to Logic,

volume 42 of Studies in Linguistics and Philosophy.

Kluwer.

Lopez, V., Fern

andez, M., Motta, E., Sabou, M., and Uren,

V. (2007a). Question Answering on the Real Semantic

Web. In 6th International and 2nd Asian Semantic

Web Conference (ISWC 2007+ ASWC 2007), pages

2–4.

Lopez, V. and Motta, E. (2006). Poweraqua: Fishing the

semantic web. Semantic Web: Research and Applica-

tions.

Lopez, V., Motta, E., and Uren, V. (2007b). AquaLog: An

ontology-driven Question Answering System as an in-

terface to the Semantic Web. Journal of Web Seman-

tics.

Nogueira, V. and Abreu, S. (2007). Temporal contextual

logic programming. Electronic Notes in Theoretical

Computer Science, 177:219–233.

Quaresma, P., Rodrigues, I., Prolo, C., and Vieira, R.

(2006). Um sistema de Pergunta-Resposta para uma

base de Documentos. Letras de Hoje, 41(2):43–63.

Rabelo, J. and Barros, F. (2004). Pergunte! uma interface

em portugu

es para pergunta-resposta na web. Mas-

ter’s thesis, Informatics Center, Federal University of

Pernambuco, Brazil, pages 1114–1117.

Rodrigues, I. P., Ferreira, L., and Quintano, L. (2009).

NL Database Dialogue Question-Answering as a Con-

straint Satisfaction Problem. In Abreu, S. and Seipel,

D., editors, Proceedings of the 18th International

Conference on Applications of Declarative Program-

ming and Knowledge Management (INAP 2009).

Wielemaker, J. (2005). An optimised Semantic Web query

language implementation in Prolog. Logic Program-

ming, pages 128–142.

Wielemaker, J., Hildebrand, M., and van Ossenbruggen,

J. (2007). Using Prolog as the fundament for appli-

cations on the semantic web. Proceedings of ALP-

SWS2007, pages 84–98.

Witzig, S. and Center, A. (2003). Accessing wordnet from

prolog. Artiﬁcial Intelligence Centre, University of

Georgia, pages 1–18.

COOPERATIVE QUESTION ANSWERING FOR THE SEMANTIC WEB

263
