SEMANTIC INTERFACE FOR RESOURCE CONSTRAINED

WIRELESS SENSORS

Arto Ylisaukko-oja

, Pasi Hyttinen

, Jussi Kiljander

, Juha-Pekka Soininen

and Esa Viljamaa

VTT Technical Research Centre of Finland, Oulu, Finland

VTT Technical Research Centre of Finland, Kuopio, Finland

Keywords: Ultra-low power wireless sensors, semantic sensor web.

Abstract: In this paper, a functional implementation of a semantic interface for a resource constrained, battery

operated wireless sensor is presented. The concept is demonstrated by a home greenhouse application where

the semantic interface is applied to moisture sensors which are connected to a database. The solution is

based on M3 architecture for Smart Spaces. The paper discusses the enabling technologies that make the

semantic messaging more viable for resource constrained devices. Performance figures concerning power

consumption, battery duration and memory consumption are presented along with ideas for further

development.

1 INTRODUCTION

Providing a semantic interface for accessing

information of resource constrained wireless sensors

is still a novel concept. The objective of semantic

level interoperability is to enable meaningful sharing

of information between a variety of devices –

including situations and new applications which

have been impossible to take into account at design

time. It is hard to address such demands if e.g. the

data format and their semantics are defined and

implemented for each use case separately. Also

approaches such as device profiles have their limits

in this sense: Bluetooth device profiles, for example,

inherently assume a certain application domain, such

as audio or health device. Such an approach does not

support well any novel ways of utilizing the same

information in novel, unexpected applications.

Wireless sensors are often low capacity devices

in terms of energy, processing, communication,

physical size and cost. A typical wireless sensor is

battery operated and uses one of the standard or

proprietary radio communication technologies.

Standardized radio technologies such as IEEE

802.15.4 or Bluetooth Low Energy have low power

consumption and battery based operation as one of

the most important design criteria. These protocols

also define short message payloads – simple, short

messages are sent, preferably infrequently. The

target is to conserve battery power and achieve

reasonable times of operation before the battery

needs to be replaced. It is a challenge to apply

semantic interfaces to such devices, since memory,

processing time and message length overheads

easily increase, potentially leading to more

expensive and power-hungry devices.

The scope of the work presented in this paper

was to adapt semantic interface to a resource

constrained wireless sensor that we call an Active

Tag. The Active Tag has a radio access to a

database, where it can publish its sensor data in a

semantic form. In addition, the Active Tag can read

data from the database using similar semantic

messages. It can use this information to adjust its

own behaviour.

The aim was to achieve an implementation that

would still enable an ultra-low power

implementation from small batteries, also without

excessive component cost. This meant that

minimizing the resulting overhead was essential, to

prevent excess complexity in software and to keep

radio messages as compact as possible – only this

way can the memory requirements be kept modest

and the operation time of the battery reasonable. The

aim was to keep the power consumption in a level

that would allow several months or years operation

time in typical wireless sensor applications.

The framework for our solution was the M3

smart space architecture, for which open source

505

Ylisaukko-oja A., Hyttinen P., Kiljander J., Soininen J. and Viljamaa E..

SEMANTIC INTERFACE FOR RESOURCE CONSTRAINED WIRELESS SENSORS.

DOI: 10.5220/0003698905050511

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (SSW-2011), pages 505-511

ISBN: 978-989-8425-80-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

software has been developed over the last few years

(Smart-M3 in SourceForge). Some of this

development has been targeting to decreased

complexity and improved execution efficiency.

Therefore, software libraries for implementation

were available. However, they had certain limits –

especially about supported communication

interfaces – that had to be overcome when adapting

to wireless sensor domain.

The overall proof-of-concept demonstration was

implemented as a greenhouse smart space

application, where the Active Tags work as moisture

sensors in plant jars. They use semantic level, RDF

(Resource Description Framework) based messaging

to communicate via RIBS (RDF Information Base

Solution). (RDF Vocabulary Description Language

1.0). The RIBS is the central knowledge base and

semantic information broker (SIB) in the smart

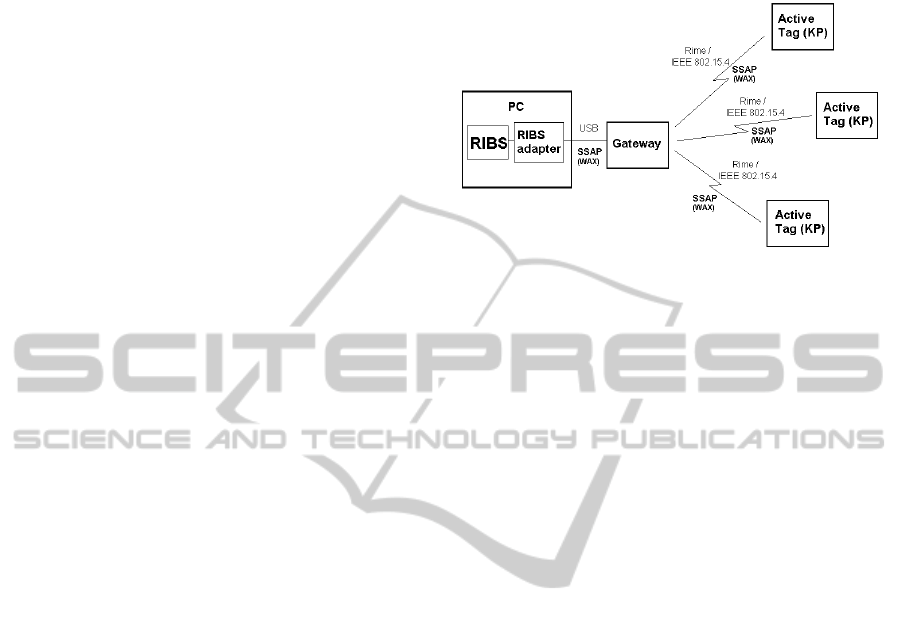

space. Below the semantic communication level

there is simple data access communication between

Active Tag and RIBS. This communication follows

the smart space access protocol (SSAP), with WAX

encoding (Suomalainen and Hyttinen, 2011) that is

suitable for resource limited devices. WAX (Word

Aligned XML) and RIBS are the key technologies in

minimizing the overhead caused by the semantic

level interface.

The overall scenario includes also a Gardener

Terminal device. NFC and optical tag technologies

are used in combination with uCode technology

(Koshizuka and Sakamura, 2010) to configure the

smart space appropriately.

2 BACKGROUND AND

RELATED WORK

2.1 Semantic Web

The Semantic Web is a vision of a next generation

World Wide Web (WWW) in which the semantics

of the information is explicit and openly shared in

the Internet. Explicity and the availability of the

ontology definitions allow run-time interpretation

and new intelligent Web applications and services.

The core technologies comprising the Semantic

Web stack include Resource Description Framework

(RDF), RDF Schema (RDFS), Web Ontology

Language (OWL) and SPARQL (SPARQL,

SPARQL 1.1). Information interoperability in the

Semantic Web is based on defining common

ontologies. RDFS and OWL provide vocabularies

for describing the concepts and relationships

between these concepts, i.e., ontologies. The RDF is

used to present the ontologies in the form of a

subject, predicate and object triples, so it is a very

natural way to make statements about information.

SPARQL query language provides SQL-like query

mechanisms for RDF data. The SPARQL 1.1

expands the 1.0 version by defining also

mechanisms for path queries and for modifying the

data in RDF database. (T. Berners-Lee et al., 2001).

2.2 Semantic Sensor Networks

There are also activities focusing on utilizing

Semantic Web technologies to sensor networks. The

Semantic Sensor Web (SSW) approach targets to

improve the interoperability of sensor networks by

adding temporal, spatial, and thematic metadata to

the measurement data. The SSW aims to achieve this

by extending the OGC and SWE specifications with

Semantic Web technologies (Sheth et al., 2008).

Sense2Web is a platform for publishing and linking

sensor data to the Semantic Web (Barnaghi and

Presser, 2010). Sense2Web Linked-sensor-data

platform enables users to publish RDF serializes

information about their sensors, associate this data

with existing RDF sensor data, link their sensor data

to other resources and make the information publicly

accessible for other semantic web applications via

SPARQL endpoints. In (Patni et al., 2010) a

framework for publishing sensor data to Linked

Open Data Cloud is presented. This is achieved by

converting the sensor descriptions from SWE’s

XML based Observations and Measurements

(O&M) standard to RDF format. It is also

noteworthy that W3C’s Semantic Sensor Networks

Incubator Group (SS-XG) has started to define

ontologies for describing sensor data (W3C’s

Semantic Sensor Networks Incubator Group).

The aforementioned approaches provide

necessary technologies and valuable knowledge for

enabling semantic sensors for the IoT. However,

these approaches do not concentrate on how the real-

life constrained sensors with limited power, memory

and processing capabilities are able to present their

information in, usually very sparse, semantic format.

In addition these approaches do not present how the

sensors could utilize the available machine

interpretable data to improve their own functionality.

The main contribution presented in this paper is a

novel approach for constrained sensors to publish

and access information in semantic form. In our

approach we utilize the Semantic Web based M3

concept. M3 is an infrastructure for providing

semantic interoperability in physical environments.

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

506

We present how constrained sensors can not only

publish their information for global use in semantic

form, but also how the sensors are able to improve

their quality of service (QoS) by utilizing the

semantic information produced by other parties.

3 SYSTEM MODEL

M3 is a concept for utilizing the Semantic Web ideas

and technologies to provide semantic level

interoperability between devices in physical

environments. By utilizing the ontology based

information model the M3 based software agents can

more autonomously interpret the meaning of

information and therefore obtain greater degree of

smartness and flexibility than could be achieved

with traditional use case specific data models. M3

utilizes RDF, RDFS and OWL for presenting the

semantics of information in a computer-interpretable

manner. In the core of M3 is a functional

architecture that specifies how the semantic

information can be accessed in a physical space. The

M3 functional architecture consists of Knowledge

Processors (KP) and Semantic Information Brokers

(SIB). For SIB, we use a specific implementation

called RIBS (RDF Information Base Solution). SIBs

or RIBSs are basically shared RDF databases of

semantic information that provide publish/subscribe

based interface for KPs. The role of KPs is to

provide applications for end-users by interacting

with each other via the RIBS. Smart Space Access

Protocol (SSAP) defines the rules for KP-RIBS

interaction. M3 utilizes existing solutions for the

communication and service level meaning that it is

possible to implement the SSAP protocol with

different service and communication level

technologies.

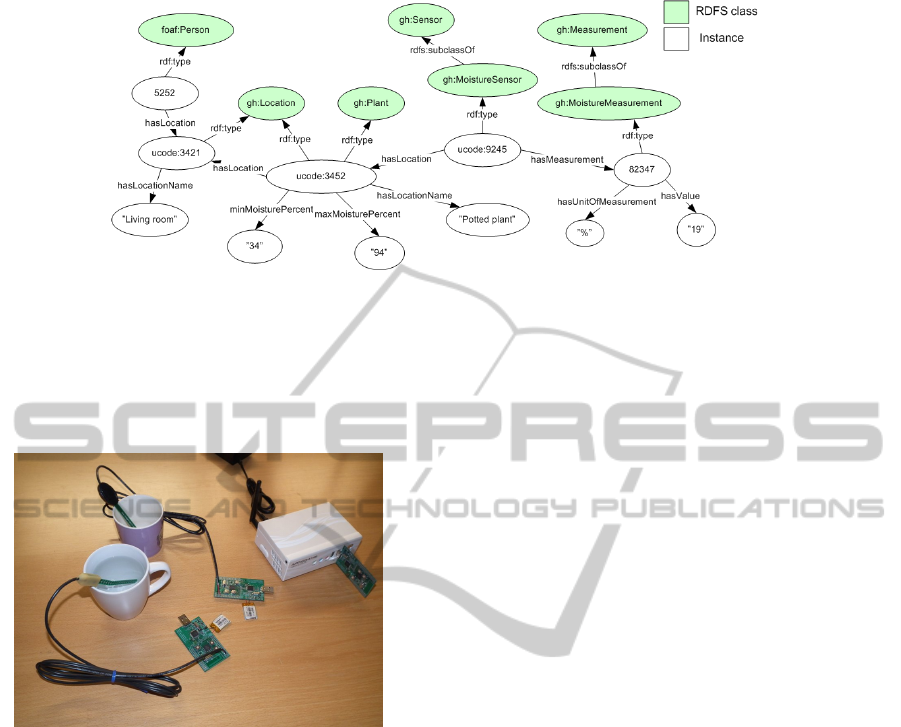

In our case, the Active Tags are essentially KPs

in the system. In the demonstration, the Active Tags

work as intelligent moisture sensors in plant jars; the

basic idea is to indicate if the moisture of the soil is

correct. This is done by two different ways:

1. By inserting the moisture data from Active

Tags to RIBS. The gardener can read the

moisture value by his mobile terminal. The

mobile terminal is also a KP and it also has

a connection to RIBS.

2. By blinking bright LED indication in each

of the sensors in jars, giving visual location

indication for the gardener about the plants

in need of water.

The gardener presence is also inserted to the SIB:

when the gardener touches an NFC location tag, his

presence is inserted to the SIB. The Active Tags

regularly query the presence information and use

this to avoid blinking the LEDs in vain, therefore

reducing power consumption.

4 APPROACH

In this Chapter, we describe the main technical

solutions applied in the implementation of our home

greenhouse demonstration for Active Tags using

semantic interfaces.

4.1 WAX Encoding of SSAP

Word Aligned XML (WAX) is data encoding

scheme where each XML tag, attributes and user

data is packed into memory locations that are

multiples of the word length of the processor. For 32

bit processors the word length is four bytes and thus

WAX tags, attributes and data are placed into

memory using four byte alignment. Four byte

alignment allows data to be treated as byte array or

as word array. The word processing is beneficial

from the processor point of view since the arithmetic

logic units (ALU), system bus and memories are

often designed for word operations.

Word alignment means also that lengths of tags,

attributes and data are multiples of words. The

minimum length is one word and intuitively this is

the favourable length. The lengths of the tags and

attributes of the SSAP fields are four bytes each.

Since the XML end tag has three reserved characters

“<”, “/” and “>” the actual name of the tag may

contain only one character. As an example, the

WAX encoding of the SSAP message tag use letter

M, and thus start tag is “<M> “ and end tag is

“</M>“. Note that the extra space character after

“>” in the begin tag is important and required for the

word alignment.

SSAP message tag without WAX encoding use

tags “<SSAP_message>” (14 bytes) and

“</SSAP_message>” (15 bytes). As byte counts

indicate the message overhead in WAX encoding of

SSAP is 3-4 times lower than in the SSAP without

encoding. The message overhead can be eliminated

totally by removing all metadata of the SSAP

message and using for example some fixed binary

structure for the user data. While this could be

optimal for transmission and memory usage, it will

cause difficulties in interoperability since

interpretation of the messages requires a priori

knowledge of the structure of the message. In this

respect the WAX encoding is a good compromise

SEMANTIC INTERFACE FOR RESOURCE CONSTRAINED WIRELESS SENSORS

507

between semantic interoperability and size of the

message. The metadata is present, but its length is

minimized.

WAX parser may use word alignment for

speeding up the parsing process. Instead of byte

comparison, the WAX parser can use word

comparison for matching tags and attibutes. Roughly

speaking, the integer comparison is four times faster

and than byte comparison for 32-bit processor,

which is also a power consumption advantage.

Similar advantage is present also when composing

WAX message.

A huge benefit is that WAX parser is much more

compact than a generic XML parser – Expat XML

parser used in our earlier work was 206 kB of code

size – too large to even fit to the wireless sensor

platform we are next describing.

4.2 Hardware and Software Platforms

Fig. 1 shows the architecture of the KP – RIBS

network we needed to implement for our study. The

hardware and software platforms are described in the

following.

Many wireless sensor platforms that are intended

for research purposes contain 16- or 8-bit

microcontrollers such as Atmel AVR series or Texas

Instruments MSP430 series devices. However, we

ended up using a 32-bit computing platform. The

main reason for this decision is code efficiency: if

same functionality is performed with 32-bit ARM

based architecture, the resulting amount of

instructions is considerably lower than in case of 16-

bit devices, let alone 8-bit computing platforms. This

is a considerable benefit, keeping the memory

overhead caused by the program code of semantic

interface reasonably low. Although 32-bit

architectures are more power hungry per instruction

than lower word length architectures, this is very

much compensated by the shorter execution time

(assuming equal clock frequencies).

Even if more power efficient and modern

CortexM3/M0 would have been basically preferred,

we ended up choosing an ARM7 based platform by

Freescale, namely MC13224V system-on-chip that

includes ARM7TDMI-S processing core and an

IEEE 802.15.4 compatible 2.45 GHz short-range

radio transceiver. While there was a comparable,

Cortex-M3 based system-on-chip available from ST

Microelectronics (STM32W), we found that the

MC13224V with its total 96 kB divided between

program code and RAM memory gave greater

flexibility. Thus larger RAM buffers would be

possible to implement if needed, as opposed to the

fixed, 8 kilobytes RAM of STM32W. In addition,

MC13224V has the IEEE 802.15.4 MAC layer

readily implemented in ROM.

Figure 1: The star network of Active Tags connected to

RIBS.

The core of our research was the semantic

interface in a resource constrained sensor. Thus we

wanted a platform that would provide existing

support for the underlying wireless communication

mechanism. We decided to run Contiki operating

system on the MC13224V SoC: Contiki includes a

simple IEEE 802.15.4 compatible protocol called

Rime, and Contiki had been readily ported to this

platform (The MC1322x Open Source Project);

(Contiki Operating System. ANSI C was used to

write programs on Contiki OS. To avoid building

new hardware, we decided to build the Active Tag

on the MC13224V based, commercially available

platform by Redwire LLC, called Econotag.

Since IEEE 802.15.4 radio is not standard

equipment in PCs, we decided to use one Econotag

as a gateway in each network. That is, the device

containing the RIBS database needs to have an

Econotag connected to its USB port. In addition,

software had to be implemented to adapt to the

currently supported RIBS interfaces (basically only

socket connections are supported at the moment).

For this purpose, we implemented a simple PC

software program called RIBS adapter that runs in

the RIBS device, communicating with the gateway

device in the USB port and using a socket

connection to communicate the data to the RIBS.

The RIBS can be run in any PC. In our

demonstration, we had it running on a Via Artigo

A1100 compact PC. As moisture sensors in Active

Tags, we selected the VG400 sensor probes from

Vegetronix. These sensors can be powered directly

from a general-purpose IO pin of the

microcontroller. The sensor can measure water level

or moisture in soil of a plant jar.

Fig. 2 shows the Active Tag related portion of

the demonstration system. On the left, two battery

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

508

Figure 3: Ontology for Home Greenhouse.

operated Active Tags with moisture sensors are

shown. Here, the moisture sensors are measuring

water level in the coffee mugs. On the right, RIBS

PC is shown with attached Gateway to support IEEE

802.15.4 communications of the Active Tags.

Figure 2: Two Active Tags with moisture sensors and the

RIBS PC with Gateway.

4.3 Home Greenhouse Ontology

The ontology developed for the case study contains

four logically distinct physical entities: Person,

Location, Plant and Sensor. The Person class is

imported from the Friend of a Friend (FOAF)

ontology and the “foaf” namespace is thus used. For

Location, Plant and Sensor classes namespace “gh”

(form greenhouse) is used. These entities are

modelled as RDFS classes. The RDFS is used as the

ontology language because the RIBS provides RDFS

level reasoning.

The Location class presents a physical location

such as a town, house, room or pot, for example. In

this demonstration it is used to both present when

some person is in the same room with an Active Tag

(the Gardener Terminal is used for gardener

presence indication) and with which plant the Active

Tag is located in a same jar. The Plant class presents

necessary information about the plant. In this

demonstration the minimum and maximum

preferences for soil moisture are used. The actual

potted plant is modelled as an instance of both

Location and Plant classes.

The Sensor class models a physical object

capable of measuring its surroundings. Instances of

the Sensor class can be associated with a Location

class instance by using the “gh:hasLocation”

property. To allow sensor to have multiple different

measurements with different unit types the

measurements of a sensor is modelled as a separate

class. The Measurement class has properties for

presenting the value and unit of the measurement.

Subclasses for Sensor and Measurement class are

used to model the exact type of the sensor and

measurement respectfully. In this demonstration

only the MoistureSensor and MoistureMeasurement

classes are used.

Fig. 3 illustrates an example instant of the home

greenhouse ontology in the RIBS. Note that part of

the ontology description is related to the Gardener

Terminal.

4.4 Software Operation in Active Tags

To implement an ultra-low power battery operated

wireless sensor, it is essential to minimize the time

the radio is switched on. Furthermore, all the parts

should be in the deepest possible sleep mode for a

major part of time. This has effect on what publish-

subscribe methods are preferred.

The Active Tag uses insert and update

operations to publish its data along the common

ontology model (presented in the section C) into the

RIBS. Due to the nature of the greenhouse

application, this can take place quite infrequently,

such as once per minute (at least when gardener is

not present – if he is, the responsiveness of the

Active Tags can be automatically improved by

SEMANTIC INTERFACE FOR RESOURCE CONSTRAINED WIRELESS SENSORS

509

shortening the communication interval). To read

data from RIBS, we avoid subscribe, since it would

basically require the Active Tag to be ready for

communication at an arbitrary moment. Instead, the

Active Tag use query on a regular basis (following

the moisture data insert or update) to ask for

gardener presence data from RIBS. In the beginning

of operation, Active Tag also uses query for getting

the maximum and minimum moisture values from

RIBS.

Between the moisture measurement and above-

mentioned communication operations, the Active

Tag is in deep sleep mode: the microcontroller in

hibernate sleep mode and the radio and moisture

sensor being powered off. The internal RC oscillator

of the microcontroller is used as a wake-up circuit. If

a more precise wake-up circuit is needed, a low

power oscillator using a 32 kHz crystal is also

available.

5 VALIDATION

5.1 Power Consumption and Battery

Duration

The battery life of a wireless sensor is essentially

determined by the average power consumption. This

is a combination of sleep and active mode power

consumptions. To determine this, the current

consumption of the sleep mode was measured with a

digital multimeter and the active mode current was

measured with a current probe and an oscilloscope.

During the measurements, the Active Tag was

running a cycle where it wakes up, measures

moisture, inserts moisture data to RIBS, queries

gardener presence and goes back to sleep. No LED

is blinked in the test sequence.

During measurements, the Active Tag was operated

from a 3V supply without voltage regulation. This is

equivalent of using two 1.5V AA size batteries in

series without regulation. The current consumption

during sleep was measured to be 10.5 µA (all RAM

pages and microcontroller state retained). This is

equal to 32 µW. It is possible also not to retain the

microcontroller state, in which case the sleep current

was measured to be 5.1 µA.

The sleep mode consumption defines the absolute

maximum for the battery duration. For two 1.5V,

2700 mAh alkaline batteries in series the 10.5 µA

consumption yields a theoretical duration of 29 years

(self-discharge not taken into account). The practical

duration is of course further determined by the

wake-up interval and the power consumption during

the active cycle.

According to the measured current profile, the

active cycle consumes roughly 11.3 mA for the

duration of 236 ms and 28.8 mA for the duration of

388 ms. The current consumptions are at expected

levels, but the active cycle length is remarkably

long: the amount of data communicated during one

active cycle is approximately 1 kB with Rime and

IEEE 802.15.4 headers included, which takes 32 ms

of transmission/reception time. However, the time to

get a response from RIBS is now dependent on the

operation of the PC the RIBS is located in. This is

bound to increase the time the radio is kept on.

Nevertheless, the current implementation seems to

include extensive delays in operation that need to be

carefully sorted out in further development.

Despite the obvious need for optimization, we

get an average current consumption of 241 µA from

3 volts @ 60 second wake-up interval. For two 1.5V,

2700 mAh alkaline batteries in series this yields a

theoretical battery duration of 1.3 years (battery self-

discharge and LED blinking consumption not taken

into account). Even with 10 s wake-up interval we

would still get 2.7 months battery duration.

5.2 Microcontroller Resources

The resulting code size, with join, insert and query

operations enabled, was 39.7 kB. This is 26%

increase compared to a reference software that

includes only the underlying Contiki OS and the

Rime protocol – the reference software also does not

include the application software. Increase in RAM

memory use was more dramatic: from 14.3 kB in

reference software to 25.3 KB in our Active Tag

software (77% increase). RAM requirements need

further analysis in our further work.

6 CONCLUSIONS

A functional semantic interface was implemented

for a battery operated, resource constrained wireless

sensor. The sensor publishes data in a semantic

database, but also queries semantic data, adjusting

its operation accordingly.

Despite obvious need for improvement in active

cycle duration, the sensor achieves theoretical

battery duration of 1.3 years from two 1.5V AA

batteries at 60 s wakeup/communication interval.

Code size was increased by 26% compared to a

reference implementation with only Contiki OS and

radio protocol implemented (excluding the semantic

KEOD 2011 - International Conference on Knowledge Engineering and Ontology Development

510

interface and the application software). RAM

requirement increased by 77%, respectively.

One possibility to minimize radio on time could

be to use the Gateway as a message buffer in RIBS

communications, avoiding the need to wait for PC

program execution – in this case, subscribe could be

a viable alternative to query. Possibilities to

minimize message length further should also be

studied – an average WAX message length to be

sent is now 160 bytes. Binary XML is a potential

solution. Shortening the messages would make

semantic interface more viable with technologies

such as Bluetooth Low Energy that use even shorter

maximum message payloads than IEEE 802.15.4

radio.

Applying query languages such as SPARQL in a

resource constrained wireless sensor is another

possible research topic in the future.

REFERENCES

Smart-M3 in SourceForge: http://sourceforge.net/projects/

smart-m3/

RDF Vocabulary Description Language 1.0: RDF Schema,

W3C Recommendation 10 February 2004. URL:

http://www.w3.org/TR/rdf-schema/ [Accessed 14

October 2010].

Suomalainen, J., Hyttinen, P.: Security Solutions for Smart

Spaces. The Second International Workshop on

Semantic Interoperability for Smart Spaces (SISS

2011). July 18-21, 2011, Munich, Germany.

Koshizuka, N., Sakamura, K.: Ubiquitous ID: Standards

for Ubiquitous Computing and the Internet of Things.

Pervasive Computing, IEEE, 2010, pp. 98-101

T. Berners-Lee, J. Hendler, O. Lassila, “The Semantic

Web,” Scientific American Magazine, May 17, 2001.

SPARQL Query Language for RDF, W3C

Recommendation 15 January 2008. URL:

http://www.w3.org/TR/rdf-sparql-query/

SPARQL 1.1 Query Language W3C Working Draft, 12

May, 2011, URL: http://www.w3.org/TR/sparql11-

query/

A. Sheth, C. Henson, and S. Sahoo, “Semantic sensor

web,” Internet Computing, IEEE, vol. 12, no. 4, pp.

78–83, July-Aug. 2008.

Barnaghi, P. and Presser, M.: Publishing Linked Sensor

Data. In Kerry Taylor, Arun Ayyagari, David De

Roure (Eds.): The 3rd International workshop on

Semantic Sensor Networks 2010 (SSN10) in

conjunction with the 9th International Semantic Web

Conference (ISWC 2010), 7-11 November 2010,

Shanghai, China.

Patni, H.; Henson, C.; Sheth, A.: "Linked sensor data",

International Symposium on Collaborative Technolo-

gies and Systems (CTS), 2010, vol., no., pp.362-370,

17-21 May 2010.

W3C’s Semantic Sensor Networks Incubator Group home

page. URL: http://www.w3.org/2005/Incubator/ssn/

The MC1322x Open Source Project: http://mc1322x.devl.

org/

Contiki Operating System: http://www.sics.se/contiki/

SEMANTIC INTERFACE FOR RESOURCE CONSTRAINED WIRELESS SENSORS

511
