Evolving Software Quality Knowledge

Daniel Speicher

Computer Science III, University of Bonn, Bonn, Germany

Abstract. Instead of having a system of rigid quality criteria, we suggest to co-

evolve the knowledge about good and bad design with the code. Based on an in-

frastructure that represents object-oriented code in a logic factbase, we describe

how to deﬁned code critiques (”bad smells”) and well established structures (”de-

sign pattern”) and how to make the bad smells aware of the design pattern. A case

study on ArgoUML shows that it is more effective to ﬁnd unjustiﬁed warnings by

taking developers knowledge into account then by structural criteria.

1 Introduction

Good software design improves maintainability, evolvabilty and understandability. As

any maintenance or evolution step requires the developer to understand the software

reasonably good, understandability is the most crucial of these qualities. Therefore it

can not be a goal to develop detection strategies for design ﬂaws that a developer does

not need to understand to use them. How could a criterion for understandability be

meaningful, if it is not understandable itself? Developers should know and understand

the detection strategies they use. In this paper we want to argue, that in addition detec-

tion strategies should know more of what developers know. It is essential for automated

design ﬂaw detection to be adaptable to respect developers knowledge found in the

design.

Detection strategies for design ﬂaws need to be generic, as they are meant to apply

to many different systems. On the other hand software solutions are at least to some part

speciﬁc. If there were no need for speciﬁcity, it would not require many developers to

build software. This does not yet say, that generic quality criteria are inappropriate, as

there might be - and probably are - some general principles that should be met always.

What it does say, is that developers answer to speciﬁc design challenges, so that there

is at least some probability that there are good reasons to make a different choice in

a speciﬁc situation than one would make while discussing design in general. We will

present such (moderately) speciﬁc situations.

We wrote this article on the background of established Refactoring literature. With

a broader acceptance of object-oriented programming at the end of the last century

programmers needed advice to build systems with high maintainability and evolvability.

Today the catalog of signs for refactoring opportunities (bad smells) [1] developed by

Beck and Fowler as well as the catalog of proven design solutions (design pattern) [2]

developed by Gamma, Helm, Johnson and Vlissides are common software engineering

knowledge.

Speicher D..

Evolving Software Quality Knowledge.

DOI: 10.5220/0003699100360047

In Proceedings of the 2nd International Workshop on Software Knowledge (SKY-2011), pages 36-47

ISBN: 978-989-8425-82-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Marinescu devised in [6] a method to translate the informal descriptions of bad

smells [1] and object-oriented design heuristics [7] into applicable so called detection

strategies. The method ﬁrst decomposes the informal descriptions into parts, which are

then translated into an expression built of metrics and comparisons with thresholds.

These expressions are then composed into one rule with the help of the elementary

logical operators. Marinescu and Lanza elaborate in [5] how developers should sys-

tematically work through the bad smells (here called disharmonies) and step by step

resolve cohesion problems (“identity disharmonies”) then coupling problems (“col-

laboration disharmonies”) and ﬁnally problems in the type hierarchy (“classiﬁcation

disharmonies”). Developers are in general well equipped with this book and established

reengineering und refactoring literature [8], [1], [4].

Overview. The rest of the paper is organized as follows. Section 2 will discuss, how the

same design fragment can be a well respected design pattern and an instance of a well

know bad smell. As the choice of the design pattern is expected to be the result of trade-

offs, the smell detection should be enabled to take the knowledge about the pattern into

account and ignore this smell instance. Section 3 therefore develops our approach based

logic meta programming. We represent the Java code base as Prolog facts, on which we

deﬁne detection strategies and design pattern as predicates. Finally we explain, how we

suggest to incorporate the knowledge about pattern into the knowledge about smells.

Section 4 shortly suggests how to use our infrastructure to develop a process of step-

wise evolution of design knowledge. Section 5 ﬁnally reports about a case study, that

gives an example where taking developer intentions into account, strongly increases the

precision of a detection strategy.

2 Visitors Tend to have Feature Envy

Objects bring data and behavior together. This is at the core of object-orientation and

allows developers to think of objects in programs similar as of real objects. The devia-

tion from this ideal are the smells data class and feature envy. A class is a data class if

the class has mainly data and only little behavior. A method in a class has feature envy,

if it operates for the major part on data of another class. Still in some situations one

wants to separate the data and the behavior of one conceptual object into two or more

technical objects, which can result in both smells.

The Visitor pattern as in Fig. 1 places functionality that operates on the the data of

certain objects (Elements) in separate classes (Visitors). One reason for this separation

is, that the Elements build a complex object structure and the functionality belongs

rather to the whole structure than to single Elements. Another reason might be, that

the functionality is expected to change more frequently and/or is used only in speciﬁc

conﬁgurations. Since the functionality in the Visitor accesses the data of the Elements,

this intended collaboration could falsely be identiﬁed as Feature Envy.

There are variations of the same data-behavior separation in other design pattern, as

listed in Tab. 1. We separate data into an extra object, if we want other objects to share

this data. So does the ExtrinsicState in the Flyweigth Pattern and the Context in the

Intepreter Pattern. As a result the classes which use this data (Flyweight in Flyweight,

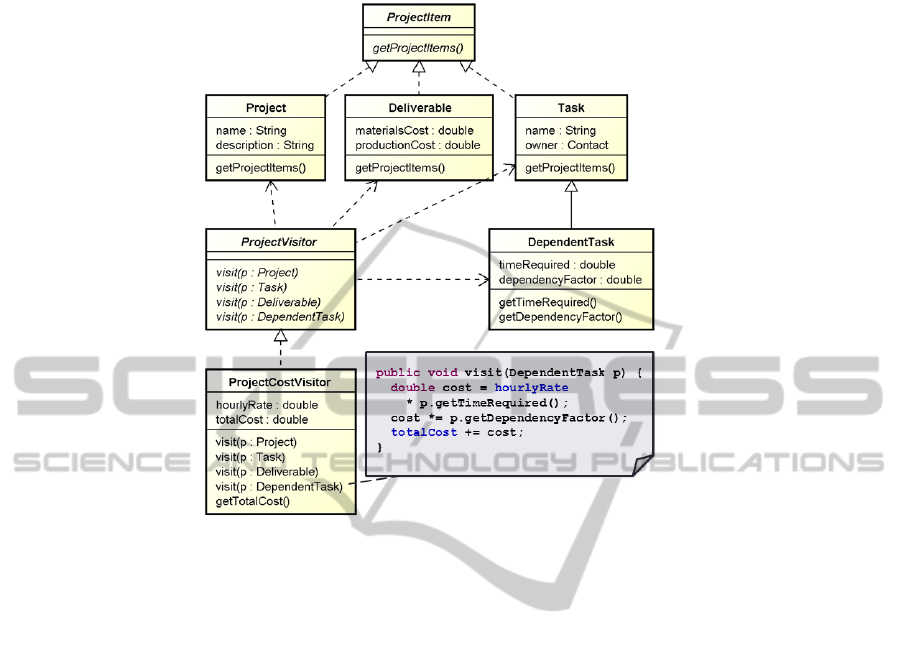

Fig. 1. A simple Visitor: The ProjectItems build a tree structure via the

getProjectItems() method. The ProjectCostVisitor implements the single re-

sponsibility to calculate the total costs of a project. He accesses the data of the ProjectItems

to fulﬁll this responsibility.

Expressions in Interpreter) develop Feature Envy. In the Memento Pattern some data

of the Originator is stored in a separate data class called Memento. We separate be-

havior from the data, if we want to dynamically change it as we do by exchanging one

ConcreteState for another in the State Pattern. The more data is left and accessed in the

Context class, the stronger the Feature Envy will be. Finally, if we want to let Colleague

classes interact with each other without knowing about each other the ConcreteMedia-

tor might operate on the data of a few of the Colleagues.

3 Logic based Code Analysis

In the following we want to introduce the overall architecture of our prototype.

3.1 Structures

Our implementation of the structures behind the metrics and of the structures of design

pattern are similar. They consist of a set of predicates that generates - given an handle

element - a labeled graph.

Table 1. Data-Behavior Separation: Roles in the pattern that can develop a smell as a consequence

of strong data-behavior separation.

Pattern Data Class Feature Envy

Flyweight ExtrinsicState Flyweight

Interpreter Context Expression

Mediator ConcreteMediator

Memento Memento Originator

State Context ConcreteState

Strategy ConcreteStrategy

Visitor Element ConcreteVisitor

The smell feature envy analyses how strongly a method operates on ﬁelds of another

class. This analysis involves can be seen as the analysis of a certain graph with nodes

for the method and the own and foreign attributes and as well for the access relation.

The pattern visitor can be seen as graph with nodes for the single abstract visitor

and the single abstract element and a few nodes for the concrete visitors and concrete

elements. Access relations could be seen as part of this graph, but this is not necessary

for our purpose.

Deﬁnition 1 (Structure Deﬁnition). A structure deﬁnition consists of

– one unary predicate that tests whether a program element is the handle of a struc-

ture,

– some binary predicates that tests whether given the handle of a structure, another

program elements plays a certain role in the structure with this handle,

– and some ternary predicates that tests whether given the handle, a relation between

two other program elements that play a role in this structure holds true.

Deﬁnition 2 (Structure). Given a structure deﬁnition and a program element that ful-

ﬁls the handle predicate, we call this program element the handle of the structure, where

the structure consists of

– role players, which are all program elements annotated with the name of a role

predicate of the structure deﬁnition, for which the role predicate is true, if we use

the handle as a ﬁrst argument and the role player as a second argument;

– relation player duos, which are all pairs of program elements annotated with the

name of a relation predicate of the structure deﬁnition, for which the relation pred-

icate is true, if we use the handle as a ﬁrst argument, the ﬁrst element of the pair as

second argument, and the second element of the pair as a third argument.

3.2 Fact Representation of Object-oriented Code

Our prototypes are implemented as plug-ins for development environment Eclipse.

They contain a builder that runs everytime the builder of the Java Development Tool

is run and translates the complete Java Abstract Syntax Tree (AST) of a program into

a representation in Prolog facts. In this AST all references are resolved and all lan-

guage elements of Java 5 are represented. Figure 2 shows the facts representing the ﬁrst

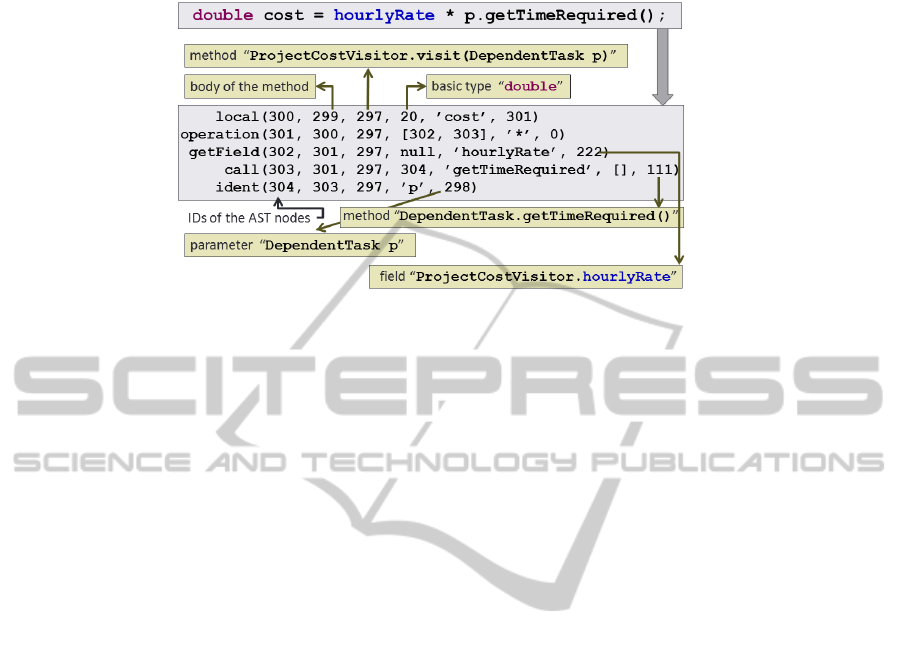

Fig. 2. Fact representation of the ﬁrst line of the method

ProjectCostVisitor.visit(DependentTask).

statement in method visit(DependentTask) in ProjectCostVisitor. Each fact

represents a node of the AST. The ﬁrst parameter of a fact is a unique ID that is used

to reference this node. The second parameter is a back reference to the parent node.

The third parameter references the enclosing method. The remaining parameters con-

tain some attributes as well as references to the child nodes. It is very easy to build on

this fact representation more abstract predicates, as for example in listing 1.1:

method_contains_call(M, C) :- call(C, _, M, _, _, _, _).

call_calls_method(C, M) :- call(C, _, _, _, _, _, M).

Listing 1.1. Derived Predicates.

In the following we will use many predicates of this kind without deﬁning them.

The names of the predicates should convey their meaning.

3.3 Smell Detection Strategies

Smell Detection Strategies as deﬁned by Marinescu and Lanza in [5] are elementary

logical formulas build of comparisons of metrics with corresponding thresholds. To

illustrate our approach we will explain the detection strategy for the smell Feature Envy

top-down. The detection strategy reads

feature_envy(M) :-

feature_envy_structure(M),

access_to_foreign_data(M, ATFD), ATFD > 2,

locality_of_attribute_access(M, LAA), LAA < 0.3,

foreign_data_provider(M, FDP), FDP =< 5.

The ﬁrst goal veriﬁes that M is a method for which we can calculate the feature

envy. It is build of three metrics Access To Foreign Data (The number of directly or

indirectly accessed ﬁelds in a foreign class), Locality of Attribute Access (The ratio to

which, the accessed ﬁelds are from the own class.) and Foreign Data Provider (The

number of foreign classes from which the methods accesses a ﬁeld.) are calculated.

These metrics simply count the number of certain role player in the structure, as the

source code shows:

access_to_foreign_data(M, Value) :-

count(F, method_accesses_foreign_field(M, M, F), V).

locality_of_attribute_access(M, V) :-

count(F, method_accesses_own_field(M, M, F), AOF),

count(F, method_accesses_foreign_field(M, M, F), AFF),

Value is AOF / (AOF + AFF).

foreign_data_provider(Method, Value) :-

count(C, method_accesses_foreign_class(M, M, C), V).

The metrics build on the role (own class, own ﬁeld, foreign class, foreign ﬁeld) and

relation (method accesses own ﬁeld, method accesses foreign ﬁeld) deﬁnitions of the

feature envy structure. The ﬁrst lines of the deﬁnition read like follows:

feature_envy_structure(S) :-

source_method(S), not(abstract(S)).

method(S, M) :-

feature_envy_structure(S), S = M.

own_class(S, C) :-

method(S, M), method_is_in_type(M, C).

own_field(S, F) :-

own_class(S, C), type_contains_field(C, F),

modifier(F, private).

[...]

method_accesses_foreign_field(S, M, F) :-

method(S, M),

foreign_field(S, F),

once(method_accesses_field(M, F)).

[...]

Listing 1.2. Feature Envy Structure (Excerpt).

We illustrated this structure in Figure 3. The complete structure consists of the roles

and the relations.

3.4 Lightweight Pattern Deﬁnition

To make our smell detection pattern aware, we need only a very lightweight pattern

deﬁnition. The structure for the pattern consists of the roles visitor, concrete visitor,

method in concrete visitor, visited element and ﬁeld in visited element. The complete

deﬁnition reads like follows:

visitor_pattern(P) :-

declared_as_visitor(P).

visitor(P, V) :-

visitor_pattern(P), P = V.

concrete_visitor(P, C) :-

visitor(P, V), sub_type(V, C), not(interface(C)).

method_in_concrete_visitor(P, M) :-

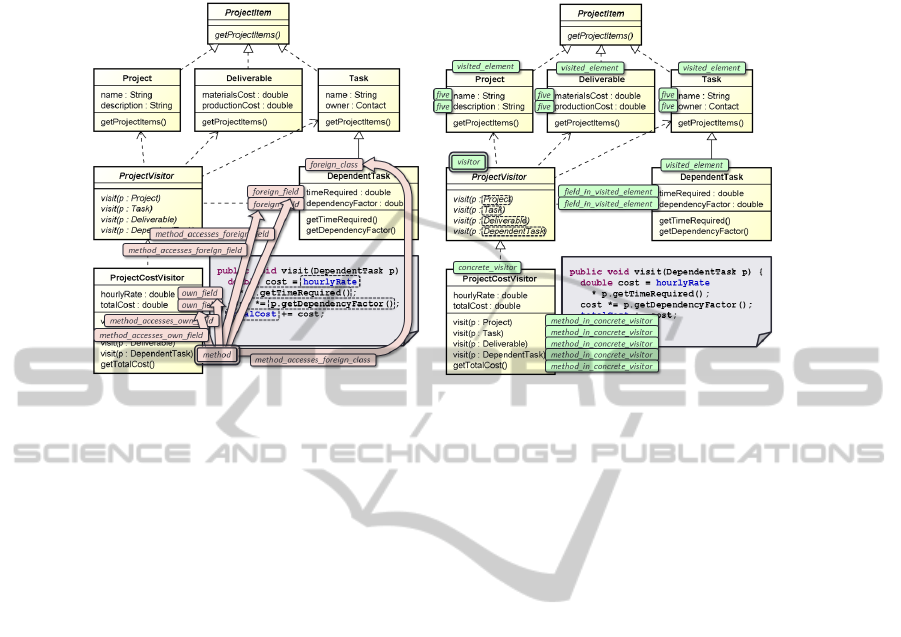

(a) Feature Envy Structure (b) Lightweight Visitor Pattern

Fig. 3. The instance of the visitor pattern overlayed with: (a) The feature envy structure for the

method visit(DependentTask) in the ProjectCostVisitor. (b) The lightweight pat-

tern deﬁnition for the visitor pattern with the handle ProjectVisitor. “ﬁve” is an abbrevia-

tion for “ﬁeld in visited element”.

concrete_visitor(P, C), type_contains_method(C, M).

visited_element(P, E) :-

visitor(P, V), type_contains_method(V, M),

method_has_parameter(M, R), parameter_has_type(R, E).

field_in_visited_element(P, F) :-

visited_element(P, E), type_contains_field(E, F).

Listing 1.3. Visitor Pattern.

Note that we impose very little constraints on the elements and relations within the

pattern. The idea is to focus in a ﬁrst step on the identiﬁcation of the elements and

relations, describing the extension of the design pattern. The predicates are means to

capture the intended extension of the developer under the assumption that he expressed

it well enough. Typically developers use standard names or name parts at least for some

of the role players in a pattern and we found that all other role players can be identiﬁed

starting from one of these. Alternatively one could require that one or a few role players

are annotated with the role.

To let the developers tie their class via a naming convention to the pattern, there

should be predicate like:

declared_as_visitor(V) :- class_name_ends_with(V, ’Visitor’),

not(subclass(V, P), class_name_ends_with(P, ’Visitor’)).

To tie it to the pattern via an annotation, another predicate should be used:

declared_as_visitor(V) :- class_annotated_with(V, ’Visitor’).

Deﬁning what it actually means for these elements to form a design pattern is a

second step. This distinction allows us to say that the role players implement a design

pattern incorrectly in contrast to just saying, that the pattern is not there. And we may

even evolve our knowledge about the intension of a design pattern (What it means to be

a design pattern) separate from the knowledge about the extension of a design pattern

(Which elements of the program a meant to form the design pattern.) The goal that a

developer wants to achieve, the intention of the pattern, should be seen as part of the

intension.

3.5 Intention Aware Smell Detection

To make the smell detection aware of the possible intentions, we add a check

into the respective predicates at the earliest possible place, i.e. as soon as the varia-

bles are bound. For this purpose we deﬁne predicates intended_field_access,

intended_method_call, natural_odor. Here is the adapted code for the relation

method accesses foreign ﬁeld of the feature envy structure and the dataclass.

dataclass(C) :-

named_internal_type(C),

not(natural_odor(dataclass, C)),

weight_of_class(C, WOC), WOC < 3.34,

[...]

method_accesses_foreign_field(S, M, F) :-

method(S, M),

foreign_field(S, F),

not(intended_field_access(M, F)),

once(method_accesses_field(M, F)).

Listing 1.4. Intention aware relation and smell.

Given this adaptation and the deﬁnition of the pattern, it is easy to make the smells

ignore the intended ﬁeld access and the natural odor:

natural_odor(dataclass, Element) :-

concrete_element(_, Element).

intended_field_access(M, F) :-

visitor_pattern(P),

method_in_concrete_visitor(P, M),

field_in_visited_element(P, F).

Listing 1.5. ’Publishing intentions and natural odors’.

The smell dataclass will now ignore any class that plays the role of a concrete ele-

ment in the visitor pattern. In the calculation of the feature envy structure all accesses

from a method in a concrete visitor to a ﬁeld in a visited element will be ignored. That

is, feature envy towards other classes will still be detected.

As a side note: Having to adapt all the different relations and smell deﬁnitions is not

desirable. An aspect-oriented adaptation would be very helpful here and Prolog is very

well suited to be enhanced with Aspects.

Another way to adapt the smells is to use thresholds that depend as well on the roles

an element plays. We will not discuss this option although it is obviously considerable.

4 Conﬂicts Stimulate Knowledge Evolution

We suggested to use our technology for an alternating process of code review (qual-

ity improving) and code documenting (quality knowledge improving). For the process

of quality improvement [5] give an excellent guideline. For the process of improving

the explicit quality knowledge, we gave a ﬁrst suggestion here. Currently we expect

the strongest stimulus to increase the design knowledge in unjustiﬁed smell warnings.

Making the design explicit allows the smell to ignore it, while providing much more in-

formation than a single declaration that just asks to ignore this smell instance (like with

the @SuppressWarnings in Java 5). Of course in the longer run, this design knowledge

needs reviewing as well. We would suggest to make further expectations explicit and

verify them. For example there should be no dependencies from any Concrete Element

in the Visitor Pattern to any Concrete Visitor. Another expectation is, that the Element

classes can stay much more stable than the visitors do. Making this expectation explicit

and executable, will allow for a third feedback cycle.

5 Evaluation

5.1 Smell in Pattern

Sebastian Jancke implemented the detection strategies as well as a few more as part of

his diploma thesis [3]. The instances of Natural Odors he found are listed in table 2.

Table 2. Natural Odors Found in Open Source Software Projects.

Smell Role/Concept Source Code

Feature Envy Concrete Visitor JRefactory 2.6.24, SummaryVisitor

Feature Envy Concrete Strategy JHotDraw 6, ChopBoxConnector

Middleman Abstract Decorator JHotDraw 6, DecoratorFigure

Law of Demeter Violation Embedded DSL Google Guice 2.0

Shotgun Surgery (stable) API [everywhere]

5.2 Taking Advantage of Expressed Intentions: Creation Methods

In [5, Ch. 6] ”Collaboration Disharmonies” Lanza and Marinescu reference design

knowledge in a way, that is unique within their detection strategies. The two strate-

gies Intensive Coupling and Dispersed Coupling contain besides conditions about the

coupling an additional condition ”Method has few nested conditionals” measured by

MAXNESTING > SHALLOW, where MAXNESTING is the maximal nesting

depth of blocks in the method and SHALLOW is 1. The authors motivate this con-

dition as follows:

“Additionally, based on our practical experience, we impose a minimal

complexity condition on the function, to avoid the case of conﬁguration oper-

ations (e.g., initializers, or UI conﬁguring methods) that call many other meth-

ods. These conﬁguration operations reveal a less harmful (and hardly avoid-

able) form of coupling [. . . ].” [5, p.121]

This motivation references the concept of operations (methods) for conﬁguration.

Although this concept is not precisely deﬁned, the description gives every experienced

OO programmer a ﬁrst operational impression about it. The condition is interesting

because it makes an exception with the reference to this explicit concept that is not just

a language level concept.

Therefore we wanted to test this statement with a little case study using the current

version of the same source code that was used in [5]

. To discuss this statement we

call methods with MAXNESTING = 1 ﬂat and present the claim in form of three

hypotheses:

Flat methods are conﬁguration methods. (1)

It is safe to ignore the coupling in ﬂat methods. (2)

It is safe to ignore the coupling in conﬁguration methods. (3)

A quick view at the source code showed that the hypothesis (1) is wrong. Many of

the ﬂat methods are obviously test methods and some are neither test nor conﬁguration

methods. It turned out that the code was well designed enough, so that we could rely

on naming conventions. Exploring twenty randomly and a few systematically chosen

methods following these naming conventions we were convinced that the two following

statements were true for the code under consideration:

In ArgoUML methods with names starting with “init”, “create”,

“build” or “make” are conﬁguration methods.

(4)

In ArgoUML methods with names starting with “test” or containing

the term “Test” in their name or in the name of the enclosing class

of the method are test methods.

(5)

Given this two name based rules and the detection strategies for Intensive Coupling

and Dispersed Coupling (without the condition of the methods being ﬂat) we were able

to classify the methods. The result is presented in Table 3.

Table 3. Methods in ArgoUML: The maximal nesting within the method and the classiﬁcation

into conﬁguration, test and other methods inﬂuences whether the method has Intensive or Dis-

persed Coupling.

All Methods Intensive Coupling Dispersed Coupling

Max. Nesting conﬁg test other Σ conﬁg test other Σ conﬁg test other Σ

1 772 880 6416 8068 19 57 26 102 27 143 32 202

2 318 110 2468 2896 88 97 19 204 60 24 213 297

> 2 152 53 2128 2333 209 234 29 472 52 34 568 654

Σ 1242 1043 11012 13297 316 388 74 778 139 201 813 1153

On the ﬁrst view Hypothesis (1) seems to be backed by the data, as many (772/

1242 = 62%) conﬁguration methods are indeed ﬂat and most (1090/1242 = 88%)

http://argouml.tigris.org/, accessed in June 2011. The 13 projects referenced in the team project

set ﬁle “argouml-core-projectset.psf” were used and all 13297 non abstract methods of the

2083 named classes were analyzed. For [5] the version from October 2004 was used.

have nesting not bigger than 2. Unfortunately these conﬁguration methods build only

a small fraction (772/8068 = 10% or 1090/10964 = 10%) of the methods with

limited nesting, so that hypothesis (1) is not true, as we already said. Still, there are

many (8068/13297 = 61%) ﬂat methods, so that excluding them from further analy-

sis can improve performance. We further observe, that the major part of the methods

with intensive coupling are conﬁguration methods (316/778 = 41%) and test methods

(388/778 = 50%). The major part (781/1153 = 68%) of the methods with dispersed

coupling are other methods with a nesting of at least 2.

We still have to discuss whether this is safe to ignore ﬂat methods, conﬁguration

methods and test methods. The coupling in conﬁguration methods is indeed hardly

avoidable as all the decoupled classes need to be instantiated and connected somewhere.

That is, the coupling in some speciﬁc methods is a natural consequence of the overall

decoupling effort across the system. Even if the responsibility for conﬁguration is ”ex-

tracted” into XML conﬁguration ﬁle, the coupling is still part of the system although

not part of the source code in the original programming language.

To test Hypothesis (3) that coupling in conﬁguration methods can be ignored, we

reviewed the 13 conﬁguration methods with the highest coupling intensity (22 − 116)

that have one of the smells: Even they are clearly understandable and the coupling is

not harmful. The same is true for the 13 test methods with the highest coupling intensity

(28 − 68).

To challenge the nesting condition, we reviewed the 13 methods with highest cou-

pling intensity (10 − 16) within the other methods with no nesting, but with one of

the smells. Our impression was not that clear as in the two cases before, but still the

coupling did not require any refactoring

. Therefore we see no reason to reject Hypoth-

esis (2).

To summarize, we expect all smells in conﬁguration methods and all test methods to

be false positives. The same is true for all methods with no nesting, i.e. Hypothesis (2)

and (3) are plausible. The nesting condition reduces the smell results by 102/778 =

13% or 202/1153 = 18% while ignoring conﬁguration and test methods reduces the

results by 704/778 = 90% or 340/1153 = 29%. So, if smell detection can use other

information than structure (e.g. naming conventions) to identify conﬁguration methods

and test methods, the number of false positives can be strongly reduced.

configuration_method(M) :-

declared_as_configuration_method(M).

natural_odor(intensive_coupling, E) :-

configuration_method(E).

declared_as_configuration_method(M) :-

source_method(M), method_name(M, N),

member(P, [’init’, ’create’, ’build’, ’make’]),

starts_with(N, P).

Indeed half of them turned out to be a sort of conﬁguration method again. So restricted (!)

to the methods with smells the nesting condition could be a reasonable heuristic to detect

conﬁguration methods, i.e. (1) is true.

6 Contributions

This paper showed that automated bad smell detection should take developer inten-

tions into account, as different structural quality criteria are appropriate, depending on

these intentions. To illustrate this point we discussed a well known design pattern and

how it is still good design even if it shows a smell. These intentions are often already

expressed in the code, but not yet available to the automated analysis. We presented

a technological and conceptual framework that allows to combine the perspectives of

structures that should be avoided (bad smells) and structures that are useful building

blocks (design pattern). We presented our approach to implement structures based on

logic meta-programming and explained how smell detection can be made aware of ex-

isting structures in code. We suggested to use our technology for an alternating process

of code review (quality improving) and code documenting (culture improving). A case

study showed that the precision can be increased if the design knowledge that devel-

opers already made explicit is utilized instead of guessing developer intentions from

structural properties.

Acknowledgements

The author wants to thank everyone who made this research possible. Sebastian Jancke

developed the “smell detection in context” plug-in, an earlier version of the prototype

presented here, and evaluated the usability beneﬁts of this approach. My colleague Jan

Nonnen, current and former diploma students as well as former participants of our labs

contribute to the evolution of “Cultivate”, our platform code quality evaluation and

coding culture evolution. Tobias Rho, Dr. G“unter Kniesel and further students develop

“JTransformer” our platform that makes logic meta programming for Java possible and

comfortable. Finally the author wants to thank Prof. Dr. Armin B. Cremers for letting

the author work on this interesting topic.

References

1. Martin Fowler. Refactoring: improving the design of existing code. Addison-Wesley Longman

Publishing Co., Inc., Boston, MA, USA, 1999.

2. Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides. Design Patterns. Addison-

Wesley, Boston, MA, January 1995.

3. Sebastian Jancke. Smell detection in context, diploma thesis. University of Bonn, 2010.

4. Joshua Kerievsky. Refactoring to Patterns. Pearson Higher Education, 2004.

5. Michele Lanza and Radu Marinescu. Object-Oriented Metrics in Practice: Using Software

Metrics to Characterize, Evaluate, and Improve the Design of Object-Oriented Systems.

Springer, 1 edition, 9 2006.

6. Radu Marinescu. Detection strategies: Metrics-based rules for detecting design ﬂaws. In

ICSM ’04: Proceedings of the 20th IEEE International Conference on Software Maintenance,

pages 350–359, Washington, DC, USA, 2004. IEEE Computer Society.

7. Arthur J. Riel. Object-Oriented Design Heuristics. Addison-Wesley Professional, 5 1996.

8. O. Nierstrasz S. Demeyer, S. Ducasse. Object Oriented Reengineering Patterns. Morgan

Kaufmann, July 2002.
