UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

Andr

e Lourenc¸o

1,2

, Liliana Medina

, Ana Fred

and Joaquim Filipe

3,4

Instituto Superior de Engenharia de Lisboa, Lisbon, Portugal

Instituto de Telecomunicac¸

oes, Instituto Superior T

ecnico, Lisbon, Portugal

Institute for Systems and Technologies of Information, Control and Communication, Lisbon, Portugal

School of Technology of Set

ubal, Polytechnic Institute of Set

ubal, Set

ubal, Portugal

Keywords:

Unsupervised learning, Clustering, Clustering combination, Clustering ensembles, Text mining, Feature

selection, Concept induction, Metaterm.

Abstract:

Unsupervised organisation of documents, and in particular research papers, into meaningful groups is a difﬁ-

cult problem. Using the typical vector-space-model representation (Bag-of-words paradigm), difﬁculties arise

due to its intrinsic high dimensionality, high redundancy of features, and the lack of semantic information. In

this work we propose a document representation relying on a statistical feature reduction step, and an enrich-

ment phase based on the introduction of higher abstraction terms, designated as metaterms, derived from text,

using as prior knowledge papers topics and keywords. The proposed representation, combined with a cluster-

ing ensemble approach, leads to a novel document organization strategy. We evaluate the proposed approach

taking as application domain conference papers, topic information being extracted from conference topics or

areas. Performance evaluation on data sets from NIPS and INSTICC conferences show that the proposed

approach leads to interesting and encouraging results.

1 INTRODUCTION

The increase in the volume of scientiﬁc literature and

its dissemination using the Web is leading to an infor-

mation overload. Scientiﬁc literature comprises dif-

ferent kinds of publications, as scientiﬁc articles pub-

lished in journals, book chapters, papers in confer-

ences, technical reports, etc. This kind of literature

has a standardized structure (title, abstract, introduc-

tion, methods, results, conclusions), and typical writ-

ing style, resulting in very similar documents. One of

the key problems is that it is poorly categorized, being

difﬁcult to retrieve all the main articles of a speciﬁc

topic.

Autonomous citation indexing (ACI) (Lawrence

et al., 1999) has been proposed to help the organi-

zation of scientiﬁc literature by automating the con-

struction of citation indices. A citation index cata-

logues the citations that an article makes, linking the

articles with the cited works. These mechanisms help

scientists to ﬁnd work that cites their own work or is

relevant to their research, but does not solve the prob-

lem of documents organization.

Machine learning methods have been used

proposing several approaches for the problem. Docu-

ment clustering provides a possible solution, grouping

articles into categories, based on different informa-

tion extracted from them, using only the textual con-

tent of the article (Janssens et al., 2006)(Aljaber et al.,

2010), and/or the citation graph analysis (Ahlgren and

Jarneving, 2008; Boyack and Klavans, 2010).

The representation of the textual content of docu-

ments using the standard bag-of-words model is only

effective for grouping related documents when shar-

ing a large proportion of lexically equivalent terms.

This standard approach ignores synonymies and other

relations between words, which reduces the effective-

ness of this document representation scheme.

In this work we propose a methodology to clus-

ter scientiﬁc literature based on its textual content and

on a priori categorization of each document on broad

classes according to a classiﬁcation system provided

to the authors. We propose an extension of the typical

bag-of-words representation introducing metaterms,

concepts derived from the text that try to go beyond

the syntax, forming a conceptualization that connects

related terms.

We follow a recent and promising trend in un-

supervised learning, namelly clustering combination

techniques (Fred, 2001; Fred and Jain, 2005; Strehl

557

Lourenço A., Medina L., Fred A. and Filipe J..

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS.

DOI: 10.5220/0003722905490560

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (SSTM-2011), pages 549-560

ISBN: 978-989-8425-79-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

and Ghosh, 2002; Hanan and Mohamed, 2008),

which typically outperform the results of single clus-

tering algorithms, achieving better and more robust

partitioning of the data, combining the information

provided by a clustering ensemble (CE). Moreover

this class of algorithms further enables the combina-

tion of several sources of information (e.g. citations)

for the clustering of scientiﬁc documents.

The remainder of the paper is organized as fol-

lows. Section 2 describes related work. Section 3

presents the proposed methodology, dividing the so-

lution in the following phases: stop-word removal (in

section 3.1); meta-terms creation (in section 3.2); and

clustering strategy (in section 3.3). Section 4 presents

the data sets used for evaluation and section 5 the

main results. Finally, in section 6 we draw the main

conclusions and future work.

2 RELATED WORK

Document categorization can be divided in two

stages: a) transforming the documents into a suitable

and useful data representation; b) organizing the data

into meaningful groups.

Consider a set of D documents X =

{

,...,d

}

to be clustered. Commonly, document information

is represented using a vector space model or bag-

of-words (Manning et al., 2008) where each docu-

ment, d

, is represented by document tokens aggre-

gated in a feature vector with F dimensions, d

{

,...,w

}

; w

, represents the relative importance

of each token in the document. Typically w

is com-

puted using the Term Frequency-Inverse Document

Frequency weighting (TF-IDF) (Sebastiani, 2005).

The most simple form of a token is a word, but com-

pound terms can also be used such as bigrams, tri-

grams and noun phrases.

Recent work (Hotho et al., 2003; Sedding and

Kazakov, 2004; Reforgiato Recupero, 2007), con-

siders not only syntactic information, obtained from

the terms present in a document, but also semantic

relationships between terms. These approaches are

mostly based on WordNet (Fellbaum, 1998), which

is a lexical database that groups English words into

sets of synonyms, called synsets. Most synsets are

connected to other synsets via several semantic rela-

tions, such as: synonymy, hypernymy, meronymy and

holonymy.

In (Hotho et al., 2003), the standard representa-

tion of a document is enriched with concepts derived

from WordNet, using several strategies: (a) replac-

ing terms by concepts; (b) using concepts only; (c)

or extending the term vector with WordNet concepts.

These strategies lead to a new document represen-

tation, d

, which includes a concept subspace, d

{

,...,w

,...c

}

, where c

represents a concept.

These concepts correspond to hypernyms of ex-

tracted terms, that is to more generic words than the

extracted term. In (Hotho et al., 2003), the analysis

relied on single-term analysis, while in (Zheng et al.,

2009b) a more complete phrase-based analysis was

performed.

Concerning the clustering algorithm several ap-

proaches are followed in the literature. In (Hotho

et al., 2003; Sedding and Kazakov, 2004; Refor-

giato Recupero, 2007) a variant of the K-means, the

Bi-Section-K-means is used, stating that this method

frequently outperforms the standard K-means. In

(Boyack et al., 2011) a more complex partitioning of

the document collection is proposed. They start by

obtaining a graph of related documents, based on sev-

eral document similarity measures; after employing a

pruning step over the obtained graph, an average-link

algorithm is used to assign each document to a cluster

based on proximity of remaining edges. This process

is run 10 separate times with different starting points,

and the results are re-clustered, or combined, using

only those document pairs that are clustered together

in at least 4 of 10 preliminary solutions. The method

was evaluated on more than two million biomedical

publications.

3 PROPOSED APPROACH

The motivation behind the proposed methodology

consists on the unsupervised organization of scien-

tiﬁc papers into meaningful subsets, accomplished

through the derivation of a conceptualization relat-

ing terms that describe the categories used by authors

to classify their articles using a scientiﬁc classiﬁca-

tion system, such as the ACM Computing Classiﬁca-

tion System (ACM, 1998). This conceptualization is

created using a bottom-up approach, based on docu-

ments’ textual content. This information can be inter-

preted as a priori knowledge, and allows a more accu-

rate representation of documents content, improving

the typical bag-of-words representation.

Our approach differs from previous work, in two

perspectives: (a) the analysis of text relies on com-

pound terms; (b) we add hypernyms to the base rep-

resentation, which are not imposed by Wordnet, but

are instead extracted from the data textual content.

Figure 1 presents a general overview of the pro-

posed methodology.

We start by the extraction of single words, w

, and

compound terms, ct

(bigrams, trigrams and/or noun

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

558

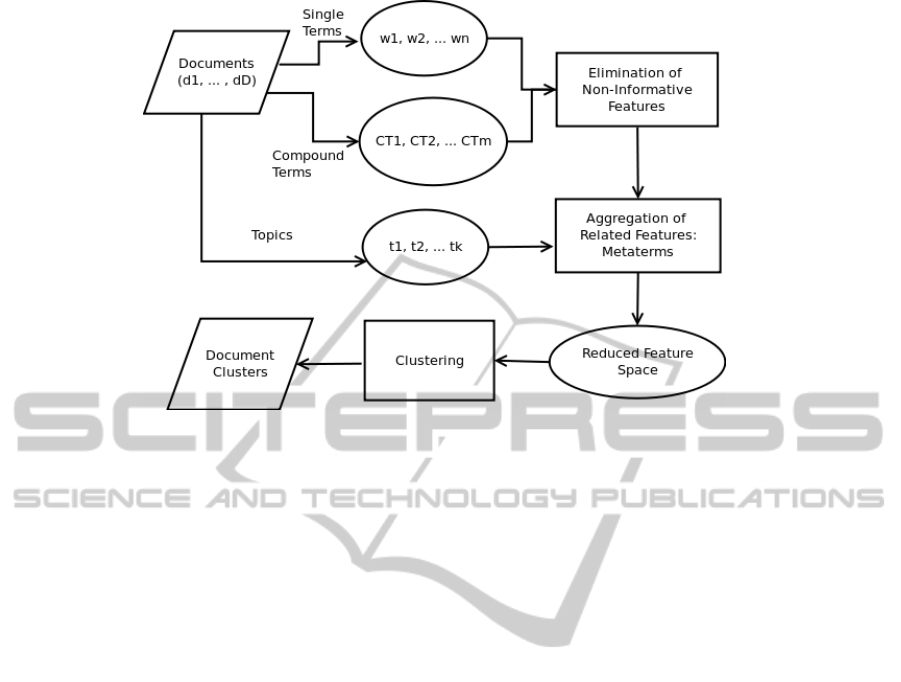

Figure 1: Proposed Methodology: (1) Document Representation; (2) Elimination of Non-Informative Features; (3) Aggrega-

tion of Related Features; (4) Clustering.

phrases) from the text; this takes place after removing

all the punctuation from the text, as well as mathe-

matical formulas. These features are extracted from

the documents using a natural language processing

(NLP) tool speciﬁcally built for this purpose. Each

document is represented by a feature space, composed

by, d

{

,...,w

,ct

,...ct

}

This representation has the following challenges:

• The dimensionality (w + m) is very high.

• Existence of redundant or irrelevant features.

• This representation does not take into account

the possible, semantic, relationships between fea-

tures.

In order to reduce the feature space, we pro-

pose two independent steps: (1) Removal of non-

informative words in the context of the document

collection; (2) Aggregation of related features (both

words and compound terms) into a more general

and more meaningful feature, which we refer to as

metaterm.

Our hypothesis is that the feature space reduction

by aggregating terms into metaterms will provide a

better, more accurate text representation.

Using this alternative representation, we ﬁnally

organize the documents using a clustering combina-

tion algorithm.

3.1 Context-dependent Stop-Word

Removal

Stop word removal is one of the most common ap-

proaches to non-informative feature removal. Stop-

words are terms that appear too frequently in doc-

uments and thus provide low discriminative power

(Van Rijsbergen, 1979). In this work, we go one

step further, assuming that this problem is context-

dependent. We address this problem applying a sta-

tistical criterion to the document collection in analy-

sis, trying to remove redundant or irrelevant features

of the type word: the percentage of documents where

the word occurs.

We consider that if a word occurs in a very high

percentage of documents, then it must not be very

meaningful in the context of the data set. The same

hypothesis is applied for the case when the term oc-

curs in a very small percentage of documents.

After applying this step over a data set, we expect

to obtain a reduced feature space comprised of the

most meaningful words and compound terms present

in the text.

3.2 Aggregation of Related Features:

MetaTerm Creation

In (Zheng et al., 2009a), concept induction is per-

formed using Latent Semantic Analysis (LSA) tech-

niques, based on single terms and common phrases

extracted from the documents. Relations between

concepts are constructed using WordNet, extracting

hypernyms for each detected concept. The draw-

back of this approach is the dependance on WordNet,

which is a general and context-independent resource.

We deﬁne a metaterm as the entity representing a

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

559

AREA 1

TOPIC 1 TOPIC N

. . . . . . .

Find the D documents

assigned to Topic 1.

d1, d2, .... , dD

k1, k2, .... , kK

f1, f2, .... , fF

Find the K keywords

assigned to the D

and find the F features

that occur in the subset.

Find semantic/syntactic relationships between keywords

and features.

TOPIC 1

f1 f5 .... fF-2

f4 f7 .... fF

. . . . . . .

Produce metaterms by

aggregating features that

satisfy one or more criteria.

docs

Figure 2: Aggregation of related features.

subset of words and/or compound terms which are ei-

ther synonyms or have some kind of semantic relation

(with variable degrees of ‘closeness’). These concepts

have a direct analogy to Wordnet hypernyms, since

they represent also higher-level expressions, but are

obtained using different sources.

Our approach uses as external source of a pri-

ori information the conference topics, assigned by

authors when submitting their work to conferences.

These topics are considered the roots of the metaterms

to be created. For each topic we analyse the keywords

provided for each document.

We propose as criterion for the extraction of

metaterms based on the keywords an adaptation of

the Lesk Algorithm (Dao and Simpson, 2005) (Baner-

jee and Pedersen, 2003). The Lesk Algorithm (Lesk,

1986) disambiguates words in short phrases, compar-

ing the dictionary deﬁnition or gloss of a given word

to the glosses of every other word in the phrase. A

word is assigned the sense whose gloss shares the

largest number of words with the glosses of the other

words. The used adaption consists of using WordNet

as dictionary, with senses arranged in a hierarchical

order. This criterion was chosen based on the assump-

tion that words in a given neighborhood will tend to

share a common topic.

Figure 2 presents these procedures, showing for

a given topic an example of terms/compound terms

related with keywords that will produce a metaterm.

The minimum number of co-occurrences/ Lesk Dis-

tance is speciﬁed by the user.

An example of three metaterms obtained for the

topic ”‘Datamining”’ may be observed in Figure 3.

Each metaterm was based on a particular keyword,

assigned to documents that belong to the chosen topic

(circled purple).

The reduced feature space represents each doc-

ument as d

new

{

,...,m

,...,w

,ct

,...ct

}

where m

represents a metaterm, and w

and ct

single

terms and compound terms that were not aggregated.

We used the TF-IDF weighting scheme. Let’s de-

note t f

, j

as the frequency of the feature t

on the doc-

ument d

, when t

is either a word or a compound

term; and id f

as the the inverse frequency of t

The TF-IDF weight for a metaterm, m

is a combi-

nation of the frequency values of its components. Let

T be the number of components of m

. The number of

occurrences of this metaterm in a document d

, #m

i, j

is given by #m

i, j

∑

t∈T

t, j

where #

t, j

is the number

of occurrences of each term t ∈ T within d

. Let M

be the subset of metaterms that occur in d

: thus, the

frequency of m

in the document is t f

, j

i, j

∑

q∈M

q, j

The inverse frequency of m

is id f

= log

{d:m

∈D}

and ﬁnally

t f id f

, j

= t f

, j

× id f

(1)

The feature space may be further (or alternatively)

reduced by applying techniques such as Latent Se-

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

560

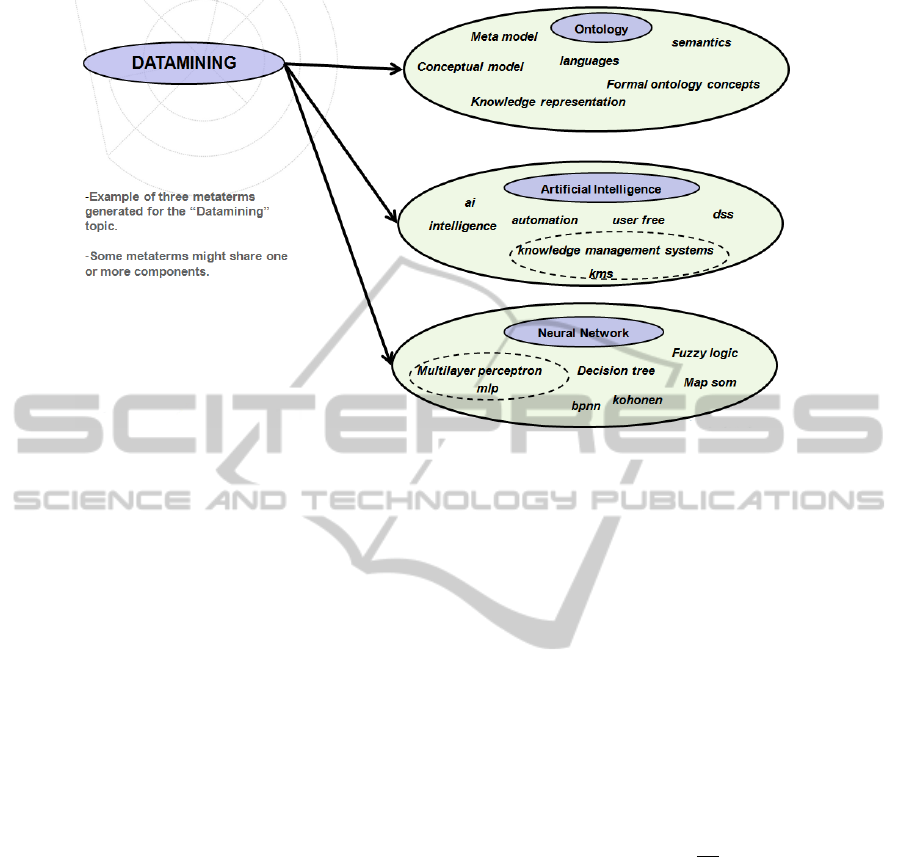

Figure 3: Three metaterms obtained for the topic ”‘Datamining”’, based on the keywords ”Ontology”, ”Artiﬁcial intelligence”

and ”Neural network”.

mantic Indexing (LSI), which reduces the number of

features by generating a new feature space that would

capture, ideally, the true (semantic) relationships be-

tween documents(Sevillano et al., 2009). It uses Sin-

gle Value Decomposition (SVD) to decompose the

TF-IDF matrix into a subset set of k orthogonal vec-

tors:

M = UΣV

, (2)

where M is a term-by-document matrix, U and V

are the left and right singular vectors matrices, and σ

is the singular values matrix. Dimensionality reduc-

tion is accomplished by retaining the ﬁrst z columns

of matrix V (Sevillano et al., 2009). Therefore, the

dimensionality of the reduced feature space, z, must

be carefully chosen.

3.3 Clustering

A clustering algorithm organizes a set of objects, in

this case documents, into k clusters by generating a

partition of the data into k groups, P = {C

,...,C

The assignment of these patterns into different clus-

ters is based on a given similarity or dissimilarity met-

ric such that the similarity between patterns of the

same cluster is greater than the similarity between

patters belonging to different clusters.

Different clustering algorithms lead in general to

different organization of patterns. A recent approach

consists on the production of a more robust clustering

results by combining the results of different partitions,

called the clustering ensembles (CE). A CE is a set of

N different partitions of X, P = {P

,...,P

}, where

each partition P

= {C

,...,C

}, has k

clusters. This

partitions can be generated by the choice of clustering

algorithms or algorithmic parameters, or using differ-

ent feature representations, as described in (Fred and

Jain, 2005).

Evidence Accumulation (EAC) is one of the clus-

tering ensemble methods that enables the combina-

tion of several partitionings of the data set. The un-

derlying assumption is that patterns belonging to a

natural cluster are very likely to be assigned in the

same cluster in different partitions. Taking the co-

occurrences of pairs of patterns in the same cluster as

votes for their association, the N data partitions of n

patterns are mapped into a n × n co-association ma-

trix:

C (i, j) =

i j

(3)

where n

i j

is the number of times the pattern pair (i, j)

is assigned to the same cluster among the N partitions.

This matrix corresponds to an estimate of the proba-

bility of pairs of objects belonging to the same group,

as assessed by the N partitions of the ensemble.

A consensus partition can be extracted applying a

clustering algorithm, which typically induces a hard

partition, to the co-association matrix (Fred and Jain,

2005). The decision on the number of clusters of the

consensus partition, might be based on speciﬁc cri-

teria, such as the cluster lifetime criterion (Fred and

Jain, 2005), or based on ground truth information.

In this work, as source for the clustering algo-

rithms we used the different representations of docu-

ments described before. The construction of the clus-

tering ensemble (CE) is generated using the k-means

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

561

algorithm, taking as distance measure one minus the

cosine of the angle between the vectors representing

the documents. Each partition of the ensemble is pro-

duced with a varying number of clusters. The mini-

mum and the maximum number of clusters were de-

termined as a function of the number of samples, n

,as

given by the expression (Lourenc¸o et al., 2010):

min

max

} = {dn

/Ae,dn

/Be}, with A = 50 and

B = 20.

For the extraction of the consensus partition

we used several hierarchical agglomerative methods

(Single Link - SL, Complete Link - CL, Average

Link - AL, Ward’s Link - WL), and Metis algorithm

(Karypis et al., 1998). The number of extracted clus-

ters is equal to the number of topics of each confer-

ence.

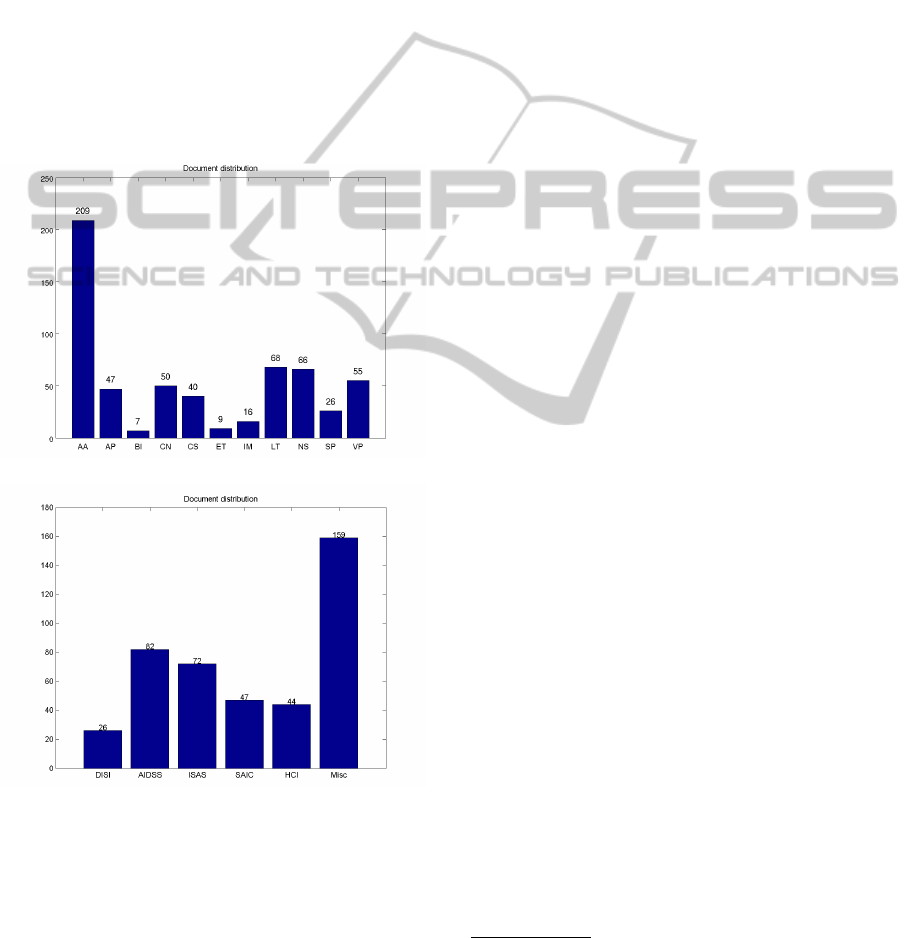

(a) NIPS

(b) ICEIS

Figure 4: Documents distribution: 4(a) document-per-topic

distribution of the NIPS papers, and 4(b) document-per-area

distribution of the ICEIS papers.

4 EXPERIMENTAL SETUP

We applied the previously detailed methodology to

two data sets, referred to as NIPS and ICEIS.

The NIPS data set, built by (Globerson et al.,

2007), consists of 2484 documents from 17 NIPS

conferences held between 1987 and 2003. There

are 14036 distinct words occurring in this data set.

Given that the topic distribution for 593 documents

from years 2001 to 2003 is available, we applied our

methodology to this subset of papers. The original

feature space for this subset is comprised of 6881

words.

The ICEIS

data set consists of 430 documents

from one conference organized by INSTICC

2009. The ICEIS event is subdivided into 5 confer-

ence areas, and each area is further subdivided into

topics. Documents were grouped according to the

area / topic, in a total of 75 topics. This data set

contains 20460 distinct features (words, bigrams, tri-

grams, etc.).

Each NIPS topic has an associated set of ex-

pressions

, assigned by the conferences organizers.

Given that the papers submitted to NIPS conferences

do not have keywords assigned by the authors, we use

these expressions as keywords and search for docu-

ments where they occur in order to produce sugges-

tions for metaterms.

The ICEIS keywords-per-document assignment is

available, which allows us to combine this informa-

tion with the documents-per-topic information and

build speciﬁc metaterms.

Figure 4 depicts the topic distribution for both

data sets is. The topics for the NIPS data are: Al-

gorithms & Architectures (AA); Applications (AP);

Brain Imaging (BI) ; Control and Reinforcement

Learning (CN); Cognitive Science (CS); Emerging

Technologies (ET); Implementation (IM); Learning

Theory (LT); Neuroscience (NS); Speech and Sig-

nal Processing (SP); Vision Processing (VP). The AA

category is the largest with 209 documents, represent-

ing almost half of the documents of the collection. For

the ICEIS data set the topics are: Databases and Infor-

mation Systems Integration (DISI); Artiﬁcial Intelli-

gence and Decision Support Systems (AIDSS); Infor-

mation Systems Analysis and Speciﬁcation (ISAS);

Software Agents and Internet Computing (SAIC);

Human-Computer Interaction (HCI); Miscelaneous

topic, representing documents with more than one

topic (Misc). This last category is the largest with

159 documents.

These categorizations are not very clear and many

times very fuzzy. Due to this reason, the methodology

followed for the evaluation of the results is not based

International Conference on Enterprise Information

Systems: http://www.iceis.org/

http://insticc.org/

http://nips.cc

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

562

Table 1: Experimental framework: associated parameter values and description.

Experiment Data Set Task Algorithm/Parameter Description Value

1,2,3

NIPS and ICEIS Stopwords Re-

moval

Removal (%)

Max

Maximum percentage of documents

where a word may occur.

12%

Min

Minimum percentage of documents

where a word may occur.

0.5%

1,2,3

NIPS and ICEIS Clustering En-

semble K-Means

number of partitions 200

min

minimum number of clusters

max

maximum number of clusters

1,2,3 NIPS and ICEIS Extraction SL, CL, AL, WL,

metis

k lifetime Final partition’s cluster number 11 and 5

NIPS Feature space

reduction

LSI

M dimensionality of the new feature space 27

th threshold 0.4

ICEIS Feature space

reduction

LSI

M dimensionality of the new feature space 35

th threshold 0.5

NIPS

Aggregation

Lesk Algorithm L

minimum graph proximity between two

features for aggregation

0.9

ICEIS Aggregation Lesk Algorithm L

minimum graph proximity between two

features for aggregation

0.85

on accuracy calculation (based on this ground truth).

We analyse the clusters looking at the features of the

documents composing them, to the document distri-

bution, and to the pairwise similarity between the doc-

uments on each cluster (obtained from the application

of the EAC clustering algorithm).

To understand the impact of the metaterms, we

performed, over both data sets, the experiments de-

tailed below. The clustering is always performed us-

ing the EAC algorithm over a clustering ensemble of

200 partitions of the baseline representation, obtained

with the K-means algorithm.

Experiment 1. Our baseline experiment pertains

to the TF-IDF representation matrix obtained af-

ter applying the irrelevant feature removal step of

the methodology, with no aggregation of terms into

metaterms.

Experiment 2. The TF-IDF matrix is transformed

by applying LSI over the matrix obtained on Experi-

ment 1.

Experiment 3. Here, the feature aggregation step

for metaterm creation is performed in order to reduce

the dimensionality of the feature space. We explore

two criteria for term aggregation: Lesk algorithm and

co-occurrences, obtaining thus two different represen-

tations.

The different parameters associated with the ex-

periments are summarized in Table 1. For the Stop-

words removal we empirically verify that using as

minimum and maximum percentage of documents

having a token of 0.5% and 12%, respectively, we

conserved words that seemed important for distin-

guishing documents. For the aggregation of related

features step, we empirically chose 0.9 and 0.85 as

thresholds for the minimum graph proximity, for the

NIPS and ICEIS data set, respectively, trying to guar-

antee that only strong relations were chosen.

5 RESULTS AND DISCUSSION

Many studies compare cluster solutions based on pre-

deﬁned document sets based on expert opinion. In the

present study we do not have such information, or the

available information is considered fuzzy. We chose

to evaluate the results based on the following: (1)

pairwise similarity between documents within clus-

ters, available in the co-association matrices obtained

by the EAC clustering algorithm; (2) distribution of

documents by topic; (3) Adaptation of within-cluster

textual coherence (Boyack and Klavans, 2010), based

on Jensen-Shannon divergence; (4) examples of most

relevant features of each cluster.

The co-association matrices obtained using EAC,

are represented by a color scheme ranging from blue

(C (i, j) = 0) to red (C (i, j) = 1), corresponding to

the magnitude of similarity, and the axis represent the

documents organized such that documents belonging

to the same cluster are displayed contiguously. This

information is also represented on the colorbar on top

of each ﬁgure, where each color represents the ob-

tained clusters. Well formed partitions have a pro-

nounced block-diagonal structure, revealing that the

similarity within clusters is very high when compared

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

563

to documents in different clusters.

Regarding the distribution of documents by topic,

we present histograms representing the number of

documents assigned to each topic on each of the ob-

tained clusters. Moreover, we present, at the top of

the histogram, a bar representing the conﬁdence over

each cluster (ranging over the same color scheme as

before). This conﬁdence is obtained based on the av-

erage similarity of pairwise associations within a clus-

ter.

The textual coherence (Boyack and Klavans,

2010), is computed based on Jensen-Shannon diver-

gence (JSD), which computes the distance between

two probability distributions, p and q:

JSD(p,q) = 1/2D

(p,m) + 1/2D

(q,m) (4)

where m = (p +q)/2, and D

is the Kullback-Leiber

divergence

(p,m) =

∑

log(p

)) (5)

We consider that p and q represent the probabilities of

words in two distinct documents. The JSD is calcu-

lated for each cluster as the average JSD value over all

documents in the cluster, represented as JSD

. JSD is

a divergence measure, meaning that if documents in a

cluster are very different from each other its value will

be very high; while if documents have very similar

words distributions, its value will be low. We obtain

the coherence of a partition, as a weighted average

over all clusters:

Coh =

∑

JSD

∑

, (6)

where n

is the number of documents per cluster.

In Experiment 1 - the baseline experiment, using

only the feature removal step, - the NIPS original fea-

ture space is reduced to 5660 words, and the ICEIS

feature space to 14987 distinct features.

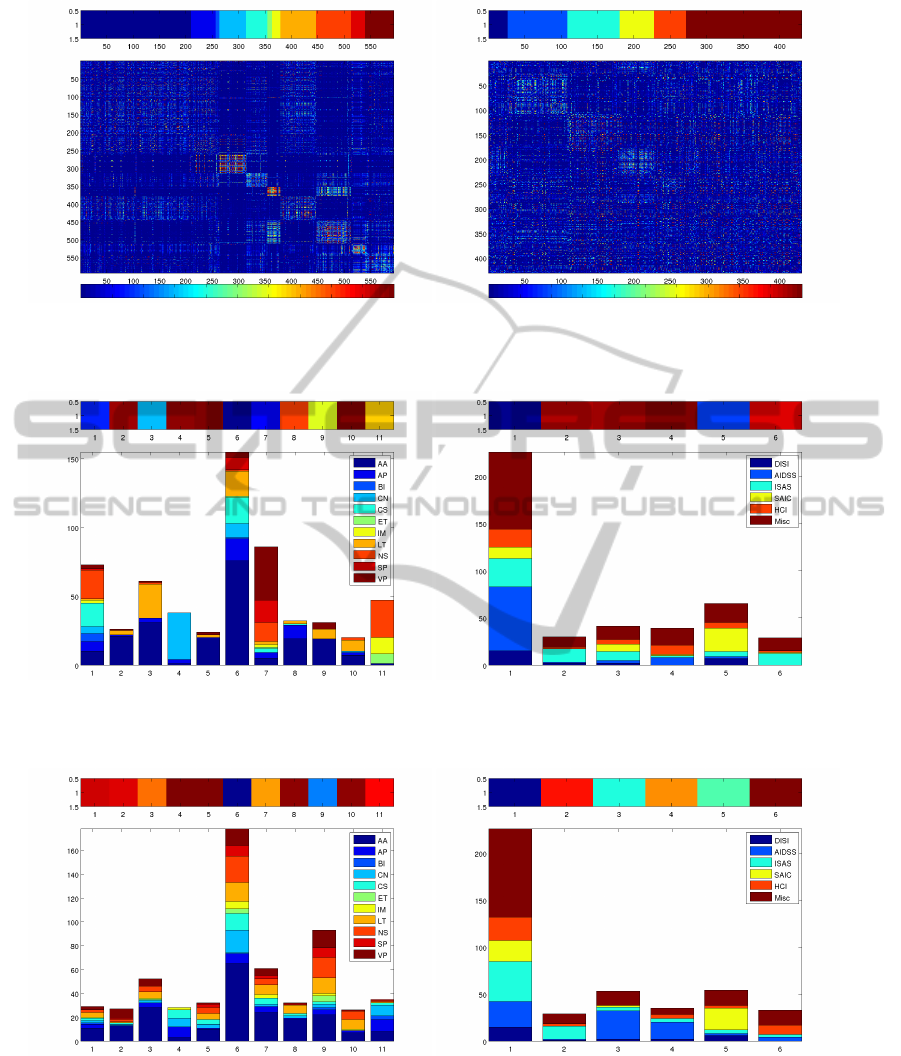

Figure 5 presents the co-association matrices ob-

tained using EAC. When comparing ﬁgures 5(a) and

5(b), corresponding to co-association matrices from

the NIPS and ICEIS conferences, we see that the ﬁrst

has a more pronounced block-diagonal structure, hav-

ing clusters apparently more separated. The distribu-

tion of documents by topics is represented in ﬁgure

6. For the NIPS data set, the majority of the clusters

joins several topics (except for clusters 3 and 4); for

the ICEIS data set the same happens.

With Experiment 2, we obtained a smaller fea-

ture space, applying LSI over the TFIDF matrix ob-

tained in the previous experiment. The obtained co-

association matrix, for the NIPS data set, has a less

obvious block-diagonal structure, with several micro-

structures representing small clusters; for the ICEIS

data set the cluster structure is more evident.

Figure 7 presents the distribution of documents by

topics. In the case of NIPS data set, the clusters ap-

pear to be more confused, apparently resulting from

the grouping of small clusters. In the case of ICEIS,

the clusters are better deﬁned than those of experi-

ment 1, with cluster 3 being composed almost entirely

by topic 2; nevertheless this partitioning is still very

mixed in terms of the distribution of topics per clus-

ters.

Finally, in Experiment 3, we summarize the re-

sults obtained using metaterms using an adapted ver-

sion of the Lesk Algorithm. We chose as mini-

mum threshold for aggregating terms normalized dis-

tances above 0.9 (ie, normalized distance in the Word-

Net graph from the keyword that ”generates” the

metaterm). From this, 24 metaterms were created

for the NIPS data set, and 694 for the ICEIS data

set. The reason why ICEIS has a much larger num-

ber of metaterms is because information about which

keywords were assigned to which papers was made

available, unlike the NIPS case. Figure 8 presents the

cluster distribution for this experiment. For the NIPS

data set, there are several clusters (3,4,5,11) that are

composed mainly by one topic. In the case of ICEIS

data set, the clusters are better deﬁned than before,

with cluster 3,4, and 6, being composed by almost

only one topic.

As ﬁnal note for the graphics of the documents

by topics, we observe little correlation between the

clusters obtained and the original document-per-topic

distribution. This is expected for NIPS data set, due

to the fact that some of the conference topics are

quite broad (such as ”Algorithms and Applications”

or ”Emerging Technologies”); the same is also ex-

pected for ICEIS data set given that about 160 docu-

ments are assigned to more than one area, which sug-

gests that these are sometimes transversal.

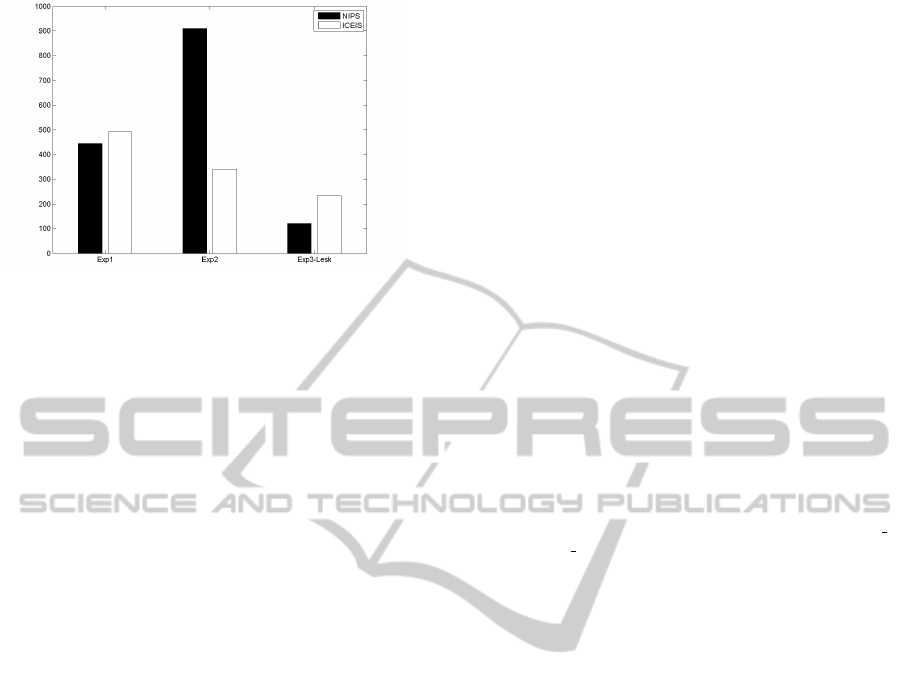

The textual coherences of the different experi-

ments are depicted in ﬁgure 9. As one can observe,

the lower values of textual coherence are obtained for

Experiment 3, using the Lesk criteria (Exp3-Lesk).

Regarding other experiments, the presented values

follow the conclusions already drawn, showing that

employing feature aggregation into metaterms pro-

duces better results than the original TF-IDF feature

spaces, and than when using the feature space reduc-

tion obtained using LSI.

Finally, we show a few examples of the most

relevant features within each of the extracted clus-

ters in Table 2. For experiment 1, we show some

of the single features which have the highest TF

within the cluster, and for experiment 3 we display the

metaterms with the highest values. We observe that

there are still some features that do not add relevant

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

564

(a) NIPS (b) ICEIS

Figure 5: Graphical representation of the co-association matrices obtained for experiment 1 over the NIPS and ICEIS data set

(with document distribution).

(a) NIPS (b) ICEIS

Figure 6: Experiment 1 Results - clustering of documents based on TFIDF - for each cluster we show the distribution of

documents by topics (different colors). At the top is represented the conﬁdence of each clustering.

(a) NIPS (b) ICEIS

Figure 7: Experiment 2 Results - clustering of documents based on TFIDF - for each cluster we show the distribution of

documents by topics (different colors). At the top is represented the conﬁdence of each clustering.

information to the documents’ characterization, such

as ”summary” or ”notable”. This suggests that the

contextual stopwords-removal step might still be fur-

ther improved. Regarding the metaterms, in some sit-

uations the number of aggregated terms is high (>30),

joining terms that can have multiple meanings, intro-

ducing errors in the representation.

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

565

(a) NIPS (b) ICEIS

Figure 8: Experiment 3 Results (using Lesk Algorithm) - clustering of documents based on TFIDF - for each cluster we show

the distribution of documents by topics (different colors). At the top is represented the conﬁdence of each clustering.

Table 2: Examples of the most relevant features found for some of the extracted clusters. The keywords that serve as root for

the metaterms are bolded. Notice how the two aggregation criteria generate aggregate different features based on the same

keyword (image processing).

Data Set Exp. Cluster Index Relevant Features

NIPS

2 frey; epochs; demonstrates; ﬁscher; decoupled; freedman; dependency;

cal; eter; book

10 calls; centre; dec; extreme; broomhead; avg; disturbance; corporation;

afﬁne; colinear

ICEIS

3 information;design; systems; paper;location; information systems; con-

text; architecture; method

4 data; spatial; information; schema; warehouse; mining; query; emer-

gency

NIPS 3 (Lesk) 6 image processing; res shape; res shape; images required; ground roc;

operation stereo; treat; treats; ground images; images shape; ring; es-

timates stereo; estimates stereo; proposed shape; sets; experts images;

forms model; shape variation; images material; performance shape; im-

ages truth; double proﬁles; implement res; sorts; effect textures; im-

ages occlusion; imaging; captures shape; direct shape; variation; model

truth; shape stereo; occlusions res; map shape; images texture

NIPS 3 (CoOccur.) 3 image processing; instances; temporally; chance; effort; consid-

ered; aligned; interface; kernels; multiplied; cropped ;include ;items

;shape shape ;sorted ;speciﬁcations ;formalize ;identically ;improved

;kai ;probabilistic ;math ;post ;contaminated ;rows ;consumption ;den-

dritic ;extend ;joachims ;recipes shape ;arguments ;complexity ;corner

;defer ;designer ;failed ;mika ;notable ;presynaptic ;states ;summary

;terrence ;tradeoff ;tuning

ICEIS 3 queries ;query rewriting ;query ; coresparql; sparql; queries; opti-

mization; optimization query; query optimization; query;

6 CONCLUSIONS AND FUTURE

WORK

We proposed a methodology for unsupervised organ-

isation of documents, and in particular research pa-

pers, into meaningful groups. The clustering was

based on a ensemble approach - Evidence Accumu-

lation Clustering (EAC) - which combines the re-

sults of different clusterings, the clustering ensem-

ble. We compared two different documents repre-

sentations: the typical vector-space-model, and an al-

ternative representation based on metaterms - which

are a subset of words and compound terms that are

either synonyms or have some kind of semantic re-

lation. Both representations relied on a ﬁrst step of

statistical feature reduction. For the metaterm extrac-

tion we devised a criterion based on an adaptation

of the Lesk Algorithm which, from keywords or top-

ics assigned to the documents, aggregates words and

compound terms (bigrams and trigrams) extracted

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

566

Figure 9: Textual Coherence over different experiments.

from the text. To evaluate the proposed methodol-

ogy we used two real-word data sets from conferences

NIPS and ICEIS. We also evaluated this methodology

against results obtained by applying LSI to the origi-

nal feature space.

To evaluate the results, we followed an unsuper-

vised approach, based on the observation of the ob-

tained co-association matrices, and on the within clus-

ter textual coherence. Based on both, we conclude

that feature reduction by employing feature aggrega-

tion into metaterms produces better results than both

the original TF-IDF feature spaces and the one using

the feature space reduction obtained by LSI.

As future work we want to improve the criteria

for feature aggregation, including a supervised step

of user annotation, and combining different criteria

(statistical and string comparison). Additionally, we

will use the EAC clustering combination algorithm

to combine the information already in use (titles and

abstracts) with citation information. Another of the

possible approaches is the usage of other ontologies

(besides WordNet) for the discovery of semantic rela-

tionships between features and documents, enabling

better aggregation of features.

ACKNOWLEDGEMENTS

This work was partially developed under the grants

SFRH/PROTEC/49512/2009 and PTDC/EIACCO/

103230/2008 (project EvaClue) from Fundac¸

ao para

a Ci

encia e Tecnologia(FCT), and project RETE, ref-

erence 3-CP-IPS-3-2009, from IPS/INSTICC, whose

support the authors gratefully acknowledge.

REFERENCES

(1998). Acm computing classiﬁcation system. http://

www.acm.org/about/class/1998.

Ahlgren, P. and Jarneving, B. (2008). Bibliographic cou-

pling, common abstract stems and clustering: A

comparison of two document-document similarity ap-

proaches in the context of science mapping. Sciento-

metrics, 76:273–290. 10.1007/s11192-007-1935-1.

Aljaber, B., Stokes, N., Bailey, J., and Pei, J. (2010). Doc-

ument clustering of scientiﬁc texts using citation con-

texts. Inf. Retr., 13:101–131.

Banerjee, S. and Pedersen, T. (2003). Extended gloss over-

laps as a measure of semantic relatedness. In In Pro-

ceedings of the Eighteenth International Joint Confer-

ence on Artiﬁcial Intelligence, pages 805–810.

Boyack, K. W. and Klavans, R. (2010). Co-citation analy-

sis, bibliographic coupling, and direct citation: Which

citation approach represents the research front most

accurately? Journal of the American Society for Infor-

mation Science and Technology, 61(12):2389–2404.

Boyack, K. W., Newman, D., Duhon, R. J., Klavans, R.,

Patek, M., Biberstine, J. R., Schijvenaars, B., Skupin,

A., Ma, N., and Brner, K. (2011). Clustering more

than two million biomedical publications: Compar-

ing the accuracies of nine text-based similarity ap-

proaches. PLoS ONE, 6(3):e18029.

Dao, T. N. and Simpson, T. (2005). Measuring similarity

between sentences. http://opensvn.csie.org/WordNet

DotNet/trunk/Projects/Thanh/Paper/WordNetDotNet

Semantic Similarity.pdf.

Fellbaum, C. (1998). WordNet: An Electronical Lexical

Database. The MIT Press, Cambridge, MA.

Fred, A. (2001). Finding consistent clusters in data parti-

tions. In Kittler, J. and Roli, F., editors, Multiple Clas-

siﬁer Systems, volume 2096, pages 309–318. Springer.

Fred, A. and Jain, A. K. (2005). Combining multiple clus-

tering using evidence accumulation. IEEE Trans Pat-

tern Analysis and Machine Intelligence, 27(6):835–

850.

Globerson, A., Chechik, G., Pereira, F., and Tishby, N.

(2007). Euclidean Embedding of Co-occurrence Data.

The Journal of Machine Learning Research, 8:2265–

2295.

Hanan, G. A. and Mohamed, S. K. (2008). Cumulative

voting consensus method for partitions with variable

number of clusters. IEEE Trans. Pattern Anal. Mach.

Intell., 30(1):160–173.

Hotho, A., Staab, S., and Stumme, G. (2003). Wordnet im-

proves text document clustering. In In Proc. of the

SIGIR 2003 Semantic Web Workshop, pages 541–544.

Janssens, F., Leta, J., Glanzel, W., and De Moor, B. (2006).

Towards mapping library and information science. Inf.

Process. Manage., 42:1614–1642.

Karypis, G., Kumar, V., and Kumar, V. (1998). Multilevel k-

way partitioning scheme for irregular graphs. Journal

of Parallel and Distributed Computing, 48:96–129.

Lawrence, S., Giles, C. L., and Bollacker, K. (1999). Digi-

tal libraries and autonomous citation indexing. Com-

puter, 32:67–71.

Lesk, M. (1986). Automatic sense disambiguation using

machine readable dictionaries: how to tell a pine cone

from an ice cream cone. In Proceedings of the 5th

annual international conference on Systems documen-

UNSUPERVISED ORGANISATION OF SCIENTIFIC DOCUMENTS

567

tation, SIGDOC ’86, pages 24–26, New York, NY,

USA. ACM.

Lourenc¸o, A., Fred, A., and Jain, A. K. (2010). On the scal-

ability of evidence accumulation clustering. In ICPR,

Istanbul Turkey.

Manning, C. D., Raghavan, P., and Schtze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press.

Reforgiato Recupero, D. (2007). A new unsupervised

method for document clustering by using wordnet lex-

ical and conceptual relations. Information Retrieval,

10:563–579. 10.1007/s10791-007-9035-7.

Sebastiani, F. (2005). Text categorization. In Text Mining

and its Applications to Intelligence, CRM and Knowl-

edge Management, pages 109–129. WIT Press.

Sedding, J. and Kazakov, D. (2004). Wordnet-based text

document clustering. In Proceedings of the 3rd Work-

shop on RObust Methods in Analysis of Natural Lan-

guage Data, ROMAND ’04, pages 104–113, Strouds-

burg, PA, USA. Association for Computational Lin-

guistics.

Sevillano, X., Cobo, G., Al?as, F., Socor?, J. C., Arqui-

tectura, E., and Salle, L. (2009). Robust document

clustering by exploiting feature diversity in cluster en-

sembles.

Strehl, A. and Ghosh, J. (2002). Cluster ensembles - a

knowledge reuse framework for combining multiple

partitions. J. of Machine Learning Research 3.

Van Rijsbergen, C. J. (1979). Information Retrieval. But-

terworth, London.

Zheng, H.-T., Borchert, C., and Kim, H.-G. (2009a). Ex-

ploiting corpus-related ontologies for conceptualizing

document corpora. J. Am. Soc. Inf. Sci. Technol.,

60:2287–2299.

Zheng, H.-T., Kang, B.-Y., and Kim, H.-G. (2009b).

Exploiting noun phrases and semantic relationships

for text document clustering. Information Sciences,

179(13):2249 – 2262. Special Section on High Order

Fuzzy Sets.

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

568
