ASSESSING THE BUSINESS RISK OF TECHNOLOGY

OBSOLESCENCE THROUGH ENTERPRISE MODELLING

Cameron Spence

Capgemini, 1 Forge End, Woking, Surrey, U.K.

cameron.spence@capgemini.com

Vaughan Michell

Informatics Research Centre, Henley Business School, University of Reading, U.K.

v.a.michell@reading.ac.uk

Keywords: Enterprise architecture, Obsolescence, Risk, Modelling.

Abstract: The problem of technology obsolescence in information intensive businesses (software and hardware no

longer being supported and replaced by improved and different solutions) and a cost constrained market can

severely increase costs and operational, and ultimately reputation risk. Although many businesses recognise

technological obsolescence, the pervasive nature of technology often means they have little information to

identify the risk and location of pending obsolescence and little money to apply to the solution. This paper

presents a low cost structured method to identify obsolete software and the risk of their obsolescence where

the structure of a business and its supporting IT resources can be captured, modelled, analysed and the risk

to the business of technology obsolescence identified to enable remedial action using qualified obsolescence

information. The technique is based on a structured modelling approach using enterprise architecture

models and a heatmap algorithm to highlight high risk obsolescent elements. The method has been tested

and applied in practice in two consulting studies carried out by Capgemini involving three UK police forces.

However the generic technique could be applied to any industry based on plans to improve it using ontology

framework methods. This paper contains details of enterprise architecture meta-models and related

modelling.

1 INTRODUCTION

As the pace of technology introduction quickens and

IS becomes more pervasive the rate of change of

technology and the forced obsolescence has also

increased (Bulow, 1986). This very pervasiveness

increases the connectedness and reliance on specific

technology which can quickly become obsolete

(Whelan, 2000). This increases both the cost of

maintaining existing and or replacing the technology

(Solomon et al., 2000). Doing nothing is not possible

due to risk of loss of service provision and hence the

management of obsolescent technology is becoming

critical. The current economic focus on austerity has

increased the need for better obsolescence awareness

and management as businesses seek to consolidate

and reduce their costs whilst maintaining their

technology competitiveness.

Much of the existing literature regarding

obsolescence has focused on its definition and

relationship to specific business contexts. (Lemer,

1996) has focused on evaluation of the performance

and eventual failure of obsolescent infrastructure

facilities (e.g. public works, sewers, pavements etc)

and the need to establish reliable design service life

metrics. (Solomon et al, 2000) explores the

obsolescence of electronic integrated circuit

components such as DRAMs, via an adapted stages

of growth model that includes obsolescence. Whelan

(Whelan, 2000) discusses the impact of

obsolescence on stock management and the value

and effective mathematical productivity of stock

ranging from computers to industrial machinery and

its relationship to computer usage. Feldman

(Feldman and Sandborn, 2007) looked into the

problems of obsolescence with respect to the parts

procurement lifecycle to improve algorithms for

parts forecasting and management. (Aversano et al.,

2004) examined strategies for evolving existing

software and included obsolescence as a factor along

Spence C. and Michell V.

ASSESSING THE BUSINESS RISK OF TECHNOLOGY OBSOLESCENCE THROUGH ENTERPRISE MODELLING.

DOI: 10.5220/0004458600610070

In Proceedings of the First International Symposium on Business Modeling and Software Design (BMSD 2011), pages 61-70

ISBN: 978-989-8425-68-3

with quality, economic and data value in their

metrics. Similarly (Boehm, 1999) includes technical

obsolescence as a factor in a similar paper on

software productivity and reuse. Little work has

been conducted to develop a practical methodologies

approach to finding obsolete software and related

components.

Obsolescence results in an inability to meet

performance criteria (Lemer, 1996), for example

when the requirement has moved on, or the

technology has been superseded. Our concern is

with the former. We propose an approach to

identifying and managing obsolescence and risk

using a simplified enterprise architecture and heat

map approach that can be scaled to different size

companies. The approach has also been successfully

trialled to identify and manage IS infrastructure

obsolescence in a specific business case of a police

service where low cost obsolescence risk assessment

was required to support change decisions.

There are three main issues to address when

considering the impact of technology obsolescence

on a business: we need to define obsolescence and

its impact factors; we need a way of identifying the

other aspects of technology and services impacted

by that obsolescence; and finally, we need a way of

identifying the greatest risk to the business from

those obsolete technologies and services. These

three issues are addressed sequentially in the next

section on approach.

2 APPROACH

2.1 Obsolescence and Impact

2.1.1 What is Obsolescence?

As Sandborn suggests definitions of software

obsolescence for commercial off the shelf (COTS)

products vary, as there is often a big gap between the

end of the product sale date and the date of the end

of the support for the product (Sandborn, 2007). The

withdrawal of support however, may not lead to

immediate loss or degradation, but acts as a trigger

for the business to make the necessary decisions to

preserve the capability provided by the technology,

subject to its criticality. For our purposes we will

define obsolescence as the loss or impending loss of

support for technology that reduces its ability to

continue to function in the organisation (Feldman

and Sandborn, 2007). Whilst the date of end of

production of the technology and the date of end of

support is reasonable to identify, the way in which

the technology will be affected by degraded or no

further support is more difficult to determine and

will depend on the capabilities and resources of the

organisation as well as the technology being

considered (Lemer, 1996).

2.1.2 The Impact of Obsolescence

Many organisations are running with a technology

estate that is substantially obsolete. This causes

problems of cost and risk. Increased costs are

introduced by (a) the requirement for special support

arrangements; (b) the extra development required to

provide applications that can cope with obsolete

technology (a notable case in point is the continued

use of Internet Explorer 6 and Windows 2000 in the

UK public sector); and (c) difficulty/high cost of

obtaining support for very out-of-date technologies

(both hardware and software).

Many factors may contribute to a high cost of

ownership of an IT estate; it is often instructive to

keep recursively asking the typical root cause

analysis question “why” to determine root causes

(Ginn et al., 2004). For example, high costs

associated with running applications in data centres

could be traced back to costs for the actual

infrastructure (servers, switches etc.) and costs for

the datacentres themselves (cooling, power, rent

etc.) For the servers, then costs could be associated

with both software and hardware – and the costs for

both of these are likely to go up over time as the

products on which they are based start to become

obsolete and thus the subject of special (custom)

support arrangements. Eventually the products

involved will become unsupportable, which

transforms an issue with high cost into an

operational risk to the business. A root cause

analysis in graphical format made this very apparent

and understandable to the client (fig. 1).

The increased costs and the lack of knowledge

results in increased operational risk of service

failure, especially where obsolete technology is a

key part of the core service delivery capability of the

business. This operational risk if not attended to can

then result in reputational risk where business

service performance is badly impacted by IS/IT

failure. With no action there is a risk of degradation

of business service capability through the inability to

process and disseminate quality (correct, complete

and timely) data and information through the

enterprise. However, it is not enough simply to

identify the technology components that are subject

to obsolescence. We also need to understand how

the technology supports the business and specifically

BMSD 2011 - First International Symposium on Business Modeling and Software Design

the processes and services delivered by it. Critically

we also need to quantify the importance of the

relationship between in order to understand the

impact of the obsolescence.

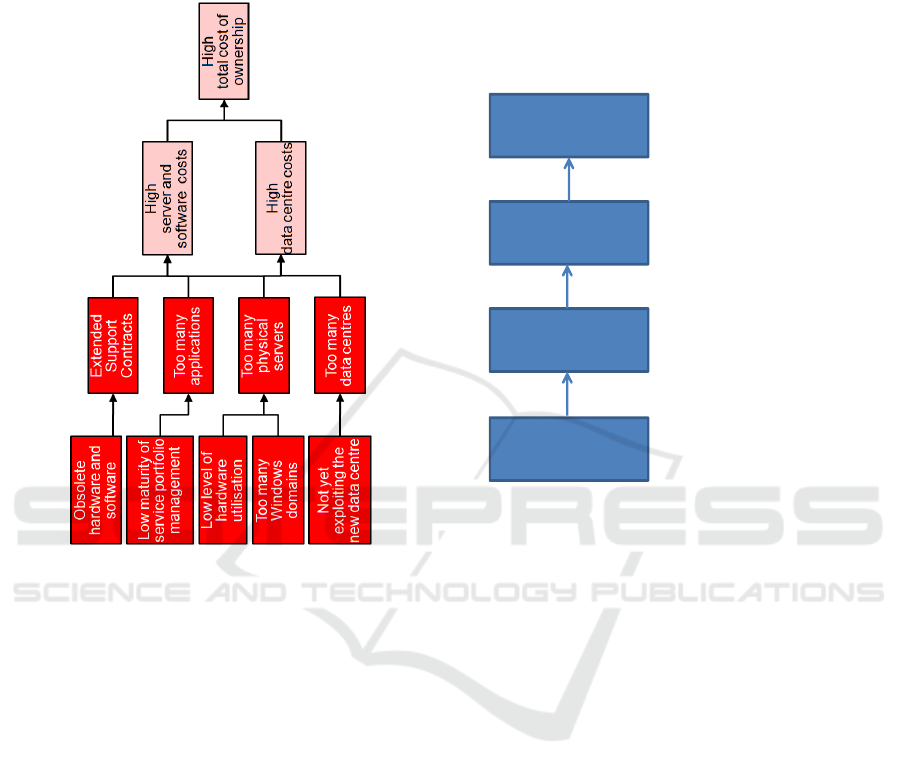

Figure 1: TCO Root Cause Analysis.

A near obsolete IS component will be dependent

on a cascade or chain of factors that determine the

level of risk and impact of the obsolescence as seen

in the four step chain in Figure 2.

The first factor is the proximity of the technology

component to obsolescence. This will depend on

both the vendor support and maintenance to allow

the product to function after obsolescence. The

second factor is obsolescence criticality: even if the

obsolete technology is supported after obsolescence

the service provided by it might be degraded, as it

may not be able to provide the IS service

performance of newer or competitor products.

Alternatively an upgrade path may allow the

degradation to be reduced. The third factor is impact

of the IS component on the business service. For

example is the performance and capability of the IS

component critical to the business service, or does it

add very little value? Finally the fourth factor is the

criticality of the business service in terms of

delivering value to the customer. Ideally all these

factors should be taken into account on the basis of a

failure mode and effect analysis (Ginn et al, 2004)

but this can increase cost and complexity. Some

analysis frameworks already provide useful metrics

for the criticality of the business and IS service

relationships (Liu et al., 2011) but these are better

suited to comprehensive architecture analysis. For

our purposes we propose a more simplistic risk

framework based on a simplified metamodel

explored in the later sections.

Figure 2: Obsolescence Impact Factor Chain.

2.2 Services and Technology Impacted

2.2.1 Identifying the Services and

Technology Impacted

Information-intensive industries have very large

amounts of IS/IT with attendant software and

technology hardware and component risks. If the

maturity of the architectural and operational

processes have not kept track with the size of their

IT estate, then there may be a lack of understanding

of exactly what technology the organisation has,

who is using it, and what its vulnerabilities are.

2.2.2 Understanding the IT Estate

The term “IT Estate” is generally used to refer to the

complete portfolio of technology used within a

business – including applications and infrastructure.

If the knowledge of such an IT Estate is not

encapsulated and maintained in some kind of ‘living

repository’, then the lack of corporate knowledge

can be exacerbated over time by changes to

personnel within the organisation, so that key

knowledge as to what exists and for what purpose, is

lost as people’s roles change. The federated nature

Criticality of the Business

Service

(to the client/business)

Criticality of the

technology

(to the se rvice)

Criticality of the

Obsolescence

Level of degradation of IS service

at obsolescence

(High,medium,low)

The technology service is

(High,medium,low) importance

to the provision of the business service

Proximity to

Obsolescence

Closeness to obsolescence

(High,medium,low)

Importance to the customer

(High,medium,low)

ASSESSING THE BUSINESS RISK OF TECHNOLOGY OBSOLESCENCE THROUGH ENTERPRISE MODELLING

of some large organisations can make this problem

worse, because from the outset, no one part of the

organisation ever has a complete picture of the

business and technology architecture. The best that

can be achieved in these circumstances is that

individual parts of the organisation try to document

solution architectures that capture their piece of the

picture. A lack of knowledge of an Enterprise

Architecture can make it hard to plan for the future,

because without knowing the ‘as-is’ state, it is

difficult to know what needs to change in order to

achieve a ‘to-be’ state. Thus, it is possible to view

the ‘status quo’ as a safer option, putting off the

required upgrade and modernisation projects.

Without knowledge of what applications are being

used, by whom, and their underlying technologies, it

is not possible to get a view as to the risks being

posed to the business due to this obsolescence.

2.2.3 Case Studies

The aims of the first project, from the client’s

perspective, was (a) to understand the potential cost

savings associated with rationalising the application

platforms, and (b) understand the degree of risk

associated with technology, and provide a roadmap

for addressing it. Thus, the idea of heat-mapping the

business risk is highly relevant because it provides

part of the ‘business case’ for making the relevant

upgrade / replacement projects to address the risks

thus identified.

The aim of the second project, a partial merger

of two UK police forces, was to seek cost savings by

identifying duplicate applications. However, the

heatmaps were also relevant here, both in pointing

out risks to the businesses, as well as assisting in the

choice of applications to retain.

2.2.4 Enterprise Architecture Meta Model

It is necessary to gain an understanding of the

business technology architecture estate in enough

detail so that, obsolete technology types can be

traced through to the applications relying upon them,

and thence through to the business services and

functions that in turn rely upon those applications.

Many enterprise architecture models have been

developed to make sense of business and technology

components found across a variety of businesses

(Lagerstrom et al., 2009) and aligning business

services with IT capability (Strnadl, 2005). Our

specific issue requires a focused model that is easy

for business and technical users to understand, but

also shows dependencies between components. For

this reason we have adapted and extended part of the

TOGAF (OpenGroup, 2009) content meta-model to

build a set of artefacts and inter-relationships that

are particularly relevant to our area of interest.

Although standards exist for modelling

Enterprise Architectures, it is frequently necessary to

adapt those standards for different client situations.

Reasons for this include: (a) the client prefers a

particular standard (e.g. TOGAF or Zachman

(Noran, 2003) or one of their own frameworks and

(b) there are requirements for a particular

engagement that demand a change to the standard

model. In the first example discussed in this paper,

the client was particularly interested in rationalising

the application platforms rather than the applications

themselves. Therefore, there was a heavy focus on

infrastructure. The model used is illustrated below:

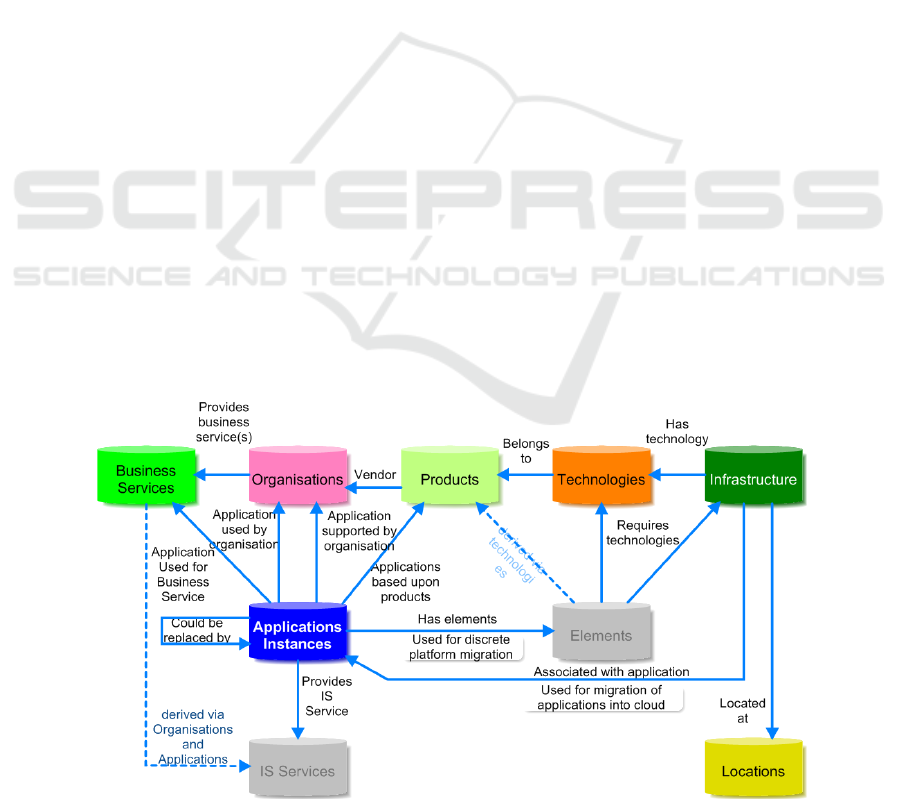

Figure 3: Sample Meta Model for Analysing Cost and Business Risk due to Obsolescence.

BMSD 2011 - First International Symposium on Business Modeling and Software Design

Figure 3 represents the actual model that was

used to capture, analyse and report on various

aspects of the IT portfolio for the first police force.

With this particular client, two aspects of the model

(shown in grey) were not used at the time of writing.

For the other study involving two police forces,

heavy use was made of the IS Services component,

critical for application de-duplication.

Parts of this model had previously been used

with another client to carry out an analysis of their

application portfolio with a view to rationalising that

portfolio (removing duplication). This gave rise to

the two elements focusing on Applications (or

Application Instances) and IS Services (both taken

from TOGAF). By definition, any two applications

that are labelled as offering the same IS Services are

duplicates; and one of the aims of that study was to

aim for a ‘minimum set’ of applications that gave

the full range of required IS Services

(functionality).Part of the business case for

rationalising applications is of course the cost of

running those applications, and part of the cost of an

application comes from the servers hosting that

application. Servers are of course a particular kind of

infrastructure, which is why the model includes

infrastructure. This infrastructure resides in

physical locations, which are important to know for

a number of reasons, especially when part of the

rationalisation design includes closing one or more

data centres. This has no bearing on the question of

obsolete technologies, but was critical to the analysis

and creation of the rationalisation design.

The servers in the IT estate for any client will

have installed on it a number of software products,

for example applications, databases, middleware,

operating systems, monitoring and so on. In

addition, the servers themselves are of course

products from a hardware manufacturer. Thus, the

products need to include a list of all software and

hardware in the IT estate. In practice, the

terminology used to describe a particular product

may be very different to the terminology used by

auto-discovery software, which sometimes goes to

the extent of looking at versions of libraries installed

on the servers (for example, Dynamic Link

Libraries, or DLL files, on Windows platforms).

Examples of this are (see table 1).

When looking up products on manufacturers’

websites, the term in the left column needs to be

used. However, when auto-discovery tools are run,

the terms in the right column are those that are

generated.

Table 1: Sample Product-Technology Mappings.

Product Technology

Windows Server

2003 Enterprise x64

(SP2)

Microsoft(R) Windows(R) Server 2003

Enterprise x64 Edition Version 5.2.3790

Build 3790 SP2

RDBMS 10g

Release 2

Oracle Database Server 10.2.0.4.0

Solaris 10 SunOS 5.10

With this particular client, there were several

thousand servers that needed to be matched up to

products. Using this intermediate mapping meant

that this could be done largely automatically. Once it

had been calculated to which product a particular

‘technology’ corresponded, then that mapping was

automatically applied to all instances of that

technology.

Another reason for the use of this intermediate

layer was the fact that in many cases, there were

multiple pieces of software that corresponded to the

same product, which were ‘discovered’ separately.

For example, two separate pieces of software were

discovered (“Oracle Net Services (TNS) Listener

9.0.1” and “Oracle Database Server 9.0.1.0.0”) that

both corresponded to the same product (“RDBMS 9i

Release 1”).This intermediate mapping of

technologies provides the ability to cope with

multiple synonyms and multiple pieces of

technology that belong to a single product. The

intention of the elements artefact was to allow the

modelling of major components of the application

(e.g. web tiers, database tiers, business logic tiers,

storage allocations) so that they could then be

rationalised. This is not relevant to the obsolescence

discussion.

The final pieces of the model are both drawn

from TOGAF. The organisation information allows

us to represent the structure of an organisation,

which is where the users of the applications reside.

This is also useful for representing external

organisations, for example the vendors of the

products, or those involved in some way in

supporting the applications.

The business services are the services provided

by the business to its client. Clearly defining

business services is necessary in order to be able to

make a correlation between the services provided by

the business and the IT that supports those services.

Also the criticality of the service to the end client,

will in turn affect the importance of the IT service

and hence the impact and risk associated with the

obsolescence of the technologies and components.

ASSESSING THE BUSINESS RISK OF TECHNOLOGY OBSOLESCENCE THROUGH ENTERPRISE MODELLING

2.2.5 Populating the Model

The model was implemented using a particular

modelling tool, MooD®. The functionality provided

by this tool was critical to our ability to import,

analyse and report on the data that was captured.

Many different information sources were used to

populate this model, including but not limited to

Active Directory, Tideway (auto-discovery

software), a Configuration Management DataBase

(CMDB) product and various spreadsheets

populated manually.

The applications were populated using a

combination of reports from the CMDB and

spreadsheets provided by the client. The

infrastructure was populated using a set of

spreadsheets from various sources. The technologies

were populated using spreadsheets from the auto-

discovery software. The products were populated

partially manually, interpreting the technology lists

in the light of the team’s knowledge of the

marketplace, and partially using data from the

CMDB.

The organisation was populated using

information on the client’s public web site.

The business services were populated from a

generic UK police business service architecture

published by the National Police Improvement

Agency, called the “Policing Activities Glossary”

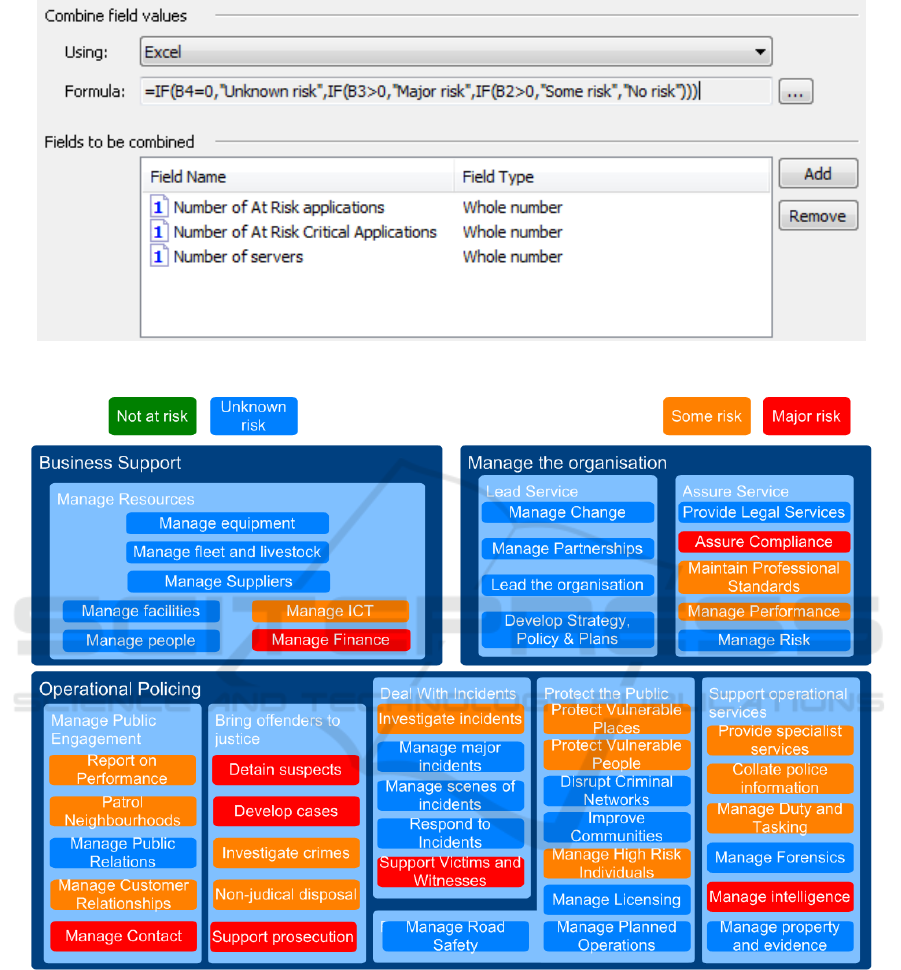

(NPIA, 2011). This provided a hierarchical

representation of the services provided by UK police

forces, which we represented graphically in the

modelling tool:

2.2.6 Tracing Obsolescence to Applications

Obsolescence as applied to technology (such as

hardware and software products), using the

definition previously offered, means “loss or

impending loss of support for hardware or software

products that reduces their ability to continue to

function in the organisation”. These products are

produced by various organisations (vendors /

manufacturers), who often specify a date beyond

which support for their products will either cease, or

become more restricted (and perhaps substantially

more expensive). Some manufacturers specify “End

of Support” (EOS) and “End of Extended Support”

(EOES) dates for their products.

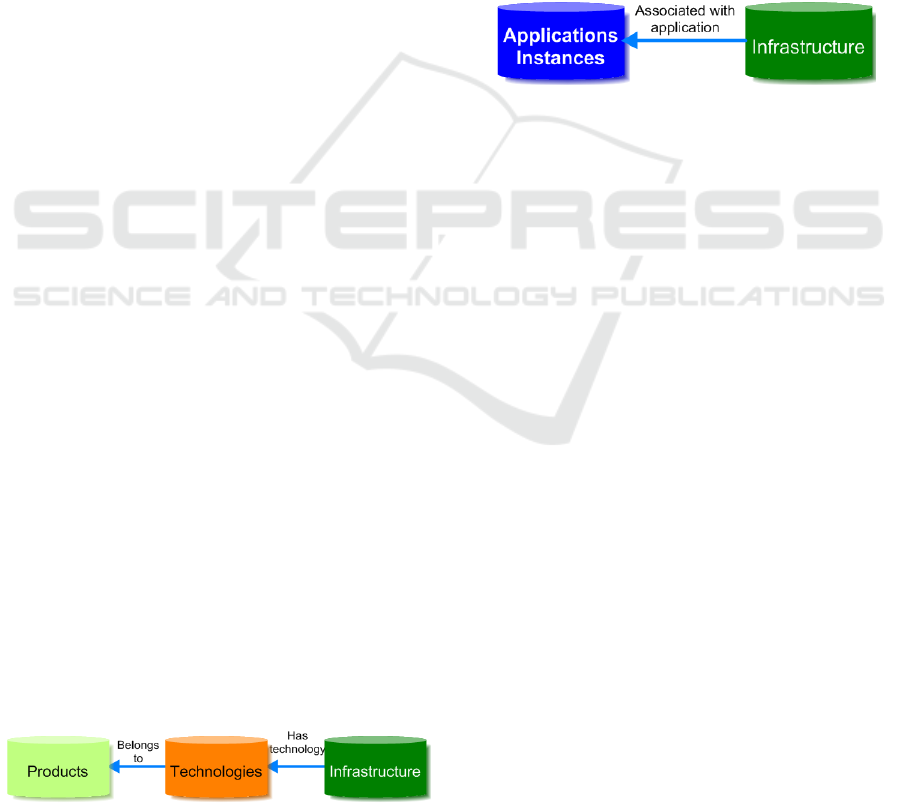

Figure 4: Obsolescence from Products to Infrastructure.

Starting from the products, therefore, and

knowing that several products may relate (via the

Technologies intermediate layer) to a piece of

Infrastructure (a server), then it is possible to say, for

each piece of infrastructure, what is the earliest

EOES date for any product that relates to that piece

of infrastructure. For example, if that infrastructure

was based upon a server model that had an EOES

date of February 2013, but ran Windows 2000 that

had an EOES date of 13

July 2010, then we can say

that the earliest EOES date of these is the latter – so

give the infrastructure as a whole, an EOES date of

July 2010. In other words, there is something

about this piece of infrastructure that will be difficult

and/or costly to support beyond that date.

The next step is to roll this up into the

application layer.

Figure 5: Obsolescence from Infrastructure to Application

Instances.

Following the same approach, we can look at all

the servers that are associated with a particular

application (or instance of an application), and pick

the earliest EOES date for each of these servers. In

other words, we are saying that for a particular

application, there is a particular piece of technology

(software or hardware product) somewhere in the

supporting infrastructure that will make application

difficult and/or costly to support beyond that date.

2.3 Identifying Business Risk

An approach to identifying business risk from IT in

general is discussed in (Halliday et al., 1996). This

paper suggests a four-quadrant model for

categorising risk, including notably the

“avoid/prevent risks” which are viewed as being

most critical because of the impact to the business

should they be triggered, as well as the probability

of them occurring. In this particular paper, we are

focusing on the risk to the business from technology

obsolescence that would fall within this particular

quadrant. In other words, these are risks that a

business can and should manage down to an

acceptable level, and perhaps would if those

business stakeholders were actually aware of their

existence in the first place.

The use of ‘heatmaps’ is appropriate to

demonstrate business risk, if backed up by proper

evidence.

BMSD 2011 - First International Symposium on Business Modeling and Software Design

2.3.1 Algorithm for Generating a Risk

Heatmap

The heat map, a colour-coded display of the

intensity of a result has been used in various forms

(Wilkinson and Friendly, 2009) to provide

immediate visual understanding of multi-objective

optimisation processes. It has been widely used in

consultancy and problem solving as a means of

highlighting critical obsolescence information in an

easy to understand form (Miyake et al., 2004) (Detre

et al., 2006).

As discussed in the risk section, whilst the

Obsolescence Impact Factor Chain helps to cover a

range of appropriate factors, this can quickly

become complex and costly and hence we adopt a

simplified approach that assumes full support is

provided by the IT service and focuses only on the

criticality of the service and whether the technology

is deemed obsolescent as defined by the client.

Continuing the algorithm started in the IT

domain, it is possible to look at all the applications

used to support a particular business service, at each

of their EOES dates, which in turn are rolled up

from infrastructure and products. We ask the

question “are there any applications required by this

service where the EOES date has already passed?”.

Where this is true, this obviously indicates that there

is a degree of risk associated with the continued

operation of that business service. The mapping of

applications to business services can either be done

via the organisation structure (i.e. for each

organisational unit, determine which applications

they use; and also which business services they

provide) – used for our second study with the two

police forces; or in the case of first study for a single

police force, they were able to provide a direct

correlation between applications and business

services, as shown below.

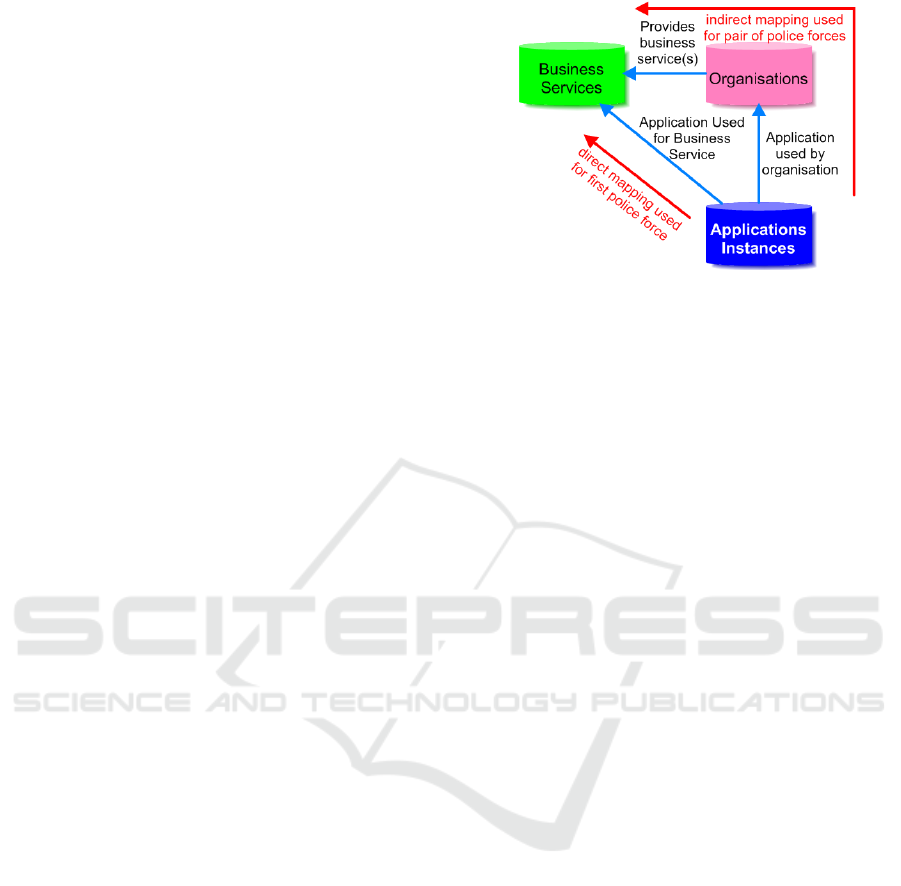

Figure 6: Obsolescence from Applications to Business

Services.

However the mapping is done, the following

algorithm was then used, which relies upon knowing

the EOES dates for all the support applications,

along with an indication of their criticality to the

business (1 being the most important) (Fig.7).

Like all of the algorithms in the model, this

calculation was automated for all of the business

services using the tool’s ability to calculate and store

intermediate results, including where necessary the

ability to ‘call out’ to Excel. For example, the above

algorithm looks like we can see in figure 8.

2.3.2 Risk Heatmap for a Police Force

Requirement

By applying the above algorithm to each business

service (from the PAG) in turn, it was possible to

assign a risk value to each business service. The

modelling tool was able to assign a colour to the

business services dependent upon the risk value, and

so the resulting heatmap looked like the figure 9.

FOR each business service

IF ∃ supporting applications of criticality 1 and EOES date in the past

THEN

SET risk to MAJOR RISK

ELSE

IF ∃ supporting applications of criticality > 1 and EOES date in the past

THEN

SET risk to SOME RISK

ELSE

IF we cannot associate any infrastructure with this service

THEN

SET risk to UNKNOWN RISK

ELSE

SET risk to NOT AT RISK

ENDIF

Figure 7: Algorithm for Calculating Business Risk in a Heatmap.

ASSESSING THE BUSINESS RISK OF TECHNOLOGY OBSOLESCENCE THROUGH ENTERPRISE MODELLING

Figure 8: Automated calculation of business risk using MooD®.

Figure 9: Police Business Services Risk Heatmap.

The value of this model lies in its ability to

convey a technical concept (out-of-date products)

and the link through the Enterprise Architecture

model to business stakeholders in terms that are easy

to understand and completely non-technical. Thus,

this is a useful tool in demonstrating the risk

component of the business case for making the

necessary changes to the IT portfolio, to remove this

risk.

3 LESSONS LEARNT

3.1 Building the Model

In order to carry out this kind of analysis, two things

are needed: firstly, the raw information, with

consistent terminology and all the relationships

between the various kinds of information; and

BMSD 2011 - First International Symposium on Business Modeling and Software Design

secondly, some kind of toolset to enable the import,

analysis and reporting of that information. For

organisations with a relatively mature EA function,

the first of these should not present a huge

challenge, however in many cases even getting the

client to produce a single definitive list of

applications is difficult. It is also difficult to see how

this could be done without some kind of modelling

and requirements capture tool. However, one

approach we are exploring is the development of an

ontology chart based on organisational semiotics

principles. The MEASUR (Stamper, 1994) model

approach offers a structured method to interview and

model the ontology of an organisation and has been

used in related work applying the techniques to

enterprise architecture and consulting modelling

frameworks (Liu et al, 2011). Excel can handle two-

or perhaps three-dimensional data with the help of

pivot data; complex meta-models such as Figure 3

are probably beyond the ability of such tools to

handle. A more robust technology is required,

ideally layered over some kind of relational database

to ensure the integrity of the data. Some candidate

tools can be seen in (Short and Wilson, 2011).

3.2 What We Got Out of It

The team involved in the project felt that by the end

of the study, a good deal of evidence had been

collected that gave a very strong business case to

continue work with this client, to address the cost

and risk issues identified so clearly by the work so

far. In the subsequent study; a partial merger of two

UK Police Forces, the approach from the first study

was readily re-usable, using the easy to understand

heat-map, even though the meta-model was

significantly different for the merger scenario. The

resulting heat-map for the pair of police forces was

all red, due to a critical corporate application, used

across the whole of the organisations that uses

Oracle 8. This ‘all-red’ picture gave a very powerful

and well-received message to the client about the

urgency of the situation. The meta-model used for

the second case study, built using lessons learnt from

the first, omitted the infrastructure and technology

catalogues, relating applications directly to

underlying products. It also differed in that the

linkage from applications to business services went

via the organisation structure. This linkage was

much simpler in the first study, going directly from

applications to business services. Nevertheless, the

heat-map was still able to be calculated in a similar

fashion.

3.3 What the Client Got Out of It

The main deliverable being sought by the client,

regarding obsolescence, was a view as to the

motivation (business case) for making change. The

use of the business heatmap, along with the TCO

root cause analysis (shown above) and other

financial information outside the scope of this paper,

provided a clear business case at low cost. The

approach and model are capable of being extended

to accommodate increased technology and risk

complexity if required.

4 CONCLUSIONS

Having used the approach successfully in two

separate cases with very different meta-models,

albeit both in the policing sector, we have concluded

that the approach is readily re-usable.

The library of product obsolescence data

captured during the first engagement was very useful

in terms of shortening the research required during

the second engagement to produce the obsolescence

heat-map.

5 FUTURE WORK

In retrospect, the terminology used for some of the

artefacts in the meta-model need further work. In

particular, the word ‘technologies’ is perhaps

misleading in the way it is being used in this kind of

analysis. Further research is required of existing

architecture frameworks and methods to identify

more commonly used and industry accepted terms

that enable new clients to quickly come up to speed.

As mentioned we are considering ontological

analysis for specific industry terminologies to

identify the relevant terms (Guarino, 1998). Also we

intend to review and expand the obsolescence

impact factor chain and investigate how this could

be embedded in developing architecture based

consulting analysis frameworks, potentially using

the Capgemini Integrated Architecture Framework

or the BTS analysis framework (Liu et al., 2011)

which has embedded structures for identifying the

relationships between business services and IS

services and their criticality.

ASSESSING THE BUSINESS RISK OF TECHNOLOGY OBSOLESCENCE THROUGH ENTERPRISE MODELLING

TRADEMARKS

MooD is a registered trademark of Salamander

Enterprises Ltd.

Microsoft and Windows are registered

trademarks of Microsoft Corporation in the United

States and/or other countries.

Oracle and Solaris are registered trademarks of

Oracle and/or its affiliates. Other names may be

trademarks of their respective owners.

REFERENCES

Aversano, L., Esposito, R., Mallardo, T. & Tortorella, M.

2004. Supporting decisions on the adoption of re-

engineering technologies. Eighth euromicro working

conference on software maintenance and

reengineering (csmr'04). Tampere, finland.

Boehm, B. 1999. Managing software productivity and

reuse. Computer, 32, 111-113.

Bulow, J. 1986. An economic theory of planned

obsolescence. The quarterly journal of economics,

101, 729-749.

Detre, J., Briggeman, B., Boehlje, M. & Gray, A. W.

2006. Scorecarding and heat mapping: tools and

concepts for assessing strategic uncertainty.

International food and agribusiness management

review, volume 9.

Feldman, K. & Sandborn, P. 2007. Integrating technology

obsolescence considerations into product design

planning. Proceedings of the asme 2007 international

design engineering technical conferences & computers

and information in engineering conference, idetc/cie

2007.

Ginn, D., Streibel, B. & Varner, e. 2004. The design for

six sigma memory jogger : tools and methods for

robust processes and products, salem, nh : goal/qpc,

cop. 2004.

Guarino, N. Formal ontology and information systems.

Proceedings of fois’98, 1998 trento, italy. Ios press,

amsterdam, pp. 3-15.

Halliday, S., badenhorst, k. & solms, r. V. 1996. A

business approach to effective information technology

risk analysis and management. Information

management & computer security, 4, pp. 19 - 31.

Lagerstrom, R., Franke, U., Johnson, P. & Ullberg, J.

2009. A method for creating enterprise architecture

metamodels - applied to systems modifiability

analysis. International journal of computer science

and applications, vol. 6, no. 5, pp. 98 - 120.

Lemer, A. C. 1996. Infrastructure obsolescence and design

service life. Journal of infrastructure systems.

Liu, K., Sun, L., Jambari, D., Michell, V. & Chong, S.

2011. A design of business-technology alignment

consulting framework. Caise conference 2011.

Miyake, M., Mune, Y. & Himeno, K. 2004. Strategic

intellectual property portfolio management-

technology appraisal by using the technology heat

map. Nri papers. Nomura research institute.

Noran, O. 2003. An analysis of the zachman framework

for enterprise architecture from the geram perspective.

Annual reviews in control, 27, 163-183.

Npia. 2011. Police activities glossary [online]. Available:

http://pra.npia.police.uk/ [accessed 7th april 2011

2011].

Opengroup 2009. The open group architectural framework

(togaf 9).

Sandborn, P. 2007. Software obsolescence - complicating

the part and technology obsolescence management

problem. Ieee trans on components and packaging

technologies, 30, 886-888.

Short, J. & Wilson, C. 2011. Gartner assessment of

enterprise architecture tool capabilities. Gartner.

Solomon, R., Sandborn, P. A. & pecht, m. G. 2000.

Electronic part life cycle concepts and obsolescence

forecasting. Components and packaging technologies,

ieee transactions on, 23, 707-717.

Stamper, R. 1994. Social norms in requirements analysis:

an outline of measur. Requirements engineering.

Academic press professional, inc.

Strnadl, G. F. Aligning business and it: the process-driven

architecture model. Computer as a tool, 2005.

Eurocon 2005.the international conference on, 21-24

nov. 2005 2005. 1048-1051.

Whelan, K. 2000. Computers, obsolescence, and

productivity. Ssrn elibrary.

Wilkinson, L. & Friendly, M. 2009. The history of the

cluster heat map. The American statistician, 63, 179-

184.

BMSD 2011 - First International Symposium on Business Modeling and Software Design
