HUMAN ACTION RECOGNITION USING CONTINUOUS HMMS

AND HOG/HOF SILHOUETTE REPRESENTATION

Mohamed Ibn Khedher, Mounim A. El-Yacoubi and Bernadette Dorizzi

Departement of Electronics and Physics, Institut TELECOM: TELECOM SudParis, Evry, France

Keywords:

Action recognition, Feature discriminative power, Temporal correlation.

Abstract:

This paper presents an alternative to the mainstream approach of STIP-based SVM recognition for hu-

man recognition. First, it studies whether or not whole silhouette representation by Histogram-of-Oriented-

Gradients (HOG) or Histogram-of-Optical-Flow (HOF) descriptors is more discriminated when compared to

sparse spatio-temporal interest points (STIPs). Second, it investigates whether explicitly modeling the tempo-

ral order of features using continuous HMMs outperforms the standard Bag-of-Words (BoW) representation

that overlooks such an order. When both whole silhouette representation and temporal order modeling are

combined, a signiﬁcant improvement is shown on the Weizmann database over STIP-based SVM recognition.

1 INTRODUCTION

Human action recognition has been a fast evolving re-

search topic over the last years because of its diverse

applications in various ﬁelds (mining large video data,

medical ﬁeld, e-Health, video surveillance, sports,

robotics, etc.). The performance of a human action

recognition system can be affected by several factors,

among which the variability of illuminations, diver-

sity of clothes, and detection of the Region Of In-

terest (ROI) containing the human action to be mod-

eled (Weinland, 2008). In the last years, several

surveys on human action recognition have been pro-

posed (Poppe, 2010; Weinland et al., 2011). Overall,

methods of modeling actions can be classiﬁed into

two main approaches: model-based approaches and

model-free approaches.

Model-based approaches require a model in ad-

vance either a kinematic model that makes dynamic

links (angles) between different segments of the hu-

man body (Atine, 2004), or a shape model which con-

sists of representing human body segments by 2D ge-

ometric shapes such as rectangles (rectangular models

(

Ikizler and Duygulu, 2007)), or 3D geometric shapes

like cylinder (Pehlivan and Duygulu, 2009). Most

model-based approaches combine the two models in

order to simultaneously encode the shape and motion

of the action.

Model-Free approaches, on the other hand, do not

require an explicit body model. They can be classiﬁed

into two categories: global methods and local meth-

ods. Global representation encodes information of the

entire ROI. Some of the most popular methods in-

clude temporal representation as Motion History Im-

age (MHI) and Motion Energy Image (MEI) (Bobick

and Davis, 2001), Zernike-moment (Sun et al., 2009),

and envelope shape (Huang and Xu, 2007). ROI can

be considered as one bloc or as a grid of sub-blocs.

Global representation needs the detection of ROI. In

the literature, methods of ROI detection can use one

from the following techniques: background subtrac-

tion (eg based on GMM (Zivkovic, 2004)), track-

ing (eg based on Kalman ﬁlter (Zhong and Sclaroff,

2003; Pnevmatikakis and Polymenakos, 2007)) or

the method based on Histogram of Oriented Gradi-

ents (Dalal and Triggs, 2005). Background subtrac-

tion methods are less robust when dealing with non-

stationary background. Tracking, on the other hand,

is a time-costly procedure and may require an initial-

ization of the tracking model. The method based on

HOG, in turn, tests different scales for people detec-

tion. Thus, it may be costly in time. In addition, it

needs a learning phase and depends on the learning

database.

Local representations have become very popu-

lar in the recent years. They consist of represent-

ing a video action by several locally detected spatio-

temporal interest points. In this context, several works

based on STIPs have been developed (Wang et al.,

2009). STIP-based approaches consist of two subse-

quent stages: STIPs detection and STIPs description

or representation.

503

Ibn Khedher M., A. El-Yacoubi M. and Dorizzi B. (2012).

HUMAN ACTION RECOGNITION USING CONTINUOUS HMMS AND HOG/HOF SILHOUETTE REPRESENTATION.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 503-508

DOI: 10.5220/0003695905030508

 SciTePress

In order to detect the points of interest, Laptev and

Linberdeg (Laptev and Lindeberg, 2003) extended the

2D Harris (Harris and Stephens, 1988) to 3D Harris

integrating the temporal aspect between human pos-

tures. The cuboid detector proposed by Dollar et al.

is based on Gabor ﬁlters (Dollar et al., 2005). Fi-

nally, the STIPs detection proposed by Willems et al.

(Willems et al., 2008) is a spatio-temporal extension

of the Hessian saliency measure used in (Lindeberg,

1998) for blob detection. For STIPs description, both

HOG and HOF were used by Laptev et al. (Laptev

et al., 2008) in order to characterize shape and motion

respectively. Kl

aser et al. (Kl

aser et al., 2008) pro-

posed 3D HOG which can be seen as an extension of

SIFT descriptor to video sequences. Finally, Willems

et al. (Willems et al., 2008) proposed the Extended

SURF (ESURF) descriptor which extends the image

SURF descriptor (Bay et al., 2006) to videos.

One of the main observations regarding state of

the art action recognition methods is that there is

no approach systematically outperforming the others:

each approach has its own strengths and limitations.

For example, model-based approaches allow a rich

body representation but they need a shape or kine-

matic model, the robustness of which is not guaran-

teed. We should note that ﬁnding body parts and es-

timating a body model from images remains an un-

resolved problem (Weinland et al., 2011). Recent

works design appropriate kinematic models for par-

ticular actions, walking or running for instance, hence

the range of applications is limited to this kind of sce-

narios (Weinland et al., 2011).

Model-free global representations also may ex-

tract rich information from the silhouette by glob-

ally encoding the posture, provided the background

is simple which is not always the case. In real scenes,

however, background is often complex and dynamic.

Besides, these approaches are sensitive to noise, oc-

clusion and variations in viewpoints (Poppe, 2010).

On the other hand, model-free local methods allow a

sparse video action description leading to an efﬁcient

representation. Besides, they do not require ROI de-

tection and background subtraction. However, the de-

tected interest points are not guaranteed to correspond

to the moving body; they may be associated with the

background for instance.

In light of the observations above, STIP-based

methods look as an appealing method for describing

dynamic video scenes. However, it is not guaranteed

that the sparse representation based on STIPs does not

overlook points in the video sequence not correspond-

ing to local maxima of spatio-temporal gradients but

which are discriminant for classiﬁcation. Thus, the

ﬁrst objective of this paper is to assess the discrimi-

nant power of STIPs by comparing it with a rich rep-

resentation of the silhouette based on HOG/HOF ex-

tracted from the ROI of the whole silhouette. Besides,

as it is not obvious to set an ordering of the inter-

est points, either spatially or temporarily, this led to

the representation of the video sequence by a Bag-

of-Words of STIPs that does not need such an order

(Schuldt et al., 2004; Kl

aser, 2010) based on STIPs

use the Bag-of-Words representation (Sivic and Zis-

serman, 2003). The second objective of this paper is

to assess the effect of neglecting the temporal order

of STIPs by explicitly considering an HMM that does

model the temporal order of the frames represented

by HOG/HOF descriptors.

This paper is structured as follows. In section

2, we examine our action modeling and recognition

technique. The experimental results of our approach

are given in section 3. A conclusion and perspectives

are ﬁnally presented.

2 ACTION MODELING AND

RECOGNITION

Our approach basically consists of three stages: 1)

ROI detection, 2) feature extraction using HOG/HOF

descriptors and 3) human action modeling and recog-

nition using a Hidden Markov Model (HMM).

2.1 Detection of the ROI

Our approach takes as input the region of interest con-

taining the human silhouette. The detection of the

ROI can be based on background subtraction or on

a machine learning method such as the one proposed

by Dalal et al. taking as input HOG descriptor (Dalal

and Triggs, 2005). Note that in the database we used

for experiments (the Weizmann dataset), the ROI was

available. Figure 1(a) shows a screenshot of an orig-

inal image and Figure 1(b) shows its ROI. This ROI

will be the input of feature extraction procedure.

(a) (b)

Figure 1: a) Original image. b) ROI image.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

504

2.2 Feature Extraction

State of the art methods show that combining both the

appearance and movement to describe the silhouette

lead to better results. For this reason, we use two

types of features: HOG which is a rich representa-

tion mainly encoding silhouette contour (Figure 2(b))

and HOF which explicitly encodes motion in the ROI

(Figure 2(c)). HOF can be seen as compromise be-

tween HOG and STIPs in terms of sparseness and

richness of representation. HOG and HOF encoding

of the ROI is basically carried out as follows:

• HOG shape encoding: taking the ROI as input,

a differential image is calculated using the Sobel

operator; the result is a gradient for each pixel.

Then, the ROI is divided into cells and a HOG

is calculated for each cell. The HOG is then dis-

cretized along a set of bins, associated each to an

angle interval. The value corresponding to the bin

is the sum of the amplitudes of the gradients hav-

ing an angle belonging to this interval.

• HOF motion encoding: the method conceived by

Lucas et al. (Lucas and Kanade, 1981) for calcu-

lating the optical ﬂow is used to compute a motion

image between the current and the previous im-

ages (Doll

ar, 2007). The result is a motion vector

for each pixel. The computing of the HOF follows

the same principle as the HOG detailed in the pre-

vious paragraph. To minimize the effect of noise,

we ignore the motion vectors of small amplitude

that mainly correspond to the background.

(a) (b) (c)

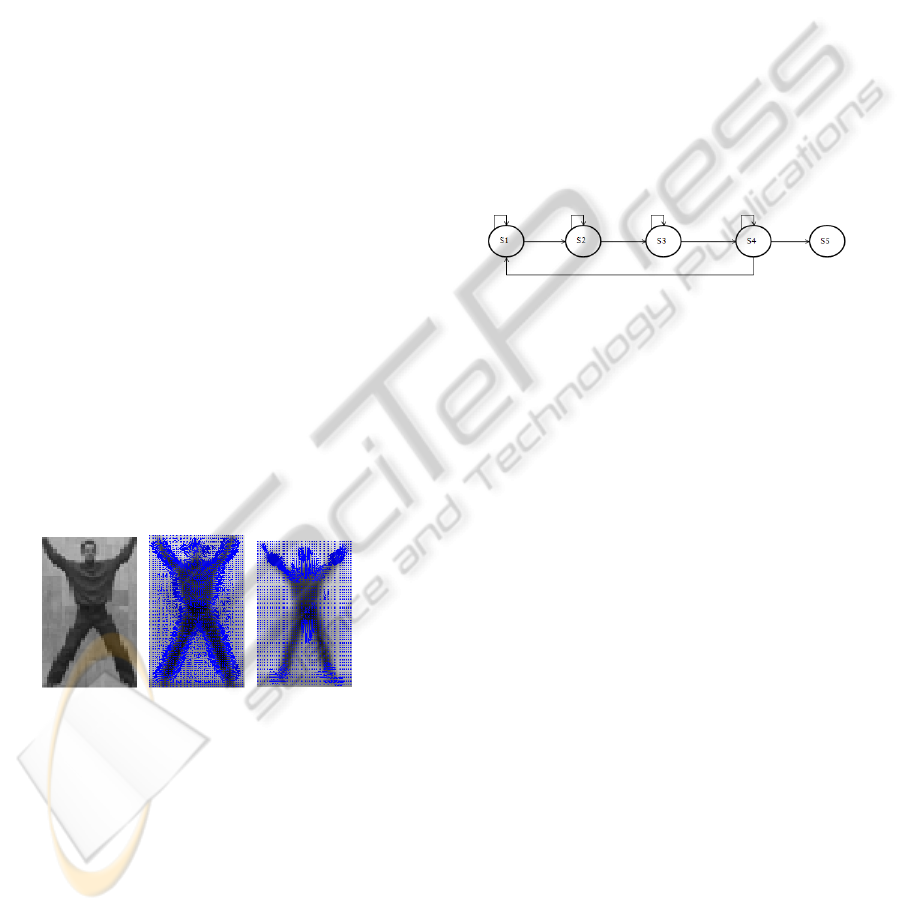

Figure 2: a) Original ROI image. b) Gradient image. c)

Optical ﬂow image.

2.3 Modeling and Recognition with

HMM

The temporal correlation between human postures is

explicitly modeled using a Hidden Markov Model

(HMM) (Rabiner, 1989). The problem of recognition

with HMM is the following: given a HMM (λ

) for

an action i, and a sequence of observations ”O” cor-

responding to an unknown action, we seek the HMM

that maximizes the probability: P(O\λ

). This proba-

bility is calculated by the forward algorithm (Rabiner,

1989).

HMM is the most known generative graphical

model. It is a probabilistic model that here models a

set of observations corresponding to postures. In our

case, the observations are continuous and the proba-

bility distribution in each state is modeled by a mix-

ture of Gaussians. Gaussian parameters are initialized

uniformly: for a given HMM, the training sequences

are uniformly segmented in sub-sequences according

to the number of states of HMM. All sub-sequences

corresponding to a given state are used to estimate the

corresponding Gaussian parameters.

Figure 3 shows the topology of the HMM model

considered in our approach. The back loop from state

4 to state 1 is introduced to implicitly model the peri-

odicity of most actions considered in this work.

Figure 3: The used HMM Model.

Owing to the high dimensionality of HOG/HOF

descriptors, Principal Component Analysis (PCA) is

employed to reduce it. PCA has also the advantage of

decorrelating the data, thus enabling the consideration

of mixtures Gaussians with diagonal covariances.

3 EXPERIENCES AND RESULTS

3.1 Database

The Weizmann (Blank et al., 2005; Gorelick et al.,

2007) database is one of the most used databases for

human action recognition. It consists of 9 persons

performing 10 actions that are: bend, jack, run, walk,

jump, wave (one hand), wave (two hands), side, skip

and jump in place. Figure 4 shows some actions from

the Weizmann database.

3.2 Test Protocol and Conﬁguration

To evaluate our approach, the test protocol leave-one-

out is used. In fact, each action HMM is learned from

8 sequences corresponding to 8 people. The sequence

of the remaining person is used for test.

The features obtained from each silhouette (pre-

sented in section 2) are extracted according to the fol-

lowing conﬁguration: each ROI is divided into 3x3

cells. A HOF and a HOG of 9 bins is calculated for

HUMAN ACTION RECOGNITION USING CONTINUOUS HMMS AND HOG/HOF SILHOUETTE

REPRESENTATION

505

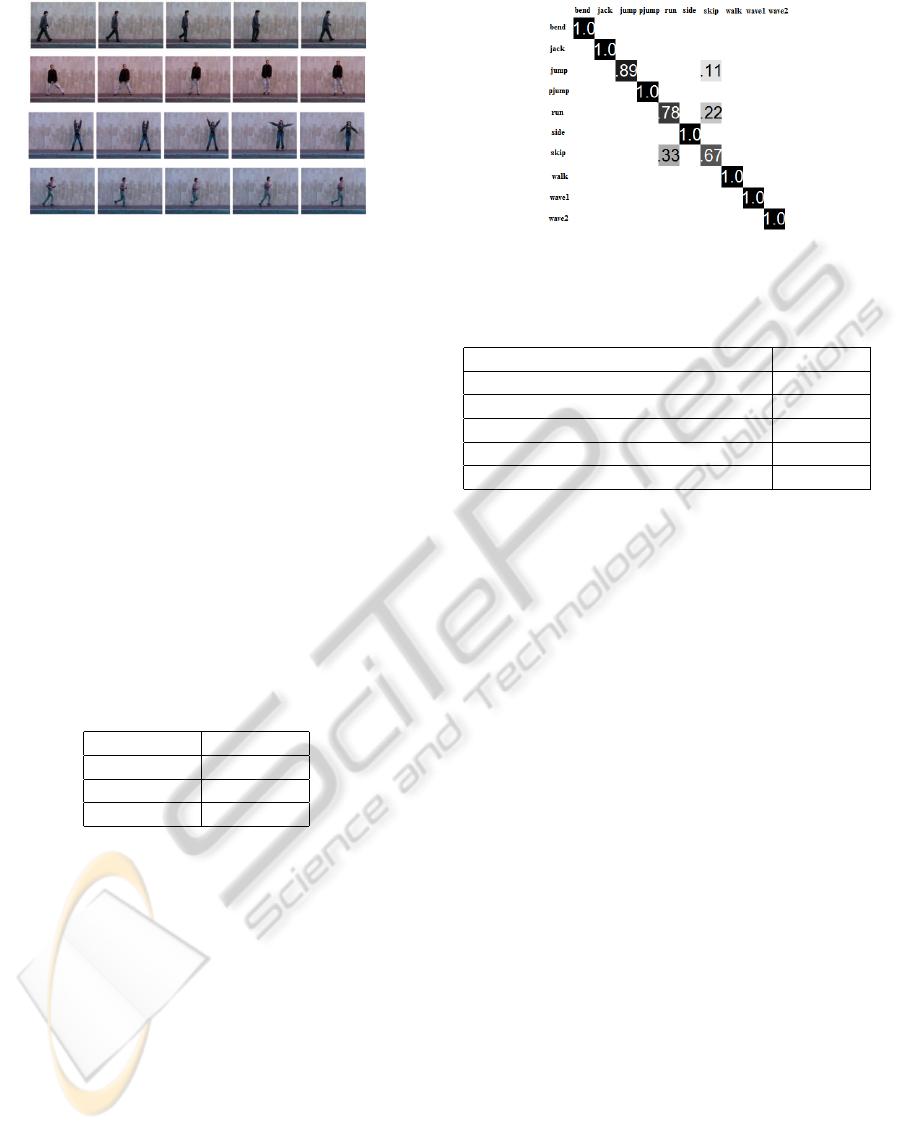

Figure 4: Sample frames from Weizmann dataset.

each cell. Thus, each image is represented by two

vectors of 81 elements normalized by their norms.

A continuous HMM of 5 states and 4 Gaus-

sians was considered, and recognition was performed

using as features HOG, HOF and the combination

HOG/HOF.

3.3 Results

In this section, we evaluate our approach with HOG,

HOF and the combination HOG/HOF descriptors. In

order to give our results with better accuracy, each

test is repeated three times. Table 1 shows the perfor-

mance of our approach in terms of average of recog-

nition rates, and Figure 5 gives the confusion ma-

trix (Doll

ar, 2007) provided by one of the tests cor-

responds to the combination HOG/HOF.

Table 1: Results of our approach.

Primitives Rates(%)

HOG 80.8 ( ±3)

HOF 83.3 ( ±3)

HOF+HOG 92.1 ( ±1)

Table 1 shows that HOF slightly outperforms

HOG, meaning that explicit motion extraction is

slightly better than encoding the shape contour. The

combination HOG/HOF dramatically improves the

recognition rate. This shows that HOG and HOF are

quite complementary for describing moving human

shapes.

The confusion matrix shows that the classiﬁca-

tion error is caused by the strong similarity between

running-type actions. This is understandable as it

is difﬁcult to discriminate, for example, ’run’ from

’skip’ over a period of 2 seconds.

For comparison purposes, Table 2 shows action

recognition rates obtained by various approaches on

the Weizmann dataset.

Table 2 shows that our approach signiﬁcantly out-

performs those obtained with STIP-based Bag-of-

Figure 5: Confusion matrix corresponds to the combination

HOG/HOF features.

Table 2: Results comparison on Weizmann Database.

Approaches Rates(%)

Klaser et al. (Kl

aser et al., 2008) 84.3

Dollar et al. (Dollar et al., 2005) 85.2

Laptev et al. (Laptev et al., 2008) 88.8

Our Approach. 92.1

Wang et al. (Wang and Suter, 2007) 97.7

Words (the 3 approaches at the top Table 2 are dif-

ferent in the way STIPs are detected and described).

This shows, as discussed in the introduction, that the

sparse representation based on STIPs, although efﬁ-

cient, may overlook some features points that are dis-

criminant for classiﬁcation. Also, explicitly model-

ing the temporal order of postures (frames) through

HMMs can be beneﬁcial to recognition with respect

to a representation like the Bag-of-Words that does

not take into account such an order.

On the other hand, as the bottom line of Table 2

shows, Wang’s approach outperforms ours. This ap-

proach is based on Conditional Random Fields (CRF)

and a global representation of the silhouette but our

goal in this paper was to show that explicit mod-

eling of the temporal order of frames along with a

richer representation of silhouettes can signiﬁcantly

improve classiﬁcation performance.

4 CONCLUSIONS

This paper has discussed the discriminant power of

STIPs by comparing it with a rich representation of

the silhouette based on HOG/HOF extracted from the

ROI of the whole silhouette. It also assessed the effect

of neglecting the temporal order of STIPs by explic-

itly considering an HMM that does model the tem-

poral order of the frames represented by HOG/HOF

descriptors.

The results obtained in our experiments show that

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

506

such an order does improve action recognition. On

the other hand, the signiﬁcantly better performance

obtained by explicitly modeling human silhouette dy-

namics through HOF and HOG show that although

STIP-based representations are efﬁcient, they may

fail to detect some feature points that are relevant for

recognition.

In the future, we are targeting the task of action

recognition in the context of daily human activities.

Here, the problem becomes more difﬁcult as the in-

put will usually consist of a long video sequence

made up of a continuous sequence of actions (for in-

stance ”walk”, ”eat”, ”watching TV” and then ”laying

down”). Therefore, the purpose is to conjointly seg-

ment and recognize actions. One of the goals, in the

context of this application and according to the results

obtained in this study, is to select in an automatic way

the type of features (STIPs or HOG/HOF) to be ex-

tracted from the silhouette depending on such factors

as the complexity of the background, occlusion and

the presence or not of several moving shapes.

REFERENCES

Abdelkader, M. F., Roy-Chowdhury, A. K., Chellappa, R.,

and Akdemir, U. (2008). Activity representation using

3d shape models. J. Image Video Process., 2008:5:1–

5:16.

Atine, J.-C. (2004). People action recognition in image se-

quences using a 3d articulated object. In ICIAR (1),

pages 769–777.

Bay, H., Tuytelaars, T., and Gool, L. J. V. (2006). Surf:

Speeded up robust features. In ECCV (1)’06, pages

404–417.

Blank, M., Gorelick, L., Shechtman, E., Irani, M., and

Basri, R. (2005). Actions as space-time shapes. In

The Tenth IEEE International Conference on Com-

puter Vision (ICCV’05), pages 1395–1402.

Bobick, A. F. and Davis, J. W. (2001). The recognition

of human movement using temporal templates. IEEE

Trans. Pattern Anal. Mach. Intell., 23:257–267.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In Proceedings of the

2005 IEEE Computer Society Conference on Com-

puter Vision and Pattern Recognition (CVPR’05) -

Volume 1 - Volume 01, CVPR ’05, pages 886–893,

Washington, DC, USA. IEEE Computer Society.

Doll

ar, P. (2007). Piotr’s Image and Video Matlab Toolbox

(PMT).

Dollar, P., Rabaud, V., Cottrell, G., and Belongie, S. (2005).

Behavior recognition via sparse spatio-temporal fea-

tures. In Proceedings of the 14th International Con-

ference on Computer Communications and Networks,

pages 65–72, Washington, DC, USA. IEEE Computer

Society.

Elgammal, A. M., Harwood, D., and Davis, L. S. (2000).

Non-parametric model for background subtraction. In

Proceedings of the 6th European Conference on Com-

puter Vision-Part II, ECCV ’00, pages 751–767, Lon-

don, UK. Springer-Verlag.

Gorelick, L., Blank, M., Shechtman, E., Irani, M., and

Basri, R. (2007). Actions as space-time shapes. Trans-

actions on Pattern Analysis and Machine Intelligence,

29(12):2247–2253.

Harris, C. and Stephens, M. (1988). A Combined Corner

and Edge Detection. In Proceedings of The Fourth

Alvey Vision Conference, pages 147–151.

Huang, F. and Xu, G. (2007). Viewpoint insensitive action

recognition using envelop shape. In Proceedings of

the 8th Asian conference on Computer vision - Vol-

ume Part II, ACCV’07, pages 477–486, Berlin, Hei-

delberg. Springer-Verlag.

Ikizler, N. and Duygulu, P. (2007). Human action recogni-

tion using distribution of oriented rectangular patches.

In Proceedings of the 2nd conference on Human mo-

tion: understanding, modeling, capture and anima-

tion, pages 271–284, Berlin, Heidelberg. Springer-

Verlag.

aser, A. (2010). Learning human actions in video. PhD

thesis, Universit

e de Grenoble.

aser, A., Marszałek, M., and Schmid, C. (2008). A spatio-

temporal descriptor based on 3d-gradients. In British

Machine Vision Conference, pages 995–1004.

Laptev, I. and Lindeberg, T. (2003). Space-time interest

points. In Proceedings of the Ninth IEEE Interna-

tional Conference on Computer Vision - Volume 2,

ICCV ’03, pages 432–, Washington, DC, USA. IEEE

Computer Society.

Laptev, I., Marszałek, M., Schmid, C., and Rozenfeld,

B. (2008). Learning realistic human actions from

movies. In Conference on Computer Vision & Pattern

Recognition.

Lindeberg, T. (1998). Feature detection with automatic

scale selection. Int. J. Comput. Vision, 30:79–116.

Lucas, B. D. and Kanade, T. (1981). An iterative image

registration technique with an application to stereo vi-

sion. In Proceedings of the 7th international joint

conference on Artiﬁcial intelligence - Volume 2, pages

674–679, San Francisco, CA, USA. Morgan Kauf-

mann Publishers Inc.

Moon, H. and Chellappa, R. (2008). 3d shape-encoded

particle ﬁlter for object tracking and its application

to human body tracking. J. Image Video Process.,

2008:12:1–12:16.

Niebles, J. C., Wang, H., and Fei-Fei, L. (2008). Un-

supervised learning of human action categories us-

ing spatial-temporal words. Int. J. Comput. Vision,

79:299–318.

Pehlivan, S. and Duygulu, P. (2009). 3d human pose search

using oriented cylinders. In S3DV09, pages 16–22.

Pnevmatikakis, A. and Polymenakos, L. (2007). 2d per-

son tracking using kalman ﬁltering and adaptive back-

ground learning in a feedback loop. In Proceed-

ings of the 1st international evaluation conference

HUMAN ACTION RECOGNITION USING CONTINUOUS HMMS AND HOG/HOF SILHOUETTE

REPRESENTATION

507

on Classiﬁcation of events, activities and relation-

ships, CLEAR’06, pages 151–160, Berlin, Heidel-

berg. Springer-Verlag.

Poppe, R. (2010). A survey on vision-based human action

recognition. Image Vision Comput., 28:976–990.

Rabiner, L. (1989). A tutorial on HMM and selected ap-

plications in speech recognition. Proceedings of the

IEEE, 77(2):257–286.

Ramanan, D. and Forsyth, D. A. (2003). Automatic an-

notation of everyday movements. Technical Report

UCB/CSD-03-1262, EECS Department, University of

California, Berkeley.

Ramanan, D., Forsyth, D. A., and Zisserman, A. (2007).

Tracking people by learning their appearance. IEEE

Trans. Pattern Anal. Mach. Intell., 29:65–81.

Riemenschneider, H., Donoser, M., and Bischof, H. (2009).

Bag of optical ﬂow volumes for image sequence

recognition. In BMVC09, pages xx–yy.

Salton, G. and McGill, M. J. (1986). Introduction to Mod-

ern Information Retrieval. McGraw-Hill, Inc., New

York, NY, USA.

Schuldt, C., Laptev, I., and Caputo, B. (2004). Recognizing

human actions: A local svm approach. In Proceedings

of the Pattern Recognition, 17th International Confer-

ence on (ICPR’04) Volume 3 - Volume 03, ICPR ’04,

pages 32–36, Washington, DC, USA. IEEE Computer

Society.

Sivic, J. and Zisserman, A. (2003). Video Google: A text

retrieval approach to object matching in videos. In

Proceedings of the International Conference on Com-

puter Vision, volume 2, pages 1470–1477.

Sun, X., Chen, M., and Hauptmann, A. (2009). Action

recognition via local descriptors and holistic features.

In CVPR4HB09, pages 58–65.

Wang, H., Ullah, M. M., Kl

aser, A., Laptev, I., and Schmid,

C. (2009). Evaluation of local spatio-temporal fea-

tures for action recognition. In British Machine Vision

Conference, page 127.

Wang, L., Geng, X., Leckie, C., and Kotagiri, R. (2008).

Moving shape dynamics: A signal processing per-

spective. Computer Vision and Pattern Recognition,

IEEE Computer Society Conference on, 0:1–8.

Wang, L. and Suter, D. (2007). Recognizing Human Ac-

tivities from Silhouettes: Motion Subspace and Fac-

torial Discriminative Graphical Model. Computer Vi-

sion and Pattern Recognition, 2007. CVPR ’07. IEEE

Conference on, pages 1–8.

Weinland, D. (2008). Action Representation and Recogni-

tion. PhD thesis, INPG.

Weinland, D., Ronfard, R., and Boyer, E. (2011). A sur-

vey of vision-based methods for action representation,

segmentation and recognition. Comput. Vis. Image

Underst., 115:224–241.

Willems, G., Tuytelaars, T., and Gool, L. (2008). An efﬁ-

cient dense and scale-invariant spatio-temporal inter-

est point detector. In Proceedings of the 10th Euro-

pean Conference on Computer Vision: Part II, ECCV

’08, pages 650–663, Berlin, Heidelberg. Springer-

Verlag.

Zhong, J. and Sclaroff, S. (2003). Segmenting foreground

objects from a dynamic textured background via a ro-

bust kalman ﬁlter. In Proceedings of the Ninth IEEE

International Conference on Computer Vision - Vol-

ume 2, ICCV ’03, pages 44–, Washington, DC, USA.

IEEE Computer Society.

Zivkovic, Z. (2004). Improved adaptive gaussian mixture

model for background subtraction. In Proceedings

of the Pattern Recognition, 17th International Confer-

ence on (ICPR’04) Volume 2 - Volume 02, ICPR ’04,

pages 28–31, Washington, DC, USA. IEEE Computer

Society.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

508
