VISUAL NAVIGATION FOR THE BLIND

Path and Obstacle Detection

J. Jos

e, J. M. H. du Buf and J. M. F. Rodrigues

Vision Laboratory, Institute for Systems and Robotics (ISR/IST)

University of the Algarve (FCT and ISE), 8005-139 Faro, Portugal

Keywords:

Path detection, Obstacle detection, Obstacle avoidance.

Abstract:

We present a real-time vision system to assist blind and visually impaired persons. This system complements

the white cane, and it can be used both indoor and outdoor. It detects borders of paths and corridors, obstacles

within the borders, and it provides guidance for centering and obstacle avoidance. Typical obstacles are

backpacks, trash cans, trees, light poles, holes, branches, stones and other objects at a distance of 2 to 5 meters

from the camera position. Walkable paths are detected by edges and an adapted Hough transform. Obstacles

are detected by a combination of three algorithms: zero crossings of derivatives, histograms of binary edges,

and Laws’ texture masks.

1 INTRODUCTION

Blind and visually impaired persons need to navigate

using the cane or, at best, an ultrasonic obstacle de-

tector. There are an estimated 180 million persons

with severe visual impairments of which 40-50 mil-

lion are completely blind, and every year 2 million

more become blind. The Portuguese project “Blav-

igator: a cheap and reliable navigation aid for the

blind” aims at developing a cheap portable GIS and

GPS-based navigation aid for the blind, for both out-

door and indoor navigation, with vision modules for

obstacle avoidance and object recognition.

There are a few recent systems for visually im-

paired users which may assist them in navigating,

with and without obstacle detection and avoidance.

One system integrates outdoor navigation with obsta-

cle detection (Lee et al., 2008). Another is the elec-

tronic travel aid called iSONIC (Kim et al., 2009).

The latter complements the conventional cane by de-

tecting obstacles at head height. (CASBliP, 2009) was

an EU-funded project. The main aim was to develop

a system capable of interpreting and managing real-

world information from different sources in order to

improve autonomous mobility. For a detailed descrip-

tion of the state-of-the-art see (du Buf et al., 2011).

The work presented here concerns one of the vi-

sion modules of the Blavigator project. It uses a stereo

camera ﬁxed to the chest of the blind, at a height of

about 1.5 m from the ground. Results presented are

obtained by using only the right-side camera, and the

system performs equally well using a normal, inex-

pensive webcam with about the same resolution. The

resolution must be sufﬁcient to resolve textures of

pavements and potential obstacles like holes with a

minimum size of about 10 cm at a distance of 2 to

5 meters from the camera. Our prototype works in

real-time on a normal netbook computer and is able

to detect borders of paths like outdoor sidewalks and

indoor corridors, and it can assist the user in navigat-

ing inside the borders. It also detects obstacles, both

indoor (trash cans, plant pots, backpacks and furni-

ture) and outdoor (light poles, tree branches, holes

and loose stones) inside the borders for alerting the

user and avoiding them.

2 PATH DETECTION

Paths are the areas where the user can walk in a cor-

ridor or on a sidewalk. These are delimited by left

and right border lines. The position where these lines

intersect is called the Vanishing Point (VP). Using

the Canny edge detector (Canny, 1986) in combina-

tion with an adapted version of the Hough transform

(Duda and Hart, 1972), it is possible to detect the bor-

ders and the VP.

Let I

(x,y) be an input frame with ﬁxed width W

and height H

. Because of perspective projection, the

left and right path borders intersect at the vanishing

515

José J., Buf J. and Rodrigues J. (2012).

VISUAL NAVIGATION FOR THE BLIND - Path and Obstacle Detection.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 515-519

DOI: 10.5220/0003711405150519

 SciTePress

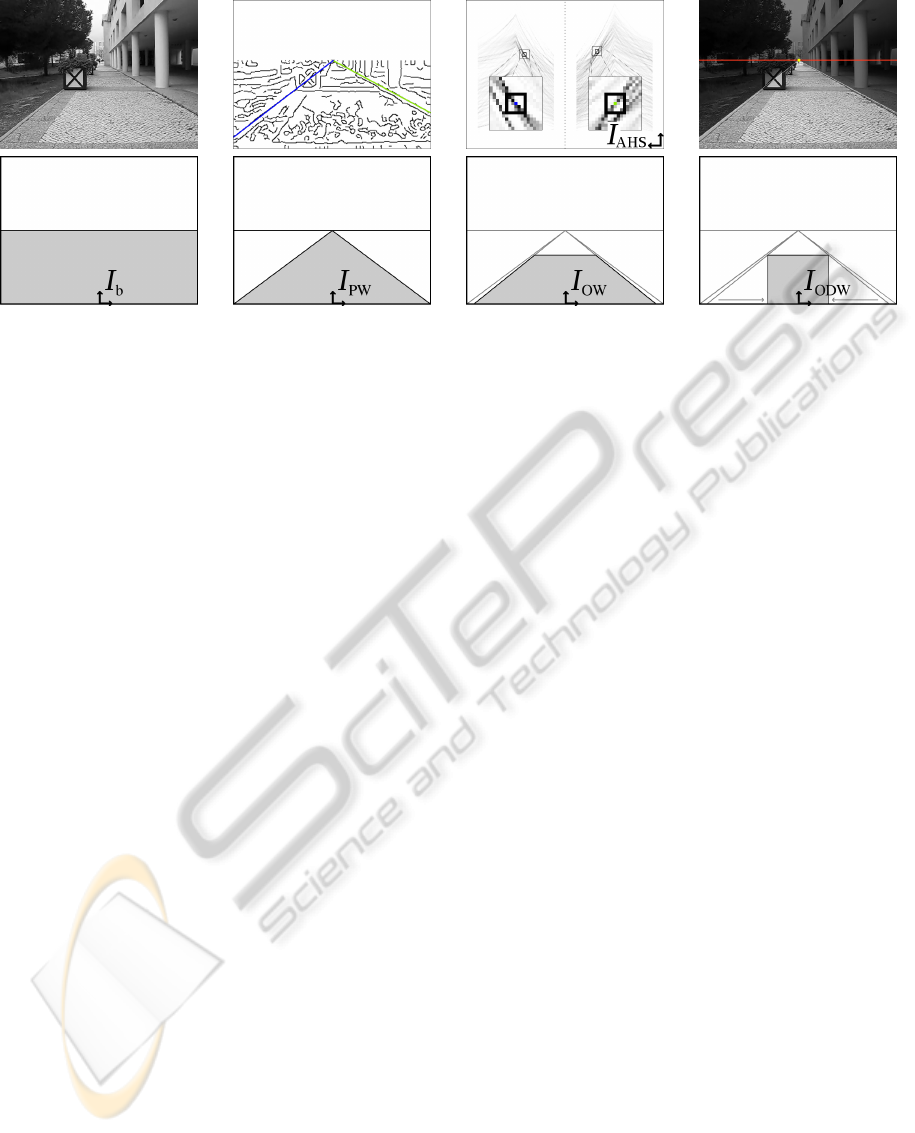

Figure 1: Top row, from left: one input frame, its edge map I

with left and right borders in blue and green, the corresponding

AHS with magniﬁed regions, and detected borders highlighted with the vanishing point VP (yellow circle) and the horizon

line HL (red). Bottom row: the different path and obstacle windows I

, PW, OW and ODW.

point; see the yellow circle in the top-right image of

Fig. 1. If the camera plane is exactly in the vertical

position, the horizon line HL (the red line in the same

image) is close to the middle of the frame. Since verti-

cal camera alignment is not ﬁxed but varies over time

when the user walks, we use the VP in order to de-

termine the line: y

= y

. During an initialization

phase, i.e., the ﬁrst 5 frames which last less than one

second, y

= H

/2 is taken, after which the height

of HL is dynamically computed for each new frame

by averaging the heights of the previous 5 frames of

which the VP is known. The lower part of the image,

below HL, will contain path borders and obstacles on

the ground. This part, which is illustrated in Fig. 1

(bottom-left), will be analyzed.

In order to reduce CPU time, only grayscale in-

formation is processed after resizing the lower part

to a width of 300 pixels while maintaining the as-

pect ratio. Then two iterations of a smoothing ﬁlter

are applied in order to suppress noise. The Canny

edge detector is applied with σ = 1.0, T

= 0.25 and

= 0.5. The result is a binary edge image I

(x,y) of

width W

= 300 and height H

= y

), with

x ∈ [−W

/2,W

/2 − 1] and y ∈ [0,H

− 1], and the

origin of the coordinate system at the bottom-center

of the image. One path frame and I

are shown in the

leftmost images of Fig. 1.

We then use the Hough transform to search for

border candidates in the left and right halves of

image I

. As we want to check straight lines in

both halves using polar coordinates, the Hough trans-

form is applied to I

, yielding the adapted Hough

space I

AHS

(ρ,θ): we restrict the Hough space to

θ ∈ [20

,69

] ∪ [111

,160

] such that vertical and

almost vertical lines in the intervals θ ∈ [0

,20

] ∪

[160

,180

] are ignored. The same is done for hor-

izontal and almost horizontal lines (θ ∈ [70

,110

]).

For maximizing the number of searched lines and

minimizing the computation time, we use ∆θ = 0.5

We use ∆ρ = cosθ for θ ∈ [20

,44

] and ∆ρ = sin θ

for θ ∈ [45

,69

]. Lines outside the image can

be discarded, so the biggest value of ρ occurs for

the straight lines that pass through the opposite cor-

ners relative to the bottom-center of the image (ρ ∈

[0,(W

/2)cosθ + H

sinθ]).

For optimization purposes, we can compute the

lines for the Hough transform by “mirroring” the

left and right lines about the y axis: we calculate

the lines for θ ∈ [20

,69

] and, at the same time,

the lines for θ ∈ [111

,160

], as explained below.

The right border is denoted by L

ρ,θ

) and the

left one by L

ρ,π−θ

). For L

ρ,θ

we use x

(ρ −y

sinθ)/cosθ and y

= (ρ− x

cosθ)/sinθ. For

ρ,π−θ

we use x

= −x

− 1 and y

= y

. This results

in a reduction of CPU time of about 50%, as we need

little more than half of all computations involved in

building the normal Hough space.

The I

AHS

space is ﬁlled by checking the pixels in

from top to bottom: left-to-right for the right bor-

der (L

ρ,θ

) and right-to-left for the left border (L

ρ,π−θ

As for the normal Hough space, I

AHS

is a histogram

which is used to count the co-occurrences of aligned

pixels in the binary edge map I

. However, longer

sequences of edge pixels count more than short se-

quences or not-connected edge pixels. A run of n

connected edge pixels is counted by applying P

n−1

+2 with P

= 1, and will contribute n

to the rel-

evant I

AHS

bin. The ﬁnal value of an I

AHS

(ρ,θ) bin is

the sum of the P

values of all sequences of ON pix-

els, each sequence having at least one ON pixel. The

AHS is shown in Fig. 1, 1st row 3rd column, with the

detected maxima in blue and green. The correspond-

ing borders are also shown colored in the edge map

(Fig. 1, 2nd column at top).

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

516

For selecting the path borders we analyze the suc-

cessive highest values of I

AHS

for each frame, in each

half, starting with the highest ones. This results in

an intersection point. If the intersection point of the

next left and/or right value(s) has a smaller Euclid-

ian distance to the VP of the previous frame, we con-

tinue checking the next value(s) on the corresponding

side(s). If there is no pair with a smaller distance,

the current value is selected. After both values are

selected, their intersection corresponds to the frame’s

VP. In this search, all combinations of left and right

border candidates are considered. If in the left or right

regions where the I

AHS

values are checked there is no

maximum which corresponds to at least one sequence

of not less than 10 connected ON pixels, it is checked

again without region restrictions. If still no corre-

spondence can be found, the border is considered not

found for that side. In this case, the average of the last

5 borders found is used. If after 5 consecutive frames

one or both borders are not found, the user is warned.

The HL value remains the same, and the scanned win-

dow expands to the left- and/or rightmost column ac-

cording to the missing border(s). In such a case the

user knows that the vision module temporarily cannot

detect a valid path, but he can continue walking using

the white cane, and the module will still check for ob-

stacles in front. Below, the walkable path is called the

Path Window (PW). It consists of the triangle delim-

ited by the left and right borders in I

, as shown in the

second-from-left images in Fig. 1.

3 OBSTACLE DETECTION

The PW is wider than the area in front where the

blind person will walk and where obstacles must be

detected. Hence, the PW is narrowed by drawing new

lines through the VP: the positions of the original bor-

ders of the PW at the bottom line are shifted right (left

border) and left (right border), by 5% of W

, which re-

sults in a narrower triangle. In addition, the height of

the window can be reduced because the top of the tri-

angle (near VP) is too far away. Hence, the height

is redeﬁned for a corresponding range of at least 5

meters from the user, i.e., H

= 2/3 × y

, which

yields a trapezoid with parallel top and bottom lines.

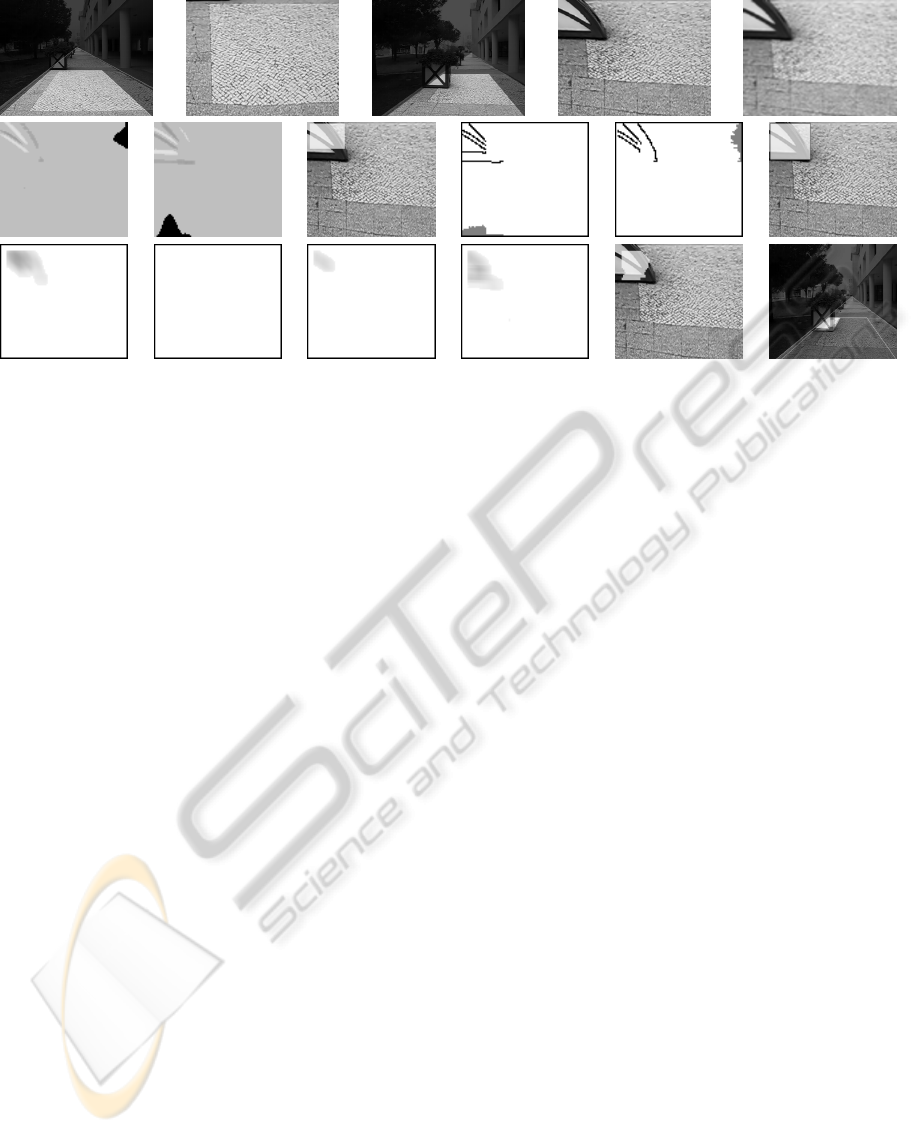

This is called the Obstacle Window (OW, I

); see

Fig. 1, 2nd row 3rd column, and Fig. 2, the bright

area in the top-left image.

For obstacles in the immediate neighborhood be-

yond the reach of the white cane we have to consider

distances between 2 and 5 m in front of the user, tak-

ing into account the height of the camera and perspec-

tive projection of the lens. However, the resolution at

the bottom of the image is higher than that at the top

or even at the VP. Therefore, we deﬁne a new Obsta-

cle Detection Window (ODW) and use interpolation

to correct image resolution; see Fig. 1 (bottom-right);

also Fig. 2, the 2nd and 4th images from left on the

top row in the case of the OW in the frames to their

left. Hence, the trapezoidal OW is converted to the

rectangular ODW by maintaining the resolution at the

top of OW but reducing it at the bottom.

At this point we must stress that our system will

not detect obstacles at a distance of less than 2 m from

the user, because of two reasons: (i) The user has al-

ready been alerted to a looming obstacle at a larger

distance and advised to adapt path trajectory. (ii) The

user will always check a detected obstacle using the

white cane at short distance.

To the ODW region we also apply a lowpass ﬁlter

with a 3 ×3 kernel in order to suppress noise. An ex-

ample is shown in the top-right image of Fig. 2. This

is the ﬁltered ODW of the image to its left, and this

will be used for obstacle detection.

Below we explain the three obstacle detection

algorithms: (a) Zero-Crossing Counting, (b) His-

tograms of Binary Edges and (c) Laws’ Texture En-

ergy Masks. If at least two of these detect an anomaly

at about the same position, an obstacle is assumed. At

least 3 successive frames are required to conﬁrm the

presence of an obstacle and before alerting the user.

(a) In Zero-Crossing Counting, we compute

derivatives in x and y in I

ODW

, using a large kernel

K = (−1,−1,−1,0,1,1,1). Then we sum the am-

plitudes of the maxima and minima near every zero-

crossing (ZC): each time the derivative changes sign,

we look for the minimum and maximum value on

both sides and sum the absolute values. For analyz-

ing variations on lines we use the x derivative, and

for columns we use the y derivative. This is done

for every line and column in the ODW. These arrays

are then ﬁltered twice with a 7 × 1 smoothing kernel.

Filtered values below 3 in the histograms are due to

noise and are removed. All parameters and kernels

were determined experimentally using different test

sequences. Examples of x and y derivatives are shown

in the 1st and 2nd images on the 2nd row of Fig. 2,

with the two histograms in black.

Thresholds are applied to the histograms in order

to remove “noise” caused by the texture of the pave-

ment. Let T

max/ min,dx/dy

denote the maximum and

minimum thresholds of the derivatives in x and y, and

i be the frame index of a sequence. Values in the in-

terval [T

min,dx/dy

max,dx/dy

] are set to zero, as these

are caused by a textured pavement. In the ﬁrst frames

during initialization (i ≤ 5), we must assume that no

obstacle is present and T

max,dx/dy

will be set to the

VISUAL NAVIGATION FOR THE BLIND - Path and Obstacle Detection

517

Figure 2: Top row, from left: two frames with the OW highlighted, their rectangular ODWs to their right, and the result of

lowpass ﬁltering. The latter is used for obstacle detection. Middle row, from left: x and y derivatives with histograms in black

and detected obstacle region; the histograms of horizontal and vertical edges in gray and detected obstacle region. Bottom

row, from left: the local energy images of Laws’ masks E5L5, R5R5, E5S5 and L5S5, the detected obstacle region, and the

ﬁnal result, after combining the three methods, in the input frame.

corresponding maximum values of I

ODW,dx/dy

. Simi-

larly, T

min,dx/dy

are determined. Here the entire ODW

is used.

After initialization (i ≥ 6), the same method is

applied, but the maxima and minima are calculated

using only the bottom half of the window, i.e., x ∈

[−W

ODW

/2,W

ODW

/2 − 1] and y ∈ [0, H

ODW

/2]. If

the maximum of a derivative of the current frame

i is higher than the maximum threshold of the pre-

vious frame, max

> T

max,i−1

, or the minimum is

lower than the minimum threshold, min

< T

min,i−1

then T

max/ min,i

= max

/min

; otherwise T

max/ min,i

(max

/min

max/ min,i−1

)/2. This allows the sys-

tem to adapt to different types of pavements while

walking, but it is still sensitive to deviations.

This procedure yields a binary image resulting

from the multiplication of the thresholded and back-

projected line and column histograms. The 3rd image

on the 2nd row of Fig. 2 shows the result as a bright

rectangular area in the ODW.

(b) In the Histograms of Binary Edges algorithm

Canny’s edge detector is applied to I

ODW

, with the

same σ and T

as used in path detection, but with

as described below. Canny’s algorithm is used to

calculate ﬁrst derivatives dx and dy, the edge magni-

tude I

ODWc,mag

= (dx

+ dy

)

1/2

, and the edge orien-

tation I

ODWc,θ

= arctan (dy/dx). This information is

used as follows: (b-i) To compute dynamically the

high hysteresis threshold T

. During initialization,

i ≤ 5, the maximum value of T

= max

ODWc,mag

]

is used. For i ≥ 6, if the maximum in the bottom

half of I

ODWc,mag

(x,y), (x ∈ [−W

ODW

/2,W

ODW

/2−1]

and y ∈ [0,H

ODW

/2]), is higher than the maximum

threshold of the previous frame (max

> T

h,i−1

), then

h,i

= max

; otherwise T

h,i

= (max

h,i−1

)/2. As in

algorithm (a), this allows to adapt to different types of

pavements.

(b-ii) As we want to determine the region where

the obstacle is, we split the resulting Canny edge

map I

ODWc

using the edge orientations. This yields

two images I

ODWc,V/H

with the vertical and horizon-

tal edges. For this we check the angles in I

ODWc,θ

We apply four angle intervals: for horizontal edges

∈ [−67.5

,67.5

] ∪ [112.5

,247.5

] and for verti-

cal ones θ

∈ [22.5

,157.5

] ∪ [202.5

,337.5

]. The

edge pixels in I

ODWc

for which the angles are in the

and θ

intervals are stored in I

ODWc,H/V

For locating the region where an obstacle might

be, edge histograms are ﬁlled along columns and lines

in I

ODWc,V

and I

ODWc,H

. The 4th and 5th images on

the 2nd row of Fig. 2 show the edge maps in black

and the histograms in gray at the borders. All bins

in both histograms with values below 2 are discarded

for a better localization with left-right and top-bottom

limits. The ﬁnal image results from the multiplication

of the back-projected histograms. This is shown by

the bright rectangular area in the rightmost image on

the 2nd row of Fig. 2.

Energy Masks (Laws, 1980) applied to I

ODW

. The

main idea is to detect changes of the image’s textures

in the window. If the frames contain textures before

an obstacle enters the ODW, these will not be detected

through the use of a threshold value. As in (Laws,

1980), our tests showed that the best masks are E5L5,

R5R5, E5S5 and L5S5. Below the masks are denoted

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

518

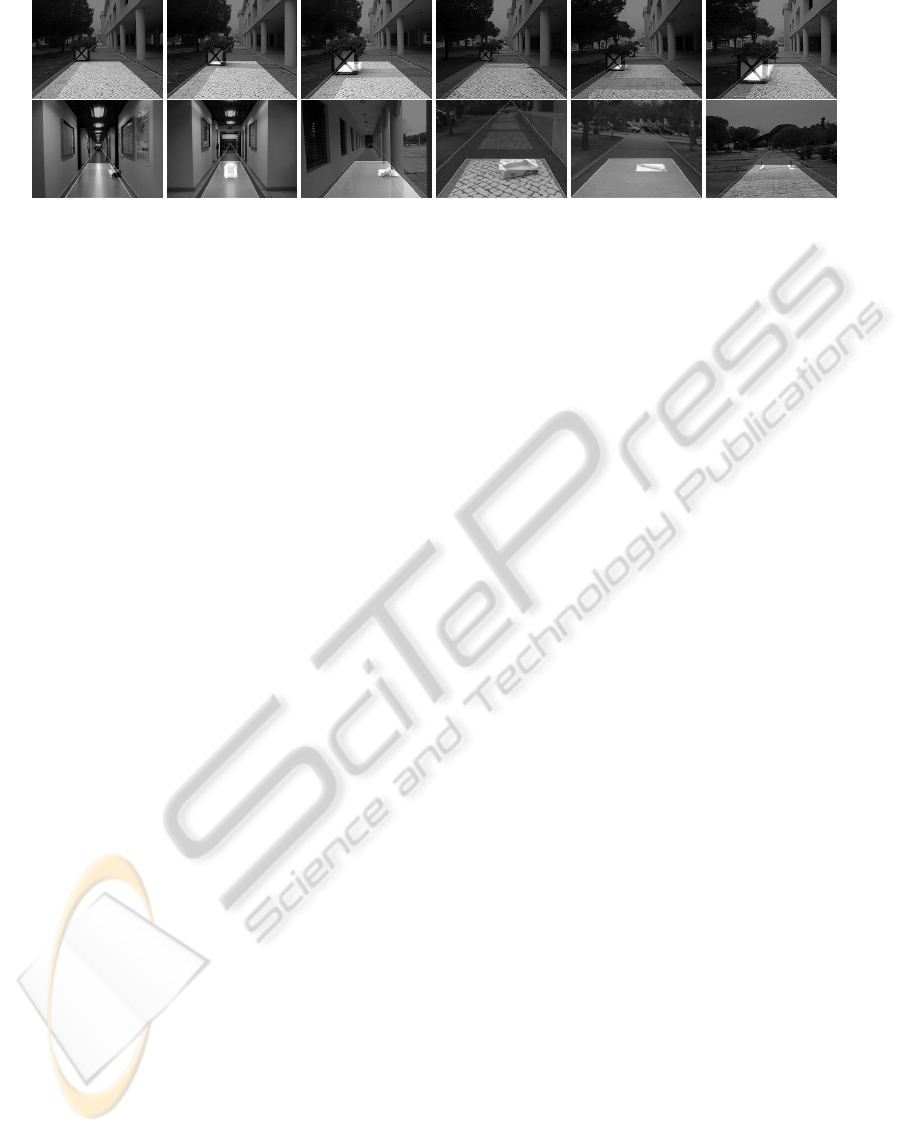

Figure 3: Typical results of in- and outdoor test sequences. Only a few frames are shown.

by subscript lm.

After ﬁltering with the masks, which results in

4 images I

ODW,lm

, we compute the energy measures

(x,y) =

∑

i, j=−5

ODW,lm

(x + i,y + j)

. The four

energy images are then normalized using the maximal

energy responses that each mask can achieve, such

that each mask contributes equally in ﬁnal detection.

The four normalized energy images are then summed

and the maximum value is determined. All values

above 4% of the maximum are considered to be due

to a possible obstacle. The rest of the processing is

equal to the processing as described in Zero-Crossing

Counting. The bottom row in Fig. 2 shows, from left,

the four E

and the summed and thresholded result.

The ﬁnal result of the 3 combined methods is also

shown in Fig. 2 (bottom-right). The region where the

regions detected by at least 2 algorithms overlap is

highlighted. More results are shown in Fig. 3.

In summary, if an obstacle is detected (i) in at least

3 consecutive frames, (ii) by at least 2 of the 3 algo-

rithms, and (iii) with regions in the ODW whose in-

tersections are not empty, the user will be alerted.

4 CONCLUSIONS

Computationally fast methods intended to run in real-

time are not easy to develop, as we do not want to

sacriﬁce performance. All algorithms presented here

can run on an inexpensive netbook at more than 5 fps,

with very satisfying results. In all sequences tested

so far, some with complex path and pavement struc-

tures, paths were correctly detected. Also most sim-

ple and complex obstacles were detected, only failing

when the obstacles were too similar to the pavement

or when multiple textures were present, yielding false

negatives and positives. A few examples of sequences

(not all frames) are shown in Fig. 3, where the user

can be alerted well in advance. The system is now be-

ing extended to cope also with sharp turns and other

frequent complications, and extensive ﬁeld tests in-

volving blind users are being prepared with ACAPO,

the Portuguese association for blind and amblyopes,

in the project coined Blavigator, from Blind Naviga-

tor.

It should be stressed once more that the vision sys-

tem will complement the white cane beyond its reach;

it is not intended to replace the cane. In addition,

it only serves local navigation for path and obstacle

negotiation. Global GPS/GIS-based navigation will

complement the vision system (du Buf et al., 2011),

leading to improved and autonomous mobility.

ACKNOWLEDGEMENTS

This research was supported by the Portuguese Foun-

dation for Science and Technology (FCT), through

the pluriannual funding of the Institute for Systems

and Robotics (ISR/IST) through the PIDDAC Pro-

gramme funds, and by the FCT project Blavigator

(RIPD/ADA/109690/2009).

REFERENCES

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Trans. Pattern Anal. Mach. Intell.,

8(6):679–698.

CASBliP (2009). Final activity report of the EU-funded

CASBliP project. http://casblipdif.webs.upv.es/.

du Buf, J., Barroso, J., Rodrigues, J., Paredes, H., Farrajota,

M., Fernandes, H., Jos

e, J., Teixeira, V., and Saleiro,

M. (2011). The smartvision navigation prototype for

blind users. JDCTA: International Journal of Digital

Content Technology and its Applications, 5(5):351–

361.

Duda, R. and Hart, P. (1972). Use of the hough transform

to detect lines and curves in pictures. Comm. ACM,

15:11–15.

Kim, L., Park, S., Lee, S., and Ha, S. (2009). An electronic

traveler aid for the blind using multiple range sensors.

IEICE Electronics Express, 11(6):794–799.

Laws, K. (1980). Textured image segmentation. PhD thesis,

USCIPI Report 940, Image Processing Inst., Univ. of

Southern California, Los Angeles (USA).

Lee, S., Kang, S., and Lee, S. (2008). A walking guid-

ance system for the visually impaired. Int. J. Pattern

Recogn. Artif. Intell, 22(6):1171–1186.

VISUAL NAVIGATION FOR THE BLIND - Path and Obstacle Detection

519
