EVALUATION OF DATABASE TECHNOLOGIES FOR USAGE

IN DYNAMIC DATA MODELS

A Comparison of Relational, Document Oriented and Graph Oriented Data Models

Alexander Wendt

, Benjamin Dönz

, Stephan Mantler

, Dietmar Bruckner

and Alexander Mikula

Institute of Computer Technology, Vienna University of Technology, Gusshausstrasse 27-29, A-1040 Vienna, Austria

VRVis Zentrum für Virtual Reality und Visualisierung Forschungs-GmbH, Donau-City-Strasse 1, A-1220 Vienna, Austria

Frequentis AG, Innovationsstrasse 1, A-1100 Vienna, Austria

Keywords: Data model, RDF, Graph oriented, Document oriented, Relational, Query, Database, SPARQL, SQL.

Abstract: Database technologies are evaluated in respect to their performance in model extension, data integration,

data access, querying and distributed data management. The structure of the data sources is partially

unknown. Additional value is gained combination of data sources. Data models for a relational, a document

and a graph oriented database are compared showing strengths and weaknesses of each data model.

1 INTRODUCTION

Since relational database systems were introduced

they have been successfully used for innumerable

applications. So successfully in fact, that for a long

time no other paradigms were seriously considered.

In 2002 the CAP (Consistency, Availability,

Partition tolerance) theorem that was first proposed

by Eric Brewer in (Brewer, 2000) was proved (Seth

and Nancy, 2002). The theorem states, that in

distributed systems one can only guarantee two of

the three properties consistency, availability and

partition tolerance (Brewer, 2000). Consistency,

which is one of the ACID (Atomicity, Consistency,

Isolation, Durability) properties on which relational

database are founded, may not be as important for

some applications as the other two properties are.

Due to these circumstances and other specialized

applications, a demand for exploring alternative

paradigms has risen.

This has led to the development of several

NoSQL databases (Levitt, 2010), (Stonebraker,

2010) that have been introduced by open source

initiatives or highly successful companies such as

Google’s Bigtable (Fay et al., 2006) or Amazon’s

SimpleDB (Amazon, n. d.). These were originally

developed for use in their own applications, but they

have been made publically available in the mean

time. When starting a new project today, one can

therefore not only choose from different vendors of

relational databases, but can also decide to use a

totally different database paradigm altogether,

depending on the requirements of the project at

hand. In this paper, three different paradigms are

compared in respect to their performance in model

extension, data integration, data access, querying

and distributed data management. The results of the

experiments and a technology comparison of the

reference implementations are presented in this

paper.

The goal is to develop a generic common-use

database application for a decision support system

that allows the user to add data from arbitrary

sources and integrate them into a common database.

Additionally, the support of geospatial data types

and queries was a requirement for this project. Five

requirements, regarding the data model have to be

taken into consideration:

 Model extension: Adding completely new data

with unknown structure.

 Data integration: Integrating new data to an

existing database by the user and combining

data from various sources.

 Data access: Possibility for automatically

creating queries using parameters from a user.

 Querying: Performing complex calculations in

the database in a reasonable time.

 Distributed databases: Querying a set of

distributed databases to return combined

results.

219

Wendt A., Dönz B., Mantler S., Bruckner D. and Mikula A..

EVALUATION OF DATABASE TECHNOLOGIES FOR USAGE IN DYNAMIC DATA MODELS - A Comparison of Relational, Document Oriented and

Graph Oriented Data Models.

DOI: 10.5220/0003714202190224

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 219-224

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 DATABASE DESCRIPTIONS

For a decision support system, a database-solution

with a dynamic data model is needed that allows

integrating unknown data sources and dynamic, on-

the-fly query generation as well as data mapping for

individual views on the data. For this purpose, three

different database paradigms together with their

respective implementations were explored: A

relational database, a document oriented database

and a graph oriented RDF database. As input data,

tables with flat structures were used, i. e. a large flat

file with several columns.

2.1 Relational Database

In the case of a relational database, the data model is

defined before importing the data. Extension of

tables may be possible after the database generation,

but changing relations or keys in tables may make a

rebuild necessary. In order to cover as many new

data structures as possible, a generalized model has

to be used. Further, input data has to be preprocessed

and adapted with an ETL (Extraction,

Transformation, and Loading) tool (SAS, (n. d.)),

(Vassiliadis et al., 2002).

A higher normal form has to be reached, in order

to generalize the data model. Approximately 1/3 of

the attributes from the flat input tables were

normalized into 3NF and 2/3 into 1NF to provide a

tradeoff between high generalization and query

complexity. The original six independent data tables

were finally modeled with 43 independent tables.

An alternative generalized model, which could

be created within the relational database, is based on

the Universal Data Model pattern presented in (Hay,

1995) and (Hay, 1997). By using six tables, it allows

the creation of classes and instances within the

relational data model. In Figure 1, the basic pattern

is shown.

The Universal Data Model pattern could be

applied in the following way: In the table Class,

class types are defined. Each class type has the some

attributes, which are listed in the table Attributes and

they are connected through the junction table

Attribute Assignment. In the table Instance, the

instance of the class types are saved. The actual

corresponding attribute values of that instance are

stored in the table Values. In the table Relations, it is

possible to set a relation between subject and object

instances with predicates like “superClassOf”. Those

predicates are defined in the table Relation Types.

The classes within the Universal Data Model can be

expanded with any type of attribute. New classes can

be added. In this case, each domain (e. g. company

data) could be modeled within one complete

Universal Data Model pattern.

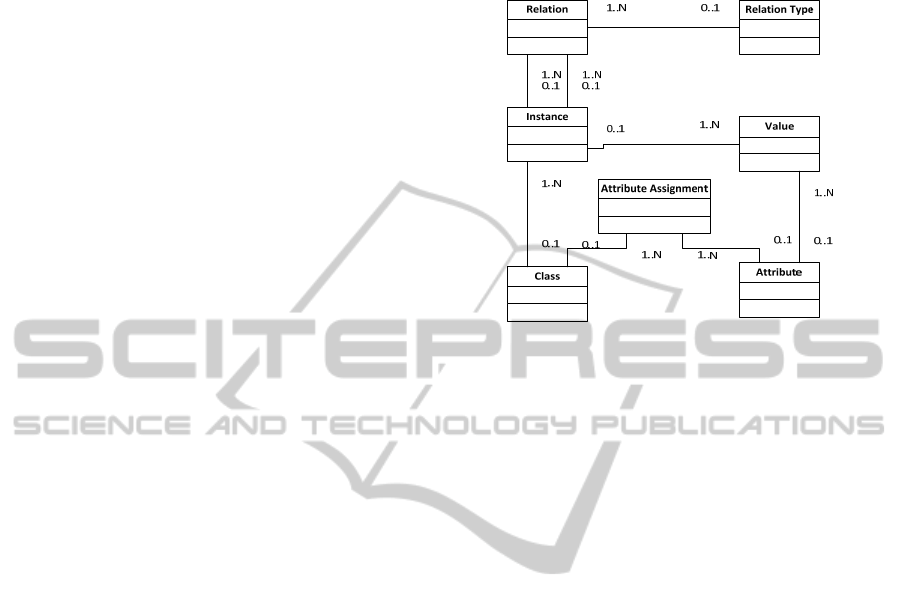

Figure 1: A data model based on the Universal Data

Model pattern by D. C. Hay (Hay, 1995) modeled in UML

notation.

Since geospatial data is a requirement in our

project, Postgre (PostgreSQL, n. d.) with the add-on

PostGIS (PostGIS, n. d.) was used for the relational

database model. PostGIS contains additional

functions for processing geographic data e. g.

intersection.

Since no out of the box features for distributed

databases are available for most relational databases

and it would have to be done manually, database

distribution was not implemented for PostGIS.

2.2 Document Oriented Database

A document oriented database was investigated for

its ability to store and process hierarchical data

elements in a single collection, while allowing

individual database entries to have arbitrary

structures. It would make adding new or appending

information to selected existing entries trivial.

MongoDB (MongoDB, (n. d.)) was chosen,

because of its wide implementation base, extensive

documentation, native support for server-side

JavaScript processing for map-reduce patterns, and

for its scalability and resilience features.

Since MongoDB natively supports JSON

(JavaScript Object Notation) and BSON (Binary

JSON) data structures, importing new data is trivial.

Existing tools were used to convert geospatial data

such as Shape-files. They could then be imported as

JSON files, representing each geospatial feature as a

separate entity. Data can be imported as a separate

collection, or added to existing collections. As the

ICAART 2012 - International Conference on Agents and Artificial Intelligence

220

imported data can be arbitrarily structured and the

end user is typically only interested in a subset of the

attribute hierarchy, a separate metadata collection

was used to track the desired attributes. This proved

useful in reducing network bandwidth, and

considerably simplified client-side processing and

display.

Access to the data is provided through an

interactive web page that allows the user to

formulate geospatial queries towards a selected

database collection. Metadata information is used to

provide the user with automatically generated,

meaningful filter criteria (sliders for numeric values,

check boxes for enumerations and string searches for

arbitrary text) and to specify the format of the result

set. To minimize network latency and round-trip

delays, only geospatial queries are processed within

the database itself. The result set is then processed

by JavaScript code within the web page, allowing

near-instant refinement and updates as the user

explores varying filter criteria. Unfortunately,

support for geospatial queries was very limited at the

time of this implementation, only allowing us to

filter for a coarse bounding box (min/max tests for

latitude and longitude) within the database query

itself. Therefore the required precise distance-from-

polygon metric is calculated in a separate pass

through the result set before returning it to the client.

The query language for MongoDB allows queries of

moderate complexity but can be enhanced by java

script code which is slow but may be executed in

parallel following the map-reduce pattern.

Multiple instances can be combined to form

database clusters for resilience against server or

connection failure. Databases can also be split

(sharded), using an arbitrary attribute as a key for

distribution over several instances (shards). Each

shard then only carries a fragment of the full

database and the system automatically attempts to

equalize the workload carried by all participating

shards. Clustering and sharding are entirely

transparent to the client, allowing the database

backend to be rearranged and extended as required.

MongoDB allows the distribution of large databases

over multiple networked instances and queries are

processed in parallel. This is desirable for compute

intensive queries and aggregations (which can be

formulated as Map-Reduce patterns).

2.3 Graph Oriented Database

Graph oriented databases were considered, because

of the required functionality to add new information

and links between existing data.

Of the several possible database systems

available, the RDF (Resource Description

Framework) database Allegrograph (Allegro, (n. d.))

was chosen, because it supports several

programming interfaces, e.g. Java Jena, Java

Sesame, Python, Lisp and others. Also geospatial

types and distributed queries are supported. The

reference implementation uses the Java Jena

interface for importing data and the Java Sesame

interface and SPARQL to query the database.

Source files contain flat tables of data. The import

supports three different operations. The most basic

operation is an import of new entities, where each

imported row is treated as a new instance of a

definable type, the column header is the predicate

and the actual value is the object of the triple. The

second possibility is to append attributes to an

existing entity by letting the user define which

columns in the source file must match which

columns in the existing database. The third mode is

to add links between existing data. The user defines

which columns in the source table must match which

properties of the subject instance and the object

instance. In all three modes the user can define a

data type for each column. If possible, the value in

the table is then automatically converted to this type

and can hence be queried appropriately. If a

conversion is not possible, e.g. the source field

contains values like “15 million” instead of

“15,000,000”, the value is still imported but without

a type. These values can then be displayed in tables

like all others but are not available for queries.

The user can access the data using an

automatically generated query interface and two

automatically generated report formats. SPARQL is

used as a query language and is generated by setting

filters However, in the implementation of

Allegrograph, the extensions for geospatial queries

are not yet available for SPARQL. Other functions

have to be combined to filter the original query

result. Two different implementations of user

interfaces were implemented. In the first method, the

query interface is comprised of a filter table that

displays input fields for all predicates. The controls

for entering the filter depend on the data type

defined during the import, e.g. a textbox for texts or

a checkbox for boolean values. The result of the

preliminary search is a table containing all entities

that match the search criteria. Values in the table

that have additional triples associated to it with

further information can be clicked on to show a

more detailed report. This second report format

shows all triples associated with the selected entity,

both those where the entity is the subject as well as

EVALUATION OF DATABASE TECHNOLOGIES FOR USAGE IN DYNAMIC DATA MODELS - A Comparison of

Relational, Document Oriented and Graph Oriented Data Models

221

those where the entity is the object. Here, again,

instances with additional information are shown as

hyperlinks which link to a detailed report on that

entity.

As a second query method, another solution was

implemented, where the actual structure of the data

is mapped against a manually created ontology. Both

the ontology and the mapping can be modified at

any time. Queries for this manual ontology are then

transformed to fit the actual data structure. In this

way, a custom view on the data can be defined and

queried independently from the actual data. The

model is reusable and by changing the mapping, the

same query can be used for several sources, e.g.

changed to a new source after importing it to the

database.

Allegrograph’s query engine allows federating

multiple repositories into one virtual repository. This

virtual repository can then be used to run queries

using the data from all repositories. Compared with

the document oriented approach, the federation of

the databases is not done transparently but can be

controlled by the developer. This allows including or

excluding databases at query time depending on the

user’s privileges, available servers or user selection.

In the test-setup, three repositories were hosted on

the same server. A sample query returning approx.

2000 Triples from a database containing about 6

million triples took 6.9 seconds when only a single

repository was included. The same query with data

split into two repositories took 8.9 seconds. When

split into three repositories it took 11.7 seconds to

execute. The execution time in this setup therefore

rises 30% for each additional database. Virtual

repositories do not allow write operations for the

obvious reason that it would not be clear to which

physical repository the data should be written to. So,

in our solution the user can decide where new data

should be stored when importing a new file.

3 TECHNOLOGY COMPARSION

The described databases are compared regarding

their possibilities for model creation and data

import, data access and querying and the possibility

of using multiple databases.

3.1 Model Creation and Data Import

The used relational database structure would

probably be able to integrate most of the inputs in

the domains. However, if something had to be

changed in the schema, the whole database would

have to be rebuilt. Errors in the schema due to

insufficient information about the data sources

demand a high effort to correct. All input data has to

be adapted to the existing data model with an ETL

tool or manually. Experience did show that the

process of adapting the ETL tool for a complex data

model on the first import is fault-prone and demands

high effort, e. g. if data could not be completely

imported as initially modeled, the model had to be

revised. It is hard to exclude all errors and to

consider unknown possibilities at the first import

attempt. In order to create a stable model that allows

integrating future unknown sources, several attempts

are needed. However, it is impossible to exclude that

new sources will again force a further database

rebuild.

The document oriented approach performs well

when importing the data since it does not have to be

converted in any way. Data is imported as available,

but the effort of organizing the data is actually only

relocated to the query phase.

Allegrograph has tools to batch-import large files

of triples, which can be used if data is already

available in this format. When importing data from

the original text files and splitting the tables into

triples, the implementation of the functionality is not

complicated, but it scales very badly. Importing a

table with approx. 320k rows and 20 columns took

22 hours to complete. This is a rate of about 80

records (triples) per second, but since the number of

records adds up to 6.4 million it takes a very long

time to complete.

3.2 Data Access and Querying

In the relational database, with normalized tables, it

was possible to create large complex queries. For

instance, a query used 17 interconnected tables by

including 16 sub-queries, taking in total

approximately 2500 words (fields and operators) It

took about 90s to execute it on around 60k records

on a Intel® Core™ i5 CPU M560 2.67 GHz

processor with 4 GB RAM. Materialized tables were

used, in order to improve performance, which was

executed in about 10s. As expected, in comparison

to the other approaches, the relational database is

superior in creating and executing complex queries

on a large set of data. This is the main advantage of

this type of system.

The usage of the Universal Data Model in the

relational database would have the advantage that it

would be completely generalized and adaptable for

new data sources. However, the price would be paid

with long complex queries, because of the many

ICAART 2012 - International Conference on Agents and Artificial Intelligence

222

relations between instances. It would slow down the

execution time. Further, no cardinalities can be set

between the instances and its values would have to

be a string for all values of the table Value (see

Chapter 2.1).

Allegrograph offers several interfaces for

querying the data. Experience did show that queries

scale very badly. The execution time is proportional

to database size, the structure of the query and the

limitation. In our case, all queries must be limited to

a fixed number of results; otherwise the query may

take very long to complete (more than 4 min). Up to

a limitation of around 300 results, the query time of

a certain query was approximately the same. Above

that, the time rises in discrete steps. The row-limited

version of the query is satisfactorily fast for large

result sets, since the query terminates after the

defined number of results is reached. In this case, a

query was tested with different limitations on an

Intel® Xeon® 3.0 GHz processor with 4 GB RAM.

From the keywords used in the queries, ORDER BY

affects the performance significant, while

DISTINCT, UNION and LIMIT do not. A

remarkable experience was that the order of the

statements in SPARQL plays a decisive role in the

execution time. If the statement order is constructed

optimally, the query executes in about 2 s, else the

query does not complete within an acceptable time

limit. The following tendencies were observed:

Equal subjects should be grouped together if

different subjects are used, within a group of

subjects, the “simpler” statements should be placed

first, statements with UNION should be put at the

end of a group of subjects and finally, rdf:label and

rdf:type should be placed as the first element of a

group of subjects. However, for complex querying

like the complex query example in the relational

database, this approach is not suitable.

In MongoDB, the querying was similar to the

Allegrograph. The idea of using metadata

information to automatically generate filters worked

well. The fact that joins are not available in

MongoDB, poses limits on the complexity of the

queries. To overcome this, java script code can be

used in more complex situations. This method

however slows down query performance in cases

where parallel-execution is not possible.

3.3 The Usage of Multiple Databases

Since distributing data over several databases is not

the focus of relational database systems and is also

not supported natively by the used system (Postgre),

this option was not explored.

Allegrograph supports federated virtual

repositories that can be set up dynamically at

execution time. This feature can be used to define

which databases should be used for a query

depending on user’s privileges, availability of

servers or user-selection. The implementation was

straightforward and only geospatial queries had to be

adapted to the new circumstances. The execution

time of a query is extended by about 30% for each

additional repository.

In MongoDB, it was noticed that the apparent

communication overhead involved in synchronizing

clusters and shard management is substantial, and

appeared to outweigh the benefits of parallelized

execution for the relatively small database sets

(~500.000 entries). Furthermore, recovery from

failed or inaccessible cluster members proved to be

nontrivial in some cases. Both facts may however be

attributed to the use of pre-release development

versions (which contained experimental

functionality for geospatial queries).

4 CONCLUSIONS

Reference implementations were developed for three

different database paradigms including their actual

implementation in order to compare their

performance in five different disciplines relevant to

the project: Model extension, data integration, data

access, querying and distributed databases.

It was possible to at least partially fulfill the

requirements with all three approaches. It was

shown that the results and effort during the

implementation vary greatly.

Model extension: Relational databases are not as

flexible as the database schema is predefined, which

is different in the other two solutions. The amount of

work needed for the implementation is also higher,

but once the implementation is done it performs

well. In the graph oriented approach, it is possible to

extend the data model on the fly without affecting

the actual data in the database. The same applies to

document oriented databases.

Data integration: In order to be able to query data

in the relational database, input data has to be

preprocessed by an ETL tool, which demands a high

initial effort. In the graph and document oriented

approach, the possibility of importing data without

transformation is given, but it affects the

performance if the data structure has to be processed

within the query. Therefore, it is strongly

recommended to have some sort of ETL process,

which is used on the data before importing or

EVALUATION OF DATABASE TECHNOLOGIES FOR USAGE IN DYNAMIC DATA MODELS - A Comparison of

Relational, Document Oriented and Graph Oriented Data Models

223

restructuring the data in the database. For importing

data, the easiest approach however was the

document oriented database because it does not need

data transformation, performs well and is scalable to

large data sources.

Data access: In the relational database, all data

was accessible through the use of predefined

queries. For simple queries, it would be possible to

use graphical query creators. At some level of query

complexity, experience has shown that it is easier to

write the queries directly in SQL. The graph oriented

approach uses predefined queries, either

automatically derived from the available predicates

or manually created in the dynamic data model. The

document oriented approach uses queries that are

automatically constructed according to the manually

defined metadata.

Querying: The fast querying in the relational

database on large amounts of data makes is well

suited for the use in large databases, also for

complex queries. The most flexible querying

solution is the graph oriented approach. But this

technology scales very badly and performance is the

main issue in the graph-oriented approach.

Therefore, only queries with low complexity are

suited for use in large databases in this case.

Performance is an issue in the document oriented

approach, where the map-reduce patterns and

sharding offer high performance for suitable queries,

but not in the general case. The lack of JOINs

reduces flexibility.

Distributed systems: The relational database did

not natively support distributed queries and was

therefore not tested. The graph and the document-

oriented approaches both allow creating federated

repositories, which can be queried in the same way

as a single query. However, in the graph-oriented

approach, a query takes about 30% longer to execute

for each additional repository.

Table 1: Evaluation of results.

Requirement Rel. Doc. Graph

Model Extension - ++ ++

Data integration + ++ +

Data access ++ ++ ++

Querying ++ - +

Distributed databases NA + ++

In Table 1, the fulfillment of the requirements by

the different data models is summarized. In the

table, the scale --, -, +, ++ and “NA” (here, not

tested) is used.

ACKNOWLEDGEMENTS

This work was supported by the FFG -

Österreichische Forschungsförderungsgesellschaft

mbH [819065].

REFERENCES

AllegroGraph (n. d.), AllegroGraph® RDFStore 4.2.1.

Retrieved June 14, 2011, from http://www.franz.com/

agraph/allegrograph

Amazon (n. d.), Amazon SimpleDB. Retrieved June 14,

2011, from http://aws.amazon.com/de/simpledb/

Brewer E. (2000). Towards robust distributed systems.

(Invited Talk) Principles of Distributed Computing,

Portland, Oregon.

Fay C., Dean J., Ghemawat S., Hsieh W. C., Wallach D.

A., Burrows M., Chandra T., Fikes A., Gruber R. E.

(2006). Bigtable: A Distributed System for Structured

Data. In OSDI’06: Seventh Symposium on Operating

System Design and Implementation. Seattle, WA,

November, 2006.

Hay, D. C. (1995). Data Model Patterns: Conventions of

Thought, Dorset House, ISBN-13: 978-0932633293,

ISBN-10: 0932633293, USA

Hay, D. C. (1997). Advanced Data Model Patterns,

Essential Strategies, Inc. Retrieved June 20, 2011,

from http://www.essentialstrategies.com/publications/

modeling/advanceddm.htm

Levitt, N. (2010). Will NoSQL Databases Live Up to

Their Promise? in Computer 43 Issue:2,

doi:10.1109/MC.2010.58

MongoDB (n. d.). MongoDB, Retrieved July 22, 2011,

from http://www.mongodb.org

PostGIS (n. d.). PostGIS, Retrieved June 21, 2011, from

http://postgis.refractions.net

PostgreSQL (n. d.). PostgreSQL, Retrieved June 21, 2011,

from http://www.postgresql.org

SAS (n. d.), SAS® Enterprise Data Integration Server.

Retrieved July 25, 2011 from http://www.sas.com/

software/data-management/entdiserver/index.html

Seth G., Nancy L. (2002). Brewer’s conjecture and the

feasibility of consistent, available, partition-tolerant

web services. In ACM SIGACT News, Volume 33 Issue

2, June 2002, ACM New York, NY, USA

Stonebraker, M. (2010). SQL databases v. NoSQL

databases, in Communications of the ACM Volume 53

Issue 4, New York, NY, USA

Vassiliadis, P., Simitsis, A., Skiadopoulos, S. (2002).

Conceptual Modeling for ETL Processes, in Proc. 5th

International Workshop on Data Warehousing and

OLAP (DOLAP 2002), McLean, USA

ICAART 2012 - International Conference on Agents and Artificial Intelligence

224
