VULNERAPEDIA: SECURITY KNOWLEDGE MANAGEMENT

WITH AN ONTOLOGY

Francisco J. Blanco, Jos

e Ignacio Fern

andez-Villamor and Carlos A. Iglesias

Departamento de Ingenier

ıa de Sistemas Telem

aticos, Universidad Polit

ecnica de Madrid, Madrid, Spain

Keywords:

Security knowledge, Knowledge management, Main ontology, Knowledge base, Semantic wiki.

Abstract:

Ontological engineering can do an efﬁcient management of the security data, generating security knowledge.

We use a step methodology deﬁning a main ontology in the web application security domain. Next, extraction

and integration processes translate unstructured data in quality security knowledge. Thus, we check the ontol-

ogy can perform management processes involved. A social tool is implemented to wrap the knowledge in an

accessible way. It opens the security knowledge to encourage people to collaboratively use and extend it.

1 INTRODUCTION

Our main objective is to improve the security that

is managed in organizations, encouraging people to

use security knowledge in all the application lifecycle

stages and in their daily work. The use of seman-

tic in security data generates security knowledge that

improves the security processes and strategies to fol-

low. Then, the paper describes how to manage and

deal with web security knowledge using ontology en-

gineering.

Rich, full security knowledge repositories would

reduce the mistakes and the lacks and necessities of

knowledge. However, there is a lack of open security

knowledge repositories and in general the few secu-

rity existent semantic data are very diffuse. However

there are large amounts of non-semantic security data

stored in several, disparate communities.

This wealth of information is difﬁcult to exploit.

A powerful integration of available security infor-

mation needs an efﬁcient semantic content retrieval

and a knowledge management system to wrap the ex-

tracted data. Semantic Web prove to be well suited

for knowledge management such as integration, pro-

duction, querying and maintenance (Antezana et al.,

2009). From ontological engineering, we use a sim-

ple methodology to deﬁne a main ontology focused in

web application security domain. This uniﬁed model

is the key to carry out the management processes. We

extend it to provide a rich security knowledge base

to facilitate the security processes. It requires extrac-

tion from heterogeneous communities. The knowl-

edge extraction and its integration try to check the vi-

ability of using ontologies under security knowledge.

People must interact with the knowledge to

achieve the security objectives and should extend the

contents with their own knowledge. So knowledge

should be shared in a visible and accessible way.

Therefore, we propose a tool that wraps the security

knowledge management. The tool opens the contents

so that users can apply more effectively the security.

Security is an area in constant movement. So the ex-

tension of the knowledge base is a real need. How-

ever, annotation of security data is time-consuming

and requires expert curators. The underlying ontol-

ogy formalizes and manages new knowledge and the

open tool encourages security experts and end-users

to collaboratively add and interact with the semantic

security contents.

This paper is structured as follows. In section 2

we study the background of knowledge management

in software engineering and security area, focusing on

ontologies. In section 3 we explain the methodology

to carry out the security knowledge management. We

detail the deﬁnition of the main ontology and present

the extraction and integration processes. In section

4 we describe the open, collaborative platform that

wraps the knowledge. Finally, in section 5, we expose

the main conclusions and our future plans.

2 BACKGROUND

Organizations are changing their viewpoint about the

security knowledge towards open systems where all

485

J. Blanco F., Ignacio Fernández-Villamor J. and A. Iglesias C..

VULNERAPEDIA: SECURITY KNOWLEDGE MANAGEMENT WITH AN ONTOLOGY.

DOI: 10.5220/0003718604850490

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 485-490

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

possible knowledge learnt can be accessible. Secu-

rity engineering is extremely knowledge dependent

and its management is a knowledge-intensive process

(Papadaki et al., 2008). Any process that carries out

knowledge management can mostly work through the

individuals but this tacit knowledge is hard to commu-

nicate and reuse. The process of knowledge sharing

and management conceptualizes the tacit knowledge

into explicit knowledge that can be understood and

used by the whole organization.

Knowledge acquisition, integration and sharing,

belonging to knowledge management process, are

signiﬁcant but complex and time-consuming activi-

ties (Korkala and Abrahamsson, 2007). Therefore,

speciﬁc mechanisms have been suggested to support

knowledge processes (Ahlgren, 2011) and some of

these solutions use Semantic Web technologies. Thu-

raisinghman (Thuraisingham, 2005) addresses the im-

portance of the Semantic Web Domain in the secu-

rity area. Mouratidis et al. (Mouratidis and Giorgini,

2006) show that ontologies are a current necessity and

a common challenge in the security engineering.

Nowadays, security aspects are included in an in-

herent way in software applications (Fink and Koch,

2006) but however they are not integrated enough

along the whole development process of such applica-

tions. Moreover, how organizations manage the infor-

mation system security-related knowledge needs still

to bel addressed (Aurum et al., 2008). Ergo the selec-

tion of a good method that brings effective knowledge

management is essential. We offer the use of ontolog-

ical engineering to manage the knowledge processes.

Speciﬁc and global processes of security man-

agement and their heterogeneous resources and re-

quirements need a data deﬁnition without ambiguities

(Huner and Otto, 2009). Ontologies provide a solid,

uniﬁed data modeling and a shared terminology that

solve these issues. So IS security management is-

sue can be done following the ontology perspective

of knowledge management (Guo, 2010). Knowledge

management using ontologies does aware and sensi-

tive to all users about security implementation in their

work processes.

Security engineering needs consensus decision-

making activities. Knowledge integration and shar-

ing should explicitly support collaboration between

different users, allowing to reach agreements (De-

bruyne et al., 2010). This property enables the ac-

tive involvement of all important stakeholders in the

decision making process (Papadaki et al., 2008). We

strengthen the integration and sharing of ontologies

with its wrapping in a social tool.

There are some works that deal with security as-

pects in an ontological way. Most of them are fo-

cused in very speciﬁc domains (Blanco et al., 2008).

For example, Tsoumas et al. (Tsoumas and Gritza-

lis, 2006) implement a security ontology that supplies

reusing and interoperability of the security knowledge

and the aggregation and reasoning of this knowledge

from several sources. Wang et al. (Wang and Guo,

2009) present a closed and private application around

a security ontology that contains the main concepts

about security information. Their ontology is focused

on the software vulnerability management.

The work that we take as starting point is provided

by Fenz et al. (Fenz and Ekelhart, 2009). They expose

an open general security ontology that allows corpo-

rations to implement an integral security proposal in

IT. Their main architecture can be summarized as fol-

lows. A threat represents a potential damage in the

assets of an organization and affects to speciﬁc secu-

rity attributes. This threat exploits a particular vulner-

ability. The deﬁned assets are associated to those vul-

nerabilities which can be exploited in them. Controls,

counter-measures, must be implemented to mitigate

or solve the identiﬁed vulnerabilities.

3 SEMANTIC SECURITY

MANAGEMENT

The no-existence of a common model deﬁnition to

build well-suited security knowledge is a great prob-

lem. Focusing in our web application security do-

main, we need an ontology that is adjusted to this

area. This security ontology allows to carry out the

management processes. The model deﬁnes the se-

mantic base, a set of well-structured general concepts.

After that, we can wait for users to extend the ontol-

ogy themselves with their learnt security knowledge.

However, a knowledge base without initial security

contents has great disadvantages for users:

• Slow addition of knowledge: few people use the

ontology because it does not contain speciﬁc con-

tents.

• An empty knowledge base discourages to users to

add knowledge.

• To allow that not-expert users can build the initial

security data of the ontology is a mistake.

Therefore, we have to extend the ontology with

speciﬁc security contents. This addition also con-

tributes to research in two goals. The ﬁrst is to check

the ontology can manage these security contents and

all the processes involved, integrating them in a com-

pact security knowledge base. The latter is to try to

mitigate the existent lack of open security knowledge

with the generated knowledge base.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

486

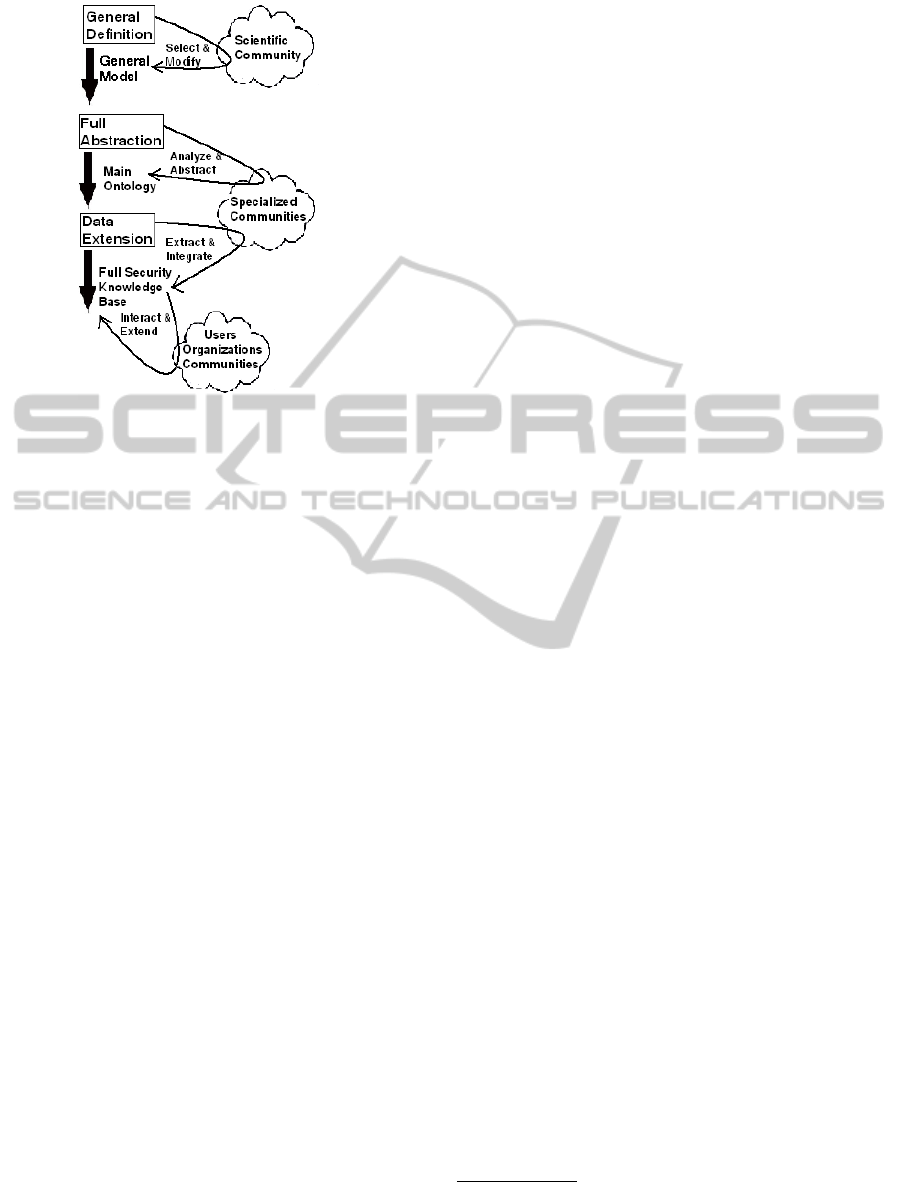

Figure 1: Security Semantic Knowledge Methodology.

To carry out the goals commented, we follow a

simple step methodology (see Figure 1) that provides

a set of tasks:

• General Model. It provides a starting point where

the main concepts and their general relationships

are deﬁned. Thanks to it, we can do a better search

and selection of relevant security communities.

• Full Abstraction. The main ontology is deﬁned,

extending the general deﬁnition. It provides the

abstract elements and their possible connections

that are used or derived by the security data.

• Data Extension. Security contents of the com-

munities selected are integrated in the knowl-

edge base. Security data are wrapped as secu-

rity knowledge through semantic annotations, us-

ing the main ontology.

General model serves as semantic base to deﬁne

the model focused in the web application security.

All next security knowledge should be properly added

and integrated in this model so we put special empha-

sis on its well-deﬁnition. Thus, we use Fenz’s on-

tology (Fenz and Ekelhart, 2009). It provides an ex-

cellent general (simple and intuitive) security model.

Other security ontologies such as (Elahi et al., 2010)

(Wang and Guo, 2009) (Tsoumas and Gritzalis, 2006)

(Herzogand et al., 2007) have the same basic schema

changing few details. However, the Fenz’s complete

ontology focuses the security management around

tangible resources, far from our intangible software

application security.

Therefore, we select the most-general part of their

ontology and do some adjusts to make it more ap-

propriate to software applications. We also simplify

some terms, providing synonymous links so that for-

malized data using Fenz’s ontology can be automati-

cally added to our ontology.

In the next step, we must ﬁnd relevant con-

tents and specialized information in Web security

to provide a rich security encyclopedia. Due to

the lack of open security knowledge, we search

security-specialized Internet communities that have

well-reputed and trustable security data.

The information presented in the communities se-

lected is rich. However, knowledge inside them is not

explicitly labeled and we must do an abstraction pro-

cess to label them, deﬁning the main ontology. The

main ontology should cover almost all possible se-

mantic abstractions of the security data existing in the

communities. The ontology can be considered as a

semantic wrapper of these communities.

After inspection and analysis of each community,

we do the full abstraction process to identify, de-

ﬁne and integrate the main concepts/abstractions and

properties/links enclosed in their security data. This

conceptualization process has to solve the different

terminology used in each community to a proper in-

tegration. Thus, we obtain the main ontology, having

extended the general model.

Moreover, we add some concepts from other on-

tologies. Then users can use them to apply new func-

tionalities in a controlled structure. The connections

are:

• Connection to baetle

. Now, our security manage-

ment opens the possibility of semantically manag-

ing and tracking bugs and enhancements in assets.

• Connection to doap

. Now, the security manage-

ment can link the assets to their projects, obtain-

ing relevant semantic data from the speciﬁcation

of the project in the doap ontology.

• Connection to foaf

. Now, the security manage-

ment allows associating the provider of the secu-

rity data with its foaf proﬁle to collect semantic

personal and contacts information.

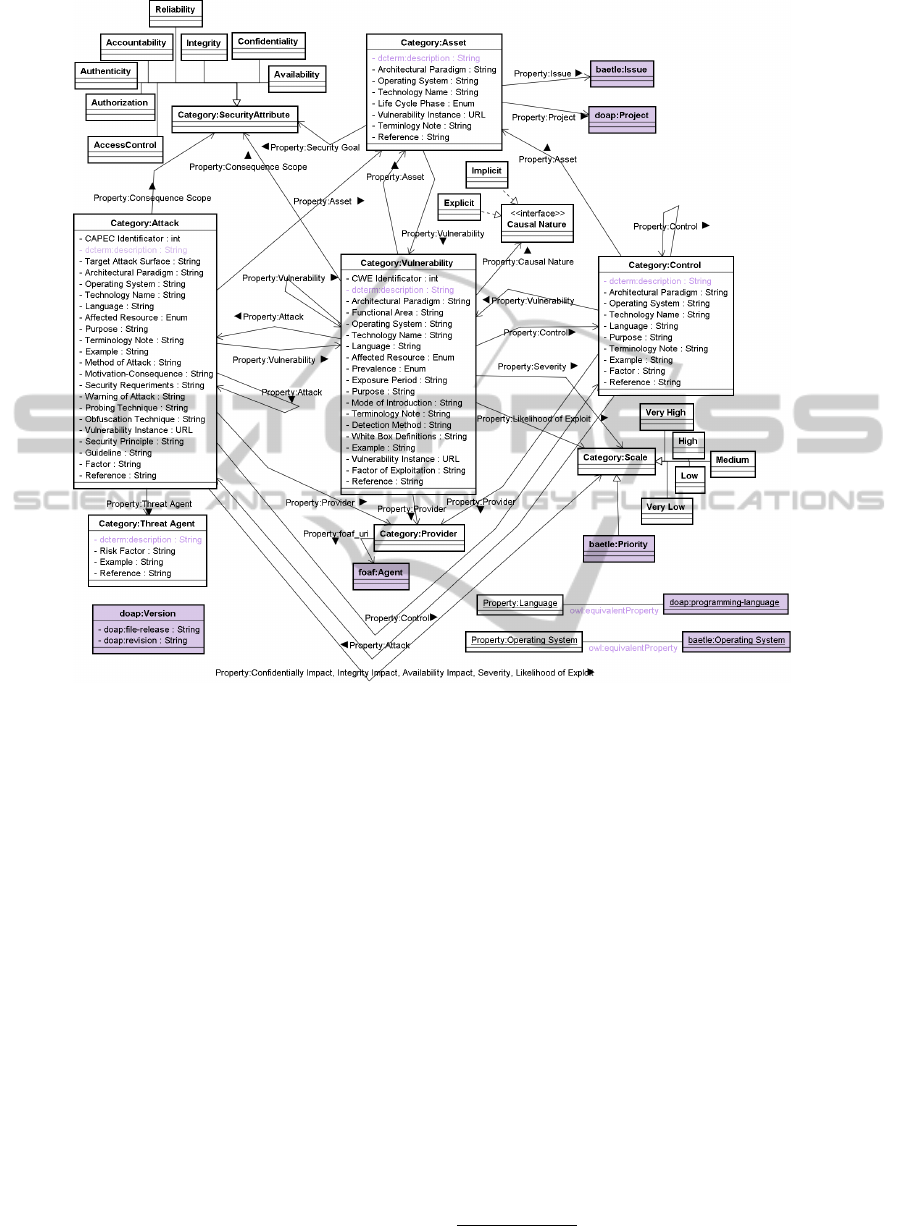

The main ontology is shown in the Figure 2. It

deﬁnes the semantic abstractions that will be used to

annotate the security data to extract. Security data use

these uniﬁed concepts as tree roots to be extended in a

taxonomy way, forming hierarchical structures with-

out divisions.

Data extension is deﬁned by the linkify process.

It translates the implicit knowledge to explicit knowl-

edge, linking the contents generated between them.

This process should identify the speciﬁc resources

http://code.google.com/p/baetle/

http://trac.usefulinc.com/doap

http://xmlns.com/foaf/spec/

VULNERAPEDIA: SECURITY KNOWLEDGE MANAGEMENT WITH AN ONTOLOGY

487

Figure 2: Main Ontology.

and associate them into class taxonomies and prop-

erty values. The process must integrate all resources

using the main ontology.

Our work is to linkify a greater number of security

knowledge to provide a full knowledge base. Firstly,

we must collect the data from the communities. The

sites selected are: OWASP (www.owasp.org), CWE

(cwe.mitre.org) and CAPEC (http://capec.mitre.org).

Later, we extract the enclosed knowledge following

the main ontology. Finally, we integrate all resources

in the knowledge base.

In order to extract the knowledge that is present

in OWASP, it is necessary to deal with unstructured

data. Often, web pages have information that is un-

derstandable by humans, but which is not targeted to

automatic agents. Thus, the knowledge cannot be au-

tomatically processed or extracted, and therefore the

security data that are present cannot be retrieved and

stored for further processing.

The extraction process is a tedious and time-

consuming task (Ahlgren, 2011). The approach fol-

lowed is modeling the mappings between the unstruc-

tured data of the web sites and the semantically anno-

tated data represented there. To achieve so, we use the

Scraping Ontology (Fern

andez-Villamor et al., 2011).

The mappings deﬁned in this ontology are sequences

of fragments with the RDF data that they represent,

and deﬁne what elements inside a web resource rep-

resent RDF nodes and/or predicates.

We use Scrappy

, an Open Source Semantic

scraper that makes use of the Scraping Ontology.

Scrappy allows deﬁning mappings for each resource

and automatically performs some crawling across the

whole site, building an RDF graph that contains all

the information.

From the pages collected, it extracts the data ac-

cording to the mappings deﬁned using the Scraping

Ontology. Scrappy provides the RDF triples, orga-

nizing the resources extracted into taxonomies using

the OWASP structure. The mapping elements follow

the main ontology terms so the generated RDF graph

presents the extracted security semantic data accord-

http://github.com/josei/scrappy

ICAART 2012 - International Conference on Agents and Artificial Intelligence

488

ing to the main ontology formalization.

With OWASP knowledge, we have a rich secu-

rity encyclopedia. But an effective management in

the diversiﬁed ﬁeld of the security involves a solid

and coherent understand of the existent data in multi-

ples communities and organizations (Huner and Otto,

2009). The more security knowledge from variety of

sources is visible, people and organization can make

better informed decisions. Moreover, the more qual-

ity linked data, the better to contribute to the lack of

open security knowledge. Thus, we complete the se-

curity knowledge with contents of CWE and CAPEC

communities.

CAPEC and CWE provide their security contents

downloadable in XML format. The XML format pro-

vides a more or less structured data, deﬁning a termi-

nology used in the whole document. The extraction

data process is done by a script. Data are grouped

in taxonomies using xml relationships and its termi-

nology is automatically translated to main ontology

terms.

Now we have the semantic security data from

each community. These data must be integrated to

merge the contents in a full, compact, uniﬁed secu-

rity knowledge base. A simple integration can be di-

rectly performed in most of the data because all the

knowledge is formalized over the same main ontol-

ogy. For further integration, the main ontology de-

ﬁnes properties that allow to connect different com-

munities. For example, attack patterns of CAPEC

have references to vulnerabilities in CWE. More in-

tegration can be done less automatically using map-

pings between OWASP and CWE vulnerabilities

OWASP-CWE-CAPEC

The security data combination gives advantages.

For example, thanks to CAPEC and OWASP attack

contents, communities can be put in the attacker per-

spective and watch approaches that are used to ex-

ploit the software ﬂaws. This knowledge contributes

to identify and mitigate the relevant existent vulnera-

bilities in the software designed that are presented by

CWE and OWASP contents.

4 SEMANTIC WIKI

The security knowledge generated should be easily

accessible by heterogeneous people to apply them in

the whole application lifecycle and fulﬁll the daily se-

curity processes. There is a need of interaction be-

tween people and security knowledge. In security,

http://cwe.mitre.org/data/graphs/711.html , /629.html ,

/809.html ; https://www.owasp.org/index.php/CWE ESAPI

http://www.codeimmunizer.com/coverage.html

people have another need of interacting between them

to discuss about security processes and the knowledge

involved. Moreover, continuous revisions are essen-

tial so security knowledge must be maintained, up-

dated and extended.

Community-based tools can manage these inter-

actions and speciﬁcally wiki systems facilitate the

quick collaborative acquisition of knowledge. The

wiki allows sharing and exchanging the knowledge

inside. Due to the openness and collaborative as-

pects, the wiki motivates the people’s collaboration

and learning in developing and maintaining the secu-

rity data. However, openness could involve loss of

quality and correctness. Semantic Web Technologies

address these challenges though semantic wikis. They

extend the ﬂexibility of a wiki to address structured

data.

Their simple and easy-to-use methods make

knowledge management accessible to all users of the

organization and reduce the learning time (Kasisopha

and Wongthongtham, 2009). Semantic wikis allow

different formalization levels and provides improve-

ments in the visualization of semantic data. The social

perspective of semantic wikis makes a collaborative

environment where all users can proactively maintain,

enrich and update together the contents. The wiki

provides a social space where people can discuss and

reach a consensus about the contents, locating each

item in its context. So the semantic wiki generates an

interoperable, collaborative management service to be

used in an internal or external way (Garcia and Gil,

2010).

We select the Semantic MediaWiki solution that

supports metadata over semantic notations. They

follow the semantic link network (SLN) principle

(Zhuge, 2003). Each class, property and individual

forms its own wiki page. The relationships with other

pages (object properties) and their attributes (datatype

properties) make up the page contents.

The wiki wraps our full generated knowledge

base, particularly the underlying main ontology.

The security knowledge is open to everybody in

the URL: http://lab.gsi.dit.upm.es/semanticwiki.

Everyone can manage his own security

wiki, downloading it from SourceForge:

http://sourceforge.net/projects/vulneranet/ﬁles/Wiki.

Using the export RDF wiki functionality, the last edi-

tion of the full knowledge base expects to be included

in the Linked Open Data initiative

. An open access

and the inclusion in LOD is the springboard to reach

to a great and active community.

http://linkeddata.org/

VULNERAPEDIA: SECURITY KNOWLEDGE MANAGEMENT WITH AN ONTOLOGY

489

5 CONCLUSIONS

Semantics in security data improves their manage-

ment and exploitation. Ontology engineering is de-

signed to face the challenges of management and for-

malization of knowledge. We deﬁne a simple method-

ology to get security knowledge properly managed.

Finally, we obtain a ontology-based system that does

an efﬁcient management of the security knowledge.

Due to the lack of an already reference model,

we must deﬁne the necessary main ontology to our

web application security domain. The deﬁned ontol-

ogy is the base to provide security knowledge that will

be efﬁciently managed. Among other advantages, all

stakeholders can now share their security knowledge

in an understandable way.

A semantic scraper that uses the main ontology

overcomes challenges associated to extraction and in-

tegration processes. We demonstrate heterogeneous

and unstructured information from various commu-

nities can be formalized, organized and merged with

a main ontology. The generated full and integrated

security knowledge base provides a rich encyclope-

dia and speciﬁc guidelines so that people can apply

security knowledge in their daily works from the be-

ginning. With a large amount of open and quality se-

curity knowledge, people and organizations can make

better informed decisions, building active communi-

ties. We check the ontology can manage the man-

agement processes involved in the security knowledge

generation. Moreover, the knowledge base mitigates

the lack of open security linked data.

The security knowledge management system pro-

vided by the semantic wiki facilitates intelligent ac-

cess to knowledge. The wiki facilities reduce the time

that users have to spend in security and knowledge

management processes, providing everyone can con-

tribute to the knowledge extension using the under-

lying main ontology. This social platform brings to

reality the need of a collaborative knowledge system.

Inside it, people can discuss and reach a consensus in

security activities with knowledge awareness

Future works include researching techniques and

means to make people more awareness to apply secu-

rity knowledge in their processes. In this sense, meth-

ods to enhance people’ understanding and to improve

the content quality will be investigated. A further en-

hancement of the knowledge management provides

the possibility of tracking security processes over ex-

plicit semantic processes. By the way, users add con-

trols that try to solve the vulnerabilities in mitigation

processes. By using a reputation system, users can

be reputed to indicate what controls are a priori better

suited according to the user that references it.

REFERENCES

Ahlgren, R. (2011). Software patterns, organizational learn-

ing and sotware process improvement.

Antezana, E., Blonde, W., and more (2009). Biogateway: a

semantic systems biology tool for the life sciences.

Aurum, A., Daneshgar, F., and more (2008). Investigating

knowledge management practices in software devel-

opment organizations - an australian experience.

Blanco, C., Lasheras, J., and more (2008). A systematic

review and comparison of security ontologies. Avail-

ability, Reliability and Security, 0:813–820.

Debruyne, C., Reul, Q., and more (2010). Gospl: Ground-

ing ontologies with social processes and natural lan-

guage. In Information Technology: New Generations.

Elahi, G., Eric, Y., and more (2010). A vulnerability-centric

requirements engineering framework: analyzing secu-

rity attacks, countermeasures, and requirements based

on vulnerabilities. Requir. Eng., 15:41–62.

Fenz, S. and Ekelhart, A. (2009). Formalizing information

security knowledge.

Fern

andez-Villamor, J. I., Blasco, J., Iglesias, C. A., and

Garijo, M. (2011). A Semantic Scraping Model for

Web Resources – Applying Linked Data to Web Page

Screen Scraping. In Third International Conference

on Agents and Artiﬁcial Intelligence.

Fink, T. and Koch, M. (2006). An mda approach to access

control speciﬁcations using mof and uml proﬁles.

Garcia, R. and Gil, R. (2010). Semantic wiki for quality

management in software development projects.

Guo, K. H. (2010). Knowledge for managing information

systems security: Review and future research direc-

tions.

Herzogand, A., Shahmehri, N., and more (2007). An ontol-

ogy of information security.

Huner, K. M. and Otto, B. (2009). The effect of using a se-

mantic wiki for metadata management: A controlled

experiment.

Kasisopha, N. and Wongthongtham, P. (2009). Semantic

wiki-based ontology evolution.

Korkala, M. and Abrahamsson, P. (2007). Communication

in distributed agile development: A case study.

Mouratidis, H. and Giorgini, P. (2006). Integrating secu-

rity and software engineering: Advances and future

vision.

Papadaki, E., Polemi, D., and more (2008). A holistic, col-

laborative, knowledge-sharing approach for informa-

tion security risk management. In Internet Monitoring

and Protection, 2008, pages 125 –130.

Thuraisingham, B. (2005). Security standards for the se-

mantic web.

Tsoumas, B. and Gritzalis, D. (2006). Towards an ontology-

based security management.

Wang, J. A. and Guo, M. (2009). Ovm: An ontology for

vulnerability management.

Zhuge, H. (2003). Active e-document framework adf:

model and tool.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

490
