AN ACTIVE APPROACH IN HEALTH MONITORING

Doan B. Hoang

, Nor Faizah Ahmad

and Congduc Pham

Centre for Innovation in IT services and Applications(iNEXT), University of Technology, Sydney, Australia

LIUPPA, University of Pau, 64012, Pau cedex, France

Keywords: Health monitoring, Active monitoring architecture, Active database, Active care application.

Abstract: Specific-purpose hardware or software modules are often designed to provide timely response to conditions

or events that required attention. However, these application-specific mechanisms are not flexible and often

can not be reused or adapted to different situations and applications. This paper proposes an approach

whereby an active database with triggering mechanisms is deployed for surveillance and health monitoring

applications. The paper presents a comprehensive monitoring architecture and an application to demonstrate

its use in an Active Maternity Care system.

1 INTRODUCTION

We are surrounded by numerous events whereby our

response might or might not be expected promptly.

For example, an alarm has to be raised immediately

if an intruder or a critical health condition is

detected. Many hardware and software solutions are

readily available to deal with these situations. First,

a simple electronic circuit can be designed to deal

with a particular condition. However, the device can

not easily be modified nor reused in other different

conditions. Secondly, using a software approach, an

algorithm can be designed to handle the event where

it is more flexible in dealing with dynamic

circumstances and conditions as they can be

automated and programmed with little effort.

However, most software solutions suffer from a

time-consuming and constant polling loop for

monitoring the event of interest. They also introduce

delays and therefore can not always deal with the

event in a timely manner. In current practices,

database management system (DBMS) is deployed

to handle the events/data records systematically. The

DBMS is passive as its only responds to queries or

transactions explicitly submitted by users or

application programs. When monitoring events in

passive DBMS, an application program polls the

database by sending queries about the monitored

data (Paton, 1998), (Kotz-Dittrich, 1998). For

instance, in health monitoring systems, a server

agent is developed to monitor data inside the

database. The server agent needs to constantly poll

to the database to check the value of the health

parameter that is being monitored. The agent then

waits for the database to return the requested value.

If the returned value is less than a preset threshold,

the agent may trigger an alarm or send a notification.

The problem with this approach is that if the

frequency of polling is too high, resources for

handling polling are wasted without gaining new

information as the database will most likely return

the same previous value. In addition, the database

system will be overflowed by queries. However, if

the frequency of polling is too low, changes of data

in the database may not be detected in time. In a

health care environment, time is very critical and it

is not possible to predict the exact time of

complication occurrence. The ideal solution is that

once the complication occurs, the notification task

should commence automatically. This is where

active mechanisms are needed.

This paper presents an approach whereby an

active database is deployed at the core of the

solution. An active database provides mechanisms

for triggering an action if a certain event occurs

within a set of conditions that affect specific

elements of a data record within the database. A

conventional relational database is used to monitor

data. The active database inherits all the desirable

properties of a well-designed database including

data consistency and integrity. Active component is

designed to deal with triggering events. In particular

we propose a complete active database management

system (ADMBS) architecture that supports the

152

B. Hoang D., Faizah Ahmad N. and Pham C..

AN ACTIVE APPROACH IN HEALTH MONITORING.

DOI: 10.5220/0003728601520157

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2012), pages 152-157

ISBN: 978-989-8425-88-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

implementation of a class of health monitoring and

surveillance applications. The active database

monitoring architecture consists of four main

modules: the event validation module, the active

engine module, the decision making module and the

interface module for user interaction.

The rest of the paper is organised as follows.

Section 2 discusses related work on active database

research and applications. Section 3 presents our

proposed active monitoring architecture and its

components. Section 4 describes an application that

we developed in the assistive healthcare and the

implementation of the active monitoring

architecture. Section 5 concludes the paper with

discussion on future research.

2 RELATED WORK

An AI approach with multi-agent systems is often

used to deal with health monitoring in several

domains. Health information access. Multi-agent is

used in providing ubiquitous health information

access of the patients. Using the system, the

patients’ record can be accessed and viewed by

clinicians at different towns (Moreno, 2002),

(Koutkias, 2005). Patient scheduling. Due to the

complexity of the medical appointment procedure

including different types of diagnostics and

treatments, a multi-agent approach is proposed to

schedule the patients’ appointment (Alamillo, 2003).

Internal hospital tasks. A multi-agent framework is

proposed for managing the patient care in the

hospital, which involves the transaction of workflow

processes within health departments. This includes

monitoring applications of medical protocols

(Alamillo, 2003) or controlling the usage of drugs

taken by the patients (Godo, 2003). In general,

multi-agent solutions consist of specific-purpose

agents such as server agent, provider agent,

information agent, client agent, etc. These systems

are usually implemented with passive DBMS. In this

paper, we focus on the active database approach.

Active DBMS (ADBMS) extends passive

DBMS’s functionality with active rules (Dayal,

1995). Active rules allow ADBMS to monitor the

stored data, to automatically respond to the events

and to execute defined actions in a timely manner.

According to Dittrich (Dittrich, 1995), most

researchers agree that ADBMS must detect event

occurrences (E), satisfy specified condition (C), and

perform defined actions (A). Active rule processing

syntax includes two models: knowledge model and

execution model. Knowledge model indicates what

can be said about active rules in that system while an

execution model specifies how a set of rules is

treated at runtime. There are five phases involved in

rules evaluation; signalling, triggering, evaluation,

scheduling and execution (Paton, 1999). Some

active databases have been developed by researchers

but their usage has not been reported (Hanson,

1996).

Commercial databases such as Oracle (Adams,

2003) and MySQL may support some active

features: triggers and events. Triggers in commercial

databases, however, impose restrictions on the

development of real applications. For instance, the

limitation of number of triggers per table restricts

the developer to build complex systems. Monitoring

and control tasks can be implemented through

ADBMS. In its simplest operation, all requests are

usually filtered by an application layer that performs

the monitoring tasks before they are sent to the

DBMS. The problem with this approach is that it

limits the way rule condition evaluation can be

optimized.

3 ARCHITECTURE

This section discusses the architecture and the

functional aspects of each component of the active

database framework.

For health monitoring systems, it is essential to

consider features such as reliability, security,

reusability, scalability, and interoperability.

Reliability is crucial so that the monitoring system

can serve its purpose and acceptable to its users.

Security is one of the primary design factors that has

to be integrated at the design stage. Reusability

allows the implemented system to be reconfigured,

reused and extended with desired functionality

appropriate for different monitoring/surveillance

applications in different settings, environmental

conditions and purposes. Scalability is necessary to

handle a large number of users and devices that are

geographically separated. Furthermore, the

architecture must facilitate the interoperability

whereby different types of sensor devices can be

dynamically plugged into the system when

necessary, or when the system has to interoperate

with other existing systems.

Our active database monitoring architecture, as

depicted in Figure 1 is divided into four main

modules: the validation module, the active engine

module, the decision making module and the user

interface module. The details of each module are

discussed in the following section.

AN ACTIVE APPROACH IN HEALTH MONITORING

153

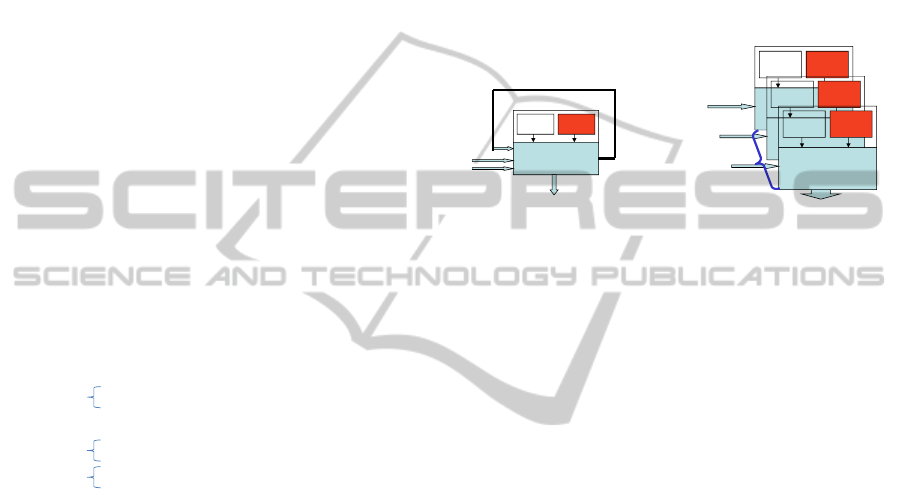

Figure 1: Active Database Monitoring Architecture.

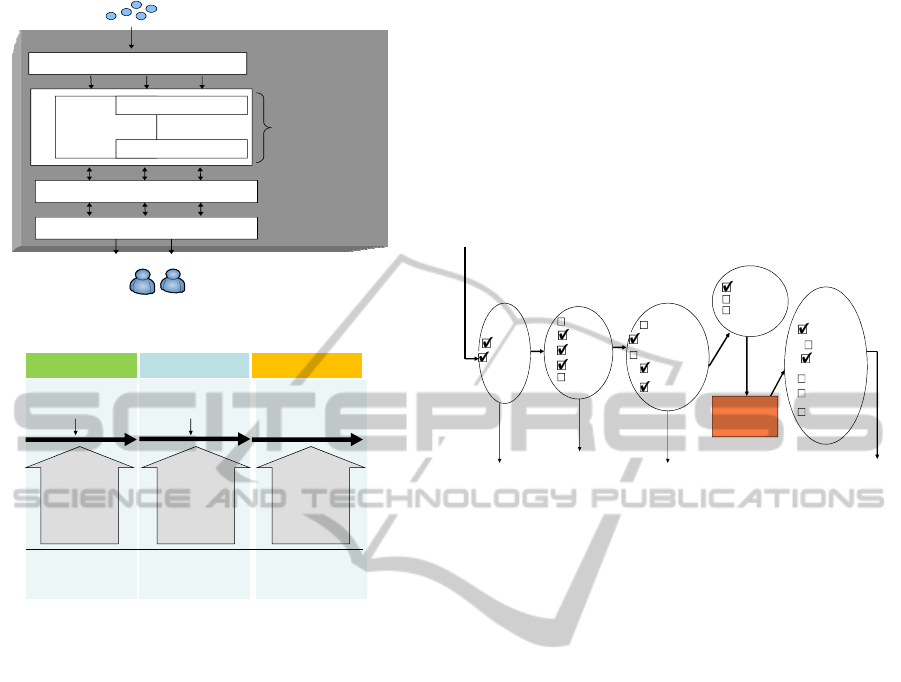

Figure 2: Event Validation Module.

3.1 The Event Validation Module

The Event Validation module serves as a pre-

processing module for any monitoring systems. It is

an essential component, however, often neglected. If

data from the sensors are not properly validated, it

will be difficult to build a reliable

monitoring/surveillance system for the intended

purposes such as detecting the correct digital

signature of a disease, raising a critical disaster alert

or delivering the right message to the intended user.

This module consists of an array of functions that

deal with validating data, checking for data accuracy

and selecting initial simple processing procedures

(Figure 2). As not all functions are needed, these

functions can be flexibly programmed or selected

according to the intended application. Figure 3

illustrates the use of this module for a specific

application where only relevant functions are

selected and configured.

The main function of this module is to produce

valid, accurate and summary data for further

processing. For example, on validity check, the

incoming data from the sensors are checked to make

sure that they are from the intended sensor, from the

intended users and are within the valid operational

range. Therefore this element will possess

mechanisms for device and user identification and

will validate the signals to ensure they are within

bounds and not altered by interferences including

security and identity interferences. For accuracy

check, this module aims to produce the best estimate

of the received data to an acceptable resolution level.

It will involve error detection, signal detection and

filtering and interference cancellation.

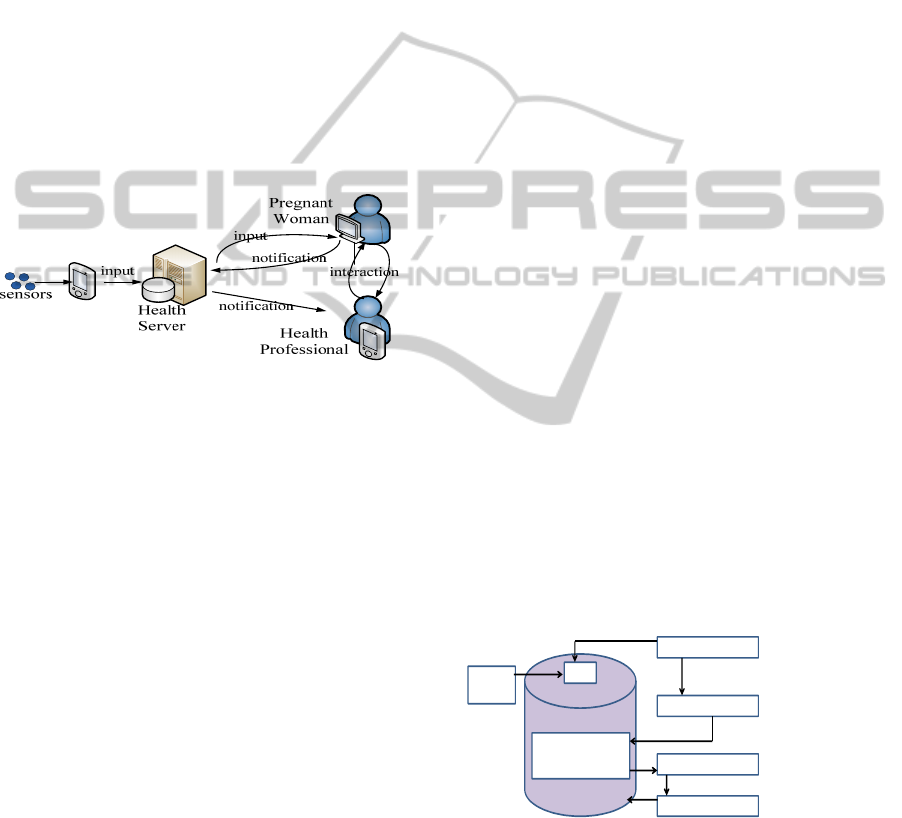

Figure 3: Example for Specific Application.

Furthermore, data properties such as numeral,

data type, data range, sample size of each sensor

data are assessed and checked at this module.

Moreover, the outliers among the sensed data are

detected and eliminated. For reliability check, this

module guarantees that data are reliable and not

spurious or transient ones. This module considers

appropriate selection processes such as sampling

frequency and simple data aggregation. Furthermore,

simple forms of transformations such as averaging

or selective filtering can be applied.

3.2 The Active Engine Module

This module consists of a database, an event

processing and a triggering component. The pivotal

database is developed based on entities that are

identified in the application. Each of the entities

represents a passive table which stores all data

collected by the system. In our active database, the

database also contains active tables. An active table

stores the input which activates a trigger.

Consequently, every tuple in an active table can be

viewed as an expression of interest (EOI) of the

system and to be handled appropriately.

The triggering component is responsible for

assessing and evaluating the trigger and determines

whether or not it should be treated as alert. This

component and the event processing share the

responsibility of combining and integrating triggered

inputs with other relevant application parameters

Data Cleaning & Validation

Database

Event Handling

User Interaction

Event Processing

Event Validation

Active Engine

Decision Making

Sensor nodes

ACTIVE DATABASE

Users

Triggering

User Interface

Input

Identification

Check

Security Check

•Format check

•Data type check

•Limit check

•Range check

•Presence check

….

Sample size check

Frequency check

….

Output

Process Validating

Validating and

Checking

Sampling

Quantization

Aggregation

Averaging

Sensor Id

Patient Id

Health parameter

value

(blood pressure, heart

rate, glucose rate, etc)

Health parameter

value

(blood pressure, heart

rate, glucose rate, etc)

Validity Accuracy/Reliability Preprocessing

Patient_id

…..

Sensor_id

systolic

ECG

diastolic

heart rate

glucose rat e

…..

Health

parameter

discovery and

classification

Sensor ID

Patient ID

Recognition

Validating

single input

Format check

Presence check

Data type check

Range ch eck

Limit check

…..

sampling

median

mean

quantization

Pre-processing

Not recognized,

discarded

Not recognized,

discarded

aggregation

mode

TEMP

STORAGE

frequency

sample size

Not recognized,

discarded

input

output

time interval

…..

Data set

HEALTHINF 2012 - International Conference on Health Informatics

154

such as current and past data related to the targeted

event. As the monitoring/surveillance task can be

complex, each trigger invocation could convey

different contexts and scenarios in the monitoring

environment. For example, if the value of blood

pressure (BP) is high, it needs to be assessed first

before being treated as an alarm. This assessment is

done by checking corresponding parameters related

to the blood pressure. It is important to know the

current activity of the person because it bears some

effects on the interpretation of the BP value. For

example, high BP reading of a patient who is at rest

(the person is sitting or lying on the bed) or active

(the person is walking, jogging or running) should

be interpreted differently.

In our approach, active rules are constructed to

monitor specific data records in the database. An

active rule consists of three main components: event,

condition and action (ECA). The event defines a

rule-triggering occurrence. The condition is the set

of circumstances that must exist for the action of the

rule to be processed. The action is the task to be

carried out if the relevant event has taken place and

if the condition is fulfilled. Figure 4 shows a simple

example of the ECA rule that is written in our

implementation.

Figure 4: An Example of an ECA Rule.

Some existing database management systems do

support simple triggering mechanism but they only

allow simple ECA rules with single input, single

condition and simple action. Our active engine

module allows complex events to be constructed and

programmed from multiple simple events and

multiple conditions. This extension is required to

deal with complex situations and the intelligent level

of the application. Complex situations may involve

interrelated multiple events, multiple conditions,

current as well as past history of relevant data.

Examples of these are as follows:

a) An action is triggered only if an event occurs

over some specified conditions and when certain

relevant historical data are presented.

b) An action is triggered only if an event occurs

over some specified conditions and when certain

relevant multiple sets of historical data are

presented.

c) An action is only triggered if multiple events and

conditions are met.

d) An action is only triggered if multiple events and

conditions are met and when certain relevant

historical data are presented.

e) An action is only triggered if multiple events and

conditions are met and when certain relevant

multiple sets of historical data are presented.

f) An action is triggered as in (a) – (e) and some

condition on the immediate past actions.

Cases (e) and (f) are illustrated in Figure 5.

Figure 5: An action is triggered as resulted from events.

3.3 Decision Making Module

This module analyzes relevant information to

produce a decision that must be acted upon in

response to the triggered event. For instance, it is

responsible for generating appropriate alert and

notification messages. Our system considers both

internal and external conditions for dynamic

handling of the event instead of statically defined

actions. We provide a comprehensive set of patterns

for handling the alert events:

 Actions only involve the local database. Some

value of a data record is deleted, altered.

 Actions may cause some external processes to be

invoked.

 Actions may cause some external processes to be

invoked and some internal data values are altered.

 Actions may involve a series of internal processes

and may invoke external processes and some

internal data values are altered.

This design allows developers to select the handling

pattern that is most appropriate for their application.

3.4 The User Interface Module

Lastly, the actions, alerts and/or notification

messages are communicated to the affected users or

the environment. The active database architecture,

however, does not deal with end user interaction. It

mainly provides an interface for accommodating

various sets of user interaction protocols. The active

CREATE TRIGGER ai

CheckBP

fer

AFTER INSERT on Visit

FOR EACH ROW BEGIN

IF ( Condition 19) THEN

CALL Procedure 112;

END IF; END

Event

Condition

Action

Trigger

Cond 1 Hist.1

Event n

Cond2 Hist.2

Cond n Hist.n

Event 1

Event 2

(e)

Cond. Hist.

Trigger

Events

Feedback

(f)

AN ACTIVE APPROACH IN HEALTH MONITORING

155

database architecture is not concerned itself with the

effects of its action as far as the users are concerned,

however, the user interface facilitates user

interaction that is considered important to the design

of a complete monitoring/surveillance system.

4 AN ACTIVE MATERNITY

CARE APPLICATION

Based on our proposed active database architecture,

we have developed the Active Maternity Care

(AMC) system with a particular Assistive Pregnancy

Care Loop application. The system was tested in a

trial workshop setting with midwives and pregnant

women from a New South Wales Health area service

(Hoang, 2008).

Figure 6: AMC current implementation.

Figure 6 depicts the implementation set up. The

AMC system can be accessed using Internet browser

on laptop/desktop computers or Personal Data

Assistants (PDAs). In this implementation, Internet

connectivity through the HP iPAQ HW6960 PDA is

established using GPRS networks. The database

which maintains the health data was developed using

MySQL 5.0. We used Apache Tomcat 5.0 as the

web container and Internet Information Service (IIS)

as the web server. We adopted Nokia 6280 as GSM

modem connected to the health server via the

Bluetooth communication port. In an ideal scenario,

the system anticipates an input from the woman. The

woman then inserts the input to the system. Upon

receiving the input from the woman, the system will

send an acknowledgement to the woman. There

could be several issues such as loss of data while

transferring, sensor or woman does not respond to

the request, etc. Therefore, during the testing, we

developed three scenarios to test the functionality of

the AMC system. In the first scenario, the woman

failed to respond to the reminder message sent by

the system. After sending a maximum of three

reminder messages, the system will send alerts to the

responsible clinician. The second scenario was

when the value of the blood pressure (BP) was out

of range. The system responded with an assistive

advice and message to the woman as a reminder.

Consequently, the system requested for another BP

measurement. In the third scenario, a severe BP

reading was recorded. During this time the system

not only responded with a clear message to the

woman but also notified the responsible midwife

about the situation. The communication between the

pregnant woman and the midwife was done via SMS

and email, depending on the urgency of the

notification. We are currently extending the interface

to allow Bluetooth and Zigbee sensor nodes to send

vital health data wirelessly to the PDAs that then

relay the data to the pre-processing module of the

system. We simulated the value for the sensors and

forwarded it to the application.

At present, the event/data conditioning module

mainly performed simple error checking and data

validation. The active engine for the AMC system

was developed using MySQL triggers and events.

Our initial implementation was not an efficient

one because of a limitation of the MySQL database:

the trigger mechanism could not activate an external

procedure for processing. We have extended the

triggering mechanism with listening threads and

generating internal trigger information files. With

this extension, an automatic notice was received by

the application. However, without the ability to call

an external process, the system could not handle

multiple triggers and complex event processing.

Our current implementation has overcome this

limitation and allowed efficient external procedures

to be invoked. This is significant as the overall

system is more responsive and allows more complex

event handling mechanisms and intelligent decision

support algorithms. Figure 7 illustrates the logic of

the active engine of our system.

Figure 7: Active Database Implementation with MySQL.

Basically, an Event_Listener is waiting and

listening to a triggered event. When it receives a

trigger it forks another process to handle the

triggered event and comes back to listening.

Multiple triggered events hence can be handled

without being delayed or lost. The handling

Event_Listener

Handling_Procedure

Update_Trigger

Update_Viewer

Database

Access

Trigger_Information

MySQLDatabase

Data

Calling a process for handling the event

and return to listening for new events

HEALTHINF 2012 - International Conference on Health Informatics

156

processes are external from the database and hence

sophisticated processing can be done without

degrading the performance of the database. Figure 7

illustrates a particular example where a new piece of

data was inserted in the “monitored record” and a

trigger was initiated. When the Event_Listener

caught this event, it forked the Handling_Procedure

to update the trigger information in the database.

The Update_Trigger and the Update_Viewer are

used to update and display the changes to the user.

5 CONCLUSIONS

This paper presented an approach whereby critical

events of interest can be automatically captured and

appropriate responses can be pushed timely to

affected users. The proposed active database

component may be deployed in many security

surveillance or monitoring vital health condition

applications. A simple application to the maternity

care is demonstrated. In the future, we plan to

enhance our implementation to handle more

complicated situations including i) new processing

algorithms that deal with a richer set of data and

events; ii) intelligent algorithms and new methods of

user/system interaction; c) efficient scheduling

algorithms to handle complicated situations that

demand coordination, synchronization of

arrangement. We will also explore the use of the

information provided by the database on relevant

history of the events to reliably determine the course

of action. We will also describe our mechanism for

dealing with critical events in mission-critical

surveillance applications.

REFERENCES

Adams D. and Paapanen, E., 2003. Part III-The Active

Database. In Oracle Database Application Developer's

Guide - Fundamentals, 10g Release 1 (10.1): Oracle

Corporation., 2003.

Alamillo, T., Alsinet, Bjar, R., Anstegui, J., Fernndez, C.

and Many, F., 2003. In Automated monitoring medical

protocols: a secure and distributed architecture,"

Artificial Intelligence in Medicine, vol. 27, pp. 367-

392, 2003.

Dayal, U., Hanson, E. N. and Widom, J., 1995. Active

Database Systems. In Modern Database Systems: The

Object Model, Interoperability, and Beyond, W. Kim,

Ed. Massachusetts: ACM Press and Addision-Wesley,

1995, pp. 434-456.

Dittrich, K. R., Gatziu, S. and Geppert, A., 1995. The

Active Database Management System Manifesto: A

Rulebase of ADBMS Features. In Proceedings of the

Second International Workshop on Rules in Database

Systems, Athens, Greece, 1995.

Godo, L., Puyol-Gruart, J., Sabater, J. and Torra, V., 2003.

A multi-agent system approach for monitoring the

prescription of restricted use antibiotics. In Artificial

Intelligence in Medicine, vol. 27, pp. 259-282, 2003.

Hanson, E. N., 1996. The design and implementation of

the Ariel active database rule system. In Knowledge

and Data Engineering, IEEE Transactions on, vol. 8,

pp. 157-172, 1996.

Hoang, D. B., Homer, C., Lawrence, E., Foureur, M.,

Ahmad, N. F. Balasubramanian, V. and Leap, N.,

2008. Assistive Care Loop with Electronic Maternity

Records. In 10th International Conference on e-Health

Networking, Applications and Services (Healthcom)

Singapore, 2008.

Kotz-Dittrich, A. and E. Simon, E., 1998. Active Database

Systems: Expectations, Commercial Experience, and

Beyond. In Active Rules in Database Systems, N. W.

Paton, Ed. New York: Springer-Verlag, 1998, pp. 367-

404.

Koutkias, V. G., Chouvarda, I. and Maglaveras, N., 2005.

A multiagent system enhancing home-care health

services for chronic disease management. Information

Technology in Biomedicine, IEEE Transactions on,

vol. 9, pp. 528-537, 2005.

Moreno A. and Isern, D., 2002. Accessing distributed

health care services through smart agents," in

Proceedings of the 4th IEEE International Workshop

on Enterprise Networking and Computing in the

Health Care Industry (HealthCom 2002), Nancy,

France, 2002, pp. 34-41.

Paton, N. W., 1998. Active Rules in Database Systems.

D. Gries and F. B. Schneider, Eds. New York:

Springer-Verlag, 1998.

Paton N. W. and Diaz, O., 1999. Active Database

Systems. In ACM Computing Surveys, vol. 31, pp. 63-

103, March, 1999.

AN ACTIVE APPROACH IN HEALTH MONITORING

157
