ESTIMATION OF HUMAN ORIENTATION BASED ON

SILHOUETTES AND MACHINE LEARNING PRINCIPLES

Sébastien Piérard and Marc Van Droogenbroeck

INTELSIG Laboratory, Monteﬁore Institute, University of Liège, Liège, Belgium

Keywords:

Human, Silhouette, Orientation, Machine learning, Regression.

Abstract:

Estimating the orientation of the observed person is a crucial task for home entertainment, man-machine in-

teraction, intelligent vehicles, etc. This is possible but complex with a single camera because it only provides

one side view. To decrease the sensitivity to color and texture, we use the silhouette to infer the orientation.

Under these conditions, we show that the only intrinsic limitation is to confuse the orientation θ with the sup-

plementary angle (that is 180

◦

− θ), and that the shape descriptor must distinguish between mirrored images.

In this paper, the orientation estimation is expressed and solved in the terms of a regression problem and super-

vised learning. In our experiments, we have tested and compared 18 shape descriptors; the best one achieves

a mean error of 5.24

◦

. However, because of the intrinsic limitation mentioned above, the range of orientations

is limited to 180

◦

. Our method is easy to implement and outperforms existing techniques.

1 INTRODUCTION

The real-time analysis and interpretation of video

scenes are crucial tasks for a large variety of appli-

cations including gaming, home entertainment, man-

machine interaction, video surveillance, etc. As most

scenes of interest contain people, analyzing their be-

havior is essential. Understanding the behavior is a

challenge because of the wide range of poses and ap-

pearances human can take. In this paper, we deal with

the problem of determining the orientation of persons

observed by a single camera.

To decrease the sensitivity to appearance, we pro-

pose to rely on shapes instead of colors or textures.

The existence of several reliable algorithms, like

techniques based on background subtraction, makes

it tractable to detect silhouettes even in real-time

(see (Barnich and Van Droogenbroeck, 2011) as an

example). Therefore, our approach infers the orien-

tation of a person from his silhouette (see Figure 1).

Moreover, we consider the side view (instead of a top

view), since it is not possible to place a camera above

the observed person in most applications.

The purpose of this paper is twofold:

1. Ideally, one would want to determine an orienta-

tion angle comprised in [0, 360°[ or equivalently

in [−180°, 180°[, but it appears to be impossible

to cover a range of 360°. We discuss this issue and

show that the shape descriptor must distinguish

65.2° −2.0° −71.5° 15.4° −47.4° −5.5°

Figure 1: Samples of our learning database. We want to

derive the orientation of a person from his silhouette. This

problem is solved as a regression problem in terms of su-

pervised learning.

between mirrored images (that is a skew invariant

descriptor (Flusser, 2000; Hu, 1962)) to avoid a

confusion between θ and 180° + θ angles. More-

over, we demonstrate that the working conditions

mentioned above (i.e. a single side view silhou-

ette) imply an intrinsic limitation: θ and 180° − θ

orientations are equally likely in a side view sil-

houette. Therefore, we have to limit the angle

range to [−90°, 90°].

2. Secondly, we compare the results obtained with

18 different shape descriptors. Some of them out-

perform those previously reported in the litera-

ture. In addition, we have selected shape descrip-

tors that are easy to implement, so that our method

is faster than existing ones. However, because of

the intrinsic limitation, we deal only with a 180°

range of orientations. We explain how to solve the

Piérard S. and Van Droogenbroeck M. (2012).

ESTIMATION OF HUMAN ORIENTATION BASED ON SILHOUETTES AND MACHINE LEARNING PRINCIPLES.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 51-60

DOI: 10.5220/0003729800510060

 SciTePress

remaining underdetermination problem in order to

cover a range of 360°.

The outline of this paper is as follows. Section 2

describes some applications of the estimation of the

human orientation, and presents related work. Then,

Section 3 explains our framework, and highlights the

intrinsic limitation. In Section 4, we compare the re-

sults obtained with different sets of shape descriptors,

and apply our method in the context of a practical ap-

plication. Finally, Section 5 concludes this paper.

2 APPLICATIONS AND RELATED

WORK

2.1 Applications of the Orientation

Estimation

For home entertainment and man-machine interac-

tion, it is useful to determine the conﬁguration of the

observed person. This conﬁguration consists of pa-

rameters speciﬁc to the body shape (pose, morphol-

ogy) and parameters related to the scene (position,

orientation). The problem of determining the orienta-

tion is independent of the problem of pose estimation,

but the knowledge of the orientation facilitates the

determination of the pose parameters. For example,

a pose-recovery method estimating the orientation in

a ﬁrst step has been proposed by Gond et al. (Gond

et al., 2008).

There are many more applications to the es-

timation of the orientation of the person in front

of the camera: estimating the visual focus of at-

tention for marketing strategies and effective ad-

vertisement methods (Ozturk et al., 2009), clothes-

shopping (Zhang et al., 2008), intelligent vehi-

cles (Enzweiler and Gavrila, 2010), perceptual inter-

faces, etc.

2.2 Related Work

The different existing methods that estimate the ori-

entation differ in several aspects: number of cameras

and viewpoints, nature of the input (image, or seg-

mentation mask), and nature of the output (discrete or

continuous, i.e. classiﬁcation or regression).

Several authors estimate the direction based on a

top view (Ozturk et al., 2009; Zhang et al., 2008). As

explained in Section 3.1, it is preferable to use a side

view. In this case, methods based on the image instead

of the segmentation mask have been proposed (En-

zweiler and Gavrila, 2010; Gandhi and Trivedi, 2008;

Nakajima et al., 2003; Shimizu and Poggio, 2004).

Some authors prefer to use the silhouette only

to decrease the sensitivity to appearance. Lee et

al. (Lee and Nevatia, 2007) apply a background sub-

traction method and ﬁt an ellipse on the foreground

blob. This ellipse is tracked, and a coarse estimate

of the orientation is given on the basis of the direc-

tion of motion and the change of size. Therefore,

their method requires a continually moving person.

Agarwal et al. (Agarwal and Triggs, 2006) encode the

silhouette with histogram-of-shape-contexts descrip-

tors (Belongie et al., 2002), and evaluate three differ-

ent regression methods.

Multiple silhouettes can be used to improve the

orientation estimation. Peng et al. (Peng and Qian,

2008) use two orthogonal views. The silhouettes are

extracted from both views, and processed simultane-

ously. The decomposition of a tensor is used to learn

a 1D manifold. Then, a nonlinear least square tech-

nique provides an estimate of the orientation. Rybok

et al. (Rybok et al., 2010) also demonstrate that using

several silhouettes leads to better results. They use

shape contexts to describe each silhouette separately

and combine the single view results within a Bayesian

ﬁlter framework. Gond et al. (Gond et al., 2008) used

the 3D visual hull to recover the orientation. A voxel-

based Shape-From-Silhouettes (SFS) method is used

to recover the 3D visual hull.

As an alternative to the use of multiple cameras,

we considered in (Piérard et al., 2011) the use of

a range camera to estimate the orientation from 3D

data. In that work, we addressed the orientation esti-

mation in terms of regression and supervised learning.

We were able to reach mean errors as low as those re-

ported by state of the art methods (Gond et al., 2008;

Peng and Qian, 2008), but in a much simpler way:

complex methods such as camera calibration, shape

from silhouettes, tensor decomposition, or manifold

learning are not needed.

In this work, we focus on the possibility to esti-

mate the orientation based on a single color camera.

The only previous work (to our knowledge) that ad-

dress this problem is due to of Agarwal et al. (Agar-

wal and Triggs, 2006). But, unlike these authors (who

concentrate on regression methods), our work is fo-

cussed on shape descriptors. We show that it is pos-

sible to estimate the orientation from a single binary

silhouette by methods as simple as those implemented

in (Piérard et al., 2011). In addition, we study the the-

oretical conditions for the estimation of the orienta-

tion to be achievable, and demonstrate that there is an

intrinsic limitation preventing working on 360°. This

observation was missed by previous authors.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

Figure 2: Deﬁning the orientation of a person requires the

choice of a body part. In this paper, we use the orientation

of the pelvis. This ﬁgure depicts three examples of conﬁg-

urations corresponding to an orientation θ = 0°. Note that

the position of the feet, arms, and head are not taken into

account to deﬁne the orientation.

3 OUR FRAMEWORK

In this paper, we consider a single camera that pro-

vides a side view. Moreover, to decrease the sensi-

tivity to appearance, the only information used is that

contained in silhouettes. In the following, we elab-

orate on our framework, deﬁne the notion of orien-

tation for humans, and present an intrinsic limitation

of orientation estimation techniques based on a single

side view silhouette.

3.1 Motivations for a Side View

In most applications, it is preferable to observe the

scene from a side view. Indeed most ceilings are not

high enough to place a camera above the scene and to

observe a wide area. The use of ﬁsheye lenses raises

a lot of difﬁculties as silhouettes then depend on the

precise location of a person inside the ﬁeld of view.

In the context of home entertainment applications,

it would be possible to place a camera on the ceil-

ing. However, most of existing applications (such as

games) require to have a camera located on top or at

the bottom of the screen. Therefore, if a top view is

required, then it is mandatory to add a second camera,

which is intractable.

3.2 Our Deﬁnition of the Orientation

There is not a unique deﬁnition of the orientation of

a human. However, the orientation should not de-

pend on the pose. Therefore, a practical way to de-

ﬁne the orientation of a person is to choose a rigid

part of the body. In this paper, we use the orientation

of the pelvis. The orientation θ = 0° corresponds to

the person facing the camera, with the major axis of

the pelvis parallel to the image plane (see Figure 2).

Another deﬁnition has been, for example, chosen by

Gond et al. (Gond et al., 2008) who considered the

torso to be the most stable body part. Indeed, these

two deﬁnitions are almost equivalent and both corre-

spond to the human intuition.

According to our deﬁnition, evaluating the orien-

tation of the pelvis is sufﬁcient to estimate the ori-

entation of the observed person. But, evaluating the

orientation of the pelvis is not a trivial task. As a mat-

ter of fact, one would ﬁrst have to locate the pelvis in

the image, and then to estimate its orientation from a

small number of pixels. One of our main concerns is

thus to know which body parts can be used as clues.

Unfortunately, this is still an open question. There-

fore, we decided to implement and to test several sil-

houette descriptors, some of them being global, and

others focusing on the area around the centroid (see

Section 4.2). Indeed, we assume that the pelvis is lo-

cated in this area.

3.3 Regression Method

The machine learning method we have selected for

regression is the ExtRaTrees (Geurts et al., 2006). It

is a fast method, which does not require to optimize

parameters (we do not have to setup a kernel, nor to

deﬁne a distance), and that intrinsically avoids over-

ﬁtting.

3.4 Intrinsic limitation of Estimating

the Orientation from a Single

Silhouette

In this paper, we assume that the rotation axis of the

observed person is parallel to the image plane (i.e. we

see a side view) and the projection is nearly ortho-

graphic. In other words, the perspective effects should

be negligible which is an acceptable hypothesis when

the person stands far enough from the camera.

This section explains that under these assumptions

there is an intrinsic limitation of estimating the orien-

tation from a single silhouette. However, it is not our

purpose to prove it rigorously. Instead, we prefer to

give an intuitive graphical explanation, and to validate

it with experimental results.

3.4.1 Graphical Explanation

Let us consider two mirror poses p

and p

as the ones

depicted in Figure 3. They have the same probability

density to be observed. If no prior information on the

orientation is available, θ follows a uniform probabil-

ity density function. Thus, the four cases depicted in

Figure 4 have the same probability density to be ob-

served. Hence, there is a 50% or 75% probability to

be wrong depending on whether or not the silhouette

ESTIMATION OF HUMAN ORIENTATION BASED ON SILHOUETTES AND MACHINE LEARNING PRINCIPLES

pose p

Figure 3: The poses p

and p

are mirror poses. They have

the same probability density to be observed.

, θ) (p

, 180° − θ) (p

, 180° + θ) (p

, −θ)

Figure 4: Four conﬁgurations leading to similar silhouettes.

These conﬁgurations have the same probability density to

be observed. Note that two poses are considered here but

that silhouettes are unaware of the notion of pose.

descriptor is skew invariant (that is whether it can dis-

tinguish between mirrored images (Hu, 1962) or not).

As shown in Figure 4, the conﬁgurations (p

, θ)

and (p

, −θ) give rise to the same silhouettes under

reﬂection. Moreover, if the person turns with an an-

gle of 180°, the observed silhouette is approximately

the same, under reﬂection (the small differences are

due to perspective effects). Note that p

and p

have

not be chosen to be a particular case: they are nei-

ther symmetrical nor planar. Therefore, the previous

observations are valid for all poses.

Peng et al. (Peng and Qian, 2008) claimed that a

180° ambiguity is inherent. There are indeed some

conﬁgurations (pose and orientation) for which it is

impossible to discriminate between the θ and θ +180°

orientations, but these conﬁgurations are statistically

rare. As shown in Figure 4, it is sufﬁcient to use a

silhouette descriptor sensitive to reﬂections to be able

to discern the angles θ and θ + 180° in most of the

cases. However, even if we use a skew invariant sil-

houette descriptor, there still remains an ambiguity:

the conﬁgurations (p

, θ) and (p

, 180° − θ) give rise

to the same silhouette. Thus, the intrinsic limitation

of estimating the orientation from a single side view

silhouette is not to make a mistake of 180°, but to con-

fuse the orientation θ with the supplementary angle

180° − θ (see Figure 5). It is therefore impossible to

Figure 5: The intrinsic limitation is to confuse the orienta-

tions θ and 180° − θ.

estimate the orientation or the direction from a single

camera, and so we should limit ourselves to orienta-

tions θ ∈ [−90°, 90°].

In practice, there are always perspective effects.

In (Piérard et al., 2011), we have proven that when

the camera is very close to the observed person, the

perspective effects cannot be considered as negligible

anymore. In this case, these perspective effects tend

to overcome the intrinsic limitation, but not enough

to reach acceptable results. Moreover, the perspec-

tive effects only impact on small details, which can

be ruined by noise. This conﬁrms that the intrinsic

limitation is also valid for pinhole cameras.

3.4.2 Observations for a 360° Estimation

To understand the implications of the intrinsic limita-

tion, it is interesting to observe what happens when

we try, trivially, to estimate the orientation in a 360°

range. In our preliminary tests, we tried to estimate

the orientation θ ∈ [−180°, 180°[. As in Agarwal

et al. (Agarwal and Triggs, 2006), we did two re-

gressions to maintain continuity –one regression to

estimate sin (θ) and the other regression to estimate

cos(θ)–, and to recover θ from these values in a sim-

ple post-processing step. We found that a lot of sil-

houette descriptors lead to acceptable estimators of

sin(θ), but that it is impossible to estimate cos (θ).

This is illustrated in Figure 6. The reason is the

following. The regression method tries to compro-

mise between all possible solutions. Because the con-

ﬁgurations (p

, θ) and (p

, 180° − θ) lead to simi-

lar silhouettes,

sin is a compromise between sin(θ)

and sin(180° − θ), and

cos is a compromise between

cos(θ) and cos(180° − θ). As sin(180° − θ) = sin(θ),

the sine can be estimated without any problem. How-

ever, cos(θ) and cos(180° − θ) have opposite values,

and therefore the estimated cosine may take any value

between − cos(θ) and cos(θ).

It can be noted that, if two orthogonal views are

available, one can process each silhouette separately

and estimate sin (θ) with one camera, and cos (θ) with

the other one. It is therefore not surprising that Peng

et al. (Peng and Qian, 2008) achieve full orientation

estimation based on two orthogonal cameras. Note

however that Peng et al. use a much more complex

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

-1

-0.5

0.5

-1 -0.5 0 0.5 1

estimated

ground truth

cosine

-1

-0.5

0.5

-1 -0.5 0 0.5 1

estimated

ground truth

sine

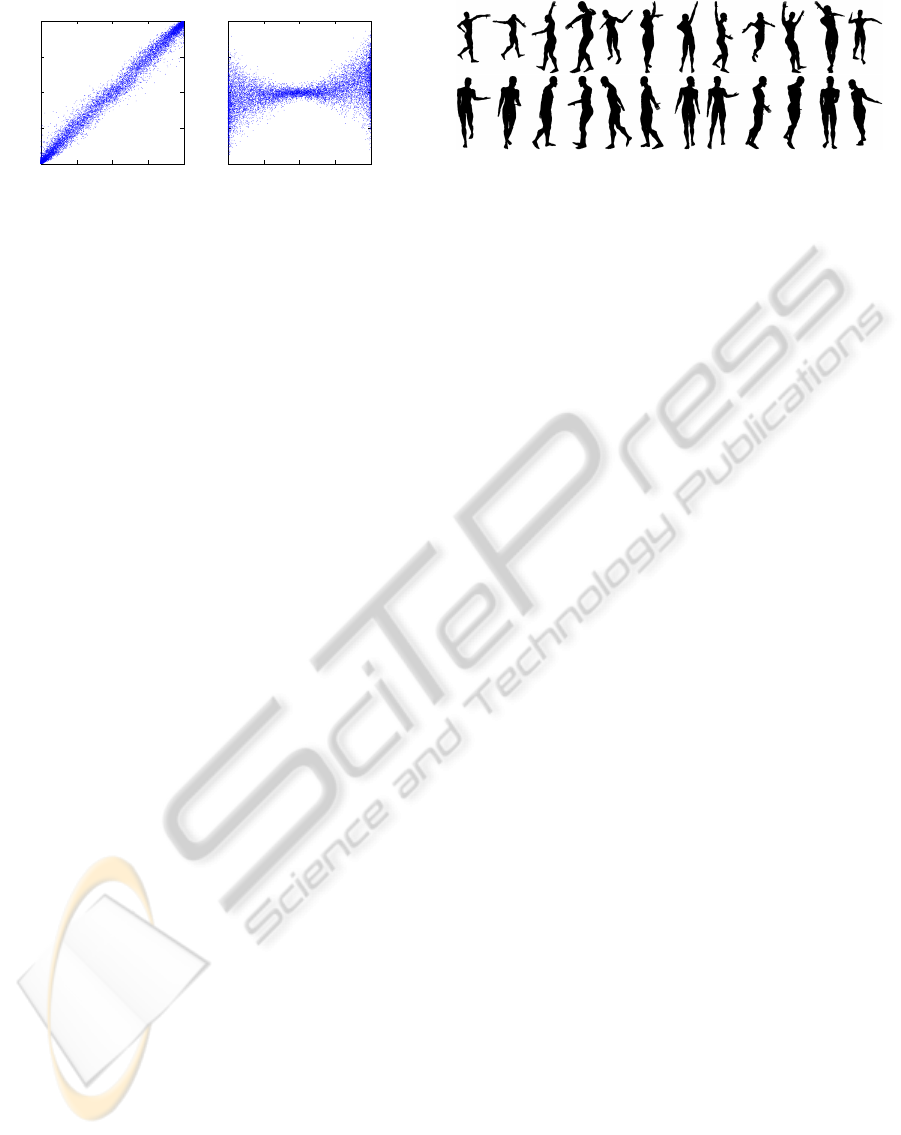

Figure 6: The typical behavior that can be observed when

trying to estimate the sine and cosine of the orientation

with a supervised learning method (eg ExtRaTrees) when

the learning set contains silhouettes corresponding to orien-

tations in the range [−180°, 180°[. These graphs illustrate

the relationship between the real value and the estimated

value of the sine and cosine. As we can see, estimating the

sine is not a problem, while the estimate of the cosine is

unusable. This is due to the inherent limitation of estimat-

ing orientation from a single silhouette. The fact that we

observe a butterﬂy-like cloud shape instead of the two lines

cos = ± cos is due to the compromise done by ExtRaTrees.

The set of attributes used for regression is R (16, 400) (see

Section 4.2.5).

approach taking into account simultaneously the two

silhouettes.

4 EXPERIMENTS

4.1 Data

We found it impractical to use real data for learning

the orientation estimator. Hand-labeling silhouettes

with the orientation ground-truth is an error prone

procedure. An alternative is to use motion capture

to get the ground-truth. However, it is easy to for-

get a whole set of interesting poses, leading to in-

sufﬁciently diversiﬁed databases. Moreover, using a

motion capture system (and thus sequences) has the

drawback to statistically link the orientation with the

pose.

In order to produce synthetic data, we used the

avatar provided with the open source software Make-

Human (The MakeHuman team, 2007) (version 0.9).

The virtual camera looks towards the avatar, and is

placed approximately one meter above the ground.

For each shooting, a realistic pose is chosen (Piérard

and Van Droogenbroeck, 2009), and the orientation

is drawn randomly within [−90°, 90°]. We created

two different sets of 20, 000 human silhouettes: one

set with a high pose variability and the other one

with silhouettes closer to the ones of a walker. They

correspond to the sets B and C of (Piérard and Van

Droogenbroeck, 2009) and are shown in Figure 7.

Figure 7: Examples of human synthetic silhouettes (our

data sets), with a weakly constrained set of poses (upper

row) and a strongly constrained set of poses (lower row).

Each of these sets has been equally and randomly di-

vided into two parts: a learning set and a test set.

4.2 Silhouette Description

In order to use machine learning algorithms, silhou-

ettes have to be summarized in a ﬁxed amount of in-

formation called attributes.

The attributes suited for our needs have to sat-

isfy invariance to small rotations, to uniform scal-

ing, and to translations. This gives us the guaran-

tee that the results will be the same even if the cam-

era used is slightly tilted, or if the precise location

of the observed person is unknown. The most com-

mon way to achieve this is to apply a normalization

in a pre-processing step: input silhouettes are trans-

lated, rescaled, and rotated before computing their at-

tributes. To achieve this, we use the centroid for trans-

lation, a size measure (the square root of the silhouette

area) for scaling, and the direction of the ﬁrst prin-

cipal component (PCA) for rotation. As we expect

people to appear almost vertically in images, we can

safely choose the orientation of the silhouette from

the direction of the ﬁrst principal component.

Once the pre-processing step described hereinbe-

fore has been applied, we compute the attributes on

the normalized silhouette. One could imagine taking

the raw pixels themselves as attributes, but this strat-

egy is not optimal. The ﬁrst reason is that it gives

rise to a huge amount of attributes, which is difﬁ-

cult to manage with most machine learning methods.

And the second reason is that (as it is highlighted

by our results) machine learning methods have –in

general– difﬁculties to exploit information given un-

der that form. Therefore, we need to describe the sil-

houettes.

A wide variety of shape descriptors has been pro-

posed for several decades (Loncaric, 1998; Zhang and

Lu, 2004), but most of them have been designed to

be insensitive to similarity transformations (i.e. uni-

formly scaling, rotation, translation, and reﬂection).

As a consequence, they are not skew invariant, but

we have explained in Section 3.4 that it is important

to use a skew invariant shape descriptor! Therefore,

ESTIMATION OF HUMAN ORIENTATION BASED ON SILHOUETTES AND MACHINE LEARNING PRINCIPLES

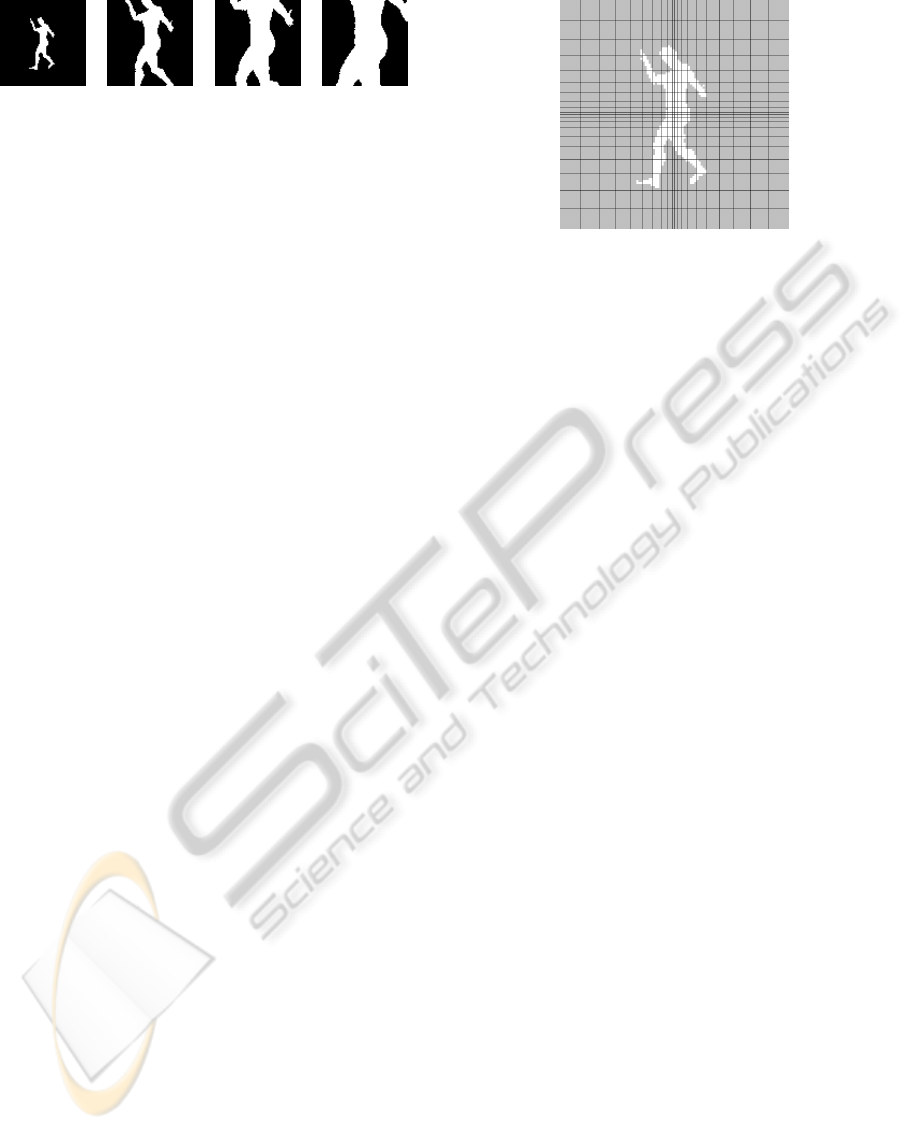

raw ×1 raw ×2 raw ×3 raw ×4

Figure 8: Four variants of the raw descriptors.

there are a lot of available descriptors not suited to

meet our needs, or that would require modiﬁcations.

We have compared the results obtained by sev-

eral skew invariant shape descriptors that are fast to

compute and easy to implement. Our goal is to deter-

mine which shape descriptors contain the information

related to the orientation of the observed person and

that are suitable for machine learning methods. In all

cases, the pre-processing step described hereinbefore

was applied. Several families of skew invariant de-

scriptors are detailed hereafter.

4.2.1 Raw Descriptors

Our raw descriptors are quite simple. The idea is to

let the learning algorithm decide by itself which shape

characteristics are most appropriate. Therefore, the

attributes are the raw pixel values of a 80 × 80 pixels

image centered on the gravity center of the silhou-

ette. This leads to 6400 binary attributes. Depend-

ing on the size of the region which is captured around

the center, several variants are considered (see Fig-

ure 8). This allows us to focus on the region around

the pelvis.

4.2.2 Descriptor based on the Principle of a

Histogram

We have tried to merge the pixels of our small square

images into larger rectangular regions. To achieve

this, the image is sliced horizontally and vertically;

each slice width increases with the distance to the cen-

troid to focus on the region around the pelvis. We

count the number of pixels of the silhouette that ﬁt

into each rectangular box. There are 20 horizontal

slices and 20 vertical slices leading to 400 attributes.

Figure 9 shows the borders of the slices.

4.2.3 Moments

We have also implemented several statistical mo-

ments. First, we tried the 7 moments introduced by

Hu (Hu, 1962), which have been selected to be rota-

tion invariant. Flusser (Flusser, 2000) demonstrated

that Hu’s system of moment invariants is dependent

and incomplete, and proposed a better set of 11 rota-

tion invariant moments. Therefore we also tried this

set. Finally, we tried the 12 central moments (which

Figure 9: Borders of the rectangular boxes considered in

our “histogram”-like descriptor.

are not rotation invariant) of order two, three, and

four.

Note that only a few moments are skew invariant

(Flusser, 2000; Hu, 1962). Unfortunately, we have

no way to encourage the learning algorithm to use

mostly the skew invariant descriptors. Future work

will consider a weighting mechanism to adapt the sig-

niﬁcance of pixels according to their position relative

to the centroid.

4.2.4 Fourier Descriptors

We have selected two popular types of Fourier de-

scriptors: those computed from a signal related to cur-

vature (Zahn and Roskies, 1972), and those derived

from the direct use of complex coordinates. Usu-

ally, the spectrum is not used as such to deﬁne at-

tributes. Attributes invariant to rotation, translation,

scaling, and to the choice of the initial contour point

are extracted from the complex values of the spec-

trum. However, this methodology leads to descrip-

tors which are not skew invariant. Therefore, we keep

all the spectrum information to deﬁne attributes. Af-

ter all, a normalization has already been performed in

our pre-processing step, and all we have to do is to

systematically start describing the contour at, for ex-

ample, the top most boundary point. The attributes

are the real and imaginary parts of the 41 lowest fre-

quencies.

4.2.5 Descriptors based on the Radon Transform

We have used a subset of the values calculated by a

radon transform as attributes. Radon transform con-

sists in integrating the silhouettes over straight lines.

R(x, y) denotes such a subset, where x is the number

of line directions, and y is the number of line positions

for a given direction.

4.2.6 Descriptors based on the Shape Context

Shape contexts have been introduced by Belongie et

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

al. (Belongie et al., 2002) as a mean of describing a

pixel by the location of the surrounding contours. A

shape context is a log-polar histogram. In our imple-

mentation, we have a sole shape context centered at

the gravity center which is only populated by the ex-

ternal contour. We denote SC (x, y) a shape context

with x radial bins and y sectors. Belongie et al. (Be-

longie et al., 2002) use SC (5, 12), but other conﬁgu-

rations have been chosen by other authors. Therefore,

we have tested several conﬁgurations.

4.3 First Experiment: Choosing a

Shape Descriptor

In this section, we report the results obtained with the

descriptors that have been previously mentioned. We

are not interested in combining different descriptors,

because (i) the resulting method would be unnecessar-

ily time-consuming, (ii) it would be difﬁcult to inter-

pret the results, and (iii) the number of combinations

would be too large to consider them all in our experi-

ments.

Because of the intrinsic limitation, our learning

set and test set have been populated only with sil-

houettes corresponding to orientations in the range

[−90°, 90°]. The results obtained with real data de-

pend on the conditions under which data is acquired,

and the background subtraction algorithm chosen. We

prefer to draw conclusions that are not biased by the

conditions in which the data acquisition is performed.

Therefore, we ran our ﬁrst experiment on synthetic

data.

It has been showed in (Piérard et al., 2011) that the

perspective effects may be useful to overcome the in-

trinsic limitation. Therefore, we hoped to obtain bet-

ter results with a pinhole camera than with the ortho-

graphic camera considered in the theoretical consid-

erations of Section 3.4. We have thus led our exper-

iments with a pinhole camera located at several dis-

tances from the avatar. The vertical opening angle of

the camera has been adjusted accordingly to keep a

silhouette of the same size. The selected distances are

3 m (with a vertical ﬁeld of view of 50°), 20 m (with

a vertical ﬁeld of view of 8°), and ∞ (with a vertical

ﬁeld of view of 0°, i.e. an orthographic camera).

The mean error results are provided in Table 1

for both the sets of weakly and strongly constrained

poses. The mean error is deﬁned as E[



θ −



], where

E[·] denotes the mathematical expectation (the same

error measure has been used in (Agarwal and Triggs,

2006) and (Piérard et al., 2011)). Four conclusions

can be drawn from these results:

1. Taking the raw pixels themselves as attributes is

not an optimal strategy. Using a carefully chosen

shape descriptor may improve the results. Among

the 18 skew invariant shape descriptors that we

have considered, three families of descriptors per-

form very well: the Radon transform, our descrip-

tor based on the principle of a histogram, and a

shape context located at the gravity center.

2. The diversity of the poses in the learning set has

a negative impact on the result. This observation

corroborates those of (Piérard et al., 2011).

3. The distance between the camera and the avatar

has only a slight impact on the results (the gen-

eral trend is that perspective effects slightly alter

the results). So, for the estimation of the orien-

tation from a single binary silhouette in the range

[−90°,90°], the camera can be placed at any dis-

tance from the person. But, of course, the learning

set has to be taken accordingly.

4. With synthetic silhouettes, it is possible to obtain

very accurate estimations of the orientation. We

do not think that it is possible to do much better,

because our results are already much more accu-

rate than the estimates a human expert could pro-

vide. Indeed, according to (Zhang et al., 2008),

the uncertainty on the orientation estimation given

by a human expert is approximately about 15°.

Our results are difﬁcult to compare with those

reported for techniques based on a classiﬁcation

method, such as the one proposed by (Rybok et al.,

2010), instead of a regression mechanism. Therefore,

we limit our comparison to results expressed in terms

of an error angle. However, one should keep in mind

that a perfect comparison is impossible because the

set of poses used has never been reported by previ-

ous authors. The following results are reported in the

literature. It should be noted that, like for our exper-

iments, these results were obtained for learning sets

and test sets populated with synthetic silhouettes.

• Gond et al. (Gond et al., 2008) obtained a mean

error of 7.57° using several points of view.

• Peng et al. (Peng and Qian, 2008) reported 9.56°

when two orthogonal views are used.

• Agarwal et al. (Agarwal and Triggs, 2006) ob-

tained a mean error of 17° from monocular images

(binary silhouettes). But the problem is that they

estimate the orientation on 360° based on a sole

silhouette, and we have explained in Section 3.4

that this is impossible. Because their data (poses

and orientation) are taken from real human motion

capture sequences, three hypotheses could explain

their results: (1) that the orientation is not uni-

formly distributed over 360°, (2) that the orienta-

tion is statistically linked to the pose, and (3) that

ESTIMATION OF HUMAN ORIENTATION BASED ON SILHOUETTES AND MACHINE LEARNING PRINCIPLES

Table 1: The mean error obtained with 18 shape descriptors to estimate the orientation.

weakly constrained poses strongly constrained poses

pinhole pinhole ortho- pinhole pinhole ortho-

at 3 m at 20 m graphic at 3 m at 20 m graphic

silhouette descriptor

R(16, 400) 8.45° 7.37° 7.18° 5.24° 4.87° 4.88°

R(8, 400) 8.56° 7.60° 7.39° 5.28° 4.99° 4.92°

“histogram”-like descriptor 8.57° 7.44° 7.31° 5.74° 5.45° 5.42°

R(4, 400) 10.51° 9.36° 9.17° 5.66° 5.32° 5.28°

SC (8, 12) 10.96° 9.55° 9.22° 6.72° 6.22° 6.22°

SC (5, 12) 12.55° 10.62° 10.23° 7.49° 7.01° 6.99°

SC (8, 8) 13.60° 11.52° 10.96° 7.41° 7.12° 7.05°

raw ×2 14.23° 12.92° 12.49° 8.84° 8.54° 8.29°

raw ×4 14.40° 12.40° 12.41° 10.02° 9.45° 9.02°

raw ×3 14.47° 12.35° 12.33° 9.51° 9.11° 8.60°

raw ×1 15.02° 12.90° 12.95° 9.14° 8.95° 8.94°

SC (5, 8) 16.37° 13.54° 13.30° 7.83° 7.45° 7.52°

curvature Fourier descriptors 22.55° 23.02° 23.14° 13.10° 12.72° 12.94°

complex Fourier descriptors 24.92° 25.50° 24.44° 12.31° 12.44° 12.39°

R(2, 400) 29.04° 27.37° 26.84° 13.74° 13.02° 12.83°

central moments 35.13° 31.91° 30.69° 20.16° 18.93° 18.40°

Flusser moments 44.88° 44.96° 45.01° 43.73° 44.34° 44.40°

Hu moments 45.50° 45.34° 45.19° 45.02° 44.73° 45.04°

their method takes small details due to perspective

effects into account (see (Piérard et al., 2011)).

The results reported by Gond et al. and Peng et

al. are of the same order of magnitude as ours, but

our method is much simpler. However, because we

use only one point of view, we are limited to a 180°

range whereas the results reported by them relate to a

360° range estimation. But we think that our method

could also be used to estimate a full range orienta-

tion in an effective way. Indeed, the orientation esti-

mations obtained independently from two orthogonal

views could be fused during a simple post-processing

step. Whether the use of two views allows one to de-

crease the mean error or just to resolve the inherent

ambiguity is currently an open question. As already

explained in (Piérard et al., 2011), another possible

solution to the underdetermination is to use a range

camera.

4.4 Second Experiment: Observations

for a Practical Application

In order to evaluate our method for real world appli-

cations (which motivates our work), real images have

to be considered instead of the synthetic data used in

our ﬁrst experiment. In this second experiment, the

model used to estimate the orientation of the observed

person is still learned from synthetic data, but the test

set contains real silhouettes.

4.4.1 The Application

We applied our method to a real application driven by

a color camera. The estimated orientation has been

applied in real time to an avatar, and projected on a

screen in front of the user. This allowed a qualita-

tive assessment (see Figure 10). The acquisition of

ground-truth data for a quantitative evaluation would

require to use motion capture, which is out of the

scope of this paper.

A state of the art background subtraction method

named “ViBe” (Barnich and Van Droogenbroeck,

2011) has been used to extract the silhouettes of the

person in front of the camera. Such a method provides

clean silhouettes, with precise contours. Also, the

selected background subtraction method intrinsically

ensures a spatial coherence. A morphological open-

ing was applied to remove isolated pixels in the fore-

ground mask. No shadow detection method has been

implemented, but this should be done in a real ap-

plication in order to suppress shadows from the fore-

ground if needed.

4.4.2 The Learning Set

The fundamental questions that arise are related to

the contents of the learning set. What poses should

be included in the learning set: strongly constrained

poses, weakly constrained poses, or a mixture of

both? Which morphology (or morphologies) must be

given to the avatar to build the learning set? Is it nec-

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

Figure 10: A screen capture of the application used to assess quantitatively our method on real data. From left to right: the

input image, the result of the background subtraction, and the estimated orientation applied to an avatar. The full video is

available at http://www.ulg.ac.be/telecom/orientation/.

essary to use an avatar with hair and clothes, or can

we do something useful with the avatar of MakeHu-

man? Of course, the content of the learning set should

reﬂect the situations that may be encountered in the

target application.

In this experiment, we built the learning database

as follows. We excluded loose-ﬁtting clothing, thus a

nude avatar such as MakeHuman can be used. More-

over, we populated the learning sets with 90% of

strongly constrained poses and 10% of weakly con-

strained poses. And, ﬁnally, we used 8 different mor-

phologies of avatars to be able to handle the morphol-

ogy of the person.

4.5 The Results

The results of our method applied to a real se-

quence are available at http://www.ulg.ac.be/telecom/

orientation/. According to our ﬁrst experiment, the

following three shape descriptors have been evalu-

ated: R (16, 400), our “histogram”-like descriptor, and

SC (8, 12).

The differences between synthetic data and real

data are important: (i) the avatar we used to build our

learning sets does not have any clothes and is hairless,

(ii) the synthetic silhouettes are free of noise. How-

ever, it appears that it is possible to learn models able

to estimate the orientation of the performer.

The model learned with the descriptor based on

the Radon transform is efﬁcient, and outperforms the

models learned with the other descriptors (for exam-

ple the one based on the shape context). This is not

surprising since our ﬁrst experiment selected the de-

scriptor based on the Radon transform as the most

suitable descriptor to use with machine learning meth-

ods such as the ExtRaTrees. Also, we expect surface-

based descriptors (such as the Radon transform) to be

more robust to noise than boundary-based descriptors

(such as the shape context) because, for binary silhou-

ettes, the noise alters contours signiﬁcantly.

Unlike what we have done in (Piérard et al., 2011),

we found that (in this case) it is not necessary to apply

a temporal ﬁltering to the orientation signal to avoid

the oscillations of the avatar. This is probably because

the real silhouettes were noisy in (Piérard et al., 2011)

and that they are relatively clean in this work (the dif-

ference is due to the different kind of the sensors used

to acquire the silhouettes).

5 CONCLUSIONS

Estimating the orientation of the observed person is

a crucial task for a large variety of applications in-

cluding home entertainment, man-machine interac-

tion, and intelligent vehicles. In most applications,

only a sole side view of the scene is available. To

decrease the sensitivity to appearance (color, texture,

. . . ), we consider the silhouette only to determine the

orientation of a person. Under these conditions, we

studied the limitations of the system, and found that

the only intrinsic limitation is to confuse the orienta-

tion θ with 180° − θ; poses are different but silhou-

ettes are unaware of poses. Therefore, the orientation

is limited to the [−90°, 90°] range. Furthermore, we

have demonstrated that the shape descriptor must dis-

tinguish between mirrored images.

We addressed the orientation estimation in terms

of regression and supervised learning with the Ex-

tRaTrees method. To obtain attributes, we have im-

plemented and tested 18 shape descriptors. We were

able to reach low mean error, as low as 8.45° or 5.24°

depending on the set of poses considered. Our re-

sults are of the same order of magnitude as those pre-

viously reported in the literature, but our method is

faster and easier to implement.

If a full range orientation estimation is required,

two solutions could be considered. A depth camera

can be used. As an alternative, two orientation esti-

mations (eg the sine and the cosine) could be obtained

ESTIMATION OF HUMAN ORIENTATION BASED ON SILHOUETTES AND MACHINE LEARNING PRINCIPLES

independently from two orthogonal views, and fused

during a simple post-processing step.

ACKNOWLEDGMENTS

S. Piérard has a grant funded by the FRIA. We are

grateful to Jean-Frédéric Hansen and Damien Leroy

for sharing their ideas.

REFERENCES

Agarwal, A. and Triggs, B. (2006). Recovering 3D human

pose from monocular images. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 28(1):44–

58.

Barnich, O. and Van Droogenbroeck, M. (2011). ViBe: A

universal background subtraction algorithm for video

sequences. IEEE Transactions on Image Processing,

20(6):1709–1724.

Belongie, S., Malik, J., and Puzicha, J. (2002). Shape

matching and object recognition using shape contexts.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 24(4):509–522.

Enzweiler, M. and Gavrila, D. (2010). Integrated pedestrian

classiﬁcation and orientation estimation. In IEEE In-

ternational Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 982–989, San Fran-

cisco, USA.

Flusser, J. (2000). On the independence of rotation moment

invariants. Pattern Recognition, 33(9):1405–1410.

Gandhi, T. and Trivedi, M. (2008). Image based estimation

of pedestrian orientation for improving path predic-

tion. In IEEE Intelligent Vehicles Symposium, Eind-

hoven, The Netherlands.

Geurts, P., Ernst, D., and Wehenkel, L. (2006). Extremely

randomized trees. Machine Learning, 63(1):3–42.

Gond, L., Sayd, P., Chateau, T., and Dhome, M. (2008).

A 3D shape descriptor for human pose recovery. In

Perales, F. and Fisher, R., editors, Articulated Mo-

tion and Deformable Objects, volume 5098 of Lecture

Notes in Computer Science, pages 370–379. Springer.

Hu, M. (1962). Visual pattern recognition by moment in-

variants. IRE Transactions on Information Theory,

8(2):179–187.

Lee, M. and Nevatia, R. (2007). Body part detection for hu-

man pose estimation and tracking. In IEEE Workshop

on Motion and Video Computing (WMVC), Austin,

USA.

Loncaric, S. (1998). A survey of shape analysis techniques.

Pattern Recognition, 31(8):983–1001.

Nakajima, C., Pontil, M., Heisele, B., and Poggio, T.

(2003). Full-body person recognition system. Pattern

Recognition, 36(9):1997–2006. Kernel and Subspace

Methods for Computer Vision.

Ozturk, O., Yamasaki, T., and Aizawa, K. (2009). Tracking

of humans and estimation of body/head orientation

from top-view single camera for visual focus of atten-

tion analysis. In International Conference on Com-

puter Vision (ICCV), pages 1020–1027, Kyoto, Japan.

Peng, B. and Qian, G. (2008). Binocular dance pose recog-

nition and body orientation estimation via multilinear

analysis. In IEEE Computer Society Conference on

Computer Vision and Pattern Recognition Workshops,

Anchorage, USA.

Piérard, S., Leroy, D., Hansen, J.-F., and Van Droogen-

broeck, M. (2011). Estimation of human orientation

in images captured with a range camera. In Advances

Concepts for Intelligent Vision Systems (ACIVS), vol-

ume 6915 of Lecture Notes in Computer Science,

pages 519–530. Springer.

Piérard, S. and Van Droogenbroeck, M. (2009). A tech-

nique for building databases of annotated and realistic

human silhouettes based on an avatar. In Workshop on

Circuits, Systems and Signal Processing (ProRISC),

pages 243–246, Veldhoven, The Netherlands.

Rybok, L., Voit, M., Ekenel, H., and Stiefelhagen, R.

(2010). Multi-view based estimation of human upper-

body orientation. In IEEE International Conference

on Pattern Recognition (ICPR), pages 1558–1561, Is-

tanbul, Turkey.

Shimizu, H. and Poggio, T. (2004). Direction estimation

of pedestrian from multiple still images. In IEEE In-

telligent Vehicles Symposium, pages 596–600, Parma,

Italy.

The MakeHuman team (2007). The MakeHuman website.

http://www.makehuman.org.

Zahn, C. and Roskies, R. (1972). Fourier descriptors for

plane closed curves. IEEE Transactions on Comput-

ers, 21(3):269–281.

Zhang, D. and Lu, G. (2004). Review of shape representa-

tion and description techniques. Pattern Recognition,

37(1):1–19.

Zhang, W., Matsumoto, T., Liu, J., Chu, M., and Begole,

B. (2008). An intelligent ﬁtting room using multi-

camera perception. In International conference on

Intelligent User Interfaces (IUI), pages 60–69, Gran

Canaria, Spain. ACM.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods
