INTRODUCING DATA PROVENANCE AND ERROR HANDLING

FOR NGS WORKFLOWS WITHIN THE MOLGENIS

COMPUTATIONAL FRAMEWORK

H. V. Byelas, M. Dijkstra and M. A. Swertz

Genomics Coordination Center, Department of Genetics, University Medical Center Groningen

Groningen, The Netherlands

Bioinformatics Center, University of Groningen, Groningen, The Netherlands

Keywords:

Bioinformatics, Workﬂow Management system, Data provenance, High performance computing.

Abstract:

Running bioinformatics analyses in a distributed computational environment and monitoring their executions

has become a huge challenge due to the size of data and complexity of analysis workﬂows. Some attempts

have been made to combine computational and data management in a single solution using the MOLGENIS

software generator. However, it was not clear how to explicitly specify output data for a particular research,

evaluate its quality or possibly repeat the analysis depending on results. We present here a new version of a

MOLGENIS computational framework for bioinformatics, which reﬂects lessons learnt and new requirements

from end users. We have improved our initial solution in two ways. First, we propose a new data model,

which describes a workﬂow as a graph in a relational database, where nodes are analysis operations and edges

are transactions between them. Inputs and outputs of the workﬂow nodes are explicitly speciﬁed. Second,

we have extended the executional logic to trace data, show how ﬁnal results were created and how to handle

errors in the distributed environment. We illustrate system applications on several analysis workﬂows for next

generation sequencing.

1 INTRODUCTION

In recent years, we have approached several genome

wide associations and expression quantitative trait

loci studies (Y. Li and R. Jansen, 2010), (Li and

Swertz, 2009), (Fu and Swertz, 2007), (J. Fu and

R. Jansen, 2007). Every of these analyses involves

large numbers of shell or R scripts that have to be run

in parallel on large compute clusters or grids. Re-

cently, we were designated as data coordination cen-

ter for next generation sequencing projects, most no-

tably the Genome of the Netherlands project (GoNL)

(BBMRI-NL bioinformatics team, 2010). The GoNL

project is a Dutch National initiative funded by the

Dutch Biobanking consortium BBMRI-NL to estab-

lish a HapMap of the Dutch population by sequenc-

ing 750 Dutch individuals at 12x depth in 250 par-

ent/child trios using Illumina HiSeq 2000 sequenc-

ing. In the ﬁrst phase of the project, a major com-

putational challenge was to run thousands of analysis

pipelines on 45TB of input data, each consisting of

tens of protocols (scripts), to output 90TB of align-

ment of the DNA reads to the reference genome and

calls of Single Nucleotide Polymorphism (SNPs) in

this aligned data set (analogous to the pipelines de-

scribed in the 1000 Genomes project (1000 Genomes

Project Consortium, 2010)). Besides a computational

challenge, tracking all input and produced biomateri-

als adds a data management component to the prob-

lem, i.e. ﬂowcells, lanes, samples, DNA libraries,

trios, QC reports, raw fq.gz ﬁles, alignment BAM ﬁles

and variant calling VCF ﬁles.

Starting all pipelines manually becomes very time

consuming for such a large and computationally in-

tensive research, e.g. each sample has been measured

in three lanes on average, resulting in 2250 lanes

total needing alignment requiring 15 analysis steps

totaling each a runtime of 50 hours of computation

on four cpu cores. Furthermore, conducting the data

management, which includes keeping track of what

computational protocols are used to produce partic-

ular research results, separately from computational

management makes it error prone.

In the ﬁrst version of the MOLGENIS (Swertz

and Jansen, 2007), (M. Swertz and R. Jansen, 2007)

computational framework - MCF (H. Byelas and M.

V. Byelas H., Dijkstra M. and A. Swertz M..

INTRODUCING DATA PROVENANCE AND ERROR HANDLING FOR NGS WORKFLOWS WITHIN THE MOLGENIS COMPUTATIONAL FRAME-

WORK.

DOI: 10.5220/0003738900420050

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 42-50

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Swertz, 2011), we aimed to combine computational

and data management in a single system. However,

several important functionalities were left out of the

initial solution. These included easy tracing of the

data produced and run-time error handling during

workﬂow execution. By error handling, we mean sce-

narios which can be applied if some data is missing or

quality indications for results are low.

In the new version of the MCF, our main goal is

to help a user to understand how the complex analyses

were accomplished and what computational processes

were used. In this paper, we describe the design and

implementation challenges to specifying data prove-

nance and handlling errors during workﬂow execu-

tion. In particular, we present our solution for the

NGS workﬂows used in the GoNL project.

This paper is structured as follows. Section 2 re-

views related work in the context of data provenance

and error handling in other workﬂow management

systems. Section 3 describes the new model in de-

tails. Section 4 reviews the system design in rough

lines. Section 5 details the new functional logic of the

system for error handling for generic pipelines and, in

particular - for the NGS pipeline and gives examples

of generated user interfaces. Section 6 discusses our

experience with using the system in practice. Section

7 concludes the paper.

2 RELATED WORK

Extensive overviews of data provenance approaches

and techniques are given in (Glavic and Dittrich,

2007) and (Simmhan and Gannon, 2005). We did

not set out to develop a new theoretical model for

data provenance, rather, we are interested in using a

lightweight data provenance approach for the speciﬁc

bioinformatics domain. In our scenario, several indi-

vidual researchers involved in the same project would

like to collaborate on analysing data. Here, data

sources, intermediate and ﬁnal analysis results and

computational processes are often shared between re-

searchers to speed up the analysis. Consequently, data

and process oriented provenance should be combined

in one solution. Without proper data annotation, the

analysis results can easily be overwritten or dupli-

cated when the analysis is re-run on the same data

with other parameters, in other execution settings or

just at an other time. We are interested in methods to

avoid such situations.

J. Yu et al. present a taxonomy of workﬂow man-

agement systems in their work (Yu and Buyya, 2005).

Data provenance is modelled and implemented in var-

ious ways in different data warehouses and workﬂow

management systems. In the Taverna 2.0 workﬂow

system (Oinn and Greenwood, 2005), the semantics

of workﬂows is modelled using so-called traces(Sroka

and Goble, 2010), which record sequences of events.

These events can be of three types: input events, rep-

resenting values on input ports, atomic executions

and output events, i.e. values on output ports. The

model is implemented in the system using the ﬁle-

based database. Taverna can remember workﬂow runs

and only saves the results to ﬁle system after running

a workﬂow with different inputs. Users have the pos-

sibility to switch data provenance options off, which

can give a performance beneﬁt and reduce a disk-

space usage. By default, Taverna stores the input val-

ues, intermediate values and the results of workﬂow

runs in memory. When Taverna is closed the values

are lost. In-memory storage can also be switched off

for workﬂows where passed data is large. In Kepler

(Altintas and Berkley, 2004), ordered trees are used to

represent data products of workﬂows (M. K. Anand

and T. McPhillips, 2009). These trees are stored

in trace ﬁles using the XML format. Kepler allows

browsing and navigation in the history of execution

traces by querying trace ﬁles. Queries can become

large and complex to produce scientiﬁcally meaning-

ful results. Kepler also enables outputs of one run

to be used as inputs of another. The speciﬁc bioin-

formatics management systems Galaxy (Blankenberg

and Taylor, 2007) tracks metadata to ensure repro-

ducibility of analyses. However, it is not sufﬁcient

to capture the intent of analysis. Galaxy is not really

integrated with any data management system. All the

results produced by all analysis runs are saved in a

disk storage, which considerably increases the storage

requirements for large analyses. Furthermore, Galaxy

considers a workﬂow as a black box and if errors oc-

cur during execution, they will be received as the end

result of the analysis.

Keeping in mind features of the workﬂow systems

we are aware of, it emerges that even data provenance

is present to some extent in all of them. However,

an automatic error handling is missing. Adding error

handling can save a lot of time for computationally in-

tensive analyses, where a re-run of an individual anal-

ysis operation ad hoc instead of re-running the whole

workﬂow later would save a lot of time and efforts.

It can be difﬁcult to ﬁnd a good quality indications

of the successful completion of operations. These in-

dicators should be present in the model to specify re-

covery scenarios. Comparing our developments to the

above workﬂow systems, we aimed to create a spe-

ciﬁc solution for a particular bioinformatics analysis

(i.e. NGS workﬂows). However, we want to introduce

more advanced error handling into the system. In our

INTRODUCING DATA PROVENANCE AND ERROR HANDLING FOR NGS WORKFLOWS WITHIN THE

MOLGENIS COMPUTATIONAL FRAMEWORK

case, the set of possible failures is deﬁnite, hence, it

is possible to overlay all of them. This is discussed in

detail below.

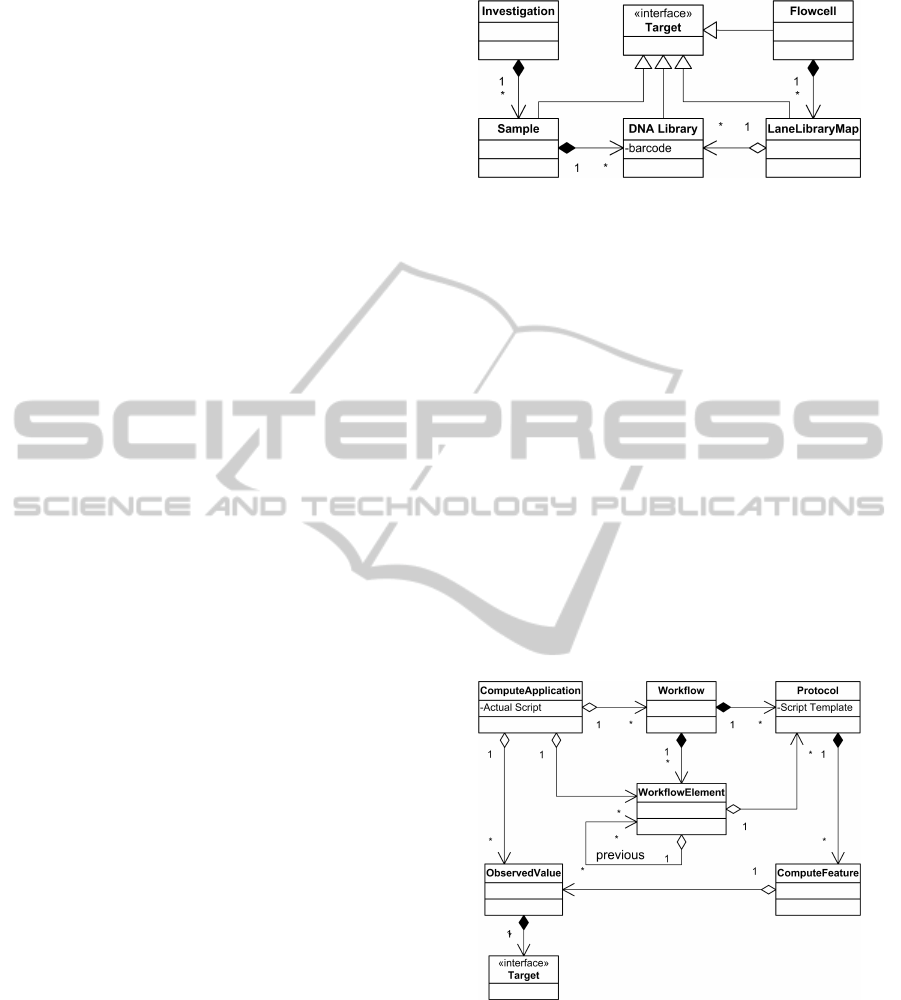

3 INTEGRATED METADATA

MODEL

Before talking about the integrated model for data

and computational management, we brieﬂy review

the main requirements for the system. First, it is im-

portant to provide less technically involved bioinfor-

maticians with simple interfaces to specify the work-

ﬂow of commands they need, while scaling up to

hundreds of jobs to get the terabytes of genetic data

processed. Furthermore, the meta model should efﬁ-

ciently specify data provenance and workﬂow execu-

tion logic. Second, it should be possible to monitor

workﬂow execution and the data products produced

in these workﬂows in one seamless solution. Third,

it is crucial to spread executions among the available

resources to shorten the analysis time, thereby im-

proving system productivity. Finally, research results

and quality control scores must be efﬁciently repre-

sented for ﬁnal users. The results should be consid-

ered as part of the biological entity that is the target

of study (e.g. samples, lanes and trios in GoNL; co-

horts, individuals, markers, probes, and phenotypes

in QTL studies). In our scenarios, actual data results

are stored on remote disks, where computations took

place, only data quality indications are recorded in the

database for monitoring.

MOLGENIS is a software toolkit to rapidly gen-

erate rich biology software platforms from database

and user interface models which each are described

in the XML format. We currently use the eXtensi-

ble meta data model for Genotypes And Phenotypes

(XGAP) as main model which already covers an ex-

tensive list of biological experiments (Genomics Co-

ordination Center, Groningen, 2011), (M. Swertz and

R. Jansen, 2010). This core of the model is reused

for many projects and is now being further developed

for other domains in collaboration with NL-NBIC,

BBMRI-NL, EU-GEN2PHEN, EU-BioSHARE, and

EU-PANACEA consortia and consists of a number of

modules. However, each experiment/biotechnology

can have its own speciﬁc extension of the shared

model. Here, we discuss only the speciﬁc data model

extension used for NGS experiments (MOLGENIS

NGS) combined with the computational data model

extension (MOLGENIS Compute), which is generic

for any computational application generated using

MOLGENIS.

The design of the NGS model (Fig. 1) is based

Figure 1: Core of the NGS model.

on the laboratory process when using Illumina HiSeq

2000 which produces the input data for our analysis

workﬂows. It starts in a ”wet lab”, where a set of sam-

ples (Sample elements) are taken from individual(s).

These samples are involved in one or more analysis

projects, which are the Investigation elements. Sam-

ples are split into DNA Libraries, optionally using

barcodes. These libraries are then analysed in Flow-

cells in various orders, where currently eight lanes

of one ﬂowcell can be ﬁlled with several libraries

of samples. Information about mapping libraries to

ﬂowcell lanes and corresponding result analysis data

is the input ”worksheet” for NGS analysis workﬂows.

In addition to the input from the ”wet lab” data, we in-

troduce the Target interface into the model to enable

us to later uniformly refer to these subjects from dif-

ferent analyses. The Target interface is present in the

generic MOLGENIS model. All NGS analysis targets

implement it.

Figure 2: Core of the compute model.

The simpliﬁed compute model is presented in Fig-

ure 2. The Workﬂow element represents the whole

analysis. Workﬂow consists of WorkﬂowElements.

WorkﬂowElements know their forerunners (dependen-

cies). In this way, a workﬂow graph is built up, where

WorkﬂowElements are the nodes of the graph and

edges are the transactions between them. Every node

performs an operation, which is speciﬁed in a Proto-

col element. Our system aims to support specifying of

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

any external analysis tool, which can be invoked from

a command line or be run as an executable script (e.g.

a shell or R-script). Each Protocol contains a script

template. The use of templates is described in Section

5.1. Protocol can have a number of ComputeFeatures.

In the user interface, every ComputeFeature becomes

a ﬁeld to enter an analysis parameter. Some analy-

sis parameters can be predeﬁned as having a default

and stored in the database, or can be marked to be

technical so not for view by the end-user but only the

protocol designer. The ComputeApplication elements

record application of Workﬂows and Protocols during

the analysis, i.e., what actual analysis scripts (ﬁlled

in templates) were actually run. ComputeApplication

records for each ComputeFeature what parameters or

data ﬁles were used (input) and what ﬁles or variables

were produced (output) using ObservedValue element

to link ComputeFeature, Targets and Protocol.

To conclude, the Target interface is the link be-

tween the data management for the NGS analysis

and for computation management, i.e., the subclasses

Sample and Lane are typical targets of compute pro-

tocol applications. The implementation of this model

into an integrated software solution is the topic of the

next section.

4 FRAMEWORK

ARCHITECTURE

Since, the system design has not been changed exten-

sively from the ﬁrst version of MOLGENIS compute

(H. Byelas and M. Swertz, 2011), we only present it

brieﬂy here. In our developments, we concentrated on

the functionality requested and that most appreciated

by the end system users. We have two types of users:

• bioinformaticians, who design and edit analysis

workﬂows;

• biologists, who run analyses and examine results.

4.1 System Design

The visual representation of the system architecture

(Figure 3) has been changed accordingly to the new

use-case scenarios and functionality.

We have learnt in practice, that bioinformaticians

want to have a simple way to import/export the work-

ﬂows and NGS data into the system, where, later, they

can edit some elements of it. We support two ways to

import workﬂows. First, it is an import of a work-

ﬂow described as an Excel ﬁle in the MOLGENIS

standard format. Here, each Excel sheet represents

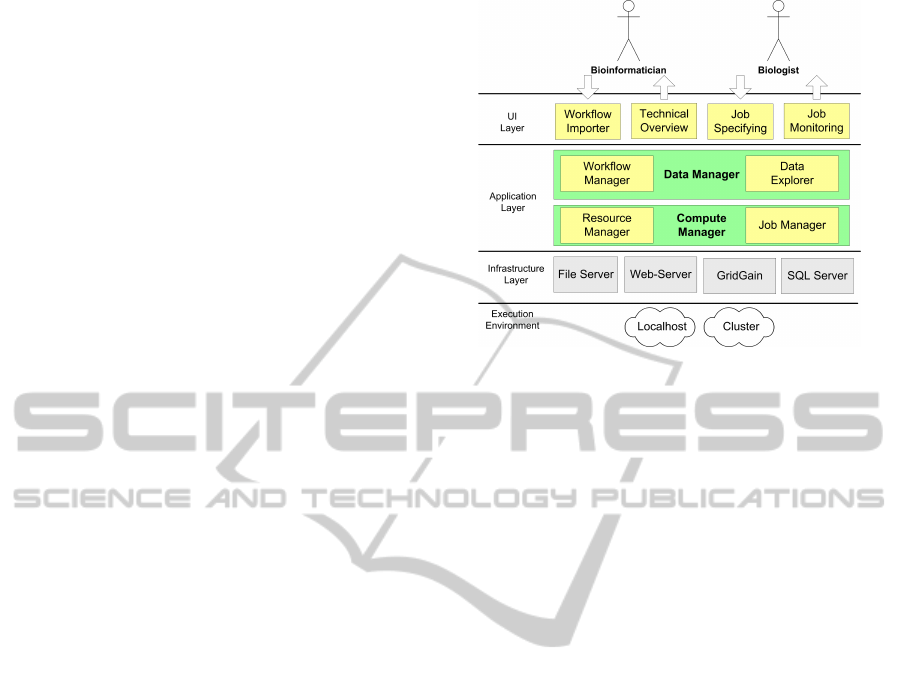

Figure 3: Generic archtitecture for MOLGENIS compute

applications.

a database table with workﬂows data, i.e., one Ex-

cel sheet can list the properties of Workﬂows, Pro-

tocols, ComputeFeatures and so on. Second, it is a

single tool import from the Galaxy (Blankenberg and

Taylor, 2007) XML tool description ﬁle. Here, a sin-

gle tool operation becomes the whole analysis work-

ﬂow. Additionally, for NGS data, we support import-

ing a ’worksheet’ listing all Flowcells, Lane, Sample

and emphLibrary properties from one Excel ﬁle that

we received from the ”wet lab”. Another function-

ality, we found important for bioinformaticians, is to

be able to overview the system performance and to

receive technical reports about workﬂow executions,

e.g., how many workﬂows completed/failed, execu-

tion times, CPU load, failure frequency.

Biologists’ requirements are straightforward.

They want to be able to start an analysis pipeline in

a user friendly way by selecting analysis targets in

batch, setting batch level and individual level param-

eters, pushing a button to generate scripts and submit

those to the compute back-end, monitor its execution

progress and ﬁnally see workﬂow results locally. In

our scenario, results include log ﬁles from analysis

tools, the output ﬁles of the analysis procedure and

quality control scores. Hence, we concentrated our

developments on two user interfaces for biologists to

enter analysis parameters and monitor analysis execu-

tion.

Both biologists and bioinformaticians can browse

and edit the NGS database. If a biologist is more inter-

ested in reviewing results, a bioinformatician is more

interested in editing workﬂow, which is nothing more

than editing database records. These functionalities

are standard for MOLGENIS-based systems. Exe-

cuting workﬂows includes starting resources to exe-

cute them and sending analysis scripts for execution.

INTRODUCING DATA PROVENANCE AND ERROR HANDLING FOR NGS WORKFLOWS WITHIN THE

MOLGENIS COMPUTATIONAL FRAMEWORK

It is implemented in the Compute Manager module

(Fig.4).

4.2 System Topology

We also reﬁned the system topology (Fig.4) speciﬁ-

cally for the NGS analysis. Now, all analysis scripts

run in one place, e.g. in the Millipede cluster

in Groningen (Millipede Cluster Team, Groningen,

2010). This solution was taken to avoid transferring

large ﬁles in the network. The input ﬁle sizes for

the GoNL project are about 6-9 GB and the interme-

dia workﬂow results grow up to 60 GB per Lane, to-

talling 45TB of input data and 450TB of intermediate

date. In the future, we are planning to re-introduce

a grid solution into the system, addressing then the

need for optimised large data management in grid en-

vironments. All statistics are stored in the MOLGE-

NIS database, based on MySQL, next to the clus-

ter. Users have an access to the database through

a MOLGENIS-generated user interface (see Section

5.4) running on the Tomcat web server.

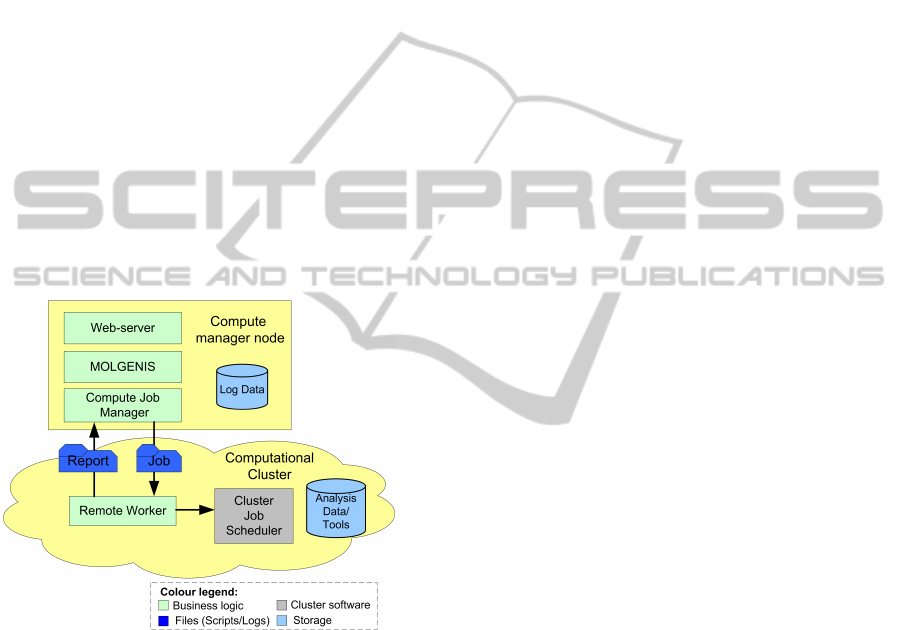

Figure 4: System topology for NGS analyses.

All analysis scripts are generated in the database

and transported from Job Manager to the cluster. The

communication and data transfer are implemented

using the GridGain development platform (Ivanov,

2010) and the Ganymed SSH-2 library for Java (Swiss

Federal Institute of Technology, 2006). In the imple-

mentation using GridGain (shown in Fig.4), the re-

mote Worker receives jobs and forward them to the

cluster PBS scheduler and monitors their execution.

When an analysis operation is ﬁnished, Worker trans-

fers speciﬁed log ﬁles into the MOLGENIS database.

In the implementation using Ganymed SSH-2, Job

Manager sends jobs directly to the cluster PBS sched-

uler via a secure channel to the frontend cluster node.

This increases the load on the frontend node and can

cause a problem when cluster is heavily used by other

users. Hence, the GridGain solution is preferable for a

large-scale analysis and better tested so far. All anal-

ysis tools used in workﬂows are pre-installed in the

cluster.

5 DATA PROVENANCE AND

ERROR HANDLING

5.1 Using String Templates to Specify

Analysis Products

All run scripts and log information about analysis

runs are stored in the MOLGENIS database. The ex-

act location of ﬁles produced during an analysis is

known only after a user has entered all input param-

eters in the user interface and actual analysis script

have been generated. However, we would like to

have a way to pre-deﬁne ﬁle locations in the database.

For this, we use the Freemarker template proces-

sor that we use to deﬁne ComputeProtocol scripts to

pre-format output locations. The use of templates

for specifying input/outputs of operation allows us to

trace data. An example of a script template of the

Protocol X is listing below.

${tooldir}/${bwa} aln

${resdir}/${genome}/indices/${index}

${datadir}/${bwa-in} -t ${cores}

-f ${bwa-out}

Variables in curly brackets will be replaced with

actual values during template processing. Some vari-

ables are predeﬁned in a database, others are re-

ceived from a user interface. Furthermore, some vari-

ables can consist of a combination of others: we call

these complex variables. They are, in turn, also con-

structed using templates. In this template, bwa-in and

bwa-out are variables, which specify input and out-

put ﬁles for the analysis operation. The template for

bwa-out is shown below:

${outdir}/${sample}/${id}.${index}.sai

Here, the complex variable consists of four sim-

ple variables, which are placed in curly brackets. In

our data model (Section 3), bwa-in and bwa-out are

ComputeFeatures of the Protocol X. After applying

Protocol X, they will receive actual values. For exam-

ple, bwa-out can be given the value:

results/run01/bwa/sample01/bwa01.sai

This value of ComputeFeatures bwa-out is

recorded in a database as an ObservedValue. Hence,

we know the locations of output results of analysis

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

operations. Typical analysis tools, in particular, tools

we are using in the NGS workﬂow (e.g. GATK (The

Genome Analysis Toolkit, 2011), FastQC (FastQC,

2011)), produce several outputs of two types: these

are the actual analysis output and log ﬁles about anal-

ysis execution. Besides log ﬁles from analysis tools,

cluster PBS software writes script command line er-

ror/outputs to the cluster ﬁle system. We consider

these ﬁles as technical information about the analy-

sis execution. We add information about analysis run

time, machine on which analysis took place and sizes

of data output ﬁles to the log ﬁle as well. All this

technical information is transferred back to the MOL-

GENIS database. Now, we can construct a summary

about workﬂow execution and a user can review it on-

line without searching for it in the cluster storage.

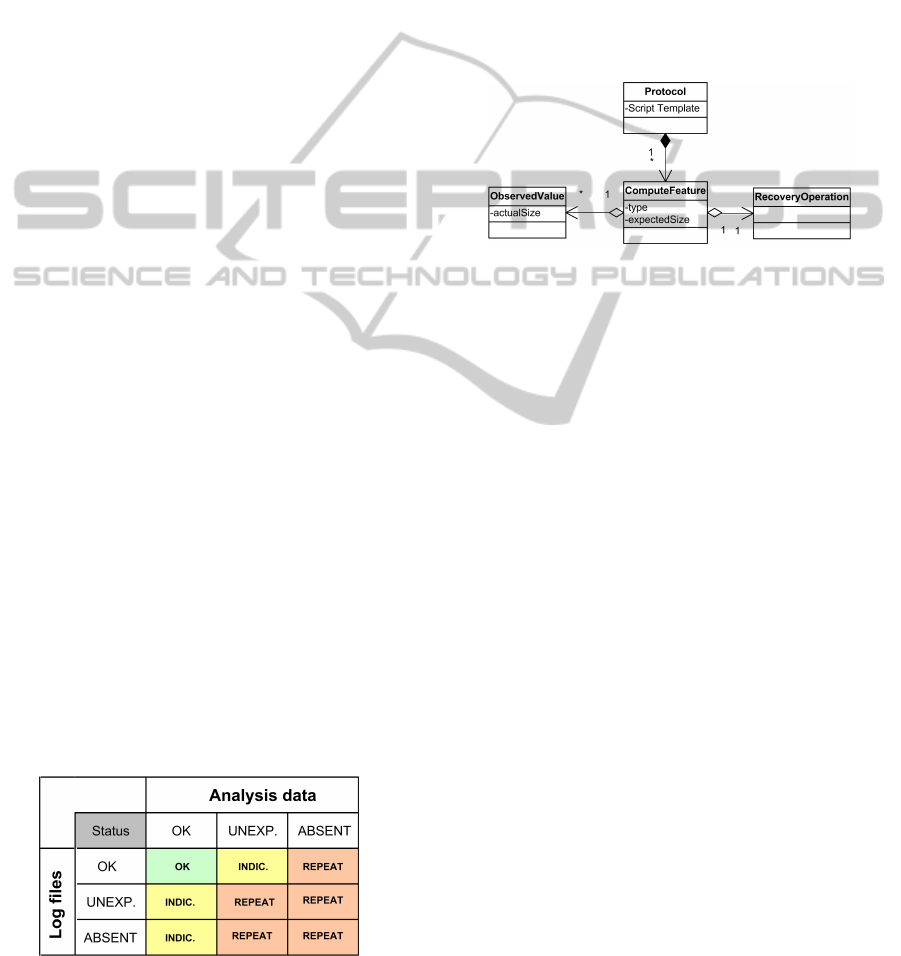

5.2 Generic Error Handling for

Analysis Workﬂows

In general, the content of the log ﬁles and actual ex-

istence of output ﬁles on the cluster are good indica-

tions for successful analysis execution. First we will

discuss the problem indications and resolving strate-

gies we are considering for a generic workﬂow. We

propose two error indicators, which are unexpected

output size and output absence. We mark them as

UNEXP. and ABSENT, respectively. Here, by an ex-

pected size, we mean ﬁle sizes in bytes. Usually, it

is possible to estimate an approximate size range for

output ﬁles in terms of MBs or GBs, for example, the

range between 500 MB and 2 GB. In bioinformatics

analyses, this number often depends on the size of an

input dataset.

Our recovery strategies also include two opera-

tions. The ﬁrst is to set an error indicator to a database

and continue analysis (INDIC.). The second is to re-

peat an analysis operation one or more times (RE-

PEAT) until a correct result is achieved, which is a

kind of a backward error recovery. In the case of re-

peated failures (e.g. n > 3), the analysis should be

stopped. Recovery operations are applied if any kind

of output, the analysis data or log ﬁles, are absent.

Figure 5: Generic error/recovery matrix.

The proposed matrix of error indications and re-

covery operations for generic workﬂows is shown in

Figure 5. We extended the Compute model (Section

3) with a RecoveryOperation element to incorporate

this matrix into the system logic. We also added two

ﬁelds to the ComputeFeature element: these are the

type of output and the expected ﬁle size range (see

Fig. 6). ComputeFeature that speciﬁes an output type,

can have values data or log. For example, the ex-

pected size of the error log ﬁle produced by the clus-

ter software, if a script ran successfully, is zero bytes.

Hence, if the size is larger, we indicate it in the Ob-

servedValue object and transfer the contents of the log

ﬁle to the database.

Figure 6: Introducing error-handling into compute model.

Additionally, we found the operation execution

time being a practical indicator. We always indicate

ComputeApplications in our NGS workﬂow, if their

execution take less than 30 seconds. Certainly, more

advanced error handling can be applied for particular

cases, when we have more knowledge about the anal-

ysis operations and the correlations between their in-

put and output data. This situation for the NGS anal-

ysis is described in the next section.

5.3 Error Handling for the NGS

Workﬂow

The NGS analysis workﬂows are highly computation-

ally intensive. For instance, our NGS lane analysis

workﬂow takes more than 50 hours to run on a ma-

chine with 4 3GHz AMD Opteron cores. Having

thousands of lanes to analyse for the GoNL project,

we would not like to rely only on the context of the

log ﬁles. We know that the number of DNA sequence

reads is constant from input workﬂow ﬁles to ﬁnal re-

sults of the analysis. The number of reads in sequence

data ﬁles can be calculated using the Genome Anal-

ysis Toolkit (GATK (The Genome Analysis Toolkit,

2011)). Checking this pre-/postcondition before/after

workﬂow operations guarantees correct completion of

the analysis. Now, we can leave out reading log ﬁles

for error handling and, instead of it, we just take into

account the number of DNA reads in analysis ﬁles.

It simpliﬁes the error handling logic (see Fig. 7),

but adds some extra computational overhead to the

INTRODUCING DATA PROVENANCE AND ERROR HANDLING FOR NGS WORKFLOWS WITHIN THE

MOLGENIS COMPUTATIONAL FRAMEWORK

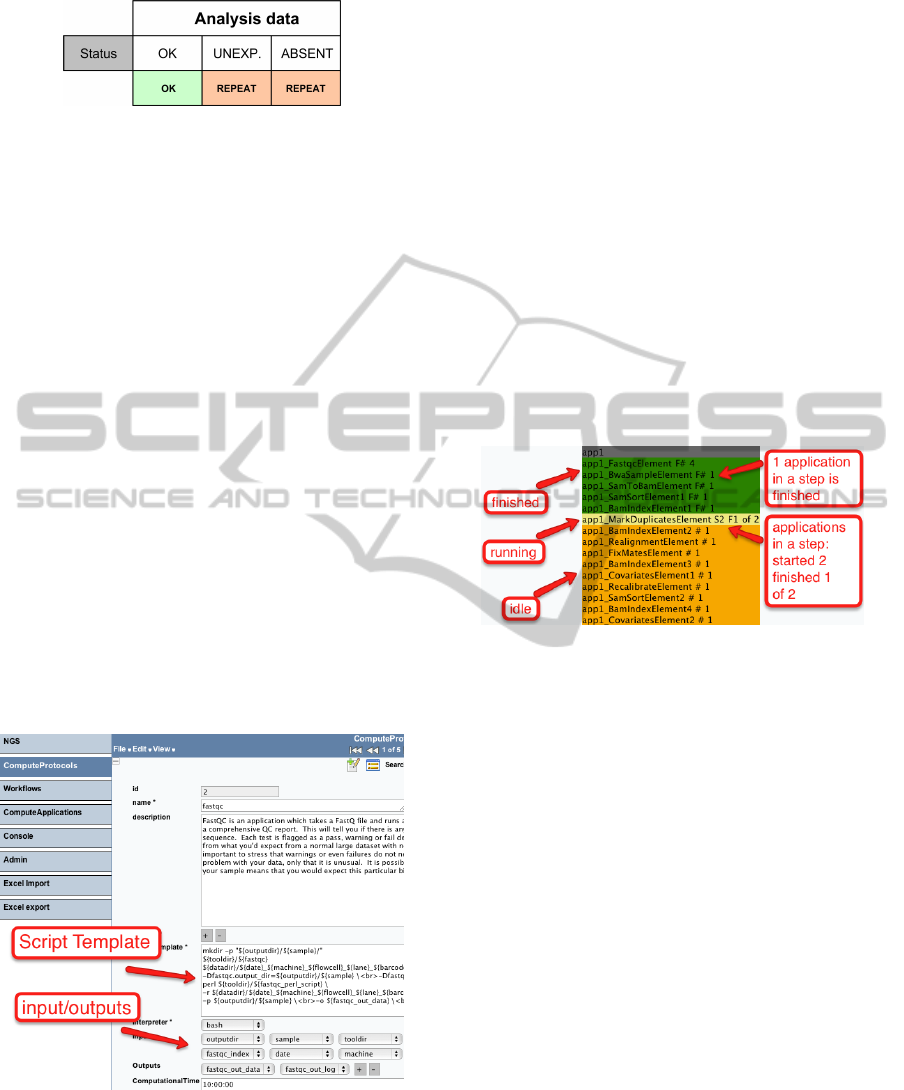

Figure 7: Error-handling matrix for the NGS workﬂows.

analysis (i.e. a counting reads operation, which takes

about half an hour for datasets we are considering in

our project). Hence, it is important to select right

points in the workﬂow logic, where to perform ad-

vanced conditional checks. How results of the work-

ﬂow execution are shown to users is discussed in the

next section.

5.4 Implementation of User Interfaces

MOLGENIS-generated web interfaces are used for

diverse bioinformatics applications. Because of this

automated procedure the style of user interfaces is

uniform easing learning the system. For the NGS

analysis, a user have an access to several generated

interfaces to overview lanes, ﬂowcells etc. for anal-

ysis, edit different elements of workﬂows, and view

progress and analysis results.

In practice, after importing a workﬂow to a MOL-

GENIS database, a user commonly can edit

• a sequence of workﬂow elements,

• analysis script templates or their inputs/outputs,

• default values of parameters.

Figure 8: Generated web user interface for editing an anal-

ysis element.

An example of the generated user interface for

ComputeProtocol is shown in Figure 8. Here, users

can edit the listing of a template and specify in-

puts/outputs, which they are interested in. It is com-

mon that an analysis workﬂow will contain a few ty-

pos in templates or wrong paths to analysis tools, es-

pecially when new protocols/tools are added or when

the system is deployed in a new environment. Hence,

a bioinformatician uses this interface mostly during

the workﬂow testing. Interfaces to edit a sequence of

workﬂow elements and default parameters look simi-

lar to the one presented in Figure 8.

We show a progress of a workﬂow using a simple

coloured table. The table displays the names of anal-

ysis steps and a number of ComputeApplications in

steps, which are running in parallel. Colours indicate

the status of a step.

Figure 9 shows the workﬂow progress table with

the running NGS alignment analysis. This workﬂow

consists of 15 steps and, 19 ComputeApplications,

which are generated from 12 different ComputeProto-

cols. In some steps, ComputeApplications are running

in parallel.

Figure 9: Workﬂow monitoring.

In Figure 9, a number of steps is ﬁnished, one is

currently running and some are waiting in a queue. In

the step currently running, one ComputeApplication

is already ﬁnished, but the JobManager (see Fig. 3)

is waiting for the second ComputeApplication to be

ﬁnished before starting the next step.

Even if we are using one table per workﬂow, this

visualisation does not scale well to show many run-

ning pipelines efﬁciently. Furthermore, it is not really

informative, if a user wants to see dependencies or ex-

ecution times of workﬂow elements in a workﬂow in a

single image. Some ideas on how to improve current

workﬂow visualisation are discussed in Section 6.

Another important functionality is to have an

overview of the results of analyses when it is ﬁnished.

As it is mentioned in Section 5.1, we store all run

scripts and log information about runs in a database

as ComputeApplications. Figure 10 shows an exam-

ple of a single analysis operation execution. Here, a

user can see an actual script, which has been run, and

the logs about its execution. In this example, the error

log is empty, indicating the successful completion of

the operation. A user can navigate from ComputeAp-

plication to its ObservedValues to see parameters of

the analysis.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

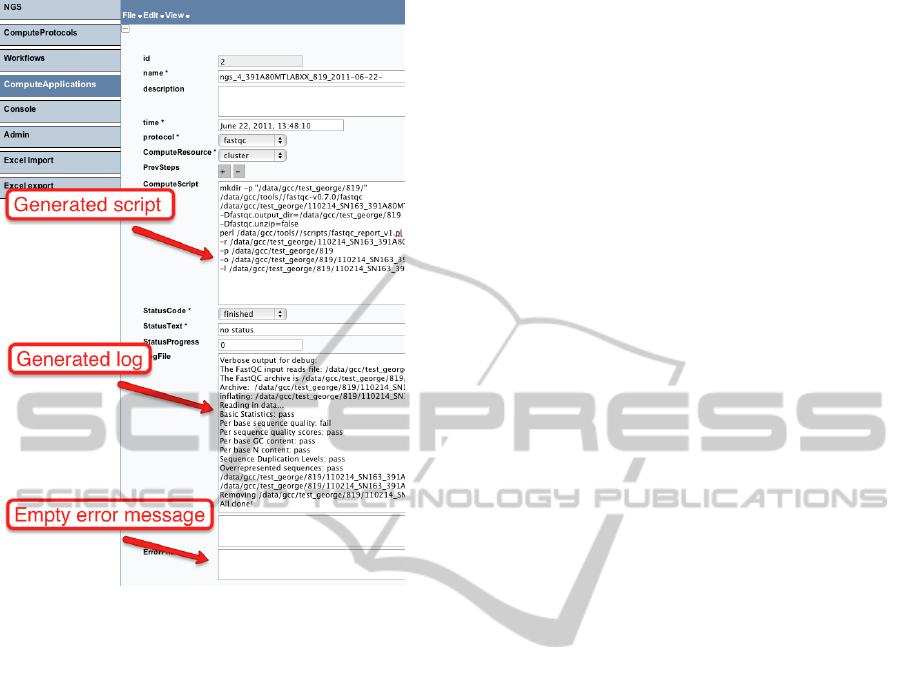

Figure 10: Viewing analysis results in the user interface.

To summarise, we enable a user to navigate

through different user interfaces and review all details

about the analysis and its targets online. Making a

statistical summary about the analyses run is also pos-

sible, but this completely depends on particular user

needs and wishes and we do not standardise it.

6 DISCUSSION

The main results and ﬁndings obtained during this re-

search can be considered in three areas.

Specifying an analysis: We have tried to combine

the NGS data model with the generic model for com-

putational management. This leads us to the speciﬁc

solution to support only NGS analysis workﬂows. We

narrowed the possible structural design of the work-

ﬂow. For example, we left out conditional execution

of workﬂow elements and iteration over several pa-

rameters of a workﬂow element. This was done, be-

cause we do not need these complex mechanisms in

workﬂows we consider necessary for NGS. We have

also not included dependancies of analysis operations

on resources, such as analysis tools, in the model. We

aimed to use a less complex workﬂow model, that

covers practical problems for NGS analyses.

Monitoring analysis execution and error han-

dling: Deﬁning one explicit pre-/post-condition, i.e.

a number of DNA sequence reads, which guaran-

tees the correct completion of the operation, allows

us to easily introduce error handling into the sys-

tem implementation for NGS (see Fig. 7). Theo-

retically, it is possible to deﬁne such indications for

any generic analysis operations. However, it can be

time-consuming to ﬁnd different criteria and imple-

ment it, especially, if the number of analysis operation

is large and their nature is different. The implemen-

tation basically includes implementing a log/error ﬁle

parser, which should interpret outputs from analysis

tools. These tasks are not complex, but depend di-

rectly on a number and complexity of tools and their

expected outputs. Still, our recovery matrix in Figure

5 is easy to implement for generic workﬂows and use

in the distributed execution environment.

We show a progress of a workﬂow in a coloured

table (Fig. 9). A number of interesting aspects, such

as a workﬂow graph structure, execution times of in-

dividual workﬂow operations, actual machines where

executions take place and applying error-handling ap-

plications, are missing in the current progress repre-

sentation. We are planning to incorporate these as-

pects in a future version, where the workﬂow will be

visualised as a graph of analysis operations. A pop-up

window with detailed information about each opera-

tion will be shown, when a user navigates through a

workﬂow graph with a mouse.

Presenting analysis results: Even if we save all

logs produced by analysis tools to a database, the in-

formation would not always be informative for an av-

erage user. Users can be familiar with running com-

plete workﬂows and interested in the ﬁnal analysis

results. Adding simple indicators to the logging in-

formation, such as execution times, sizes of output

ﬁles etc., raises the quality of logging reports. Fur-

thermore, it helps to foresee what computational re-

sources will be needed to run an analysis, in terms of

computational time and storage capacity.

Having all the information about analyses means,

more views on data can be constructed to show a bio-

logical target and the analyses applied to it. The gen-

erated user interface is fully customisable, so that it

can be adjusted for user preferences. Some informa-

tion can be hidden in a user interface, which makes a

view on the data more compact and easier to compre-

hend.

7 CONCLUSIONS

We demonstrated a data model to record analysis

INTRODUCING DATA PROVENANCE AND ERROR HANDLING FOR NGS WORKFLOWS WITHIN THE

MOLGENIS COMPUTATIONAL FRAMEWORK

provenance and a data model to record NGS analyses.

We reported implementation of this model and exten-

sion of the existing compute framework to accommo-

date the large scale of analysis in the MOLGENIS

open source software (Genomics Coordination Cen-

ter, Groningen, 2011). Currently we are using these

models for both GoNL and in-house analyses. Based

on these results, we are convinced that newly estab-

lished NGS centres can beneﬁt from this work when

setting up data management and analysis infrastruc-

ture, optionally using the MOLGENIS framework to

speed up customisations where needed.

ACKNOWLEDGEMENTS

We thank BBMRI-NL (funded by the Netherlands Or-

ganisation for Scientiﬁc Research, NWO), the Nether-

lands Bioinformatics Center (NBIC)/BioAssist NGS

and Biobanking task forces, NWO (Rubicon Grant

825.09.008), and Netherlands Proteomics Center II

(reference NPC II E4.2) for ﬁnancial support and

helpful collaborations. We thank the GATK team at

the Broad Institute, GEN2PHEN (funded by the Eu-

ropean Commission FP7-HEALTH contract 200754),

PANACEA (funded by the European Commission

FP7 contract 222936), and our collaborators Freerk

van Dijk, Alexandros Kanterakis, Laurent Francioli,

Danny Arends, and Joeri van der Velde at Groningen

Genomics Coordination Center and Groningen Bioin-

formatics Center for fruitful discussions on MOLGE-

NIS extensible models for genotypes, phenotypes and

the analysis protocols surrounding these type of data.

REFERENCES

1000 Genomes Project Consortium (2010). A map of hu-

man genome variation from population-scale sequenc-

ing. Nature, 467(7319):1061–73.

Altintas, I. and Berkley, C. (2004). Kepler: Towards a grid-

enabled system for scientiﬁc workﬂows. In in pro-

ceedings of GGF10-The Tenth Global Grid Forum.

BBMRI-NL bioinformatics team (2010). Biobanking

and biomolecular research infrastructure. http://

www.bbmriwiki.nl.

Blankenberg, D. and Taylor, J. (2007). A framework for col-

laborative analysis of encode data: making large-scale

analyses biologist-friendly. Genome Res., 17:6:960 –

FastQC (2011). Babraham bioinformatics. http://

www.bioinformatics.bbsrc.ac.uk/projects/fastqc/.

Fu, J. and Swertz, M. (2007). Metanetwork: a computa-

tional protocol for the genetic study of metabolic net-

works. Nature Protocols 2, pages 685 – 694.

Genomics Coordination Center, Groningen (2011). Molge-

nis web-site. http://www.molgenis.org.

Glavic, B. and Dittrich, K. (2007). Data provenance: A cat-

egorization of existing approaches. In Datenbanksys-

teme in Business, Technologie und Web, pages 227–

241.

H. Byelas and M. Swertz (2011). Towards a molgenis

based computational framework. in proceedings of

the 19th EUROMICRO International Conference on

Parallel, Distributed and Network-Based Computing,

pages 331–339.

Ivanov, N. (2010). Cloud development platform. http://

gridgain.com/.

J. Fu and R. Jansen (2007). System-wide molecular evi-

dence for phenotypic buffering in arabidopsis. Nature

Genetics, 41:685 – 694.

Li, Y. and Swertz, M. (2009). DesignGG: an R-package and

web tool for the optimal design of genetical genomics.

BMC Bioinformatics, 10:188.

M. K. Anand and T. McPhillips (2009). Efﬁcient prove-

nance storage over nested data collections. in pro-

ceedings of the 12th International Conference on Ex-

tending Database Technology: Advances in Database

Technology.

M. Swertz and R. Jansen (2007). The molgenis toolkit:

rapid prototyping of biosoftware at the push of a but-

ton. BMC Bioinformatics, 11:12.

M. Swertz and R. Jansen (2010). Xgap: a uniform and ex-

tensible data model and software platform for geno-

type and phenotype experiments. Genome Biology,

11:27.

Millipede Cluster Team, Groningen (2010). newblock

Clustervision opteron cluster. http://www.rug.nl/cit/

hpcv/faciliteiten/index.

Oinn, T. and Greenwood, M. (2005). Taverna: lessons in

creating a workﬂow environment for the life sciences.

Concurrency and Computation: Practice and Experi-

ence, 18:10:1067 – 1100.

Simmhan, Y. and Gannon, D. (2005). A survey of data

provenance techniques. Technical report.

Sroka, J. and Goble, C. (2010). A formal semantics for the

taverna 2 workﬂow model. Journal of Computer and

System Sciences, 76:6:490–508.

Swertz, M. and Jansen, R. (2007). Beyond standardization:

dynamic software infrastructures for systems biology.

Nature Reviews Genetics, 8:3:235–43.

Swiss Federal Institute of Technology, Z. (2006). Ganymed

ssh-2 for java. http://www.ganymed.ethz.ch/ssh2.

The Genome Analysis Toolkit (2011). Broad institute.

http://www.broadinstitute.org/.

Y. Li and R. Jansen (2010). Global genetic robustness of the

alternative splicing machinery in caenorhabditis ele-

gans. Genetics, 186(1):405–10.

Yu, J. and Buyya, R. (2005). A taxonomy of scientiﬁc

workﬂow systems for grid computing. ACM SIGMOD

Record, 34:3.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms
