MULTI-AGENT PLANNING FOR THE ROBOCUP

RESCUE SIMULATION

Applying Clustering into Task Allocation and Coordination

Amr Hussein, Carmen Gervet and Slim Abdennadher

Faculty of Media Engineering and Technology, German University in Cairo, Cairo, Egypt

Keywords:

Multi-agent planning, Clustering, RoboCup, Rescue, RoboCup rescue simulation.

Abstract:

The RoboCup Rescue Simulation system provides a rich environment for developing novel techniques for

multi-agent systems. The simulation provides a city map modeled as buildings and roads with civilians

amongst them. A disaster scenario is simulated causing buildings to catch ﬁre, roads to get blocked, and

civilians to get injured and/or buried. The main goal is to use the available emergency services (rescue agents)

to extinguish the ﬁres, clear the roads, and rescue the civilians. This paper describes a new multi-agent plan-

ning approach applied to the RoboCup Rescue problem. The key novelty lies in the distributed approach for

task allocation and coordination. It is done through clustering the map into several overlapping maps each

with a different group of agents assigned to it. Our results showed that not only we could compete against

the top teams in the 2011 RoboCup Rescue Agent Simulation Competition, but we ranked 3rd in this ﬁrst

participation of the GUC in the competition.

1 INTRODUCTION

The RoboCup Rescue project, established in 2001,

aims at promoting research and development in the

rescue domain at various levels including simula-

tion and multi-agent team work coordination (Kitano

and Tadokoro, 2001; Skinner and Ramchurn, 2010).

The RoboCup Rescue Simulation project generates

a model of an earthquake in an urban center. Stu-

dent teams from different universities compete to pro-

duce efﬁcient response techniques and policies for

the simulated emergency services. The earthquake

model covers building collapse, roads blocked by rub-

ble and other debris, trafﬁc movement, ﬁre, and in-

juries to civilians and emergency services workers.

Some buildings are refuges and can be used to heal

injured civilians or reﬁll ﬁre brigades. Roads include

trafﬁc movement and blocked roads. Emergency ser-

vices include ﬁre brigades, ambulance teams, and po-

lice forces.

The goal of the simulation tool is to ﬁnd the op-

timal online strategy that best utilizes the emergency

services to save the maximum number of lives, extin-

guish the maximum number of buildings, and clear

the maximum number of blockades. Most existing

systems model the problem as a decision support sys-

tem that is centralized. In this paper we show how

the RoboCup Rescue Simulation can be modeled as

a multi-agent planning problem and thus beneﬁt from

the strengths of distributed systems. In addition, our

approach tackled the different challenges and pro-

duced competitive results based on the following ad-

ditional contributions:

• Use of clustering techniques to divide the map

into overlapping regions based on some density

criteria, instead of a static even geographical di-

vide. This will then allow us to distribute the

agents over these regions and perform the rescue

operations within them.

• A multi-agent communication model allowing the

agents to exchange information and ask for help in

case of necessity.

Our RoboCup Rescue Simulation tools thus de-

ﬁnes 1) a multi-agent planning optimization prob-

lem that requires an efﬁcient strategy for distribut-

ing up-to 30 agents over the simulated map, 2) an

efﬁcient strategy for traversing the map and discov-

ering the unknown emergency events, and ﬁnally 3)

an efﬁcient communication component to share in-

formation among the agents. The German University

in Cairo team RMAS

ArtSapience participated in the

2011 RoboCup Rescue Agent Simulation Competi-

tion in Istanbul, Turkey. This work has enabled us

339

Hussein A., Gervet C. and Abdennadher S..

MULTI-AGENT PLANNING FOR THE ROBOCUP RESCUE SIMULATION - Applying Clustering into Task Allocation and Coordination.

DOI: 10.5220/0003745303390342

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 339-342

ISBN: 978-989-8425-96-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

to qualify and win the third place in the competition.

1.1 Related Work

The approaches discussed in this section are all based

on the team description papers that belong to the

teams (excluding ours) that participated in the ﬁ-

nal round of the 2011 RoboCup Rescue Competi-

tion. They share some common elements including

the even partitioning of the map and the model based

on a decision support centralized system.

SEU RedSun, Southeast University, China. Ranked

ﬁrst in the 2011 competition and participating since

2008. Their approach is based on accurate world

modeling via multi-communication. Tasks were as-

signed via a centralized decision support system. The

main strength lied in the ability to predict ﬁres early

and good utilization of agent communication. Their

main weakness lied in not having a well deﬁned strat-

egy for communication-less scenarios.

Poseidon, Farazanegan High School, Iran. Rank-

ing second in the 2011 competition and participating

since 2009, Poseidon’s approach depended on discov-

ering connected and unconnected parts of the world

via agent communication to build an enhanced world

model. The approach is based on off-line precom-

puted schedules further optimized using genetic algo-

rithms. The approach also depends on dividing the

map evenly. The main strength lies in the optimized

schedules and the enhanced world model.The weak-

ness lies in dividing the map evenly without taking

into consideration the map structure or distribution of

buildings and in relying on the availability of commu-

nication.

IAMRescue, University of Southampton, UK. Rank-

ing fourth in the 2011 competition and participat-

ing since 2008, IAMRescue’s approach a hierarchical

decision-making system supported by disaster predic-

tion via learning ﬁre spread. Their decision-making

system also depends on agent communication for co-

ordination. The accuracy of the decision-making

system marked IAMRescue’s main strength point,

but similar to the previous approaches, the lack of

communication-less strategies was a weakness.

2 OUR APPROACH

We choose to solve the rescue problem by model-

ing it as a multi-agent planning problem which dif-

fers from existing approaches in the sense that it is

distributed(Weerdt et al., 2005). The main reason is

the ease to divide the tasks, to deﬁne them and han-

dled them autonomously. The nature of the presented

rescue problem provides well deﬁned tasks that can

be easily divided among the different types of agents

with a main goal of performing and optimizing the

rescue process.The following section explain how the

different phases of multi-agent planning are created

and how they contribute to solve the rescue problem.

2.1 Deﬁning Tasks

This phase reﬁnes the global tasks and divides them

into smaller individual tasks. The rescue problem can

be divided into three main tasks: extinguishing ﬁres,

saving civilians, and clearing blocked roads. These

again can be further divided into several individual

tasks. Figure 1 shows a how the rescue tasks are di-

vided into individual tasks.

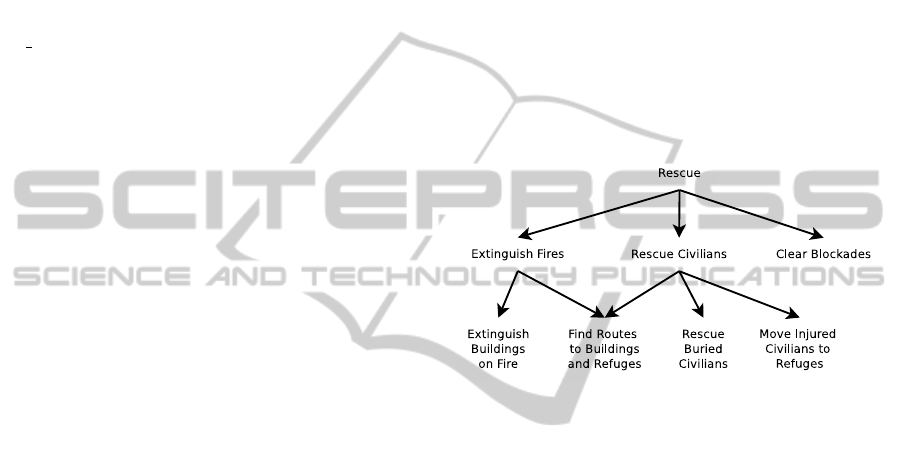

Figure 1: Rescue Tasks Tree Structure.

Finding routes to buildings and refuges will be

done by all agents individually. Extinguishing build-

ings can only be done by ﬁre brigades. Rescuing

buried civilians and moving the injured ones can only

be done by the ambulance teams. Clearing blockades

can only be done by police forces.

2.2 Task Allocation

Task allocation is required to distribute and assign

tasks to the agents. In our case, task deﬁnition al-

ready provided what each agent will be doing but did

not specify where in the map it will carry out its ac-

tion. Since it is impossible for each agent to timely

traverse the whole map, the map was divided accord-

ing to the number of agents available. Related works

generally divided the map evenly into a grid which

did not take into consideration the map structure and

the distribution of the buildings in the map. In our

approach, we choose to cluster the map on the build-

ings such that we can output regions of almost evenly

distributed buildings. Each region will be assigned an

agents that will traverse all of the buildings and roads

in the region to search for events that require rescue

actions.
