NEW REASONING FOR TIMELINE BASED PLANNING

An Introduction to J-TRE and its Features

Riccardo De Benedictis and Amedeo Cesta

CNR, Italian National Research Council, ISTC, Rome, Italy

Keywords:

Planning, Scheduling, Reasoning on timelines.

Abstract:

Time and resource reasoning are crucial aspects for modern planners to succeed in several real world domains.

A quite natural way to deal with such reasoning is to use timeline based representations that have been ex-

ploited in several application-oriented planners. The search aspects of those planners still remain a “black

art” for few experts of such particular approach. This paper proposes a new model to conduct search with

timelines. It starts from the observation that current timeline based planners spend most search time in doing

blind constraint reasoning and explores a different hybrid model to represent and reason on timelines that may

overcome such computational burden.

1 INTRODUCTION

Temporal ﬂexibility required in controlling mecha-

nisms in real-time (i.e., robotics), interacting with

agents requirements as well as uncertainty of real

world domains, are just some of the arguments that

are leading to the progressive exploration of different

planning methodologies (Erol et al., 1994; Ghallab

and Laruelle, 1994; Smith et al., 2000) and to the ex-

tensions of most classic ones (Fox and Long, 2003).

Timeline based planning constitutes an intuitive

alternative to classical planning approaches by iden-

tifying relevant domain components evolving in time.

Although attractive from a temporal ﬂexibility point

of view, these kind of planners have to cope with per-

formance issues due to the complexity that derives

from their expressiveness. Most of their computa-

tional time (often up to 90% in complex domains) is

spent in temporal reasoning wasting time to maintain

a huge amount of information sometime only partially

useful (for example, the distance between time-points

of different timelines most of which are not used in

current problems). Furthermore, temporal networks

are always quite sparse so, complex methods inher-

ited from constraint-based scheduling literature (e.g.,

all-pair-shortest-path algorithms) may result too ex-

pensive in most cases. A further reason for slow-

down can be found in the management of states of

the search space. Common timeline based planners,

indeed, consider neighborhood states as completely

different problems although they are quite similar.

Imagine, for example, we have one hundred activ-

ities a

, a

, . . . , a

100

with some starting,

ending and duration constraint. Among these activi-

ties, we have two special activities a

and a

that we

know cannot overlap. Common planners, although

with some differences, would generate two nodes on

the search space having respectively a

≺ a

(hence-

forth we will use this formalism to indicate a prece-

dence constraint among elements) and a

≺ a

, each

representing a single constraint satisfaction problem

(CSP), and would solve them separately (we have,

basically, two all-pair-shortest-path problems). We

could merge these two states into a single state having

a a

≺ a

∨ a

≺ a

constraint. Although this example

addresses the weakness of common approaches, un-

fortunately it does not make clear why common plan-

ners do not make use of disjunctive CSPs. The reason

for this is that disjunctive CSPs still have to take care

of the causality in the domain so are, in general, not

enough for our planning needs.

Let us assume, for example, that every morning

we have to reach our work place starting from home.

In order to achieve the task we have two alternatives:

either take a bus or walk. In a timeline based planning

system we can model this simple problem by means

of a single state variable having four predicates as

possible values: AtHome(), TakeBus(), TakeWalk()

and AtWork(). A solution to a planning problem is

represented by a legal sequence of tokens (values as-

sumed over temporal intervals) deﬁned on such state

variable. Let us assume that the initial state is de-

scribed by the token t

of value AtHome() satisfying

a relation start

at(t

, 0) (to say that the initial value

144

De Benedictis R. and Cesta A..

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features.

DOI: 10.5220/0003746901440153

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 144-153

ISBN: 978-989-8425-95-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

starts at time 0) and let us ﬁx AtWork() as our cur-

rent goal. Additionally, we know that any AtWork()

proposition requires to be met by a TakeBus() propo-

sition or by a TakeWalk() proposition. Furthermore

both TakeBus() and TakeWalk() require to be met by

an AtHome() proposition but TakeBus() requires a

duration [15, + inf] while TakeWalk() requires a du-

ration [30, 40]. This is the basic way of specifying

causality with timelines.

In order to solve this simple problem, a timeline-

based planner would generate two nodes on the

search space having respectively a TakeBus() and a

TakeWalk() proposition, both generated to achieve

the AtWork() goal. Each node would represent a sin-

gle CSP to be solved separately in order to deﬁne start

and end times for all the values of the state variable.

Alternatively, we could create a single node having a

TakeBus() ∨ TakeWalk() clause. Solving constraints

of this node, now, would solve our entire planning

problem. Notice that enabling the TakeBus() (or the

TakeWalk()) value would also require to enable its

duration constraint and, if any, every consequence of

the presence of the TakeBus() (or TakeWalk()) fact

as, for example, a resource consumption due to ticket

payment.

In general, in this paper we explore the idea

of maintaining different states of the search space

through a single “extended CSP” that is expressive

enough to handle causal relations among its elements.

In so doing, we make the representation of search

space implicit hence simplifying the solver imple-

mentation phase and delegating all search aspects to

our extended CSP solver. We can reach these results

by modifying a common SAT solver (Een and Sorens-

son, 2003) and integrating it with a CSP solver. We

will then let the SAT solving procedure to guide all

the search process of both SAT and CSP problems in

a Satisﬁability Modulo Theory (SMT) fashion – e.g.,

(Sebastiani, 2007).

This paper presents J-TRE (for Java Timeline Rea-

soning Environment) a new timeline based planning

and scheduling environment that puts our ideas into

practice. It is organized as follows: Section 2 con-

tains the basic terminology of timeline based reason-

ing, Section 3 presents the new proposal for modeling

the solution space and Section 4 describe an associ-

ated search procedure. Section 6 contains a prelim-

inary evaluation of the new proposal. Some conclu-

sions end the paper.

2 BASICS ON TIMELINES

We introduce here some basic concepts. For a more

detailed dissertation on timeline based planners the

reader should make reference to (Muscettola, 1994;

Ghallab and Laruelle, 1994; Frank and Jonsson, 2003;

Fratini et al., 2008) while some general principles are

also discussed in (Smith et al., 2000).

2.1 Time, Tokens and Relations: The

Token Network

To include time into a logic formalism we choose to

add extra arguments, belonging to domain of time T,

to predicates. For example, a predicate At(l), denot-

ing the fact that an agent is in a certain location l, can

be extended with two temporal arguments s ∈ T and

e ∈ T, with s < e, representing its starting and ending

times. A formula such At (l, s, e) would be true only if

the agent is at location l from time s to time e. Given

this premise and similarly to (Muscettola, 1994), we

call token a proposition having temporal arguments.

It is worth noticing that, by allowing temporal ar-

guments in predicates, we open the possibility that a

proposition is neither true nor false over a given tem-

poral interval as we do not provide any information

about truth of propositions outside its interval. Just

like other approaches (Allen, 1983), we prefer a weak

interpretation of negation and consider false a propo-

sition outside its temporal deﬁnition. A strong inter-

pretation of negation, considering false a proposition

only when asserting the negation of the proposition,

would also be admissible although it should allow the

possibility of truth gaps.

To force propositions’ arguments to assume de-

sired values, timeline based planning allows any kind

of linear constraints among them. Furthermore, some

planners allow constraints among propositions’ argu-

ments and external variables. For ease of writing

planning domains, these constraints can be organized

in macros called relations. Common timeline based

planners typically allow any kind of quantitative tem-

poral interval relation (Allen, 1983) between tokens

and also leave the possibility for the user to deﬁne

new custom relations.

Although most used relations involve only two to-

kens, we can deﬁne relations involving just one token

(i.e., a duration constraint) as well as relations involv-

ing three or more tokens (i.e., an all-different con-

straint). The hyper-graph having tokens as nodes and

relations as edges is called token network. The token

network constitutes the state of a timeline based plan-

ner. The planner can move in the search space adding

(or removing) tokens and relations in its current token

network. Starting from an initial token network, the

aim of the planner can be summarized in reaching a

token network containing desired properties that we

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features

145

call goals.

2.2 Tokens’ Interactions: The Timelines

The easiest way to describe a timeline is to consider

it just as a collection of tokens. Which kind of to-

kens are allowed by a timeline and the behavior as-

sumed by the planner when its tokens overlap in time

is something that has to be deﬁned depending on the

nature of the timeline itself and, in some cases, on the

modelled domain.

The most used type of timeline is the state vari-

able. A state variable can assume any kind of pred-

icate (as long as it has temporal arguments) provid-

ing that overlapping tokens assume the same value.

This corresponds to a mutual exclusion rule be-

tween different predicates. Let us assume, for ex-

ample, to have a predicate At(l, s, e) and a predicate

GoingTo(l, s, e). We know for sure that tokens as-

suming At and GoingTo propositions cannot overlap.

However, two tokens both assuming At proposition

can overlap if and only if their parameters (l, s and e)

are pairwise constrained to be equal between the two

tokens. In this case we talk about uniﬁcation (or, in

some cases, merging) of tokens.

Suppose we want a rule stating that every time

we are going to a given location we will reach

that location. We basically want for each predicate

GoingTo(l, s, e) to meet a predicate At (l, s, e) hav-

ing the same location. In other words, for each to-

ken with a GoingTo(l, s, e) proposition the environ-

ment must ensure that the token meets another to-

ken with an At(l, s, e) proposition eventually, in case

it is missed, inserting a new token itself. This kind

of “rules” are generalized to a concept usually called

compatibility (again, here we use a terminology con-

sistent with (Muscettola, 1994)). Compatibilities de-

ﬁne causal relations that must be complied in order

for a given token to be valid. Although the syntax can

be quite different among planners, a compatibility is

deﬁned through a reference predicate and a require-

ment where, making use of a recursive deﬁnition, a

requirement can be a target (or slave) predicate, a rela-

tion among predicates, a conjunction of requirements

or, in rare cases, a disjunction of requirements. Most

timeline based planners admit only conjunctions of

requirement and reproduce disjunctions by assigning

more than a compatibility to the same predicate.

To simplify matters, we describe compatibilities

through logic implications reference → requirement.

From now on, we will give a name to compatibilities’

target predicates in order to allow relations among

them inside the same compatibility assuming an im-

plicit name “this” for the reference predicate. Further-

more, we will address their values’ arguments using a

Java style dot notation (i.e., given a token t having

proposition T (s, e) its starting point is t.s).

Other commonly used types of timelines are re-

sources (for a comprehensive introduction on re-

sources the reader can refer to (Bedrax-Weiss et al.,

2003)). Each resource has a resource level L : T → Z,

representing the amount of available resource at given

time, and a resource capacity C ∈ Z, representing the

physical limit of available resource.

According to how the resource level can be in-

creased or decreased in time we can identify sev-

eral kind of resources. A consumable resource is

a resource whose level is decreased by some activi-

ties but is not increased by any activities in the sys-

tem. For example, the resource “not regenerable ink

cartridge” can be modeled through a consumable re-

source as it may be depleted by a printing process and

cannot be charged. This means that level L is mono-

tonically non-increasing. We model consumable re-

sources through a timeline having a single predicate

consume(a, s, e) as allowed value representing a re-

source consumption of amount a from time s to time

e. A producible resource is a timeline that is cre-

ated by some activities but is not consumed by any

activities in the system. A waste-product of an in-

dustrial system can be an example of producible re-

source. In case of producible resources, level L is

monotonically non-decreasing. We model producible

resources through a timeline having a single predicate

produce(a, s, e) as allowed value in order to represent

a resource production of amount a from time s to time

Another commonly used timeline is the replen-

ishable resource. This kind of resource can be both

produced and consumed as part of the same system in

any order. An example of replenishable resource is a

reservoir which may be produced if it is ﬁlled as well

as consumed if it is emptied. To model replenishable

resources we can deﬁne a predicate produce(a, s, e)

to represent a resource production of amount a from

time s to time e and a predicate consume(a, s, e) to

represent a resource consumption of amount a from

time s to time e.

Last commonly used timeline, quite popular in the

scheduling literature, is the reusable resource time-

line. Reusable resources are replenishable resources

that are produced and consumed with the additional

constraint that producing and consuming activities

must happen in tandem. We can model reusable re-

sources through a predicate use(r, s, e) that is true iff

there is a production of resource of amount r at time

s and a consumption of resource of amount r at time

e. Now let’s assume we have two tokens t

and t

ICAART 2012 - International Conference on Agents and Artificial Intelligence

146

belonging to a reusable resource timeline such that

.s < t

.e ∧ t

.s < t

.e (this constraint simply forces

their overlapping). The expected behavior of the re-

source is to have a resource usage of t

.r during t

’s

duration when there isn’t overlapping with t

, a re-

source usage of t

.r + t

.r when t

overlaps with t

, a

resource usage of t

.r during t

’s duration when there

isn’t overlapping with t

and a resource usage of 0

elsewhere.

Finally, not many planning systems allow to de-

ﬁne constraints on resource levels. We are interested

in supporting the following constraints making use of

special predicates:

– gt(a, s, e) to force the proﬁle of the resource to be

strictly greater than a

– ge(a, s, e) to force the proﬁle of the resource to be

greater than a

– le(a, s, e) to force the proﬁle of the resource to be

lower than a

– lt (a, s, e) to force the proﬁle of the resource to be

strictly lower than a

In addition to these timelines, some existing plan-

ning systems allow users to deﬁne their own timeline

classes thus obtaining customized behaviors.

3 REPRESENTING THE TOKEN

NETWORK: A SAT-CSP BASED

MIXED APPROACH

Having deﬁned the basic terminology to describe the

token network and the timelines, we address the prob-

lem we were considering in the introduction: most

of the current timeline based planners, both theoret-

ical like CAIP (Frank and Jonsson, 2003) and prac-

tical like EUROPA (Jonsson et al., 2000) and OMPS

(Fratini et al., 2008), use a constraint-based represen-

tation and a reﬁnement search schema that overload

the underlying temporal network representation. Is it

possible to conceive a different modelling and solving

infrastructure to reason on timeline and moving in di-

rections which are distinct from intensive specialized

constraint reasoning? This is the leading question our

current work pursues. Some initial answers are given

in this paper. Our key idea is a switch of perspec-

tive that allows the merge of different token networks

into a single disjunctive one. The solving of this new

problem will solve our planning problem and poten-

tially can offer a new perspective in addressing the

reasoning problem for timeline based planning.

To represent a token network and reason about it

we have pursued the idea of using a combination of

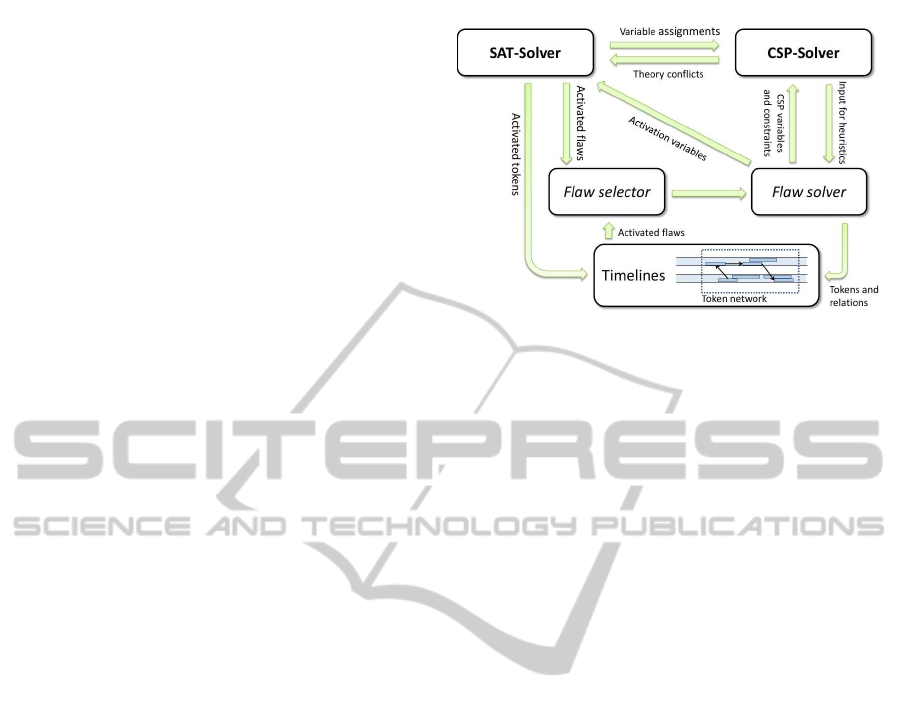

Figure 1: J-TRE architecture. The SAT solver controls most

of the search aspects notifying the CSP solver of variable

assignments. The planner collects active ﬂaws, selects one

of them and solves it by adding new relations among tokens

and/or new tokens into the token network. The planning

process will result in a partially active token network with

no active ﬂaws.

SAT and CSP solving (see Figure 1).

As a starting point we have used an implementa-

tion of the known MiniSAT solver (Een and Sorens-

son, 2003) modiﬁed to endow it with capabilities for

handling both preferences (Di Rosa et al., 2010) and

dynamic addition of variables and clauses.

A second step has been to produce a backtrack-

able AC-3 algorithm (one of the most often used al-

gorithms by simple constraint satisfaction solvers).

We consider a constraint satisfaction problem as a di-

rected graph (Dechter, 2003) with nodes representing

variables of the problem and arcs between variables

representing constraints. Special attention is given to

efﬁciency of basic reasoning. The worst-case time

complexity of AC-3 algorithm is O



e· d



where e

is the number of arcs and d is the size of the largest

variable domain. It is worth underscoring that two key

complexity factors here are the need to tackle huge

domains (e.g., [0, +inf] is a common domain for tem-

poral arguments) and possible presence of cyclic net-

works. For each constraint addition to the CSP, we

have limited the number of possible updates of each

variable to the number of constraints of the CSP. Ex-

ceeding this limit would obviously determines the ex-

istence of a cycle that incrementally empties the do-

main of some variable involved in the cycle itself re-

sulting in an inconsistent CSP. This fact allowed us to

move worst-case time complexity of our AC-3 algo-

rithm to O(e· min(e, d)) removing the discouraging

domain size from time complexity.

Interplay between SAT and CSP. Any CSP con-

straint has a correspondent SAT variable that “acti-

vates” it. As soon as an activation variable becomes

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features

147

true in the SAT its correspondent constraint is dynam-

ically added to the CSP and propagation is triggered

with AC-3. The interplay works also the other way

around: if a SAT variable goes from true to non as-

signed (when the SAT solver is either backtracking or

backjumping) then the corresponding constraint in the

CSP is “deactivated” retracting it from the dynamic

CSP that again is propagated to the previous situa-

tion. It is worth observing that because the SAT solver

manipulate variables according to a Last In First Out

strategy this facilitates efﬁciency of retraction in the

correspondent dynamic CSP (before propagation a

cashing mechanism of domains serves the future re-

tractions). Furthermore, not all the SAT variables

have a correspondent constraint. Those that are free

from this connection are used to model the causality

in the planning problem.

When the CSP propagation fails we have a theory

conﬂict. The SAT solver is consistent but the corre-

spondent theory represented by the CSP (the set of ac-

tive constraints) is not. Similarly to the lazy approach

in SMT we add the information on the theory failure

in the SAT representation by adding the negation of

the conjunction of active constraints hence avoiding

that the SAT solver reselect the same state later on.

It is worth saying that the negation of a conjunc-

tion of literals can be transformed in a disjunction

of negation by using De Morgan. In the SAT rea-

soner this new clause is considered as a new “conﬂict

clause” from which a no-good is generated and added

the the representation before a backtracking step.

In addition, by giving preference for false val-

ues to each SAT variable allows us to minimize the

number of active elements in the token network and,

consequently, the number of active CSP constraints.

Our extended CSP solver can now handle disjunctive

CSPs and domain causality through the SAT problem.

If the SAT problem would become unsatisﬁable then

our extended CSP problem would have no solutions.

Using the Hybrid Reasoning Engine for Time-

line based Planning. We now describe how the

SAT/CSP combination is used to model the timeline-

based approach to planning. Each token, each rela-

tions (and also each of the ﬂaws introduced later) has

an “activation variable”. The glue among these vari-

ables is given by the domain causality. For example,

the activation variable of a token can logically imply

the activation variable of the relation that represent

the duration of the same token. When the activation

variable becomes true, the SAT solver naturally prop-

agate truth also to the activation variable of the rela-

tion. Hence the whole “causality pattern” is added to

the correspondent dynamic CSP.

The very hard part of the work has been the

representation of quantitative Allen relations (Allen,

1983) with quantitative modiﬁcators. For ex-

ample we need to represent bef ore(i, j, min, max)

that forces interval i to be be fore interval j

with a distance [min, max] between i.e and j.s, or

during(i, j, min

, max

, min

, max

), forcing interval

i to be during interval j with a distance [min

, max

]

between j.s and i.s and a distance [min

, max

] be-

tween i.e and j.e. As a ﬁrst ingredient we need a sim-

ple temporal constraint (Dechter, 2003) between two

time points. The constraint has to propagate accord-

ing to the bounds on distances min ≤ x

− x

≤ max

where x

and x

are the starting and ending point of

the constraint and min and max are the limitations

the two points must be bounded at. Having this ex-

pressivity allows as to impose a duration constraint

[l, u] for a token t having starting point t.s and end-

ing point t.e we have to add the simple temporal con-

straint l ≤ t.e− t.s ≤ u.

An exhaustive enumeration and description of all

the relation implemented by our planning system is

outside the scope of this paper. We just provide here

the underlying idea by explaining of howthe overlaps

constraint has been managed. Given a token t

having

starting point t

.s and ending point t

.e and a token

having starting point t

.s and ending point t

.e, the

overlaps constraint is deﬁned through a simple tem-

poral constraint between t

.e and t

.s (let us associate

this to the activation variable x

), a simple tempo-

ral constraint between t

.s and t

.e (x

) and a sim-

ple temporal constraint between t

.e and t

.e (x

). In

creating the overlaps constraint we assign it an ac-

tivation variable x

overlaps

and assign the three sim-

ple temporal constraints to their SAT variables x

, x

and x

. Finally we add the clauses



¬x

overlaps

, x





¬x

overlaps

, x



and



¬x

overlaps

, x



to the SAT prob-

lem. It is worth underscoring that the false preference

of the SAT solver instantiates the activated temporal

constraints if and only if x

overlaps

becomes true.

Once deﬁned all relations allowed by the system,

it is relatively straightforward to combine them in a

logical way. For example, if we do not want two to-

kens t

and t

to overlap, we can create two relations

before(t

, 0, +inf) and a fter(t

, 0, +inf), hav-

ing activation variable x

and x

, and add the clause

, x

) to our extended CSP solver. Although not

necessary (indeed, the CSP propagation and conﬂict

analysis will generate it as a no-good sooner or later),

we can also add the clause (¬x

, ¬x

) that will avoid

useless propagation of CSP constraints.

By embedding both disjunctions and causal rela-

tions in our CSP solver we are able to hide search

space to higher level modules favoring the high-

ICAART 2012 - International Conference on Agents and Artificial Intelligence

148

light of higher level search aspects as planning and

scheduling heuristics.

Conﬂict Analysis: No-good Learning and Back-

jumping. Conﬂict-driven clause learning has been

ﬁrst described in (Marques-Silva et al., 1996) and

is commonly considered a key advantage of SAT-

technology in the last decade. We will describe how

it works and the use we do of it through an example

adapted from (Een and Sorensson, 2003).

Assume we have three CSP constraints associ-

ated to variables x

, x

and x

. Our constraints, to-

gether, make the CSP problem inconsistent so the

clause (¬x

, ¬x

) represents our conﬂict to ana-

lyze. We call x

∧x

the reason set of the conﬂict.

Now x

is true because x

was propagated from some

clause. That clause is asked the reason for propagat-

ing x

and it responds with another conjunction of lit-

erals, say x

∧ x

. These are the variable assignments

that implied x

. The clause may in fact have been

, ¬x

). From this little analysis we know that

∧ x

must lead to a conﬂict. We prohibit

this conﬂict by adding the clause (¬x

, ¬x

)

to the SAT problem. This would be an example of

learnt conﬂict clause.

Analyzing further all literals and their reason sets

would lead to different learning schemas however the

“First Unique Implication Point” (First UIP) has been

chosen for its effectiveness (Zhang et al., 2001). The

underlying idea is quite simple: in a breadth-ﬁrst

manner, continue to expand literals of the current de-

cision level until there is just one left. As in Min-

iSAT, the analysis also returns the lowest decision

level for which the conﬂict clause is unit allowing

non-chronological backtracking.

Notice that, in our case, learnt clauses would rep-

resent information such as: “two constraints cannot

be in the same state” which, broadly speaking, is

a much more useful information with respect to a

generic “current state is inconsistent”.

Clause Database Simpliﬁcation. Common SAT

solvers often beneﬁt from clause database simpliﬁca-

tion reducing the size of the problem. The procedure

has to check the status of all literals of all clauses in

order to apply simpliﬁcation resulting in a quite ex-

pensive procedure.

First of all, SAT clauses simpliﬁcation is only

available at top-level. After an initial propagation,

each SAT clause may simplify its representation or

state that the clause is satisﬁed under the current as-

signment and can be removed. Let’s assume we have

the clauses (x

), (¬x

, x

) and (x

, x

). Ini-

tial propagation would assign true value to variable x

and clause simpliﬁcation would reduce second clause

to (x

, x

) and remove third clause.

In our application to planning, clause database

simpliﬁcation leads to an interesting behavior that we

would like to highlight. This procedure, basically,

hides elements of the token network that, for sure, are

true (or false) highlighting elements of the token net-

work that are still uncertain. This latter set represents

the “real planning problem” as it requires an effective

search phase (with possible backtracking) to work on.

4 ENSURING TIMELINE

CONSISTENCY: DETECTING

FLAWS AND SOLVING THEM

Common timeline based planners reach a solution

state by applying an iterative reﬁnement procedure.

If we call ﬂaw every possible inconsistency of the to-

ken network, the role of the planner can be reduced

to ﬂaws identiﬁcation in the current token network

and their consequent resolution. The planning pro-

cess goes on until a consistent (no ﬂaws) token net-

work is found. The general idea is simply to have

a set of ﬂaws, pick one with some selection strategy

and solve it with some resolution strategy (this is rep-

resented in Figure 1 by the blocks Flaw Selector and

Flaw Solver). There are basically two kinds of pos-

sible ﬂaws: goal ﬂaws and timeline inconsistency

ﬂaws.

Once deﬁned how to represent information, we

have to understand how the planner can identify as-

pects of the current token network and ﬁx them in or-

der to reach the desired token network that includes

the set of goals. We do not introduce any innovation

on this phase, we will rather show how our proposal

can easily be applied to common approaches. First of

all, as in the case of tokens and relations, we assign

each ﬂaw an activation variable that can be used to

control ﬂaw’s activation status. As always, the false

preference for SAT variables will guarantee us that

the ﬂaw will be disabled unless it has strictly to be

activated.

First thing we do is to generate the initial token

network. Initial fact tokens as well as relations must

be present so we add a unary clause for each of them

forcing the truth of their activation variables. We do

the same for goal tokens as they have to be justiﬁed

in order for the problem to be solved but, for each of

them, we enqueue a goal ﬂaw assigning it the same

activation variable of the relative token. This means

that the goal ﬂaw will be active only if the relative to-

ken’s activation variable is true.

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features

149

In the following, we will use the symbol S to indi-

cate the conjunction of all activation variable of both

tokens and relations that in current state are active. In

particular, exploiting De Morgan laws, we will use the

symbol ¬S to indicate the disjunction of negations of

the literals of S. Being a disjunction of literals, with a

little extension of terminology, we will use ¬S inside

clauses.

4.1 Goal Flaws

For what concerns goal ﬂaws, we have two possible

resolution strategies: uniﬁcation and compatibility ex-

pansion.

Uniﬁcation is only applicable to tokens that have

the same proposition. For the sake of compactness,

we have introduced a new CSP constraint, that we call

“multi-equals”, deﬁned as follows: given two sets of

CSP variables [x

, . . . , x

] and [y

, . . . , y

], the multi-

equals constraint is satisﬁed iff [x

= y

, . . . , x

= y

Exploiting our multi-equals constraint we assign a

SAT variable u

, . . . , u

, for each of the n to-

kens (eventually none if uniﬁcation is clearly infea-

sible) on the same timeline having the same propo-

sition, to a multi-equals constraint that will ensure

equality between goal token’s arguments and target

token’s arguments. Whenever a variable u

becomes

true, the token is forced to unify with the correspon-

dent token. We also create a new SAT variable c that

will force compatibility application. The ﬂaw solver

will then add the resolution clause (¬ f, u

, . . . , u

, c)

and will apply the compatibility as an implication by

the compatibility application variable c managing tar-

get tokens as new goal ﬂaws (sub-goaling).

Let us assume that we have a compatibil-

ity associated to predicate P() such that P() ⇒

(q : Q() ∧ during(this, q)) and a goal token with ac-

tivation variable g and proposition P() (meaning that

I want to achieve g on the solution timeline). We ﬁrst

create a token with activation variable q and a propo-

sition Q(), then we create a relation during with ac-

tivation variable r between token with activation vari-

able g and token with activation variable q, ﬁnally we

add clauses (¬c, q) and (¬c, r).

Because uniﬁcation does not lead to further com-

patibilities application, we add preference constraints

to the SAT problem in order to prefer uniﬁcations to

compatibility application. Thus we have ∀i = 1. . . n :

c ≺ u

. Notice that, having preferences for false val-

ues, we have inverted preference order on variable se-

lection. In so doing, we are stating that we want com-

patibility variable at false before uniﬁcation variable

is at false.

Must-expand and Must-unify Operators for Goal

Flaws. Some timeline based planners make use of

must-expand and must-unify domain dependent oper-

ators applied to goal ﬂaws in order to force the planner

to behave in a desired manner, namely pruning search

space. The idea is simply that must-expand goal ﬂaws

cannot unify while must-unify goal ﬂaws cannot ap-

ply their compatibility.

The must-expand operator can be managed sim-

ply adding the resolution clause without the uniﬁca-

tion variables (¬ f, c). The must-unify operator is

more tricky because we ﬁrst have to add the resolu-

tion clause with the negation of current state and with-

out the compatibility variable (¬ f, ¬S, u

, . . . , u

and then we have to create another ﬂaw with ac-

tivation variable f

and add an activation clause

(¬ f, u

, . . . , u

, f

). If none of such uniﬁcations is

applicable, ﬁrst clause will make current state un-

available while second clause will activate the derived

ﬂaw. Both cases are implied by the activation of the

original ﬂaw.

4.2 Timeline Inconsistencies and the

Use of Schedulers

Once the overall solving procedure has reached a sta-

ble state (that is there is no active goal ﬂaw), for

each timeline is called a make-consistent procedure

that, dependent on the timeline itself, removes any

further inconsistencies from the timeline through a

scheduling procedure. This is a technique, intro-

duced in (Fratini et al., 2008), that observes time-

lines as resources over time and removes contentions

peaks over their continuous representation. We will

not discuss how the scheduling ﬂaws are identiﬁed

(aka contention peaks) here and refer the reader to

(Cesta et al., 2002) for details on reusable resources,

used to model the RCPSP/max problem, and to (Si-

monis and Cornelissens, 1995) on how to manage

producer/consumer constraints, required in replenish-

able resource timelines, through a resource contention

greedy solver.

Once we have identiﬁed a Minimal Conﬂict Set

(MCS) of tokens that have to be scheduled on a time-

line, we simply enqueue it as a common ﬂaw and

assign it an activation variable s. This variable will

be implied by current state so the activation clause

is (¬S, s). The resolution of the scheduling ﬂaw will

simply add a disjunction on the ordering of the tokens

adding proper constraints.

For example, we have an MCS with activation

variable s composed by two tokens t

and t

. The

ﬂow resolution procedure will generate two relations

≺ t

and t

≺ t

associating them two activation

ICAART 2012 - International Conference on Agents and Artificial Intelligence

150

variables b and a. Finally, the clause (¬s, b, a) is

added to the SAT problem. Once again, the clause

(¬b, ¬a) can also be added to improve performances.

It is worth noting that, at present, we are not inter-

ested in obtaining an optimal solution for the schedul-

ing problem minimizing the overall make-span but we

are rather looking for a solution that just makes the

timeline consistent. In case there is the need of op-

timizing the make-span in the scheduling phase, we

can always rebuild the all-pair-shortest-path problem

(as common timeline based planners currently do for

any search space state) and use it to build heuristics

assigning ordering preferences on the activation vari-

ables of the relations of the MCS (as always, taking

into account the false preference for SAT variables).

In this case the system would still provide complete-

ness of the search as well as back-jumping features

and even more.

5 THE J-TRE ARCHITECTURE

In order to enable a comparison with other timeline

based planners, we have completely implemented the

architecture in Figure 1 as a Java program. Addi-

tionally, we have deﬁned an XML-based modeling

language, called eXtended Domain Deﬁnition Lan-

guage (XDDL), that allows us to create domains and

problems for the planner. Most of the search is de-

manded to the SAT solver that notiﬁes the CSP solver

of variable assignments. The CSP solver, in turn,

propagates activated constraints (or backtracks) and,

in case propagation fails, a conﬂict clause is added to

the SAT problem. The planner collects active ﬂaws,

selects one of them according to a selection strategy

and solves it through a resolution strategy by adding

new relations among tokens and/or new tokens into

the token network.

While, in our system, there is almost no differ-

ence in which ﬂaw is solved ﬁrst (as far as we ignore

efﬁciency aspects) because they all have to be solved

sooner or later, there could be serious troubles in how

they are solved, especially in case of cyclic problems.

Consider, for example, a two predicates state vari-

able having At (l, s, e) and GoingTo(l, s, e) as allowed

values. Moreover there is a compatibility for predi-

cate At to start at 0 or to be met by a GoingTo pred-

icate with same location. Finally, a compatibility for

predicate GoingTo to be met by a predicate At. We

have an initial state with a token At (l

, 0, [1, + inf])

and a goal At(l

, [0, +inf], [1, +inf]). The planner

has to apply compatibility for goal token produc-

ing a sub-goal GoingTo(l

, [0, + inf], [1, +inf]) than

another sub-goal At (l, [0, +inf], [1, + inf]) that can

unify with ﬁrst token or apply another compatibility

resulting in another GoingTo(l, [0, +inf], [1, + inf])

possibly leading to an inﬁnite loop planning about

the agent going walking around. In short, although

scheduling search space, however exponential, is al-

ways ﬁnite, it can be the case that compatibility appli-

cation space is inﬁnite.

Although a crafty strategy does not exist yet (ex-

ception made for some work by Bernardini (Bernar-

dini and Smith, 2007) that basically prefers smallest

sub-goaling to greater ones) we can exploit SAT pref-

erences to guide the search at domain deﬁnition level.

Another simple thing we can do to avoid taking the

wrong path is to give preferences according to the

depth of the search tree leading to a sort of breadth-

ﬁrst search. However, possible solutions to this prob-

lem still need to be investigated.

6 A PRELIMINARY EVALUATION

In this section we describe a preliminary evaluation

based on a competitive evaluation with respect to the

version 1.99 of the OMPS planner, an evolution of the

work described in (Fratini et al., 2008).

To perform the comparison we have created two

“simple-to-describe” domains that require causal rea-

soning over time. We have chosen these domains

for their requirement of both planning and scheduling

features as well as for their simplicity.

Because of the randomness of resolution algo-

rithms, results were obtained by averaging the exe-

cution time of 10 run for each problem. We did not

use any domain dependent operators nor domain de-

pendent heuristics in none of the planners with the

intent of comparing pure approaches to search. Both

planners, indeed, can be easily speeded up through

domain dependent operators – as done for example

in the very last OMPS version used in (Fratini et al.,

2011). Finally, we set the OMPS planner to apply the

depth ﬁrst resolution strategy, which seems to be on

average the most promising resolution strategy among

those available.

The Skilift Domain. This domain models peo-

ple ﬂow while taking a skilift in a skiing sta-

tion. The domain uses a state variable with

two allowed values: takeSkilift (p, s, e), modelling

a person p taking the skilift and unused (s,e).

Each modeled person has his own timeline repre-

senting his position through downstream(s, e) and

upstream(s, e) predicates. Furthermore, there is a

compatibility for predicate upstream to have a du-

ration of [10, + inf] and to be met by a takeSkilift

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features

151

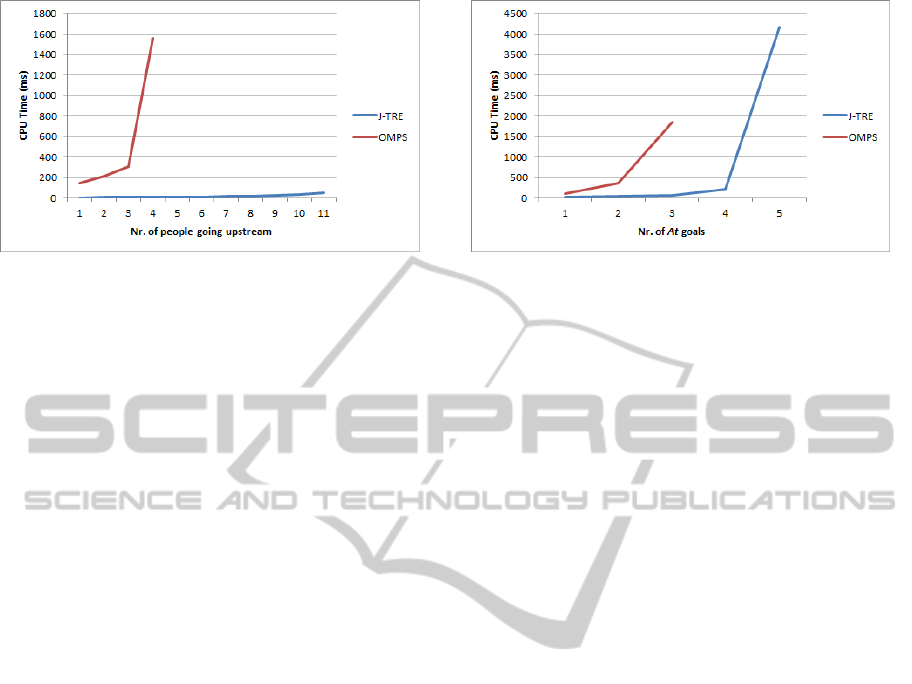

Figure 2: The skilift domain: J-TRE results compared with

OMPS 1.99 planner. The number of people that go upstream

on the abscissas and planning resolution procedure execu-

tion time on the ordinates.

predicate with parameter equal to the person id

and a relation that meets a predicate downstream

with the takeSkilift predicate. Finally, predicate

takeSkilift (p, s, e) has a compatibility requiring a du-

ration [50, + inf]. Initial state is constituted by a single

token downstream(x, 0, [1, +inf]) with x the id of the

person and a goal upstream([0, + inf], [1, + inf]). We

scale the problem by adding more people. Figure 2

shows execution time (in milliseconds) of our bench-

mark problem with increasing number of people go-

ing upstream on the horizontal axis. OMPS planner

requires, on average, too much time already at fourth

instance of problems.

The Walkin’ Robot Domain. The second domain

introduces a slightly more difﬁcult problem for time-

line based planners. We have a single state vari-

able with only two allowed values: At (x, y, s, e) and

GoingTo(x, y, s, e). There is a compatibility for pred-

icate At to have a duration of [10, +inf] and to start

at 0 or to be met by a GoingTo predicate with

same coordinates. Finally, a compatibility for pred-

icate GoingTo to have a duration of [10, +inf] and

to be met by a predicate At. While initial state

is constituted by a single token At (0, 0, 0, [1, + inf]),

we will incrementally add different goals of type

At(x

, y

, [0, +inf], [1, + inf]) and will let the planner

to solve the growing problem.

Figure 3 shows execution time (in milliseconds)

of our benchmark problem (having the number of At

goals on the abscissas). Although this problem may

seem easy (a similar problem, deprived of time, could

be solved in no time by classical planner), indeed

it requires quite hard planning and scheduling fea-

tures forcing the planner to chose an ordering between

goals scheduling At tokens as well as GoingTo ones.

The planner has to continuously chose the tokens with

whom to unify and has to manage disjunctions on the

Figure 3: The walkin’ robot domain: J-TRE results com-

pared with OMPS 1.99 planner. The number of visited lo-

cations on the abscissas and planning resolution procedure

execution time on the ordinates.

deﬁnition of compatibilities.

Despite complexity, J-TRE outperforms OMPS

but encounters difﬁculties in scaling up at the sixth in-

stance of the problem. This second type of domains,

requiring harder scheduling skills, identify a direction

of study for future developments.

7 CONCLUSIONS

Most common AI applications, as planning and

scheduling, require a high degree of parallelism in

order to consider simultaneously different available

evolutions. Current state-of-the-art SAT-solvers can

solve really complex problems in small time thanks

to no-goodlearning and non-chronologicalbacktrack-

ing mixed with efﬁcient propagation procedures and

dynamic variable ordering (Moskewicz et al., 2001).

Finally, adding preferences to SAT solving enables us

to cope with qualitative aspects of the obtained solu-

tions.

An advantage of our proposal is the possibility

of fast movements from one state to another taking

beneﬁt of similarities of different nodes of the search

space. From a technical point of view, the planner

implementation is signiﬁcantly simpliﬁed (e.g., we

created a new planner with a somehow limited time

effort) thanks to the implicit search space and, fur-

thermore, in the direct correspondence between con-

cepts and solvers. This will allow us to concentrate on

higher level aspects of search as domain independent

heuristics.

Nevertheless, this is a ﬁrst feasibility study in this

research direction and a lot of work remains to be

done. For what concerns our XDDL language, we

have to increase its modularity (as in NDDL (Jons-

son et al., 2000)) in order to allow the generation of

complex domains by end users. Also, the deﬁnition of

ICAART 2012 - International Conference on Agents and Artificial Intelligence

152

domain dependent heuristics will be subject of future

studies.

Loss of information due to our AC-3 implemen-

tation, that does not take care of distances between

time points can be extracted as well with already

known techniques having available active tokens and

relations. This information could be used to gen-

erate heuristics providing preferences on choices on

the search space. The hypothesis of using our AC-

3 algorithm to solve an all-pair-shortest-path has not

been investigated yet, although we think that using

already known techniques is a preferred choice. This

hypothesis, indeed, would provide useful information

for heuristics by slightly changing the architecture at

the cost of having an extra CSP variable for each cou-

ple of real CSP variable used by the planner in order

to maintain the distance between them. Cost that, in-

tuitively, will be signiﬁcantly high.

Execution time would deﬁnitely beneﬁt of a

tighter integration of SAT and CSP solvers coming

from most recent SMT techniques. CSP constraints,

for example, could be buffered and propagated all at

once after SAT propagation is ﬁnished. Finally, dis-

junctive qualitative temporal reasoning could be used

as a background infrastructure in order to add more

constraints to the SAT solver avoiding expensive CSP

propagation.

ACKNOWLEDGEMENTS

Authors are partially supported by EU under the PAN-

DORA project (Contract FP7.225387) and by MIUR

under the PRIN project 20089M932N (funds 2008).

Authors would like to thank Simone Fratini for joint

work on timeline-based planning and Andrea Orlan-

dini for comments to a previous version of the paper.

REFERENCES

Allen, J. F. (1983). Maintaining Knowledge about Temporal

Intervals. Commun. ACM, 26(11):832–843.

Bedrax-Weiss, T., McGann, C., and Ramakrishnan, S.

(2003). Formalizing Resources for Planning. In Pro-

ceedings of the Workshop on Planning Domain De-

scription Language at ICAPS-03, pages 7–14.

Bernardini, S. and Smith, D. (2007). Developing domain-

independent search control for EUROPA2. In Pro-

ceedings of the Workshop on Heuristics for Domain-

independent Planning at ICAPS-07.

Cesta, A., Oddi, A., and Smith, S. F. (2002). A Constraint-

based Method for Project Scheduling with Time Win-

dows. Journal of Heuristics, 8(1):109–136.

Dechter, R. (2003). Constraint Processing. Morgan Kauf-

mann.

Di Rosa, E., Giunchiglia, E., and Maratea, M. (2010). Solv-

ing Satisﬁability Problems with Preferences. Con-

straints, 15(4):485–515.

Een, N. and Sorensson, N. (2003). An Extensible SAT-

Solver. In Giunchiglia, E. and Tacchella, A., editors,

SAT, volume 2919 of Lecture Notes in Computer Sci-

ence, pages 502–518. Springer.

Erol, K., Hendler, J., and Nau, D. S. (1994). HTN Planning:

Complexity and Expressivity. In AAAI-94. Proceed-

ings of the Twelfth National Conference on Artiﬁcial

Intelligence.

Fox, M. and Long, D. (2003). PDDL2.1: An Exten-

sion to PDDL for Expressing Temporal Planning Do-

mains. Journal of Artiﬁcial Intelligence Research,

20:61–124.

Frank, J. and Jonsson, A. (2003). Constraint-Based At-

tribute and Interval Planning. Constraints, 8(4):339–

364.

Fratini, S., Cesta, A., Orlandini, A., Rasconi, R., and

De Benedictis, R. (2011). APSI-based Deliberation in

Goal Oriented Autonomous Controllers. In Proc. of

11th ESA Symposium on Advanced Space Technolo-

gies in Robotics and Automation (ASTRA).

Fratini, S., Pecora, F., and Cesta, A. (2008). Unifying Plan-

ning and Scheduling as Timelines in a Component-

Based Perspective. Archives of Control Sciences,

18(2):231–271.

Ghallab, M. and Laruelle, H. (1994). Representation and

Control in IxTeT, a Temporal Planner. In AIPS-94.

Proceedings of the 2nd Int. Conf. on AI Planning and

Scheduling, pages 61–67.

Jonsson, A., Morris, P., Muscettola, N., Rajan, K., and

Smith, B. (2000). Planning in Interplanetary Space:

Theory and Practice. In AIPS-00. Proceedings of the

Fifth Int. Conf. on AI Planning and Scheduling.

Marques-Silva, J. P., Silva, J. P. M., Sakallah, K. A., and

Sakallah, K. A. (1996). GRASP - A New Search Al-

gorithm for Satisﬁability. In Proceedings of the In-

ternational Conference on Computer-Aided Design,

pages 220–227.

Moskewicz, M. W., Madigan, C. F., Zhao, Y., Zhang, L.,

and Malik, S. (2001). Chaff: Engineering an Efﬁcient

SAT Solver. In Proceedings of the 38th Annual Design

Automation Conference, pages 530–535.

Muscettola, N. (1994). HSTS: Integrating Planning and

Scheduling. In Zweben, M. and Fox, M.S., editor,

Intelligent Scheduling. Morgan Kauffmann.

Sebastiani, R. (2007). Lazy Satisability Modulo Theories.

JSAT, 3(3-4):141–224.

Simonis, H. and Cornelissens, T. (1995). Modelling Pro-

ducer/Consumer Constraints. In CP-95. Proceedings

of the First International Conference on Principles

and Practice of Constraint Programming, pages 449–

462, London, UK. Springer-Verlag.

Smith, D., Frank, J., and Jonsson, A. (2000). Bridging the

Gap Between Planning and Scheduling. Knowledge

Engineering Review, 15(1):47–83.

Zhang, L., Madigan, C. F., Moskewicz, M. H., and Ma-

lik, S. (2001). Efﬁcient Conﬂict Driven Learning in

a Boolean Satisﬁability Solver. In ICCAD ’01. Pro-

ceedings of the 2001 IEEE/ACM international confer-

ence on Computer-aided design, pages 279–285, Pis-

cataway, NJ, USA. IEEE Press.

NEW REASONING FOR TIMELINE BASED PLANNING - An Introduction to J-TRE and its Features

153
