DATA TRAFFIC REDUCTION FOR MOBILE AGENT MIGRATION

Masayuki Higashino, Kenichi Takahashi, Takao Kawamura and Kazunori Sugahara

Graduate School of Engineering, Tottori University, Tottori, Japan

Keywords:

Mobile agent, Data trafﬁc reduction, Cache.

Abstract:

In this paper, we propose a method of reducing data trafﬁc on mobile agent migration. Mobile agents are able

to simplify network programming with autonomous process migration as compared with inter-process com-

munication. However, mobile agents increase data trafﬁc by transfer of program codes when migration. There-

fore, many researchers have proposed for reducing data trafﬁc on mobile agent system with agent behaviour.

These methods complicate the algorithm of agent behaviour. On the other hand, we focus on a mechanism

of mobile agent migration, and our method is fully independent from agent behaviour. Our method reduces

program code trafﬁc with cache on mobile agent runtime environment. We have implemented our technique

on a mobile agent framework, and experimented on a practical mobile agent system. As a result, the system’s

performance has improved to 52%.

1 INTRODUCTION

In recent years, various devices such as personal com-

puters, mobile phones, car navigation systems, televi-

sions and etc., are connected to the Internet. Addi-

tionally we are able to use wired (e.g., xDSL, FTTx)

or wireless (e.g., Wi-Fi, WiMAX) connections to the

Internet easily by improvement of networking infras-

tructures. Therefore, becoming a ubiquitous network

society is a reality. Advances in technology such as

RFID, sensor and etc., computers embedded in every

environmentare able to work together to autonomous.

Thus, the user will be able to receive services appro-

priate to the situation.

In order to develop a system that is constructed

with a wide variety of autonomous computers will

require a complex network programming. In a tra-

ditional network programming based on IPC (Inter-

process communication) such as Socket and RPC

(Remote Procedure Call), it is necessary to develop

a separate program for senders and receivers. If there

are changes to programs of senders or receivers then

it is necessary to change the programs on both sides.

It makes development of the system difﬁcult.

Therefore, a mobile agent technology has at-

tracted attention. Mobile agents simplify network

programming using autonomous process migrations

instead of inter-process communications. A Mobile

agent running on agent runtime environments (ARE)

built on computers, and it is able to migrate between

AREs. It is possible to develop network programs

without being aware of communications APIs (Appli-

cation Programming Interface) and communications

protocols by using the single concept of mobile agent

migration. A mobile agent is composed of a runtime

state and program codes and any other data. A mo-

bile agent transfers these elements together when mi-

grate between AREs. Therefore, a mobile agent is

able to continually process same tasks at before and

after migration. Thus, aggregated network programs

in mobile agents make it possible to easily develop

distributed systems.

However, mobile agents degrade the performance

of systems by increases of data trafﬁcs. Because

mobile agents transfer not only data but also a run-

time state and program codes. For this reason, many

agent behaviour algorithms have been studied to re-

duce the amount of trafﬁc behaviour (Chia and Kan-

napan, 1997; Jurasovic et al., 2006; Lee and Kim,

2008; Miyata and Ishida, 2008). However, these al-

gorithms are complex. Thus, it lowers the easiness of

developments.

In this paper, we propose a method to reduce traf-

ﬁc by improving the agent transfer mechanisms with

a caching, not the agent behaviour algorithms. The

agent is composed of a runtime state, program codes

set and arbitrary data. The runtime state and mem-

bers of program code set and arbitrary data changes

with the agent activities. In contrast, the each program

code is immutable data. The set of program codes is

351

Higashino M., Takahashi K., Kawamura T. and Sugahara K..

DATA TRAFFIC REDUCTION FOR MOBILE AGENT MIGRATION.

DOI: 10.5220/0003747403510354

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 351-354

ISBN: 978-989-8425-96-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

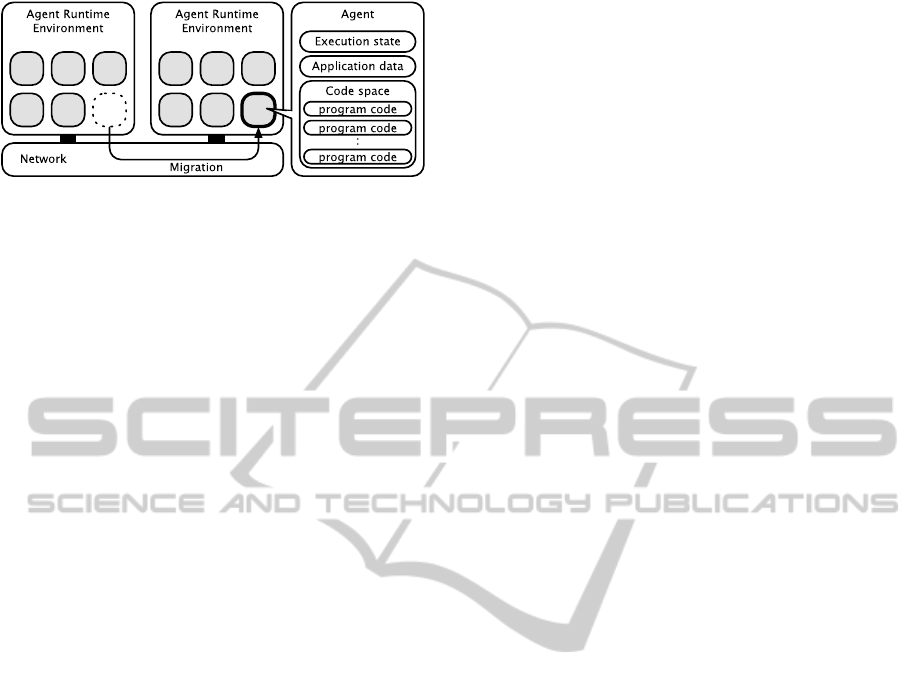

Figure 1: A mobile agent system overview.

constructed by immutable program codes. Therefore,

program codes are able to cache into AREs.

2 DESIGN

2.1 Mobile Agent System

Figure 1 shows an overview of a mobile agent sys-

tem. A mobile agent is able to running on AREs. The

agent is able to migrate to another AREs via networks.

The mobile agents consist of an execution state, appli-

cation data, and program codes. The execution state

contains variables such as call stack pointers, program

counters and more. It is ever changing while the mo-

bile agent is executing. The application data contains

various resources that depended on mobile agent sys-

tems. The code space contains program codes. The

program codes contain tasks of the mobile agent. The

mobile agent read and executes these program codes

dynamically. Such a mobile agent system is based

on Fuggetta’s executing units model (Fuggetta et al.,

1998).

2.2 Structure of Mobile Agent

The construct of the agent contains cacheable spaces

and un-cacheable spaces. The execution state can-

not be cached because they change from time to time

along with the behaviour of the agent. The applica-

tion data contains the data for a variety of implemen-

tation dependent mobile agent system, the possibil-

ity that the cache implementation dependent. Thus,

in this paper, we do not consider the application data

cache. In reality, the program code space is a set of

program codes such as subroutines and classes. These

program codes have a name. However, if we try to

manage program codes with just the name of the pro-

gram code, when the contents of the program code

has been rewritten, because it loads and executes a

program code is not intended to be the agent cannot

ensure cache coherency.

2.3 Identiﬁcation of Program Code

Therefore, in order to know that the content of the

program code is changed, the agent runtime environ-

ment manages program codes using not only their

names, but also their hash values as unique identiﬁers.

Thus, the agent runtime environment ensures pro-

gram code cache coherence between agents. In addi-

tion, without polluting the namespace between differ-

ent agents, that share program codes havesame names

but different contents, the agent runtime environment

is able to save memory usage.

2.4 Mobile Agent Migration with Cache

Figure 2 shows a sequence diagram of agent migra-

tion with program code caches. The source ARE

transfers an agent execution state, application data,

and a set of program code identiﬁers to the destina-

tion ARE. The destination ARE determines whether

program codes is cached in a local cache space us-

ing program code identiﬁers. If uncached program

codes exist then the destination ARE requests trans-

fer of uncached program codes from the source ARE.

Thus, the caching makes reduction of data trafﬁc on

agent migration.

3 IMPLEMENTS

We implemented our proposal method on Maglog

(Motomura et al., 2006). Maglog is our proposal mo-

bile agent framework. Its ARE is implemented in Java

and runs on Java Runtime Environment (JRE). The

agents are java objects that can run concurrently us-

ing threads.

The program code identiﬁer is generated using

a hash function (SHA-1) to Java bytecode. SHA-1

takes a program code less than 2

bits in length and

can produce a 160-bit identiﬁer. The probability of

that same hash value is created from different pro-

gram codes are extremely small.

The agent execution state, application data, pro-

gram code identiﬁer, and program code are converted

to the byte array by Java Object Serialization, and

transferred between AREs using HTTP/1.1.

4 EXPERIMENTS

4.1 Overhead of Cache Mechanism

In the case of an agent transfer using the cache mech-

anism, it requires the transfer of program code iden-

ICAART 2012 - International Conference on Agents and Artificial Intelligence

352

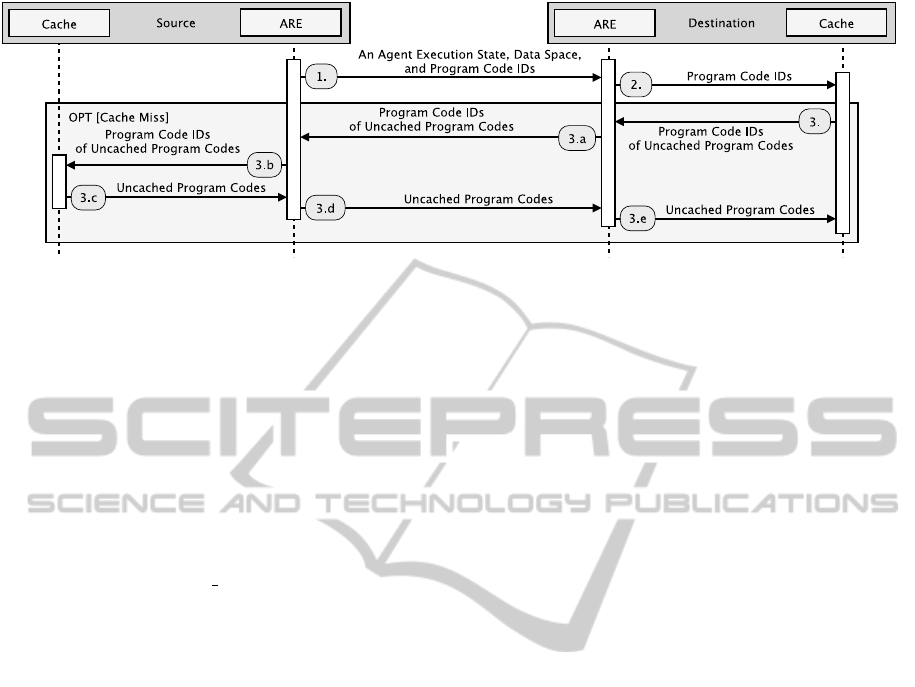

Figure 2: A sequence diagram of an agent migration with program code caches.

tiﬁers and the reference to cache space. Therefore,

The agent migration with cache is slower than without

cache on the ﬁrst an ARE. In other words, an overhead

of the cache mechanism become clear at the agent mi-

gration to the undiscovered ARE.

In order to conﬁrm the overhead of cache mecha-

nism, the agent migration time on a one-way migra-

tion was measured. The results ware obtained using

two computers of a Intel Core 2 Duo processor 2.66

GHz and 4 GB RAM. These two computers are con-

nected via Ethernet of 1000 BASE-T. An ARE of Ma-

glog runs on a JRE 1.6.0 17 on Mac OS X 10.6.2.

A mobile agent consists of 1020 program codes and

their total size is 842 kB.

Figure 4(a) shows the results of measurements. In

the ﬁrst agent migration, it shows the overhead of

caching. On the other hand, after second agent mi-

gration, the migration time is decrease by the caching

effect.

4.2 Effect of Cache on Agent Migration

Patterns

In order to conﬁrm the effect of proposed method on

various agent migration patterns as shown in the Fig-

ure 3, the agent migration time was measured by shut-

tle, round, star, and random pattern. The agents, the

computers, and the network speed used to measure

are the same as section 4.1.

Figure 4(b), Figure 4(c), and Figure 4(d) shows

results of agent migration time measurement on agent

migration patterns in the case of shuttle, round and

star. In the migration patterns of all, the migration

with cache is slower than the migration without cache

at the ﬁrst migration. However, after that, the migra-

tion with cache is faster than the migration without

cache.

Figure 5 shows results of migration time measure-

ment and regression curves on the random migration

pattern. As a migration times increases, the regres-

sion curves of migration with cache approach the re-

gression curves of migration without cache.

4.3 Effect of Cache on Practical System

We have experimented with a meeting scheduling sys-

tem (Kawamura et al., 2006) in order to evaluate the

effectiveness of the proposed method in practical sys-

tems.

This meeting scheduling system is developed with

Maglog. When a user intends to call a meeting, he

only inputs information about the meeting. On be-

half of the inviter, mobile agents move around each

invited user’s computer to ask whether he is able to

join the meeting and negotiate with him if necessary.

In this system, a large number of agents migrate over

the network. Thus, if users want to call many meeting,

it causes increasing the number of agents. As result,

the system performance degradation occurs.

The results shown have been obtained using 11

computers of Intel Pentium 4 processors 3.0 GHz with

1 GB RAM and connected via 1000 BASE-T Ether-

net. The ARE runs on JRE 1.5.0 on Turbolinux 10

(Kernel 2.6.0). The experiment measured the process-

ing time required to arrange meeting dates. However,

processing of user input required parts have substi-

tuted by dummy program.

In the result, In the ﬁrst trial, there is no difference

between with cache and without cache. However, in

the second trial, the migration without cache required

25 s. On the other hand, the migration with cache

required 12 s. From these results, the performance of

meeting scheduling system has improved to 52%.

5 CONCLUSIONS

In this paper, we propose a method of reducing data

trafﬁc on mobile agent migration. We focus on

a mechanism of mobile agent migration, and our

DATA TRAFFIC REDUCTION FOR MOBILE AGENT MIGRATION

353

(a) One-way pattern. (b) Shuttle pattern. (c) Round pattern. (d) Star pattern. (e) Random pattern.

Figure 3: Patterns of agent migration.

1000

2000

3000

1 2 3 4

Migration Time [msec]

Number of Trials

No Transfer

Without Cache

With Cache

(a) One-way pattern.

1000

2000

3000

4000

1 2 3 4

Migration Time [msec]

Number of Trials

No Transfer

Without Cache

With cache

(b) Shuttle pattern.

500

1000

1500

2000

1 2 3 4

Migration Time [msec]

Number of Trials

No Transfer

Without Cache

With Cache

1000

2000

3000

1 2 3 4

Migration Time [msec]

Number of Trials

No Transfer

Without Cache

With Cache

(d) Star pattern.

Figure 4: Results of agent migration pattern.

100

120

140

160

0 10 20 30 40 50 60 70 80 90 100

Migration Time [msec]

Number of Migration

No Transfer

Without Cache

With Cache

Figure 5: Results of random migration pattern.

method is fully independent from agent behaviours.

Our method reduce program code trafﬁc with cache

on mobile agent runtime environment.

We have implemented our technique on a mobile

agent framework, and experimented on a practical

mobile agent system. As a result, the performance

of system has improved to 52%.

REFERENCES

Chia, T.-H. and Kannapan, S. (1997). Strategically mo-

bile agents. In Proceedings of the First International

Workshop on Mobile Agents, pages 149–161, London,

UK.

Fuggetta, A., Picco, G. P., and Vigna, G. (1998). Under-

standing code mobility. IEEE Transactions on Soft-

ware Engineering, 24:342–361.

Jurasovic, K., Jezic, G., and Kusek, M. (2006). A per-

formance analysis of multi-agent systems. Interna-

tional Transactions on Systems Science and Applica-

tions, 1(4):335–342.

Kawamura, T., Motomura, S., Kagemoto, K., and Sugahara,

K. (2006). Meeting arrangement system based on mo-

bile agent technology. In Proceedings of the 2nd In-

ternational Conference on Web Information Systems

and Technologies, pages 117–120.

Lee, Y. and Kim, K. (2008). Optimal migration path search-

ing using path adjustment and reassignment for mo-

bile agent. In Proceedings of the 2008 Fourth Interna-

tional Conference on Networked Computing and Ad-

vanced Information Management, pages 564–569.

Miyata, N. and Ishida, T. (2008). Community-based load

balancing for massively multi-agent systems. In

Massively Multi-Agent Technology, volume 5043 of

Lecture Notes in Computer Science, pages 28–42.

Springer.

Motomura, S., Kawamura, T., and Sugahara, K. (2006).

Logic-based mobile agent framework with a concept

of “ﬁeld”. Journal of Information Processing Society

Japan, 47(4):1230–1238.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

354
