TURTLES AS STATE MACHINES

Agent Programming in NetLogo using State Machines

Ilias Sakellariou

Department of Applied Informatics, University of Macedonia, Thessaloniki, Greece

Keywords:

Agent simulation platforms, Agent programming languages.

Abstract:

Agent based modelling has received signiﬁcant attention in the recent years mainly due its wide adoption by

scientists in a number of ﬁelds. Although agent simulation platforms have proven to be quite mature and

expressive for modelling simple agents, little has been done regarding enhancing these platforms by higher

level agent oriented programming facilities. This work aims at this direction, i.e. an add-on library to a well

known simulation platform aiming at the speciﬁcation of complex high level agents, using state machines.

1 INTRODUCTION

Agent based modelling and simulation has been ex-

tensively used as a technique to study complex emer-

gent social and biological phenomena in many areas,

such as economics, biology, psychology, trafﬁc and

transportation etc. (Davidsson et al., 2007). This

growing interest led to the introduction of a number

of agent modelling and simulation tools (Nikolai and

Madey, 2009).

NetLogo (Wilensky, 1999) is such a platform and

is regarded as one of the most complete and suc-

cessful agent simulation platforms (Railsback et al.,

2006). Although, excellent for developing reactive

agent simulations, it lacks the facilities to easily

model more complex agents. There is only one work

reported (Sakellariou et al., 2008) towards the latter,

that offered a framework for message exchange and a

simple mechanism for specifying persistent intentions

and beliefs (PRS like).

This paper presents the TSTATES (Turtle-States)

library that follows a different approach, similar to

those that have been used mainly in robotics and

RoboCup teams to control the behaviour of agents

(turtles), i.e. we describe the latter through a form

of state machines. TSTATES offers a domain speciﬁc

language to specify agent state machines and an exe-

cution layer for running such speciﬁcations in NetL-

ogo. Being able to encode more sophisticated NetL-

ogo agent models could extended the platform’s ap-

plicability to a number of domains.

2 NETLOGO STATE MACHINES

NetLogo can be an ideal platform for initial prototyp-

ing and simulation of multi-agent systems, provided

these systems have some spatial dimension and con-

sist of relatively simple agents that react to environ-

ment “events”. Three entities participate in a NetL-

ogo simulation: the observer, that initiates/controls

the simulation; patches, i.e. components of a grid

(world), and turtles that are agents that “live” and in-

teract in the world, which can be organised in breeds.

Both patches and turtles carry their own state, stored

in a set of system or user deﬁned agent variables, that

allow modelling of complex environments and be-

haviours. Encoding agent behaviour is accomplished

in a domain speciﬁc programming language and rea-

soning about time is supported through ticks, each

corresponding to a discrete execution step. Finally,

tasks are a signiﬁcant extension introduced in NetL-

ogo 5, that offer execution of code stored in a variable.

The TSTATES library aims at extending NetLogo

by allowing to encode agents controlled by state ma-

chines, in which transitions are labelled with by ac-

tions and have the following form:

(State, Condition

) ⇒ (Action

, Next State

)

The library supports encoding transitions like the

above in the following form:

state <StateName>

# when <Cond 1> do <Act 1> goto <Next_State 1>

...

# when <Cond i> do <Act i> goto <Next_State i>

end-state

In the above, a state deﬁnition is included between

375

Sakellariou I..

TURTLES AS STATE MACHINES - Agent Programming in NetLogo using State Machines.

DOI: 10.5220/0003753703750378

In Proceedings of the 4th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2012), pages 375-378

ISBN: 978-989-8425-96-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

keywords

state

and

end-state

and the keywords

when

and

goto

specify a transition deﬁnition, a

condition, an action and the target state respectively.

A string representation of any valid NetLogo

boolean reporter (function) can act as a condition.

Thus the user can develop model speciﬁc agent “sen-

sors” or use platform supported reporters to trigger

transitions. Special library conditions include:

•

otherwise

that always evaluates to true,

•

for-n-ticks <n>

which evaluates to true for n

ticks after the state was last entered,

•

after-n-ticks <n>

which constantly evaluates

to true n ticks after the last activation of the state,

•

on-failure

and

on-success

are two special

conditions discussed below.

Similarly to conditions, actions are string repre-

sentations of any valid NetLogo procedure. This in-

tegration with the underlying platform, allows deﬁni-

tion of agent “actuators” in the latter and organisation

of agent behaviour using state machines. The special

library action

nothing

deﬁnes transitions that are not

labelled with an action. Finally, states can share infor-

mation using turtle’s own variables, in a similar man-

ner as in (Konolige, 1997).

The keyword

goto

speciﬁes the transition’s tar-

get state, one that belongs to the same state ma-

chine. Another kind of transition supported is that

of invoking a different state machine, using the

activate-machine

keyword. The library supports

the concept of callable state machines, i.e. machines

that can be invoked by a transition and terminate re-

turning a boolean result. The concept is similar to

nested functions, in the sense that when such a ma-

chine terminates, “control” returns to the state that

invoked the machine. Each callable state machine,

has to include at least a

success

or a

failure

pseu-

dostate to terminate its execution. Upon termina-

tion, the calling state can optionally activate transi-

tions on the result returned, by employing the spe-

cial

on-success

and

on-failure

transitions condi-

tions. Currently the implementation allows only one

such machine to be invoked by a single state and

nested invocations for machines can reach any level.

Callable machines can signiﬁcantly reduce the num-

ber of states required and provide the means to deﬁne

agent template behaviours.

Within a state, the order of transitions is impor-

tant, since the execution layer evaluates conditions in

the order that they appear, ﬁring the ﬁrst transition

whose condition is satisﬁed. Transition ordering al-

lows behaviour encoding using less complex condi-

tions. A machine is a NetLogo list of state deﬁnitions,

with the ﬁrst state in the list being the initial state.

2.1 Communicating MARS Explorer

To illustrate the use of the library, a modiﬁed ver-

sion of the Mars Explorer agent (Steels, 1990) is em-

ployed. In that a number of robotic vehicles (col-

lectors) have the task of exploring a distant planet

and collecting samples that have to bring back to a

base. The terrain has obstacles that must be avoided

and collectors themselves present obstacles to one an-

other. We assume that collectors are aware of the ex-

act location of the base. The agent model as a state

machine is shown in ﬁgure 1.

Avoiding an obstacle is a somewhat complex

behaviour according to which agents must try for

some time (10 ticks) to get far away from an obsta-

cle. If the agent succeeds in reaching a clear area

(with no

obstacle-around

) the behaviour (machine)

succeeds, otherwise the agent tries to “drive” clear

once more. This behaviour has to be invoked by

all states that involve moving around in the world

and thus it is encoded as a callable state machine

(

get-away-from-obstacles

), as shown in ﬁgure 1.

The corresponding TSTATES code is shown below:

to-report state-def-of-get-away-from-obstacle

report (list

state "finding-a-clear-space"

# when "detect-obstacle" do "change-heading"

goto "finding-a-clear-space"

# for-n-ticks 10 do "fd 0.2"

goto "finding-a-clear-space"

# otherwise do "nothing"

goto "check-space-cleared"

end-state

state "check-space-cleared"

# when "obstacle-around" do "nothing"

goto "finding-a-clear-space"

# otherwise do "nothing" success

end-state) end

Having a large number of collectors operating in

the environment, leads to a situation where all agents

compete in their attempt to reach the base to unload

samples. As a consequence a large number of agents

gather around the base, preventing each other from

achieving their goal. In order to prevent such a phe-

nomenon, a simple coordination mechanism was im-

posed using symbolic message exchange by employ-

ing the library described in (Sakellariou et al., 2008).

The coordination scheme is rather simple: the base

acts as a central authority and agents have to wait for

permission before moving to the base. When a collec-

tor drops off its samples, it notiﬁes the base so that the

latter can grant permission to another waiting agent.

A fragment of the corresponding NetLogo code is

shown below. The name of the NetLogo reporter in-

dicates the breed of agents whose behaviour is spec-

iﬁed. In the example, checking the same conditions

ICAART 2012 - International Conference on Agents and Artificial Intelligence

376

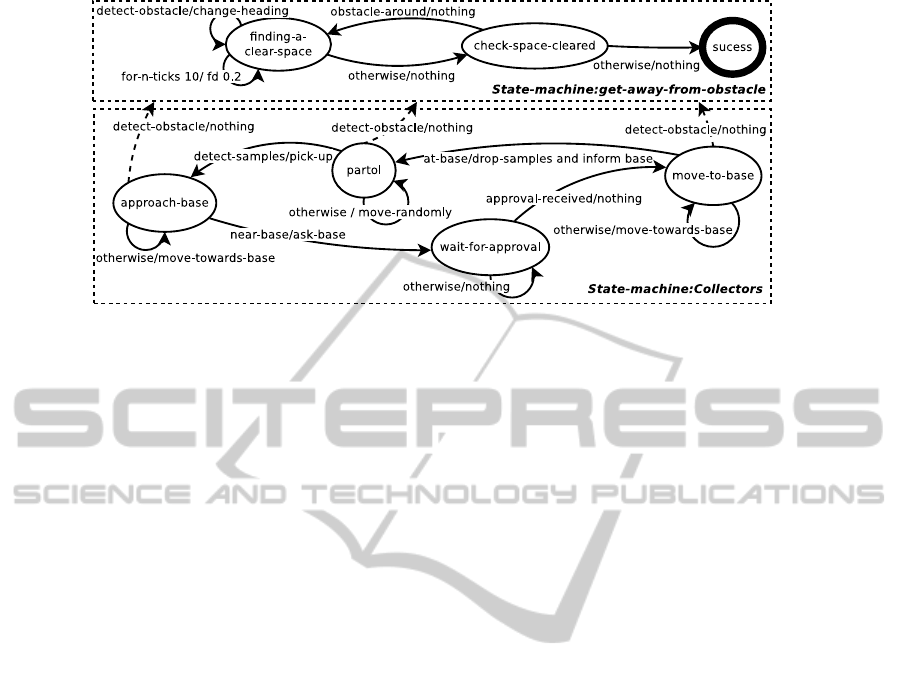

Figure 1: The cooperative Mars collector agent. The state machine above servers as a good example of reusability, since the

get-away-from-obstacle behaviour is reused in three other states.

twice at state “move-to-base” is avoided by exploit-

ing the transition ordering and the

otherwise

special

condition. As seen from the code, encoding state ma-

chines in TSTATES is a straightforward task.

to-report state-def-of-collectors

report (list

state "patrol"

# when "detect-obstacle" do "nothing"

activate-machine "get-away-from-obstacle"

...

end-state

state "approach-base"

...

state "wait-approval"

...

state "move-to-base"

# when "detect-obstacle" do "nothing"

activate-machine "get-away-from-obstacle"

# when "at-base" do "drop-samples inform-base"

goto "patrol"

# otherwise do "move-towards-base"

goto "move-to-base"

end-state) end

2.2 Implementation

We choose to implement the TSTATES library in the

NetLogo programming language, mainly due to the

fact that such a choice allows its effortless inclusion in

any NetLogo model, and easy modiﬁcation of the li-

brary primitives offered. The implementation heavily

depends on the notion of tasks: each machine speci-

ﬁcation is encoded by the user as a NetLogo reporter

that is transformed to an executable form (task) by ap-

propriate function invocations and stored in the corre-

sponding data structures.

For each turtle that uses state machines, three

stacks are deﬁned as turtle’s own variables: (a) the

active-states stack that holds the set of states that have

not yet terminated along with necessary information

concerning each state; the active-states-code stack

that holds the corresponding code for each state, and;

chine to which each state in the active states stack cor-

responds to. Obviously the top of each of the stacks

determines the behaviour of the agent.

The library procedure

execute-state-machine

is the only thing that needs to be called by the tur-

tle to execute its speciﬁed behaviour. The ﬁrst time

the procedure is invoked, it loads the initial state of

the machine that matches the breed of the turtle. The

procedure executes only one action at each cycle, a

necessity imposed by the fact that the ask turtles Net-

Logo primitive imposes a sequential order on the ex-

ecution of agents, waiting for one to ﬁnish before ini-

tiating the next. Additionally, ticks would not work

otherwise.

3 RELATED WORK

Many approaches reported in the literature adopt ﬁ-

nite state machines to control agent behaviour. For

example in (Loetzsch et al., 2006) (Risler and von

Stryk, 2008) authors describe a speciﬁcation lan-

guage, XABSL for deﬁning hierarchies of state ma-

chines concerning complex agent behaviours in dy-

namic environments. According to the approach, op-

tions, i.e. state machines, are organised through suc-

cessive invocations in a hierarchy, an acyclic graph

consisting of options, with the leaf nodes being ba-

sic behaviours (actions). Traversal of the tree based

on external events, state transition conditions and past

option activations, leads to a leaf node that is an ac-

tion. XABSL was employed by the German RoboCup

robot soccer team with signiﬁcant success.

TURTLES AS STATE MACHINES - Agent Programming in NetLogo using State Machines

377

COLBERT (Konolige, 1997) is an elegant C like

language deﬁning hierarchical concurrent state ma-

chines. It supports execution of activities (i.e. ﬁnite

state automata) that run concurrently possibly invok-

ing other activities and communicate through a global

store or signals. Agent actions include robot actions

and state changes, and all agent state information is

recorded in the Saphira perceptual space. eXAT (Ste-

fano and Santoro, 2005) models agent tasks using

state machines, that can be “activated” by the rule

engine of the agent. eXAT tasks can be combined

sequentially or concurrently, allowing re-usability of

the deﬁned state machines. Fork and join operators

on concurrent state machine execution exist that al-

low composition of complex tasks.

TSTATES library provides some of the above

mentioned features and lacks others. State

machine invocation is possible through the

activate-machine

primitive, but concurrent

execution as that is deﬁned in COLBERT and XABSL

is missing. Concurrent actions, although clearly

a desired property in a real-world robotic system,

might not be suitable for agent simulation platforms

and especially for NetLogo. In the latter, fairness

among agents in the simulation is provided by

ensuring that at each cycle one action is executed.

However, having multiple concurrent active states is

a future direction of the TSTATES library, possibly

incorporating some sort of priority annotation on

the actions that would allow at the end to have a

single action as the outcome of the process. Finally,

although similar agent behaviours could be encoded

in the RePast (North et al., 2007) agent simulation

platform, such a task would require more effort by

a scientist not familiar with JAVA programming to

create an experiment.

4 CONCLUSIONS

The TSTATES library is a ﬁrst attempt to a more so-

phisticated control of NetLogo turtles, that presents

a number of beneﬁts: simple behaviour speciﬁcation

and seamless integration with the NetLogo language

primitives, resulting in no expressivity loss w.r.t. the

agent models that can be encoded. We intend to ex-

tend the current approach in a number of ways:

• support the execution of concurrent active states

and possibly fork and join composition operators

on machine invocation,

• investigate how state machine behaviours can

be combined with concepts of current BDI ap-

proaches to programming agents, (as in eXAT),

• provide debugging facilities in NetLogo.

As a ﬁnal note, simulation platforms can be an

good testbed for the initial evaluation of new agent

programming languages, since they allow their as-

sessment in gradually more sophisticated “complete”

agent environments.

REFERENCES

Davidsson, P., Holmgren, J., Kyhlbck, H., Mengistu, D.,

and Persson, M. (2007). Applications of agent based

simulation. In Multi-Agent-Based Simulation VII,

volume 4442 of Lecture Notes in Computer Science,

pages 15–27. Springer Berlin / Heidelberg.

Konolige, K. (1997). Colbert: A language for reactive con-

trol in sapphira. In KI:Advances in Artiﬁcial Intel-

ligence, volume 1303 of Lecture Notes in Computer

Science, pages 31–52. Springer.

Loetzsch, M., Risler, M., and Jungel, M. (2006). Xabsl

- a pragmatic approach to behavior engineering. In

Intelligent Robots and Systems, 2006 IEEE/RSJ Inter-

national Conference on, pages 5124 –5129.

Nikolai, C. and Madey, G. (2009). Tools of the trade:

A survey of various agent based modeling platforms.

Journal of Artiﬁcial Societies and Social Simulation,

12(2):2.

North, M. J., Howe, T. R., Collier, N. T., and Vos, J. R.

(2007). A declarative model assembly infrastructure

for veriﬁcation and validation. In Advancing Social

Simulation: The First World Congress. Springer, Hei-

delberg, FRG.

Railsback, S. F., Lytinen, S. L., and Jackson, S. K. (2006).

Agent-based simulation platforms: Review and devel-

opment recommendations. SIMULATION, 82(9):609–

623.

Risler, M. and von Stryk, O. (2008). Formal behavior speci-

ﬁcation of multi-robot systems using hierarchical state

machines in XABSL. In AAMAS08-Workshop on For-

mal Models and Methods for Multi-Robot Systems.

Sakellariou, I., Kefalas, P., and Stamatopoulou, I. (2008).

Enhancing Netlogo to Simulate BDI Communicating

Agents. In Artiﬁcial Intelligence: Theories, Models

and Applications, volume 5138 of Lecture Notes in

Computer Science, pages 263–275. Springer Berlin /

Heidelberg.

Steels, L. (1990). Cooperation between distributed agents

through self-organisation. In Towards a New Fron-

tier of Applications, Proceedings of the IEEE Inter-

national Workshop on Intelligent Robots and Systems

(IROS’90), pages 8–14.

Stefano, A. and Santoro, C. (2005). Supporting agent devel-

opment in Erlang through the eXAT platform. In Soft-

ware Agent-Based Applications, Platforms and De-

velopment Kits, Whitestein Series in Software Agent

Technologies and Autonomic Computing, pages 47–

71. Birkhuser Basel.

Wilensky, U. (1999). Netlogo. Center for Con-

nected Learning and Computer-based Mod-

elling. Northwestern University, Evanston, IL.

http://ccl.northwestern.edu/netlogo.

ICAART 2012 - International Conference on Agents and Artificial Intelligence

378
