INDOOR EVALUATION OF CROP ROW AND GRID DETECTION

System for an Automated Transplanter

J. Reumers

, F. De Smedt

, J. Anthonis

, H. Ramon

and T. Goedem

Department for Agro-Engineering and Economics, K.U. Leuven, Kasteelpark 30, 3001 Leuven, Belgium

EAVISE, Lessius Mechelen, Association K.U.Leuven, De Nayerlaan 5, 2860 Sint-Katelijne-Waver, Belgium

Keywords:

Agriculture, Crop detection, Vehicle guidance, Transplanter.

Abstract:

If crops with considerable spacing can be arranged in a precise rectangular pattern, mechanical weeding can

become an alternative to chemical methods by enabling treatment in two perpendicular directions. Realisation

of such a pattern requires innovation of seedling transplanters. A computer vision-based sensing system was

developed for detecting a transplanters posture relative to the crop. A method for indoor evaluation of the

systems accuracy is proposed, using an experimental cart on a set of rails to control the vehicle’s posture. The

method was successful in evaluating the estimates of the lateral offset and the heading angle, but the reliability

of the validation values for the longitudinal distance is limited. Tests results showed that the maximum error

on the measurements of the lateral offset is 1.5cm and that the standard deviation is smaller than 0.6cm. The

maximum error on the angle measurements is 2.1

◦

. The standard deviation of the error is smaller than 0.65

◦

The standard deviation of the error on the estimates of the longitudinal distance is typically 0.7cm.

1 INTRODUCTION

An integrated approach could promote mechanical

weed control to become an efﬁcient, adequate alter-

native to traditional chemical treatment in crops with

considerable spacing. If the crop can be arranged in a

regular rectangular planting pattern, the applicability,

working rate and effectiveness of inter-row weeding

increases and mechanical treatment becomes possi-

ble in a second, perpendicular direction. This would

circumvent the problem of weed removal in the rows

and would considerably increase the percentage area

treated (Schoenﬁsh and Billingsley, 1993),(Søgaard

and Olsen, 2003). Arrangement of the crop according

to a precise rectangular grid is currently not possible.

In (Reumers et al., 2005a) a vision-based sensing sys-

tem for an automated seedling transplanter was pre-

sented. This crop detection system provides the pos-

ture information (two-dimensional position and ori-

entation relative to the crop) required to control the

transplanter for realisation of regular grid pattern. It

might also be applied in early growth stages for guid-

ance of mechanical weeders to improve the qual-

ity and working rate of the treatment. Automation

of transplanting and weeding will improve operator

comfort as well, by relieving him from the repetitive

and tiring low-level tasks, enabling him to concentrate

on supervising functions, multitasking, the working

performance of the implement and machine safety.

Plant speciﬁc treatment in early stages of crop devel-

opment is another possible application domain (Tillet

et al., 2002).

The computer vision system measures three pa-

rameters that deﬁne the posture of the vehicle or im-

plement: the heading angle relative to the crop rows,

the lateral offset O relative to the crop row next to the

vehicle and the distance N along the driving direction

to the next plant position. (Reumers et al., 2005b)

conducted outdoor trials of the system. It was capa-

ble of detecting and tracking the crop grid under real

ﬁeld conditions with natural illumination, but the ac-

curacy of measurements could be evaluated only for

the lateral offset. In this paper an indoor evaluation

procedure is presented and test results are analysed.

2 METHODOLOGY

2.1 Vision System Hardware

A commercially available RGB/CIR camera was se-

lected (DuncanTech MS-2150). This 3 CCD camera

acquires images consisting of 4 colour planes: NIR

(768-832 nm), red (640-680 nm), green (520-560 nm)

and blue (438-482 nm).

559

Reumers J., Smedt F., Anthonis J., Ramon H. and Goedemé T. (2012).

INDOOR EVALUATION OF CROP ROWAND GRID DETECTION - System for an Automated Transplanter.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 559-563

DOI: 10.5220/0003764505590563

 SciTePress

A spatial calibration method was reported in

(Reumers et al., 2005b) is used for the construction

of a transformation table for fast conversion of image

coordinates to real world coordinates. The displace-

ment between successive images is used to accelerate

the image processing algorithms and to provide more

robustness to illumination variations and to weeds.

2.2 Crop Detection Program

The crop detection system we propose is robust to

a wide range of natural conditions, highly variable

in intensity and spectral content, both over time and

space. A large range of soil and crop types (both

green and non-green) can be dealt with. Soil cover-

age by the seedlings is very small upon transplanting,

sometimes less than 1%. In horicultural applications,

the space between plants can be large, which forms

an extra objective (Southall, 1999). The image anal-

ysis algorithms are developed speciﬁcally to exploit

the contextual information of this situation.

The main features of the image-processing loop

are segmentation, line or grid ﬁtting and determina-

tion of search region positions. The segmentation is

based on the normalised difference vegetation index

(De Smedt et al., 2011). This technique combines the

red and near-infrared information. Over monochrome

NIR images, the use of the NDVI offers the advantage

of much higher robustness to changes in illumination

intensity. The use of automatic thresholding is suffer-

ing from the low percentage of soil coverage by the

crop. Therefor at program initiation, a ﬁxed empirical

threshold level is used. Once sufﬁcient plants are de-

tected, search regions are constructed. The increased

soil coverage inside the search regions allows the use

of automatic thresholding. This unique approach in-

troduces exceptional robustness to changes in illumi-

nation intensity and even spectral content.

The plants within the ﬁeld of view should not

touch or overlap each other and the size of the weeds

close to the crop must be smaller than the size of the

crop for a correct segmentation. Upon transplanting

of seedlings and during early crop development stages

these conditions are met.

Plant positions in a new image are predicted based

on their previous position and vehicle displacement.

The predicted positions determine the search regions

locations. New search regions are deﬁned at the lo-

cation where new plants will enter the side of view.

This approach prevents the need to process the entire

image and analyse only the relevant information.

In the binary image resulting from the segmenta-

tion step, individual plants are identiﬁed based on size

and position. The plant centres are chosen to repre-

sent plant positions. The detected plant positions are

used to ﬁt lines marking crop row positions. Both a

line ﬁt method and a grid ﬁt method are implemented,

based on least squares to minimise the distance be-

tween the ﬁtted line/grid and the plant positions.

The line method ﬁts a line for each row separately

and then integrates this information by the calculation

of parameter averages, weighed according to the num-

ber of plants in each row. The equations of the ﬁtted

lines allow the calculation of the desired output values

O, θ and N. The grid ﬁt technique increases robust-

ness and accuracy by integrating all two-dimensional

information of plant positions in a single optimisa-

tion. Still it is possible to perform a trade-off between

the accuracy importance of the longitudinal rows and

the accuracy importance of the lateral rows. The grid

ﬁt method needs to be initialised by a previous grid

position estimate, which can be provided by the line

ﬁt method. Note that both ﬁt methods are performed

in the real world coordinate system. Some of the out-

put signals show high frequency noise, probably due

to camera vibrations and the nature of the application.

This can be solved by the use of a low-pass ﬁlter.

2.3 Indoor Evaluation Tests

For our experiments, we use a setup of two rails (18m)

on which an experimental vehicle is able to ride. In

between these rails soil was spread and two rows of

lettuce were planted (32 plants), according to a rect-

angular grid. This setup allows a very accurate valida-

tion of the measurement data. Two different camera

mountings where applied on the vehicle (ﬁgure 1).

During a test the vehicle was pushed manually

in order to move the vision system along the crop

rows. All experiments were conducted at four dif-

ferent driving speeds named slow (0.4 to 0.5m/s),

medium (0.7 to 1.0m/s), fast (1.3 to 1.6m/s) and very

fast (2.1 to 2.3m/s). To prevent motion blur, six halo-

gen lights (500W) where used to decrease integration

time. These are mounted on the vehicle.

To obtain validation data, the following proce-

dures were followed. Since the orientation of the cam-

era relative to the rails, and hence relative to the crop

rows, is constant during a test, the validation value of

the heading angle θ is constant for a certain camera

mounting as well. Moreover, both the crop rows and

the calibration pattern are placed parallel to the rails.

Consequently the validation value of the heading an-

gle θ is equal to 0, as during spatial calibration the

coordinate system is deﬁned parallel to the pattern.

Note that the camera need not be aligned with the

rails. This is a big advantage, since perfect alignment

is hard to achieve. The point of interest for which

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

560

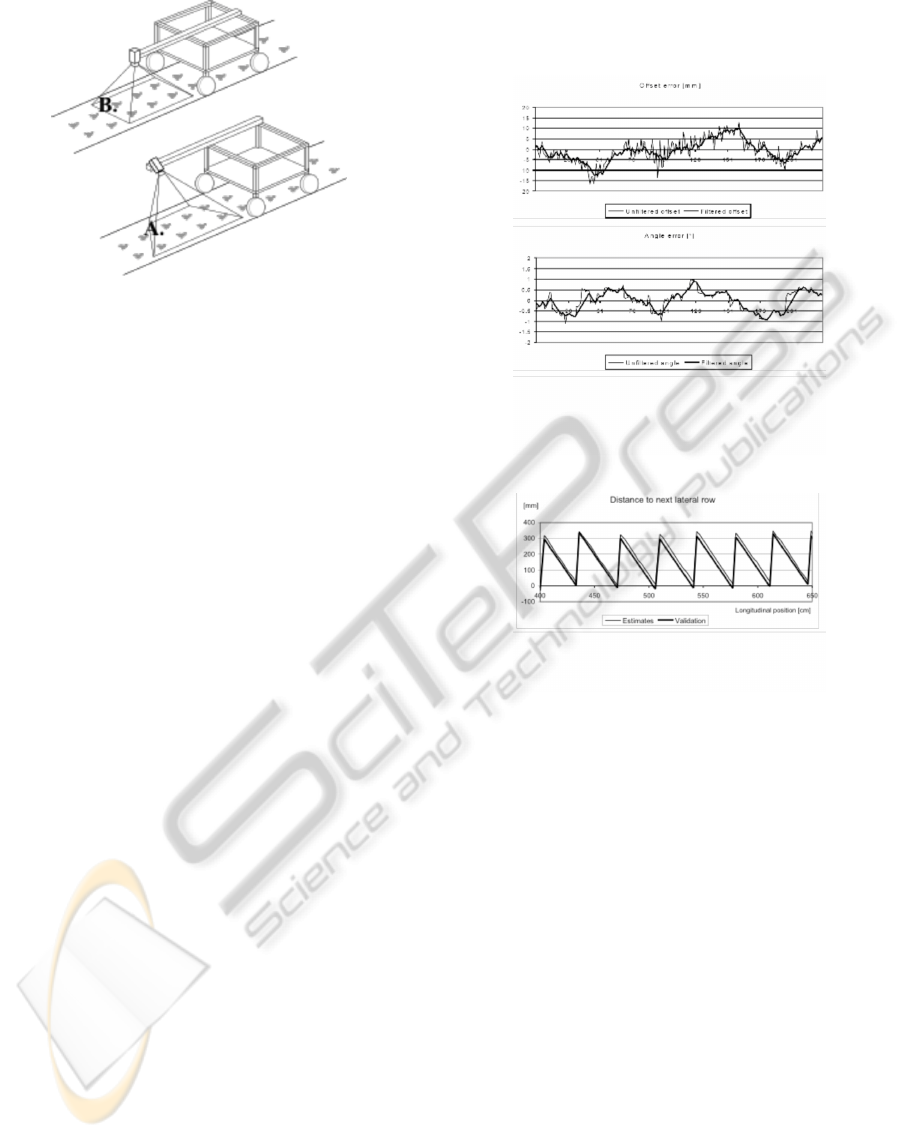

Figure 1: Camera mountings: A. Vertical, B. Sidewards.

the posture estimates are calculated was chosen to be

the centre of the ﬁeld of view (the point of projec-

tion of the optical axis of the camera). The validation

value of the lateral offset O of the camera is a con-

stant for a certain mounting as well. It is the distance

between the centre of the ﬁeld of view and the longi-

tudinal reference crop row. This distance is equal to

the difference between the measured distances of the

centre of the ﬁeld of view and the reference row, both

relative to the left rail. As the validation values for

O and θ are constants, problems with linking or syn-

chronisation of measurements and validation data are

not an issue. For validation purposes, the longitudinal

position of the vehicle is measured using an optical

sensor. This sensor measures the distance from the

starting point based a strip of paper on the ﬂoor with

alternating black and white stripes. The accuracy of

the position measurement is 1cm. The system proved

to be very reliable.

Relative to the same starting point, the longitudi-

nal positions of the plants were measured manually,

using the strip with black and white stripes as a ruler.

For evaluation, each of the distances N to the next

lateral row computed by the crop detection program

was logged together with corresponding counter val-

ues. These counter values are read prior to locking the

most recent frame for processing. During a validation

test, the vehicle is driven across the rails. Starting

from the ﬁrst black line on the paper strip, the counter

starts monitoring the longitudinal position of the ve-

hicle. For each processed image the longitudinal po-

sition measured by the optical sensor and the posture

parameters calculated by the vision system are saved

to a log ﬁle. Validation can be done by comparing the

calculated and measured values.

3 RESULTS AND DISCUSSION

The accuracies of O, N and θ were analysed for a side-

ways camera moved at medium speed.Figure 2 shows

the results from the comparison of the crop detection

estimate to the validation data.

Figure 2: Sample of the course of the unﬁltered and ﬁltered

offset error (above) and the angle error (below) as a func-

tion of the number of images processed (sidewards camera

mounting, grid ﬁt method, medium speed).

Figure 3: Comparison of the estimated distance to the next

lateral row N and the corresponding validation values as

a function of the longitudinal position (sidewards camera

mounting,grid ﬁt method, medium speed).

Figure 3 compares the estimated distances to the

next lateral row N to their corresponding validation

values. The estimates are shifted to the right due to a

potential systematic error of the system and the time

delay between acquisition of the validation data and

the corresponding images.

The statistics of the errors on estimates of O and

θ are given in table 1 and table 3. We will present

the results for ﬁltered values obtained by the grid ﬁt

method, since these gives the best results. The given

results for N are taken on unﬁltered data.

Table 1 present the statistics of the ﬁltered off-

set estimates. Both the standard deviation and the

maximum error are considerably smaller than those of

the unﬁltered data. The systematic deviations remain

generally unchanged. There is no clear inﬂuence of

camera mounting.

The accuracy of the angle measurements can be

judged with the help of table 3. We can observe that

the inﬂuence of the driving speed is minimal. Side-

wards camera mounting is slightly better than verti-

cal mounting using the grid ﬁt method. Table 2 sum-

INDOOR EVALUATION OF CROP ROWAND GRID DETECTION - System for an Automated Transplanter

561

Table 1: Offset, grid method, ﬁltered data.

Camera mounting Vertical Sidewards

Driving speed Average error [mm] St. Devation [mm] Max Abs error [mm] Average error [mm] St. Deviation [mm] Max abs. error [mm]

Slow 8.5 10.9 40.0 17.9 7.2 37.5

Medium 21.7 10.2 51.6 23.2 7.3 51.4

Fast 38.0 10.0 65.5 48.7 7.1 68.6

Very fast 58.4 14.6 95.3 72.9 11.3 101.6

Table 2: Distance to next lateral row, grid ﬁt method.

Camera mounting Vertical Sidewards

Driving speed Average error [mm] St. Devation [mm] Max Abs error [mm] Average error [mm] St. Deviation [mm] Max abs. error [mm]

Slow -0.42 0.65 2.11 -0.19 0.56 1.58

Medium -0.38 0.63 1.85 -0.21 0.52 1.49

Fast -0.39 0.52 1.54 -0.22 0.45 1.08

Very fast -0.26 0.61 1.28 -0.15 0.39 0.93

Table 3: Angle, grid ﬁt method, ﬁltered data.

Camera mounting Vertical Sidewards

Driving speed Average error [

◦

] St. Devation [

◦

] Max Abs error [

◦

] Average error [

◦

] St. Deviation [

◦

] Max abs. error [

◦

]

Slow -4.3 5.3 14.4 -2.8 5.8 15.2

Medium -3.5 5.0 14.8 -2.4 5.5 14.6

Fast -3.2 4.4 12.8 -2.5 4.6 13.0

Very fast -2.1 3.2 8.4 0.5 4.4 9.9

Table 4: Compensated maximum errors on the distance to the next lateral row[mm].

Camera mounting Vertical Sidewards

Driving speed Grid ﬁt method Line ﬁt method Grid ﬁt method Line ﬁt method

Slow 31.5 31.3 24.2 25.9

Medium 3.4 34.3 24.8 20.8

Fast 27.5 31.7 20.8 18.9

Very fast 36.9 39.8 28.7 27.4

marise the results of the distance estimates N to the

next lateral row. The systematic deviations and maxi-

mum errors are considerably increasing with increas-

ing driving speed. This is due to the lack of synchro-

nisation of the acquisition of images and the retrieval

of counter values. This can lead to a difference up

to 10cm between the measured position by the opti-

cal sensor and the real position. This combined with

the absence of a real-time operating system can lead

to very big errors. These extreme outliers have been

removed for the calculation of the statistics.

As the experimental vehicle was driven manually,

speed was never constant during a test. Especially at

the highest speed a large part of the posture estimates

are generated while accelerating or braking. Conse-

quently, the difference between validation value and

real position at the moment of image acquisition is not

constant during execution of a test. This increases the

standard deviations, as can be seen in table 2. With

proper synchronisation these will be smaller. The

systematic deviations will be eliminated for the most

part. This can be simulated by compensating the max-

imum errors for the systematic deviation. This is done

by subtracting the average errors from the maximum

errors. The compensated maximum errors (table 4)

are considerably smaller than the non-compensated

values.

4 CONCLUSIONS

A vision-based posture system has been developed for

the detection of crop row and grid detection, which

can be used for many applications. We proposed a

line ﬁt method and a grid ﬁt method. We evaluated

these on a indoor setup at different speeds. During

the evaluation tests the system never lost track of the

crop pattern. We observed better results from the use

of the grid ﬁt method, while no performance differ-

ence is observed. This indicates the higher stability

and inherent accuracy of the grid ﬁt method. The

(unﬁltered) estimates of the longitudinal distance of

both methods are equivalent. The inﬂuences of cam-

era mounting and vehicle speed on system accuracy

were not clear.

The posture measurements by the vision system

are sufﬁciently accurate in general, especially when

the grid ﬁt method is applied and the output signals

are ﬁltered. The use of a real-time operating system

and decent synchronisation might probably reduce the

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

562

maximum error to less than 2.5cm to improve the re-

sults even more.

ACKNOWLEDGEMENTS

This research was funded by the Institute for the Pro-

motion of Innovation through Science and Technol-

ogy in Flanders (IWT Vlaanderen), N.V. Agriplant

and the Interuniversity Attraction Poles Programme

Belgian Science Policy. Jan Anthonis is funded as a

Post-doctoral Fellow by the Fund for Scientiﬁc Re-

search Flanders (Belgium) (FWO Vlaanderen).

REFERENCES

De Smedt, F., Billiauws, I., and Goedeme, T. (2011). Neural

networks and low-cost optical ﬁlters for plant segmen-

tation. In International Journal of Computer Informa-

tion Systems and Industrial Management Applications

(IJCISIM), volume 3/4.

Reumers, J., Anthonis, J., Bruyninckx, H., and Ramon, H.

(2005a). Detection of crop rows with low soil cover-

age using computer vision. In Computers and elec-

tronics in agriculture.

Reumers, J., Anthonis, J., Van Gool, L., and Ramon, H.

(2005b). llumination independent tracking of individ-

ual plants with low soil coverage using computer vi-

sion. In Computers and electronics in agriculture.

Schoenﬁsh, M. and Billingsley, J. (1993). A comparison

of automated guidance systems for a variety of opera-

tions in the growing of cotton. In Proceedings inter-

national advanced robotics programme 3rd workshop

on robotics in agriculture and the food industry, pages

8–16.

Søgaard, H. and Olsen, H. (2003). Determination of crop

rows by image analysis without segmentation. In

Computers and electronics in agriculture, volume 38,

pages 141–158.

Southall, J. (1999). The development and evaluation of

computer vision algorithms for the control of an au-

tonomous horticultural vehicle. PhD thesis, Univer-

sity of London.

Tillet, N., Hague, T., and Miles, S. (2002). Inter-row vi-

sion guidance for mechanical weed control in sugar

beet. In Computers and electronics in agriculture, vol-

ume 33, pages 163–177.

INDOOR EVALUATION OF CROP ROWAND GRID DETECTION - System for an Automated Transplanter

563
