ABSTRACTIONS FOR SCALING ESCIENCE APPLICATIONS TO

DISTRIBUTED COMPUTING ENVIRONMENTS

A StratUm Integration Case Study in Molecular Systems Biology

Per-Olov

Ostberg

, Andreas Hellander

2,3

, Brian Drawert

Erik Elmroth

, Sverker Holmgren

and Linda Petzold

Dept. of Computing Science, Ume

a University, SE-901 87, Ume

a, Sweden

Uppsala University, SE-751 05 Uppsala, Sweden

University of California, Santa Barbara, CA 93106-5070 Santa Barbara, U.S.A.

Keywords:

Systems biology, eScience, Grid computing, Cloud computing, Service-oriented architecture.

Abstract:

Management of eScience computations and resulting data in distributed computing environments is compli-

cated and often introduces considerable overhead. In this work we address a lack of integration tools that

provide the abstraction levels, performance, and usability required to facilitate migration of eScience appli-

cations to distributed computing environments. In particular, we explore an approach to raising abstraction

levels based on separation of computation design from computation management and present StratUm, a com-

putation enactment tool for distributed computing environments. Results are illustrated in a case study of

integration of a software from the systems biology community with a grid computation management system.

1 INTRODUCTION

In this work we explore an approach to migrating

computational applications to virtual distributed com-

putational infrastructures based on separation of com-

putation design and enactment of computations in dis-

tributed computing environments. In a case study, we

investigate raising abstraction levels for distributed

eScience

computation management and integrate a

public-domain eScience application from the compu-

tational systems biology community with a frame-

work for management of scientiﬁc computations in

heterogeneous grid environments.

Current methodology for scaling computational

capacity beyond the capabilities of individual re-

source sites includes techniques such as aggregation

and federation of distributed resource systems (Grid

computing), and virtualization of resource sets for

provisioning of compute capacity as metered services

(Infrastructure-as-a-Service Cloud computing). Typ-

We deﬁne eScience applications to be computational

science applications operating in distributed computing,

e.g., grid computing, environments. In this work we focus

on the particular use cases of applications from the systems

biology ﬁeld, but the techniques and tools developed are ap-

plicable to most forms of distributed scientiﬁc computing.

ically, the volatility and heterogeneity of such (Grid

and Cloud computing) resource sets make utilization

of ﬁne-grained synchronization in computations in-

feasible. Instead, data and task parallelism are of-

ten exploited through organization of computations

as large numbers of autonomous tasks that can be

processed individually. The size and complexity of

eScience applications make the coordination of such

computations non-trivial. In addition, distributed vir-

tual environments typically also introduce substantial

complexity in the management of computations and

resulting data sets. Factors such as these necessitate

the use of abstractive high-level tools for computation

management in virtual computing infrastructures.

In a case study we focus on integration of a public

domain simulation software (URDME, Section 3.1)

and a grid computation management tool (the Grid

Job Management Framework (GJMF), Section 3.2).

As part of this effort, we have developed a computa-

tion management and integration architecture called

the Stratiﬁed Resource Abstraction Toolkit (StratUm,

Section 3.3), which is designed to separate compu-

tation design from computation management, raise

abstraction levels for computation management, and

provide versatility in computation enactment.

The resulting system demonstrates a viable design

290

Östberg P., Hellander A., Drawert B., Elmroth E., Holmgren S. and Petzold L..

ABSTRACTIONS FOR SCALING eSCIENCE APPLICATIONS TO DISTRIBUTED COMPUTING ENVIRONMENTS - A StratUm Integration Case Study

in Molecular Systems Biology.

DOI: 10.5220/0003765002900294

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 290-294

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

pattern for separation of eScience computation design

from infrastructure computation enactment, and illus-

trates how abstraction levels for computation man-

agement can be raised. The rest of this paper is or-

ganized as follows. Section 2 provides a brief back-

ground to the case study application, Section 3 gives

an overview of the integration project, and Section 4

discusses the resulting architecture. Section 5 sam-

ples related work, and Section 6 concludes the paper.

2 MESOSCOPIC SPATIAL

STOCHASTIC SIMULATION

An important theoretical tool for investigating the

properties of cellular regulatory systems is the con-

struction and simulation of quantitative models of

their dynamic behavior. In molecular systems biol-

ogy such models are frequently used with the aim to

gain a system-level understanding of basic regulatory

mechanisms that arise from experimentally known or

assumed macromolecule (e.g. protein) interactions.

A popular and widely used modeling framework

that accounts for stochasticity is the Markov process.

Simulated trajectories of models based on the Monte

Carlo methodology are typically independent, thus

the overall problem is inherently task-parallel and

maps well to distributed resource utilization patterns.

This characteristic is a feature shared among many

traditional eScience applications.

In the following sections we demonstrate an ap-

proach to scaling computations and data manage-

ment for a spatial stochastic simulation software

(URDME) to distributed computing resources using

an abstractive computation management architecture

(StratUm). The focus of this case study is directed

towards integration with computational grid environ-

ments through use of a middleware-agnostic grid job

management tool (GJMF),

3 DESIGN AND MANAGEMENT

OF COMPUTATIONS

Computations in eScience environments require large

amounts of computational power and data storage ca-

pacity. Efﬁcient scaling of computations is compli-

cated by the complexity of computation management

in virtual computational infrastructures. Any suitable

design pattern that facilitates integration and extensi-

bility of eScience applications with distributed com-

putational resources will inevitably involve high-level

abstractions on both the job management level as well

as on the level of the computational software; core

simulation routines need to be functionally and struc-

turally decoupled from client user interfaces. Simi-

larly, resource access needs to be decoupled from the

computational application as well as from resource

site-speciﬁc software layers.

In this section we present results from a case study

integration of two systems: URDME, a public do-

main software package for spatial stochastic simula-

tion, and GJMF, a middleware-agnostic grid job man-

agement framework. In addition, we also present a

recently developed integration architecture, StratUm,

designed to abstract and reduce integration complex-

ity for both applications and infrastructures.

3.1 URDME

URDME is a software framework for spatial stochas-

tic simulation using unstructured meshes (Drawert

et al., 2011). It is designed to be a versatile tool

for both applied users and developers of new spa-

tial stochastic simulation algorithms. The top layer in

Fig. 1 shows an overview of the design of the package.

URDME relies on third party software for geometry

modeling, mesh generation and pre- and postprocess-

ing (green). A Matlab interface provides a familiar,

interactive, and ﬂexible environment for model devel-

opment and provides a bridge to the core simulation

routines (cyan). Stochastic simulation algorithms are

implemented as stand-alone C/C++ executables.

As a part of the design pattern for the overall sys-

tem we have developed a new server-side component

to the URDME framework. In our implementation,

the desktop software is extended to include non-local

computation by implementing a URDME-server soft-

ware package (Fig. 1, middle layer) that is designed

to provide a transparent interface between the desktop

client and remote job management systems.

The overall architecture of this system has the

URDME client running on the user’s desktop, the

URDME-server running on a standalone server, the

StratUm and GJMF services running on separate

servers, and computations running on dedicated com-

putational resources in a distributed grid environment.

In this case study, the computational resources of

the Swedish national grid, SweGrid

, are accessed

through StratUm. The URDME-server communicates

with StratUm via native StratUm client APIs (Fig.

1, red). From the perspective of URDME, StratUm

provides a high-level, low-complexity interface to the

Grid Job Management Framework, GJMF (

Ostberg

and Elmroth, 2010).

SweGrid: http://www.snic.vr.se/projects/swegrid

ABSTRACTIONS FOR SCALING eSCIENCE APPLICATIONS TO DISTRIBUTED COMPUTING ENVIRONMENTS

- A StratUm Integration Case Study in Molecular Systems Biology

291

3D Modeling

software

(Comsol)

URDME

3rd Party Software

StratUm Software

URDME Software

(Matlab)

Stochastic Solver

(C/C++)

Visualization /

Post-processing

(Matlab/Comsol)

URDME Server

StratUm Client

StratUm

Server

URDME Server

StratUm Client

StratUm

Server

SweGrid

Urdme

protocol

StratUm

protocol

URDME

(Matlab)

GJMF

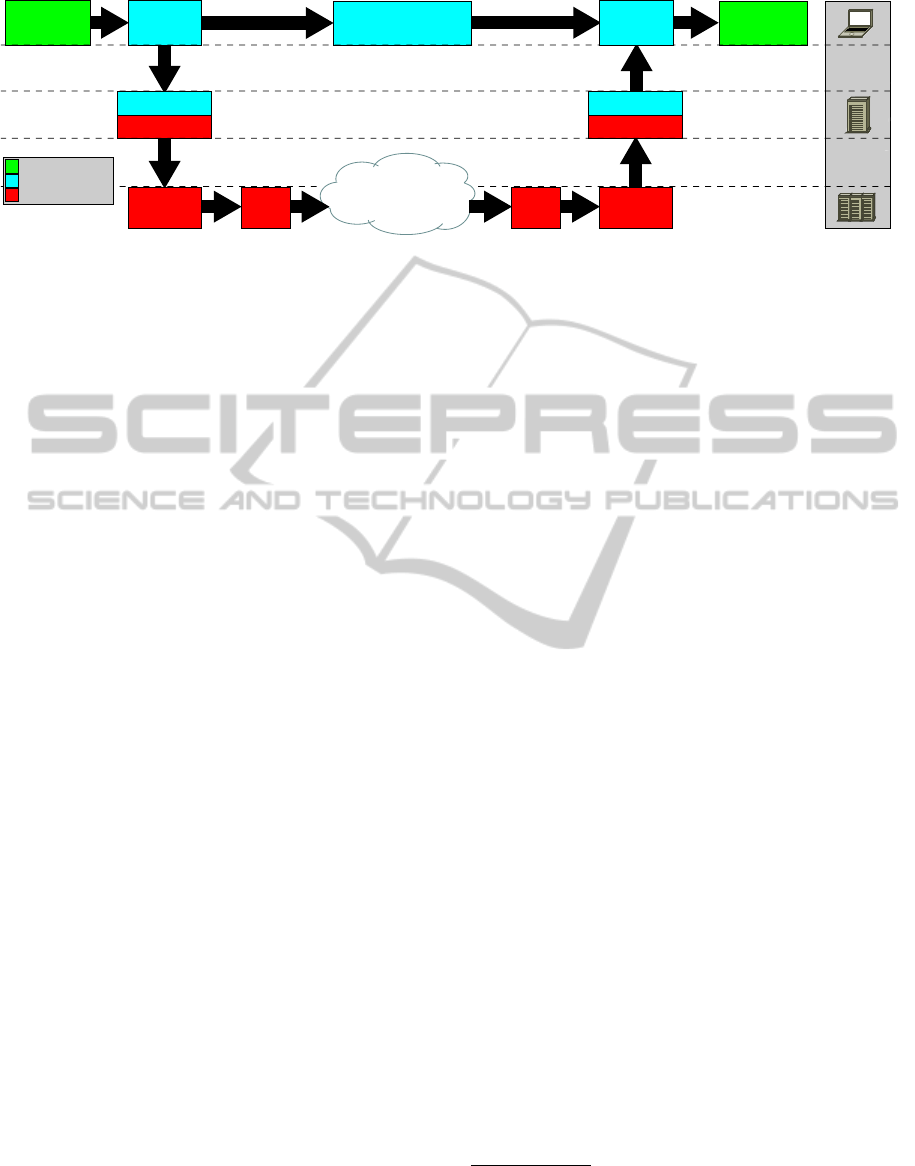

Figure 1: System process ﬂow. The top layer shows the previous, client-only interactive workﬂow of URDME. The new

server-side component (middle layer) interacts with the StratUm server (bottom layer) through the StratUm API.

3.2 The Grid Job Management

Framework (GJMF)

The Grid Job Management Framework

(GJMF) (

Ostberg and Elmroth, 2010) is a framework

for computation enactment in grid environments. The

GJMF is constructed as a hierarchically ordered set

of services, where higher level services aggregate

the capabilities of lower level services. Services are

connected using dynamic conﬁguration (composi-

tion) techniques. The framework offers a uniﬁed set

of job management interfaces that provides access

to multiple grid middleware concurrently. The

architecture of the GJMF organizes services in layers

that offer increasingly advanced job management

functionality. Services in higher layers aggregate the

functionality of services in lower layers and offer

higher abstraction levels and automation, while lower

layer services provide more ﬁne-grained job control.

The GJMF architecture is constructed as a net-

work of services, which provides an architecture

model where services are dynamically composed, and

includes dynamic fail-over capabilities through re-

dundancy. Services can function as individual stan-

dalone services and framework components simul-

taneously. The architectural model of the GJMF

provides great ﬂexibility in system deployment, the

framework itself can for example be dynamically re-

conﬁgured during runtime. The GJMF is imple-

mented in Java, is constructed using the Globus

Toolkit 4 (GT4) (Foster, 2005), and utilizes Web Ser-

vice Resource Framework (WSRF) notiﬁcations for

state coordination.

3.3 The Stratiﬁed Resource Abstraction

Toolkit (StratUm)

The GJMF provides a generic and ﬂexible framework

for computation enactment in federated grid environ-

ments. As the GJMF builds on the Globus Toolkit and

utilizes WSRF notiﬁcations, integration of computa-

tion tools like URDME and the GJMF can sometimes

be complex tasks. To reduce the integration footprint

and facilitate more ﬂexible utilization of the GJMF

for scientiﬁc computations, we have developed an

extended architecture integration model dubbed the

Stratiﬁed Resource Abstraction Toolkit (StratUm

Here, StratUm functions as an integration bridge be-

tween URDME and GJMF, and is used to explore

integration models and functionality abstractions in

eScience environments. As illustrated in Figure 2,

StratUm extends the capabilities of the GJMF and

contributes (additional) abstractions for:

3.3.1 Efﬁcient Service Communication

In addition to web service interfaces, StratUm pro-

vides access to the framework through a custom pro-

tocol called the Resource Access and Serialization

Protocol (RASP). RASP is a message-oriented wire-

transport hybrid protocol designed for efﬁcient pars-

ing and serialization of message data. Messages are

represented in tree format, where tree nodes contain

hash maps that map text-resolved tags to binary data.

To support efﬁcient transmission of large messages,

RASP supports both enveloped transmissions of large

binary payloads and chunked data transfer modes.

3.3.2 Data Management

GJMF employs a data management model where

GJMF coordinates third party data transfers, but does

not actively participate in data management. StratUm

extends the GJMF data management capabilities by

providing convenient interfaces for data monitoring

and control, an efﬁcient protocol for data transmis-

sion, and caching and storage of staged data ﬁles.

In Geology, a stratum refers to a layer of sedimentary

rock. StratUm is designed to constitute an abstractive layer

for computation management. The Um emphasis of the

name refers to the place of origin, Ume

a University.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

292

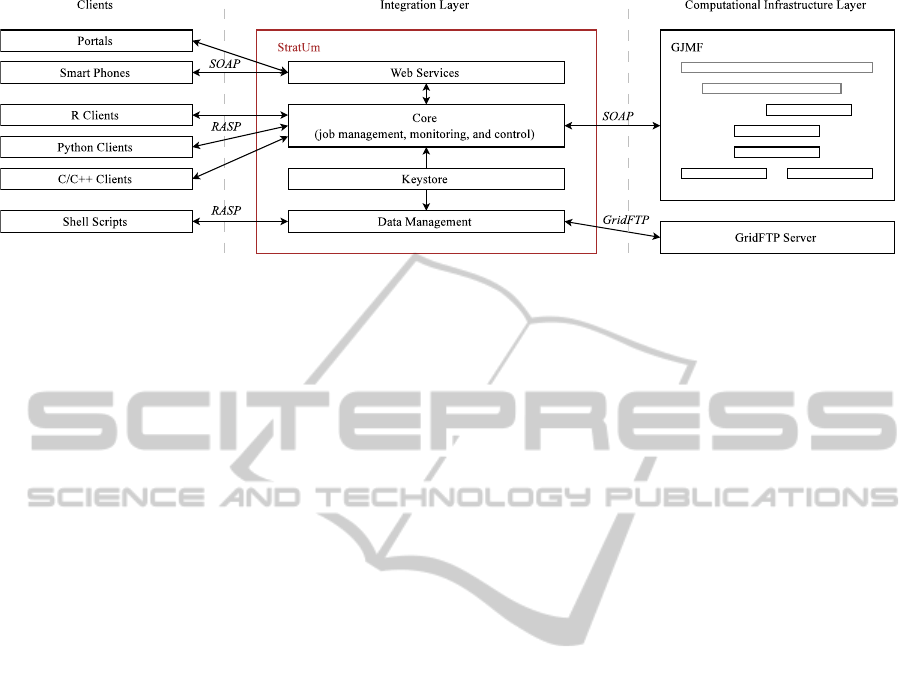

Figure 2: The StratUm architecture. Framework functionality exposed as services accessible through a custom protocol and

(optional) web services. Native client APIs abstract service communication, credentials, and data management complexity.

3.3.3 Security Models

GJMF utilizes a security model based on the GT4 im-

plementation of GSI where x509 certiﬁcate and del-

egated credential proxies are used for authentication

and authorization of end-users. StratUm provides

an extended security model that allows establishment

of secure communication channels using either cer-

tiﬁcates or username-password authentication (using

challenge-response message exchanges). In StratUm,

username-password tokens are associated to creden-

tials dynamically, which allows end-users to install,

remove, and update certiﬁcates and key pairs dynami-

cally during execution of computational tasks. In con-

junction with the GT4 credentials delegation mecha-

nism, StratUm supports creation and caching of dele-

gated certiﬁcates and key pairs.

3.3.4 Notiﬁcation Models

Notiﬁcation propagation via WSRF (as done in

GJMF) provides standardization of message formats

and programming models. WSRF is based on SOAP

web services and may impact integration complex-

ity (e.g., require clients to host SOAP containers) as

well as incur communication overhead in distributed

systems. For more efﬁcient communication mod-

els and reduced integration complexity, StratUm en-

capsulates the GJMF notiﬁcation model and provides

an out-of-band mechanism for asynchronous notiﬁca-

tions based on propagation of status updates that are

transparently enveloped in RASP messages.

3.3.5 Native Client APIs

To facilitate client integration in end-user environ-

ments, StratUm provides a set of multi-language

client APIs for communication with StratUm ser-

vices. These client APIs deﬁne high-level interfaces

for job management as well as low-level mechanisms

for, e.g., message construction, that facilitate func-

tionality extension and framework customization. In

addition to client APIs in Java, C/C++, and Python,

StratUm also provides a set of command-line tools

that illustrate use of the StratUm client APIs and con-

stitute useful tools for distributed job management.

4 DISCUSSION

From the application standpoint, the presented system

greatly assists in large-scale scientiﬁc inquiry. De-

pending on the model under study and parameters

such as the time-horizon of the simulation and the

density of output samples, the nature of the individ-

ual tasks will vary from highly compute-intensive to

highly data-transfer intensive. As the computational

power is scaled up, more advanced applications such

as parameter estimation or optimization using, e.g.,

genetic algorithms will become computationally fea-

sible. In those cases, it is desirable to optimize re-

source access patterns to meet application-speciﬁc re-

quirements, e.g. minimizing the asynchrony of a task-

group or maximizing throughput for the SweGrid.

StratUm is well prepared for such extensions, and due

to the design and the well-deﬁned API, application

speciﬁc workﬂow management can be added without

compromising the generality of the framework.

5 RELATED WORK

Design goals similar to those presented here are im-

plemented in the Virtual Infrastructure for simula-

tions with MCell, a software for microscale biochem-

ical simulation in grid environments (Casanova et al.,

2004). Mesoscale stochastic computations in a cloud

environment are demonstrated using the domain-

speciﬁc language Neptune (Bunch et al., 2011).

ABSTRACTIONS FOR SCALING eSCIENCE APPLICATIONS TO DISTRIBUTED COMPUTING ENVIRONMENTS

- A StratUm Integration Case Study in Molecular Systems Biology

293

A number of efforts similar to StratUm and GJMF

exist and include, e.g., Falkon (Raicu et al., 2007),

a lightweight task execution framework designed for

Many Task Computing (Raicu et al., 2008). Falkon

and StratUm are similar in use of custom protocols

and service interfaces, but while Falkon is designed

for high submission throughput StratUm is more fo-

cused on raising computation abstraction levels.

GridSAM (Lee et al., 2005) is a standards-based

grid job submission system that abstracts underlying

resource managers through a Web Service interface

built on staged event-driven architecture (SEDA). The

job submission pipeline of GridSAM is similar to the

integration of StratUm and GJMF, but the focus of

StratUm and GJMF lie more towards automation and

adaptability in system architecture design.

The Simple API for Grid Applications

(SAGA) (Kaiser et al., 2006) is an API stan-

dardization initiative that like StratUm and the GJMF

aims to provide a uniﬁed interface to grid integration.

The philosophy of the SAGA API differs from

StratUm in that StratUm focuses on automation

and minimization of integration complexity. Per-

formance evaluations comparing StratUm to SAGA

implementations are subject for future work.

For reasons of brevity, the list is far from com-

plete. Compared to most approaches, the aim of this

work is directed more towards design patterns for ab-

straction of complexity in computation management,

and exploration of approaches suitable for the speciﬁc

use cases of eScience applications. For more exhaus-

tive treatment of grid job management mechanisms

readers are referred to (

Ostberg and Elmroth, 2010).

6 CONCLUSIONS

In this paper we explore an approach to integration

of eScience applications with distributed computing

environments based on separation of computation de-

sign from computation management. Emphasis of the

work is placed on architectures that raise computa-

tion management abstraction levels and facilitate ver-

satility in computation enactment. As part of the re-

sults we present StratUm, an integration architecture

designed to abstract complexity and raise abstraction

levels in distributed computation management.

ACKNOWLEDGEMENTS

The authors thank Mikael

Ohman, Sebastian Gr

ohn,

and Anders H

aggstr

om for work related to the

project. This work is done in collaboration with

the High Performance Computing Center North

(HPC2N) and is funded by the Swedish National In-

frastructure for Computing (SNIC), the Swedish Gov-

ernment’s strategic research project eSSENCE, the

Swedish Royal Academy of Sciences, and U.S NSF

Grant DMS-1001012, U.S. NIH Grant R01EB7511,

U.S. DOE Award DE-FG02-04ER25621, U.S. NSF

IGERT DGE-02-21715, Institute for Collaborative

Biotechnologies Grant DAAD19-03-D-0004 from the

U.S. Army Research Ofﬁce.

REFERENCES

Bunch, C., Chohan, N., Krintz, C., and Shams, K. (2011).

Neptune: a domain speciﬁc language for deploy-

ing hpc software on cloud platforms. In Proceed-

ings of the 2nd international workshop on Scientiﬁc

cloud computing, ScienceCloud ’11, pages 59–68,

New York, NY, USA. ACM.

Casanova, H., Berman, F., Bartol, T., Gokcay, E., Se-

jnowski, T., Birnbaum, A., Dongarra, J., Miller, M.,

Ellisman, M., Faerman, M., Obertelli, G., Wolski, R.,

Pomerantz, S., and Stiles, J. (2004). The virtual in-

strument: Support for grid-enabled mcell simulations.

International Journal of High Performance Comput-

ing Applications, 18(1):3–17.

Drawert, B., Engblom, S., and Hellander, A. (2011). UR-

DME 1.1: User’s manual. Technical Report 2011-003,

Department of Information Technology, Division of

Scientiﬁc Computing, Uppsala University.

Foster, I. (2005). Globus toolkit version 4: Software for

service-oriented systems. In Jin, H., Reed, D., and

Jiang, W., editors, IFIP International Conference on

Network and Parallel Computing, LNCS 3779, pages

2–13. Springer-Verlag.

Kaiser, H., Merzky, A., Hirmer, S., Allen, G., and Seidel,

E. (2006). The saga c++ reference implementation:

a milestone toward new high-level grid applications.

In Proceedings of the 2006 ACM/IEEE conference on

Supercomputing, SC ’06, New York, NY, USA. ACM.

Lee, W., McGough, A. S., and Darlington, J. (2005). Per-

formance evaluation of the GridSAM job submission

and monitoring system. In UK e-Science All Hands

Meeting, pages 915–922.

Ostberg, P.-O. and Elmroth, E. (submitted, 2010).

GJMF - A Composable Service-Oriented Grid Job

Management Framework. Preprint available at

http://www.cs.umu.se/ds.

Raicu, I., Foster, I., and Zhao, Y. (2008). Many-task com-

puting for grids and supercomputers. In Workshop on

Many-Task Computing on Grids and Supercomputers

(MTAGS) 2008., pages 1–11.

Raicu, I., Zhao, Y., Dumitrescu, C., Foster, I., and Wilde,

M. (2007). Falkon: a Fast and Light-weight tasK ex-

ecutiON framework. In Proceedings of IEEE/ACM

Supercomputing 07.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

294
