KINECT AND SHIMMER SENSORS IN MOTION ANALYSIS

IN HEALTH APPLICATIONS

Katja Orlowski

, Harald Loose

, Karen Otte

, Sebastian Mansow-Model

and Angelina Thiers

Department of Computer Science and Media, Brandenburg University of Applied Sciences,

Magdeburger Str. 50, 14770 Brandenburg, Germany

gfnmediber GmbH, Sophie-Charlotten-Str. 92-94, 14059 Berlin, Germany

Keywords:

Motion and gait analysis, Kinect and SHIMMER sensors, Health applications (Geriatrics/Tinetti).

Abstract:

Motion capture systems based on different physical principles and sensor elements become moderate in price

and mobile in application. New application ﬁelds have been developed. Motion capture and analysis is used

in physiotherapy, geriatrics or public sports. In this paper three different types of motion capture systems are

investigated with respect to their adaptability to health applications: the OptiTrack-Motion Capture System,

the Kinect of Microsoft and SHIMMER sensors. Human gait was measured using all three systems and the

obtained data were compared. In further tests the gait of volunteers and patients were captured with Kinect

and two scores evaluating their motion capability were calculated.

1 INTRODUCTION

The story of gait analysis is very old and goes back

to the latter years of the 19th century. The German

medics Braune and Fischer performed different gait

studies, especially in the military environment fund-

ing the investigations. They analyzed the human gait

with photogrammetry. For a very long time pho-

togrammetry was the gold standard (Woltring, 1989;

Cappozzo and Tosi, 1989).

The data were taken manually from observations,

measuring various characteristics of walking patterns

like length, height or duration of one step, width of

one stride, the duration of the stance or the swing

phases. Perry described the normal and pathological

gait and developed the observing gait analysis (Gron-

ley and Perry, 1984; Perry, 1995; Perry, 2010; Goetz-

Neumann, 2003). Her research in gait analysis was

addressed to improve the lifestyle of handicapped pa-

tients (R. L. A. National Rehabilitation Center, 2009).

To automate the measurement, active and passive

markers were attached to well-deﬁned positions. Two

dimensional kinematic analysis was realized, e.g. us-

ing 312 Hz LEDs as markers recorded by cameras

(Van Best, 1984).

Morris et al. (Morris and Lawson, 2009) re-

viewed and evaluated techniques, such as the use of

force plates (late 1960s), of accelerometers (1970s)

and the ﬁrst motion capture systems (1980s). Their

overview included modern technologies like video

cameras, optoelectronic systems, electromyography

(EMG), force plates and shoes as well as inertia sen-

sors (accelerometers and gyroscopes).

Motion capture was performed using camera sys-

tems combined with other sensors. Nowadays mo-

tion capture systems use small ball-shaped markers.

Infrared cameras receive the reﬂected light transmit-

ted by LED rings. The 3D-positions of markers at-

tached to the human body are calculated using the

data from a number of different infrared (IR) cam-

eras. Alternatively to external vision systems, sen-

sors are directly attached to well-deﬁned locations on

the human body. The data measured by accelerome-

ters and gyroscopes are transferred wireless, e.g. us-

ing Bluetooth connections, to the supervising com-

puter system. The SHIMMER package provides inte-

grated 9DoF (Degrees of Freedom) sensors including

3D-accelerometer, -gyroscope and -digital compass

as well as physiological sensors like EMG or elec-

trocardiography (ECG) (Shimmer, 2011). The 3D-

positions of the sensors are determined off-line, cal-

culating them step by step starting from their initial

3D-positions. Liu et al. (Liu, 2009) combined ac-

celerometer and gyroscope data for quantitative gait

analysis. Greene et al. (Greene, 2010) extracted tem-

poral gait parameters from the angular velocity of the

shank. Both papers discussed the necessity of re-

calibration during the evaluation and compared their

226

Orlowski K., Loose H., Otte K., Mansow-Model S. and Thiers A..

KINECT AND SHIMMER SENSORS IN MOTION ANALYSIS IN HEALTH APPLICATIONS.

DOI: 10.5220/0003769502260231

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2012), pages 226-231

ISBN: 978-989-8425-89-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

results with optical motion capture systems.

Novel systems, like the Kinect

or Wii Remote

work without any markers. The Kinect uses a combi-

nation of a RGB camera and a depth sensor. The Wii

Remote is based on accelerometers and optical sen-

sors which is also used for motion capturing (Wang

and Huang, 2008).

Stationary technologies and expensive, high-end

equipment have been used already for a long time in

university hospitals, scientiﬁc institutes and speciali-

zed cinema studios for different purposes. Normal

hospitals, nursing homes, physiotherapy or popular

sports centers need well-performing, affordable and

mobile sensor systems to capture and analyze move-

ments sufﬁciently accurate. Automated procedures

can support physiotherapists, nurses and doctors in

geriatric care units as well as coaches in sports.

In this paper the OptiTrack-Motion Capture System,

the Kinect and SHIMMER sensors are investigated

with respect to their adaptability to health applica-

tions. A number of experiments was done to compare

the three systems in human gait analysis, to test the

Kinect and SHIMMER sensors for the evaluation of

motion capabilities as well as to record the execution

of sports exercises.

Which values have to be calculated from the mea-

sured data? Regarding to health applications the fol-

lowing values may be important:

• 3D-coordinates of the joint centers for the kine-

matic body motion analysis,

• joint angles for the analysis of joint mobility,

• length of one step and height of one swing, length

and width of one stride, walking velocity and oth-

ers like Tinetti (Tinetti, 1986) or ﬁtness scores.

2 SYSTEMS AND METHODS

In this section the used systems are described and

methodological aspects of the locomotion model are

explained.

2.1 Motion Capture System (MoCap)

Optitrack

consists of 12 infrared cameras and two

different software applications: ’Arena’ for full body

motion capture and Tracking Tools for body rigging

with any desired number of tracking markers. All

cameras are active emitting infrared light via a LED

http://en.wikipedia.org/wiki/Kinect

http://en.wikipedia.org/wiki/Wii Remote

http://www.naturalpoint.com/optitrack/

circle around their lenses. The body markers are

highly reﬂective and the optical system is high sen-

sitive to the infrared spectrum. It is important that

each camera records solely the tracking markers of

the tracked person and not the infrared components

of the sunlight or the IR light emitted by the other

cameras. ’Arena’ records the input of all cameras si-

multaneously and computes a so-called point cloud in

real time. The computation needs some preprocess-

ing (calibration, T-pose, adjustment of the skeleton

model) (Nat. Point Inc., 2011). The recorded data can

be ”trajectorized”, i.e., converted into other formats

which includes all data of the model and the derived

tracking joint angles (bvh-ﬁle) or the 3D-positions of

the tracking markers (fbx-ﬁle).The major advantage

of vision systems is that the 3D-positions are deter-

mined continuously in the inertial coordinate system,

while a disadvantage is the restricted area of record-

ing mostly measuring less than 5 by 5 m.

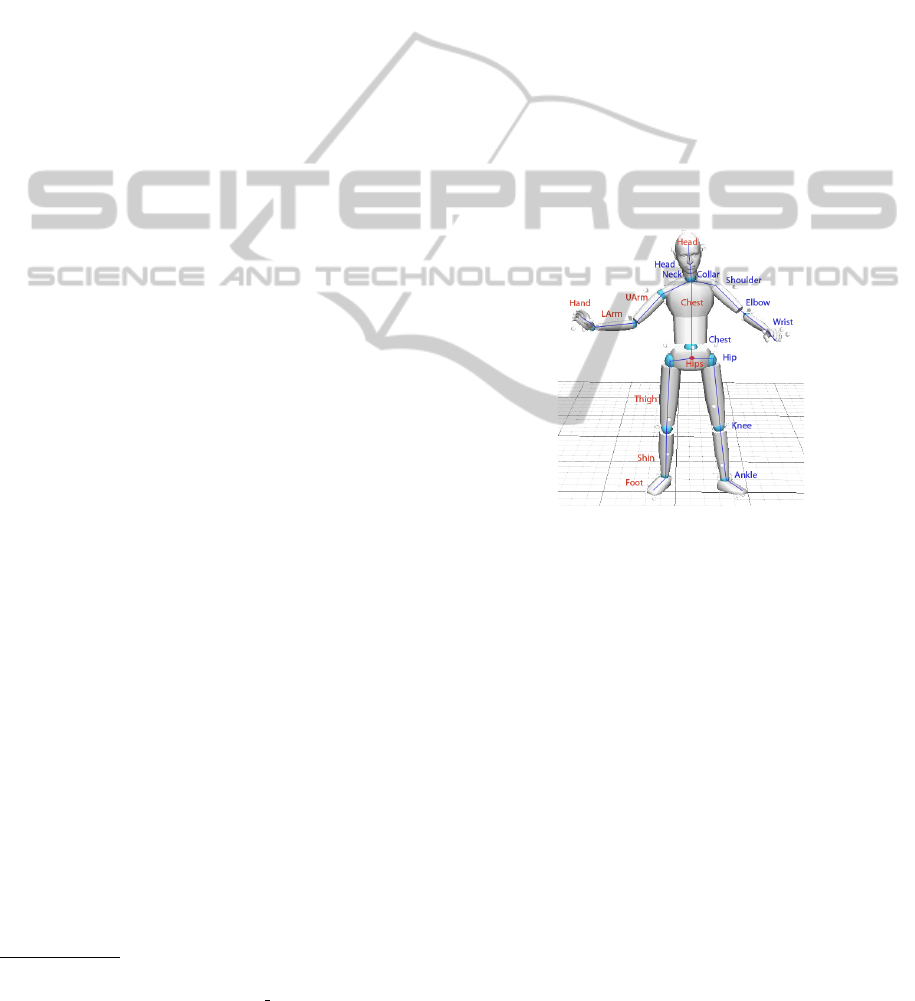

Figure 1: Human body model, markers, skeleton, names of

joints (blue) and links (red).

OptiTrack uses 34 markers attached to the hu-

man body (see Fig. 1). The 3D-positions of these

points are used to calculate the optimal set of the 3D-

positions of the centers and the 3D-angles of the 18

joints as well as the absolute 3D-position and orien-

tation of the reference point (placed on the hip). The

kinematical model of the locomotor system consists

of 23 rigid bodies (links) connected by 18 spheri-

cal joints. The ﬁxed characteristics of the skeleton

are predeﬁned during the calibration procedure. The

kinematical model is given by:

∗

= R

∗

, k = 1, . . . , 18 (1)

∗

= R

∗

+ r

∗

, k = 1, . . . , 18 (2)

where R

∗

is the absolute rotational matrix of link k, r

∗

the absolute position vector of the joint k, R

the rota-

tional matrix of the joint k, r

the dimension vector of

link k, v

the index of the predecessor and R

, r

the

orientation and position of the reference point/link.

KINECT AND SHIMMER SENSORS IN MOTION ANALYSIS IN HEALTH APPLICATIONS

227

The rotational matrix R

is calculated from the angles

of joint k using the well-known relationship:

R(α, β, γ) = M

(3)

where M

, M

are the rotation matrices with α, β,

γ as joint angles around the x, y, z axes, respectively.

2.2 Microsoft Kinect Sensor (Kinect)

The Microsoft Kinect sensor system consists of the

depth sensor, the RGB camera, the microphone ar-

ray and the motor

. The software development kit

(SDK) for Windows 7

provides access to the raw

sensor data streams, the skeletal tracking and the au-

tomatic calibration. Using this kit C + +, C# or VB

applications can be developed . The skeletal tracking

immediately delivers the 3D-positions of 20 points on

a ﬁctive skeleton (see Fig. 2). The characteristic di-

mensions of the skeleton (model) are determined dur-

ing calibration guided by the software

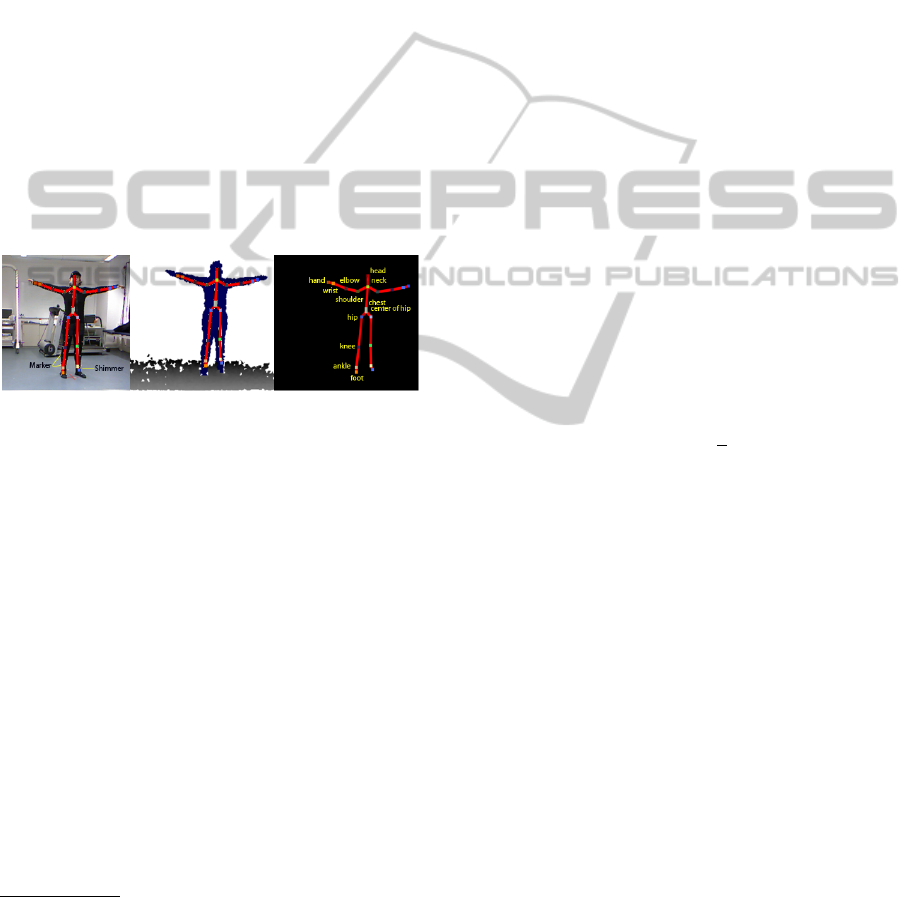

Figure 2: Video Stream (a), Depth Stream (b) and Skeleton

rendered in the full body (c) received from Kinect. In (a)

and (b) the skeleton is added, in (a) the position of some

markers used in MoCap and the Position of one SHIMMER

sensor are shown. In (c) the 20 skeleton points are named.

The joint angles are calculated from the 3D-

coordinates of the corresponding joints. For example,

the angle λ of the left knee is determined from vectors

and v

where v

is directed from the knee to

the hip and v

is directed from the ankle to the knee.

The cross product of both vectors shows the direc-

tion of the temporary joint axis e

and the normalized

product gives the sine of the joint angle λ:

× v

sinλ (4)

2.3 SHIMMER Sensors (SHIMMER)

The SHIMMER

platform is a wireless sensor plat-

form with a small form factor that supports mobile ap-

plications. All sensors are characterized by low power

http://en.wikipedia.org/wiki/Kinect

http://research.microsoft.com/en-us/um/redmond/-

projects/kinectsdk/default.aspx

http://www.primesense.com/

SHIMMER stands for ’Sensing Health with Intelli-

gence, Modularity and Experimental Reusability

consumption and weight. The measured data can be

stored off-line on a microSD or streamed in real time

using Bluetooth or 802.15.4 radio. SHIMMER offers

products for the categories kinematics (accelerome-

ter, gyroscope and magnetometer), biophysical (ECG,

EMG) and ambient (GPS). All sensors consist of

a baseboard and a daughterboard. The baseboard

acts as the main board with an on-board microcon-

troller, wireless communication modules, microSD

slot and an integrated three-axis accelerometer (Shim-

mer, 2011).

The calibration of the sensor can be executed

using the ’Shimmer 9DoF Calibration Application’

(Ferraris and Parvis, 1995). The streaming of up

to four sensors concurrently has been made possible

with the ’Four Shimmer Write’-program. This appli-

cation handles preprocessed data.

The vectors of the linear acceleration a, the angu-

lar velocity ω and the angles φ are measured in the

local coordinate system ﬁxed to the 9DoF sensor and

to a ﬁxed point on the surface of the body, respec-

tively. Starting at an initial point where the position

vector r

and the orientation matrix R

of each sensor

are well known, all values have to be calculated for

each sample. First, linear velocity v

∗

k+1

and motion

∗

k+1

, the angles α, β, γ and the local rotational matrix

∗

are determined in the current coordinate system

on the base of the known values of the sample k:

∗

k+1

= a

∗

∆ + v

∗

k+1

∗

∆

+ v

∗

∆ + s

∗

(5)

α = ω

∆, β = ω

∆, γ = ω

∆ (6)

∗





1 −γ β

γ 1 −α

−β α 1





(7)

where ∆ is the ﬁxed sampling interval, k indicates the

number of the sample.

Second, the resulting values are transferred to the

updated coordinate system CS

k+1

and to the inertial

coordinate system CS

k+1

= R

∗

(8)

k+1

= R

∗

k+1

+ g (9)

k+1

= R

∗

k+1

= R

∗

k+1

(10)

k+1

= R

k+1

∗

k+1

= R

k+1

∗

k+1

(11)

The major disadvantage of this method consists in the

accumulation of the measuring errors caused by noise

or drift. After some sampling time the system has to

be re-calibrated. For this purpose the data of the digi-

tal compass or other relationships (Greene, 2010; Liu,

2009) can be used. Knowing the positions and angles

of joints as well as the orientation of links in the loco-

motor model, derived values can be determined.

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

228

3 EXPERIMENTS AND RESULTS

Two groups of experiments were made. In both sce-

narios the Kinect was placed in front of the subject

at the height of 88 cm and an inclination angle of 30

degree receiving the maximum area with 3 m length.

• The gait of various persons was registered simul-

taneously with MoCap, Kinect and SHIMMER

sensors. Two cycles of each person were captured.

A 9DoF SHIMMER sensor was ﬁxed to each leg

above the ankle to measure the acceleration and

the angular velocity of the left and right shank.

On the base of the raw data described above some

gait parameters (motion of the feet, knee angle,

stance phases) were calculated, not using sophis-

ticated methods for ﬁltering or re-calibrating data

during the evaluation process.

• The gait of 32 volunteers was recorded using the

Kinect sensor. Based on these data the Tinetti

score (Tinetti, 1986) was calculated and the walk-

ing was evaluated comparing the measured mo-

tion of the knee with patterns given by Perry and

Murray (Perry, 2010; Murray, 1964).

3.1 Comparison of MoCap and Kinect

Results

All results shown in this section were taken form one

collection of data selected from the test series. The

intention is to compare the principle features of the

three motion capture systems, not to give a statistical

evaluation.

Using MoCap and Kinect sensors motion data of

23 / 20 characteristic points were captured, while the

SHIMMER sensors recorded acceleration and angu-

lar velocity of both shanks. All characteristic points

are located in the center of the joints of the locomo-

tor models hidden inside the ﬁrmware. These models

and following the characteristic points are different

for MoCap and Kinect.

Figure 3 shows a step sequence of one test per-

son captured simultaneously with MoCap (100 Hz)

and Kinect (33 Hz). The similarity is obvious, the

differences are caused in different frequencies of rep-

resentation (10 to 6.7 Hz) and some effects resulting

from the inclination of the Kinect sensor which are

not fully compensated.

Figure 4 illustrates the motion of the left and the

right foot. Regardless the small noise and the drift of

the data the stance phases can be easily determined

manually from the forward motion or automatically.

Obviously the results meet the well-known features

that the stance phases of both feet overlap or that the

feet are raised during the swing phases.

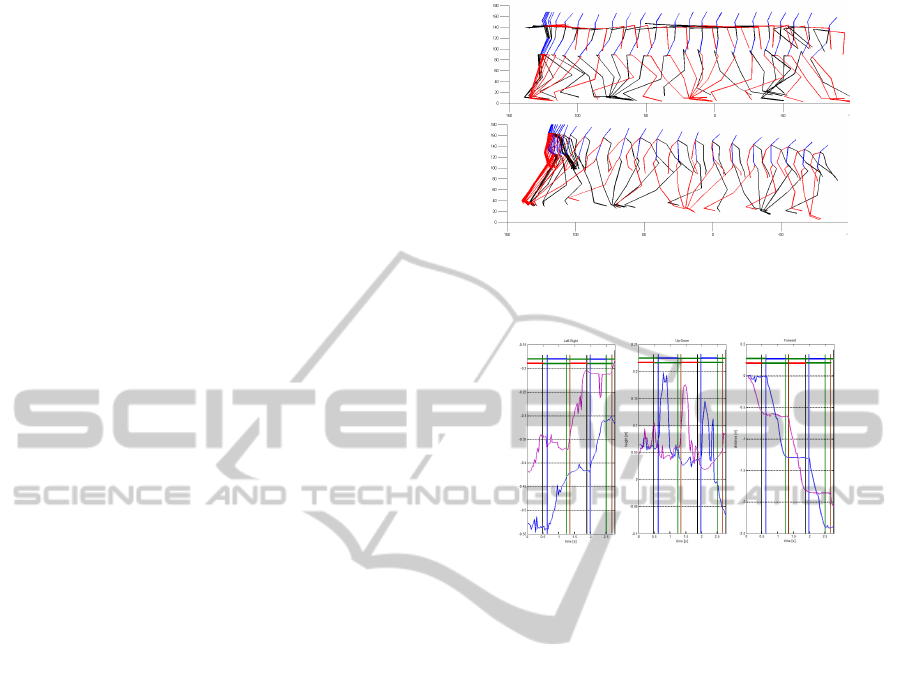

Figure 3: Motion of the subject in the skeleton view (sagittal

plane): above captured with MoCap, below with Kinect;

green - left, red - right extremities.

Figure 4: Motion of the left (blue) and right (pink) foot (left

- left/right, center - up/down, right - forward) captured with

Kinect. At the top of the plots the alternating stance (green)

and swing (blue/red) phases for the left (above) and the right

(below) foot are marked.

3.2 Gait Analysis using Accelerometers

and Gyroscopes

As mentioned before the acceleration and angular ve-

locity of two 9DoF SHIMMER sensors were recorded

simultaneously to the MoCap and Kinect systems.

Figure 5 shows the acceleration of the left and right

shank in the inertial coordinate system after process-

ing the algorithm based on the formulas (5)-(11) with

compensation of the gravity force. Obviously 3 swing

phases of each leg were recorded. At the same time

the disruption of the x-component of the right shank

and the more or less strong drift of all curves should

be mentioned.

An algorithm similar to that proposed in (Greene,

2010) was applied to z-component of the angular ve-

locity. The calculated initial and terminal contact

points of the feet, are shown in Fig. 6. Peaks in ac-

celeration (x axis) are easy to identify. Each of them

represents one step of the left foot.

Figure 7 shows the motion of the left foot mea-

sured or calculated based on the data captured with

the MoCap, Kinect and SHIMMER sensors. The be-

KINECT AND SHIMMER SENSORS IN MOTION ANALYSIS IN HEALTH APPLICATIONS

229

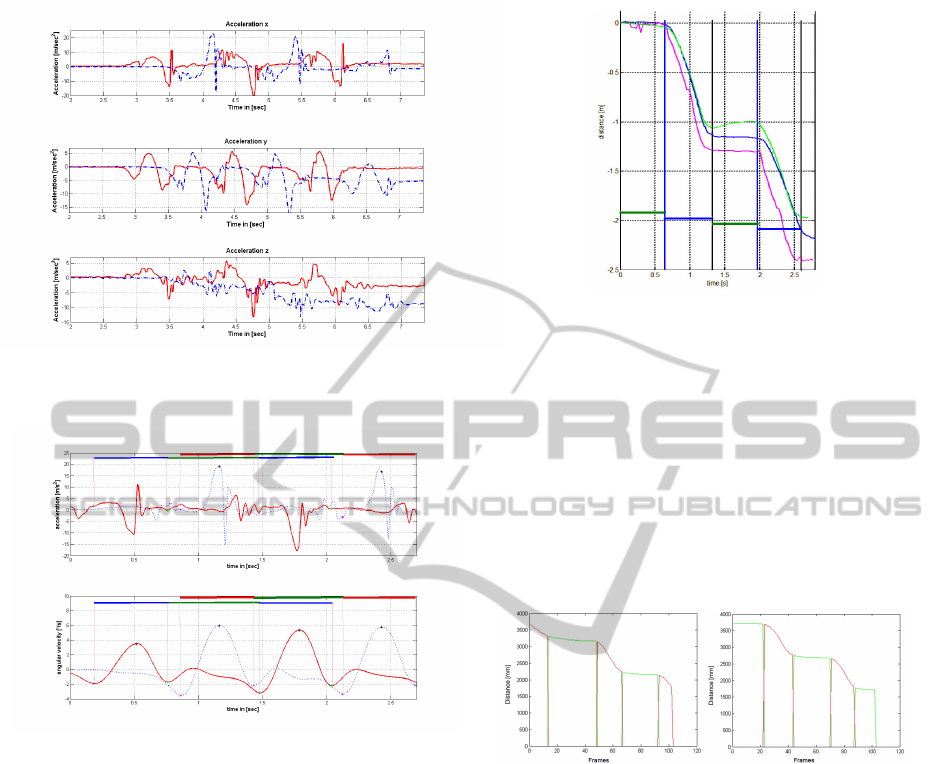

Figure 5: Accelerations of the left (blue, dotted) and right

(red) shank with gravity compensated in the inertial coordi-

nate system (x: direction of motion, y: vertical component).

Figure 6: Acceleration x and angular velocity z of the left

(blue, dotted) and right (red) shank. At the top of the plots

the alternating stance (green) and swing (blue/red) phases

are labeled. Initial and terminal contact points are marked

with pink and green asterisks, respectively.

havior of all three curves coincide. The determination

of the stance (green) and swing (blue) phases is possi-

ble. The common compromise is given in the ﬁgure.

Obviously there are signiﬁcant differences between

the measured curves (MoCap, Kinect) and the result

of the calculation (SHIMMER) applying the formulas

(5)-(11).

3.3 Tinetti Score and Evaluation of

Walking

Determining the Tinetti score (Tinetti, 1986) it is pos-

sible to estimate the risk of falling for elderly persons.

The Tinetti test consists of a balance check and a gait

analysis. A score determination of the obtained data

was successful even if the scores weren’t always ac-

curate due to signal interferences. The method used

Figure 7: Motion of the left foot (blue: MoCap, red: Kinect,

green: SHIMMER). Common stance (green) and swing

(blue) phases are marked.

for gait analysis is based mainly on the aggregation of

selected parameters for the Tinetti test, as well as on

the correlation of captured knee angles with patterns

provided by Perry and Murray (Perry, 2010; Mur-

ray, 1964). The experimental setup where the Kinect

is placed in front of the observed person permits si-

multaneous tracking of both body halves with one

3D-sensor. The stance and swing phases are calcu-

Figure 8: Stance (green) and swing (red) phases detected by

the motion of the left and right foot.

lated using the foot coordinates combining informa-

tion of the velocity in the forward direction and the

foot height over the ground. The result is shown in

Fig. 8. The calculation of step length, width and

height is done similarly, providing the contents of the

Tinetti score.

The angles of the knee joints are determined using

formula (4) as well as the hip, knee and foot coordi-

nates. The quantiﬁed similarity of these angles with

the standard values of Perry and Murray provides an-

other score (correlation score).

Table 1 demonstrates the calculated values of

three test persons. All records were evaluated visually

(see column Q). The quality of the ﬁrst record was es-

timated as good, while the other two were qualiﬁed as

rather bad. The third had the added ﬂaw of too much

noise.

Table 2 represents the calculated Tinetti scores of

BIOSIGNALS 2012 - International Conference on Bio-inspired Systems and Signal Processing

230

the test persons with the maximum score of 5. The

ﬁrst two subjects achieved a very good score. Both

obtained full marks from the length score and had

small cuts either in the height or width score. Sub-

ject three (FH1n) only achieved the maximum score

in the width. The overall score is average.

Table 1: Evaluation of three records based on Tinetti algo-

rithm (Q = quality of record, L = step length, H

= height

right foot, H

= height left foot, W = step width).

Name Q L H

[mm] [mm] [mm] [mm]

10442 good 613 42 46 200

599 50 165

94599 bad 736 55 36 131

663 182

FH1n noisy, 15 26 59 161

bad 674 80 116 148

558 190

Table 2: Calculated scores based on Tinetti.

Name Score Score Score Score

L H W total

10442 2 2 0.5 4.5

94599 2 1.5 1 4.5

FH1n 1.67 1.25 1 3.91

The classiﬁer based on Tinetti and correlation

score was applied to 32 test subjects aged 22 to 57.

More than half of the tracking sessions were affected

by signal noise or a short walking range. Anyway

72% of the test persons were classiﬁed as normal.

4 CONCLUSIONS

The results of the two groups of experiments promise

that both mobile sensor systems (Kinect, SHIMMER

sensors) will fulﬁll the requirements of health appli-

cations regarding the costs and accuracy. Maybe each

of them will be considered satisfactory or in some ap-

plication they will be used in combination.

The investigation has shown that the accuracy of

the Kinect and the SHIMMER sensors are compara-

ble to the MoCap system. Gait cycles like stance and

swing phases can be determined well.

The calibration of the setup of all three systems

is very important for the quality of the measured

data. Further development will be focused on the

preprocessing of the raw data to eliminate the in-

ﬂuence of noise, runaway values, offsets and drifts,

on the calculation algorithms to improve differenti-

ation/integration and to detect gait characteristics as

well as to check the reliability of the systems. Adap-

tive procedures to recalibrate data during measure-

ment or calculation based on correlation between e.g.

acceleration and angular velocity of a foot will be in-

vestigated. The use of both sensors to special health

applications like the Tinetti test will be continued.

REFERENCES

Cappozzo, A.; Marchetti, M. and Tosi, V., editors (1989).

Biolocomotion: A Century of Research Using Moving

Pictures.

Ferraris, F; Grimaldi, U. and Parvis, M. (1995). Procedure

for effortless in-ﬁeld calibration of three-axis rate gy-

ros and accelerometers. Sens. Mater, 7:311–330.

Goetz-Neumann, K. (2003). Gehen verstehen - Ganganal-

yse in der Physiotherapie. Thieme Verlag.

Greene, B. (2010). An adaptive gyroscope-based algorithm

for temporal gait analysis. Med Biol Eng Comput,

48:1251–1260.

Gronley, J. and Perry, J. (1984). Gait analysis techniques.

Physical Therapy, 64, Number 12:1831–1838.

Liu, T. (2009). Deveopment of a wearable sensor system for

quantitative gait analysis. Measurement, 42:978–988.

Morris, R. and Lawson, S. (2009). A review and evalua-

tion of available gait analysis technologies, and their

potential for the measurement of impact transmission.

Shock.

Murray, M. (1964). Walking patterns of normal men. J

Bone Joint Surg Am, 46A:335 – 360.

Nat. Point Inc., e. (2011). Natual point arena documen-

tation. http://www.naturalpoint.com/optitrack/sup-

port/manuals/.

Perry, J. (2010). Gait Analysis - Nomral and Pathological

Function. Slack Inc.

Perry, J. e. a. (1995). Classiﬁcation of walking handicap in

the stroke population. Stroke, 26:982–989.

R. L. A. National Rehabilitation Center, E. (2009). Jacque-

lin perry, m.d. http://www.rancho.org/md perry.htm.

Shimmer, editor (2011). Wireless Sensing Solution.

http://shimmer-research.com.

Tinetti, M. E. (1986). Performance-oriented assessment of

mobility problems in elderly patients. Journal of the

American Geriatrics Society, 34:119–126.

Van Best, J. (1984). A method for two dimensional

multi-segmental kinematic and kinetic analysis of nor-

mal and pathological human gait. Medical Progress

through Technology, 10:143–159.

Wang, B. and Huang, D. (2008). Low-cost motion captur-

ing using nintendo wii remote controllers. CSC2228

Project Report.

Woltring, H. (1989). One hundred years of photogramme-

try in biolocomotion. In Cappozzo, A.; Marchetti, M.

and Tosi, V., editors, Biolocomotion: A Century of Re-

search Using Moving Pictures, chapter 11. Proceeding

of the Symposium on Biolocomotion.

KINECT AND SHIMMER SENSORS IN MOTION ANALYSIS IN HEALTH APPLICATIONS

231
