PERFORMANCE STUDY OF PARALLEL HYBRID MULTIPLE

PATTERN MATCHING ALGORITHMS FOR BIOLOGICAL

SEQUENCES

Charalampos S. Kouzinopoulos

, Panagiotis D. Michailidis

and Konstantinos G. Margaritis

University of Macedonia, Thessaloniki, Macedonia, Greece

University of Western Macedonia, Kozani, Florina, Greece

Keywords:

Algorithms, Multiple pattern matching, Parallel computing, Hybrid, OpenMP, MPI, Biological sequence

databases.

Abstract:

Multiple pattern matching is widely used in computational biology to locate any number of nucleotides in

genome databases. Processing data of this size often requires more computing power than a sequential com-

puter can provide. A viable and cost-effective solution that can offer the power required by computationally

intensive applications at low cost is to share computational tasks among the processing nodes of a high per-

formance hybrid distributed and shared memory platform that consists of cluster workstations and multi-core

processors. This paper presents experimental results and a theoretical performance model of the hybrid im-

plementations of the Commentz-Walter, Wu-Manber, Set Backward Oracle Matching and the Salmela-Tarhio-

Kyt¨ojoki family of multiple pattern matching algorithms when executed in parallel on biological sequence

databases.

1 INTRODUCTION

Multiple pattern matching of nucleotides and amino

acid sequence patterns in biological sequence

databases is an important application in bioinformat-

ics that can identify diagnostic patterns or motif to

characterize protein families. It can also detect or

demonstrate homology between new sequences and

existing families of sequences. This way, it helps to

predict the secondary and tertiary structures of new

sequences which is an essential prelude to molecular

evolutionary analysis (Chaichoompu et al., 2006).

Given a sequence database or input string T =

. . . t

of length n and a ﬁnite set of r patterns

P = p

, p

, . . . , p

, where each p

is a string p

. . . p

of length m over a ﬁnite character set Σ

and the total size of all patterns is denoted as |P

|, the

task is to ﬁnd all occurrences of the patterns in the

sequence database.

For the experiments of this paper, the simple,

efﬁcient and widely used Commentz-Walter (CW)

(Commentz-Walter, 1979), Wu-Manber (WM) (Wu

and Manber, 1994), Set Backward Oracle Match-

ing (SBOM) (Navarro and Rafﬁnot, 2002) and

the Salmela-Tarhio-Kyt¨ojoki family (Salmela et al.,

2006) of multiple pattern matching algorithms were

used. The Commentz-Walter algorithm is substan-

tially faster in practice than the Aho-Corasick (Aho

and Corasick, 1975) algorithm, particularly when

long keywords are involved (Watson, 1995)(Wu and

Manber, 1994). Wu-Manber is considered to be a

practical, simple and efﬁcient algorithm for multiple

keyword matching (Navarro and Rafﬁnot, 2002). The

Set Backward Oracle Matching algorithm appears to

be very efﬁcient when used on large keyword sets. It

has the same worst case complexity as Set Backward

Dawg Matching but uses a much simpler automaton

and is faster in all cases (Navarro and Rafﬁnot, 2002).

Finally, Salmela-Tarhio-Kyt¨ojoki is a recently intro-

duced family of algorithms that has a reportedly good

performance on speciﬁc types of data (Kouzinopoulos

and Margaritis, 2010). For further details on the above

algorithms the reader is referred to (Kouzinopoulos

et al., 2011) and the original references.

Over the last decades, as the amount of biolog-

ical sequence data available in databases worldwide

grows at an exponential rate, researchers continue to

require faster and more powerful search algorithms.

The sequential computer programs can not deal efﬁ-

ciently with both execution time and memory require-

ments for large-scale multiple pattern matching algo-

rithms. With these two constraints in mind, a new

182

S. Kouzinopoulos C., D. Michailidis P. and G. Margaritis K..

PERFORMANCE STUDY OF PARALLEL HYBRID MULTIPLE PATTERN MATCHING ALGORITHMS FOR BIOLOGICAL SEQUENCES.

DOI: 10.5220/0003769801820187

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 182-187

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

class of high performance computing platforms and

tools appeared in the last few years, including clus-

ters of workstations and multicore processors, in or-

der to reduce the high time and memory requirements

on large-scale biological databases.

Parallel implementations and experiments for the

cases of pairwise sequence alignment and multiple

sequence alignment have been presented in the re-

search literature for distributed memory platforms

(Li, 2003), (Li and Chen, 2005), (Boukerche et al.,

2007), (Jacob et al., 2007) and for shared mem-

ory platforms (Cuvillo et al., 2003), (Chaichoompu

et al., 2006), (Rashid et al., 2007), (Zomaya, 2006).

The above implementations are based on the paral-

lelization of known biological sequence analysis al-

gorithms such as the Smith-Waterman, Needleman-

Wunsch and ClustalW algorithms.

This paper presents hybrid implementations of

the Commentz-Walter, Wu-Manber, and the Salmela-

Tarhio-Kyt¨ojoki family of multiple pattern matching

algorithms on a hybrid distributed and shared mem-

ory architecture when executed on large biological

sequence databases. This technique could poten-

tially have a better performance than the traditional

distributed and shared memory parallelization tech-

niques. The current work differs from previous re-

search works in the fact that the proposed parallel

implementations for multiple sequence comparison

are based on multiple pattern matching algorithms

instead of biological sequence alignment algorithms.

The goal of this paper is to investigate the efﬁciency

of the hybrid parallel implementations of multiple

pattern matching algorithms on large biological se-

quence databases in a systematic and uniﬁed way.

2 PARALLEL

IMPLEMENTATION

The presented hybrid parallel implementation of the

algorithms combines the advantages of both shared

and distributed memory parallelization on a cluster

system consisting of multiple interconnected multi-

core computers using a hierarchical model. At the

ﬁrst level, parallelism is implemented on the multi-

core computers using MPI where each MPI process is

assigned to a differentnode. In the next level, the MPI

processes spread parallelism to the local processors

by using a combined parallel work-sharing construct

for each computation, namely a parallel for directive;

each OpenMP thread is assigned to a different proces-

sor core. Figure 1 presents a pseudocode of the hybrid

implementation of the algorithms.

The following assumptions were made for the dis-

tributed memory parallelization: To enable communi-

cation between the cluster nodes, the master-worker

model was used, as it is very appropriate for pat-

tern matching. With this model, the master process

creates a series of separate but identical worker pro-

cesses which perform any sequential multiple pattern

matching algorithm on local data concurrently using

synchronous communication operations of the MPI li-

brary.

Main procedure

main()

{

1. Initialize MPI and OpenMP routines;

2. If (process==master) then call master(); else call

worker();

3. Exit MPI operations;

}

Master sub-procedure

master()

{

1. Send the text offset and the block size to each of

the workers;

2. Receive the results (i.e. matches) from all workers;

3. Print the total results;

}

Worker sub-procedure

worker()

{

1. Preprocess the pattern set;

2. Receive the offset of the text and the block size;

3. Open the sequence database from the local disk and

store the local subtext (from offset to offset +

block size) in memory;

4. Call the chosen multiple pattern matching algorithm

passing a pointer to the subtext in memory;

5. Divide the subtext among the available threads

6. Determine the number of matches from each thread

7. Send the results (i.e. matches) to master

}

Figure 1: Pseudocode of the hybrid implementation.

The complete biological databases and patterns

are distributed to each process using the NFS protocol

and are preloaded to memory before the preprocess-

ing phase of the algorithms begins, while the master

maintains a text offset that indicates the current po-

sition of the sequence database. Due to the homo-

geneity of the cluster nodes and the balanced data set

to be processed, a static distribution of the text offset

among the workers was chosen. Let N be the num-

ber of the available worker nodes, then the sequence

database will be decomposed in to ⌈

⌉ + N(m − 1)

successive characters prior to the execution of the al-

gorithms. The additional N(m− 1) pattern characters

between successive parts of the database ensure that

PERFORMANCE STUDY OF PARALLEL HYBRID MULTIPLE PATTERN MATCHING ALGORITHMS FOR

BIOLOGICAL SEQUENCES

183

each process has all the required data.

As opposed to distributed memory parallelization,

shared memory parallelization does not actually in-

volve a distribution of data since the entire data set is

stored in a common memory area where it can be ac-

cessed by all processing cores. To control the way the

iterations of the parallel implementations of the algo-

rithms are assigned to threads, OpenMP provides the

static, dynamic and guided scheduling clauses. Since

the pattern locations were generally balanced across

the data set and the use of dynamic scheduling usu-

ally incurs high overheads and tends to degrade data

locality (Ayguad´e et al., 2003), the static scheduling

clause of OpenMP was used as it was expected to be

best suited for the experiments of this paper. A similar

conclusion was drawn in (Kouzinopoulos and Mar-

garitis, 2009) where the static scheduling clause with

the default chunk size had a better performance than

the dynamic and guided scheduling clauses for two

dimensional pattern matching algorithms.

In many scenarios it is advantageous to estimate

the performance of a parallel system in order to de-

termine the efﬁciency of the implementation and to

verify the experimental results. The total execution

time of a parallel implementation of a multiple pat-

tern matching algorithm is equal to the I/O time to

read the data set from the ﬁle system, the preprocess-

ing time, the searching time and the communication

time. The I/O is performed ofﬂine before the exe-

cution of the algorithms and therefore its time is not

included. The preprocessing phase of most multiple

keyword matching algorithms is complex in nature

and cannot be efﬁciently distributed among different

processor cores, it is therefore performed sequentially

by each worker node. Finally, the search phase of the

algorithms is executed in parallel by t threads on each

of the N nodes of the computer cluster:

par

= T

preprocess

+ T

comm

N ×t

(1)

The communication time α of the distributed

memory implementation of the multiple pattern

matching algorithms is the summation of two com-

ponents: latency and transmission time. Latency is a

ﬁxed startup overhead time needed to prepare send-

ing a message from one node to another. The time to

actually transmit a message is also ﬁxed. The total

communication time T

comm

to transmit 2 messages for

the N nodes of the cluster is deﬁned as:

comm

= 2 × N × α (2)

The search time consists of the actual time re-

quired by the cluster nodes to locate the patterns in

the sequence database in parallel and an overhead β

introduced by the OpenMP parallel, for and reduc-

tion constructs. The parallel computation time T

par

of the hybrid implementation of the multiple pattern

matching algorithms will then be equal to:

par

= T

preprocess

+ 2× N × α+

N × t

+ β (3)

To ﬁnd the value of α, a simple program was used

that continuously transmitted a number of messages

between two nodes using MPI. Based on this test, and

for the speciﬁc experimental setup, α was equal to

0.00011 seconds. The measured value of α also in-

cludes the overhead introduced by the MPI Send and

MPI Recv functions of MPI. The value of β was es-

timated for the reference hardware as being equal to

0.00015 seconds.

3 EXPERIMENTAL RESULTS

The data set used consisted of the genome of Es-

cherichia coli from the Large Canterbury Corpus with

a size of n = 4.638.690 and an alphabet size Σ = 4, the

SWISS-PROT Amino Acid sequence database with a

size of n = 182.116.687 characters and an alphabet

size Σ = 20, the FASTA Amino Acid (FAA) of the A-

thaliana genome with a size of n = 11.273.437 char-

acters and an alphabet size Σ = 20 and the FASTA

Nucleidic Acid (FNA) sequences of the A-thaliana

genome with a size of n = 118.100.062characters and

an alphabet size Σ = 4. The pattern set used consisted

of 10.000 patterns where each pattern had a length of

m = 8 characters.

Table 1: Preprocessing and total running time of the algo-

rithms for the E.coli and SWISS-PROTsequence databases.

E.coli SWISS-PROT

Algorithm Prepr. Running Prepr. Running

CW 0.014 2.868 0.044 18.378

WM 0.002 3.388 0.010 9.629

HG 0.062 1.987 0.137 4.869

SOG 0.059 1.999 0.044 5.969

BG 0.069 1.982 0.141 4.912

The experiments were executed on a homoge-

neous computer cluster consisting of 10 nodes with an

Intel Core i3 CPU with a 2.93GHz clock rate and 4 Gb

of memory, a shared 4MB L3 cache and two micro-

processors cores, each with 64 KB L1 cache and 256

KB L2 cache. The nodes were connected using Re-

altek Gigabit Ethernet controllers. The Ubuntu Linux

operating system was used on all systems and dur-

ing the experiments only the typical background pro-

cesses ran. To decrease random variation, the time re-

sults were averages of 100 runs. All algorithms were

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

184

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processing nodes (E.coli)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processing nodes (SWISS-PROT)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processing nodes (FAA)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processing nodes (FNA)

SOG

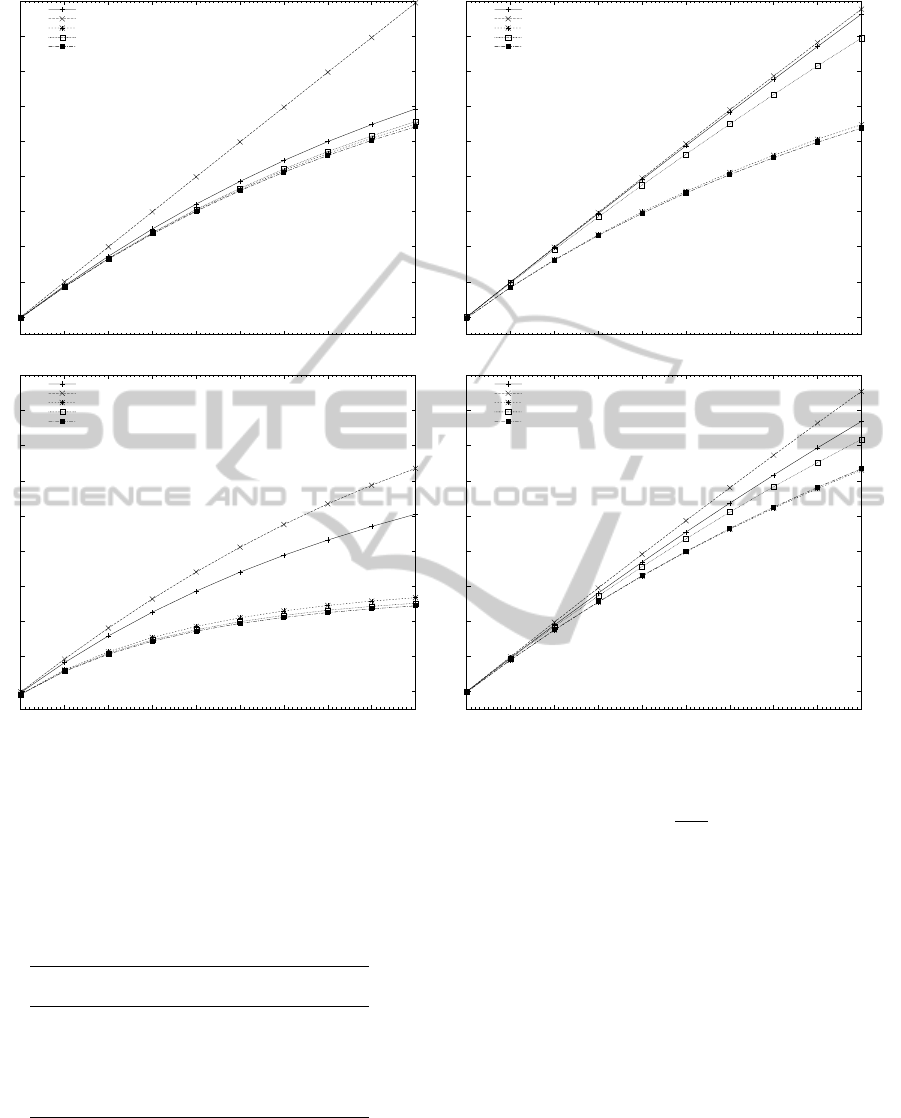

Figure 2: Estimated speedup of all algorithms with hybrid OpenMP/MPI for different number of processors with two cores.

implemented using the ANSI C programming lan-

guage and were compiled using the GCC 4.4.3 com-

piler with the “-O2” and “-funroll-loops” optimiza-

tion ﬂags.

Table 2: Preprocessing and total running time of the algo-

rithms for the FAA and FNA sequence databases.

FAA FNA

Algorithm Prepr. Running Prepr. Running

CW 0.020 0.672 0.042 5.234

WM 0.013 0.476 0.007 4.939

HG 0.021 0.230 0.042 2.441

SOG 0.032 0.279 0.045 2.714

BG 0.024 0.232 0.040 2.437

Speedup S

refers to the running time of a parallel

algorithm T

par

over a corresponding execution time of

a sequential algorithm T

seq

when executed on a paral-

lel system with p processing elements.

seq

par

(4)

Based on the observations of the previous section

and the preprocessing and searching time of the se-

quential implementation of the algorithms as depicted

in Tables 1 and 2, the parallel speedup of the algo-

rithms can be estimated with a relatively good degree

of success, as shown in Figure 2. When comparing

Figures 2 and 3 it can be seen that the estimated values

describe the general tendency of the speedup of the

parallel implementations, but they were not as accu-

rate to predict the exact parallel speedup achieved by

most algorithms. To improve the accuracy of the cal-

culations, a more advanced performance prediction

model could be used. A number of factors exist that

can explain the difference between the estimated and

the experimental results. The time to access the mem-

ory by the OpenMP threads, the execution cost of in-

struction cache misses, coherence cache misses and

PERFORMANCE STUDY OF PARALLEL HYBRID MULTIPLE PATTERN MATCHING ALGORITHMS FOR

BIOLOGICAL SEQUENCES

185

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processors (E.coli)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processors (SWISS PROT)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processors (FAA)

SOG

1 2 3 4 5 6 7 8 9 10

Speedup

Number of processors (FNA)

SOG

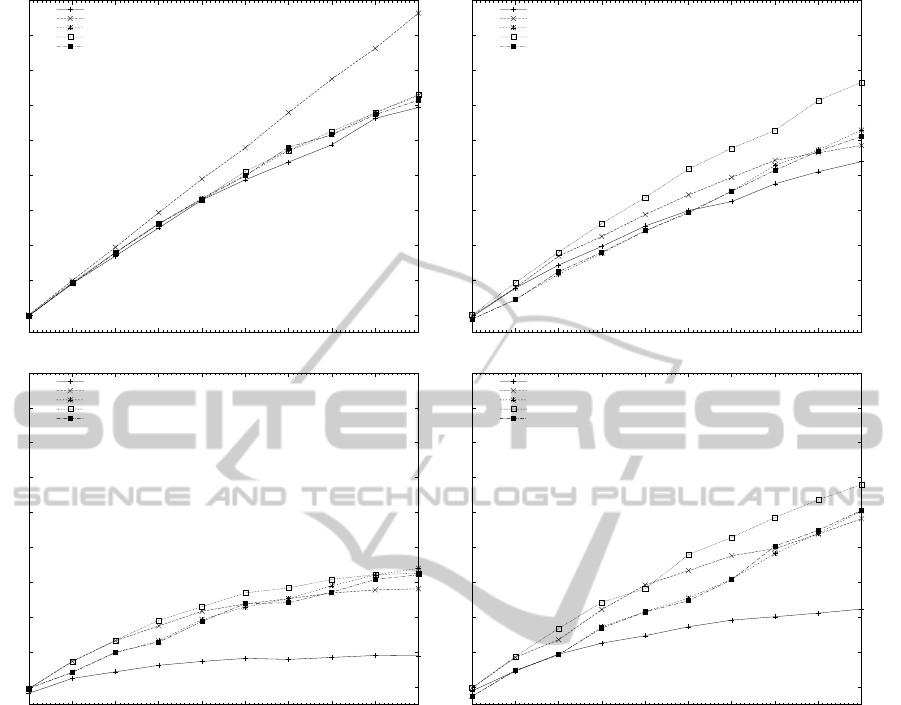

Figure 3: Measured speedup of all algorithms with hybrid OpenMP/MPI for different number of processors with two cores.

bus contentions (Liao and Chapman, 2007) as well

as optimizations of modern compilers can affect the

performance of a parallel hybrid implementation both

positively and negatively.

Figure 3 illustrates the performance increase of

the Commentz-Walter, Wu-Manber and the Salmela-

Tarhio-Kyt¨ojoki family of multiple pattern matching

algorithms using the proposed hybrid OpenMP/MPI

technique on a homogeneous cluster of 10 nodes with

a Core I3 processor on each node using 2 OpenMP

threads per node. As can be seen in the Figures, the

type of sequence database that is used can greatly af-

fect the performance of the parallel implementation

of the algorithms.

More speciﬁcally, for the E.coli sequence

database, the parallelization rate of the algorithms

increased linear in the number of cluster nodes.

The Wu-Manber algorithm was up to 19.2 times

faster than its sequential implementation while the

Commentz-Walter, HG, SOG and BG algorithms had

on average a 14.5 times better performance. The

speedup of the multiple pattern matching algorithms

was similar for the SWISS-PROT and the FNA se-

quence databases; the speedup of the SOG algo-

rithm was 15.3 and 13.5 respectively, of the HG,

BG and Wu-Manber algorithms was 12 on average

while the parallelization rate of the Commentz-Walter

algorithm was 10.7 and 6.4. Finally for the FAA

genome, the Wu-Manber and the Salmela-Tarhio-

Kyt¨ojoki family of multiple pattern matching algo-

rithms had a similar speedup of 8.4 on average while

Commentz-Walter had a parallelization rate of 3.7.

4 CONCLUSIONS

This chapter presented implementations and experi-

mental results of the Commentz-Walter, Wu-Manber

and the Salmela-Tarhio-Kyt¨ojoki family of multiple

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

186

pattern matching algorithms when executed in par-

allel on a hybrid distributed and shared memory ar-

chitecture. The algorithms were used to locate all

the appearances of any pattern from a ﬁnite pattern

set on four biological databases; the genome of Es-

cherichia coli from the Large Canterbury Corpus, the

SWISS-PROT Amino Acid sequence database and

the FASTA Amino Acid (FAA) and FASTA Nucleidic

Acid (FNA)sequences of the A-thaliana genome. The

pattern set used consisted of 100.000 patterns where

each pattern had a length of m = 8 characters.

It was concluded that the parallelization rate of

most multiple pattern matching algorithms depends

on the type of sequence database used. The par-

allel implementation of the algorithms had the best

speedup when used on the E.coli and the worst on

the FAA sequence database. It was also shown that

the Wu-Manber algorithm was up to 19.2 times faster

than its sequential implementation, the Commentz-

Walter was up to 14.5 times faster while the Salmela-

Tarhio-Kyt¨ojoki family of multiple pattern matching

algorithms had a speedup of up to 15.3 times.

The work presented in this chapter could be ex-

tended with a more accurate performance prediction

model as well as with experiments that use additional

parameters like patterns of varying length and larger

pattern sets. Since biological databases and sets of

multiple patterns are usually inherently parallel in na-

ture, future research could focus on the performance

evaluation of the presented algorithms when parallel

processed on modern parallel architectures such as

Graphics Processor Units.

REFERENCES

Aho, A. and Corasick, M. (1975). Efﬁcient string matching:

an aid to bibliographic search. Communications of the

ACM, 18(6):333–340.

Ayguad´e, E., Blainey, B., Duran, A., Labarta, J., Mart´ınez,

F., Martorell, X., and Silvera, R. (2003). Is the sched-

ule clause really necessary in openmp? In Interna-

tional workshop on OpenMP applications and tools,

volume 2716, pages 147–159.

Boukerche, A., de Melo, A. C. M. A., Ayala-Rinc´on, M.,

and Walter, M. E. M. T. (2007). Parallel strategies for

the local biological sequence alignment in a cluster of

workstations. J. Parallel Distrib. Comput., 67:170–

185.

Chaichoompu, K., Kittitornkun, S., and Tongsima, S.

(2006). MT-clustalW: multithreading multiple se-

quence alignment. In IPDPS.

Commentz-Walter, B. (1979). A string matching algorithm

fast on the average. Proceedings of the 6th Collo-

quium, on Automata, Languages and Programming,

pages 118–132.

Cuvillo, J., Tian, X., Gao, G., and Girkar, M. (2003). Per-

formance study of a whole genome comparison tool

on a hyper-threading multiprocessor. In ISHPC, pages

450–457.

Jacob, A. C., Sanyal, S., Paprzycki, M., Arora, R., and

Ganzha, M. (2007). Whole genome comparison on a

network of workstations. In ISPDC’07, pages 31–36.

Kouzinopoulos, C. and Margaritis, K. (2009). Parallel im-

plementation of exact two dimensional pattern match-

ing algorithms using MPI and OpenMP. In 9th Hel-

lenic European Research on Computer Mathematics

and its Applications Conference.

Kouzinopoulos, C. and Margaritis, K. (2010). Experimental

Results on Algorithms for Multiple Keyword Match-

ing. In IADIS International Conference on Informat-

ics, pages 274–277.

Kouzinopoulos, C., Michailidis, P., and Margaritis, K.

(2011). Parallel Processing of Multiple Pat-

tern Matching Algorithms for Biological Sequences:

Methods and Performance Results. InTech.

Li, K.-B. (2003). ClustalW-MPI: ClustalW analysis using

distributed and parallel computing. Bioinformatics,

19(12):1585–1586.

Li, Y. and Chen, C.-K. (2005). Parallelization of multiple

genome alignment. In HPCC’05, pages 910–915.

Liao, C. and Chapman, B. (2007). Invited paper: A

compile-time cost model for openmp. In Proceedings

of the 21st International Parallel and Distributed Pro-

cessing Symposium.

Navarro, G. and Rafﬁnot, M. (2002). Flexible pattern

matching in strings: practical on-line search algo-

rithms for texts and biological sequences. Cambridge

University Press.

Rashid, N. A., Abdullah, R., and Talib, A. Z. H. (2007). Par-

allel homologous search with hirschberg algorithm: a

hybrid mpi-pthreads solution. In Proceedings of the

11th WSEAS International Conference on Comput-

ers, pages 228–233, Stevens Point, Wisconsin, USA.

World Scientiﬁc and Engineering Academy and Soci-

ety (WSEAS).

Salmela, L., Tarhio, J., and Kyt¨ojoki, J. (2006). Multipattern

string matching with q -grams. Journal of Experimen-

tal Algorithmics, 11:1–19.

Watson, B. (1995). Taxonomies and toolkits of regular lan-

guage algorithms. PhD thesis, Eindhoven University

of Technology.

Wu, S. and Manber, U. (1994). A fast algorithm for multi-

pattern searching. pages 1–11. Technical report TR-

94-17.

Zomaya, A. (2006). Parallel Computing for Bioinformatics

and Computational Biology: Models, Enabling Tech-

nologies, and Case Studies. Wiley.

PERFORMANCE STUDY OF PARALLEL HYBRID MULTIPLE PATTERN MATCHING ALGORITHMS FOR

BIOLOGICAL SEQUENCES

187
