MOBILE, REAL-TIME SIMULATOR

FOR A CORTICAL VISUAL PROSTHESIS

Horace Josh, Benedict Yong and Lindsay Kleeman

Department of Electrical and Computer Systems Engineering, Monash University, Wellington Road, Clayton, Australia

Monash Vision Group, Monash University, Clayton, Australia

Keywords: Visual prosthesis, Mobile simulator, Visual cortex, Visuotopic mapping, Phosphene, Bionic vision.

Abstract: This paper presents a mobile, real-time simulator system for a cortical visual prosthesis, making use of

current neurophysiological models of visuotopy. This system overcomes fundamental limitations of current

simulator systems which include simplified visuotopic mapping and the lack of mobility, limiting use in

open and untethered environments. A visual prosthesis simulator provides a useful demonstration and

research platform for a bionic vision system. It can be used to simulate the visual results of such an implant,

as well as aid in the development of algorithms and techniques that would most suitably present information

to a patient. Cortical visual prostheses work by electrically stimulating the visual cortex, the part of the brain

primarily responsible for vision, and eliciting visual perceptions known as ‘phosphenes’. The simulator’s

main function is to translate a scene provided by a camera sensor into a low resolution form that closely

mimics the phosphene pattern produced by a cortical visual prosthesis. Preliminary psychophysics testing

has suggested that in some situations it can be advantageous to have four different levels of intensity rather

than two. It was also found that there is a learning effect associated with continued use of the system which

would need further psychophysics study.

1 INTRODUCTION

A study conducted in 1968 showed that electrical

stimulation of the visual cortex of a human brain

resulted in the elicitation of bright spots of light,

called ‘phosphenes’, in the visual field of the subject

(Brindley and Lewin, 1968). Supporting results were

also found in (Dobelle and Mladejovsky, 1974;

Dobelle et al., 1976; Bak et al., 1990). Further

studies (Humayun et al., 1996; Veraart et al., 1998)

have shown that it is also possible to generate

phosphenes via electrical stimulation of the retina

and optic nerve. These early studies provided a basis

for widespread research into the development of

functional visual prostheses.

A visual prosthesis, also often referred to as a

‘bionic eye’, is an implantable biomedical device

that aims to restore vision to the blind. The core

component of these devices is an array of electrodes,

driven by specialised electronics. The electrodes

inject electrical current into a particular section of

the patient’s visual pathway in order to generate an

‘image’ in the visual field.

The term visual pathway refers to the path that

signals take from the retina in the eye where they are

generated to the primary visual cortex at the back of

the brain. Light that is incident on photoreceptors in

the retina, a layer of cells at the back of the eye,

results in the generation of signals. These signals are

passed through the optic nerve and Lateral

Geniculate Nucleus (LGN) before arriving at the

primary visual cortex (V1), which is at the back of

the brain. From V1, signals diverge to subsequent

levels of visual cortex where higher level processing

takes place. In a blind individual, parts of the visual

pathway may not function. Therefore, visual signals

do not reach the visual cortex. A successful

prosthesis would bypass these inoperative sections

in order to deliver signals to V1.

The Australian Research Council funded a new

collaborative research initiative in 2009 to develop a

functional visual prosthesis. One of the two

proposals accepted for this initiative was by a

Monash University led team of researchers, now

known as the Monash Vision Group (MVG)

(Monash Vision Group, 2010). Established in 2010,

the MVG aims to develop a visual prosthesis

Josh H., Yong B. and Kleeman L..

MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS.

DOI: 10.5220/0003773300370046

In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2012), pages 37-46

ISBN: 978-989-8425-91-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

(Monash Bionic Eye) centred on a cortical implant,

making use of approximately 600 electrodes.

As research grows in this new area of bionics,

there is a great need for simulation or visualisation

of the possible results of such an implant. Bionic eye

simulators serve as good platforms for researchers to

investigate the effectiveness of implemented

algorithms, tune parameters, and realise the

importance of certain parameters prior to actual

clinical trials. The simulators would be used most in

psychophysical trials – trials involving normally

sighted individuals attempting to complete tasks

with the limited vision provided by a simulator.

However, the simulators would also be of use to the

general public for educational purposes and to

handle the expectations of families and friends of

potential patients. Input to the system is in the form

of an image or image stream. This image data goes

through processing that transforms it into a

representation that attempts to mimic the elicitation

of phosphenes through electrode stimulation. The

processed image data is then stored and/or displayed

on a screen for viewing by the user.

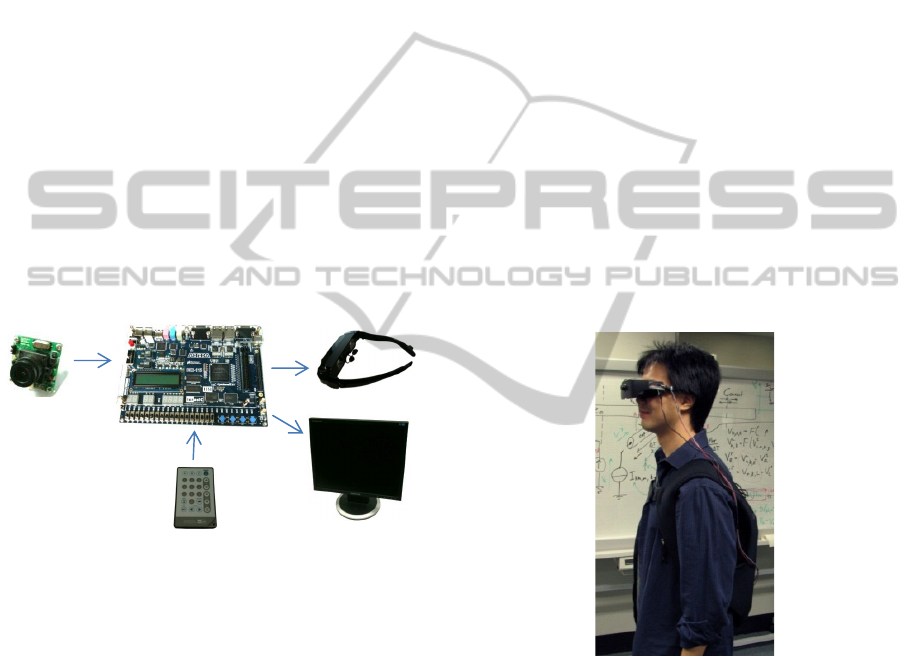

Figure 1: Main components of our simulator system: A)

CMOS Camera B) FPGA Development Board C) IR

Remote D) Head-Mounted Display E) External Monitor.

Many visual prosthesis simulators have already

been developed and some of the more recent work is

found in (Van Rheede et al., 2010; Zhao et al., 2010;

Fehervari et al., 2010; Srivastava et al., 2009; Chen

et al., 2005). Nevertheless, there are some significant

limitations that arise in their implementations. The

majority of these simulators perform their image

processing on a computer using image processing

libraries and so are often limited to use within an

area close to a stationary computer. Depending on

the complexity of processing and the available

processing power of the equipment in use, these

systems may sometimes suffer from latency and

frame rate issues. In the case of simulators for

cortical visual prostheses, visuotopic mapping – the

mapping of electrode placement on the visual cortex

to elicitation of phosphenes in the visual field, has

often been overlooked or used simplified models.

Our system aims to address the shortcomings of

currently implemented systems. In comparison to

other cortical FPGA based systems (Fehervari et al.,

2010; Srivastava et al., 2009), our system is very

mobile and has been used to do untethered

preliminary psychophysics testing. Our simulator is

based on a Field Programmable Gate Array (FPGA)

system implementation. FPGAs are microchips that

offer extremely dense amounts of electronically

reconfigurable logic gates. FPGA systems offer the

advantages of low latency, highly parallel

implementation and the ability to integrate with

large numbers of external devices through the high

availability of peripheral interface pins. Figure 1

shows the main components of our simulator

system. A CMOS camera captures a stream of image

data, which is then processed on an FPGA

development board and finally displayed on a head-

mounted display and optionally on an external

monitor as well. An infra-red remote control

interface is used to enable/disable the various

functions. A more detailed description of the system

components is provided in Section 2.

Figure 2: Integrated system.

2 SYSTEM SETUP

As shown in Figure 1, our system is comprised of

the following main components: a camera for

acquiring images, an FPGA development board for

performing all image processing functions and

visuotopic mapping, a head-mounted display as well

as optional external monitor for display of the

resulting image stream, and finally an infra-red

remote control for toggling of functions.

The camera that we have chosen to use is a low cost

CMOS camera (Sparkfun Electronics CM-26N/P)

BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices

Figure 3: Flowchart of main functions of the system.

which has an analogue signal output. It captures

images at a resolution of 640 x 480 pixels, at a frame

rate of 59.94Hz and has a viewing angle of 70˚.

Reasons for choosing this particular camera include

low cost, small physical size, switchable PAL/NTSC

output, and the simplicity of a three wire

power/signal connection which also allows for

longer cable lengths.

At the centre of our system, we have a Terasic

DE2-115 FPGA development board, which is based

on an Altera Cyclone IV EP4CE115F29C7 FPGA

chip. We chose this development board for its low

cost, lower power consumption, high logic element

and on-chip memory count, wide range of available

peripheral devices and I/O pins, and our familiarity

with its design and operation.

An infra-red remote, that comes standard with

the DE2-115, was utilised for capturing user input. It

provides a simple and easy way of toggling and

controlling all implemented functions.

For display of the final output, we have chosen a

head-mounted display (HMD) unit (Vuzix iWear

VR920), sometimes referred to as virtual reality

goggles. This HMD offers a 640x480 pixel display

resolution with a viewing angle of 32˚. The VR920

was chosen for its low cost, compatible resolution,

lightweight design, and its ability to take an

analogue VGA signal as its input. Since our system

outputs video via a VGA port, we were able to use a

simple passive splitter cable to provide dual output

(HMD as well as an external monitor).

For our system to be mobile, all hardware needed

to be integrated into a neat, wearable package. We

achieved the result shown in Figure 2. The majority

of components are fastened inside a hard plastic

laptop casing, which is then placed in a neoprene

laptop bag with cables running to the camera and

HMD that the user is wearing. A 12V rechargeable

lithium-ion battery pack is used to power the system.

3 SYSTEM IMPLEMENTATION

The flowchart shown in Figure 4 outlines the

implementation of the main functions of our system.

A high resolution image stream (640x480 pixels) is

captured by the CMOS camera, which is delivered to

the DE2-115 development board via a standard

NTSC analogue connection. After decoding of the

NTSC signal is complete, the pixels are sampled and

averaged. The sampled data is thresholded in order

to simulate possible limitations of electrode

stimulation. A pre-generated visuotopic mapping

lookup table is then used to determine the placement

of the phosphenes on the output display. A discrete

Gaussian falloff profile is used to simulate the

physiological phenomena of a phosphene dot in the

visual field. Before output on the screen, the frame

rate of the system can be set in real-time in order to

simulate varying stimulation frequencies of

electrodes. A more detailed explanation of these

main system features is given in Subsections 3.1,

3.2, 3.3, 3.4, and 3.5.

Furthermore, features such as edge detection,

histogram assisted threshold selection, and dead

electrode simulation, have been implemented in

order to allow for evaluation of the effects of such

image processing techniques on the perception of the

provided low resolution data (Subsection 3.6).

All processing performed on the image stream

from the camera is implemented using Verilog

hardware description language. Unlike conventional

code that is written for execution on a processor that

runs at a specific clock speed, Verilog describes the

way logic gates are to be arranged and connected

and so is compiled into a synthesisable logic

solution that can be either synchronous (operate with

reference to a clock), asynchronous (without

reference to a clock) or a mixture of the two. A

Verilog solution was chosen due to the ability to

create functions that can run in parallel, resulting in

a low latency real-time system.

3.1 Visuotopic Mapping

Early physiological research (Schwartz, 1977;

Wandell et al., 2007) proved that ‘points’ in the

visual field correspond to specific locations on the

Captured image

stream (640 x 480)

Sampling and

averaging

Thresholding Visuotopic mapping

Phosphene

modelling

Frame rate adjustment

Display on HMD

MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS

visual cortex, inferring a ‘map’ or transfer function

between visual field points and the visual cortex.

Furthermore, that map is mostly continuous in that

neighbouring points in the visual field correspond

with neighbouring points on the visual cortex. The

map or transfer function which describes the

translation of points between the visual cortex to its

corresponding points on the visual field is known as

the visuotopic map.

Due to the physiological non-linear properties of

the visual cortex, the visuotopic map is also non-

linear and ‘distorted’. In humans, the phenomenon

known as cortical magnification describes how a

small region at the centre of the visual field, known

as the fovea, corresponds with a much larger area of

the visual cortex (Horton and Hoyt, 1991; Duncan

and Boynton, 2003). Early work by Schwartz (1977)

indicated an approximation to the mapping by a

‘log-polar’ representation, where linear points on the

visual cortex correspond to eccentrically logarithmic

and angularly linear points in the visual field. The

foveal region is represented this way as a dense

packing of points in the centre of the visual field

which corresponds to a disproportionately larger

region on the visual cortex. Also important to note is

that the visual cortex is spread over both halves of

the brain with the left visual cortex corresponding

with the right visual hemifield and vice versa, due to

cross-over of the optic nerves. (Bear et al., 2007).

Mathematical models that came from this include

the Monopole model (defined from the ‘log-polar’

observations) (Schwartz, 1977; Polimeni et al.,

2006; Schira et al., 2010), the Wedge-Dipole model

(adds a second parameter to Monopole model to

account for curvature in the periphery region of the

visual cortex) (Balasubramanian et al., 2002;

Polimeni et al., 2006) and more recently the Double-

Sech model (adds a shear function to the Wedge-

Dipole model to account for changing local

isotrophy as well as increasing accuracy of mapping

at higher levels of visual cortex V2, V3) (Schira et

al., 2007; Schira et al., 2010).

As the implant is anticipated to consist of a linear

array of electrodes, the resulting phosphene pattern

would not be linear but rather follow this log-polar

mapping. It would be useful and more accurate to

model the output visualisation based off a

mathematical model of the visuotopic mapping.

Since the implant is expected to be placed in the

primary visual cortex V1 and closer to the foveal

side of the visual cortex, the Monopole model was

chosen to model the output visualisation as it was

mathematically simpler and still provides reasonable

accuracy.

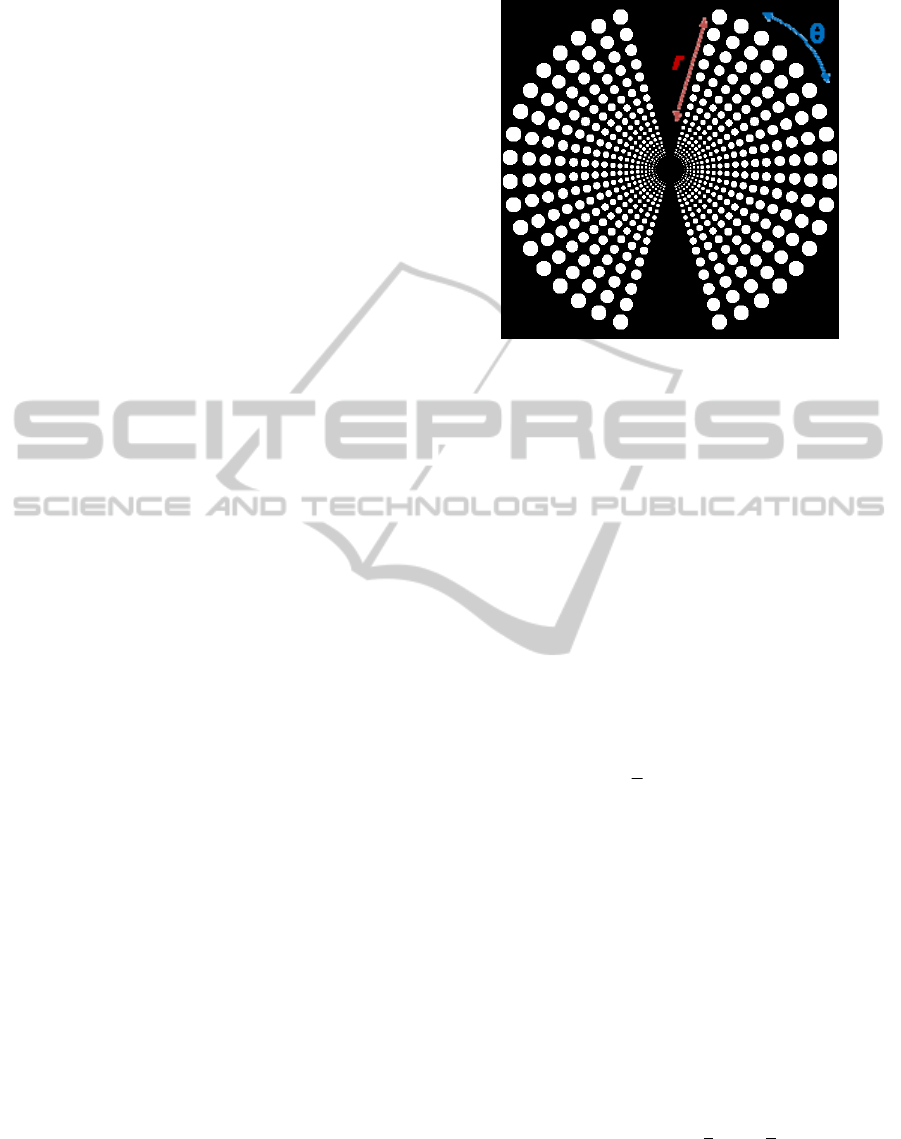

Figure 4: Resultant visual field of implemented visuotopic

map.

The Monopole equation (1) describes the left

visual cortex ‘w’ as a complex function of the right

visual hemifield ‘z

’. ‘C’ is the set of complex

numbers, and ‘k’ is a dilation factor constant.

log( )

wk z a=+∈^

(1)

Visual field z

can be represented as a complex

exponential where r represents the eccentricity and θ

represents polar angle.

zre

=∈^

(2)

Rearranging the Monopole equation describes

visual field z

as a function of visual cortex w.

zea=−∈^

(3)

The electrode array of the implant was assumed

to be a linear array placed on the visual cortex closer

to the foveal region. The visuotopic map was created

using MATLAB and ported over to the FPGA for

use as a large lookup table. Approximate values

were used for the Monopole equation parameters,

which are reasonably consistent with the various

values used in the literature: k=15, a=0.7. (Polimeni

et al., 2006; Schira et al., 2007; Fehervari et al.,

2010). The exact dimensions and intended locations

of the implant are still not known, the eccentricity

and polar angle were limited to an 18×18 linear

array on the visual cortex that cover the following

values on: r=[10,40], θ=[-0.8(





), 0.8(





)]. This only

represents the left visual cortex, corresponding with

the right visual hemifield. The 18×18 array was

duplicated for the right visual cortex, creating

another array on the left visual hemifield. This

BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices

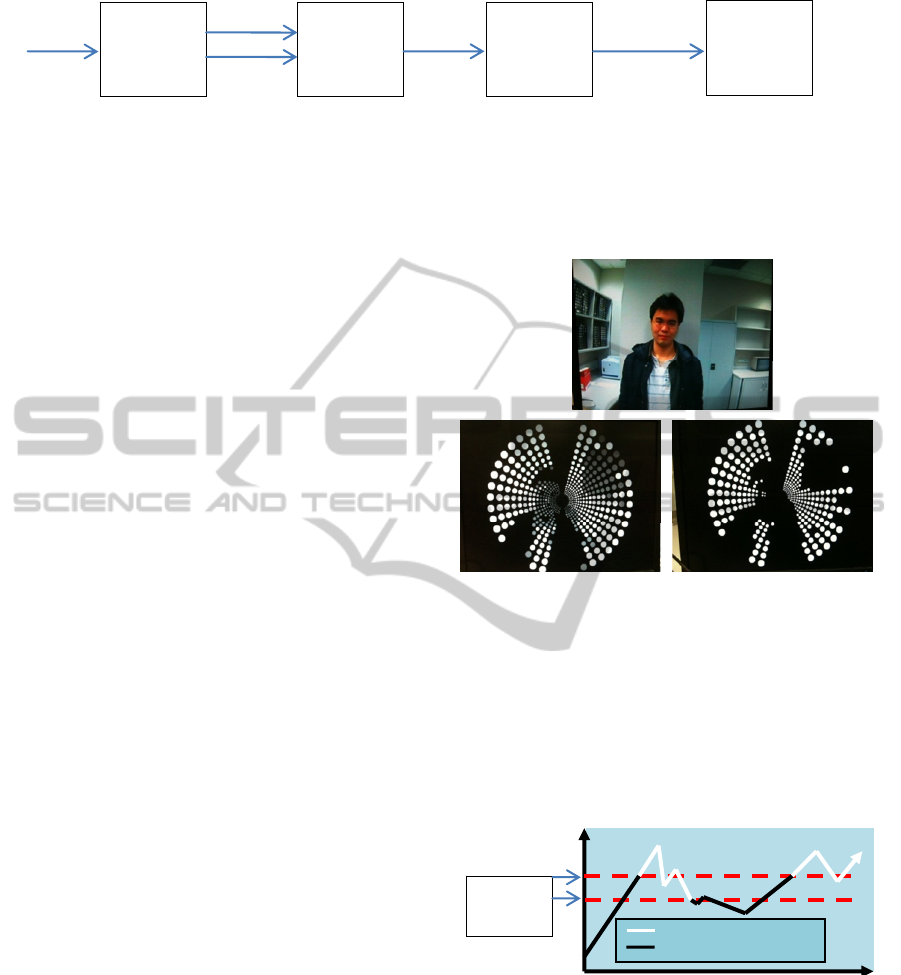

Figure 5: Averaging sampler implementation.

produces a total electrode count of 648. These

assumptions were taken to make better use of the

limited screen resolution of the head-mounted

display while remaining realistic to the ‘log-polar’

mapping of the visual cortex. However, new maps

can be simply regenerated on MATLAB to

accommodate any changes to this and implemented

into our system. The resultant visual field of our

implemented map is shown in Figure 4.

3.2 Averaging Sampler

Figure 5 outlines our averaging sampler

implementation. After NTSC decoding, the image

stream from the camera is made available one pixel

at a time in a sequential fashion. As each pixel

arrives at the sampling section of the system, its X &

Y pixel count values are compared against the

mapping lookup table. This lookup table stores the

corresponding phosphene index number for each

pixel within the central 480 x 480 window of the full

camera view. Pixels not belonging to a phosphene

are assigned number zero. Once the phosphene

index number is determined, the pixel is sampled by

adding to a storage register that corresponds to that

particular phosphene index number. This process

repeats until all pixels have been sampled. Finally,

an average is performed on all of the storage

registers according to the number of pixels that are

within each phosphene, and the results are stored in

a separate set of storage registers.

3.3 Thresholding

Various studies (Brindley and Lewin, 1968; Dobelle

and Mladejovsky, 1974; Schmidt et al., 1996) have

shown that the modulation of phosphene brightness

is possible using a number of different techniques.

However, there is some ambiguity in the possible

number distinguishable brightness levels.

Our system takes an optimistic approach at

simulation of this property, having the option to

display at 2, 4 or 8 levels of intensity or greyscale.

Since our system uses 10-bit storage registers for

pixels, the full greyscale intensity range is 0 to 1023.

This range is divided evenly in order to create bands

of intensity for 2, 4 and 8 level modes. Results of 2

and 4-level thresholding are shown in Figure 6. It is

often difficult to perceive the results of the system in

a static image form, therefore we encourage you to

view the videos we have listed in the appendix.

Figure 6: Thresholding: full resolution image (top), 4-level

image (bottom left), binary image (bottom right).

To avoid high frequency oscillation between

intensity bands, a hysteresis feature was included.

Two threshold values are used to define changes

between intensity bands, instead of one value. When

a phosphene’s intensity is between the two

thresholds, no change occurs. Figure 7 shows how

hysteresis reduces the oscillation problem.

Figure 7: Binary thresholding with hysteresis.

3.4 Phosphene Modelling

Stimulation of each electrode on the implant will

produce a phenomenon in the patient’s visual field

known as a phosphene, whose appearance is

somewhat similar to a bright spot of light (Brindley

and Lewin, 1968). Rather than simply using square

pixels that perfectly line up with each other, we

attempted to model the output visualisation based on

Pixel data

Phosphene

index

Pixel data

Total sum Averaged data

Summing

Storage

Registers

Phosphene

lookup table

Averager

Display

storage

registers

Output white phosphene

Output black phosphene

Greyscale

Intensit

Time

Hysteresis

thresholds

MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS

what phosphenes would approximately look like.

In the literature, one common approach is to

model the phosphene using a 2D Gaussian mask.

(Chen et al., 2009). The 2D Gaussian function is

based on the standard distribution curve, except in

two dimensions instead of one. This creates the

appearance of a round ‘spot’ where the centre of the

spot has the highest intensity value with the intensity

values decreasing radially towards the outside edge

of the spot, following the standard distribution

curve. A comparison between a phosphene with and

without the Gaussian function applied is shown in

Figure 8.

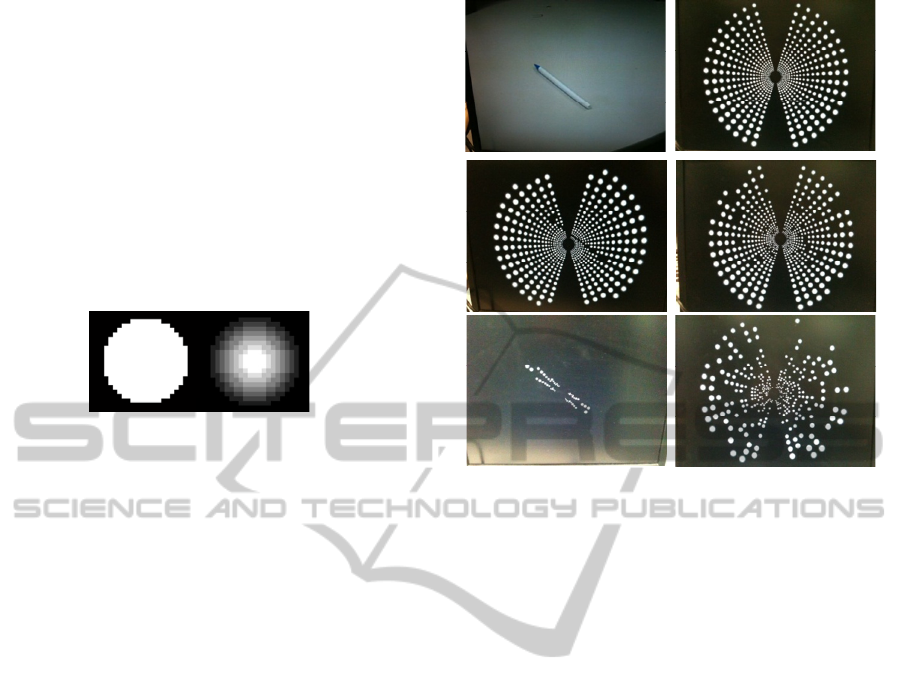

Figure 8: Phosphene modelling: without Gaussian function

(left), with Gaussian function (right).

3.5 Frame Rate Reduction

The ability of a person to detect motion is very

important when it comes to mobility exercises in

low resolution vision. A key factor that would limit

one’s ability to detect motion in the immediate

environment is the lack of temporal resolution. It is

expected that the temporal resolution of electrode

stimulation achievable by the Monash Bionic Eye

may be in the range of 5-15 frames per second. In

order to simulate this temporal resolution and

investigate the possible implications it may have on

a patient’s ability to move around, we have

implemented a frame rate reduction function. The

output frame rate of our system can be changed in

real-time. Our system has 8 different discrete frame

rates available for selection (1, 2, 4, 8, 10, 15, 30 and

60 frames per second). Variable frame rate is

achieved by holding the stored frame output data for

the specific period of the chosen frame rate.

3.6 Extra Functions

Additional functions have been implemented in our

system, such as edge detection histogram assisted

threshold selection and dead electrode simulation.

These features have not been evaluated in the

preliminary testing we present in this paper;

however, would be of importance for future

psychophysical research we intend to carry out.

Figure 9 demonstrates edge detection and dead

electrode simulation.

Figure 9: Edge detection: full resolution (top left), binary

thresholding (middle left), edge detection (bottom left).

Dead electrode simulation: 0% (top right), 10% (middle

right), 50% (bottom right).

4 EXPERIMENTAL SETUP

After the hardware was built, two different

psychophysical preliminary testing experiments

were devised by the authors and conducted by a

number of Monash Vision Group staff and post-

graduate students as volunteers. These experiments

were not formalised clinical trials, but rather

preliminary trials to test the effectiveness of the

system and to examine the effective difference

between the modes and parameters set on the system

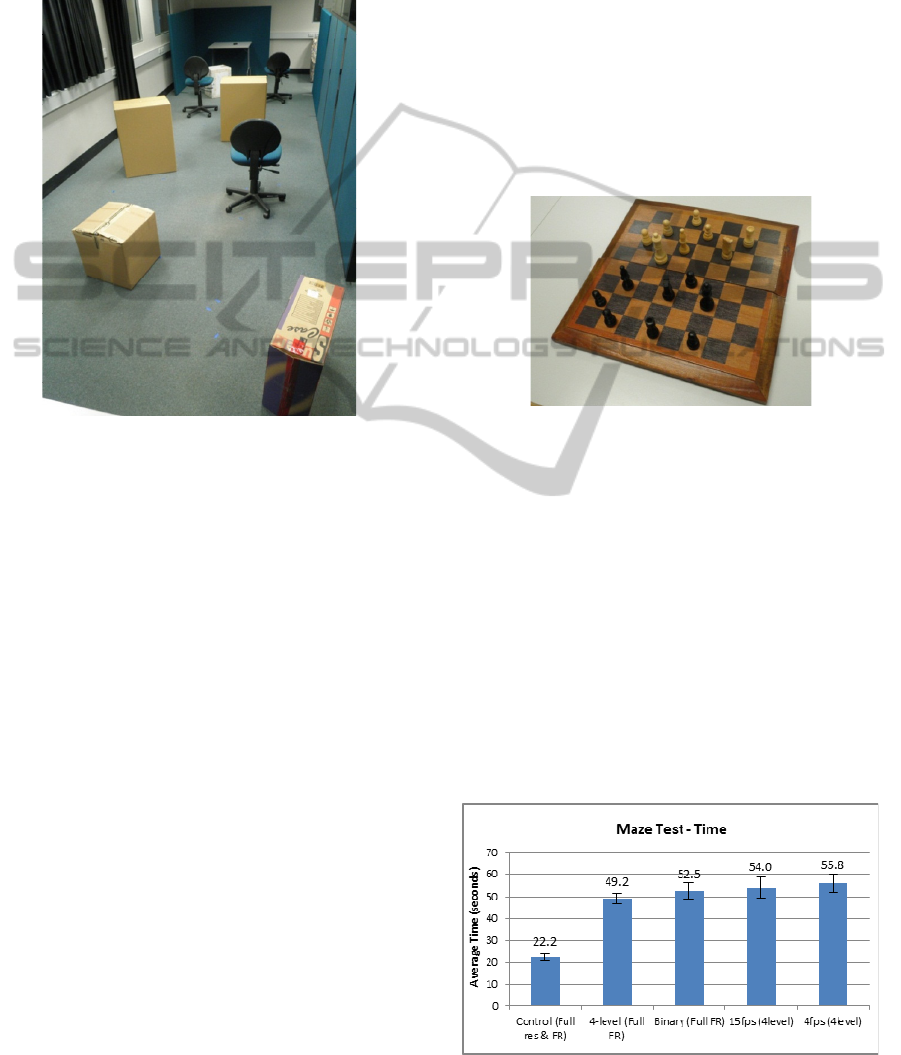

on the end user. The two experiments were a

mobility based obstacle avoidance walking maze

test, as well as a sit-down contrast discrimination

hand-eye co-ordination chessboard placement test.

4.1 Maze Test

In this test, there were 7 test subjects (6 male, 1

female). The maze test involved subjects walking

through a course while avoiding obstacles. The

obstacles were large cardboard boxes and office

chairs with wheels. The placement of the obstacles

was randomised within the maze area and 5 different

configurations of obstacle layout were developed,

one for each mode tested and kept consistent

between subjects. Subjects were not allowed to see

BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices

the obstacle layout before each test. The starting

point was around the corner from the main

rectangular maze area, and the end point was at a

table at the far end wall of the maze. There is a small

black box on the table and the test ends when the

subject finds and picks up the box.

Figure 10: Maze Test obstacle layout.

For the test, both time to completion and number

of collisions were recorded for all subjects. Subjects

were allowed to touch the obstacles in the maze so

only unintentional collisions were counted. The 5

modes tested were a control (full resolution, full

colour), 4-level thresholding (full frame rate), binary

thresholding (full frame rate) and reduced frame rate

at 15 fps and 4 fps (both with 4-level thresholding).

Subjects were given 2 minutes accommodation time

just before the test for each mode where they could

adjust to using the system around a cardboard box

and two chairs placed away from the actual maze

area. Subjects were also given a minimum of 5

minutes break in between each test.

4.2 Chessboard Test

In this test, there were 7 test subjects (6 male, 1

female) and were the same subjects as used in the

previous Maze Test. The task required subjects to sit

down at a table with a chessboard in front of them

and 16 chess pieces (8 black, 8 white) placed in a

random pile to the left of the chessboard. The

objective was for the subjects to sort and place any

black coloured pieces on any white square in the

bottom half of the chessboard, and the white pieces

on black squares in the top half of the chessboard.

For the test, both time to completion and number

of mistakes were recorded for all subjects. For a

piece to be considered as correctly placed, at least

half of it had to be over the right square. Another

aspect to this experiment was to test for learning

effects that come from repeated usage of the system.

As such, the non-control modes tested were repeated

3 times in this order (all at full frame rate): control

(full resolution, full colour), binary thresholding, 4-

level thresholding, binary, 4-level, binary, 4-level.

Before the testing, subjects were asked to attempt

the task without wearing the system in order to

familiarise themselves with the task itself. The

testing was conducted in a single session, with a

minimum 1 minute break in between each test.

Figure 11: Chessboard Test finished example.

5 RESULTS AND DISCUSSION

5.1 Maze Test

Figure 12 is a graph that details the time to

completion (in seconds) for each mode, averaged

over the 7 subjects. The order of the modes reflects

the order that the subjects were tested in. The error

bars show the standard error. 2-way, paired T-Tests

were conducted between the control time and each

of the non-control modes, as well as between the 4-

level thresholding full frame rate mode and the other

3 modes (binary and both reduced frame rates).

Figure 12: Maze Test - mode vs. average time (seconds).

MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS

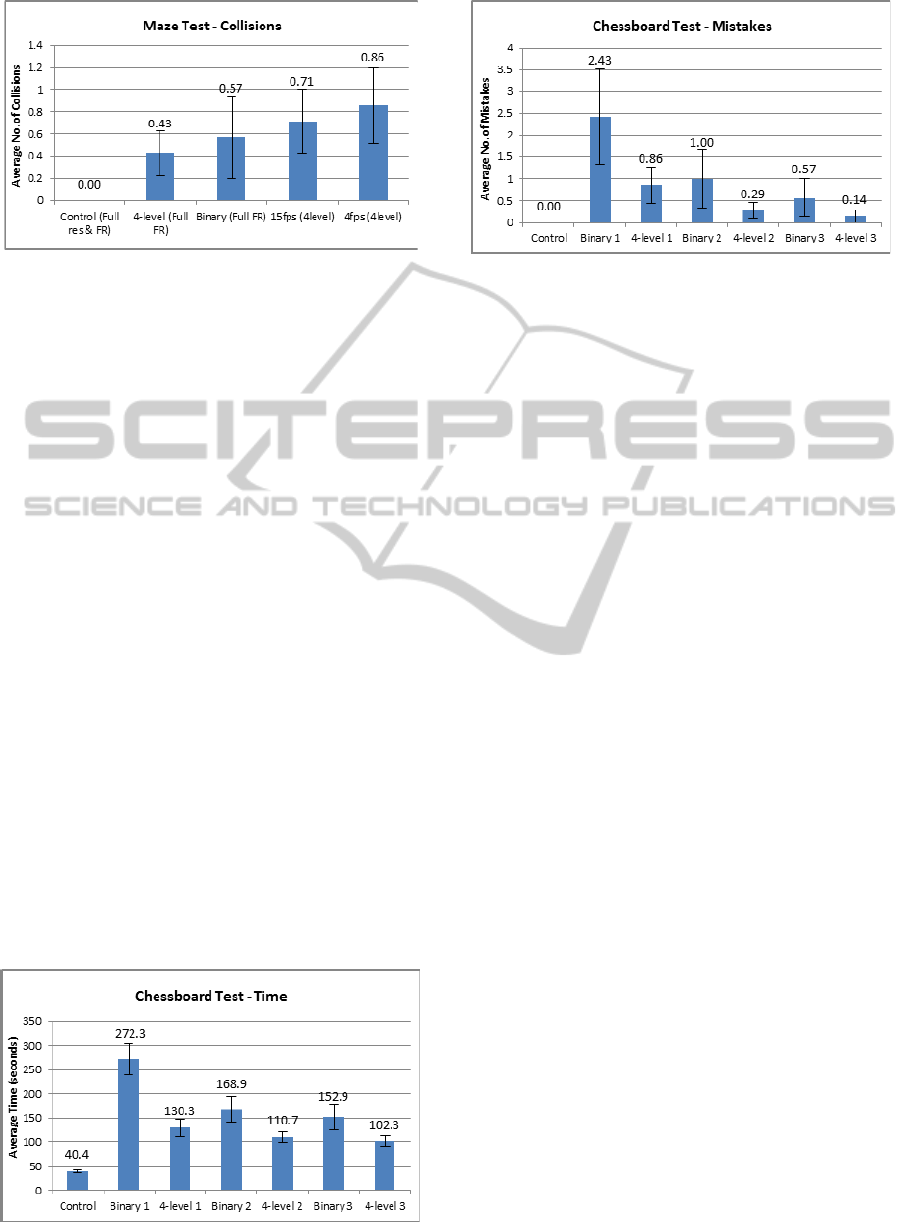

Figure 13: Maze Test - mode vs. average no. of collisions.

The times taken for all the non-control modes

were significantly higher (p < 0.05 for all) than the

time for the control. The binary and reduced frame

rate modes were slightly longer than the 4-level

thresholding full frame rate mode, but all the non-

control modes were within the statistical margin of

error (p > 0.05 for all).

Figure 13 details the number of collisions for

each mode, averaged over the 7 subjects. The error

bars show the standard error. The average number of

collisions was very low, due to a few of the subjects

not colliding with anything in any of the modes, but

the binary thresholding and reduced frame rate

modes had more collisions on average than the 4-

level thresholding full frame rate.

5.2 Chessboard Test

Figure 14 details time to completion (in seconds) for

each mode, averaged over the 7 subjects. The order

of the modes reflects the order the subjects were

tested in and shows how the same modes were tested

repeatedly 3 times to examine learning effects. The

error bars show the standard error. 2-way, paired T-

Tests were conducted between the control time and

each of the non-control modes, as well as between

the binary and 4-level thresholding for each pair of

repeated tests (eg. 1

binary with 1

4-level).

Figure 14: Chessboard Test - mode vs. average time (sec).

Figure 15: Chessboard Test - mode vs. average mistakes.

The times taken for all non-control modes were

significantly longer than control mode (p < 0.05 for

all). The times taken for the binary modes were

significantly longer than the 4-level thresholding for

the same repeated number of trial (p < 0.05 for the

and 2

pairs of tests, p = 0.063 for the 3

pair).

The times for all modes decreases with increasing

number of repeated tests.

Figure 15 details the number of mistakes for each

mode, averaged over the 7 subjects. The error bars

show the standard error. The average number of

mistakes was quite low due to some subjects not

making any mistakes. The trend however clearly

looks similar to the Chessboard Time graph with

decreasing number of mistakes with repeated trials.

5.3 Discussion

The Maze Test results show that subjects take much

longer to finish the test in any of the non-control

modes compared to the control, and that although

the binary and reduced frame rate modes took

slightly longer to complete than the 4-level full

frame rate mode, the difference was not significant.

This trend is also shown in the average number of

collisions, but the standard error is very large.

From observations made while building and

testing the system, reduction in colour depth and

frame rate does increase the difficulty of most

general tasks including navigational and obstacle

avoidance tasks. Possible reasons for this not being

made clear in the results are that the maze area was

fairly small and straightforward so the task could be

completed in a relatively short amount of time, and

the number of test subjects was low, presenting a

relatively large error. Also, the obstacles used in this

test were large and obvious and so subjects may not

have benefitted a lot from an increased colour depth

and frame rate. Another problem could be the order

of the modes in which the subjects were tested was

made consistent and that the ‘harder’ modes were

BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices

tested later. A learning effect just from repeated

testing, even with the changing obstacle placement

and accommodation time between tests, could cause

a decrease in times for the later tested ‘harder’

modes and hence reduce differences between them

and the earlier test ‘easier’ modes.

For the Chessboard Test, the results demonstrate

that the binary modes were significantly longer than

the 4-level thresholding modes for each repeated

test. The results also show that there is a clear

downwards trend with increasing number of tests for

both modes. The average number of mistakes also

shows these trends, that the binary has more

mistakes than the 4-level and that both modes

decrease over repeated testing, however the standard

error is very large. The reason the tests were

completed much faster on 4-level compared to

binary is likely because this test is based primarily

on contrast discrimination and the extra levels of

grey available on the 4-level allow the subjects to be

able to tell the difference between the dark and light

chess pieces and chessboard as well as the grey table

more rapidly. This shows that different tasks may

benefit differently from various modes. A significant

learning effect was evident as times and mistakes

would decrease with repeated testing, probably

leading to an eventual plateau point where times do

not get much faster. It is apparent that as people

keep repeating a task they are unfamiliar with, they

will improve at it. There should be no reason why it

is not the same when using a visual prosthesis

simulator, or even a patient with a visual prosthesis

implant itself.

5.4 Limitations of the System

Although, our system uses a physiologically based

model for mapping of phosphenes, it does not

represent the gaze-locked nature of a cortical

implant. In the case of a real cortical visual

prosthesis, the patient will not be able to focus on

different points of the visual field with eye

movements. In our system however, the user is able

to scan the presented pattern voluntarily. To

overcome this limitation, an eye-tracker would be

required to allow the system to move the pattern

along with the movement of the user’s eyes,

therefore ‘locking’ the gaze at a specific point

(usually at the center) in the presented pattern.

6 CONCLUSIONS

AND FUTURE WORK

This paper has presented a simulator for a cortical

visual prosthesis. By addressing fundamental

limitations in current simulator systems through its

portability, and physiologically based phosphene

mapping, the system has met expectations and

makes a good platform for investigation,

improvement and tuning of algorithms for use with a

visual prosthesis. The completion of preliminary

psychophysical testing has shown that the number of

greyscale intensities has a significant effect on

results for certain tasks. It was also found that a

learning effect is present with repeated trials which

will need to be addressed in future work with

broader and more rigorous sets of psychophysical

testing. It is hoped that valuable insight can be

gained and used to improve the implementation of

future visual prosthesis devices.

ACKNOWLEDGEMENTS

Monash Vision Group is funded through the

Australian Research Council Research in Bionic

Vision Science and Technology Initiative

(SR1000006). The authors would like to thank the

members of Monash Vision Group that participated

in the trials and all those that shared their valuable

opinions and advice. The authors would also like to

thank Grey Innovation for help with the physical

layout of the integrated simulator system.

REFERENCES

Bak, M., Girvin, J. P., Hambrecht, F. T., Kufts, C. V.,

Loeb, G. E., Schmidt, E. M., 1990. Visual sensations

produced by intracortical microstimulation of the

human occipital cortex. Medical & Biological

Engineering & Computing, vol. 28, pp. 257-259.

Balasubramanian, M., Polimeni, J. R., Schwartz, E. L.,

2002. The v1-v2-v3 complex: quasiconformal dipole

maps in primate striate and extra-striate cortex. Neural

Networks, vol. 15, iss.10, pp1157-1163.

Bear, M. F., Connors, B. W., Paradiso, M. A. 2007.

Neuroscience: Exploring the Brain. Lippincott

Williams & Wilkins. Baltimore, 3rd edition.

Brindley, G. S., Lewin, W. S., 1968. The sensations

produced by electrical stimulation of the visual cortex.

Journal of Physiology, vol. 196, pp. 479-493.

Canny, J., 1986. A computational approach to edge

detection. IEEE Trans. on Pattern Analysis and

Machine Intelligence, vol. 8, pp. 679-698.

MOBILE, REAL-TIME SIMULATOR FOR A CORTICAL VISUAL PROSTHESIS

Chen, S. C., Hallum, L. E., Lovell, N. H., Suaning, G. J.,

2005. Visual acuity measurement of prosthetic vision:

a virtual-reality simulation study. Journal of Neural

Engineering, vol. 2, pp. S135-S145.

Chen, S. C., Suaning, G. J., Morley, J. W., Lovell, N. H.,

2009. Simulating prosthetic vision: i. visual models of

phosphenes. Vision Research, vol. 49, pp. 1493-1506.

Dobelle, W. H., Mladejovsky, M. G., 1974. Phosphenes

produced by electrical stimulation of human occipital

cortex, and their application to the development of a

prosthesis for the blind. Journal of Physiology, vol.

243, pp. 553-576.

Dobelle, W. H., Mladejovsky, M. G., Evans, J. R.,

Roberts, T. S., Girvin, J. P., 1976. 'Braille' reading by

a blind volunteer by visual cortex stimulation. Nature,

vol. 259, pp. 111-112.

Dowling, J. A., Maeder, A. J., Boles, W., 2004. Mobility

enhancement and assessment for a visual prosthesis.

Proceedings of SPIE Medical Imaging 2004:

Physiology, Function, and Structure from Medical

Images, vol. 5369, pp. 780-791.

Duncan, R. O., Boynton, G. M., 2003. Cortical

magnification within human primary visual cortex

correlates with acuity thresholds. Neuron, vol. 38, pp.

659-671.

Fehervari, T., Matsuoka, M., Okuno, H., Yagi, T., 2010.

Real-time simulation of phosphene images evoked by

electrical stimulation of the visual cortex. Neural

Information Processing, vol. 6443, pp. 171-178.

Horton, J. C., Hoyt, W. F., 1991. The representation of the

visual field in human striate cortex: a revision of the

classic holmes map. Archives of Ophthalmology, vol.

109, pp. 816-824.

Humayun, M. S., de Juan, E., Dagnelie, G., Greenberg, R.

J., Propst, R. H., Phillips, D. H., 1996. Visual

perception elicited by electrical stimulation of retina in

blind humans. Archives of Opthalmology, vol. 114, pp.

40-46.

Lee, J. S. J., Haralick, R. M., Shapiro, L. G., 1987.

Morphologic Edge Detection. IEEE Journal of

Robotics and Automation, vol. 3, pp. 142-156.

Monash Vision Group, 2010. Monash vision direct to

brain bionic eye. Viewed 11th July, 2011,

<http://monash.edu.au/bioniceye>.

Polimeni, J. R., Balasubramanian, M., Schwartz, E. L.,

2006. Multi-area visuotopic map complexes in

macaque striate and extra-striate cortex. Vision

Research, vol. 46, pp. 3336-3359.

Schira, M. M., Wade, A. R., Tyler, C. W., 2007. Two-

dimensional mapping of the central and parafoveal

visual field to human visual cortex. Journal of

Neurophysiology, vol. 97, pp. 4284-4295.

Schira, M. M., Tyler, C. W., Spehar, B., Breakspear, M.,

2010. Modeling magnification and anisotropy in the

primate foveal confluence. PLoS Computational

Biology, vol. 6, iss.1, pp. 1-10.

Schmidt, E. M., Bak, M. J., Hambrecht, F. T., Kufta, C. v.,

O'Rourke, D. K., Vallabhanath, P., 1996. Feasibility of

a visual prosthesis for the blind based on intracortical

microstimulation of the visual cortex. Brain, vol. 119,

pp. 507-522.

Schwartz, 1977. Spatial mapping in the primate sensory

projection: analytic structure and relevance to

perception. Biological Cybernetics, vol. 25, pp. 181-

194.

Srivastava, N. R., Troyk, P. R., Dagnelie, G., 2009.

Detection, eye-hand coordination and virtual mobility

performance in simulated vision for a cortical visual

prosthesis device. Journal of Neural Engineering, vol.

6, pp 1-14.

Van Rheede, J. J., Kennard, C., Hicks, S. L., 2010.

Simulating prosthetic vision: optimizing the

information content of a limited visual display.

Journal of Vision, 10(14):32, pp. 1-15.

Veraart, C., Raftopoulos, C., Mortimer, J. T., Delbeke, J.,

Pins, D., Michaux, G., Vanlierde, A., Parrini, S.,

Wanet-Defalque, M., 1998. Visual sensations

produced by optic nerve stimulation using an

implanted self-sizing spiral cuff electrode. Brain

Research, vol. 813, pp. 181-186.

Wandell, B. A., Dumoulin, S. O., Brewer, A. A., 2007.

Visual field maps in human cortex: review. Neuron,

vol. 56, pp. 366-383.

Zhao, Y., Lu, Y., Tian, Y., Li, L., Ren, Q., Chai, X., 2010.

Image processing based recognition of images with a

limited number of pixels using simulated prosthetic

vision. Information Sciences, vol. 180, pp. 2915-2924.

APPENDIX

Vid.1) www.youtube.com/watch?v=oAxaNloHVHg

Vid.2) www.youtube.com/watch?v=2byh1qQfWGQ

Vid.3) www.youtube.com/watch?v=gIVrnsk04LA

BIODEVICES 2012 - International Conference on Biomedical Electronics and Devices
