PROCESS-ORIENTED INCIDENT REPORTING IN HEALTH CARE

ORGANIZATIONS

Web Application Architecture and Modeling Experiences

Martin Schmollinger

, Eric Stricker

, Tibor Bazlen

, Thomas Eßlinger

, Christopher R

ohl

and Brian Walter

School of Informatics, Reutlingen University, Reutlingen, Germany

Department of Anaesthesiology and Intensive Care Medicine, University Hospital T

ubingen, T

ubingen, Germany

Keywords:

Process-oriented system architecture, Medical incident reporting, BPMN 2.0, REST web services.

Abstract:

In Germany more than 17,000 people die per year because of ”medical errors”, in the USA it is about 98,000.

The number of avoidable malpractice cases or major complications is about tenfold higher. Nearly everyone

will be a patient in a hospital sooner or later. A key concept to improve patient safety are modern, anonymous

adverse event reporting systems in hospitals. These are known as incident reporting systems. The introduction

of modern process-oriented technologies optimizes the efﬁciency of such systems and increases patient safety.

IT saves lives, if it is possible to improve the analysis of medical incidents and to accelerate the detection of

the underlying causes by optimizing the IRS processes. In this paper we present a generic process-oriented ar-

chitecture and its application for incident reporting systems in health care organizations. Further, we formulate

lessons learned concerning business process modeling and implementation for process-oriented architectures.

1 INCIDENT REPORTING IN

HEALTH CARE

Since the report ”to err is human” published by the

Institute of Medicine (IOM) (Institute of Medicine,

1999), it is well known that up to 98,000 people die

each year because of medical errors. In many coun-

tries medical errors are among the ten leading causes

of death (Kohn, 2006). The number of avoidable

major complications is about tenfold higher. Cases

with injury to the patient are only the tip of the ice-

berg. The avoidance of medical errors increases pa-

tient safety. Unfortunately, there is little knowledge

about the error mechanisms in health care. A main

reason for errors in medicine is the failure to ap-

ply medical knowledge in imperfect, real world con-

ditions of patient care and not the missing medical

knowledge itself (Rall and Gaba, 2005).

Incident reporting systems (IRS) facilitate the

continuous collection of data for a systematic analy-

sis. Presently available systems do not collect the nec-

essary amount and quality of data. The amount of un-

reported and therefore not systematically analyzed in-

cidents is estimated to be between 50% and 96% (In-

stitute of Medicine, 1999; Leape, 1994; Cullen et al.,

1995).

Furthermore, ten years after the before-mentioned

IOM report, medical IRS still have major problems to

induct a fast realization of useful recommendations.

Because the analysis of the incidents is not compre-

hensive enough, decisions are often made without suf-

ﬁcient knowledge of environmental conditions and

various other factors. These quick ﬁxes can have un-

intentional side effects and even worsen the situation

(O’Reilley, 2009). Reported incidents are a window

to the surrounding health care system (Vincent, 2006).

Looking into this window gives the chance to de-

tect dangerous constellations which may be the root

causes of the reported incidents. Sometimes such fac-

tors do not actually correspond directly to the reported

incident, but without this reporting no one would have

ever questioned the detected nuisance. Eliminating

the deeper problem behind the incident means to im-

prove the situation for the given incident and more-

over, for similar or dependant situations. In order to

reduce the risk of adverse events all underlying fac-

tors and their relations have to be observed (Leape

et al., 1991). The World Health Organization (WHO)

published guidelines for adverse event reporting and

learning systems (WHO, 2011). The most important

aspects are organizational integration, data security,

219

Schmollinger M., Stricker E., Bazlen T., Eßlinger T., Röhl C. and Walter B..

PROCESS-ORIENTED INCIDENT REPORTING IN HEALTH CARE ORGANIZATIONS - Web Application Architecture and Modeling Experiences.

DOI: 10.5220/0003775602190224

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2012), pages 219-224

ISBN: 978-989-8425-88-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

implementation of change requests and the establish-

ment of some type of learning system. Some char-

acteristics of successful reporting systems can also be

derived from Leape (Leape, 2002) and Cohen (Cohen,

2000): e.g. non-punitive, conﬁdential, professional

analysis, timely, systems-oriented and responsive.

1.1 Patient Safety Information System

The T

ubingen Center of Patient Safety and Simula-

tion (T

uPASS) at the university hospital T

ubingen de-

velops and administrates the interprofessional IRS Pa-

SIS (Patient Safety Information System) (Dieckmann

et al., 2006). PaSIS is widely accepted with more than

70 participating hospitals and about 30 rescue heli-

copter bases in Central Europe. More than 3000 inci-

dents have been reported. All reports undergo a four-

eye anonymization process by neutral domain experts

trained in incident reporting and using checklist pro-

tocols to prevent any lapses. After that the reports are

professionally analyzed in order to ﬁnd the causes and

factors for the medical error. Within this process, it is

possible to pose questions to the anonymous reporter.

The result is prepared for the different user groups and

recommendations are derived from the analysis. The

implementation of the recommendations is supported

and evaluated throughout the system.

PaSIS is a classical web application based on

Apache, PHP and MySQL. The complete incident re-

porting process for each hospital beginning with re-

porting step, anonymization, posing questions to re-

porters, analyzing and suggesting recommendations

is hard wired in the program code. Each customiza-

tion of the system is associated with time-consuming,

error-prone manual programming. Moreover, it is not

possible to execute processes of different versions at

the same time. Changes to the process are very com-

plex, because the data of all pending processes have

to be adapted to the new one.

2 PROCESS-ORIENTATION IN

INCIDENT REPORTING

SYSTEMS

The success of an incident reporting system depends

on the optimal cooperation of all its stakeholders.

Stakeholders are all kinds of users (medical person-

nel, domain experts, quality managers of hospitals),

developers and administrators. Long-running pro-

cesses are common in medical incident reporting sys-

tems. Ideally, the process behind an incident report is

adapted to the corresponding hospital, because they

differ in size and organization. A precondition for

that is the cooperation between clinical personnel or

managers and IT specialists responsible for the IRS.

Business process management (BPM) technologies

and methodologies are the key to successfully ful-

ﬁlling this task. BPM is a systematic approach to

capture, arrange, document, measure, monitor and

steer automatic and non-automatic processes in order

to reach the goals of the organization (van der Aalst

et al., 2003; European Association of Business Pro-

cess Management, ). A business process management

system (BPMS) supports the BPM life cycle, which

consists of the four major steps: process design, sys-

tem conﬁguration, process enactment and diagnosis

(van der Aalst et al., 2003). The life cycle supports

continual improvement of business processes. Mod-

ern approaches provide methods and technologies to

get business people naturally involved in the BPM life

cycle. First of all, graphical notations like OMG’s

Business Model an Notation (BPMN) (Object Man-

agement Group, 2011; White and Miers, 2008) can

be used to design process models without program-

ming skills. The resulting business process models

can be augmented by technical details ideally using

the same notation. The execution of the detailed pro-

cess model is done by a process engine that coordi-

nates user interaction with the running processes by

a web application (Ouyang et al., 2009). Although,

there is an increasing need in health care to support

patient-oriented processes, BPM technology is rarely

used. Especially for IRS web applications, the em-

bedding of process-oriented technologies has several

advantages over conventionally implemented web ap-

plications. Namely, improved transparency of IRS

processes, complete involvement of all IRS partici-

pants in the processes’s life cycle, easier maintenance

and extendibility, faster ”time to market” for individ-

ual IRS processes of new participating hospitals, ﬂex-

ible change management, support of several process

versions per hospital and enhanced process monitor-

ing capabilities that help improving reaction times.

In (Schmollinger et al., 2011), we proposed a gen-

eral methodology to systematically incorporate pro-

cess oriented technologies into web applications. Fur-

thermore, we sketched a process-oriented target ar-

chitecture based on open source products and showed

how to implement processes with an adequate tool

chain using a simpliﬁed incident reporting process.

The used modeling strategy provides three types

of models. First, the strategic model. It describes the

main participants (user roles and systems) and the or-

der of their main activities. It disregards all the special

cases and exceptional or error conditions of the real

process. Second, the operative process model is much

HEALTHINF 2012 - International Conference on Health Informatics

220

more detailed than the strategic process model. It de-

scribes all operative tasks of all process participant

(human beings, as well as systems) and their relations

and dependencies. Third, the technical process model

contains all technical details and can be executed on

a process engine that is embedded in the web appli-

cation. As proof of concept, we realized a simpliﬁed

process (”happy path”) that gave us precious insights

and conﬁrmed the proposed methodology.

Practical use showed two main drawbacks of the

proposed architecture. First, the integration of the

process engine into the web application is too com-

plex. The PHP application communicates with a

JEE web application using HTTP. The JEE applica-

tion uses the Java API of the process engine (JBOSS

jBPM (JBoss, 2011)) to communicate with the pro-

cesses. Further frameworks were necessary to realize

a seamless integration e.g. W3C’s XForms standard

was used to describe web forms and Orbeon was used

to render these forms. One objective of the process-

oriented approach is to simplify maintenance and ex-

tensibility. But the architecture we sketched was too

complex to meet this objective. The effort in man-

aging the architecture is too high and too many skills

are necessary to create new processes or to update the

current versions.

Another problem with the architecture is the use of

different process modeling notations for the design of

the business process and for executable technical pro-

cess model. jBPM works best with the native jPDL

notation. Hence, there is always an additional step of

translation, because the common process design with

the users is done with BPMN. In order to improve the

overall architecture, we propose the following two ac-

tions: ﬁrst, use ”light-weight” integration of the pro-

cess engine into the web application using REST web

services (Fielding, 2000); second, use BPMN 2.0 for

the design and for the execution on the process en-

gine.

Concerning process modeling, the remaining

tasks were to turn the strategic model into an accu-

rate operative model. Then, the operative model itself

has to be turned into a technical process model that

can be executed on the process engine of choice.

In the following two sections, we show improve-

ments of the process architectures and lessons learned

in the area of process modeling in health care.

3 A PROCESS-ORIENTED WEB

APPLICATION

ARCHITECTURE

The Activiti-Project (Activiti, 2011) is an open source

BPM platform with a BPMN 2.0 process engine for

Java as its core. Furthermore, Activiti includes a

REST web service API to the engine that can easily

be used by web applications and therefore reduces the

complexity of the BPM integration into web applica-

tions dramatically. No additional user interface tech-

nology is necessary, it is completely up to the web

application how to display the process information.

This reduces the effort in customizing the application

for new modeled processes. The resulting new archi-

tecture for PaSIS is sketched in Figure 1. Besides

the engine, Activiti contains several tools supporting

the BPM life cycle, especially for modeling technical

(Eclipse designer) as well as non-technical business

processes (Activiti Modeler). Two databases are used.

The ﬁrst one stores all information of the web appli-

cation such as login data. The Activiti database stores

process information and user data of running process

instances. After completing a process instance the

user data is transferred back to the PaSIS database for

archiving purposes.

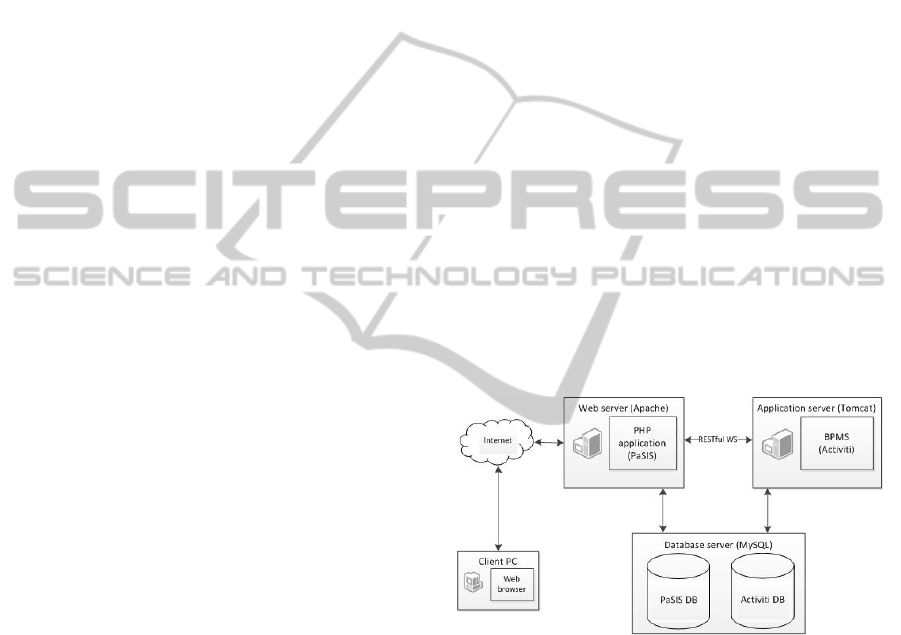

Figure 1: A process-oriented web application architectue

using a process engine and REST web services.

As already mentioned, Activiti implements a

REST interface, which offers extensive possibilities

for controlling the engine. These include the start-

ing of processes, completing tasks and reading of data

from the process engine. Information is transferred

in the JavaScript Object Notation (JSON), which is

much simpler than XML and has a smaller grammar.

JSON objects were transferred into multidimensional

PHP arrays by native implemented PHP functions.

Vice versa, we used cURL functions to wrap informa-

tion, entered by the user of the web application, for

sending them to Activiti. For future reusability new

PHP functions were implemented, which simplify the

invocation of the built-in REST methods.

PROCESS-ORIENTED INCIDENT REPORTING IN HEALTH CARE ORGANIZATIONS - Web Application

Architecture and Modeling Experiences

221

4 MODELING EXPERIENCES

In this section, we want to address the task of model-

ing processes for the sketched architecture. It is out

of scope of this paper to discuss the process content

itself e.g. the details/tasks of incident reporting. Our

focus lies on the modeling methodology.

Due to the strategic model (see (Schmollinger

et al., 2011)), we have created a common understand-

ing of incident reporting in health care organizations

among the development team. This model helps to

understand the core of the process by ignoring com-

plex aspect like e.g. realizing 4-eyes principles, sev-

eral iterations of discussions between external experts

and hospital delegates or call backs to the anonymous

reporter. It is the task of creating the operative process

model to address all those details.

In order to model the operative process out of the

strategic model, we had to analyze the actual incident

reporting system and the interaction with the process

participants thoroughly. A successful strategy is to

model the view of each process participant separately

in a single pool. The pool representing the process

engine contains all tasks that are necessary to coor-

dinate the other process participants. In our case, we

deﬁned three pools. One for the participating hospital

and within this pool one lane for the anonymous re-

porter and one lane for the quality manager. One for

the process engine (in the middle) and ﬁnally one for

the incident reporting organization with its experts for

deidentiﬁcation and analysis. The message ﬂows into

the process engine’s pool represent REST web service

calls from the web application to Activiti.

In general, the operative process model is always

huge and complex, because it represents a large part

of the system’s logic. Our resulting operative process

model consists of three pools integrating 6 swimlanes,

15 activities spread over the swimlanes, 11 gateways,

19 events and several sequence and message ﬂows.

A precise description together with a complete illus-

tration is out of scope of this paper. We focus on

the modeling methodology and show the relation be-

tween the operative and the technical process model

(see Figure 2).

Ideally, the process engine pool is very close to

the technical process model that is ﬁnally deployed to

the process engine of the process-oriented architec-

ture in order to facilitate the realization of the BPM

round trip. The resulting technical process model is

shown in Figure 3. It can be easiliy seen that in our

case the technical process model really looks simi-

lar to the process engine pool in the operative model.

This model is optimized for execution in the Activiti

BPM engine. Each human task is assigned to a pro-

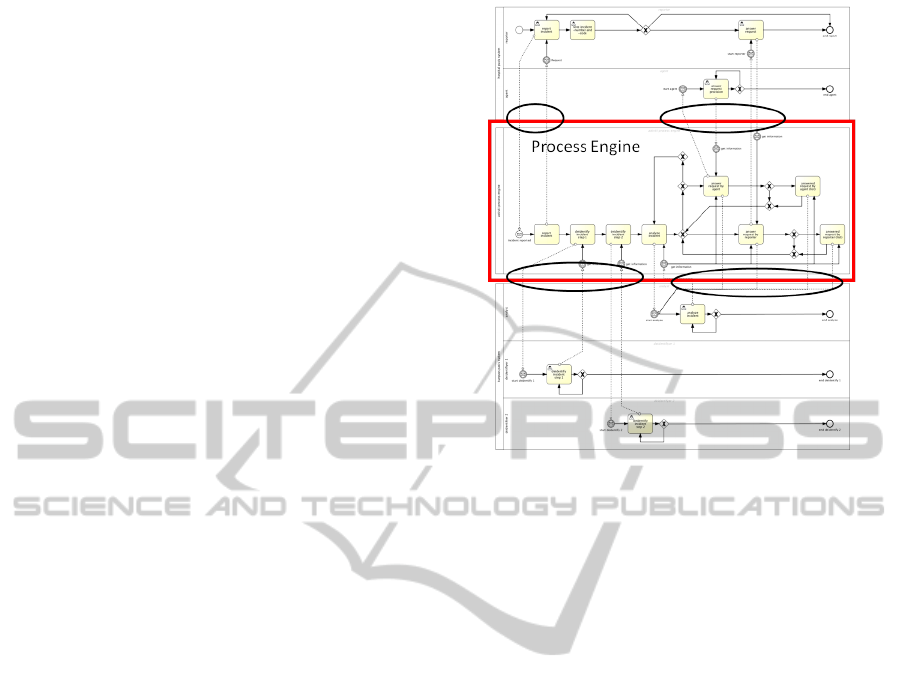

Figure 2: Overview of the operative process model of the

entire incident reporting process. The pool in the middle

emphasized by the rectangle represents the process engine.

This part of the operative model is the base for the imple-

mentation of the technical process model that is executable

on the target process engine. The ellipses mark message

ﬂows between the process engine pool and the other pools.

The message ﬂows have to be implemented by service calls

from the web application to the process engine.

cess participant as deﬁned in the operative model. In

addition all elements which were not required, such

as notice-elements, were deleted because the engine

does not need them. Gateways within the sequence

ﬂow use process variables (most of their values are

generated by user interaction) in order to decide the

route of the sequence ﬂow. The experiences made led

to the following lessons learned:

1. Optimization and Adaption of the Original

Web Application is Recommended. Although

the original web application might be instrinsi-

cally process-oriented, it is very complex to ex-

tract these processes. In general most applications

grew historically and include several workarounds

or bypasses for special cases and customers.

Sometimes these construct are de facto not used

anymore. Modeling all these constructs would

lead to even more complex models without an ad-

ditional beneﬁt. Hence, we recommend to clean

up and simplify the system while modeling. It is

worth questioning suspicous constructs in order to

otimize the new models.

2. Redeﬁnition of Authorization. Process-oriented

systems need a clear mapping of tasks to process

participants. Tasks are assigned to roles. A role

HEALTHINF 2012 - International Conference on Health Informatics

222

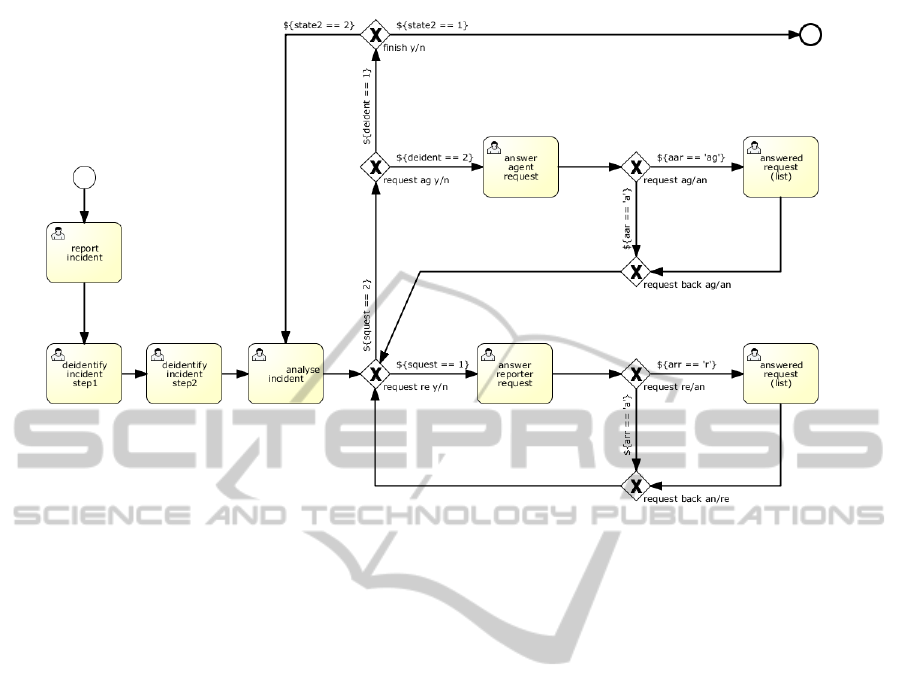

Figure 3: Technical process model that is executable on the process engine of Activiti. The labels at the outgoing sequences

at the gateways are conditions using process variables. The values of these variables are generate by user input during the

process execution. The model mainly consists of human tasks that are executed by service calls from the web application.

The participant’s todo-lists in the web application can be updated by reading the actual state of the process instance.

can be taken by single users or user groups. There

are web application that have a good authentiﬁ-

cation, but a very crude authorization. In these

case, it is not the system that ensures that the

right people do the right things at the right time,

but the organization of the daily work (they know

themselves what they are allowed to do or not).

Without a distinct authorization, the application

is more ﬂexible because nearly everyone can do

everything. But on the other hand side, it is not

possible to manage accurate todo-lists and there

is always the danger of misusage. Therefore, we

recommend to redesign the authorization system

while building up a process-oriented system.

3. Use of Modeling Conventions. During process

modeling it happens that the same construct can

be modeled in several ways. In order to receive

similar models over time it is recommended to de-

ﬁne modeling conventions, use process patterns or

general accepted guidelines like (Mendling et al.,

2010).

4. Know your Process Engine. There are a lot

of process engines around that pretend to be a

BPMN 2.0 compatible engine. BPMN 2.0 is a

very mighty standard with a lot of new constructs

and symbols. If you want to use all its features,

you ﬁrst have to check whether your engine does

really support them. Furthermore, if it supports

it, you have to check how it is implemented (e.g.

parallel gateway: is it really executed in parallel?).

In theory a BPMN 2.0 model should run on every

BPMN 2.0 process engine. Unfortunatelly, this is

not true. You have to consider the capabilities of

your engine while modeling the operative and of

course technical process model. Otherwise, there

will be a high probability that you can not reuse

your operative model for the design of the tech-

nical model. Although this the wrong way, your

engine deﬁnes the BPMN subset you can use for

your models. Hence, we recommend to deﬁne this

subset of BPMN before modeling.

5 CONCLUSIONS AND FUTURE

WORK

Intrinsically process-oriented web applications, like

incident reporting systems in health care are usually

implemented conventionally (e.g. LAMP/WAMP).

The processes are implicitly realized in the system.

This leads to major disadvantages concerning trans-

parency, maintainability and extendibility. The cus-

tomization of processes is very time-consuming and

error-prone. Even if the current process engines are

PROCESS-ORIENTED INCIDENT REPORTING IN HEALTH CARE ORGANIZATIONS - Web Application

Architecture and Modeling Experiences

223

not able to handle the full BPMN 2.0 notation, BPM

methodologies and technologies have a high potential

to improve this situation. In this paper, we presented a

process-oriented architecture that integrates a BPMS

into classical web application using REST web ser-

vices and BPMN 2.0. We implemented the architec-

ture for an incident reporting systems in health care.

Further, we showed how to model processes for the

given architecture using incident reporting processes

as an example and derived several lessons learned

from it. The presented approach has great potential,

but has to pass the practice test. Besides the future

lauch of a production system, further open questions

arised.

After establishing process-orientation in our in-

cident reporting system, we want to exploit the new

monitoring capabilities of the process-oriented archi-

tecture. Future work will be about the design of a

management cockpit for incident reporting with the

goal to improve reaction times and the quality of the

analysis.

The exploration of processes in web applications

is a very time consuming task. Process mining is a

research area that surveys methodologies and algo-

rithms with which processes of applications can be

detected out of log-Files. We are about to realize a

software infrastructure that helps collecting process

relevant data of clinical web applications in a con-

venient way over time. Using process mining tech-

niques on this data collection promises to accelerate

the exploration of business processes that are implic-

itly realized by clinical web applications.

Although a predeﬁned incident reporting process

is a good orientation for the process participants, in

some cases it is necessary to extend or modify the

process dynamically. The actual BPM technology ap-

proach does not support these so called ad hoc pro-

cesses. We will survey how social media technology

can improve this aspect.

REFERENCES

Activiti (2011). Bpm platform. http://www.activity.org/.

Cohen, M. (2000). Why error reporting systems should be

voluntarily. BMJ 2000, pages 728–9.

Cullen, D., Bates, W., Small, S., Cooper, J., Nemeskal, A.,

and Leape, L. e. a. (1995). The incident reporting sys-

tem does not detect adverse drug events: A problem

in quality assurance. Joint Commission Journal on

Quality Improvement, (21):521–8.

Dieckmann, P., Stricker, E., and Rall, M. (2006). The role

of incident reporting systems in the evaluation of med-

ical devices. In Proceedings of the Annual Meeting of

the International Ergonomics Association.

European Association of Business Process Management.

Business Process Management Common Body of

Knowledge - BPM CBOK: Guidelines for Business

Process Management. EABPM.

Fielding, R. (2000). Architectural styles and the design of

network-based software architectures. Doctoral dis-

sertation, University of California, Irvine.

Institute of Medicine (1999). To err is human: building

a safety health system. Washington DC: National

Academy Press.

JBoss (2011). jbpm. http://www.jboss.com/products/jbpm/.

Kohn, L. T. (2006). Building a safer health system. Wash-

ington DC: National Acad. Press.

Leape, L. (2002). Health policy report. patient safety. re-

porting of adverse events. NEJM, pages 1633–8.

Leape, L., Brennan, T., and Laird, N. e. a. (1991). The na-

ture of adverse events in hospitalized patients: Results

from the harvard medical practice study i & ii. New

Engl. J. Med., I & II:324, 370–384.

Leape, L. L. (1994). Error in medicine. JAMA 1994, pages

1151–7.

Mendling, J., Reijers, H., and van der Aalst, W. (2010).

Seven process modeling guidelines (7pmg). Informa-

tion and Software Technology, 52(2):127–136.

Object Management Group (2011). Bpmn 2.0 speciﬁca-

tions. http://www.omg.org/spec/BPMN/2.0/.

O’Reilley, K. (2009). Patient safety improving slightly,

10 years after iom report on errors. http://www.ama-

assn.org/amednews/2009/12/28/prsb1228.htm.

Ouyang, C., Dumas, M., van der Aalst, W., ter Hofst-

ede, A. H. M., and Mendling, J. (2009). From busi-

ness process models to process-oriented software sys-

tems. ACM Transactions on Software Engineering

and Methodology, 19, 19(2).

Rall, M. and Gaba, D. M. (2005). Millers’s Anesthesia,

chapter Human Performance and Patient Safety, pages

3021–3072.

Schmollinger, M., Iwanowski, M., Kußmaul, T., Schwart-

ing, D., Stark, J., Stricker, E., and Rall, M. (2011). A

challenge for healthcare web applications: From data-

to process-orientation. In Proceedings of the Inter-

national Conference on Health Informatics HEALTH-

INF 2011. SciTePress.

van der Aalst, W., ter Hofstede, A., and Weske, M. (2003).

Business process management: A survey. In In Pro-

ceedings of the International Conference Business

Process Management 2003. Springer Verlag.

Vincent, C. (2006). Patient safety. Edinburgh: Elsevier.

White, S. and Miers, D. (2008). BPMN modeling and ref-

erence guide. Understanding and using BPMN - de-

velop rigorous yet understandable graphical repre-

sentations of business processes. Future Strategies

Inc., Lighthouse Point.

WHO (2011). World alliance for patient safety: Draft

guidelines for adverse event reporting and learning

systems. http://www.who.int/patientsafety/events/05/

Reporting Guidelines.pdf.

HEALTHINF 2012 - International Conference on Health Informatics

224
