MASon: MILLION ALIGNMENTS IN SECONDS

A Platform Independent Pairwise Sequence Alignment Library for Next Generation

Sequencing Data

Philipp Rescheneder, Arndt von Haeseler and Fritz J. Sedlazeck

Center for Integrative Bioinformatics Vienna, Max F. Perutz Laboratories, University of Vienna, Vienna, Austria

Medical University of Vienna, Veterinary University of Vienna, Dr. Bohr Gasse 9, 1030 Vienna, Austria

Keywords:

Next generation sequencing, Alignment, High performance computing.

Abstract:

The advent of Next Generation Sequencing (NGS) technologies and the increase in read length and number

of reads per run poses a computational challenge to bioinformatics. The demand for sensible, inexpensive,

and fast methods to align reads to a reference genome is constantly increasing. Due to the high sensitivity

the Smith-Waterman (SW) algorithm is best suited for that. However, its high demand for computational

resources makes it unpractical. Here we present an optimal SW implementation for NGS data and demonstrate

the advantages of using common and inexpensive high performance architectures to improve the computing

time of NGS applications. We implemented a C++ library (MASon) that exploits graphic cards (CUDA,

OpenCL) and CPU vector instructions (SSE, OpenCL) to efﬁciently handle millions of short local pairwise

sequence alignments (36bp - 1,000bp). All libraries can be easily integrated into existing and upcoming NGS

applications and allow programmers to optimally utilize modern hardware, ranging from desktop computers

to high-end cluster.

1 INTRODUCTION

The advent of Next Generation Sequencing (NGS)

technologies has led to a steep increase in the gener-

ation of sequencing data. Current technologies pro-

duce millions of reads ranging from 36 up to 500

base pairs (Metzker, 2010). Upcoming technologies

such as Ion Torrent and the new Illumina sequencers

will again increase throughput and improve cost ef-

ﬁciency (Glenn, 2011). In addition, newest Roche

454 and Paciﬁc Biosciences sequencing technologies

will increase the read length to 700 or 1000 base pairs

(Glenn, 2011).

Analyzing NGS data is a demanding task. Keep-

ing pace with the ongoing technological develop-

ments poses a great challenge to bioinformatics. The

ﬁrst and one of the most limiting steps when an-

alyzing NGS data is mapping reads to a reference

sequence. Current mapping programs like Bowtie

(Langmead et al., 2009) or BWA (Li and Durbin,

2009) are based on the BurrowsWheeler transforma-

tion (BWT). BWT elegantly deals with the sequence

mapping problem. However BWT has an inherent

limitation. The edit distance between read and ref-

erence is limited (Flicek and Birney, 2009). On the

other hand sequence alignments are widely used and

well-studied in the ﬁeld of genomic research. They

are guaranteed to ﬁnd an optimal alignment and have

no explicit limitation in terms of edit distance. Be-

cause of this it is desirable to also apply them to

NGS data. Local pairwise alignments (Smith and

Waterman, 1981) are especially suited for this, since

they stop the alignment as soon as too many mis-

matches, insertion or deletions accumulate. However,

their high computational requirements makes them

impractical to use for large data sets. Previous ap-

proaches, e.g. CUDASW++ (Liu et al., 2009), GPU-

Blast (Vouzis and Sahinidis, 2011) or striped Smith-

Waterman (Farrar, 2007)) focused on improving the

performance of one alignment calculation. Contrary

to these methods we focus, here, on a high number

of local alignments to be simultaneously calculated.

This addresses the challenges of processing millions

of reads produced by NGS. Currently over thirty soft-

ware packages are available for processing NGS data

based on pairwise alignment heuristics e.g. SSaha2

(Ning et al., 2001), Shrimp (Rumble et al., 2009)

and BFast (Homer et al., 2009). The general work-

ﬂow is as follows: (1) For each read identify pu-

tative genomic sub regions in the reference genome

195

Rescheneder P., von Haeseler A. and J. Sedlazeck F..

MASon: MILLION ALIGNMENTS IN SECONDS - A Platform Independent Pairwise Sequence Alignment Library for Next Generation Sequencing Data.

DOI: 10.5220/0003775701950201

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 195-201

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

that show a high similarity to the read. (2) Calculate

alignment scores for all regions found in step 1. (3)

Compute and report the alignment for the best scor-

ing region. Only a few packages, e.g. SARUMAN

(Blom et al., 2011) and MUMmerGPU (Schatz et al.,

2007), exploit the possibilities of modern hardware

like graphic processing units (GPUs). Both require a

Nvidia graphic card. However, none of the over thirty

applications adapt automatically to the hardware that

is available to the user.

Here, we provide MASon, a C++ library us-

ing Nvidia’s Compute Uniﬁed Device Architecture

(CUDA) (Kirk and Mei, 2010), the Open Computing

Language (OpenCL) (Stone et al., 2010) and Stream-

ing SIMD Extensions (SSE) (Raman et al., 2000) that

closes the adaptation gap. MASon is an easy to inte-

grate sequence alignment software library that is ca-

pable of handling millions of alignments efﬁciently,

independent of the underlying hardware. In addition

we show how inexpensive high performance hard-

ware can be used and combined to increase the perfor-

mance of alignment algorithms. Finally we compare

the performanceof the different platforms and discuss

their advantages and disadvantages.

2 METHODS

2.1 Programming Interfaces

To fully utilize every hardware platform ranging from

desktop CPUs and GPUs to highly parallel server pro-

cessors, we are using different application program-

ming interfaces (APIs).

2.1.1 SSE

The Streaming SIMD Extension (SSE) (Raman et al.,

2000) is a single instruction multiple data (SIMD) in-

struction set. SSE was introduced by Intel with the

Pentium III processor. Today, SSE is available on

virtually all computers. The SSE speciﬁcation con-

sists of several vector instructions that execute a sin-

gle operation on four different ﬂoating point variables

in parallel. Originally SSE was designed to speed up

single precision ﬂoating point operations as they oc-

cur in image or signal processing. Newer versions of

SSE also support instructions on other data types.

2.1.2 CUDA

The Compute Uniﬁed Device Architecture (CUDA)

(Kirk and Mei, 2010) is a C/C++ parallel computing

architecture developed by Nvidia. It enables develop-

ers to write scalable C code in a CPU like manner that

can be executed on a graphic processing unit (GPU).

However, GPUs have a different architecture that is

designed to maximize instruction throughput. This

is achieved by a high number of streaming process-

ing units that are arranged in multiprocessors. Every

graphic card has global memory that is comparable to

CPU memory (RAM). When running computations

on the GPU all data has to reside in global memory (1

to 2 GB). In order to gain performance they can later

be split and moved to more efﬁcient memory types

of the GPU. These memory types are located directly

on each multiprocessor and are orders of magnitudes

faster than global memory. However they are typi-

cally very small (16-48 kb per multiprocessor).

2.1.3 OpenCL

The Open Computing Language (OpenCL) (Stone

et al., 2010) is an open standard that provides a uniﬁed

programming interface for heterogeneous platforms

including GPUs and multi core CPUs. In contrast

to CUDA, OpenCL is not limited to a single hard-

ware manufacturer. OpenCL provides an efﬁcient

API that enables software developers to take advan-

tage of the parallel computation capabilities of mod-

ern hardware, such that a single implementation runs

on a wide range of different platforms. The execu-

tion as well as the memory model is very similar to

CUDA.

2.2 Implementation

Computing Smith-Waterman (SW) (Smith and Water-

man, 1981) alignments is very demanding in terms of

runtime and memory resources. The time as well as

the space complexity is O(| R | ∗ | G |). In the case of

NGS R is a read and G is typically a small sub region

of the genome identiﬁed by e.g. an exact matching

approach (Ning et al., 2001). The SW algorithm con-

sists of two main steps. First a matrix H is computed.

The maximum of the elements of H is the optimal lo-

cal alignment score for R and G. Starting from this

value, the alignment is reconstructed during the sec-

ond step of the algorithm (backtracking).

For NGS data |R| is small, ranging from 36 to

150 bases for Illumina sequencing. However, usually

there are millions of reads produced by each experi-

ment. When sequencing the human genome with 20-

fold coverageusing Illumina technologies (150bp)the

number of reads m ≈ 400 million. In addition, exact

matching approaches usually report several putative

genomic sub regions per read. For example, when

mapping reads to the human genome the expected

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

196

number n of putative subregions per read is around

n = 180, requiring an exact matching substring of 12.

Thus m ∗ n = 72 billion alignments have to be com-

puted. To deal with this large number one needs to

employ available hardware as efﬁciently as possible.

For NGS data parallelizing the computation of a sin-

gle alignment is not useful because the computational

cost for a single alignment is low. Therefore we use

a single thread to compute one alignment and focus

on computing as many alignments in parallel as pos-

sible. This brings along the problem that every hard-

ware platform has different capacities when it comes

to parallel computation. On a CPU one can only use

a small number of threads. In contrast a GPU is only

working efﬁciently when running a high number of

threads in parallel. This means that a minimum num-

ber of alignment computations is required to fully uti-

lize a GPU. However, this minimal number varies be-

tween GPUs. To ensure that our implementation fully

loads different GPUs, independent of their architec-

ture, we calculate the batch size b:

b = N

∗ t

max

(1)

where N

is the number of multiprocessors, t

max

the maximum number of threads per multiprocessor.

We furthermore require that

b∗ M

align

≤ M

avail

(2)

where M

align

is the memory required per alignment

and M

avail

is the available global memory on the

graphic card (Nvidia, 2009). If b ∗ M

align

exceeds

avail

, b is reduced accordingly. For modern GPUs

b ranges from 50.000 to 100.000 alignment computa-

tions. This high numbers cause the problem that the

memory available for computing a single alignment,

is small. Thus, we implemented a SW alignment that

is less memory demanding. Since most NGS appli-

cation require a reference genome or parts thereof,

e.g. RNA-Seq or they sequence genomes that are

closely related to the reference, we can safely assume

that the number of insertions and deletions between

a read and the reference region is small. Therefore

we implemented a banded alignment algorithm (Gus-

ﬁeld, 1997). Here only a small corridor surround-

ing the diagonal from upper left to lower right of the

matrix H is computed. Thus the complexity is re-

duced to O(| R | ∗c), where c is the corridor width and

c <<| G |. The memory reduction allows the com-

putation of a high number of alignments such that the

GPU is fully loaded. However, due to its size even the

reduced matrix H has to be stored in global memory.

To further reduce the computing time, we observe

that in NGS mapping only the alignments between

a read and the sub regions of the genome that show

the highest alignment scores are of interest. To iden-

tify the best matching sub region the optimal align-

ment score is sufﬁcient. Thus, the matrix H can be

reduced to a vector of length c and the space com-

plexity is reduced to O(c) (Gusﬁeld, 1997). Note that

the memory usage of score computation is indepen-

dent of read length. However,the computational com-

plexity remains O(r ∗ c) and the corridor width c will

indirectly depend on the read length, since it deter-

mines the number of consecutive insertions and dele-

tions. The reduced memory requirements allow us to

store H in fast on-chip (shared) memory. In addition

all remaining variables, like the scoring function, are

also stored in fast memory (private, constant and tex-

ture). Only read and reference sequences are stored in

global memory. Therefore global memory access is

minimized. This works for all corridor sizes smaller

than 100 on current GPUs. However, since the length

of indels is typically small this restriction of the cor-

ridor size is not limiting the applications.

Although GPUs are powerful co-processing units,

they are not available on every computer. In such

cases a fast computation of alignments on CPUs is de-

sirable. Except for multi-threaded programming, the

most common mechanisms for parallelization on the

CPU is SSE. SSE allows us to speed up score calcula-

tions by processing eight alignmentsin parallel. How-

ever, since SSE only supports a limited set of instruc-

tions, the observed speedup will be lower than eight.

Another major issue is that the backtracking step con-

tains several control ﬂow statements. This makes it

difﬁcult to process more than one alignment concur-

rently. Therefore, the backtracking is done without

SSE.

OpenCL offers another possibility to increase per-

formance on the CPU. As mentioned, OpenCL code

is independent of the hardware. However, to achieve

maximal performance it is necessary to optimize the

SW algorithm for the different platforms (CPU and

GPU). The most important difference between both

platforms is that on the GPU it is important to use

coalescent memory access patterns (Nvidia, 2009),

whereas on the CPU this hinders optimal caching and

therefore degrades performance. The second major

difference is that on the CPU the OpenCL compiler

implicitly uses SSE instructions to increase perfor-

mance. This is only possible when using speciﬁc

(vector) data types, which cannot be used efﬁciently

on a GPU.

In order to allow NGS analysis pipeline program-

mers to employ these technologies, we created a soft-

ware library that consists of three different implemen-

tations. (1) A CPU version including SSE instruc-

tions, (2) a CUDA based version for Nvidia graphic

MASon: MILLION ALIGNMENTS IN SECONDS - A Platform Independent Pairwise Sequence Alignment Library for

Next Generation Sequencing Data

197

Table 1: Runtime (in seconds) of the different library implementations for 1 million local alignment scores. The runtime

required for calculating local alignments is shown in parentheses.

Score computation (Alignment computation)

c = 15 c = 30

Implementations 36 72 100 150 200 500 700 1000

CPU

classical SW -

(9.67)

(33.56)

(61.42)

(132.12)

(229.19)

(1420)

(2737)

(5602)

SeqAn -

(6.77)

(12.82)

(17.49)

(25.87)

(64.08)

(159.59)

(223.53)

(320.04)

banded SW 3.00

(6.73)

5.95

(12.72)

8.26

(17.33)

12.68

(25.64)

34.61

(63.75)

81.94

(153.88)

114.73

(214.79)

164.09

(305.92)

+ SSE

0.98

(6.73)

1.95

(12.72)

2.71

(17.33)

4.06

(25.64)

10.23

(63.75)

26.37

(153.88)

36.90

(214.79)

52.72

(305.92)

+ OpenCL

1.06

(3.31)

1.97

(6.98)

2.64

(9.38)

3.87

(13.77)

10.33

(36.76)

24.59

(87.28)

34.19

(122.08)

48.90

(171.13)

GPU

+ CUDA

0.07

(0.40)

0.14

(0.77)

0.21

(1.10)

0.33

(1.70)

0.76

(2.79)

1.77

(6.55)

2.47

(9.24)

3.53

(12.68)

+ OpenCL (Nvidia)

0.07

(0.36)

0.14

(0.70)

0.20

(1.01)

0.31

(1.56)

0.67

(2.82)

1.50

(6.76)

2.07

(9.66)

2.96

(14.79)

+ OpenCL (ATI)

0.09

(0.41)

0.16

(0.79)

0.22

(1.08)

0.29

(1.67)

0.79

(3.90)

1.65

(10.52)

2.70

(30.59)

3.24

(886.99)

cards and (3) an OpenCL implementation suitable for

GPUs and CPUs. All of them are encapsulated in

dynamic linked libraries (dlls) also called shared ob-

jects. Programmers can use them by loading the dll

during runtime. This only requires a few lines of code.

Each dll exports functions to calculate the alignment

score and the corresponding alignment. In order to

optimally use the available hardware, the libraries re-

port a recommended batch size (b) for the score and

the alignment calculation.

3 RESULTS & DISCUSSION

To evaluate the runtime of the different implementa-

tions, we created eight simulated datasets with read

lengths ranging from 36bp to 1000bp. Each dataset

consists of 1 million reads and the reference se-

quences. The length of the reference sequences

| G |=| R | +c. The reads contain a 2% sequencing er-

ror consisting of mismatches based on the Jukes Can-

tor model (Jukes and Cantor, 1969), insertions and

deletions. Two computers were used for the runtime

tests. Both are equipped with two 2.6 GHz Intel Xeon

X5650 processors and 32 GB memory. The ﬁrst com-

puter is equipped with a Nvidia GTX480 card and the

second with a ATI Radeon HD 6970 card. OpenSUSE

is used as operating system.

First we compared the performance of the differ-

ent implementations to the alignment algorithm im-

plemented in the SeqAn (D¨oring et al., 2008) pack-

age. Unfortunately we were not able to get the banded

SW as implemented in SeqAn working. Therefore we

used the semi-global alignment option of the pack-

age as a substitute for comparison. Comparisons are

based on short read (36bp - 150 bp) and long read

(500bp - 1000bp) data. The short read data represents

current and future Illumina and Ion Torrent technolo-

gies, whereas the long read data represents current

and upcoming 454 or Paciﬁc Biosciences technolo-

gies. For aligning short reads we used a corridor size

of 15 otherwise we doubled the corridor width. Table

1 shows the runtimes (in seconds) of computing the

alignment scores and the full alignments for 1 mil-

lion reads. As expected, the banded SW alignment

shows a near linear runtime behavior for a ﬁxed c

whereas the classical SW shows a quadratic runtime

behavior as read length increases. The runtime of the

banded SW alignment and the corresponding SeqAn

algorithm is almost identical. Table 1 also illustrates

the inﬂuence of the different programming APIs. For

SSE we observe an average speedup of 3 compared to

the banded SW without SSE. Surprisingly OpenCL

performs slightly better on the CPU than SSE. This

demonstrates that the OpenCL compiler uses SSE in-

struction very efﬁciently. On a GPU the OpenCL im-

plementation performs slightly better than CUDA for

the score computation. However, the differences are

marginally. Both GPU implementations outperform

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

198

SSE by a factor of 14 to 18.

We are only interested in computing the align-

ment for the genomic region that provides the high-

est score. For these regions backtracking requires ad-

ditional computation time. Comparing the runtimes

of the two banded alignments illustrates the bene-

ﬁts of computing the score without the backtracking

(see table 1). Backtracking slows down the com-

putation by a factor of 2 to 3. OpenCL achieves

a speedup of 1.5 - 2 compared to the banded SW.

Again the graphic card based implementations show

a performance boost (9 − 13 faster) compared to the

CPU (OpenCL) based implementations. In contrast to

the score computation, CUDA outperforms OpenCL

when aligning long reads.

Overall the results demonstrate that OpenCL on

the CPU as well as on the GPU shows the same per-

formance as SSE and CUDA, respectively. Further-

more the runtimes demonstrate a clear advantage of

using the GPU compared to the CPU for aligning

reads and computing scores. However, so far com-

putations are based on a single CPU thread. To in-

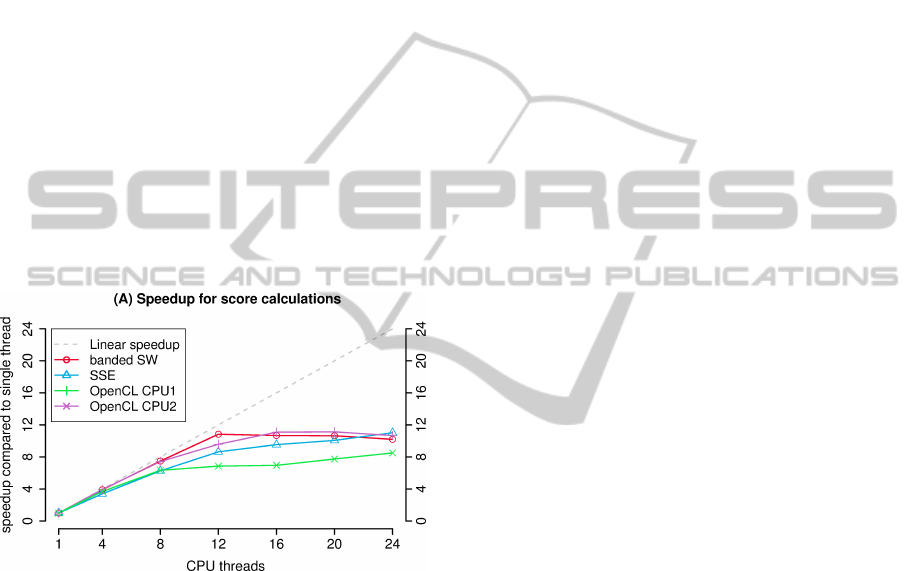

Figure 1: Speedup of the CPU based implementations for an

increasing number of CPU threads. (A) shows the results of

calculating the local alignment scores for 1 million 150bp

sequence pairs.

vestigate how the computation time of our CPU im-

plementations scales with an increasing number of

threads we use OpenMP (Dagum and Menon, 1998)

for parallelization. OpenCL also offers an implicit

parallelization mechanism. Therefore we use two dif-

ferent versions for this comparison. OpenCL CPU1

uses the OpenCL API, whereas OpenCL CPU2 re-

lies on OpenMP to manage the execution on several

CPU cores. The resulting speedups compared to a

single threaded execution for 1 million 150bp reads

are shown in ﬁgure 1. Surprisingly the parallelization

using OpenMP performs better than using OpenCL

with multiple cores. Since parallelization is the main

focus of the OpenCL API, this is an unexpected re-

sult. SSE and OpenCL CPU1 perform equally well.

Here we see an almost linear speedup for up to 12

threads. This corresponds to the number of cores

the computer is equipped with (2 x Xeon hexa-core).

Thus it appears that our implementations beneﬁt only

marginally from Intels Hyper-Threading. These re-

sults show that our implementations use the full com-

putational capabilities of a modern multi-core CPU.

In order to compare the computational power

of a CPU to a GPU we measure the number of

scores/alignments computed within the respective

runtime of the fastest GPU implementation. For com-

parison we use an increasing number of threads for

the CPU implementations and take OpenCL (Nvidia)

as baseline (= 100%). Figure 2 shows the results

for 1 million reads of 150bp length. The two Xeon

X5650 hexa-core processors that were used for the

runtime comparison never achieve the performance

of a single GPU (Nvidia GTX 480), when using the

banded algorithm for score computation. When us-

ing the SSE or OpenCL CPU2 implementation the

two processors still compute ∼ 10% less local align-

ment scores than the GPU. For alignment calcula-

tion the OpenCL CPU 2 version outperformsthe GPU

based implementation. However, the two processors

compute only ∼ 20% more alignments than a single

graphic card. Note that a single Xeon X5650 is more

than twice as expensive as a GTX480.

4 CONCLUSIONS

The read length and number of reads cause a compu-

tational problem when analyzing NGS data. There-

fore the demand for fast, ﬂexible and sensitive pro-

cessing software for NGS is obvious. This paper de-

scribes a pairwise local sequence alignment algorithm

(Smith-Waterman) adapted to analyze NGS data. We

show that these optimizations increase the perfor-

mance by a factor of 5 to 57 compared to the banded

SW implementation.

We demonstrate the beneﬁts of using high perfor-

mance programming interfaces (SSE, OpenCL, and

CUDA) when analyzing NGS data. The usage of

such technologies helps us to cope with the increas-

ing throughput of sequencing technologies. By incor-

porating SSE instructions a speedup of 3 to 4 times

is observed without additional costs for processing

units. Furthermore, usage of wide spread and in-

expensive hardware such as graphic cards can sub-

stantially reduce runtime. Using a GPU can improve

the performance of alignment score computation by

a factor of 40 to 55 compared to one CPU thread.

Moreover, our results show that for score computa-

tion one Nvidia GTX480 graphic card outperforms

MASon: MILLION ALIGNMENTS IN SECONDS - A Platform Independent Pairwise Sequence Alignment Library for

Next Generation Sequencing Data

199

(A) Score computation

CPU threads

% scores per 0.3 sec

1 4 8 12 16 20 24

0 20 40 60 80 100

(B) SW alignment

CPU threads

% alignments per 1.6 sec.

1 4 8 12 16 20 24

0 20 40 60 80 100

banded SW

SSE

OpenCL CPU1

OpenCL CPU2

Figure 2: Percentage of score (A) and alignment (B) com-

putations compared to OpenCL (Nvidia) for 1 million 150

bp long sequence pairs.

two Intel Xeon X5650 processors. A computer with

4 graphic cards and 12 CPU cores computes 16 mil-

lion alignment scores or 3.3 million alignments for a

read length of 150 bp in one second. Score computa-

tion for 4∗ 10

reads of the length 150 (20-fold cover-

age of the human genome) requires approximately 75

minutes. Thus, even analysis of large NGS data can

be performed in reasonable time.

Since OpenCL allows writing programs for CPUs

as well as GPUs we closer investigated its applica-

bility for sequence alignments. Our results show

that OpenCL outperforms SSE for reads longer than

72bp on the CPU. On the GPU OpenCL outperforms

CUDA for reads smaller than 200bp. Interestingly

OpenCL could not handle multiple CPU threads as ef-

ﬁciently as OpenMP. However, we are conﬁdent that

this will be resolved in the near future.

The key outcome of this work is MASon, a

C++ library that is capable of processing millions

of short (36bp - 1500bp) sequence alignments efﬁ-

ciently. MASon includes SSE and OpenCL based im-

plementations for CPUs as well as GPU based imple-

mentations using CUDA or OpenCL. All implemen-

tations are encapsulated in dynamic linked libraries

and can therefore be easily integrated into existing

or upcoming applications for NGS. By using our li-

brary system every developer can write applications

that optimally utilize modern hardware, ranging from

desktop computers to high-end cluster systems. Fu-

ture work will include extending the libraries with a

global alignment algorithm.

ACKNOWLEDGEMENTS

We would like to thank Hermann Romanek for

help with the implementation and helpful discussion.

Work in A.v.H.’s lab was supported by DFG SPP1174

(grant HA1628-9-2) and the Wiener Wissenschafts

und Technologie Fond (WWTF).

AVAILABILITY

Homepage: http://www.cibiv.at/software/ngm/mason

Operating system(s): Linux, Windows (experimental)

Programming language: C++, CUDA, OpenCL

Other requirements: Graphic card with 1GB memory,

4GB CPU memory

License: Artistic License

REFERENCES

Blom, J., Jakobi, T., Doppmeier, D., Jaenicke, S., Kali-

nowski, J., Stoye, J., and Goesmann, A. (2011). Ex-

act and complete short read alignment to microbial

genomes using GPU programming. Bioinformatics,

27(10):1351–1358.

Dagum, L. and Menon, R. (1998). OpenMP: an industry

standard API for shared-memory programming. IEEE

Computational Science and Engineering, 5(1):46–55.

D¨oring, A., Weese, D., Rausch, T., and Reinert, K. (2008).

SeqAn an efﬁcient, generic C++ library for sequence

analysis. BMC bioinformatics, 9:11.

Farrar, M. (2007). Striped SmithWaterman speeds database

searches six times over other SIMD implementations.

Bioinformatics, 23(2):156–161.

Flicek, P. and Birney, E. (2009). Sense from sequence reads:

methods for alignment and assembly. Nature Meth-

ods, 6(11s):S6–S12.

Glenn, T. C. (2011). Field guide to next-generation DNA se-

quencers. Molecular Ecology Resources, 11(5):759–

769.

Gusﬁeld, D. (1997). Algorithms on strings, trees, and se-

quences : computer science and computational biol-

ogy. Cambridge Univ. Press.

Homer, N., Merriman, B., and Nelson, S. F. (2009).

BFAST: An alignment tool for large scale genome re-

sequencing. PLoS ONE, 4(11):e7767+.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

200

Jukes, T. H. and Cantor, C. R. (1969). Evolution of protein

molecules. Manmmalian Protein Metabolism, pages

21–132.

Kirk, D. B. and Mei, W. (2010). Programming Massively

Parallel Processors: A Hands-on Approach. Morgan

Kaufmann Publishers Inc., San Francisco, CA, USA,

1st edition.

Langmead, B., Trapnell, C., Pop, M., and Salzberg, S.

(2009). Ultrafast and memory-efﬁcient alignment of

short DNA sequences to the human genome. Genome

Biology, 10(3):R25+.

Li, H. and Durbin, R. (2009). Fast and accurate short read

alignment with BurrowsWheeler transform. Bioinfor-

matics, 25(14):1754–1760.

Liu, Y., Maskell, D. L., and Schmidt, B. (2009). CU-

DASW++: optimizing Smith-Waterman sequence

database searches for CUDA-enabled graphics pro-

cessing units. BMC research notes, 2(1):73+.

Metzker, M. L. (2010). Sequencing technologies - the next

generation. Nature reviews. Genetics, 11(1):31–46.

Ning, Z., Cox, A. J., and Mullikin, J. C. (2001). SSAHA: a

fast search method for large DNA databases. Genome

research, 11(10):1725–1729.

Nvidia (2009). NVIDIA CUDA C Programming Best Prac-

tices Guide. Nvidia, 1st edition.

Raman, S. K., Pentkovski, V., and Keshava, J. (2000). Im-

plementing streaming SIMD extensions on the pen-

tium III processor. IEEE Micro, 20(4):47–57.

Rumble, S. M., Lacroute, P., Dalca, A. V., Fiume, M.,

Sidow, A., and Brudno, M. (2009). SHRiMP: Accu-

rate mapping of short color-space reads. PLoS Comput

Biol, 5(5):e1000386+.

Schatz, M., Trapnell, C., Delcher, A., and Varshney, A.

(2007). High-throughput sequence alignment us-

ing graphics processing units. BMC Bioinformatics,

8(1):474+.

Smith, T. F. and Waterman, M. S. (1981). Identiﬁcation of

common molecular subsequences. Journal of molec-

ular biology, 147(1):195–197.

Stone, J. E., Gohara, D., and Shi, G. (2010). OpenCL:

A parallel programming standard for heterogeneous

computing systems. Computing in Science & Engi-

neering, 12(3):66–73.

Vouzis, P. D. and Sahinidis, N. V. (2011). GPU-BLAST: us-

ing graphics processors to accelerate protein sequence

alignment. Bioinformatics, 27(2):182–188.

MASon: MILLION ALIGNMENTS IN SECONDS - A Platform Independent Pairwise Sequence Alignment Library for

Next Generation Sequencing Data

201
