FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS

IN STEREOSCOPY

Youval Nehmadi

, Orly Kalantyrsky

and Hugo Guterman

Department of Electrical and Computer Engineering, Ben-Gurion University of the Negev, Beer-Sheva, Israel

Department of Computer Science, Tel Aviv-Yaffo Academic College, Tel Aviv, Israel

Department of Electrical and Computer Engineering, Ben-Gurion University of the Negev, Beer-Sheva, Israel

Keywords: Image Processing, Image Registration, Stereo Vision.

Abstract: One of the challenges of stereovision is to process images with repetitive objects. In order to calculate the

distance to an object, matching of the corresponding points between two images must be done. When

repetitive objects exist, matching is not straightforward. Many known stereo methods rely on a uniqueness

constraint. A uniqueness constraint assumes that only one correct match exists between stereo images. Some

algorithms ignore repetitive objects and omit them in the depth map. We present a method that does not

employ a uniqueness constraint, but rather determines whether an object is repetitive and then solves the

matching problem by finding a unique object that is in close proximity to the object.

1 INTRODUCTION

Image registration (Zitova, 2003) is required in

many applications including remote sensing, sensor

fusion, stereo vision, panoramic imaging, noise

reduction, hyper resolution, 3D imaging. Basically,

image registration can be defined as the process of

overlaying two or more images of the same scene

taken at different times, from different viewpoints,

and/or by different sensors. Efficient implementation

of the overlaying technique of the two images is

especially important for stereo where even small

registration errors might greatly affect the

construction of the 3D model. Due to its relevance,

the topic of image registration and object matching

has been widely studied and a variety of approaches

had been proposed (Zitova and Flusser (2003),

Cyganek and Siebert (2009), Mühlmann, Maier,

Hesser and Männer (2002), Shechtman and Irani

(2007), Scharstein and Szeliski (2002)). Object

based matching methods are widely used in

stereovision. Matching of the objects in two stereo

images is necessary in order to obtain 3D

information on the object. Several of the proposed

approaches employ cross-correlation to perform

image registration, however this is computationally

intensive. Different real-time solutions of the

correlation-based registration have been

implemented on a variety of hardware.

Generally, registration methods assume two

main constraints:

1. The epipolar geometry constraint according to

which the corresponding points lay on the

epipolar lines of two images.

2. The uniqueness constraint according to which

the objects within the image are unique.

While the epipolar constraint can be applied on a

calibrated stereo set, the uniqueness constraint

presents serious limitations, especially when the

information is attained with a set of moving

cameras. However, in real scenarios there are many

cases where an object inside a region of interest

(ROI) does not have a unique appearance, but

appears more than once in the search window

(Figure 1). In these cases the registration algorithms

fail to provide accurate results.

In order to estimate the distance to an object

using stereo vision, the object needs to be identified

in both stereo images. When a repetitive object

exists in one image, it might have several matching

objects on the other image. As a result, a wrong

object might be selected and the 3D result will be

deformed. In order to avoid this deformation we

need to recognize repetitive objects and to take them

into consideration when performing the matching. In

most cases, a correlation algorithm is used to

perform image registration and to identify the same

198

Nehmadi Y., Kalantyrsky O. and Guterman H. (2012).

FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS IN STEREOSCOPY.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 198-205

DOI: 10.5220/0003778501980205

 SciTePress

object at corresponding points in the two images of a

stereo pair.

Such algorithms are known to fail when:

- there are repetitive objects

- the area has only a little texture

- disparities vary rapidly within the correlation

window

- an occlusion exists

- the image does not comply to the ordering

constraint (Gong and Yang, 2003).

Figure 1: An example of repetitive objects: the windows in

the building are repetitive (see red arrows).

Over the years several attempts have been made

to overcome these problems (Okutomi and Kanade

(1993), Szeliski and Scharstein (2002)). In many

cases, the algorithms ignore problematic locations

such as repetitive objects or occlusions in order to

avoid significant depth errors. However, removing

those locations from the calculations is problematic

since the distance to these objects is not calculated

and is missing in the results.

An example of this approach has been presented

by Fua (1993) who uses a consistency criterion to

reject invalid matches. The matching is performed

twice for each template/pixel. The first time, the

template is taken from the first image and matched

to the second. The second time, the template is taken

from the second image and matched to the first.

Only when both matchings result in the same

location is the matching considered valid. Otherwise

the templates/pixels are rejected. This method rejects

repetitive objects and the distance to those objects is

not calculated. The advantage in our approach is that

instead of rejecting the repetitive objects we find

those objects and remove the repetition by adding a

location that stops the repetition.

Szeliski and Scharstein (2002) presented an

algorithm for stereo matching that addresses two

factors - the uniqueness constraint and the stereo

occlusions. The algorithm uses the symmetric

matching of Fua (1993) to detect ambiguous

matching of repetitive objects. It resolves this

ambiguity using adaptive window approach that

enlarges the template size to include non-repetitive

objects (Kanade and Okutomi, 1994). In general, the

template should be large enough to include enough

texture for correlation matching. On the other hand,

it should be small enough to avoid unwanted

smoothing and the effects of projection distortion.

The probability of mismatching decreases as the size

of the template increases. Too small a template will

result in poor disparity estimation, since the signal-

to-noise ratio is low due to the lack of texture.

However, when the template is too large it leads to

loss of accuracy due to disparity changes within the

template. This causes different projection distortions

in both images. In addition, a large window

contributes to additional noise from regions without

texture (Kanade and Okutomi, 1994). In these cases,

the position of the maximum correlation may not

represent accurately the correct matching. Kanade

and Okutomi (1994) suggested a method for

adaptive window size selection. This approach

increases the template size iteratively and calculates

the uncertainty of matching. The template size

increases as long as the uncertainty of matching

decreases. The method presented in our paper finds

the regions that need to be added to the original

template directly without any iterations.

Additionally, instead of enlarging the whole

template size we add to the template only one region

that resolves the matching uncertainty.

In this paper, a new method for dealing with

repetitive objects in stereo images is proposed. The

proposed method creates a composed template based

on multiple small templates that contain relevant

information and removes regions that might yield

bad results such as regions without texture or

regions with large disparity changes. An instance of

the repetitive object in combination with the object

that breaks the repetition creates a unique composed

template. The method is computationally less

intensive than most other approaches.

2 METHOD AND

IMPLEMENTATION

Feature based stereo techniques match templates

from the left image to those in the right. Templates

were selected in regions with high intensity

variations (edges, corners, etc.). A flow chart of the

algorithm is shown in Figure 3. The main steps of

the algorithm are described below:

FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS IN STEREOSCOPY

199

1. Correlation of the template from the left image

with the right image.

2. Check how many valid peaks exist in the

correlation map. Three options exist:

i. No peak results in matching. The

template location should be omitted from

the 3D map. Go to Step 1 for next

template.

ii. One peak identifies a unique matching of

the template. Go to Step 1 for next

template.

iii. More than one peak is detected. The

template is labeled as “suspected to be

repetitive”. In this case the algorithm

should continue to Step 3.

3. Verify the repetitiveness of the template on the

left image. This part of the algorithm is described

in details in section 2.1 below. If the template is

confirmed to be repetitive, the algorithm should

continue to Step 4, otherwise the template is

disqualified and the algorithm continues to Step

1 for next template.

4. Composing the unique template: An additional

template that breaks the repetition is added to the

original template (see section 0 for details). This

composed template is used for correction of the

matching in the next step.

5. Correlation of the composed template: the

composed template contains the original

template and the unique template (found in Step

4). The composed template is used to obtain the

matching location as presented in section 0

below.

6. Go to Step 1 for next template.

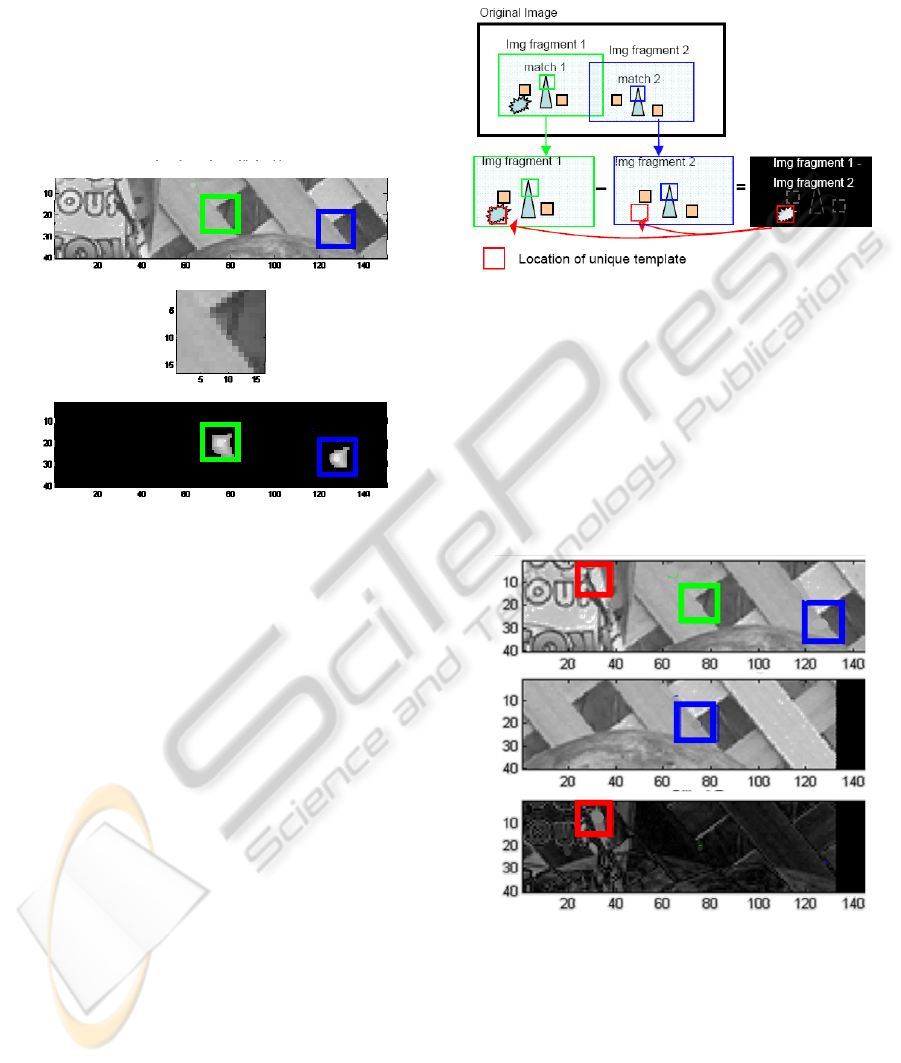

Figure 3 presents an example of composed

template correlation matching. The repetitive

template is marked green on the left image. This

template was matched using normalized cross-

correlation to the right image. Two matches were

found on the right image. The first match is marked

green and the second match is marked blue on the

right image. The algorithm added an additional

template that together with the original repetitive

template composes unique template. The purpose of

an additional template is to break the repetition and

to select the correct match among the repetitive

matches. The additional template is marked red on

the left image.

The correlation of the composed template

corrected the matching of the repetitive template.

The selected match is marked yellow (same location

as the second match marked blue).

How many valid

peaks exist on

the correlation

map ?

Matching

found

Matchin

Compose unique

template on the

left ima

1>1

Correction of

matching

location

Repeat for each template on the left image

Correlate template

from left image with

the right image

Verification of

template

repetitiveness

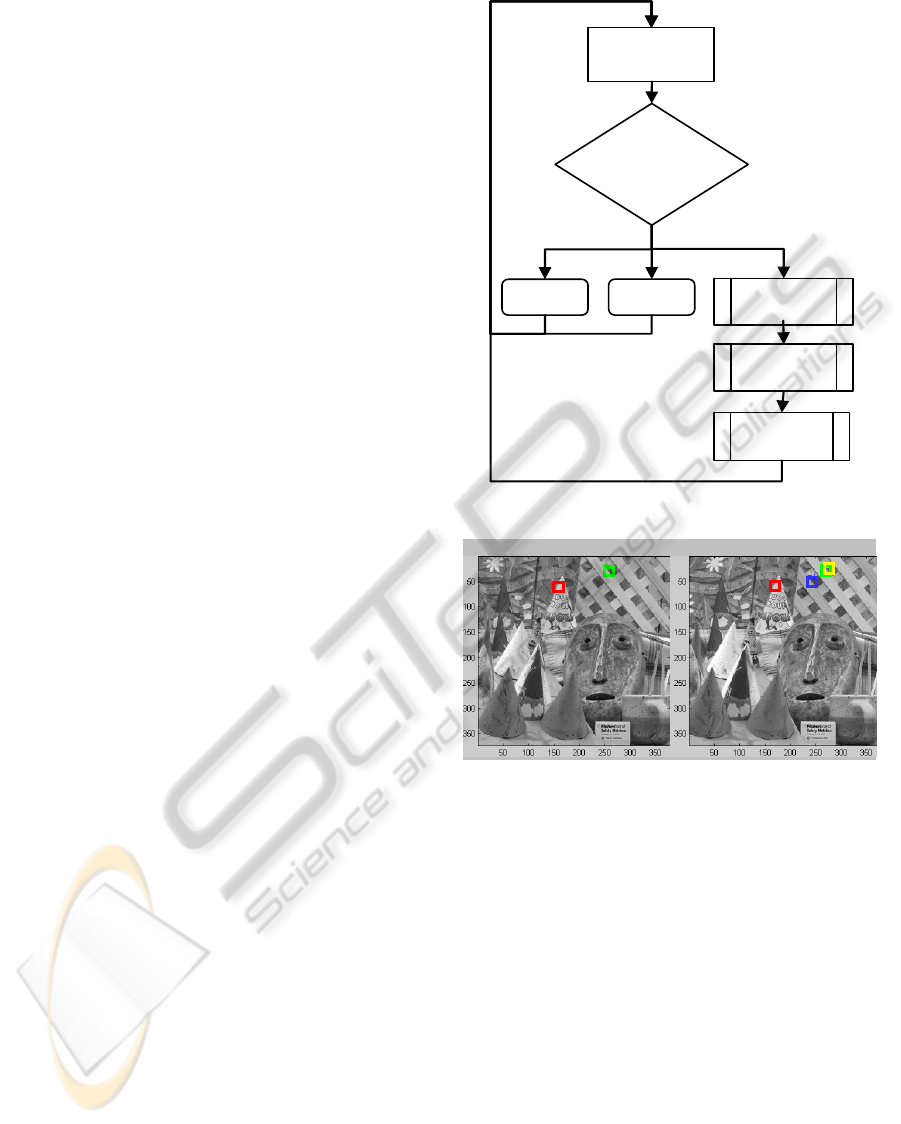

Figure 2: Flow chart.

Left Image

Right Image

Figure 3: Template location on the left and right images.

2.1 Verification of Template

Repetitiveness

In order to find the location of the template from the

left image on the right image, normalized cross-

correlation is performed. The peaks in the

correlation map represent matching. When this

template is repetitive there is more than one valid

peak in the correlation map. The algorithm checks

this by comparing the second maximum value to the

first maximum value. If the values are close (e.g.

their ratio is bigger than 0.8), the algorithm verifies

the repetitiveness of the template on the left image.

This time the normalized cross-correlation of the

template is performed on the left image. The

maximum value in the correlation map identifies the

original location of the template. In order to verify

template repetitiveness, the algorithm compares the

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

200

second maximum value to the first maximum value

of the correlation map. If the ratio is bigger than

predefined threshold (0.7), repetitiveness

verification succeeded and the algorithm to reduce

repetitiveness is activated as described in section 0.

An example is given in Figure 4 . The location of

the first maximum is marked green and the location

of the second maximum is marked blue in the first

image (Figure 4 (a)). The peaks are marked on the

correlation map at the bottom.

(a)

(b)

(c)

Search window centered on template location

Template

Correlation map

Figure 4: (a) Search window with repetitive template. (b)

The template. (c) Correlation map of the template and

search window.

2.2 Selection of a Unique Template

A “composed unique template” is composed of the

original repetitive template and an additional unique

template. This section describes how to find such an

additional unique template. The selection of the

additional unique template is performed on the

original left image.

In order to identify an additional template that

would break the repetition, two image fragments

have to be clipped from the left image. These image

fragments are centered on the first and the second

repetition locations of the template, and subtracted

one from the other. High values in the result of

image subtraction represent locations that do not

repeat as frequently as the repetitive templates. The

pattern that defines the uniqueness should be

selected from the subtraction result in the areas with

high values.

Figure 5 shows an example of a schematic

image, in which match 1 and match 2 are locations

that result from the first and second peaks of the

correlation. The image fragments are cropped and

centered on match 1 and match 2 locations. Image

fragment 1 contains an object that breaks the

repetition. The image fragments are subtracted. The

object that breaks the repetition contributes high

values to the subtraction result.

Figure 5: Finding a unique template to avoid repetitions.

An example of a real image is shown in Figure 6.

Two image fragments are clipped from the original

left image and centered on the template repetition

locations – on the first and second peaks. The image

fragments are shown in

Figure 6 (a)-(b). The bottom

image represents the subtraction of these two image

fragments. The high values (bright points) on the

subtraction are locations that do not repeat with the

same frequency as the repetitive template.

Figure 6: Subtraction of image fragments with repetitive

template. (a) Image fragment centered on first maximum

location is marked in green. (b) Image fragment centered

on second maximum location is marked in blue. (c) The

subtraction result. The red mark represents maximum

value in the subtraction result.

Two additional conditions are important for

template selection:

1. For better correlation results, an additional

template should be selected in the area that

(a)

(b)

(c)

FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS IN STEREOSCOPY

201

contains patterns (edges/corners).

2. To minimize distortion caused by the

different perspectives of the stereo vision, the

unique template should be selected close to

the original template location (first

maximum).

2.3 Correlation of the Composed

Template

In the previous section we described how to

compose a unique template on the left image. An

additional template that breaks the repetition was

added to the original repetitive template. This

section describes how to correlate the composed

unique template with the right image to obtain the

matching of the repetitive object.

An additional template was selected in the

neighborhood of the original repetitive template. We

assumed that stereo distortion did not have a

significant effect on the distance between these two

objects within the stereo images. This means that the

distance in pixels between the original repetitive

template and the unique template is similar in both

images.

The matching of the templates is performed by

normalized cross-correlation, which selects search

windows on the right image.

Two search windows for matching both

templates are clipped from the left image. The

search windows are centered on the coordinates of

the templates, according to their original location on

the left image. An example is shown in

Figure 7, where the selected repetitive template

coordinates within the left image (x

) are marked

in green on the left image. The search window on

the right image is centered (x

), where it appears

as a blue (yellow) rectangle on the right image. A

search window for the unique pattern is similarly

selected. In the figure, the unique pattern coordinates

) on the left image are marked red. The search

window on the right image is selected with the

center on (x

) on the right image. It appears as a

pink rectangle.

The matching of the templates and their search

windows is performed by normalized cross-

correlation as defined below.

()()

yyxx

−−

∑∑

∑

(1)

The normalized correlation result is a map with

values between 0 and 1.

Left Ima

ht Ima

(x1,y1)

(x1,y1) (x2,y2)

(x2,y2)

Figure 7: Selection of search windows on the right image.

(a) (b)

(e)

Left Ima

ht Ima

Unique Correlation Map

Right Image Legend:

First match for

template

_u_

Unique

template match

_ok_

_m1_

Final match for

template

_m2_

Second match

for template

Left Image Legend:

Template

Unique Template

Multiplication of

two correlation ma

Template Correlation Map

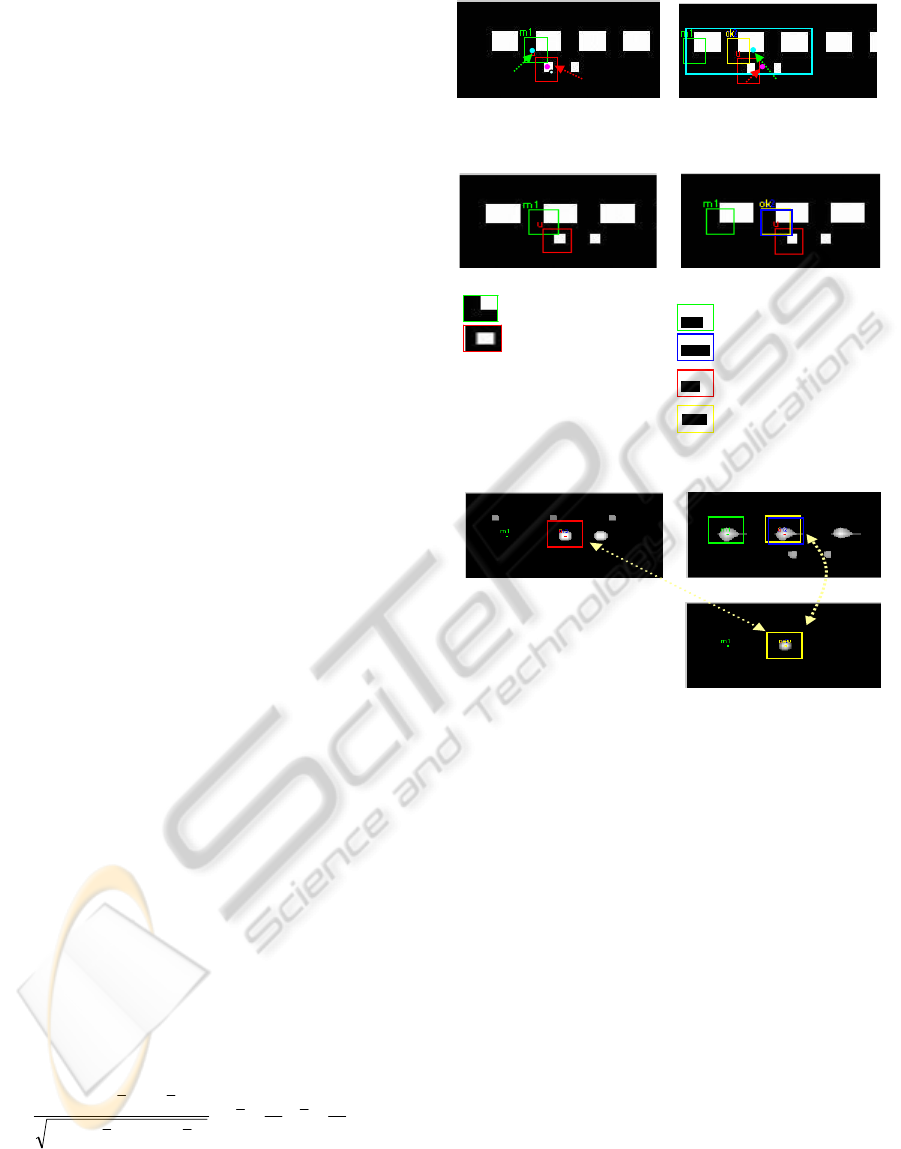

Figure 8: Combining templates by element-by-element

multiplication of two correlation maps. (a) On the left

image the template is marked green and the unique

template is marked red. (b) Right image, where first

matching peak marked green, second peak – blue, third

peak – pink. The unique template is marked in red and the

final repetitive match is selected in the location marked in

yellow. (c) Correlation map of the unique template. (d)

Correlation map of the template. (e) Element-by-element

multiplication between two correlation maps (c) and (d).

In order to select the correct matching of the

repetitive pattern, the element-by-element

multiplication of the correlation map in the repetitive

template and its search window is calculated. The

multiplication of both correlations removes

redundant maximums (Figure 8(e)). This process

enables us to correct the template location. Element-

by-element multiplication of two normalized cross-

correlation maps results also in a map with values

between 0 and 1. This result is close to 1 if two

combined templates were perfectly matched and

their stereo displacement was equal, but would be

close to 0 if the templates do not match (see Figure

8). The repetitive template is marked in green and

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

202

the unique template is marked in red on the left

image (Figure 8(a)). The correlation between the

repetitive template and the right image (Figure 8(b))

results in three peaks, which are shown in Figure

8(d). The correlation between the unique template

and the right image results in two peaks, which are

shown in Figure 8(c). Element-by-element

multiplication of the two correlation maps (Figure

8(e)) results in one peak only, which identifies the

registration between the two images.

The combining template algorithm is calculated

as:

ytytytt

CCC

2121

)(

•

≅

⊕

(2)

where t

, t

are two templates,

are two

correlation maps of template t

with image y and

template t

and image y respectively.

ytyt

•

element by element multiplication of

and

The

ytt

)(

⊕

represents correlation between the

template combined from t

and t

with the image y.

Legend:

First match for

template

_u_

Unique

template match

_ok_

_m1_

Final match for

template

_m2_

Second match

for template

_m3_

Third match

for template

Template Correlation Map

Multiplication of two correlation maps

(a)

(c)

(e)

Unique Correlation Map

(d)

(b)

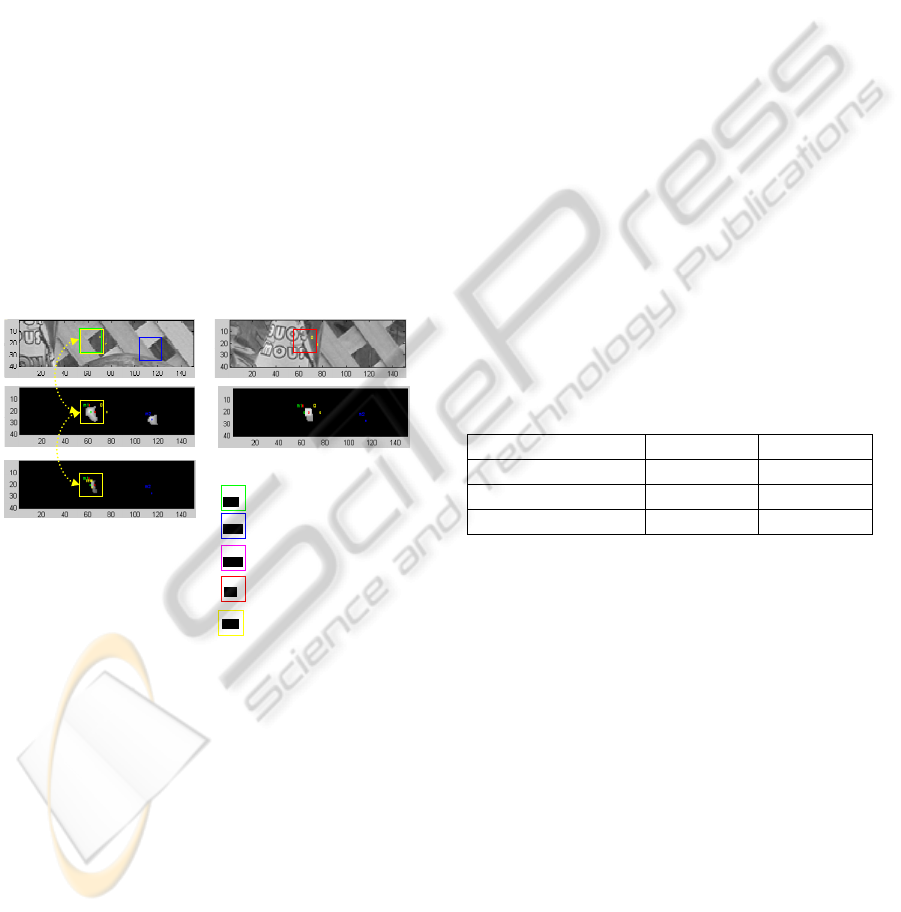

Figure 9: Correction of template location. (a) Image

fragment centered on first peak location. (b) Image

fragment centered on unique template location. (c)

Correlation map template. (d) Correlation map for the

unique template. (e) Element-by-element multiplication of

two correlation maps (c) and (d).

An example of a real image is shown in Figure 9:

(a) - the search window for the repetitive template,

(b) - the search window for the unique pattern, (c) -

the correlation map of the repetitive template and the

search window, (d) - the correlation map of the

unique template and its search window. The

element-by-element multiplication of both

correlation maps is shown in Figure

9(e). The

highest value location on the multiplication

identifies the peak that represents the matched

template location.

3 EXPERIMENTAL RESULTS

The effectiveness of the proposed method was

tested. The accuracy of the matching results and the

computational complexity were evaluated.

3.1 Algorithm Accuracy

The algorithm identifies templates on the left image

and performs the matching on the right image. The

method for matching repetitive templates described

in section 2 was applied on the templates. Every

matching was reviewed manually and acknowledged

as correct matching or failure. Table 1 shows the

number of templates that were selected on the left

image and matched to the right image. The templates

are divided into two categories: repetitive and non-

repetitive. Table 1 represents the results of the

experiment of a real stereo pair. The table represents

the results for the matching performed with template

size of 5x5 pixels on a real image with the size of

700x700 pixels.

Table 1: Results for stereo matching on real image.

Template Count Success Rate

Non-repetitive templates

48 92%

Repetitive templates

33 94%

Total templates

81 93%

3.2 Algorithm Complexity

Calculation time of the template matching is a major

limitation in real time implementation. The

computation time is dependent in a square ratio with

the template size. Using two small templates instead

of one large template can significantly reduce the

calculation time. An example of the usage of two

small templates instead of one large template is

shown in Figure 11. The repetitive template is

marked green. The additional template selected by

the method is marked red. The small templates have

the size of 20x20 pixels. Known methods that do not

deal with repetitive images would have to select a

larger template size in order to include regions that

are not repetitive. The large template in this example

is marked in pink. The computational ratio in this

example is 1/45. In many cases of typical urban

scenes we observed a ratio of 1/40.

FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS IN STEREOSCOPY

203

Legend: - non repetitive templates; - repetitive templates

Figure 10: Stereo matching results on real stereo images.

Kanade and Okutomi (1994) described a method

that increases the template size sufficiently to

include high local intensity variations but with low

disparity. The method can be used to enlarge the

template in order to include objects that break the

repetitiveness. The disadvantage of Kanade's method

is the increasing complexity due to the large

template size. The template size has a direct effect

on the matching complexity. The complexity of the

normalized cross correlation is O(m×n×M×N),

where the template size is m×n and the search

window size is M×N.

The method presented in this section can be used

for improving Kanade's methodology and reduce its

complexity. Instead of enlarging the template we use

only a subset of the large template by selecting an

additional small template which contains a non-

repetitive area that breaks the repetition of the

original repetitive template. The complexity of

template correlation is

, where N is the

template size and M is the search window. Kanade's

method results in a complexity of

NM××

, where

P is the number of iterations required. In the

methodology presented in this article we use only

two small templates, hence the complexity is

MNs ×2

, where the size of the small template is

. Generally the unique template is located at a

certain distance from the repetitive template,

therefore

NNs <<

and the complexity of the method

presented here is significantly better than the

adaptive template size approach of Kanade (1994).

Figure 11: Urban scene with repetitive objects.

4 CONCLUSIONS

In this paper a novel method for pattern recognition

of repetitive templates has been presented. When

applied to stereo imaging the proposed method

solves the matching aspects for repetitive templates.

Most stereo algorithms either ignore repetitive

patterns or fail to identify them. Algorithms that

address repetitive templates dynamically enlarge the

template size in order to include unique areas. The

presented method is based on identifying an

additional pattern that in combination with the

repetitive pattern creates a unique template.

By using small templates this novel method

addresses the problem of computational efficiency.

Instead of performing correlation on large templates,

this method uses a unique pattern constructed from

two small templates. Usage of small templates is

more efficient in computational aspects, for example

for computing cross-correlation. Normalized cross-

Large template size 250 X 150

Small templates size 20 X 20

150250

02022

Ratio

≅=

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

204

correlation matching has a complexity of

KN ⋅

for the search window with size of NxN and with

template size of KxK. Adding an additional template

would require

2 KN ⋅

computations instead of

LN ⋅

, where

L >

and

L >>

. In addition

to the computational advantage, matching of small

features results in lower noise. Matching of

featureless regions causes noisy results. In the

presented method small templates are selected in

high density variation areas, hence less featureless

regions are reflected in the correlation.

REFERENCES

Brown, M. Z., Burschka, D. and Hager, G. D. (2003).

Advances in Computational Stereo. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 25, 993-1008.

Cyganek, B. and Siebert, J. P. (2009). An Introduction to

3D Computer Vision Techniques and Algorithms,

Wiley.

Fua, P. (1993). A Parallel Stereo Algorithm that Produces

Dense Depth Maps and Preserves Image Features.

Machine Vision and Applications, 6, 35-49.

Hirschmüller, H. and Scharstein, D. (2007). Evaluation Of

Cost Functions For Stereo Matching. IEEE

Conference on Computer Vision and Pattern

Recognition, 1-8.

Gong, M. and Yang, Y. H. (2003). Fast Stereo Matching

Using Reliability-Based Dynamic Programming and

Consistency Constraints. Proceedings of the 9th IEEE

International Conference on Computer Vision, 1, 610-

612.

Kanade, T. and Okutomi, M. (1994). A Stereo Matching

Algorithm with an Adaptive Window: Theory and

Experiment. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 16, 920-932.

Mühlmann, K., Maier, D., Hesser, J. and Männer, R.

(2002). Calculating Dense Disparity Maps from Color

Stereo Images, an Efficient Implementation.

International Journal of Computer Vision, 47, 79-88.

Okutomi, M. and Kanade, T. (1993). A Multiple-Baseline

Stereo. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 15, 353-363.

Scharstein, D. and Pal, C. (2007). Learning Conditional

Random Fields for Stereo. IEEE Conference on

Computer Vision and Pattern Recognition.

Scharstein, D. and Szeliski, R. (2002). A Taxonomy and

Evaluation of Dense Two-Frame Stereo Correspon-

dence Algorithms. International Journal of Computer

Vision, 47, 7-42.

Shechtman, E. and Irani, M. (2007). Matching Local Self-

Similarities across Images and Videos, IEEE

Conference on Computer Vision and Pattern

Recognition, 511–518.

Szeliski, R. and Scharstein, D. (2002). Symmetric Sub-

Pixel Stereo Matching. Proceedings of the 7th

European Conference on Computer Vision – Part II,

525-540.

Zitova, B. and Flusser, J. (2003). Image registration

methods: a survey. Image and Vision Computing,

21(11), 977-1000.

FAST TEMPLATE MATCHING OF REPETITIVE OBJECTS IN STEREOSCOPY

205
