ROTATIONAL INVARIANCE AT FIXATION POINTS

Experiments using Human Gaze Data

Johannes Steffen, Christian Hentschel, Afra’a Ahmad Alyosef,

Klaus Toennies and Andreas Nuernberger

Otto-von-Guericke University Magdeburg, Magdeburg, Germany

Keywords:

Eye-Tracking, Early Vision.

Abstract:

An important aspect in machine vision concerns the extraction of meaningful patterns at salient image regions.

Invariance w.r.t. afﬁne transformations has usually been claimed to be a crucial attribute of these regions.

While continuing research on the human visual cortex has suggested the correctness of these assumptions

at least in later stages of vision, only lately the availability of accurate and cheap eye tracking devices has

offered the possibility to provide empirical evidence to these claims. We present an experimental setting that

is qualiﬁed to analyse various assumptions on human gaze target properties. The proposed setting aims at

reducing high-level inﬂuence on the ﬁxation process as much as possible. As a proof of concept we present

results for the assumption human ﬁxation targeting is rotational invariant. Even though high-level aspects

could not be completely suppressed, we were able to detect and analyse this relation in the gaze data. It was

found that there is a signiﬁcant correlation between ﬁxated regions within stimuli over different orientations.

1 INTRODUCTION

By analysing the visual ﬁeld at different resolutions

and sampling points the human visual system (HVS)

is able to rapidly perceive and understand a com-

plex visual stimulus. This ability is yet unmatched

by any technical approach to this problem. Being

able to understand the methodologies the HVS em-

ploys should help to improve existing approaches to

machine driven image analysis and understanding.

While it is still not fully known, which information is

processed at which level of resolution various studies

have given evidence that certain tasks such as read-

ing and visual search require a higher resolution than

others such as simple scene classiﬁcation. The ma-

chine vision community has mainly focused on the

extraction of local features at salient regions in im-

ages. Algorithms that aim at the detection of these

regions usually strive to maximize invariance (e.g.

w.r.t. afﬁne transformation) in order to provide detec-

tors robust to varying image acquisition conditions.

Whether or not invariance is equally important in hu-

man gaze targeting is the focus of this paper.

We conceived of an experimental setting that is

qualiﬁed to analyse the impact of invariance at hu-

man ﬁxation point selection by recording gaze data

for stimuli carefully selected to reduce high-level in-

ﬂuence on the recognition process as much as pos-

sible. While this setting is intended for later use in

more complex scenarios we show its general valid-

ity by analysing whether the speciﬁc example of ro-

tational invariance is a coherent property of early hu-

man gaze targeting.

In the following sections we will ﬁrst give an

overview of the related literature in this ﬁeld and pro-

vide a motivation for our own work. We then present

the experimental setting and the stimuli data used dur-

ing our tests. We will further present a question-

ing scheme we developed to reduce high level inﬂu-

ences during the experiment. Finally, we provide the

obtained results and give some evidence on the ex-

tendibility of the presented experimental approach to

broader and more complex scenarios.

2 RELATED WORK

The selection of ﬁxation target by the Human Visual

System (HVS) has been subject of research for years

and two major factors for eye movements have been

identiﬁed (Henderson, 2003). Bottom-up factors are

stimulus intrinsic attractors for ﬁxation targets mean-

451

Steffen J., Hentschel C., Ahmad Alyosef A., Toennies K. and Nuernberger A. (2012).

ROTATIONAL INVARIANCE AT FIXATION POINTS - Experiments using Human Gaze Data.

In Proceedings of the 1st International Conference on Pattern Recognition Applications and Methods, pages 451-456

DOI: 10.5220/0003782104510456

 SciTePress

ing that the selection of these targets is solely driven

by neuronal analysis of the visual features within the

stimulus. On the other hand, top down factors intro-

duced by the observer’s “internal state” and imposed

by a search task or prior knowledge about the stim-

ulus likewise affect the selection of ﬁxated regions

(Hopﬁnger et al., 2000; Corbetta et al., 2000). While

the latter factors are more challenging to model, mod-

els that predict visual saliency in compliance with hu-

man bottom-up factors have been subject of research

as they are easier understood.

Early psychophysical experiments with human

observers (Treisman and Gelade, 1980; Bergen and

Julesz, 1983) have proven that a limited set of bottom-

up features (among these color, orientation of line

segments, certain shape parameters such as curva-

ture) are detected at an early stage of human vision.

Later in the visual process, by combination of these

simple features, more complex neurons respond to

higher-level features such as corners and junctions

(Hubel and Wiesel, 1965; Pasupathy and Connor,

1999), edges (Marr and Hildreth, 1980), curved seg-

ments (Dobbins et al., 1989) and key points (Heit-

ger et al., 1992; Rodrigues and du Buf, 2006). Be-

ing biologically plausible, the empirical support for

the importance of these features in human vision was

given in (Biederman, 1987) where it is shown that

human recognition performance is decreasing largely

when the corners of an object are removed. In (Koch

and Ullman, 1985), the ﬁrst explicit model that fuses

the response of several early visual features (intensity,

color, orientation and temporal change) into a single

saliency map was described. A computational im-

plementation of this model was derived later (Niebur

and Koch, ; Itti et al., 1998). While not necessarily

primarily with the aim to model properties of early

human vision, the computer vision community like-

wise has developed a vast corpus of local feature de-

tection algorithms, designed to detect edges, blobs,

key points etc. as basic elements for machine vision.

An extensive overview can be found in (Mikolajczyk

et al., 2005) and (Tuytelaars and Mikolajczyk, 2007).

The availability of inexpensive and rather accu-

rate eye trackers that record the direction of gaze of

a human observer while regarding a visual stimulus

(typically an image on a computer screen) recently

led to approaches that analyse the neighborhood of

ﬁxation targets and try to model saliency as targets

of overt attention. The results of the conducted ex-

periments give support to the biologically inspired

models of saliency. Edge density was reported to be

higher at ﬁxation points (Mannan et al., 1996) and

in (Krieger et al., 2000) two-dimensional image fea-

tures like curved lines and edges, occlusions, isolated

spots, etc. have been identiﬁed as important ﬁxa-

tion candidates. Later studies of image statistics at

human gaze data (Parkhurst and Niebur, 2003; Ra-

jashekar et al., 2007) obtain similar results. Finally

(Parkhurst et al., 2002) describes a signiﬁcant correla-

tion between computed visual saliency (by advancing

from the aforementioned biologically plausible mod-

els) and human eye movement data.

In a previous work (Alyosef, 2011), we analysed

the consistency of ﬁve of these computational models

for local feature selection with the ﬁxation targets of

human observers solving a retrieval task. The inten-

tion was to investigate to what extent these detectors

are qualiﬁed to predict bottom-up as well as top-down

gaze targets. While our results (the key point localiza-

tion step of the SIFT algorithm performed best) cor-

respond to the ﬁndings in (Harding and Robertson,

2009) and (Rajashekar et al., 2007) we identiﬁed a

strong interplay of top-down cues (i.e. the retrieval

task was too simple w.r.t. the presented stimuli).

We therefore decided to restrict ourselves to anal-

yse solely bottom-up properties of human gaze tar-

geting. Invariance w.r.t. varying image acquisition

conditions has been considered an important prop-

erty of most of the aforementioned algorithms in ma-

chine vision. Similarly, transformation invariances

have been considered to be important by neurally mo-

tivated models of vision (e.g. see (Wallis et al., 1993;

Deco and Rolls, 2004)) . Whether or not invariance is

important in human gaze targeting is the focus of this

paper. We conceived of an experimental setting that is

qualiﬁed to analyse the impact of invariance at human

ﬁxation points. While this setting is intended for later

use in more complex scenarios we prove its general

validity by analysing the human gaze data on stimuli

that are qualiﬁed to prove or dismiss the theory that

selection of ﬁxation targets of the HVS is rotational

invariant.

3 GAZE DATA ACQUISITION

3.1 Experimental Setup

For obtaining our sampling data we used the T60 eye

tracker from Tobii Technology

. The T60 is a table-

mounted video-based eye tracker that uses an infra-

red camera system to record gaze data. The cameras

are built into a 17” TFT screen with a native resolu-

tion of 1280x1024 pixels that is used to present the

stimuli data. Being non-intrusive, the tracker offers

freedom of head movements (within an eye tracking

Tobii Technology: http://www.tobii.com/

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

452

box of W:44cm x H:22cm x D:30cm at 70cm from the

eye tracker) which allows the participants to behave as

naturally as in front of any other computer screen. No

additional chin or forehead rest was used. The tracker

collects raw eye movement data points every 16.6 ms

(i.e. the sampling data rate is 60Hz) and provides a

tracking accuracy of 0.5

◦

. Drift effects (caused e.g.

by varying pupil size due to varying screen illumina-

tion levels) are reduced to < 0.3

◦

We set up the T60 on a blank desk and removed all

possibly irritating objects behind it. We then mounted

a ﬁxed chair that we adjusted for each participant as-

suring an eye-screen-distance of about 70 cm. To

avoid different illumination on the scene and assuring

consistent ambient illumination we closed all curtains

and used artiﬁcial light sources leading to low light

conditions instead.

Stimuli presentation, tracker calibration and gaze

data acquisition was done using the freely available

OGAMA (OpenGazeAndMouseAnalyzer

) software.

3.2 Stimuli Description

We rendered 10 black polygons on white background

with 3 to 8 edges. To make ﬁxation points at poly-

gons’ corners clearly distinguishable polygons were

selected to exhibit visually separable vertices (w.r.t.

distance) and a minimal and maximal opening angle

between two edges. Polygons were scaled to ﬁt most

of the trackers’ screen, yielding to an average visual

angle of approx. 18

◦

. The polygons are depicted in

Fig. 2. Each polygon was rotated around the center of

the screen. Rotation angles of multiples of 60

◦

were

used. Thus, we obtained 6 different projections of the

same polygon – the original and 5 rotated versions.

An additional set of 20 polygons was rendered in

the same way to be used as settling data and was pre-

sented to the participants before the actual experiment

started. In order not to bias the experiment, this was

not communicated to the participants. The last set of

16 randomly rendered polygons was used to distract

the participant from the fact that they are observing

10 unique polygons that are just rotated differently

and were presented in random order in the experiment

data after the settling set. That leads to 96 images.

The motivation for this step was to avoid that a

participant could make up any assumption on what to

look for within a presented polygon and would there-

fore be biased while examining succeeding images.

This set was selected as to convince the participants

of the random structure of the presented stimuli and

to avoid that a participant would look for any regulari-

ties or any repetitive character of the presented images

OGAMA: http://www.ogama.net/

throughout the rest of the experiment. Any such as-

sumption of a participant would represent a top-down

bias for the process of gaze targeting. The partici-

pants were unaware of this step and were left under

the impression of examining a total of 96 images.

3.3 Task Description

As reducing the impact of top-down factors on the

participant’s ﬁxated regions was crucial throughout

the design of our experimental setting we conceived

of a generic viewing task that was intended to help

achieving this goal. To do so we created a set of 30

questions and the participants were asked to answer

one of them after each presented stimulus.

The questions were designed to be very simple as-

suring a) that the cognitive load of the participants

stays at a constant level and that they are not too

distracted understanding the question and b) that the

questions can be answered in a quick manner to re-

duce the experiment duration. In addition to that we

shufﬂed the questions randomly to make them as un-

predictable as possible and thus eliminated bias that

could have raised by knowing which parts of the stim-

ulus is or could be important for answering the con-

secutive question on it. The correct response to these

questions was neither given to the participants nor

was it of any importance for the outcome of the ex-

periment. As mentioned before the overall aim of the

questions was rather to ensure a level of overt atten-

tion spatially equally spread over the entire stimulus.

Here are some examples of the mentioned questions:

• “Have there been more than 4 edges?”

• “Have you seen circular edges?”

• “Have you seen exactly one object?”

3.4 Participants and Process

Fixations have been recorded for 15 participants who

examined each of the 20 + 76 polygons described in

3.2. After the calibration process, the participants

were instructed to view each presented image care-

fully in order to be able to answer the subsequently

posed questions. All 96 images were presented in a

slide-show-like character to each of the participants.

Each image was presented for a duration of 5 sec-

onds. After each presentation a random question was

selected from the catalog (see Section 3.3). The par-

ticipant was asked to answer the question. While the

correct answer did not matter for the experiment it-

self, a new image was not shown before the subject

gave any answer at all. To avoid any distraction of the

participants by asking orally we decided to present

ROTATIONAL INVARIANCE AT FIXATION POINTS - Experiments using Human Gaze Data

453

the question as a part of the slide show directly af-

ter a stimulus. Thus, the participant had to answer

the question by remembering the presented stimulus

without seeing it, which otherwise would have meant

a high-level top-down inﬂuence in the ﬁxation selec-

tion process (e.g. a task speciﬁc search on the image).

Additionally, presenting a neutral gray image before

each new stimulus avoided that different stimuli im-

ages interfered during the recording process. Once

the question was answered orally the next image was

presented.

3.5 Gaze Data Analysis

All gaze movements of a participant were recorded

using OGAMA. As a post processing step partici-

pants’ ﬁxations were ﬁltered containing information

about the ﬁxation duration, start time, end time, and

position for each trial within the experiment. Param-

eters for calculating a ﬁxation out of all gaze point

were set ﬁx for all participants and every trial.

Because eye gaze ﬁxation are not steady we con-

sidered a gaze point as a part of a real ﬁxation if the

maximum distance between its coordinates and the

coordinates of the average ﬁxation point did not ex-

ceed 20 pixels in total. Furthermore, the minimal

number of gaze point samples to be considered as a

ﬁxation was set to 5. Finally, all calculated ﬁxations

that are within the maximum distance of any neigh-

boring ﬁxation point were merged to be just one ﬁx-

ation point. To avoid having overlapping ﬁxations

when switching to a consecutive trial (e.g. when we

switched from the neutral grey background image for

questioning to the next trial) the ﬁrst ﬁxation point

was discarded if it was at the same place as the last

ﬁxation point of the foregoing trial with a duration

less than 200 ms.

For analysing the gaze data, saliency maps were

generated using an aggregated Gaussian distribution

(Vosskuehler, 2009):

f (x,y) =

2πσ

exp(−

+ y

2σ

) (1)

where x, y ∈ [−s,s] and σ = s/5. All multiplied

kernels per trial are then added to a new image having

the same size as the given stimulus (1280x1024 pix-

els) and are ﬁnally normalized. We set the Gaussian

kernel size to σ = 40pixels.

In the next step the average saliency map for each

of the 60 stimuli over all 15 participants was gener-

ated. For better comparability the saliency maps were

rotated back to the original orientation of 0

◦

. To give

an impression on the resulting data, ﬁgure (2) shows

the stimuli polygons as well as their corresponding 6

saliency maps colored using a rainbow gradient.

To measure the similarity between two saliency

maps A and B the two-dimensional correlation coefﬁ-

cient p is calculated using the Pearson’s linear corre-

lation as described in (Engelke et al., 2010):

p =

∑

− A

) − (B

− B

)

∑

− A

)

−

∑

− B

)

(2)

where m ∈ [1,M], n ∈ [1,N] are the pixel coordinates,

and A

, B

denoting the mean pixel value. The

larger the value of the correlation coefﬁcient p gets,

the higher is the correlation between two saliency

maps, with p ∈ [−1, 1].

4 EXPERIMENTAL RESULTS

We computed the correlation p between the

saliency maps of any two rotated projections of

each of the 10 polygons A

,..., J

(where x ∈

◦

,60

◦

,120

◦

,..., 300

◦

] denotes the rotation angle).

Figure 1 shows the aggregated correlation coefﬁcient

for each polygon over all orientations.

A B C D E F G

0,8466 0,8127 0,8489 0,6669 0,6575 0,8157 0,7789

0,8466

0,8127

0,8489

0,6669

0,6575

0,8157

0,7789

0,8537

0,7891

0,8224

0,6

0,65

0,7

0,75

0,8

0,85

0,9

A B C D E F G H I J

Correlation

Polygon

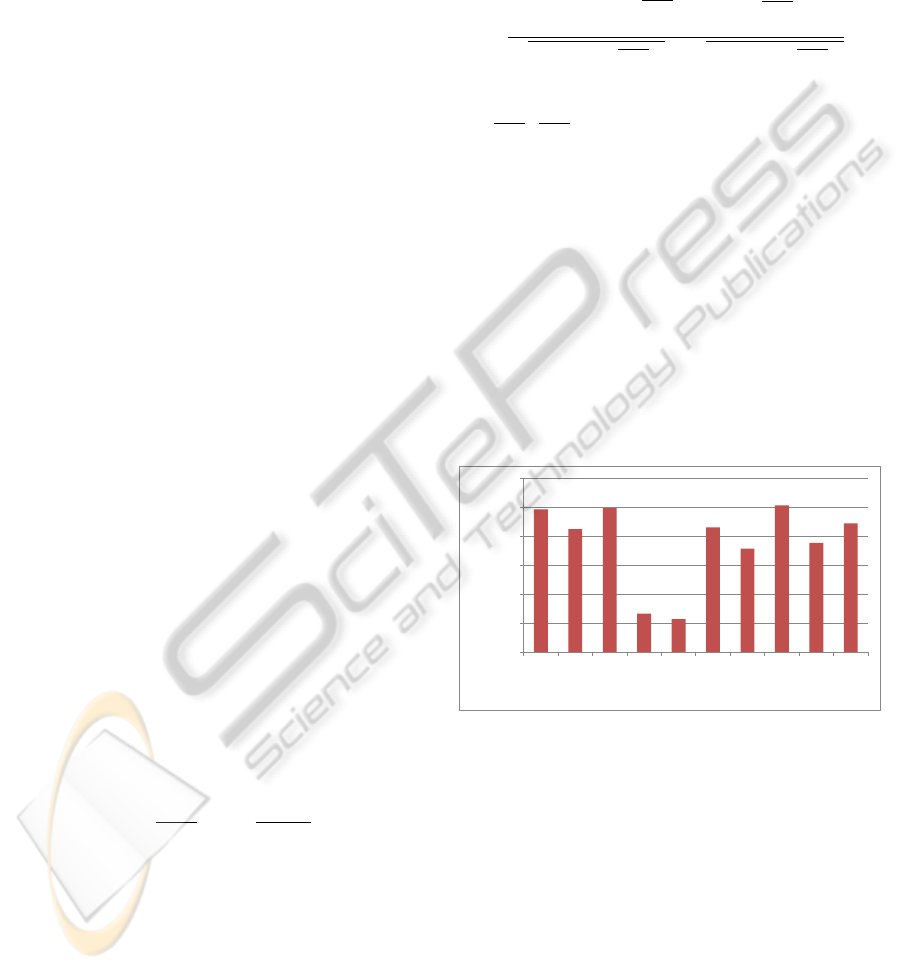

Figure 1: Mean correlation coefﬁcient for all polygons over

all orientations and participants

Assuming the participants treat the rotated pro-

jections of each polygon as unseen stimuli, the cor-

relation has to be considered as rather high. The

smallest correlation p = 0.5132 was found compar-

ing the saliency maps of polygon E for the rotation

angles x = 180

◦

and x = 300

◦

whereas the highest

value p = 0.9211 was obtained comparing the ro-

tated projections of polygon H with x = 240

◦

and

x = 300

◦

. Furthermore, considering the immediate

“neighbor” of each projection (i.e. x ± 60

◦

) the corre-

lation was found highest for 83% of all neighboring

projections. Considering the mean correlation coef-

ﬁcients (see Fig. 1) the smallest correlation can be

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

454

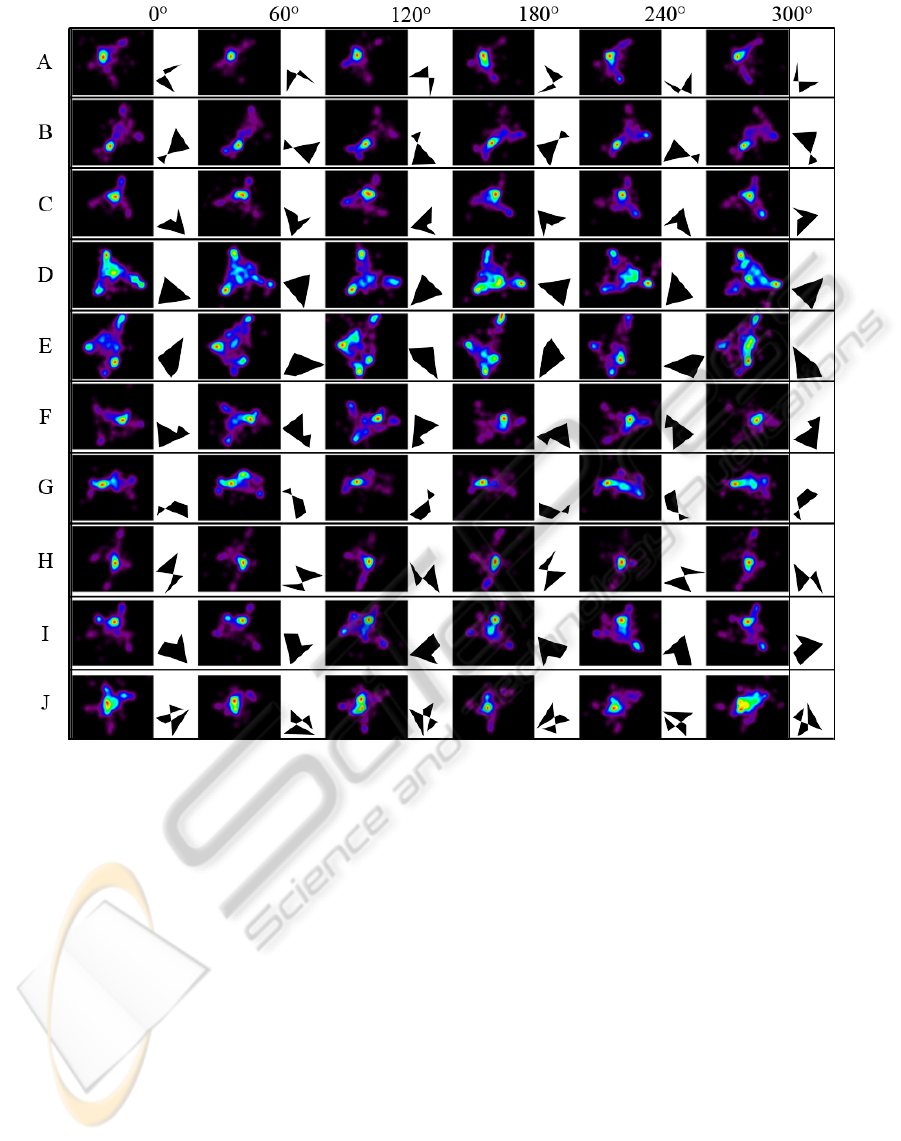

Figure 2: Overview of all 10 polygons and their corresponding colored saliency maps (rotated back to their initial position of

◦

degree for better visually comparison)

found for polygon D and E. As these were the sim-

plest polygons, we assume that most of their proper-

ties could be perceived without overt attention and de-

tails were not ﬁxated directly. When sorting the cor-

relation coefﬁcients p with increasing degree of ro-

tation angle the absolute values of p were found to

be increasing too. We assume this is due to the fact

that there is at least one factor inﬂuencing the ﬁxa-

tion selection process of the participants, which is yet

unrepresented in the experimental setting. Consider-

ing that the segregation or dichotomy of the ventral

“what” and dorsal “where” stream (two-stream hy-

pothesis) is highly in doubt (Farivar, 2009), we can

not assure that our results only represent outcomes of

the low-level “where” stream. Due to the heavily in-

terconnection of both streams, we have to act on the

assumption that ﬁxation positions are always a result

of both processing streams.

Another outcome worth being mentioned is that

the highest density of ﬁxation points over all partici-

pants was found at regions with high local complexity.

Thus, interesting characteristics like local convexity,

line-crossings, and junctions trigger the attention of

every observer resulting in very high peaks at the cor-

responding saliency maps. As can be seen in Fig. 2

whenever there is a concave region or a region show-

ing a high local complexity participants tend to ﬁxate

this region more often than outer corners and edges

(e.g. polygon D compared with H).

4.1 Conclusions

As a summary, evidence for rotation invariance at ﬁx-

ation points could be given on a certain level. Assum-

ing that the presented design avoids most of the high

level inﬂuences built on experience held before or

gained throughout the experimental process, the anal-

ysed data indicates that rotational invariance exists

ROTATIONAL INVARIANCE AT FIXATION POINTS - Experiments using Human Gaze Data

455

considering the given simple stimuli. The strong cor-

relation of neighboring orientations raise the assump-

tion that it was not possible to suppress all top-down

inﬂuences as initially intended. Moreover, given the

fact that there is a signiﬁcant difference comparing

ﬁxation data of simple convex polygons with other

more complex concave versions further investigation

on convexity and concavity should be performed.

More experiments with different polygon prototypes,

which should be further reduced regarding their com-

plexity (i.e. the number of vertices and nodes) should

be carried out. Another important fact, which is cur-

rently not represented by the proposed experimental

setting is that humans usually do not perceive objects

and scenes in discriminative steps as we simulated.

REFERENCES

Alyosef, A. A. (2011). Comparison of interest points of

computer vision detectors with human ﬁxation data.

Master’s thesis, University of Magdeburg, Germany.

Bergen, J. R. and Julesz, B. (1983). Parallel versus serial

processing in rapid pattern discrimination. Nature,

303:696–698.

Biederman, I. (1987). Recognition-by-components: A the-

ory of human image understanding. Psychological Re-

view, 94(2):115–147.

Corbetta, M., Kincade, J. M., Ollinger, J. M., McAvoy,

M. P., and Shulman, G. L. (2000). Voluntary orienting

is dissociated from target detection in human posterior

parietal cortex. Nature neuroscience, 3(3):292–7.

Deco, G. and Rolls, E. T. (2004). A neurodynamical cortical

model of visual attention and invariant object recogni-

tion. Vision research, 44(6):621–42.

Dobbins, A., Zucker, S. W., and Cynader, M. S.

(1989). Endstopping and curvature. Vision Research,

29(10):1371–1387.

Engelke, U., Liu, H., Zepernick, H.-J., Heynderickx, I.,

and Maeder, A. (2010). Comparing two eye-tracking

databases: The effect of experimental setup and image

presentation time on the creation of saliency maps. In-

ternational Picture Coding Symposium.

Farivar, R. (2009). Dorsalventral integration in object

recognition. Brain Research Reviews, 61(2):144 –

153.

Harding, P. and Robertson, N. (2009). A comparison of

feature detectors with passive and task-based visual

saliency. LNCS, 5575:716–725.

Heitger, F., Rosenthaler, L., von der Heydt, R., Peterhans,

E., and K

ubler, O. (1992). Simulation of neural con-

tour mechanisms: from simple to end-stopped cells.

Vision Research, 32(5):963–981.

Henderson, J. M. (2003). Human gaze control during real-

world scene perception. Trends in Cognitive Neuro-

science, 7(11):498–504.

Hopﬁnger, J. B., Buonocore, M. H., and Mangun, G. R.

(2000). The neural mechanisms of top-down atten-

tional control. Nature neuroscience, 3(3):284–91.

Hubel, D. and Wiesel, T. (1965). Receptive ﬁelds and func-

tional architecture in two nonstriate visual areas (18

and 19) of the cat. Journal of Neurophysiology, 28.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Transactions on pattern analysis and ma-

chine intelligence, 20(11):1254–1259.

Koch, C. and Ullman, S. (1985). Shifts in selective visual

attention: towards the underlying neural circuitry. Hu-

man Neurobiology, 4(4):219–227.

Krieger, G., Rentschler, I., Hauske, G., Schill, K., and Zet-

zsche, C. (2000). Object and scene analysis by sac-

cadic eye-movements: an investigation with higher-

order statistics. Spatial vision, 13(2-3):201–14.

Mannan, S., Ruddock, K., and Wooding, D. (1996). The

relationship between the locations of spatial features

and those of ﬁxations made during visual exami-

nation of brieﬂy presented images. Spatial Vision,

10(3):165–188.

Marr, D. and Hildreth, E. (1980). Theory of Edge Detec-

tion. Proceedings of the Royal Society B: Biological

Sciences, 207(1167):187–217.

Mikolajczyk, K., Tuytelaars, T., Schmid, C., Zisserman, A.,

Matas, J., Schaffalitzky, F., Kadir, T., and Gool, L. V.

(2005). A comparison of afﬁne region detectors. In-

ternational Journal of Computer Vision, 65:43–72.

Niebur, E. and Koch, C. Control of selective visual at-

tention: modeling the” where” pathway. Advances

in neural information processing systems, pages 802–

808.

Parkhurst, D., Law, K., and Niebur, E. (2002). Modeling

the role of salience in the allocation of overt visual

attention. Vision research, 42(1):107–23.

Parkhurst, D. J. and Niebur, E. (2003). Scene content se-

lected by active vision. Spatial vision, 16(2):125–54.

Pasupathy, a. and Connor, C. E. (1999). Responses to con-

tour features in macaque area V4. Journal of neuro-

physiology, 82(5):2490–502.

Rajashekar, U., van der Linde, I., Bovik, A. C., and Cor-

mack, L. K. (2007). Foveated analysis of image fea-

tures at ﬁxations. Vision Research, 47:3160–3172.

Rodrigues, J. and du Buf, J. (2006). Multi-scale keypoints

in v1 and beyond: object segregation, scale selection,

saliency maps and face detection. BioSystems, 86.

Treisman, A. M. and Gelade, G. (1980). A feature-

integration theory of attention. Cognitive psychology,

12(1):97–136.

Tuytelaars, T. and Mikolajczyk, K. (2007). Local Invariant

Feature Detectors: A Survey. Foundations and Trends

in Computer Graphics and Vision, 3(3):177–280.

Vosskuehler, A. (2009). Ogama description (version 2.5).

Wallis, G., Rolls, E., and Foldiak, P. (1993). Learning

invariant responses to the natural transformations of

objects. Proceedings of 1993 International Confer-

ence on Neural Networks (IJCNN-93-Nagoya, Japan),

2:1087–1090.

ICPRAM 2012 - International Conference on Pattern Recognition Applications and Methods

456
