EVALUATING A SPOKEN LANGUAGE

INTERFACE OF A MULTIMODAL INTERACTIVE

GUIDANCE SYSTEM FOR ELDERLY PERSONS

Cui Jian

, Frank Schafmeister

, Carsten Rachuy

, Nadine Sasse

, Hui Shi

1,3

, Holger Schmidt

and Nicole von Steinbüchel

SFB/TR8 Spatial Cognition, University of Bremen, Enrique-Schmidt-Straße 5, Bremen, Germany

Medical Psychology and Medical Sociology, University Medical Center Göttingen, Waldweg 37, Göttingen, Germany

German Research Centre for Artificial Intelligence, University of Bremen, Enrique-Schmidt-Straße 5, Bremen, Germany

Neurology, University Medical Center Göttingen, Waldweg 37, Göttingen, Germany

Keywords: ICT and ageing, Elderly-friendly interaction, User centered design, Human-computer interaction, Spoken

dialogue systems, Formal methods, Multimodal interaction.

Abstract: This paper presents a multimodal interactive guidance system for elderly persons for the use in navigating in

hospital environments. We used a unified modelling method combining the conventional recursive

transition network based approach and agent-based dialogue theory to support the development of the

central dialogue management component. Then we studied and specified a list of guidelines addressing the

needs of designing and implementing multimodal interface for elderly persons. As an important step

towards developing an effective, efficient and elderly-friendly multimodal interaction, the spoken language

interface of the current system was evaluated by an elaborated experiment with sixteen elderly persons. The

results of the experimental study are overall positive and provide evidence for our proposed guidelines,

approaches and frameworks on interactive system development while advising further improvements.

1 INTRODUCTION

Multimodal interfaces are becoming more and more

common since the inspirational introduction by

(Bolt, 1980). They are considered as a promising

possibility to improve the quality of communication

between users and systems and have significant

impact on effectiveness and efficiency of interaction

(cf. e.g. (Jaimes and Sebe, 2007)), they also enhance

users’ satisfaction and provide a more natural and

intuitive way of interaction (cf. e.g. (Oviatt, 1999)).

Meanwhile, the demographic development

towards more elderly keeps motivating the research

of elderly-friendly interactive systems; there is a

special focus on the multimodal communication

channels, which can enhance interaction by taking

age-related decline into special accounts (Holzinger,

Mukasa and Nischelwitzer, 2008).

In this paper, we will present an interactive

guidance system for elderly persons. It uses a unified

dialogue modelling approach combining the classic

agent based dialogue theories and a formal language

supporting generalized recursive transition network

based method to achieve a flexible and context-

sensitive, yet formally tractable and controllable

interaction. Furthermore, it is developed according

to a number of elaborated guidelines regarding basic

design principles of conventional interactive systems

and most common elderly-centered characteristics.

To evaluate this system with respect to its feasibility

and acceptance by elderly, an experimental study

was conducted, which was focused on the natural

spoken language input interface of the system.

However, the study also aimed at evaluation of the

multimodal interactive guidance system as a whole,

while regarding the essential criteria of the following

aspects: the effectiveness of task success, the

efficiency of executing tasks and the user

satisfaction with the system.

The remainder of the paper is organized as

follows: section 2 introduces the formal unified

dialogue modelling approach which combines the

Jian C., Schafmeister F., Rachuy C., Sasse N., Shi H., Schmidt H. and von Steinbüchel N..

EVALUATING A SPOKEN LANGUAGE INTERFACE OF A MULTIMODAL INTERACTIVE GUIDANCE SYSTEM FOR ELDERLY PERSONS.

DOI: 10.5220/0003783800870096

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2012), pages 87-96

ISBN: 978-989-8425-88-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

classic agent based approach and the recursive

transition network based theory for building the

discourse management of the multimodal

interaction; section 3 presents a set of specific

guidelines for designing multimodal interactive

system for elderly persons; section 4 then describes

the multimodal interactive guidance system, which

is developed based on the unified dialogue

modelling approach and the proposed set of design

guidelines; in section 5 the experiment is described,

and the results are analysed and discussed in section

6. Finally, in section 7 we will conclude and give an

outline of future work.

2 A FORMAL UNIFIED

DIALOGUE MODELLING

APPROACH

As a typical recursive network based approach,

generalized dialogue models were developed by

constructing dialogue structures at the illocutionary

level (Sitter and Stein, 1992). However, it is

criticized for its inflexibility of dealing with

dynamic information exchange. On the other hand,

information state update based theories were deemed

the most successful foundation of agent based

dialogue approaches (Traum and Larsson, 2003),

which provides a powerful mechanism to handle

dynamic information and gains a context sensitive

dialogue management. Nevertheless, such models

are usually very difficult to manage and extend

(Ross, Bateman and Shi, 2005).

Thus, a unified dialogue modelling approach was

developed. It combines the generalized dialogue

models with information state updated based

theories. This approach is supported by a formal

development toolkit, which is used to implement an

effective, flexible, yet formally controllable dialogue

management for multimodal interaction.

2.1 A Unified Dialogue Modelling

Approach

Generalized dialogue models can be constructed

with the recursive transition networks (RTN). They

abstract dialogue models by describing illocutionary

acts without reference to direct surface indicators

(Alston, 2000). Figure 1 shows a simple generalized

dialogue model as a recursive transition network

diagram. It is initiated with an assertion from a

person A, and responded by B with three possible

actions: accept, agree or reject.

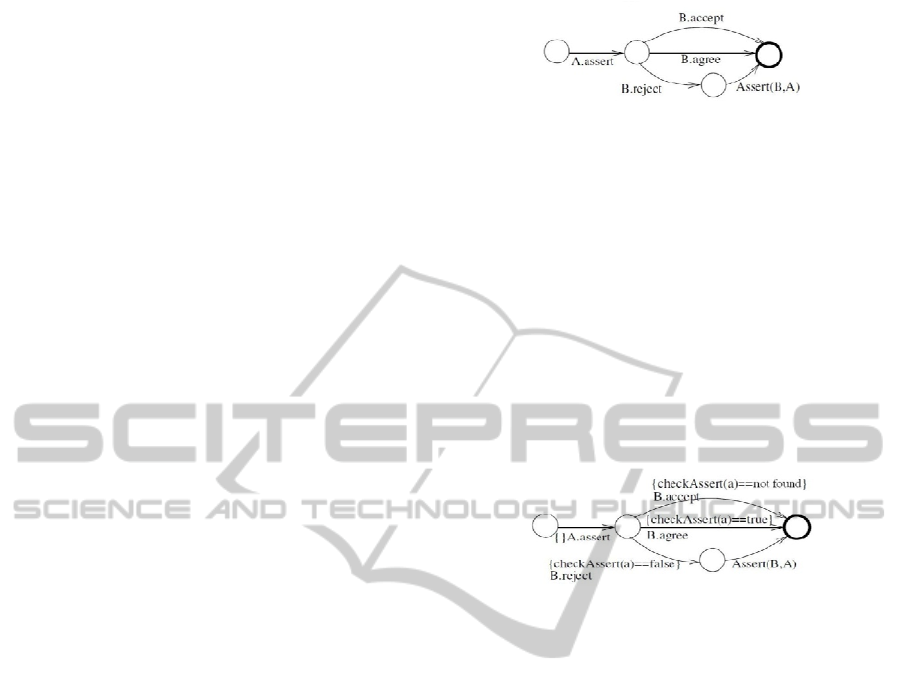

Figure 1: A generalized dialogue model as a simple RTN.

The generalized dialogue model above is a none-

deterministic model, to build a feasible interaction

model, deterministic behaviour should be assured for

the interaction flow. Thus, conditional transitions are

introduced to modify the above dialogue model (cf.

figure 2). Let checkAssert be a method to check

whether an assertion holds with B’s knowledge and

a an assertion given by A, if the assertion holds, B

can agree with it; otherwise, B rejects it and initiates

further discussion; if the assertion is not known by

B, then B accepts it. Such conditional transitions can

only be activated if the relevant condition is

fulfilled. We call it the conditional RTN.

Figure 2: A generalized dialogue model as a simple

deterministic RTN with conditional transitions.

Although the conditional RTN based generalized

dialogue model defines a deterministic illocutionary

structure, it does not provide the mechanism to

integrate discourse information. Thus, information

state based theory was integrated into our unified

dialogue model by eliminating some typical

elements, e.g. AGENDA for planning the next

dialogue moves, because such information is already

captured by the generalized dialogue model;

furthermore it complements illocutionary structure

with update rules, which is associated with the

information state of current context, and can update

the information state respectively if necessary. As a

result, a unified dialogue model is constructed as

shown in figure 3. Four update rules are added, so

that the information state regarding context can

always be considered and updated; e.g. the update

rule ACCEPT is used to add a new assertion a into

B’s belief and refer it as known from then on.

Finally, we define a unified dialogue model as a

deterministic recursive transition network built at the

illocutionary level of interaction processes; its

transitions can only be triggered by fulfilled

conditions concerning the information state, and

with the consequences of possible information state

update according to a set of update rules.

HEALTHINF 2012 - International Conference on Health Informatics

Figure 3: Unified dialogue model as a simple deterministic

RTN with conditional transitions and update rules.

2.2 A Formal Language based

Development Toolkit for Dialogue

Modelling

Deterministic recursive transition networks can be

illustrated as a typical finite state transition diagram

(cf. figure 3), which provides the possibility of

specifying the described illocutionary structure with

mathematically well-founded formal methods, e.g.,

with Communicating Sequential Processes (CSP) in

the formal methods community of computer science.

CSP can not only be used to specify finite state

automata structured patterns with abstract, yet highly

readable and easily maintainable logic formalization

(cf. (Roscoe, 1997)), but it is also supported by well-

established model checkers to verify the concurrent

aspects and increasing the tractability (Hall, 2002).

Thus, CSP is used to specify and verify the unified

dialogue models (cf. the example in figure 4).

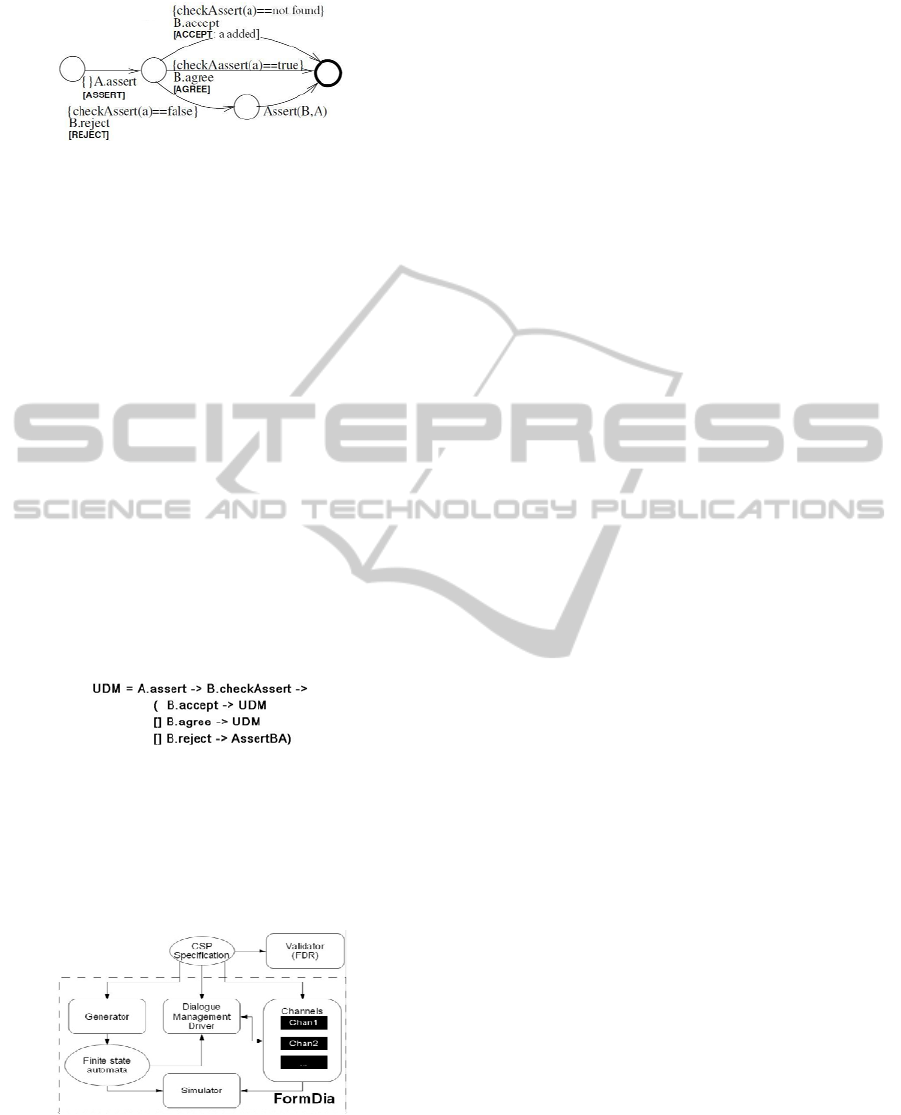

Figure 4: A sample CSP specification of the illocutionary

structure of the unified dialogue model in figure 3.

In order to support the development of unified

dialogue models within practical interactive systems,

we provided FormDia, the Formal Dialogue

Development Toolkit (cf. figure 5).

Figure 5: The Structure of the FormDia Toolkit (cf. (Shi

and Bateman, 2005)).

To develop the unified dialogue model based

management, FormDia toolkit can be used according

to the following essential steps:

 Validation: the CSP specified structure of a

unified dialogue model can be validated by

using Failures-Divergence Refinement tool,

abbrv. FDR (Broadfoot and Roscoe, 2000),

which is a model checking tool for validating

and verifying concurrency of state automata.

 Generation: according to the given CSP

specification, finite state automata can then be

generated by the FormDia Generator.

 Channels Definition: channels between the

dialogue management and application/domain

specific components can be defined. These

channels are at first black boxes, which will

later be filled with deterministic behaviour of

concrete domain components.

 Simulation: with the generated finite state

automata and the communication channels,

dialogues scenarios are simulated via a

graphical interface, which visualizes dialogue

states as a directed graph and provides a set of

utilities to trigger events and the dialogue state

update for testing and verification.

 Integration: after the dialogue model is

validated, tested and verified, it can be directly

integrated into a practical interactive dialogue

system via a dialogue management driver.

The FormDia toolkit shows a promising way for

developing formally tractable and extensible

interaction. It enables an intuitive design of dialogue

models with formal language, automatic validation

of related functional properties, and it also provides

an easy simulation, verification for the specified

dialogue models, and the straightforward integration

within a practical interactive system. In addition,

with the unified dialogue model, FormDia toolkit

can even be used in multimodal interactive system.

3 DESIGN GUIDELINES OF

MULTIMODAL INTERACTIVE

SYSTEMS FOR ELDERLY

PERSONS

Elderly persons often suffer from decline of sensory,

perceptual, motor and cognitive abilities due to age-

related degenerative processes. (Birdi, Pennington

and Zapf, 1997) and (Morris, 1994) indicated that

this decline should be considered while designing

interactive systems for the elderly. Therefore, we

defined a set of design guidelines for multimodal

interaction with respect to the decline of the most

common abilities. They are implemented and

integrated into our multimodal interactive guidance

EVALUATING A SPOKEN LANGUAGE INTERFACE OF A MULTIMODAL INTERACTIVE GUIDANCE SYSTEM

FOR ELDERLY PERSONS

system and tested by a pilot study. The results are

described in (Jian, et al., 2011) and the improved

guidelines are now presented as follows, regarding

the decline of the seven most common abilities.

3.1 Visual Perception

Visual perception declines for most people with age

(Fozard, 1990). Even in the early forties, many

people find it more difficult to focus on objects up

close and to see fine details. The size of the visual

field is decreasing and leads to loss of peripheral

vision. Rich colours and complex shapes make

images hard or even impossible to identify. Rapidly

moving objects are either causing too much

distraction, or becoming less noticeable. To cope

with these impairments, the following guidelines

should be taken into account:

 Layouts of the user interface should be

devised as simple and clear as possible, with

few (if any) or no overlapping items.

 All texts should be large enough, suggesting

simple fonts in the 12-14 point range.

 Strong contrast should be used with as few

colors as possible; this also applies to simple

and easily recognizable shape designs.

 Unnecessary and irrelevant visual effects and

animation should be avoided.

3.2 Speech Ability

Elderly persons need more time to produce complex

words or longer sentences, probably due to reduced

motor control of tongue and lips (Mackay and

Abrams, 1996). Furthermore, speech-related elderly-

centered adaptation is necessary to improve the

interaction quality to a sufficient level (Moeller,

Goedde and Wolters, 2008). Based on these, the

following aspects should be taken into account:

 Acoustic models specialized for the elderly

should be used for speech recognizer.

 Vocabulary should be built with more definite

articles, auxiliaries, first person pronouns and

lexical items related to social interaction.

 Dialogue strategies should be able to cope

with elderly specific needs such as repeating,

helping and social interaction, etc.

3.3 Hearing Ability

Hearing ability declines to 75% with increasing age

75 and 79 year olds, (Kline and Scialfa, 1996). High

pitched sounds are increasingly not percieved, as

well as long and complex sentences becoming

difficult to follow (Schieber, 1992). Therefore

special attention should be paid to the following:

 Text displays can help when information is

mis- or not heard.

 Synthesized texts should be intensively

revised regarding style, vocabulary, length and

sentence structures suitable for elderly.

 Low pitched voices are more acceptable for

speech synthesis, e.g., female voices are less

preferred than male ones.

3.4 Motor Abilities

Using a computer mouse has been problematic for

many elderly persons as good hand-eye coordination

is required (Walkder, Philbin and Fisk, 1997). It is

difficult for them to position the cursor if the target

is too small or too irregular to locate, and they have

problems with control of fine movements (Charness

and Bosman, 1990), especially when other cognitive

functions are required at the same time. Thus, the

following procedures are suggested:

 Direct interaction is recommended.

 All GUI items should be accessibly shaped,

sized and well spaced from each other.

 Simple movements are recommended, such as

clicking instead of dragging or drawing.

 Text input should be avoided or replaced with

other simpler input actions.

 An undo function is needed to correct errors.

 Simultaneous multimodal input such as the

combination of speech and other input should

be avoided or replaced.

3.5 Attention and Concentration

Elderly individuals become more easily distracted

by details or noise (Kotary and Hoyer, 1995). They

display great difficulty maintaining divided

attention, e.g. where attention must be paid to more

than one aspect at the same time (McDowd and

Craik, 1988). To cope with these constraints the

following points are suggested:

 Only relevant images should be used.

 Items should not be displayed simultaneously.

 Unified or similar fonts, colors and sizes of

displayed texts are recommended.

 Changes on the user interface should be

emphasized in an obvious way.

3.6 Memory

Different memory functions decline at different

degrees during ageing. Short term memory holds

HEALTHINF 2012 - International Conference on Health Informatics

fewer items while ageing and more time is needed to

process information (Hoyer and Rybash, 1992).

Working memory also becomes less efficient

(Salthouse, 1994). Semantic information is believed

to be preserved in long term memory (Craik and

Jennings, 1992). To compensate the decline of the

different memory functions, the following points are

suggested:

 Pure image items should be avoided or placed

near relevant key words.

 Presented items should not exceed five, the

average maximum capacity of short term

memory of elderly people.

 Information should be categorized to assist

storage into long term memory.

 Context sensitive information is necessary to

facilitate working memory activities.

3.7 Intellectual Ability

Fluid intelligence does decline with ageing (Shaie,

1996), however, crystallized intelligence does not

(Hawthorn, 2000); it can assist elderly people to

perform better in a stable well-known interface

environment. To reflect this on interface design, we

suggest assuring the following points:

 Unified interface layout, where changes

should only happen on data level.

 Semantically intuitive structure, where users

should not be too surprised while traversing

the interaction levels.

 Consistent interaction style, easing learning

and assist elderly to master interface use.

4 MULTIMODAL INTERACTIVE

GUIDANCE SYSTEM FOR

ELDERLY PERSONS

The Multimodal Interactive Guidance System for

Elderly Persons (MIGSEP) was developed for

elderly or handicapped persons to navigate through

public spaces. MIGSEP runs on a portable touch

screen tablet PC. It serves as the interactive media

designed for an autonomous intelligent electronic

wheelchair that can automatically carry its users to

desired locations within complex environments.

4.1 System Architecture

The architecture of MIGSEP is illustrated in figure

6. A Generalized Dialogue Manager is developed

using the unified dialogue modelling approach.

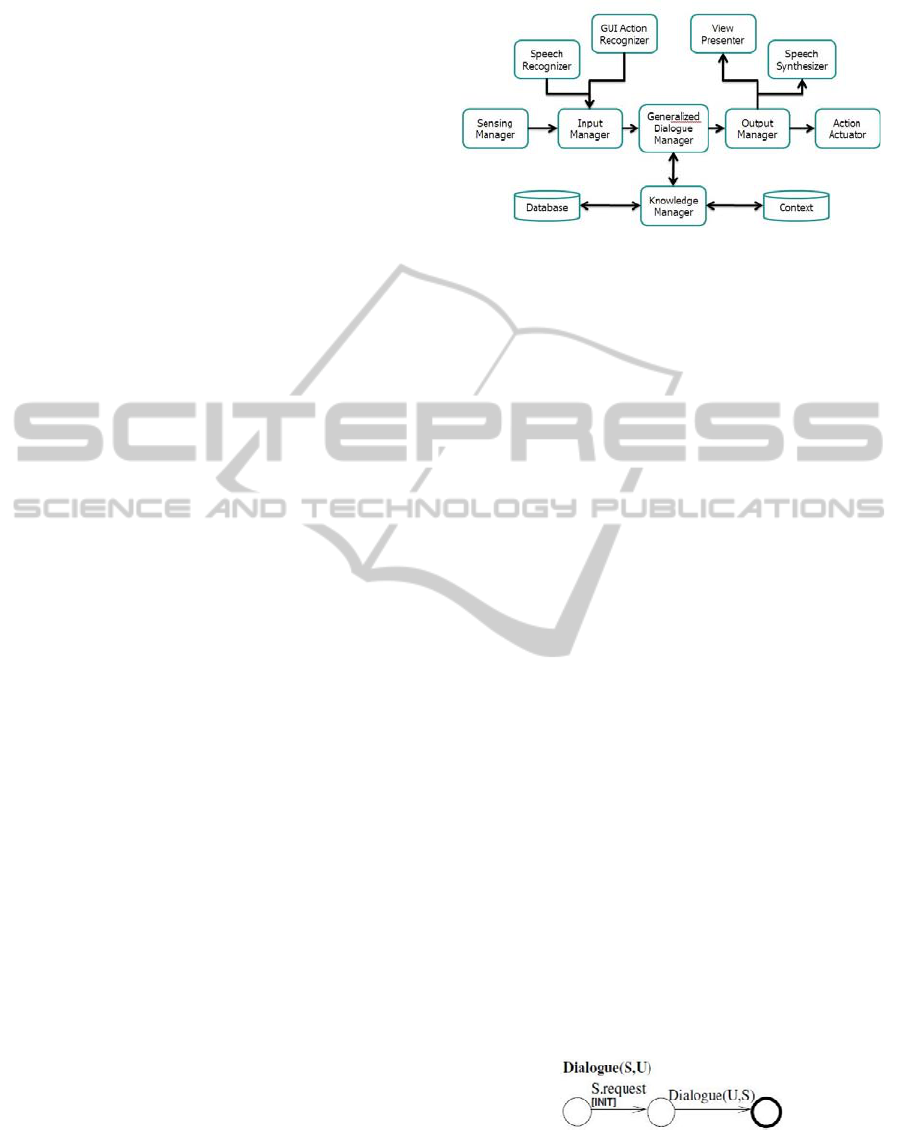

Figure 6: The architecture of MIGSEP.

It functions as the central processing unit and

enables a formally controllable and extensible,

meanwhile context-sensitive multimodal interaction.

An Input Manager receives and interprets all

incoming messages from GUI Action Recognizer for

GUI inputs, Speech Recognizer for natural language

understanding and Sensing Manager for other sensor

data. An Output Manager on the other hand, handles

all outgoing commands and distributes them to View

Presenter for visual feedbacks, Speech Synthesizer

to generate natural language responses and Action

Actuator to perform necessary motor actions.

Knowledge Manager uses Database to keep the

static data of certain environments and Context to

process the dynamic information exchanged with

users during the interaction.

Although the essential components of MIGSEP

are closely connected with each other via predefined

XML-based communication mechanism, each of

them is treated as an open black box and can be

implemented or extended for specific use, without

affecting other MIGSEP components. It provides a

general platform for both theoretical researches and

empirical studies on multimodal interaction.

4.2 The Unified Dialogue Model in

MIGSEP

The current unified dialogue model (UDM) consists

of four extended state transition diagrams.

The interaction is initiated with the diagram

Dialogue(S, U) (cf. figure 7), by the initialization of

the system’s start state and a greeting-like request.

Figure 7: The initiate diagram.

The dialogue continues with user’s instruction to

a certain location, request for a certain information

or restart action, leading to the system’s further

EVALUATING A SPOKEN LANGUAGE INTERFACE OF A MULTIMODAL INTERACTIVE GUIDANCE SYSTEM

FOR ELDERLY PERSONS

response or dialogue restart, respectively, as well as

updating the information state with the attached

update rules (cf. Dialogue(U, S) in figure 8).

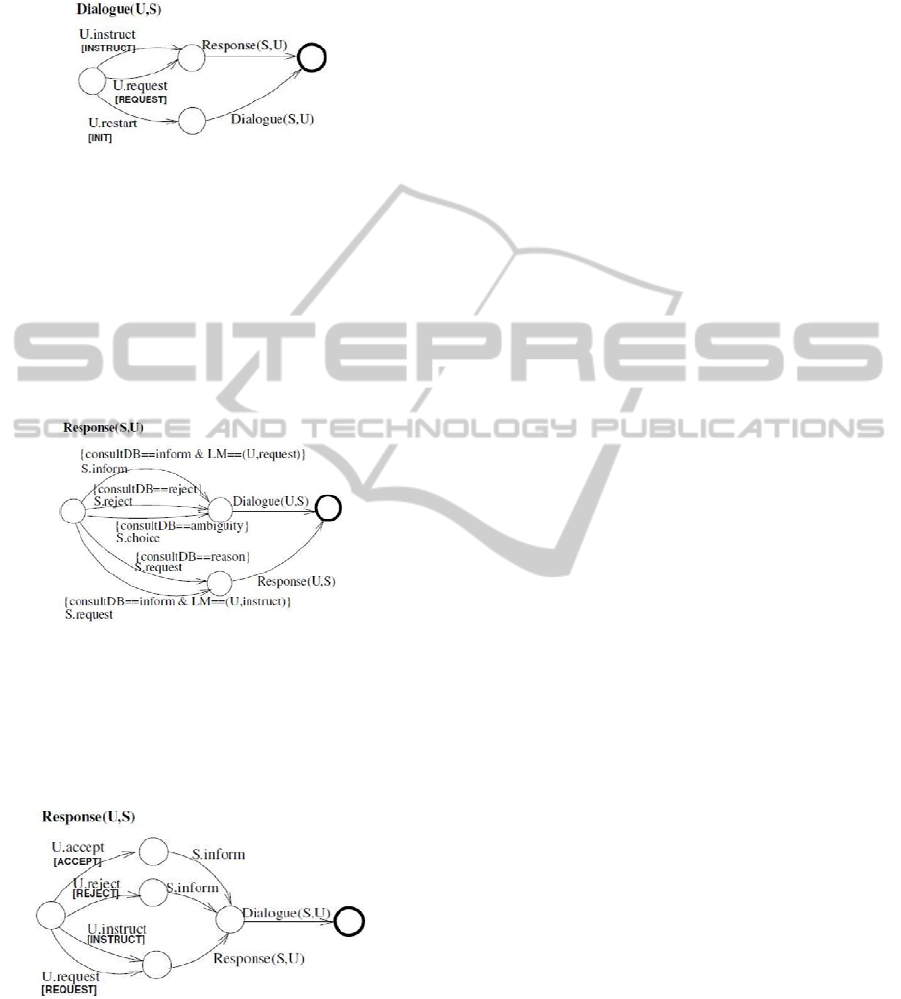

Figure 8: The transition diagram triggered by the user.

After receiving user’s input, the system tries to

generate an appropriate response according to its

current knowledge base and information state (cf.

Response(S, U) in figure 9). This can be informing

the user with requested data, rejecting an

unacceptable request with or without certain reasons,

providing choices for multiple options, or asking for

further confirmation of taking a critical action, each

of which triggers transitions to different diagrams.

Figure 9: The system’s response.

Finally, the user can accept or reject the system’s

response, or even ignore it by simply providing new

instructions or requests, triggering further state

transitions as well as information state updates (cf.

Response(U, S) in figure 10).

Figure 10: The user’s response.

Using the FormDia toolkit, the UDM was

developed as CSP specifications, and its functional

properties have been validated and verified via FDR,

as well as its conceptual interaction process using

FormDia simulator. The tested specification was

then used to generate corresponding machine-

readable state transition automata and integrated into

the Generalized Dialogue Manager of MIGSEP.

4.3 The Elderly-friendly Design

Elements in MIGSEP

According to the design guidelines in the previous

section, a set of elderly-centered design elements

were implemented in MIGSEP. Specifically, the

most essential elements are listed below:

 Visual Perception: simple and clear layout was

constructed without overlapping items; 12-14

sized sans-serif fonts were chosen for all

displayed texts. Simple and high contrast

colours without fancy visual effects were used

and placed aside; regularly shaped rectangles

and circles were selected, enabling comfortabe

perception and easy recognition.

 Hearing Ability: both text and acoustic output

are provided as system responses. Styles,

vocabulary, structures of the sentences have

been intensively revised. A low-pitched yet

vigorous male voice is chosen for the synthesis.

 Motor Functions: regularly shaped, sufficiently

sized and well separated interface elements were

designed for easy access. Clicking was decided

to be the only action to avoid otherwise

frequently occurring errors caused by decline of

motor and attentional functions. “Start” was

provided as the only way of orientating oneself

to avoid confusion.

 Attention or Concentration: fancy irrelevant

images or decorations were avoided. Unified

font, colors, sizes of interface elements were

used for the entire interface. Simple animation

notifying changes were constructed, giving

sufficiently clear yet not distracting feedback to

the user.

 Memory Abilities: all items are used with

relevant keywords. The number of displayed

items is restricted to no more than three,

considering the maximum capacity of short term

memory, the accessible size as well as the

readable amount of information of the

interaction items on a table PC. Logically well-

structured and sequentially presented items were

intensively revised to assist orientation during

interaction. Context sensitive clues are given

with selected colors.

 Intellectual Ability: consistent layout, colours

and interaction styles are used. Changes on the

interface happen only on data level.

HEALTHINF 2012 - International Conference on Health Informatics

4.4 Interaction with MIGSEP in

Hospital Environments

We have implemented a MIGSEP system and set its

application domain to hospital environments. Figure

11 shows a user interacting with it via speech

modality.

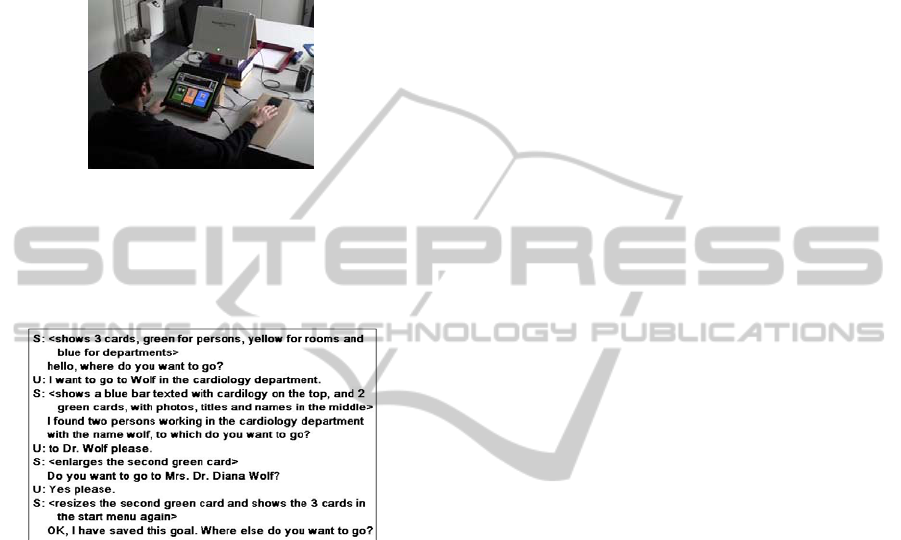

Figure 11: A user is interacting with MIGSEP.

Figure 12 shows a sample dialogue between the

MIGSEP system and a user who would like to be

guided to the cardiology department, to a doctor

named Wolf.

Figure 12: Example of a dialogue with MIGSEP.

5 THE EXPERIMENTAL STUDY

To evaluate how well elderly is assisted by MIGSEP

system, an experimental study was conducted.

5.1 Participants

Eighteen elderly persons (m/f: 11/7, mean age of

70.9, standard deviation (SD)=3.0), all German

native speakers, took part in the study. They all had

the mini-mental state examination (MMSE), which

is a screening test to measure cognitive mental status

(Folstein, Folstein and Mchugh, 1975). A test value

between 28 and 30 indicates normal cognitive

functioning, therefore, our participants showing 28.3

(SD=.86) were in the normal range.

5.2 Stimuli and Apparatus

As shown in figure 11, visual stimuli were given by

the green lamp and the graphical user interface on

the screen of a portable tablet PC; audio stimuli as

complementary feedbacks were also generated by

the MIGSEP system and presented via two

loudspeakers at a well-perceivable volume. All tasks

were given as keywords on the pages of a calendar-

like system. The only input possibility was the

spoken language instructions, activated if the button

was being pressed and the green lamp was on.

The same data set contains virtual information

about personnel, rooms and departments in a

common hospital, was used in the experiment.

During the experiment each participant was

accompanied by only one investigator, who gave the

introduction and well-defined instructions at the

beginning, and provided help if necessary (which

was very rare the case).

An automatic internal logger of the MIGSEP

system was used to collect the real-time data, while

the windows standard audio recorder program kept

track of the whole dialogic interaction process.

A questionnaire focusing on the user satisfaction

was designed. It includes questions of seven

categories: system behaviour, speech output, textual

output, interface presentation, task performing, user-

friendliness and user perspective. The questionnaire

was completed by each participant by a five point

Likert scale, where one represents the lowest

appropriateness and five the highest.

5.3 Procedure

Each participant had to undergo four phases:

 Introduction: a brief introduction was given to

the participants.

 Learning: they were instructed how to interact

with the MIGSEP system using the button

device and spoken natural language. After they

made no more mistakes using the button device,

a further introduction was given to the verbal

and graphical feedbacks the system provides.

Then they were asked to perform one or two

sample tasks to gather more practical

experiences with the system.

 Testing: Each participant had to perform eleven

tasks, each of which contains incomplete yet

sufficient information about a destination the

participant should select. Each task was ended,

if the goal was selected, or the participant gave

up trying after six minutes.

 Evaluation: After all tasks were run through,

each participant was asked to fill in the

questionnaire for evaluation.

EVALUATING A SPOKEN LANGUAGE INTERFACE OF A MULTIMODAL INTERACTIVE GUIDANCE SYSTEM

FOR ELDERLY PERSONS

5.4 Questions and Methods

Altogether, there are three important questions to be

focused and answered by the experiment:

 ”Can elderly use the MIGSEP system to

complete the tasks?”

A standard measurement method Kappa

coefficient is used to assess the successfulness

of the interaction between the participants and

the system.

 “Can elderly persons handle the tasks with

MIGSEP efficiently?”

This shall be answered by the automatically

logged data of every single interaction.

 “Do elderly find it comfortable to interact with

MIGSEP?”

This should be reflected in the results of the

evaluation questionnaires.

6 RESULTS

6.1 Effectiveness of MIGSEP

To answer the first question, i.e., how well the

MIGSEP system assists elderly persons to perform

tasks, we used Kappa coefficient, which is a well-

accepted method for measuring effectiveness of

interaction (Walker, et al., 1997).

In order to apply this method, we needed to

define the attribute value matrix (AVM), which had

to contain all information that has to be exchanged

between MIGSEP and the participants. E.g. table 1

shows the AVM for the task: ”Drive to a person

named Michael Frieling.”, where the expected

values of this task are also presented.

Table 1: An example AVM for the task “drive to a person

name Michael Frieling”.

Attribute Expected value

FN Michael

LN Frieling

G Male

By combining the actual data recorded during the

experiment with the expected attribute values in the

AVMs, we can construct the confusion matrices for

all tasks. E.g., table 2 shows the confusion matrix for

the task ”drive to a person named Michael Frieling”,

where ”M” and ”N” denote whether the actual data

match with the expected attribute values in the

AVMs. E.g. one participant selected a person with

wrong first and last names.

Table 2: The confusion matrix for the task “drive to a

person named Michael Frieling”.

FN LN G

sum

Data M N M N M N

FN 17 1 18

LN 17 1 18

G 18 18

Given one confusion matrix, the Kappa

coefficient can be calculated with



(



)

()

()

, (Walker, et al., 1997)

In our experiment,

P(A) =

∑

(, )







is the proportion of times that the actual data agree

with the attribute values, and

P(E) =

∑

(

()



)







is the proportion of times that the actual data are

expected to be agreed by chance, where M(i, M) is

the value of the matched cell of row i, M(i) the sum

of the cells of row i, and T the sum of all cells.

Therefore, we summarized the results of all the

tasks and constructed one confusion matrix for all

the data, and got that, P(A) = 0.961 and kappa

coefficient κ = 0.955, which suggests a highly

successful degree of interaction between the

MIGSEP system and the participants.

6.2 Efficiency of MIGSEP

Regarding the efficiency of MIGSEP, quantitative

data automatically logged during the experiments

are summarized in table 3, with respect to user turns,

system turns, ASR failed times (the frequency of the

Automatic Speech Recognizer failing getting a

parsable sentence), ASR error times (the frequency

of the ASR wrongly recognizing utterances), user

turns without ASR (user turns without being affected

by the ASR related failures) and the elapsed time for

each participant and each task.

From a dialogue system’s points of view, a very

good overall performance efficiency is shown by

averagely 4.1 user turns and 3.9 system turns per

task for each participant, as the average basic turn

numbers, which can be inferred by the shortest

solution regarding the number of slots for each task

to be filled, are 3 user turns and 3 system turns. In

addition, if the ASR related failures and errors are

excluded, the user turns would be only 1.9. This

shows that almost each task was completed by each

participant with only one complicated sentence.

Furthermore, the user turns without ASR, which is

HEALTHINF 2012 - International Conference on Health Informatics

lower than the theoretically minimum 2 user turns,

even implied that with slightly wrong recognized

sentence, the MIGSEP system was still able to find a

solution to help elderly persons to complete tasks.

Table 3: Quantitative results calculated based on the

recorded data concerning efficiency.

Average

Standard

deviation

User turns 4.1 1.8

Sys turns 4.0 1.7

ASR failed times 1.2 0.8

ASR error times 1.0 1.2

User turns without ASR 1.9 0.4

Elapsed time 61.0 23.6

On the other hand, the elapsed time for each task

and each participant is considered as satisfying, with

averagely 61.0 second for minimal 6 interaction

paces (3 user turns +3 system turns), including the

relatively long spoken utterance either by the system

or the elderly participants. However, the standard

deviation of 23.6 is a bit high, since two participants

needed much longer time than the others. They

encountered many problems with the automatic

speech recognizer, which indicates the necessity for

further analysis and improvement of the ASR.

6.3 User Satisfaction

Table 4: The assessment of subjective user satisfaction.

Mean

Standard

deviation

System behaviour

3.7 0.8

Speech output

4.5 0.5

Textual output

4.7 0.5

Interface presentation

4.6 0.4

Task performing

4.3 0.4

User-friendliness

4.6 0.4

User perspective

3.9 0.8

Overall

4.3 0.4

Overall, it shows a very good user satisfaction

with the averagely score of 4.3 out of 5. Specifically,

the speech and textual outputs are considered

appropriately constructed with the score of 4.5 and

4.7; the interface is intuitive and easy to understand

with the score of 4.6; the process to perform the task

is quite feasible with the score of 4.3; and the system

is rather user-friendly with the score of 4.6 out of 5.

However, the scores of system behaviour and

user perspective were a bit lower than the others. It

is mainly due to the problem of the automatic speech

recognizer, which could trigger unexpected system

responses, and therefore make the future use from

the user perspective less attractive.

7 CONCLUSIONS AND FUTURE

WORK

This paper presented our work on multimodal

interaction for elderly persons from three essential

perspectives: the modelling and development of

multimodal interaction using a tool-supported,

formally tractable and extensible unified dialogue

modelling approach; the design and implementation

of a multimodal interactive system according to a

number of elderly-friendly guidelines regarding the

basic design principles of conventional interactive

interfaces and ageing centered characteristics. The

multimodal interactive system was evaluated with

eighteen elderly persons. The evaluation showed

high effectiveness, high efficiency and a high

satisfaction of the user with our system. These

findings provide us with further evidence for our

proposed guidelines, approaches and frameworks on

system design and implementation.

The presented work served as part of a

developmental process towards building an

effective, efficient, adaptive and robust multimodal

interactive framework for the elderly. Further study

focussing on speech and touch screen combined

modalities is being conducted. Moreover, corpus-

based supervised and reinforcement learning

techniques will be applied to improve the current

dialogue model and gain more flexible interaction to

compensate for the insufficient reliability of

automatic speech recognizers. Our future research

will continue with combining and experimenting

emerging technologies in addition to speech, touch

screen and visual modalities. Special attentions are

also being paid to learning-based discourse

modelling and management in advanced multimodal

interactive systems for elderly persons.

ACKNOWLEDGEMENTS

We gratefully acknowledge the support of the

Deutsche Forschungsgemeinschaft (DFG) through

the Collaborative Research Center SFB/TR8, the

department of Medical Psychology and Medical

Sociology and the department of Neurology of the

University Medical Center Göttingen, and the

German Research Centre for Artificial Intelligence.

EVALUATING A SPOKEN LANGUAGE INTERFACE OF A MULTIMODAL INTERACTIVE GUIDANCE SYSTEM

FOR ELDERLY PERSONS

REFERENCES

Alston, P. W., 2000, Illocutionary acts and sentence

meaning. Cornell University Press.

Birdi, K., Pennington, J., Zapf, D., 1997. Aging and errors

in computer based work: an observational field study.

In Journal of Occupational and Organizational

Psychology. pp. 35-74.

Bolt, R. A., 1980. Put-That-There: Voice and Gesture at

the Graphics Interface. In Proceedings of the 7

International Conference on Computer Graphics and

Interactive Techniques. Seattle, USA, pp. 262-270.

Broadfoot, P., Roscoe, B., 2000. Tutorial on FDR and Its

Applications. In K. Havelund, J. Penix and W. Visser

(eds.), SPIN model checking and software verification.

Springer-Verlag, London, UK, Volume 1885, pp. 322.

Charness, N., Bosman, E., 1990. Human Factors and

Design. In J.E. Birren and K.W. Schaie, (eds.),

Handbook of the Psychology of Aging. Academic

Press, Volume 3, pp. 446-463.

Craik, F., Jennings, J., 1992. Human memory. In F. Craik

and T. A. Salthouse, (eds.), The Handbook of Aging

and Cognition. Erlbaum, pp. 51-110.

Folstein, M., Folstein, S., Mchugh, P., 1975. “mini-mental

state”, a practical method for grading the cognitive

state of patients for clinician. In Journal of Psychiatric

Research. Volume 12, 3, pp. 189-198.

Fozard, J. L., 1990. Vision and hearing in aging. In J.

Birren, R. Sloane and G.D. Cohen (eds), Handbook of

Metal Health and Aging. Academic Press, Volume 3,

pp. 18-21.

Hawthorn, D., 2000. Possible implications of ageing for

interface designer. In Interacting with Computers. pp.

507-528.

Hall, A., Chapman, R., 2002. Correctness by construction:

Developing a commercial secure system. In IEEE

Software. Vol. 19, 1, pp. 18-25.

Holzinger, A., Mukasa, K.S., Nischelwitzer, A. K., 2008.

Introduction to the special thematic session: Human-

computer interaction and usability for elderly. In

Proceedings of the 11

International Conference on

Computers Help People with Special Needs. Springer

Verlag, Berlin, Germany, pp. 18-21.

Hoyer, W. J., Rybash, J. M., 1992. Age and visual field

differences in computing visual spatial relations. In

Psychology and Aging 7. pp. 339-342.

Jaimes, A., Sebe N., 2007. Multimodal human-computer

interaction: A survey. In Computational Vision and

Image Understanding. Elsevier Science Inc., New

York, USA, pp. 116-134.

Jian, C., Scharfmeister, F., Rachuy, C., Sasse, N., Shi, H.,

Schmidt, H., Steinbüchel-Rheinwll, N. v., 2011.

Towards Effective, Efficient and Elderly-friendly

Multimodal Interaction. In PETRA 2011: Proceedings

of the 4th International Conference on PErvasive

Technologies Related to Assistive Environments.

ACM, New York, USA.

Kline, D. W., Scialfa, C.T., 1996. Sensory and Perceptual

Functioning: basic research and human factors

implications. In A.D. Fisk and W.A. Rogers. (eds.),

Handbook of Human Factors and the Older Adult,

Academic Press.

Kotary, L., Hoyer, W. J., 1995. Age and the ability to

inhibit distractor information in visual selective

attention. In Experimental Aging Research. Volume

21, Issue 2.

Mackay, D., Abrams, L., 1996. Language, memory and

aging. In J.E. Birren and K.W.Schaie (eds), Handbook

of the psychology of Aging. Academic Press, Volume

4, pp. 251-265.

McDowd, J. M., Craik, F. 1988. Effects of aging and task

difficulty on divided attention performance. In Journal

of Experimental Psychology: Human Perception and

Performance 14. pp. 267-280.

Moeller, S., Goedde, F., Wolters, M., 2008. Corpus

analysis of spoken smart-home interactions with older

users. In N. Calzolari, K.Choukri, B. Maegaard, J.

Mariani, J. Odjik, S. Piperidis, and D. Tapias, (eds.),

Proceedings of the Sixth International Conference on

Language Resources Association. ELRA.

Morris, J. M., 1994. User interface design for older adults.

In Interacting with Computers. Vol. 6, 4, pp. 373-393.

Oviatt, S. T., 1999. Ten myths of multimodal interaction.

In Communications of the ACM. ACM New York,

USA, Vol. 42, No. 11, pp. 74-81.

Roscoe, A.W., 1997. The Theory and Practice of

Concurrency, Prentice Hall.

Ross, J. R., Bateman, J., Shi, H., 2005. Using Generalized

Dialogue Models to Constrain Information State

Based Dialogue Systems. In Symposium on Dialogue

Modelling and Generation.

Salthouse, T. A., 1994. The aging of working memory. In

Neuropsychology 8, pp. 535-543.

Schieber, F., 1992. Aging and the senses. In J.E. Birren,

R.B. Sloane, and G.D. Cohen, (eds.) Handbook of

Mental Health and Aging, Academic Press, Volume 2.

Shaie, K.W., 1996. Intellectual development in adulthood.

In J.E. Birren and K.W. Shaie, (eds.), Handbook of the

psychology of aging. Academic Press, Volume 4.

Shi, H., Bateman, J., 2005. Developing human-robot

dialogue management formally. In Proceedings of

Symposium on Dialogue Modelling and Generation.

Amsterdam, Netherlands.

Sitter, S., Stein, A., 1992. Modelling the illocutionary

aspects of information-seeking dialogues. In Journal

of Information Processing and Management. Elsevier,

Volume 28, issue 2, pp. 165-180.

Traum, D., Larsson, S., 2003. The information state

approach to dialogue management. In J.v. Kuppevelt

and R. Smith (eds.), Current and New Directions in

Discourse and Dialogue. Kluwer, pp. 325-354.

Walkder, N., Philbin, D. A., Fisk, A.D., 1997. Age-related

differences in movement control: adjust submovement

structure to optimize performance. In Journal of

Gerontology: Psychological Sciences 52B, pp. 40-52.

Walker, M. A., Litman, D. J., Kamm, C. A., Kamm, A. A.,

Abella, A., 1997. Paradise: a framework for evaluating

spoken dialogue agents. In Proceedings of the eighth

conference on European chapter of Association for

computational Linguistics, NJ, USA, pp. 271-280.

HEALTHINF 2012 - International Conference on Health Informatics
