AN OPENEHR REPOSITORY BASED ON A NATIVE XML

DATABASE

Linda Velte

, Tiago Pedrosa

, Carlos Costa

and José Luís Oliveira

University of Aveiro, DETI/EETA, Aveiro, Portugal

Polytechnic Institute of Bragança, 5301-854, Bragança, Portugal

Keywords: EHR, openEHR, XML repository.

Abstract: openEHR is an open standard specification that describes the management, storage, retrieval and exchange

of data in Electronic Health Record (EHR). Despite its growing importance in the field, the lack of open

source solutions is hindering a larger visibility. In this paper we present an openEHR-based repository

supported by a native XML database, which allows to store and query openEHR records through the DB

service layer and a set of REST web services. The obtained results highlight the efficiency of this API and

show that it can be used as a persistence component in any openEHR solution.

1 INTRODUCTION

An EHR allows an integrated access to the patients

information as it gives the possibility to aggregate

all medical data of the patient, and consequently, to

have a patient centric storage approach. A patient’s

EHR must be accessible and the information

understandable, no matter what hospital/medical

institution he visits. To accomplish that, there must

be an agreement on the language that is ”spoken”.

This is done via standards that define not only how

the information is structured and represented but

also how it can be retrieved and shared between

systems (Sunyaev, 2008). Existing standards can be

divided into two major groups: 1) to define the

content format, like, for instance, openEHR, MML

(Medical Markup Language) and HL7 CDA (Health

Level 7 Clinical Document Architecture) and 2) to

define how the communication should be done like,

for instance, WADO (Web Access to DICOM

Persistent Objects), RID (Retrieve Information for

Display) and XDS (Cross-Enterprise Document

Sharing). Some standards can be included in both of

these groups (DICOM Structured Reports and

EHRcom) (MITRE, 2006). Within these standards, a

great expectation is being put on openEHR, which

usage has been increasing over the years (Eicheberg,

2005). Most standards focus on a specific area, such

as DICOM focuses on digital imaging or HL7 on

patients’ administration. On other hand, openEHR

has the goal to provide semantic interoperability

between all medical specialties, reducing the needed

of standards to a single one, in opposition to the

several standards that are used nowadays.

An important aspect in openEHR solutions is the

storage technology. This kind of repository needs a

very generic database model, which is not supported

by current implementations. Opereffa project

(Opereffa, 2011) is an openEHR repository that uses

a relational database, with just one table to store

path/value pairs for each attribute. A strong

drawback of this approach is that for patient centric

queries the information has to be reassembled via

complex joins operations.

In this paper we propose a repository supported

by a XML database, where each patient has all his

information in one record, simplifying storage and

query procedures.

2 OPENEHR

OpenEHR is an open standard specification in health

informatics that describes the management, storage,

retrieval and exchange of data in EHR’s (openEHR,

2011). In this standard, all data relative to a person is

stored in a ”one lifetime” vendor independent and

centred EHR (Kalra, 2005).

The goal of openEHR standard is to achieve

semantic interoperability regarding the whole health

386

Velte L., Pedrosa T., Costa C. and Oliveira J..

AN OPENEHR REPOSITORY BASED ON A NATIVE XML DATABASE.

DOI: 10.5220/0003784003860389

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2012), pages 386-389

ISBN: 978-989-8425-88-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

area. For this, a generic, dynamic health information

model is needed, capable of storing new kinds of

data without having to change the data model. The

drawback of this kind of model is that there is no

control about what information is stored, leading to

low data quality and is not very different from an

unstructured model. This issue was solved by an

innovative modeling approach that creates a second

level used to constrain the information (Bird, 2003).

This decoupling methodology consists basically in

the separation of information and knowledge. The

result is a generic health record model that enables

the storage of a wide variety of health information.

The openEHR architecture can be divided into

two major parts: Reference Model the Archetype

Model. The former allows interoperability because

data is exchanged between systems only in terms of

standard open reference model instances; the latter

allows semantic interoperability. Additionally, there

is a Service Model includes definitions of basic

services in the health information environment,

which are EHR centred.

The structure of the information is constrained

by the archetype model, which defines exactly

which data types, structures and values are valid,

making the information both flexible and structured.

An archetype represents a clinical concept and it is

used to constrain instances of the openEHR

information model by defining a valid structure, data

types and values. An electronic health record that

has been archetyped will have the same meaning no

matter where it appears, allowing it to be shared by

multiple health systems (Beale, 2002). Archetypes

are defined using the Archetype Definition

Language (ADL) (Beale and Heard 2005). To query

openEHR information it was defined the Archetype

Query Language (AQL) that allows to access the

nodes in a similar way as a XPath query on an XML

document (Beale, 2005).

There is already available a fully implemented

version of the reference and archetype models – the

openEHR Java Reference Implementation (Chen,

2007) – and many organizations are using or

contributing to the openEHR standard. Two major

references are Opereffa (Opereffa, 2011) and

Kanolab (Kanolab, 2011).

3 A OPENEHR REPOSITORY

The purpose of our repository is to store electronic

health records according to the openEHR standard,

offering an API to perform database management

functions (like insert, edit or delete a record) and to

query the inserted records. To accomplish this task,

a few aspects have to be considered. A very

important one is the fact that the repository must

store openEHR records using a dynamic database

model. Another fact to have in consideration is that

the repository is only a part of a healthcare system

and, consequently, has to be inserted into this system

architecture. To make this possible the

implementation should have a well-defined set of

services that are reusable by any application. Those

services should provide the functionalities normally

supported by a healthcare information system,

namely operations related with records search and

management.

The system architecture was designed to divide

functionalities into three different layers, following

the Service Oriented Architecture (SOA) model

(Papazoglou, 2003). This approach has the

advantage of providing reusable services, being

possible to integrate implemented functionalities in

any application. The result is shown in Figure 1.

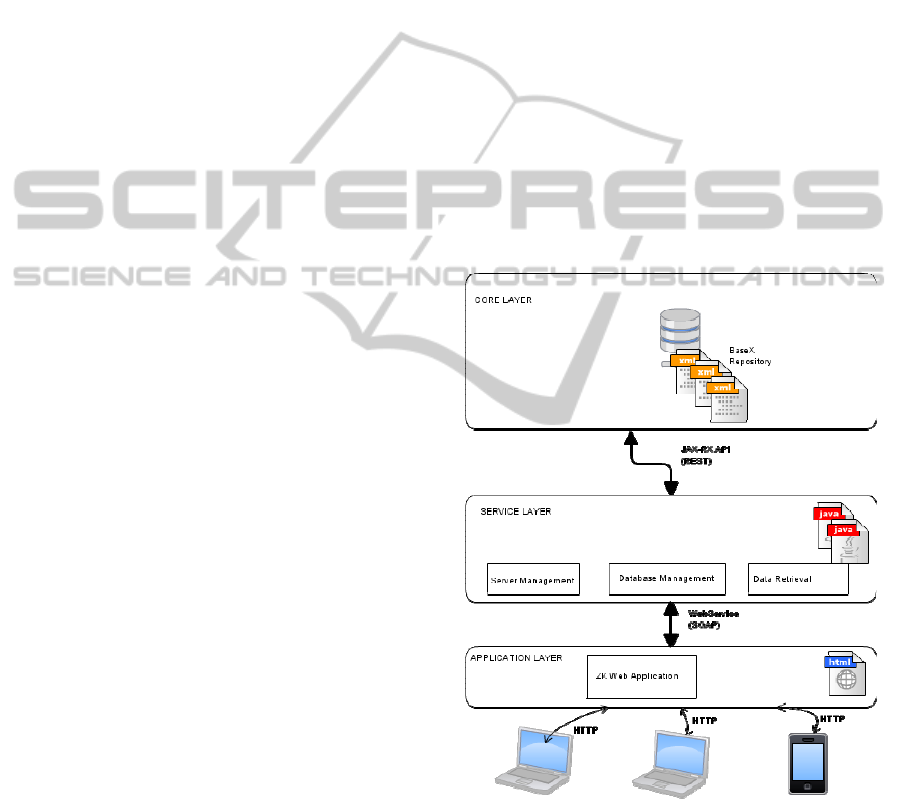

Figure 1: System Architecture.

3.1 Core Layer

The Core layer is responsible for managing the

information to be stored. The storage technology

used was a native XML database, a relatively new

technology and, consequently an interesting case of

study, namely to compare performance with

AN OPENEHR REPOSITORY BASED ON A NATIVE XML DATABASE

387

relational approaches or with non-native XML

databases (i.e. DBs that use a relation model with

XML fields to store the data).

XML databases perform better when used in

document centric applications, what makes it perfect

to support a patient centric EHR repository. This

kind of storage approach makes possible to have a

XML file per patient containing all his medical data.

For our implementation we have used BaseX an

open-source and platform-independent XML DB,

written in Java, with an Xpath/XQuery processor,

and with support for W3C Update and Full Text

extensions. The W3C Update is a great advantage

regarding performance issues, allowing us to access

to a specific position of the file to read or modify its

value. Normally, other solutions obligate to read the

entire file, change it and rewrite it. Moreover, it

offers a RESTful API for accessing distributed XML

resources, which provides a simple and fast access to

databases though HTTP (using HTTP methods GET,

PUT and DELETE).

The patient repository consists in one unique

XML node that contains the EHR records, following

the openEHR structure (Figure 2).

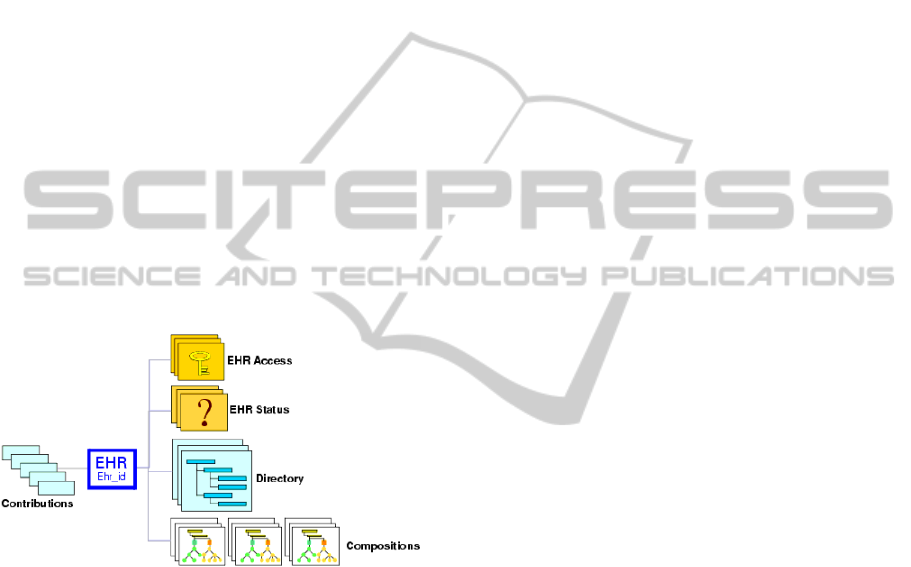

Figure 2: High Level Structure of the openEHR (openEHR

2011).

Each object is identified by an EHR ID and

contains structured information that is versioned,

plus a list of Contribution objects that act as audits

for changes. The EHR Access and EHR Status

objects contain control information, while the

Directory (optional) can be used to hierarchically

organize Compositions, objects that contain the

patient medical information. Every EHR has also a

list of Contributions that are used to save every

change made to the record.

3.2 Service Layer

The set of implemented services allow the remote

and transparent management of electronic health

records storage and the query of information

contained in these records. All the implemented

services were implemented using SOAP and their

functionalities can be divided into four groups

according to their application area: DBManager,

ServerManager, EHRManager and QueryService.

The DBManager module is responsible for the

administrative operations on the repository, such as

creating a new database or obtaining information

about an already existing database. The

EHRManager is responsible for all the Web Services

related to record manipulation. This set of services

cover the requisites regarding the information

management of electronic health records, such as

insertion, edition, or deletion of EHRs, compositions

and contributions. The QueryService allows

querying the data available in the repository. The

two available services to retrieve information are

executeQuery (free XPath/XQuery queries) and

textQuery (full text search). The ServerManager file

contains the services responsible for the server

management, such as starting or stopping the BaseX

server.

3.3 Application Layer

To validate the functionalities of the developed

openEHR repository we have also developed a web

application with a particular set of client services,

namely: a) insert/edit/remove EHRs; b) view EHR

content; c) get Composition list associated to an

EHR; d) insert/edit/remove Compositions; e) query

database (XPath and free text).

The application was developed in ZK, an open-

source web solution written in Java that includes an

Ajax-based event-driven engine and a rich set of

components. The Web application works as an

administration platform for any repository.

4 EVALUATION

To evaluate the performance of developed openEHR

Repository systematic tests were made for series of

1000, 10000 and 30000 patient records. Several

operations were analysed, included: a) Add a new

EHR to the database; Search for a patient record;

Search for an attribute; Add a composition to an

existing record.

In our openEHR repository, the query processing

is notably faster than the insertion process.

Analysing the context where the repository will be

used (health information systems), it is more

important to have faster queries than to have faster

insertions (add a new patient or add new data to the

HEALTHINF 2012 - International Conference on Health Informatics

388

patient’s record). After the tests we have concluded

that while the query time for a record is independent

of the volume of the database (approximately

0.65ms), the insertion time increases with the

numbers of records already inserted (with 30000

records inserted, it took 423ms to insert an

additional one). The major conclusion is that this

repository is best suitable for systems that require a

fast query response to patient centric queries.

Using the index system mechanism offered by

BaseX it was possible to obtain the same response

time to query a patient’s medical record,

independently of the number of records inserted. It

also made no difference which position the record

occupies in the repository file.

Information centric queries, i.e. search for

special attributes along a set of patients, are much

slower and depend on the number of records inserted

(Figure 3). In our approach, queries like, for

instance, “how many patients have high blood

pressure?” obligates to analyse the whole

information inserted. To cope with this we need to

deploy a more extensive indexing solution based on

Lucene, for instance.

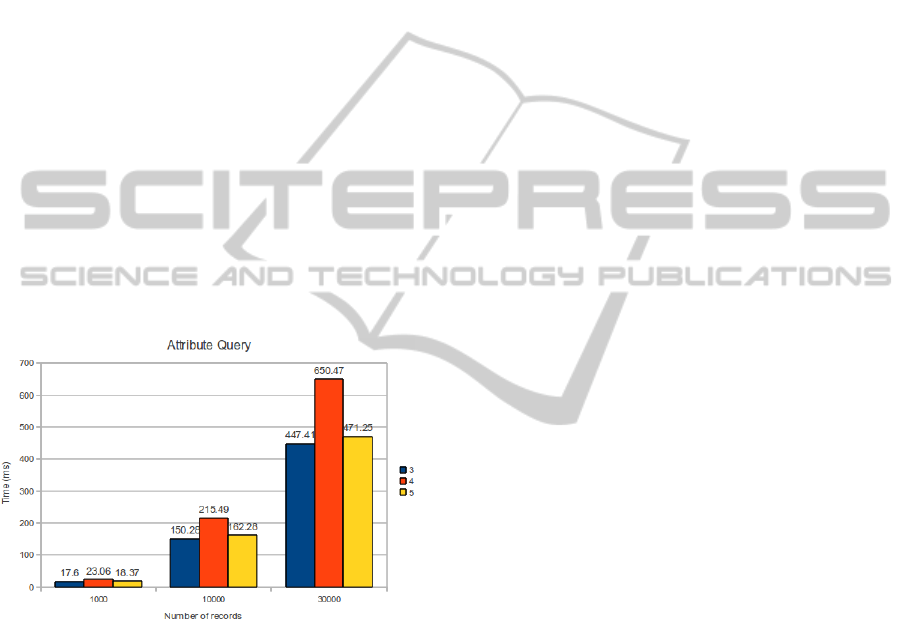

Figure 3: Attribute Search.

5 CONCLUSIONS

In this paper we have presented a generic and

dynamic database, able to store electronic health

records according to the openEHR standard.

Additionally, the developed SOAP API offers a

unified access to the repository, making it possible

to integrate it with any kind of application. The goal

is to promote the development of health information

systems based on the openEHR standard, allowing

an integration of all clinical areas (e.g. radiology,

administration, pharmacy) and making the process

more unified. Besides the repository and its clinical

usage, we have also developed a set of web services

and an administration web application that allow

patients to enter their own medical information into

secure health records. This support to PHR (Personal

Health Records) systems is an important asset,

considering the document centric approach of our

solution – every patient has all his information

stored in just one record.

The repository created and the services provided

enable the creation of client applications in an easy

way. The use of web services and the format of the

record stored on XML allow the use of generic

technology and programing languages.

REFERENCES

Beale T., 2002. Archetypes: Constraint-based domain

models for future-proof information systems.

OOPSLA 2002 workshop on behavioural semantics.

Beale, T., 2005. Archetype query language (aql),

openEHR specification, openEHR foundation.

Beale, T., Heard, S., 2005. Archetype definition language

(adl), openEHR specification, openEHR foundation.

Bird, L., Goodchild, A., Tun, Z., 2003. Experiences with a

two-level modelling approach to electronic health

records, Journal of Research and Practice in

Information Technology, 35(2):121.

Chen, R., Klein, G., 2007. The openehr java reference

implementation project. In Medinfo 2007, Proceedings

of the 12th World Congress on Health (Medical)

Informatics, Building Sustainable Health Systems,

page 58. IOS Press.

Eichelberg, T. Aden, Riesmeier, J., Dogac, A., Laleci

G.B., 2005. A survey and analysis of electronic

healthcare record standards, ACM Computing Surveys

(CSUR), 37(4):277–315.

Kalra, D., Beale, T., Heard, S, 2005. The openEHR

foundation, Studies in Health Technology and

Informatics, 115:153–173.

Kanolab, 2011. http://www.kanolab.info/index.php

Papazoglou, M. P., Georgakopoulos, D., 2003. Service-

oriented computing. Communications of the ACM, vol.

46 (10).

MITRE Coorporation, 2006. Electronic Health Records

Overview. National Institutes of Health National,

Center for Research Resources.

openEHR, 2011. http://www.openehr.org.

Opereffa, 2011, http://opereffa.chime.ucl.ac.uk/introducti

on.jsf

Sunyaev, A., Leimeister, J. M., Schweiger, A., Krcmar,

H., 2008. IT-Standards and Standardization

Approaches in Healthcare. Encyclopedia of

Healthcare Information Systems. 813-820.

AN OPENEHR REPOSITORY BASED ON A NATIVE XML DATABASE

389
