A NOVEL ANALYSIS FLOW FOR FUSED TRANSCRIPTS

DISCOVERY FROM PAIRED-END RNA-SEQ DATA

F. Abate

, G. Paciello

, A. Acquaviva

, E. Ficarra

, A. Ferrarini

, M. Delledonne

and E. Macii

Politecnico di Torino, Department of Control and Computer Engineering, Torino, Italy

Universit`a di Verona, Department of Biotechnology, Verona, Italy

Keywords:

Next generation sequencing, RNA-Seq data, Chimeric transcript detection, Gene fusions, Alternative splicing,

Deep sequencing analysis, Paired-end reads.

Abstract:

Chimeric phenomena have been recently recognized to play a signiﬁcant role in the investigation and under-

standing of the fundamental mechanisms behind highly diffused pathologies such as tumors. In this paper we

present a new methodology for the detection of fusion transcript from Next Generation Sequencing (NGS)

data. The methodology exploits short paired-end reads coming from RNA-Seq experiments to determine a

list of fused genes and to exactly identify the fusion boundaries, so that the exact chimeric sequence can be

analysed. Both known and unknown transcripts are considered, enabling the detection of fusions involving

unannotated genes. An automated toolﬂow that reports a set of candidate fused genes and the associated

junctions has been implemented and applied to a publicly available data set of melanoma.

1 INTRODUCTION

Next Generation Sequencing (NGS) Technologies

have been demonstrated to play a fundamental role

in biological and genetic research ﬁelds mainly for

their capability of detecting genomic structural varia-

tions, novel genes and transcript isoforms from high

throughput data (Magalhes, 2010) (Kircher, 2010).

In particular these features are clearly recognizable

from RNA-Seq data analysis that allows a digital-

ized and sensitive estimation of gene expression lev-

els, the discover of new transcripts and also the detec-

tion of chimeric transcripts (Edgren, 2011) (Maher,

2009b) (Maher, 2009a). Chimeric transcripts cause

the production of a new protein in place of the two

original proteins that would result in absence of a

fusion. In (Maher, 2009a), short paired-end reads

have been demonstrated to allow a better identiﬁca-

tion of fusion transcripts with respect to single long

reads, thus improving the accuracy when retrieving

the list of possible fused gene candidates. Paired-end

reads are particular reads for which only the ends of

the DNA/RNA strand are sequenced. The two ends,

also called mates of the read, are spaced by a gap

of unknown nucleotides, whose size is approximately

known. Two alternative situations might occur ac-

cording to the reads arrangement over the fusion: i)

Each mate of the read maps on a different gene of

the couple of genes involved in the fusion. The read

is then deﬁned as

encompassing

; ii) Only a single

mate of a paired-end read overlaps the fusion junction

while the other maps on one of the two genes involved

in the fusion. The read is then considered as

spanning

the fusion boundary.

In this work we present a novel methodology for

the detection of fusion transcripts taking advantage

of both spanning and encompassing short paired-end

reads. In order to improve quality and selectivity

of fusion discovery, the framework is built on top

of an accurate gene fusion model based on validated

experimental evidence (Edgren, 2011) and leverages

upon state-of-art alignment and transcript analysis al-

gorithms (Trapnell, 2009) (Trapnell, 2010), aimed at

overcoming RNA-Seq challenges related to multiple

read alignment and novel transcript discovery.

2 CHIMERIC DETECTION FLOW

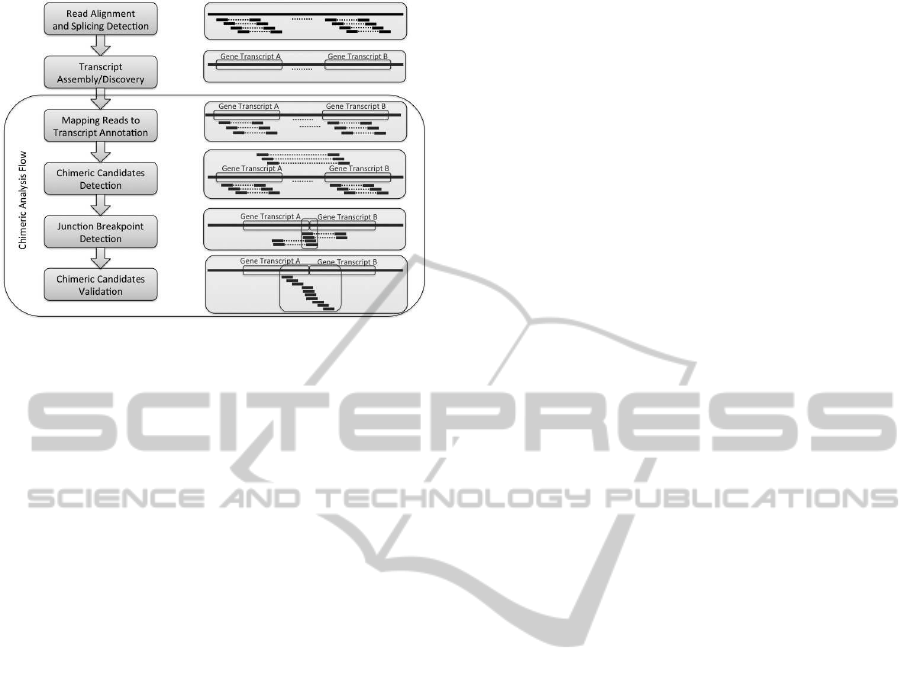

Figure 1 depicts the proposed analysis ﬂow for the

detection of chimeric transcripts. A preliminary anal-

ysis on the paired-end samples is performed as ﬁrst

step. Speciﬁcally, this phase consists of a paired end

331

Abate F., Paciello G., Acquaviva A., Ficarra E., Ferrarini A., Delledonne M. and Macii E..

A NOVEL ANALYSIS FLOW FOR FUSED TRANSCRIPTS DISCOVERY FROM PAIRED-END RNA-SEQ DATA.

DOI: 10.5220/0003789003310334

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 331-334

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Analysis ﬂow for the detection of chimeric tran-

scripts.

reads mapping onto the reference genome and splic-

ing events detection. Compared to state of the art

solutions (Sboner, 2010)(McPherson, 2011), the pro-

posed methodology is built on top of TopHat (Trap-

nell, 2009), a tool for the detection of not annotated

splicing events. The alignment results are analyzed

with Cufﬂinks (Trapnell, 2010) in order to reveal the

transcripts expressed in the sample data set and create

an assembly model.

The adoption of TopHat (Trapnell, 2009) and Cuf-

ﬂinks (Trapnell, 2010) allows to perform the detection

of expressed transcript without providing any annota-

tion information. As chimeric transcripts are unpre-

dictable events that might also involve new isoform

transcripts, a chimeric analysis built on top of the re-

sults of TopHat (Trapnell, 2009) and Cufﬂinks (Trap-

nell, 2010) is essential for an accurate detection of

fused genes. After the preliminary analysis of paired-

end samples, the proposed ﬂow is mainly composed

of the following four steps:

Mapping Read Mates to Gene. A read encompasses

the fusion junction when the two mates maps on dif-

ferent genes. However, the results coming from the

alignment provide mainly information on the location

of the reference genome where the read maps to. In

order to determine the gene where the read matches it

is necessary to map the read location on an annotation

ﬁle. Therefore, this phase maps each aligned mate on

the transcripts detected by Cufﬂinks (Trapnell, 2010)

overcoming the limit of restricting the analysis only

to known and annotated transcripts.

Chimeric Candidates Detection. A set of read pairs

having the two mates mapping on two different gene

transcripts implies the presence of a gene fusion. The

Chimeric Candidates Detection phase analyzes the

set of read mates mapped on one or more transcripts

collected in the Mapping Read Mates to Gene phase.

Speciﬁcally, the subset of reads having two mates en-

compassing on different genes is selected. All those

gene couples detected by encompassing reads are re-

ported as putative candidates for a gene fusion.

Junction Breakpoint Detection. Starting from the

list of fused candidates previously detected, the scope

of this phase is to determine the exact junction break-

point for each putative chimeric candidate. Splicing

discovery programs (Trapnell, 2009)(Bryant, 2010)

overcome the classical alignment tools limitation in

the sense that they efﬁciently detect the exact intron-

exon boundary. The adoption of these tools instead of

canonical alignment programs results extremely use-

ful in detecting gene fusion. However, due to the con-

siderable computational complexity they are limited

in retrieving gene fusions across the entire genome

reference. Junction Breakpoint Detection overcomes

the limitation adopting a virtual reference strategy: 1)

For each couple of gene candidates a virtual refer-

ence consisting in the concatenation of the two genes

is created; 2) TopHat splicing discovery program is

launched on the virtual reference providing as input

those reads that were initially discarded in the pre-

liminary analysis. TopHat (Trapnell, 2009) aligns the

read end mates on the virtual gene fusion instead of

human genome reference. Thus, during the detection

of junction breakpoint, the read alignments must be

coherently translated from virtual to genomic coor-

dinates. Moreover, TopHat (Trapnell, 2009) analysis

reports all the mapping reads including the read mates

spanning the junction breakpoint region. Speciﬁcally,

the Junction Breakpoint Detection phase extracts for

each read the information about the location of the

start and end alignment point. If the read starting

alignment point is located before the virtual gene fu-

sion boundary and the read ending alignment point is

located after the virtual gene fusion boundary, a span-

ning read is detected. At the end of the Exact Junction

Breakpoint Analysis the set putative junctions, as well

as the supporting spanning reads, is reported for each

gene candidate.

Chimeric Candidates Validation. The previous

phases produce an extensive list of putative fused

genes. However, the detection of chimeric transcripts

can be affected by propagation errors due to both

alignment limitations and artifacts in the experimen-

tal preparation of the sample. In order to accurately

detect chimeras, the Chimeric Candidates Validation

phase selects all those fused gene candidates that

mostly ﬁt an accurate gene fusion model detailed in

Section 3.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

332

3 JUNCTION BOUNDARY

DETECTION

The large number of putative fused genes are ﬁltered

according to a set of criteria reﬂecting an accurate

model of gene fusion. The following subsection pro-

vides the details of the most relevant criteria deﬁning

the model.

Insert Size Coherency. In RNA-Seq paired end data,

the insert size distance is not ﬁxed a priori and it varies

according to the speciﬁc protocol adopted in the se-

quence analysis. The distribution of the insert frag-

ment length of the aligned paired end mostly concen-

trates on a mean value with a speciﬁed standard devi-

ation. However, as emphasized in (Sboner, 2010), the

preparation of biological sample produces gene fu-

sion artifacts presenting abnormal insert size between

the sequenced ends. Therefore, in order to remove

fusion artifacts the proposed methodology estimates

the insert distance of the reads encompassing a gene

fusion candidate and removes those reads having an

insert distance size that is outlier in the fragment in-

ner size distribution.

Asymmetric Encompassing Read Distribution. As

recently investigated in (Edgren, 2011), fusions due to

PCR artifacts present an encompassing reads align-

ment that is asymmetric for the involved genes.

Speciﬁcally, it might occur that the mates encompass-

ing a fused gene are more longly aligned on one of

the two candidates whereas more concentrated in a

short range of base pairs in the corresponding gene.

In presence of asymmetric encompassing reads distri-

bution, the insert size of encompassing reads varies

around a widely variable range. Therefore, the pro-

posed methodology exploits the computation of insert

distances and it effectively removes gene fusion arti-

facts due to PCR ampliﬁcation detecting asymmetric

encompassing read distribution.

Homologous Sequence Artifacts Filter. Multiple

mate matches occur due to homologies in the genome

reference. Homologous sequences affect the fusion

detection analysis because the mate pairs that nor-

mally would match on the same gene match discor-

dantly on two distinct but similar genes. Homolo-

gous region may be due both to the presence of par-

alogue genes that share long sequence regions and to

the presence of shorts similar sequences. The pro-

posed ﬂow implements two different policies for both

cases. Concerning the long homologoussequence due

to paralogue genes a ﬁlter that query TreeFam (Li,

2006) database has been implemented. For short ho-

mologous sequences, the ﬁlter extracts and reversely

maps the read mates on the same genes. If the reads

reversely maps the gene candidates it means that the

reads encompasses the candidates due to an homolo-

gous subsequence.

Encompassing-Spanning Read Coherency. Ac-

cording to the deﬁnition of encompassing and span-

ning reads, a true gene fusion sequence results from

the consensus between encompassing and spanning

reads. If the set of encompassing and spanning reads

are located in largely different gene regions the candi-

date must be discarded an incoherent gene sequence

can be produced. Therefore, this criterion preserves

only those gene fusions with overlapping spanning

and encompassing regions.

4 RESULTS

In order to evaluate the efﬁciency of the proposed

ﬂow in detecting chimeric transcripts, we analyzed

the publicly available sets of RNA-Seq data from

NCBI database (submission number SRA009053). It

is worth noting that the gene fusions occurring in

the the aforementioned data set have been validated

through RT-PCR as reported in (Berger, 2010). Ta-

ble 1 demonstrates the capability of the proposed

methodology in revealing the RT-PCR validated fu-

sions. These samples have a coverage of at most 16

million reads, a read length of 50 bp and fragment

length spanning from 350 to 500. All the 14 fusions

validated in the 7 samples of melanoma cells (Berger,

2010) have been successfully detected. Table 2 shows

some details of the detected gene fusion. In fact, for

each sample the name of the 5’ and 3’ gene are re-

ported. Moreover, the table highlights for each fu-

sion the number of encompassing and spanning reads.

This information is extremely important in the anal-

ysis of chimeric transcripts. In fact, the number of

spanning and encompassing reads across the fused

junction is directly correlated with the sequencing ex-

perimental coverage. Therefore, the proposed analy-

sis ﬂow is able to detect the gene fusion also in case

of low coverage where the number of spanning and

encompassing reads is reduced.

Moreover, the detection of a chimeric transcript

analysis ﬂow built on top of the TopHat and Cuf-

ﬂinks tools represents the major novelty of the pro-

posed methodology. In fact, the adoption of TopHat

and Cufﬂinks allows to detect novel transcripts iso-

forms that can be recombined with known transcript

in a new chimeric gene. Therefore, in order to demon-

strate the effectiveness of the proposed ﬂow in detect-

ing fused genes involving an unknown transcript iso-

form we report the analysis results conducted on the

sample SRR018259 (See Table 3). Speciﬁcally, the

second and third column reports the name and the ge-

A NOVEL ANALYSIS FLOW FOR FUSED TRANSCRIPTS DISCOVERY FROM PAIRED-END RNA-SEQ DATA

333

Table 3: Fusions involving unknown transcript isoform.

Library Known Genome Coordinates Genome Coordinates

Sample* Gene Known Gene Unknown Gene

018259 CCDC88C chr14:91850657-91850720 chr11:125938443-125938495

018259 PRICKLE4 chr6:41757443-41757522 chr12:125540856-125540946

018259 SLC25A1 chr11:85646172-85646214 chr22:19164633-19164667

*All the library identiﬁers refer to the accession number reporting the SRR preﬁx in the NCBI databank.

Table 1: Fusions predicted on publicly available RNA-Seq

data.

Library Reads Read Length Fragment Validated

[#] Length Predicted

(Millions) Fusions

018259 14 50 500 1

018260 16 50 500 2

018261 16 50 500 1

018265 8 50 500 1

018266 15 50 500 4

018267 15 50 500 2

018269 15 50 350 3

*All the library identiﬁers refer to the accession number reporting the SRR

preﬁx in the NCBI databank.

Table 2: Fusions detected in publicly available data set.

Library* 5’ Gene 3’ Gene Enc. Reads Span. Reads

018259 KCTD2 ARHGEF12 4 2

018260 ITM2B RB1 17 2

018260 ANKHD1 C5orf32 7 23

018261 GCN1L1 PLA2G1B 3 1

018265 WDR72 SCAMP2 2 1

018266 C1orf61 CCT3 37 25

018266 MIXL1 PARP1 5 4

018266 C11orf67 SLC12A7 40 22

018266 GNA12 SHANK2 23 6

018267 TLN1 C9orf127 14 1

018267 ALX3 RECK 21 6

018269 ABL1 BCR 89 12

018269 NUP214 XKR3 58 16

*All the library identiﬁers refer to the accession number reporting the SRR

preﬁx in the NCBI databank.

nomic coordinates of the known gene involved in the

fusion and in the fourth column we report the coor-

dinates of the unknown transcripts resulting from the

cufﬂinks analysis. The coordinates refers to the ge-

nomic location corresponding to the concentration of

both encompassing and spanning reads, thus referring

to the region across the fused junction breakpoint.

5 CONCLUSIONS

In this paper we presented a novel analysis ﬂow for

the detection of chimeric transcripts in RNA-Seq data.

The proposed ﬂow is built on top of TopHat splicing

detection tool and exploits the capability of Cufﬂinks

to extend the fused genes research to novel transcripts

isoforms. Moreover, the proposed methodology se-

lects those fused genes candidates that mostly ﬁt an

accurate model of gene fusion based of experimen-

tal evidences recently reported in biomedical litera-

ture (Edgren, 2011). The experimental results demon-

strate the efﬁciency of the proposed ﬂow in detect-

ing chimeric transcripts applying the methodology to

a publicly available dataset. Furthermore, we also

showed the capability of the tool in reporting fusions

involving unknown and unannotated transcript iso-

forms.

REFERENCES

Berger, M. F. (2010). Integrative analysis of the melanoma

transcriptome. Genome Research.

Bryant, D. W. J. (2010). High-throughput dna sequencing

concepts and limitations. Bioinformatics.

Edgren, H. (2011). Identiﬁcation of fusion genes in breast

cancer by paired-end rna-sequencing. Genome Biol-

ogy.

Kircher, M. (2010). High-throughput dna sequencing con-

cepts and limitations. Bioessays.

Li, H. (2006). Treefam: a curated database of phyloge-

netic trees of animal gene families. Nucleic Acids Re-

search.

Magalhes, J. P. D. (2010). Next-generation sequencing in

aging research: Emerging applications, problems, pit-

falls and possible solutions. Ageing Research Review.

Maher, C. A. (2009a). Chimeric transcript discovery by

paired-end transcriptome sequencing. PNAS.

Maher, C. A. (2009b). Transcriptome sequencing to detect

gene fusions in cancer. Nature.

McPherson, A. (2011). defuse: An algorithm for gene fu-

sion discovery in tumor rna-seq data. PLoS Computa-

tional Biology.

Sboner, A. (2010). Fusionseq: a modular framework for

ﬁnding gene fusions by analyzing paired-end rna-

sequencing data. Genome Biology.

Trapnell, C. (2009). Tophat: discovering splice junctions

with rna-seq. Bioinformatics.

Trapnell, C. (2010). Transcript assembly and quantiﬁcation

by rna-seq reveals unannotated transcripts and isoform

switching during cell differentiation. Nature Biotech-

nology.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

334
