CHARACTERIZATION OF COARSE GRAIN MOLECULAR

DYNAMIC SIMULATION PERFORMANCE ON GRAPHIC

PROCESSING UNIT ARCHITECTURES

Ardita Shkurti

, Andrea Acquaviva

, Elisa Ficarra

, Mario Orsi

and Enrico Macii

Corso Duca degli Abruzzi 24, Department of Control and Computer Engineering, Politecnico di Torino, Torino, Italy

School of Chemistry, University of Southampton, SO17 1BJ, Southampton, U.K.

Keywords:

CUDA, GPU acceleration, Molecular dynamics, Coarse grain, Membrane modeling, Lipid modeling.

Abstract:

Coarse grain (CG) molecular models have been proposed to simulate complex systems with lower computa-

tional overhead and longer timescales with respect to atomistic level timescales. However, their acceleration

on parallel architectures such as Graphic Processing Units (GPU) presents original challenges that must be

carefully evaluated. The objective of this work is to characterize the impact of CG model features on parallel

simulation performance. To achieve this target, we implemented a GPU-accelerated version of a CG biomem-

brane simulator called BRAHMS, to which we apply speciﬁc optimizations for CG models, such as dedicated

data structures to handle different bead type interactions. Moreover, we explore different GPU architectures

to characterize the behavior of the optimized CG model.

1 INTRODUCTION

Most aspects of cell activity such as the conformation

of embedded proteins, the biomembranepermeability,

interaction with drugs and signaling may be perceived

observing the dynamics of cell membranes which are

composed of patterns of lipid bilayers (Orsi, 2010).

The value of such biological processes brings to

an increasing appeal for hardware and software op-

timized realistic models which may provide in silico

access to biological cell mechanisms otherwise im-

possible to achieve through real experiments.

Atomic level (AL) models introduced (Wohlert,

2006; MacCallum, 2006) require huge quantities of

computational resources due to the need of interac-

tion calculations among system atoms.

CG modeling techniques have been proposed for

handling shortcomings of atomic level models. In the

CG representation speciﬁc atom groups are organized

in clusters and each of the clusters is considered as

a unique system particle called a bead. Hence, by

diminishing the system particles number, the compu-

tational requirements are reduced as well. Figure 1

illustrates an example of AL and CG modeling for

lipid bilayers. Typically, a lipid of about 100 parti-

cles in AL approaches is modeled by approximately

10 beads in CG representations (Orsi, 2010; Marrink,

2007). While CG models are promising and may al-

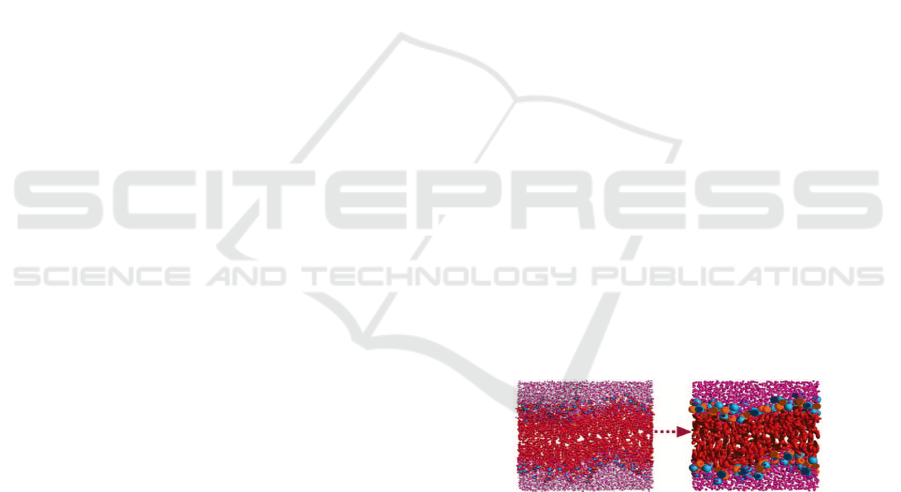

Figure 1: Coarse-grain mapping of DMPC lipids from

atomistic representation.

low simulations at longer time scale, their accelera-

tion must be carefully characterized. In this work, we

accomplish this characterization dealing with a CG

lipid bilayer simulator.

While several papers have addressed atomistic

model acceleration on GPUs (Anderson, 2008;

Shkurti, 2010; Stone, 2010; van Meel, 2008; Rapa-

port, 2011; Bauer, 2011), the speciﬁc features of CG

models have only recently gained attention (Shkurti,

2010; Zhmurov, 2010).

In this paper, we characterize speciﬁc bottlenecks

of CG models proposing speciﬁc strategies for han-

dling them, through the implementation of an accel-

erated CG model. We identify the impact of charac-

teristics and data structures on the optimization of the

CG application. Moreover, we explore the speed-up

achieved across various architectures and quantify the

overhead of the additional structures required by the

CG nature simulation methodology to take into ac-

count interaction among heterogeneous bead types.

339

Shkurti A., Acquaviva A., Ficarra E., Orsi M. and Macii E..

CHARACTERIZATION OF COARSE GRAIN MOLECULAR DYNAMIC SIMULATION PERFORMANCE ON GRAPHIC PROCESSING UNIT ARCHI-

TECTURES.

DOI: 10.5220/0003790703390342

In Proceedings of the International Conference on Bioinformatics Models, Methods and Algorithms (BIOINFORMATICS-2012), pages 339-342

ISBN: 978-989-8425-90-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

The rest of this paper is organized as follows. Sec-

tion 2 provides background on CUDA programming

and the simulated model. Section 3 covers the opti-

mization methods, while Sections 4 and 5 present and

discuss the achieved results and conclude the work.

2 BACKGROUND

2.1 CUDA Environment

The CUDA environment represents a parallel pro-

gramming model oriented on highly parallel comput-

ing, while making use of a large number of com-

putational cores. With respect of general purpose

CPUs, much more transistors are assigned to data pro-

cessing rather than to ﬂow control or data caching.

However, memory latency is hidden with compute-

intensive calculations. The GPU is divided into a

set of Streaming Multiprocessors (SM) in which hun-

dreds of threads reside concurrently. A large num-

ber of CUDA threads, can be launched in parallel

by means of kernels, which are C functions executed

in parallel from all CUDA threads launched (CUDA,

2011).

2.2 Coarse Grain Simulator

BRAHMS (Biomembrane Reduced ApproacH

Molecular Simulator) is a CG lipid bilayer simulator

we optimized and accelerated for CUDA environ-

ment. It describes a method for CG modeling of lipid

bilayers of biomembranes and contains several origi-

nal features such as speciﬁc original representations

for water and charges (Orsi, 2010). It simulates the

displacement in time of the particles of a system,

calculating some of its macro properties such as

temperature, lateral pressure, potential and kinetic

energy (Orsi, 2010). It employs Molecular Dynamics

and in particular Newton Leapfrog Equations to move

the positions of beads, which in CG models represent

clusters of atoms, and their velocities one time step

forward (Rapaport, 2004).

3 GPU OPTIMIZATION OF

COARSE GRAIN MODELS

Code proﬁling of the CG simulator has been per-

formed to identify the most computation demanding

parts of the code which resulted to be: (i) Non-bonded

forces computation; (ii) Integration timestep; (iii)

Neighbor structure generation, accounting for about

95.2%, 2% and 1% of the total execution time of the

sequential simulator, respectively.

Accordingly to the bottlenecks identiﬁed, we have

implemented three kernels to be executed on the de-

vice (GPU), one for each of the most onerous parts

of code. Concerning data structures, a comprehensive

one is required containing for each bead, the informa-

tion on its position, velocity, force, torque, orienta-

tion, angular momentum in the body-ﬁxed frame, ro-

tation matrix, bead type, mechanical type, lipid iden-

tiﬁer and lipid unit identiﬁer.

The integration algorithm exploits Leapfrog equa-

tions (Rapaport, 2004). This algorithm is imple-

mented by the integration kernel on the GPU, to avoid

additional data transfers between host and device.

For the calculation of the non-bonded forces, a

neighbor structure is needed to avoid considering a

contribution for each pair of beads, which would lead

to a quadratic time complexity. Therefore the system

is divided into cells of beads, where each cell has a

cubic shape and the edge size equal to the maximum

cut-off distance among cut-offs established for differ-

ent bead types. Only bead pairs with a distance value

under the cut-off are considered as neighbors. Hence,

the search for neighbors is applied to bead pairs of the

same cell or the eventual 26 adjacent cells.

In the CPU version, the cell, neighbor and inter-

action type structures cannot be efﬁciently mapped

on a GPU. Therefore we have created new structures

for the cells, neighbor beads and relative interaction

type storage, which provide coalesced

accesses for

CUDA threads.

Implementation and update of neighbor and inter-

action type structures within the GPU is needed to

obtain maximum performance from GPU by avoid-

ing data transfer overheads between CPU and GPU.

To this purpose we have implemented a kernel called

cudaneigh, in which we have used an algorithm sim-

ilar to the algorithm proposed in (Anderson, 2008)

for AL models, where the texture type used was one-

dimensional. Since the texture cache is optimized for

2D spatial locality (CUDA, 2011), we have used two

dimensional textures in our code even for the other

two kernels and employ them when the accesses in

device memory are not coalesced.

The non-bonded forces computation is imple-

mented by the kernel forces, that exploits the opti-

mized access to neighbor and interaction type struc-

tures. Compared to what has been done for AL mod-

els in (Anderson, 2008), we use an additional interac-

tion type structure with the same size and organization

When different threads need some particular piece of

information, they ﬁnd it in the same relative address, calcu-

lated as base address+ absolute thread identifier.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

340

as the neighbor structure and we use two dimensional

textures for random accesses in memory, to retrieve

the needed information.

In addition, we created separate structures for all

beads positions, all beads velocities, all beads orien-

tations and all beads types, as these data are the most

frequentlyaccessed by the GPU. In this way, we could

enable it to access the information contained in our

new structures in a coalesced way.

4 RESULTS

In this Section we present results about the speed-

up of the GPU version of BRAHMS with respect

to the CPU, considering: (i) Biological systems of

different dimensions and complexity (i.e. lipid, wa-

ter); (ii) Different versions of BRAHMS GPU code

(i.e. customized or not for water systems simulation);

(iii) Three different GPU architectures: GeForce

GTX295, GeForce GTX480 and Tesla C2050 that

have respectively 240, 448 and 480 cores and an

Intel



Core

i7-920 Processor CPU architecture.

In the charts presented, we consider systems hav-

ing from 840 to 218904 number of beads

. As for

complexity, we consider systems composed by het-

erogeneous types of beads: Either water systems

uniquely containing water molecules or lipid systems

containing lipid molecules in water solution. We de-

velop the GPU water only version customized to wa-

ter systems, thus treating all the beads as a unique

type (water beads), to evaluate the impact of addi-

tional structures used for handling interactions among

the lipids. The GPU complete version handles also the

beads of lipid molecules. In Figure 2, we report

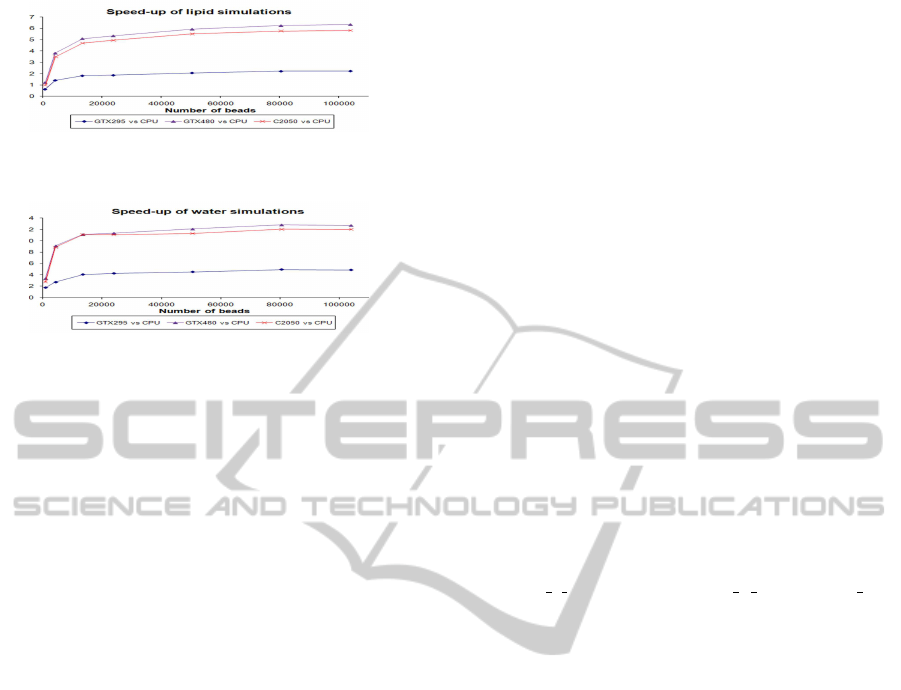

Figure 2: Comparison among the speed-up of different

BRAHMS versions with respect to the CPU achieved on

the GTX295 architecture.

the comparison among the speed-ups (related to the

CPU version) of two biological systems, lipid and wa-

ter only, characterized by different complexity simu-

lated on the GTX295 architecture. For water systems,

we distinguish between water only and complete ver-

sion. Single precision ﬂoating point arithmetic is used

The largest system simulated for the reported exper-

iments using the slowest version of the simulator, takes

about 200 minutes.

for these simulations. For a number of beads lower

than 23K the speed-up is lower than the maximum

achievable because the parallelism of the GPU is not

completely exploited. The water only version is the

fastest version with speed-ups up to 12x, due to the

absence of structures to handle different bead types.

On the other hand, the lower performance of the com-

plete version in the case of lipid systems with respect

to the case of water systems is due to the fact that

for lipid systems there are six different types of beads

involved instead of the single type considered in wa-

ter systems. This leads to divergent execution ﬂows

among the threads, thus leading to a performance hit.

From Figure 2, we can also observe the effect of

lipid data structures, highlighted by the gap between

the water-only and complete version for water sys-

tems. The maximum difference in the total speed-up

between the water-only and complete version for wa-

ter systems is 36.4% when single precision arithmetic

is used for ﬂoating point operations and 15.71% when

double precision arithmetic is employed.

The larger impact of lipid structures for single pre-

cision arithmetic computation is due to the constant

overhead for memory accesses and additional control

statements associated to beads types and interactions,

which has a larger relative contribution to a shorter

execution (i.e. the single precision arithmetic simula-

tion).

In Figures 3 and 4 we report respectively for lipid sys-

tems and water systems, the speed-ups

achieved by

the three considered architectures for an increasing

system size. The double precision arithmetic has been

used for ﬂoating point operations.

For lipid systems we achieve speed-ups up to

6.35x, 5.82x and 2.24x for respectively GTX480,

Tesla C2050 and GTX295 architectures, while for

water systems the respective speed-ups achieved are

12, 83x, 12.05x and 4.94x.

The GTX295 architecture is the slowest architecture,

as we expected, due to its lower number of cores and

hence of parallelism. GTX480 has a higher paral-

lelism with respect to Tesla C2050, having one ad-

ditional SM (32 additional cores), which causes the

better performance of GTX480 versus Tesla C2050.

When evaluating speed-up results, we have to take

into account that: (i) The CPU used for comparison

represents a single core but high performance archi-

tecture; (ii) The characteristics of the CG model, such

as different force ﬁeld for pairs potentials that in-

The speed-ups presented in Figures 3 and 4 are relative

only to the GPU implemented part of the application which

stands for 98% of the total execution time of the application.

We decided to present only this part, because the servers

where the GPU cards are situated have different CPUs.

CHARACTERIZATION OF COARSE GRAIN MOLECULAR DYNAMIC SIMULATION PERFORMANCE ON

GRAPHIC PROCESSING UNIT ARCHITECTURES

341

Figure 3: Speed-up of lipid simulations achieved on differ-

ent architectures with respect to the CPU execution.

Figure 4: Speed-up of water simulation achieved on differ-

ent architectures with respect to the CPU execution.

cludes particular representation for water and charges

(Orsi, 2010), which depends on the type of interac-

tion, lead to frequent divergent branches which im-

pact the overall speed-up; (iii) The complexity of the

force ﬁelds considered requires a large amount of lo-

cal physical resources (i.e. registers), which have to

be distributed among all threads on an SM impacting

on performance; (iv) Furthermore, the pair interac-

tion potentials computation causes a relatively large

amount of scattered memory accesses, leading to a

considerable texture cache miss rate. That is because

neighbors of a bead are not spatially clustered. This

issue could be addressed through additional optimiza-

tions obtained by adapting techniques developed for

AL simulations (Anderson, 2008) that cannot be ap-

plied as is for CG models. These optimizations will

be the object of future work.

Although the three architectures we evaluated are

compliant with the IEEE 754 standard, we observe

a difference in the results of CPU versus GPU, af-

ter thousands of simulation steps. Anyway, this is

expected and acceptable as long as the ensemble av-

erage, as for instance the average temperature or the

pressure, is coherent after a reasonably large number

of steps which is the case of our simulations. These

simulations on the different architectures are coherent

from an ensemble viewpoint: Mean values related to

energy, pressure and temperature, both of GPU and

CPU simulations, are the same. This is what matters

in this application due to the chaoticity of molecular

dynamics simulation systems.

5 CONCLUSIONS

In this work, we characterized the speed-ups of

coarse grain simulations, considering biological sys-

tems with different number of beads and among three

different GPU architectures. To this purpose, we im-

plemented an accelerated version of a CG lipid bilay-

ers simulator. We introduced speciﬁc optimizations

and data structures required by CG models for han-

dling differenttypes of beads and interactions and cal-

culated their overhead in the performance. We char-

acterized the impact of biological system complexity

in terms of beads type, observing that lipid systems

achieve a speed-up almost 2.5 times slower than wa-

ter systems. We ﬁnally determined the impact of GPU

architectures on the acceleration performance.

REFERENCES

Anderson, J. A. (2008). General purpose molecular dynam-

ics simulations fully implemented on graphics pro-

cessing units. In volume 227. Journal of Computa-

tional Physics.

Bauer, B. A. (2011). Molecular dynamics simulations of

aqueous ions at the liquid vapor interface accelerated

using graphics processors. In volume 32. Journal of

Computational Chemistry.

CUDA (2011). Nvidia cuda c programming guide.

In http://developer.download.nvidia.com/compute/

cuda/4 0 rc2/toolkit/docs/CUDA C Programming

Guide.pdf. NVIDIA.

MacCallum, J. L. (2006). Computer simulation of the dis-

tribution of hexane in a lipid bilayer:spatially resolved

free energy, entropy and enthalpy proﬁles. In volume

128. Journal of the American Chemical Society.

Marrink, S. J. (2007). The martini force ﬁeld: coarse

grained model for biomolecular simulations. In vol-

ume 111. Journal of Physical Chemistry B.

Orsi, M. (2010). A quantitative coarse-grain model for lipid

bilayers. In volume 112. IEEE CS.

Rapaport, D. C. (2004). The Art of Molecular Dynamics

Simulation. Cambridge University Press, New York,

2nd edition.

Rapaport, D. C. (2011). Enhanced molecular dynamics per-

formance with a programmable graphics processor. In

volume 182. Computer Physics Communications.

Shkurti, A. (2010). Gpu acceleration of simulation tool

for lipid-bilayers. In IEEE International Conference

on Bioinformatics and Biomedicine Workshops. IEEE

CS.

Stone, J. E. (2010). Gpu-accelerated molecular modeling

coming of age. In volume 29. Journal of Molecular

Graphics and Modelling.

van Meel, J. A. (2008). Harvesting graphics power for md

simulations. In volume 34. Molecular Simulation.

Wohlert, J. (2006). Dynamics in atomistic simulations

of phospholipid membranes: Nuclear magnetic reso-

nance relaxation rates and lateral diffusion. In volume

125. Journal Of Chemical Physics.

Zhmurov, A. (2010). Sop-gpu: Accelerating biomolecular

simulations in the centisecond timescale using graph-

ics processors. In volume 78. Proteins.

BIOINFORMATICS 2012 - International Conference on Bioinformatics Models, Methods and Algorithms

342
