SOLVING THE LOCK HOLDER PREEMPTION PROBLEM

IN A MULTICORE PROCESSOR-BASED VIRTUALIZATION LAYER

FOR EMBEDDED SYSTEMS

Hitoshi Mitake, Yuki Kinebuchi, Tsung-Han Lin and Tatsuo Nakajima

Department of Computer Science and Engineering, Waseda University, Tokyo, Japan

Keywords:

Virtualization Technologies, Real Time Systems, Embedded Systems.

Abstract:

In this paper, we explain the reason why the Lock Holder Preemption(LHP) problem is serious when using a

multi-core processor based virtualization layer. Then, we introduce two new techniques for avoiding the LHP

problem. The existing techniques and new proposed techniques have been implemented on our virtualization

layer called SPUMONE, and we measured the results showing that the proposed new techniques reduce the

semantic gap to use a virtualization layer on a multi-core processor in embedded systems.

1 INTRODUCTION

As predicted by the Moore’s law, today’s computer

systems have become signiﬁcantly powerful. The

powerful computing platforms make it possible to vir-

tualize the platforms to execute multiple operating

systems on a single processor. In server side comput-

ing, virtualization already became a de-facto standard

technology, mainly for integrating multiple servers.

In this ﬁeld, virtualization signiﬁcantly reduces the

cost of engineering, management, and hardware re-

sources.

Increasing the number of processor cores is be-

coming popular trend in current embedded systems.

This trend is very attractive because multi-core pro-

cessors containing several cores that run at the low

clock frequency require less energy than processors

containing only one core and running at the high clock

frequency, if the parallelism of applications is well ex-

ploited. This beneﬁt, reducing energy consumption,

is especially important for embedded devices because

they may run with limited batteries.

However, developing dedicated software for ev-

ery rich functional device introduces a signiﬁcant

engineering cost. Reusing existing software is the

most important approach not to increase the cost of

highly functional embedded systems. The virtualiza-

tion technology offers a possibility to reuse existing

software without modifying it. Therefore, this ap-

proach reduces the development cost signiﬁcantly.

A traditional RTOS is suitable for executing real-

time applications, but lacks the huge software library

that GPOSes like Linux have. Developing modern

embedded devices with both rich interfaces and guar-

anteed real-time responsiveness by using either GPOS

or RTOS is a very difﬁcult task. So running the two

types of OSes on the same device is a promising ap-

proach to combine the best of both worlds. Espe-

cially on multicore processor based embedded sys-

tems, sharing one core by several OSes is effective to

use the CPU resource efﬁciently. If the interference

between OSes is severe, the cores should be statically

assigned to respective OSes. But this approach might

produce high amounts of processors’ idle time, and

from a hardware cost perspective, it is not economi-

cal.

For increasing the throughput of GPOS, SMP

OSes are becoming popular. For example, Linux cur-

rently supports SMP very well, and many applications

on Linux are already parallelized to exploit it. Be-

cause of the today’s trend of cloud computing, web

browsers became especially important for client side

computers including mobile terminals. For example,

Jones et al. showed that a web browser is similar to

a compiler because it uses a large amount of process-

ing power for lexical analyzing, syntax parsing and

rendering web pages, and has lots of potential par-

allelism (Christopher Grant Jones and Bodik, 2009).

So parallelizing web browsers is an efﬁcient approach

to reduce energy consumption and to utilize SMP OS

efﬁciently. The virtualization layer allows both SMP

OS and RTOS to coexist on the same multi-core pro-

369

Mitake H., Kinebuchi Y., Lin T. and Nakajima T..

SOLVING THE LOCK HOLDER PREEMPTION PROBLEM IN A MULTICORE PROCESSOR-BASED VIRTUALIZATION LAYER FOR EMBEDDED

SYSTEMS.

DOI: 10.5220/0003800603690377

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 369-377

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

cessor. As described above, this approach reduces the

development cost by reusing software signiﬁcantly.

When RTOS and SMP GPOS share one SMP sys-

tem, there is a possibility that the RTOS preempts

the SMP GPOS even when the SMP GPOS executes

a code in a critical section. This preemption may

cause critical performance degradation of the SMP

GPOS. The problem is called the lock holder preemp-

tion (LHP) problem. The existing solution for solving

the problem is called the delayed preemption tech-

nique (Uhlig et al., 2004). When a kernel thread of

SMP GPOS executes a critical section, RTOS is pro-

hibited to preempt the SMP GPOS. Thus, the LHP

problem does not occur, and there is no throughput

degradation of GPOS. However, the technique de-

creases the real-time responsiveness of RTOS as de-

scribed in Section 5 because the critical section in

GPOS like Linux is not enough short.

In this paper, we propose two new techniques for

avoiding the LHP problem. Both techniques rely on

the vCPU migration mechanism to migrate a virtual

core implemented by a virtualization layer among

physical cores. The ﬁrst technique is called the trap

based migration technique, and the second technique

is the on demand migration technique. The two tech-

niques have different tradeoffs in terms of real-time

responsiveness and overhead. Each system needs to

choose the suitable one by taking into account the

tradeoffs of both techniques and the requirements of

each system. We have implemented the delayed pre-

emption technique and the proposed two techniques

on SPUMONE, a virtualization layer developed in our

research group. We also show the evaluation results

of the three techniques. The results present the merits

and demerits of each technique clearly.

The rest of the paper is structured as follows.

We ﬁrst explain the LHP problem and show the ef-

fect on SPUMONE in Section 2. In Section 3,

we present an overview of SPUMONE. Section 4

presents the delayed preemption technique and the

effect on SPUMONE. In the section, two new tech-

niques are also proposed and we show how to imple-

ment them in SPUMONE. The evaluation of the new

techniques to avoid the LHP problem is shown in Sec-

tion 5 and Section 6 summarizes the paper.

2 THE LOCK HOLDER

PREEMPTION(LHP) PROBLEM

IN A VIRTUALIZATION LAYER

The LHP problem occurs in SMP OS in the following

situation: on a virtualization layer, multiple OSes may

run simultaneously on the same core. We assume that

RTOS uses one virtual core, and SMP GPOS uses two

virtual cores offered by a virtualization layer. We also

assume that the virtual core for RTOS and one virtual

core of SMP GPOS share the ﬁrst physical core and

the other virtual core used by SMP GPOS that runs

on the second physical core. Now, a virtual core used

by SMP GPOS holds a spin lock, and the virtual core

used by RTOS becomes ready and preempts the ex-

ecution of the virtual core of SMP GPOS. When an-

other virtual core of SMP GPOS tries to acquire the

same spin lock, it needs to wait for the virtual core to

release the lock after RTOS becomes idle.

We also assume that the priority of RTOS is higher

than the priority of GPOS. This is a natural conﬁgu-

ration to use both RTOS and GPOS simultaneously.

So, the preempted GPOS cannot resume the execu-

tion until all activities in RTOS becomes idle. There-

fore, there is a high possibility that the lock holder

waits for a long time to be resumed and that other

physical cores are also stopped until RTOS becomes

idle. This degrades the throughput of SMP GPOS sig-

niﬁcantly. Of course, the LHP problem is well dis-

cussed is the case when multiple SMP GPOSes run

on a multi-core processor. However, the combination

of RTOS and SMP GPOS may cause more serious

performance degradation.

There is also another problem related to the LHP

problem. Typical SMP GPOSes like Linux use the in-

ter core interrupt mechanism to synchronize between

physical cores. For example, the TLB shutdown uses

the mechanism to keep the consistency of TLBs of

all physical cores. GPOSes usually assume that the

synchronization cannot be preempted by other activi-

ties. Therefore, the preemption of the synchronization

also causes signiﬁcant performance degradation, and

in the worst case, it may cause the deadlock in the

GPOS kernel.

We demonstrate the effect of the LHP problem

with a virtualization layer called SPUMONE.

In this demonstration, we are using SMP Linux

as SMP GPOS and TOPPERS/JSP (which we sim-

ply call “TOPPERS”) (Toppers, 2011) as RTOS

Figure 1 shows the result of running the hackbench

benchmarking program (Hackbench, 2011) on Linux,

when TOPPERS consumes CPU time every 500ms.

A virtual core is assigned to TOPPERS and four vir-

tual cores are assigned to Linux. The virtual core for

TOPPERS and one virtual core for Linux shares one

physical core. Three other virtual cores for Linux use

the remaining three respective physical cores.

TOPPERS is a open source RTOS that offers µITRON

interface, and it is used in many Japanese commercial prod-

ucts.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

370

1.5

2.5

3.5

4.5

5.5

0 10 20 30 40 50 60 70 80 90

Score of hackbench [second] (lower is better)

Time consumption by RTOS [%] (500ms periodic)

TOPPERS + Linux

2 cores

3 cores

4 cores

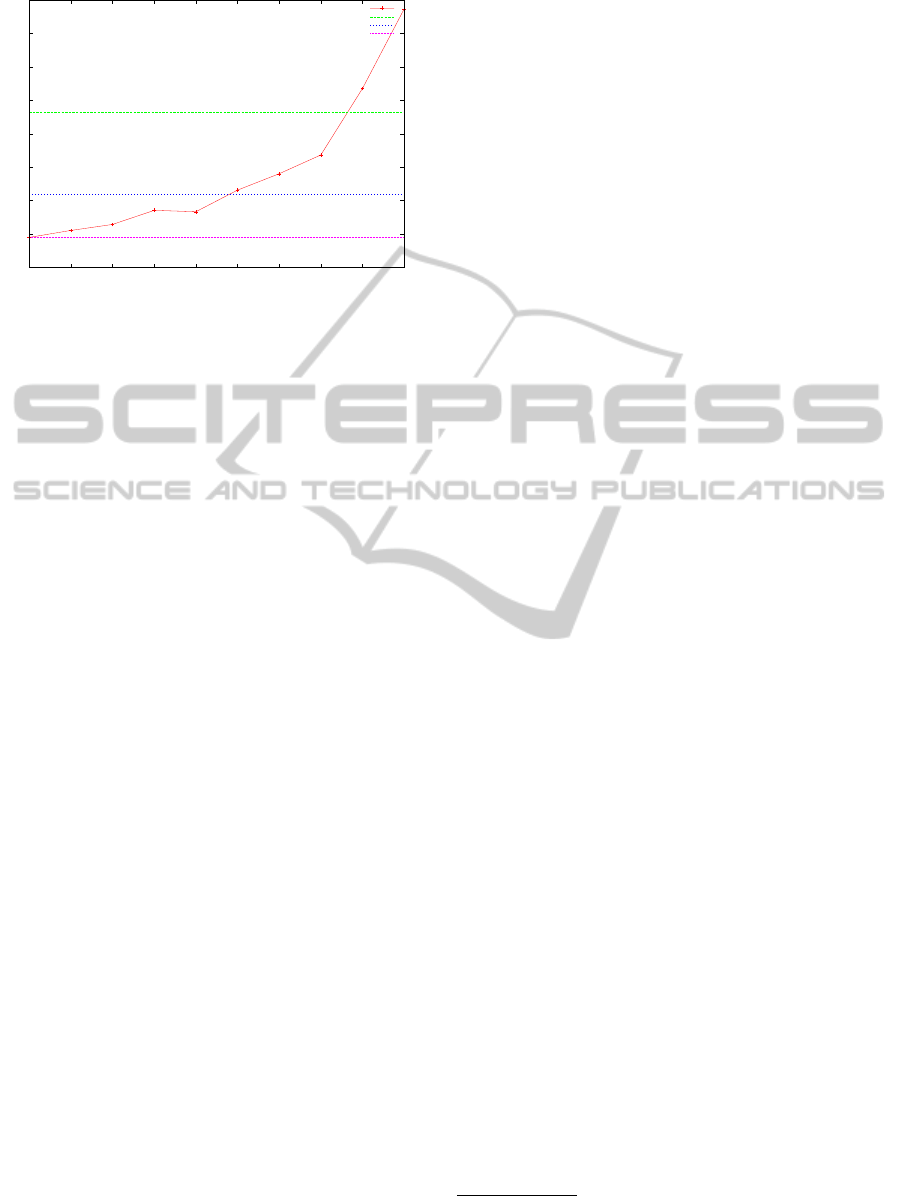

Figure 1: Score of hackbench on SPUMONE when the LHP

problem does not take into account.

The X axis indicates the rate of CPU consumption

by TOPPERS, where the unit is 10%. The Y axis rep-

resents time in seconds which was required to com-

plete the execution of hackbench, where the lower

value means the better score with better throughput.

This graph contains three horizontal lines. Each of

these horizontal lines describes the score of hack-

bench when Linux dominates 2, 3 or 4 physical cores

without executing TOPPERS. As the graph shows,

when the CPU consumption of TOPPERS is lower

than 50%, the performance of Linux is better than

the situation where Linux dominates three dedicated

physical cores. However, when the CPU consumption

of TOPPERS becomes higher than 50%, the result

of hackbench becomes worse than when Linux dom-

inates three dedicate physical cores. Moreover, when

the CPU consumption of RTOS exceeds 80%, the re-

sult is worse than when Linux dominates only two

dedicated physical cores. The result means that the

throughput of SMP Linux is signiﬁcantly degraded

when the CPU utilization of RTOS become high and

that there is a possibility that the execution of the

Linux kernel is stopped for a long time until the lock

holder in Linux is resumed.

3 AN OVERVIEW OF SPUMONE

3.1 Basic Design Principle

SPUMONE is a virtualization layer for single and

multi-core processor based embedded systems. In the

design of SPUMONE, our design is to satisfy the re-

quirements for developing a virtualization layer for

embedded systems described in (Armand and Gien,

2009). SPUMONE offers the para-virtualized inter-

face to guest OSes because most of processors for

embedded systems do not offer hardware virtualiza-

tion supports like x86. As shown in

, the size of

SPUMONE is very small, and the overhead is also

very small. Minimum modiﬁcation of guest OSes is

one of the most important requirements described in

(Armand and Gien, 2009). In our design, we decide

modify only the initialization code and the interrupt

dispatching mechanism in each guest OS. The ap-

proach was adopted VirtualLogic VLX(Armand and

Gien, 2009), and the virtualization layer has been

adopted in many commercial embedded system prod-

ucts. VLX is not open source software, so we de-

cided to develop SPUMONE. The architectures of

SPUMONE and VLX is very similar when used

on a single core processor, but the architecture of

SPUMONE is dramatically different on a muticore

processor. As described in IV.B, our architecture

does not have data structures shared by multiple phys-

ical cores, so SPUMONE does not require to use

the complex multiprocessor synchronization mecha-

nism that may cause problems in real-time systems.

Also, our architecture can use physical core more ef-

ﬁciently by moving a guest OS according to its work-

load, and unused physical core can be turned off to

reduce energy. L4(Heiser, 2009) is another virtual-

ization layer for embedded systems. L4 offers a high

level para-virtulization interface, and it offers the iso-

lation among guest OSes. A guest OS on L4 needs

to replace all privileged instructions, so the amount

of modiﬁcation of guest OSes becomes large. In

SPUMONE, guest OSes directly invoked privileged

instructions, and radically new mechanisms to iso-

late a virtualization layer and guest OSes using mul-

ticore processors without increasing the modiﬁcation

of guest OSesare offered. Therefore, SPUMONE is

a promising platform for multicore processor based-

embedded systems than traditional virtualization lay-

ers because the amount of modiﬁcation of guest OSes

is signiﬁcantly less than other virtualization layer.

The most important abstraction offered by

SPUMONE is vCPU. vCPU is a virtual core, and

multiple vCPUs can be multiplexed on a physical

core. Each guest OS requires a necessary number

of vCPUs, and the total number of vCPUs can ex-

ceed the number of physical cores. Figure 2 shows an

overview of SPUMONE. In the ﬁgure, SPUMONE

runs on a single core processor, and offers two vC-

PUs. One vCPU is used for RTOS and another vCPU

is used for GPOS. Each guest OS contains its own

scheduler to multiplex a set of processes implemented

in the guest OS. Therefore, each guest OS maintains

its own scheduling policy to schedule its own pro-

The modiﬁcation of a guest OS is less than 100 lines,

and the overhead is less than 2%.

SOLVING THE LOCK HOLDER PREEMPTION PROBLEM IN A MULTICORE PROCESSOR-BASED

VIRTUALIZATION LAYER FOR EMBEDDED SYSTEMS

371

RTOS

GPOS

App App App

App

Kernel

CPU

SPUMONE

VCPU VCPU

User

Figure 2: The structure of SPUMONE on a single core pro-

cessor.

cesses.

SPUMONE also offers a scheduler to sched-

ule multiple vCPUs. In the current implementa-

tion, the ﬁxed priority scheduling is used to sched-

ule RTOS and GPOS. vCPU for RTOS has always a

higher priority than the priority of vCPU for GPOS.

The vCPU for RTOS can preempt the vCPU for

GPOS anytime to ensure the real-time responsive-

ness of RTOS. The interrupt is also virtualized by

SPUMONE. SPUMONE intercepts all interrupts, and

decides which interrupt should be delivered to re-

spective guest OSes. For ensuring the real-time re-

sponsiveness of RTOS, even the interrupt handlers of

GPOS are always preempted by RTOS. When multi-

ple vCPUs executing the SMP Linux kernel are mul-

tiplexed on the same physical core, the vCPUs are

scheduled by the timesharing scheduler.

The current target processor of SPUMONE is the

SH4a architecture, which is the high-end processor

in the SuperH (Corporation, 2011) RISC processor

family. Linux, TOPPERS, and L4 currently run on

SPUMONE.

3.2 Supporting Multicore Processors

SPUMONE is currently supporting a shared memory-

based multi-core processor. Figure 3 shows the struc-

ture of SPUMONE on a multi-core processor. The

most important feature for supporting multi-core pro-

cessors is to adopt the distributed model, where each

core has its own instance of a virtualization layer.

The approach is signiﬁcantly different from the tra-

ditional approach that has only one instance shared

by all physical cores. The distributed model offers

better scalability in terms of a number of physical

cores (Baumann et al., 2009). Also, the model does

not require the synchronization among cores to ac-

cess most of key data structures. Thus, the single core

version and the multicore version can share the same

binary code. This improves the maintainability of the

SPUMONE

RTOS

GPOS

App

Kernel

User

Core 0

VCPU VCPU

SPUMONE

Core 1

VCPU

App App App

Figure 3: The structure of SPUMONE on a multi-core pro-

cessor.

virtualization layer signiﬁcantly. Traditional virtual-

ization layers like Xen suffer signiﬁcant scalability

problems because shared data structures are accessed

from multiple cores simultaneously. This is an impor-

tant design issue to reduce the overhead of virtualiza-

tion layer when they are used on multicore processors.

However, as described in Section II, the LHP prob-

lem need to be solved to utilize multicore processors

effectively.

In Figure 3, we assume that SPUMONE runs on a

dual core processor. Each core executes a separate in-

stance of SPUMONE. The SPUMONE instance run-

ning on core 0 offers two vCPUs and the instance run-

ning on core 1 offers one vCPU. One vCPU of core 0

is used by RTOS and another vCPU of core 0 is used

by GPOS. The vCPUs of core 1 is also used by GPOS.

Thus, GPOS has two vCPUs. The conﬁguration may

cause the LHP problem when the vCPU on core 0 for

GPOS is preempted by the vCPU for RTOS.

In SPUMONE, the mapping between vCPUs and

physical cores is dynamically changed according to

the current situation of guest OSes. If the total uti-

lization of guest OSes becomes low, all vCPUs may

share only one core and the power of other cores can

be turned off. This approach offers a possibility to

reduce the power consumption signiﬁcantly. Also,

when RTOS becomes idle, GPOS can use the entire

utilization of a multicore processor. This means that

multiple vCPUs used by an SMP GPOS may share

the same physical core to utilize multicore proces-

sors more efﬁciently according to the current situa-

tion. However, for achieving the maximum through-

put, the LHP problem should be taken into account.

For realizing the ﬂexible management of a mul-

ticore processor, SPUMONE offers a mechanism

called the vCPU migration mechanism. The mecha-

nism moves vCPU from one physical core to another

physical core. The images of guest OSes reside in the

shared memory, so the mechanism just copies only

the register states between different SPUMONE in-

stances. The mechanism uses inter core interrupts to

synchronize between physical cores. A more detailed

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

372

implementation will be explained in the next section

because the vCPU migration mechanism is a key un-

derlying infrastructure for the new techniques to avoid

the LHP problem.

The multicore version of SPUMONE runs on

the MSRP1 board developed by Hitachi and Rene-

sas. The board contains a multicore processor called

RP1, which consists of four SH4a cores and 128MB

DRAM as main memory. The memory is shared by

all cores.

4 IMPLEMENTATION TO AVOID

THE LHP PROBLEM ON

SPUMONE

Currently, we are using Linux as SMP GPOS and

TOPPERS as RTOS. In this section, we describe how

we implemented techniques to avoid the LHP prob-

lem on SPUMONE.

4.1 Implementation of the Delayed

Preemption Technique

In order to compare the effectiveness of the delayed

preemption technique with our new techniques based

on the vCPU migration technique, we implemented

the delayed preemption technique on SPUMONE.

Our current implementation exploits the internal

structure of Linux. Every thread in Linux has its own

data structure for management. This data structure

is named struct thread info, and it has a ﬁeld named

preempt count. preempt count indicates whether the

thread is in the IRQ context and how many locks

the thread holds. We implemented the delayed pre-

emption technique by using the preempt count ﬁeld.

When the preempt count ﬁeld of the currently run-

ning thread becomes bigger or equal to 1, our mod-

iﬁed Linux kernel invokes SPUMONE API to notify

to disable the preemption of Linux. When the pre-

empt count ﬁeld of the thread reaches to 0, Linux in-

vokes SPUMONE API to enable the preemption of

Linux.

When RTOS becomes ready, it can usually pre-

empt GPOS anytime. However, the delayed pre-

emption technique does not allow RTOS to preempt

GPOS while GPOS holds a lock. Thus, the thread

dispatch of RTOS is delayed until the lock is released.

This means that the dispatch latency is degraded ac-

cording to the length to hold a lock.

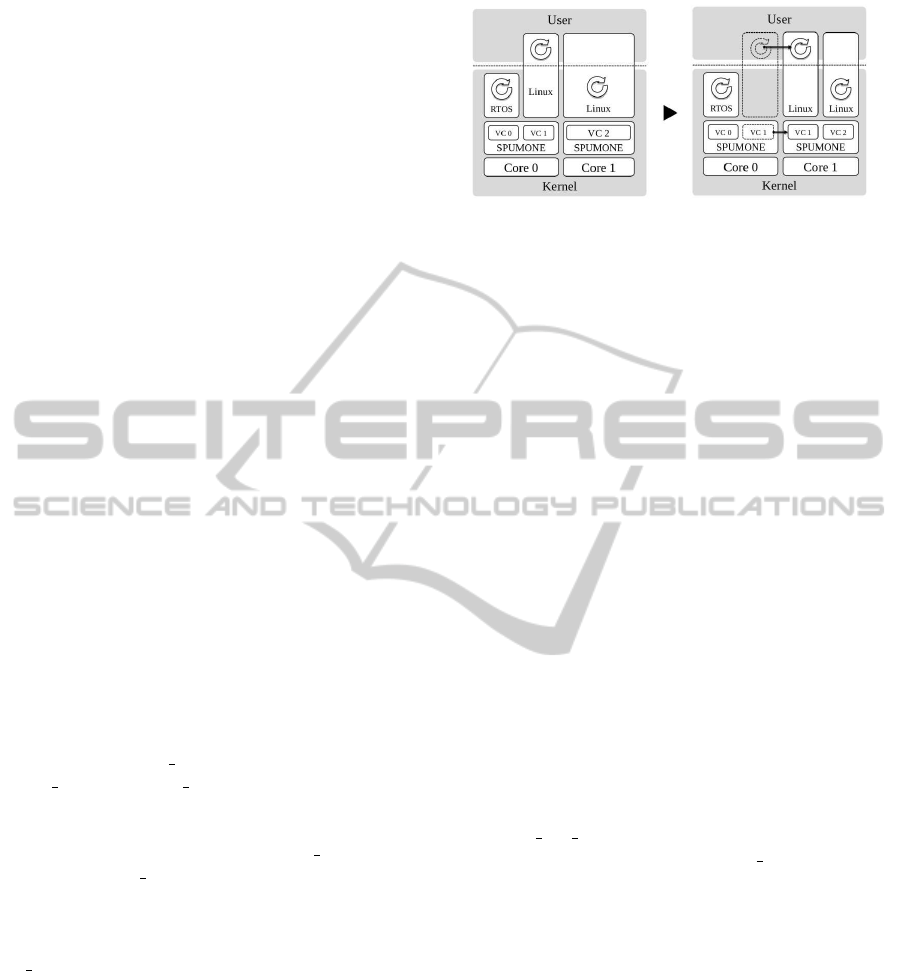

Figure 4: The vCPU migration mechanism.

4.2 Avoiding the LHP Problem using

the vCPU Migration Mechanism

In this section, we ﬁrst describe a brief overview

of the vCPU migration mechanism of SPUMONE.

Then, we show two new techniques based on the

vCPU migration mechanism to avoid the LHP prob-

lem.

4.2.1 Implementation of the vCPU Migration

SPUMONE provides the vCPU migration mechanism

for moving vCPUs owned by guest OSes. By using

this mechanism, guest OSes can change the physical

core that executes their vCPUs.

The vCPU migration in SPUMONE has two

types. One is departure migration, and another is re-

turn migration. In Figure 4, vCPU VC 1 runs on core

0 in the left ﬁgure. departure migration moves VC1

on core 0 to core 1 as shown in the right ﬁgure, and re-

turn migration moves VC1 from core1 to core0. The

vCPU migration is invoked by using the inter core in-

terrupt mechanism.

The source core that migrates a virtual core exe-

cutes spm cpu migrate() to initiate the migration, and

the destination core executes accept immigrant() to

resume the migrated vCPU. The overhead of the mi-

gration is the sum of the two functions. As shown in

Section 5.4, the overhead of the vCPU migration is

small.

4.2.2 Trap based Migration Technique

As described in Section 2, the LHP problem occurs

when one of vCPUs for Linux is preempted by TOP-

PERS while it executes a critical section in the kernel

space. In Figure 4, the situation shown in the left ﬁg-

ure may cause the LHP problem. However, the LHP

problem occurs only when the Linux kernel executes

the kernel code. If Linux does not invoke the kernel,

the problem does not occur.

This technique does not allows Linux to execute

the kernel code on core 0. When Linux invokes a trap

SOLVING THE LOCK HOLDER PREEMPTION PROBLEM IN A MULTICORE PROCESSOR-BASED

VIRTUALIZATION LAYER FOR EMBEDDED SYSTEMS

373

instruction or receives an interrupt, departure migra-

tion is invoked and the vCPU of Linux running on

core 0 is moved to core 1. After returning from the

trap or interrupt, return migration is invoked and the

vCPU is moved from core 1 back to core 0. This tech-

nique can be easily implemented on SPUMONE be-

cause SPUMONE intercepts all traps and interrupts

before forwarding them to guest OSes.

When using this technique, RTOS can always

preempt Linux without causing the LHP problem.

Thus, it does not degrade the real-time responsive-

ness. However, it requires to move the vCPU every

time traps and interrupts are invoked. The overhead

of moving the vCPU may become a problem if the

frequency of traps and interrupts becomes high. At

least, every interrupt causes a vCPU migration even if

there is no user level activity.

4.2.3 On Demand Migration Technique

When using the technique, a vCPU for Linux is mi-

grated from core 0 to core 1 while RTOS becomes

active on core 0. When the RTOS becomes idle, the

vCPU of Linux is backed from core 1 to core 0.

When RTOS becomes ready, departure migration

is invoked, and return migration is invoked when the

RTOS becomes idle. This technique can solve the

LHP problem because before RTOS preempts Linux,

Linux is migrated to another core.

However, before handling an interrupt of RTOS,

Linux needs to be migrated to another physical core.

The preemption of RTOS needs to wait for the com-

pletion of departure migration to move the vCPU

from core 0 to core 1. This means that the technique

increases the interrupt latency, but this increased la-

tency can be bounded by the worst case latency of

the departure migration. The technique requires to

invoke the vCPU migration mechanism, whenever

RTOS becomes active or idle. This means that ev-

ery timer interrupt causes the vCPU migration even if

there is no active thread on RTOS.

5 EVALUATION

In this section, we show the evaluated results of the

delayed preemption technique and of the new tech-

niques based on the vCPU migration mechanism. We

especially measured the following two performance

aspects:

• Dispatch latency of RTOS.

• Maximum throughput of GPOS.

In our evaluation, the dispatch latency of RTOS

means the elapsed time to activate the highest priority

thread after an interrupt that makes the thread ready is

received by a processor.

The maximum throughput of GPOS shows the ef-

fect of the proposed solution. In the measurement,

there are two possibilities to degrade the throughput

of GPOS. The ﬁrst possibility is caused by the LHP

problem, and the second possibility is caused by the

overhead of the proposed technique. Our solutions

can solve the LHP problem, but if the overhead is big,

the solutions may degrade the throughput.

In the following subsections, we show the results

of the two aspects, and interpret their signiﬁcance.

5.1 Evaluation Environment

When executing both TOPPERS and Linux on the

multicore processor, one physical core multiplexes

one vCPU for TOPPERS and one vCPU for Linux.

The other three vCPUs for Linux run on dedicated

physical cores. departure migration moves the vCPU

of Linux to another physical core. In this case, two

vCPUs for Linux share the same physical core. In

the measurement, at the begginning, we do not take

into account the LHP problem caused when multiple

vCPUs for Linux are executed on one physical core.

Our focus is the LHP problem when SMP Linux is

preempted by TOPPERS, but as shown later, the LHP

problem within SMP Linux also causes serious per-

formance degradation, and needs to be taken into ac-

count.

5.2 The Impact on RTOS Dispatch

Latency

In this experiment, a periodic task runs every 1ms.

It is sampled 100,000 times during the measurement.

The dispatch latency is the time spent from the inter-

rupt triggered until the periodic task starts its execu-

tion. Only the periodic task is executed on TOPPERS

which means that no other task on TOPPERS will pre-

vent the execution of the periodic task.

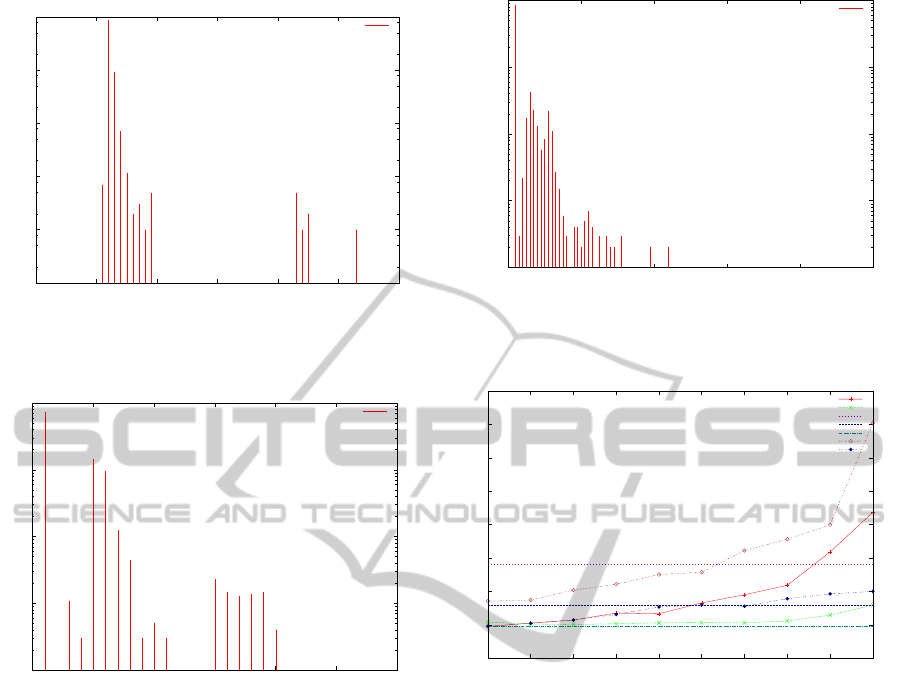

Figure 5, 6 and 7 show the dispatch latency in

TOPPERS where running hackbench on Linux

. Our

approach improves the dispatch latency signiﬁcantly

compared to the delayed preemption technique. The

reason of this improvement is that our approach does

not execute the Linux kernel with RTOS at the same

time. When RTOS becomes runnable, vCPU execut-

ing Linux is migrated to another core. The source of

the increase of interrupt latency is the time to disable

The avarage is 24.09 µ when using the delayed preemp-

tion technique, 2.30 µ when using the trap based migration

technique, and 4.71µ when using the on demand migration

technique.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

374

0.1

100

1000

10000

0 20 40 60 80 100 120

Sample [num]

Delay [us]

delay

Figure 5: Dispatch latency with the Delayed Preemption

technique.

100

1000

10000

0 5 10 15 20 25 30

Sample [num]

Delay [us]

delay

Figure 6: Dispatch latency with the Trap based Migration

technique.

interrupts. In the Linux kernel, there are many places

to disable interrupts and they have a signiﬁcant impact

on the dispatch latency.

As shown in , the dispatch latency without the mi-

gration based techniques is almost the same as the la-

tency when using them. Thus, the techniques solve

the LHP problem signiﬁcantly, but also they do not

degrade the dispatch latency.

5.3 The Impact on GPOS Throughput

We compared the score of the hackbench benchmark

which evaluates the scalability of the number of cores

with Linux running on the top of four dedicated cores

(indicated as four cores in the Figure 8 and Figure 9),

Linux running on the top of three dedicated cores and

one core shared with TOPPERS in various workloads

(xx% in the ﬁgures), and Linux running on the top

of three dedicated cores (indicated as three cores in

the ﬁgures). The task on TOPPERS is executed in

the cycle of 500 ms. The percentage shows the ratio

100

1000

10000

0 20 40 60 80 100

Sample [num]

Delay [us]

delay

Figure 7: Dispatch latency with the On Demand Migration

technique.

0 10 20 30 40 50 60 70 80 90

Score of hackbench [second] (lower is better)

Time consumption by RTOS [%] (500ms periodic)

Previous SPUMONE

Delayed Preemption Mechanism

2 cores

3 cores

4 cores

Trap based vCPU Migration

On demand based vCPU Migration

Figure 8: The hackbench scores in Four Conﬁgurations(1).

of the execution time of the periodic task against the

cycle (30% means that the task is executed for 150 ms

continuously).

The hackbench program executing on SMP Linux

that has four vCPUs. One of the vCPUs shares a phys-

ical core with the vCPU of TOPPERS. In the evalu-

ation, we change the utilization of a periodic task on

RTOS.

When the utilization of RTOS is high, the possi-

bility to preempt critical sections and cause the LHP

problem becomes high. Hackbench creates many pro-

cesses that communicate each other. Hackbench is

executed in the kernel almost of the entire time. The

score becomes better when the kernel overhead is low.

When the LHP problem occurs, the kernel remains

busy waiting for a long time. Thus, the LHP problem

makes the score of hackbench bad. We consider that

this benchmark is suitable to measure the worst case

effect of the LHP problem.

Figure 8 shows the score of hackbench in four

conﬁgurations. The ﬁrst conﬁguration does not use

any techniques to avoid the LHP problem. The result

SOLVING THE LOCK HOLDER PREEMPTION PROBLEM IN A MULTICORE PROCESSOR-BASED

VIRTUALIZATION LAYER FOR EMBEDDED SYSTEMS

375

shows that the LHP problem signiﬁcantly degrades

the throughput of hackbench. The second conﬁgu-

ration shows the result when the delayed preemption

technique is used. The result indicates the technique

solves the LHP problem, and the utilization of RTOS

proportionally affects the score of hackbench. How-

ever, as shown in the previous section, the technique

increases the dispatch latency of RTOS signiﬁcantly.

The third conﬁguration adopts the trap based migra-

tion technique. The result is not good as we expected

due to the overhead of virtual core migration mech-

anism because hackbench invokes system calls very

frequently. The last conﬁguration adopts the on de-

mand migration technique. This conﬁguration can

improve the throughput signiﬁcantly because the ap-

proach solves the LHP problem, and the overhead is

small.

However, the results of the ﬁgure show that the

throughput achieved by our techniques is not as good

as the delayed preemption technique is used. When

using our proposed approach, some virtual cores used

by SMP Linux share the same physical core. Because

the vCPUs are scheduled by the time sharing sched-

uler in SPUMONE, the execution of a critical section

in the Linux kernel may be preempted by the other

vCPUs executing the SMP Linux kernel, thus it might

cause another LHP problem. For solving this LHP

problem within SMP Linux, we modiﬁed SMP Linux

to yield the vCPU when the length of busy waiting for

entering a critical section exceeds a pre-determined

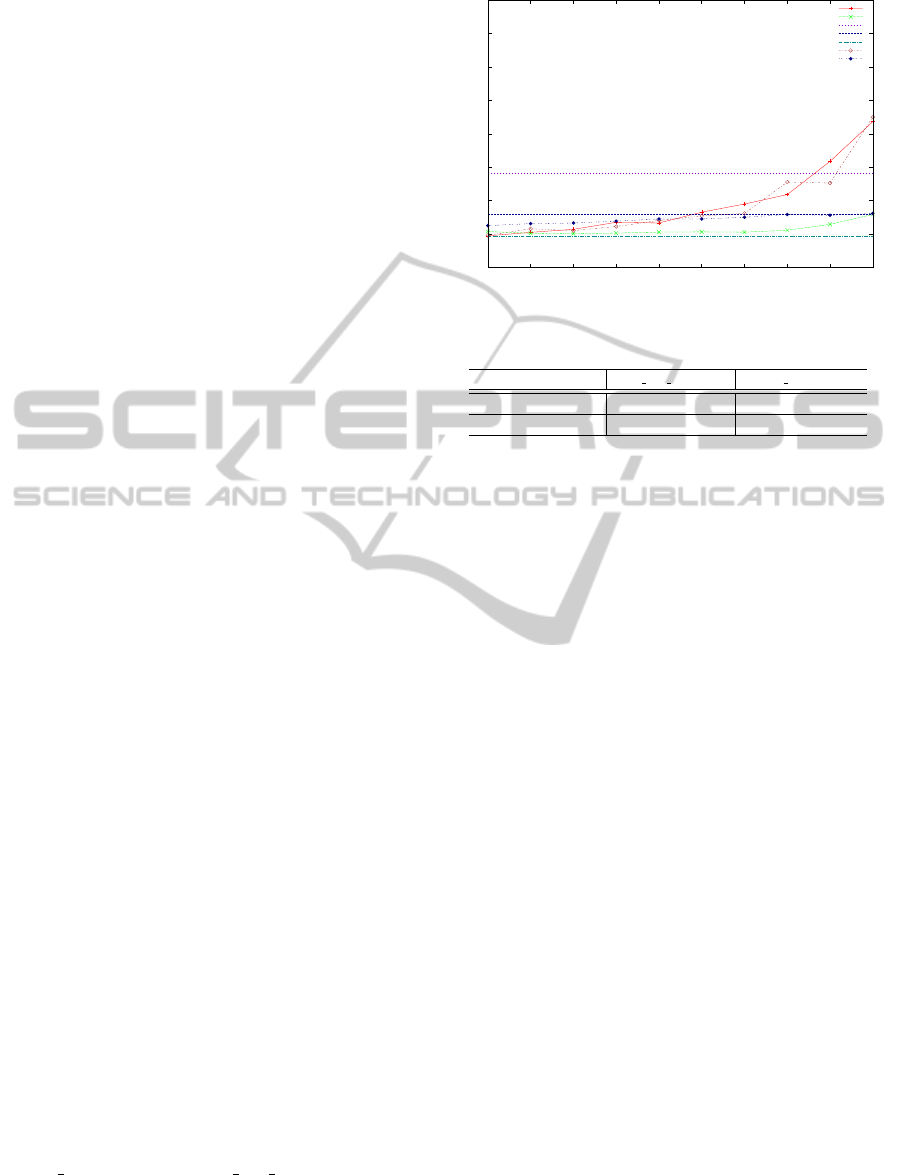

threshold. Figure 9 shows the results when apply-

ing the technique. In this case, the LHP problem

is completely solved without degrading real-time re-

sponsiveness.

The above discussion shows that the trap based

migration technique solves the LHP problem, but also

that the overhead to invoke frequent vCPU migrations

is high, so the GPOS throughput does not improved

when the utilization of RTOS is high. On the other

hand, the on demand migration technique improves

the GPOS throughput dramatically without degrading

real-time responsiveness. Thus, the results show that

the on demand migration technique is well ﬁt to be

used in embedded systems.

5.4 Overhead of the vCPU Migration

Mechanism

As we described in Section 4.2.1, the main source of

overhead of the vCPU migration mechanism occurs

in accept

immigrant() and smp cpu migrate(). Figure

12 shows the measured costs of the two functions in

the departure migration and return migration. The

sum of the costs of the two functions indicates the ac-

0 10 20 30 40 50 60 70 80 90

Score of hackbench [second] (lower is better)

Time consumption by RTOS [%] (500ms periodic)

Previous SPUMONE

Delayed Preemption Mechanism

2 cores

3 cores

4 cores

Trap based vCPU Migration

On demand based vCPU Migration

Figure 9: The hackbench scores in Four Conﬁgurations(2).

Migration path spm cpu migrate() accept immigrant()

Departure migration 24.9µs 28.0µs

Return migration 38.1µs 12.0µs

Figure 10: Overhead of the vCPU migration.

tual cost of the vCPU migration, which is about 50µs.

If the frequency of vCPU migration is increased,

the overhead to avoid the LHP problem is also in-

creased. The result shows that the effectiveness of the

proposed techniques depends on the workload run-

ning on Linux. Also, it depends on the workload of

real-time applications. Especially, the utilization of

real-time activities and the frequency of resuming and

suspending RTOS have signiﬁcant impact on the ef-

fectiveness of the proposed techniques.

6 CONCLUSIONS

When a virtualization layer supports a shared mem-

ory based multi-core processor, the LHP problem be-

comes very serious. The existing technique called

the delayed preemption technique solves the problem

and exploits the maximum merits of multicore pro-

cessors. However, this technique decreases the real-

time responsiveness of RTOS. The existing solution is

adopted in virtualization layers for enterprise servers

because the maximum throughput is the most critical

design criteria in this area. However, is is not appro-

priate for embedded systems, which need to satisfy

the real-time constraints. We proposed two new tech-

niques based on the vCPU migration mechanism to

avoid the LHP problem. The measure results show

that the trap based migration technique reduces dis-

patch latency and solves the LHP problem. However,

it does not improve the GPOS throughput due to the

overhead of frequent vCPU migration due to system

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

376

calls. On the other hand, the on demand migration

technique solves the LHP problem and reduces the

dispatch latency. Also, the overhead is not large, so

the GPOS throughput is not degraded. Therefore, the

on demand migration technique is well ﬁt to be used

in embedded systems.

REFERENCES

Hackbench. (2011). http://people.redhat.com/mingo/cfs-

scheduler/tools/hackbench.c

Toppers project. (2011). http://www.toppers.jp/en/index.

html

Armand, F. and Gien, M. (2009). A practical look at micro-

kernels and virtual machine monitors. In Proceedings

of the 6th IEEE Conference on Consumer Communi-

cations and Networking Conference, CCNC’09, pages

395–401, Piscataway, NJ, USA. IEEE Press.

Baumann, A., Barham, P., Dagand, P.-E., Harris, T., Isaacs,

R., Peter, S., Roscoe, T., Sch

upbach, A., and Singha-

nia, A. (2009). The multikernel: a new os architecture

for scalable multicore systems. In Proceedings of the

ACM SIGOPS 22nd symposium on Operating systems

principles, SOSP ’09, pages 29–44, New York, NY,

USA. ACM.

Christopher Grant Jones, Rose Liu, L. M. K. A. and Bodik,

R. (2009). Parallelizing the web browser. In Proceed-

ings of the First USENIX Workshop on Hot Topics in

Parallelism.

Renesas Electronics Corporation. (2011). Superh risc en-

gine family. http://www.renesas.com/products/mpum

cu/superh/superh landing.jsp

Heiser, G. (2009). Hypervisors for consumer electronics. In

Proceedings of the 6th IEEE Consumer Communica-

tions and Networking Conference.

Ousterhout, J. K. (1982). Scheduling techniques for concur-

rent systems. In Proceedings of Third International

Conference on Distributed Computing Systems, 1982.

Uhlig, V., LeVasseur, J., Skoglund, E., and Dannowski, U.

(2004). Towards scalable multiprocessor virtual ma-

chines. In Proceedings of the 3rd conference on Vir-

tual Machine Research And Technology Symposium -

Volume 3, Berkeley, CA, USA. USENIX Association.

SOLVING THE LOCK HOLDER PREEMPTION PROBLEM IN A MULTICORE PROCESSOR-BASED

VIRTUALIZATION LAYER FOR EMBEDDED SYSTEMS

377
