A MULTIAGENT SYSTEM SUPPORTING SITUATION AWARE

INTERACTION WITH A SMART ENVIRONMENT

Davide Cavone, Berardina De Carolis, Stefano Ferilli and Nicole Novielli

Dipartimento di Informatica, Universita’ di Bari, Bari, Italy

Keywords: Smart environment, Multi Agent System, User modeling, Pervasive interaction.

Abstract: Adapting the behavior of a smart environment means to tailor its functioning to both context situation and

users’ needs and preferences. In this paper we propose an agent-based approach for controlling the behavior

of a Smart Environment that, based on the recognized situation and user goal, selects a suitable workflow

for combining services of the environment. We use the metaphor of a butler agent that employs user and

context modeling to support proactive adaptation of the interaction with the environment. The interaction is

adapted to every specific situation the user is in thanks to a class of agents called Interactor Agents.

1 INTRODUCTION

Users of a smart environment often have contextual

needs depending on the situation they are in. In

order to satisfy them, it is important to adopt an

approach for personalizing service fruition according

to the user situation. Moreover it is important to

make the interaction with services easy and natural

for the user. To this aim we propose an approach

based on software agents able to provide Smart

Services, i.e. integrated, interoperable and

personalized services accessible through several

interfaces available on various devices present in the

environment in the perspective of pervasive

computing. We adopt the metaphor of a butler in

grand houses, who can be seen as a household

affairs manager with duties of a personal assistant,

able to organize the housestaff in order to meet the

expectations of the house inhabitants. Starting from

the results of a previous project (De Carolis et al.,

2006), we have developed a MAS in which the

butler agent recognizes the situation of the user in

order to infer his possible goals. The recognized

goals are then used to select the most suitable

workflow among a set of available candidates (Yau

and Liu, 2006). Such a selection is made by

semantically matching the goals, the current

situation features and the effects expected by the

execution of the workflow. Once a workflow has

been selected, its actions are executed by the effector

agents. Then the system guides interactively the user

in finding, filtering and composing services (Kim,

2004), exploiting a semi-automatic approach: the

user may change the execution of the selected

workflow by substituting, deleting, or undoing the

effects of some services. Moreover, the butler is

able to learn about situational user preferences but it

should leave to its “owner” the last word on critical

decisions (Falcone and Castelfranchi, 2001). To this

aim, the butler agent must be able to interpret the

user’s feedback appropriately, using it to revise: (i)

the knowledge about the user, with respect to his

preferences and goals in a given situation, and (ii)

the workflow or the services invoked in it (Cavone

et al., 2011).

One of the most important features of our

architecture is the presence of a class of interactor

agents that are responsible for implementing several

kinds of interfaces according to contextual factors

and to the user preferences.

2 THE PROPOSED MAS

We propose an agent-based system that supports the

user in daily routines but also in handling

exceptional situations that may occur. As a main

task, the butler must perceive the situation of the

house and coordinate the housestaff. To this aim we

have designed the following classes of agents:

 Sensor Agents (SA): they are used for providing

information about context parameters and features

(e.g., temperature, light level, humidity, etc.) at a

higher abstraction level than sensor data.

Cavone D., De Carolis B., Ferilli S. and Novielli N..

A MULTIAGENT SYSTEM SUPPORTING SITUATION AWARE INTERACTION WITH A SMART ENVIRONMENT.

DOI: 10.5220/0003802800670072

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 67-72

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

 Butler Agent (BA): its behavior is based on a

combination of intelligent reasoning, machine

learning, service-oriented computing and semantic

Web technologies for flexibly coordinating and

adaptively providing smart services in dynamically

changing contexts;

 Effector Agents (EA): each appliance and device

is controlled by an EA that reasons on the

opportunity of performing an action instead of

another in the current context.

 Interactor Agents (IA): they are in charge of

handling interaction with the user;

 Housekeeper Agent (HA): it acts as a facilitator

among the agents.

All agents are endowed with two main behaviors,

reasoning and learning, whose implementation

depends on the specific kind of agent.

The reasoning behavior interprets the input and

processes it according to its specific role. Due to the

complexity of most real-world environments this

requires powerful kinds of reasoning and knowledge

management, such as deduction, abduction and

abstraction (Esposito et al., 2006). We use a logic

language to express all the items included in the

knowledge base of our agents. In particular, the need

to handle relationships among several entities and

possible situations calls for the first-order logic

setting. An advantage of this setting is that the

knowledge handled and/or learned by the system can

be understood and checked by humans.

The learning behavior, on the other hand, is used

by an agent to refine and improve its future

performance through Inductive Logic Programming

(ILP) (Muggleton, 1991), which is particularly

powerful, and suitable for the specific needs of

adaptivity posed by the present application. In fact,

ILP allows an incremental approach to learning new

information which is mandatory in our case, because

the continuous availability of new data and the

evolving environment cannot be effectively tackled

by static models, but require continuous adaptation

and refinement of the available knowledge. An

incremental ILP system that is able to exploit

different kinds of inference strategies and hence fits

the above requirements, is described in (Esposito et

al., 2006) also abstraction and abduction theories can

be learned automatically (Ferilli et al. 2005).

Regardless of the specific role played by an

agent, its behaviors strictly cooperate in the same

way. Reasoning uses the agent’s knowledge to

perform inferences that determine how the agent

achieves its objectives. Learning exploits possible

feedback on the agent’s decisions to improve that

knowledge, making the agent adaptive to the

specific user needs and to their evolution in time.

These agents coordinate themselves as follows:

cyclically, or as an answer to a user action, the butler

runs its reasoning model about the user. According to

the situation provided by the appropriate SAs, the

butler infers and ranks which are the possible user

goals and needs. Then, the butler selects the

workflow associated with a specific goal by

matching semantically the goal with all the Input,

Output, Pre-Condition and Effect (IOPE)

descriptions (Martin, 2007) of the workflows stored

in a workflow repository. Once the most appropriate

workflow has been selected and activated, it is

necessary to select the services/actions to be invoked

among those available in the environment. This

process is performed through semantic matchmaking,

as well. Therefore, each workflow is planned by

initially describing its execution flow and, when

needed, the IOPE features of all Web services

included in the process. Then, the matchmaker

module is responsible of performing the semantic

match between the workflow predefined requests and

the available semantic Web services, which are listed

in a Semantic Web Services Register (SWSR)

according to the IOPE standard representation

(Meyer, 2007). Hence, the workflow services are

invoked dynamically, matching the user’s needs in

the most effective way (see Section 3.1 for more

details). As regards predicates of Web Services, both

simple and complex Web Services will be

implemented according to the standard Web

Ontology Language for Services (OWL-S). We will

sometimes refer to the OWL-S ontology as

a language for describing services that enables

automatic service discovery, invocation, composition

and execution monitoring. In particular, the

composition of complex services from atomic

services is based on their pre-conditions and post-

conditions.

A detailed description of the agents behaviors

and the workflow composition was presented in

(Cavone et al., 2011).

3 AGENT CLASSES

This section describes the different agent classes,

showing examples that illustrate how they work. The

following scenario will be assumed:

It’s evening and Jim, a 73 y.o. man, is at home alone. He has

a cold and fever. He is a bit bored since he cannot go

downtown and drink something with his friend, like he does

every evening. Jim is sitting on the bench in his living room in

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

front of the TV, holding his smartphone. The living room is

equipped with sensors, which can catch sound/noise in the

air, time, temperature, status of the window (open/close) and

of the radio and TV (on/off), and the current activity of the

user, and with effectors, acting and controlling windows, radio

and TV and also the execution of digital services that may be

visualized on communication devices, as for instance the TV.

The smartphone allows Jim to remotely control the TV.

Moreover, the house is equipped with several interaction

devices through which the SHE communicates with the user

by implementing different interaction metaphors. Examples of

such devices, employed for controlling the house appliances,

are the touch screens on the fridge or on mirrors, the

smartphone that the users usually brings with him and a

socially intelligent robot that is able to move around in the

home and to engage natural language dialogue with its

inhabitants.

3.1 Sensor Agents

Sensor Agents are in charge of controlling a set of

sensors that are suitably placed in the environment

for providing information about context parameters

and features (e.g. temperature, light level, humidity,

etc.), such as meters to sense physical and chemical

parameters, microphones and cameras to catch what

happens, indicators of the status of various kinds of

electric and/or mechanical devices. The values

gathered by the physical sensors are sent in real-time

to the reasoning behavior of the associated SA,

which uses abstraction to strip off details that are

known but useless for the specific current tasks and

objectives. For instance, the SA providing

information about temperature will abstract the

centigrade value into a higher level representation

such as “warm”, “cold”, and so on. This abstraction

process may be done according to the observed

specific user’s needs and preferences (e.g. the same

temperature might be cold for a user but acceptable

for another). For instance, let us denote the fact that

the user Y is cold in a given situation X with

cold(X,Y). This fact can be derived from the specific

temperature using a rule of the form:

cold(X,Y) :- temperature(X,T), T<18, user(Y), present(X,Y),

jim(Y).

(it is cold for user Jim if he is present in a situation in

which the temperature is lower than 18 degrees). In

turn, the above rule can be directly provided by an

expert (or by the user himself), or can be learned (and

possibly later refined) directly from observation of

user interaction (Ferilli et al., 2005).

3.2 The Butler Agent

The Butler Agent recognizes user goals starting from

percepts received by SAs and composes a smart

service corresponding to a workflow that integrates

elementary services according to the particular

situation.

The reasoning of this agents mainly involves

deduction, to draw explicit information that is

hidden in the data, and abduction, to be able to

sensibly proceed even in situations in which part of

the data are missing or otherwise unknown.

However, in some cases, it may also use abstraction,

which is performed at a higher level than in SAs.

Each observation of a specific situation can be

formalized using a conjunctive logic formula under

the Closed World Assumption (what is not explicitly

stated is assumed to be false), described as a snapshot

at a given time. A model, on the other hand, consists

of a set of Horn clauses whose heads describe the

target concepts and whose bodies describe the pre-

conditions for those targets to be detected. For

instance, the following model might be available:

improveHealth(X) :- present(X,Y), user(Y), has_fever(Y).

improveHealth(X):-

present(X,Y), user(Y), has_headache(Y), cold(X,Y).

improveHealth(X) :- present(X,Y), user(Y), has_flu(Y).

improveMind(X) :- present(X,Y), user(Y), sad(Y).

improveMind(X) :- present(X,Y), user(Y), bored(Y).

On the other hand, a sample observation might be:

morning(t0),closedWindow(t0),present(t0,j), jim(j), user(j),

temperature(t0,14), has_flu(j), bored(j).

Reasoning infers that Jim is cold: cold(t0,j). Being all

the preconditions of the first and fourth rules in the

model satisfied by this situation for X = t0 and Y =

jim, the user goals improveHealth and improveMind

are recognized for Jim at time t0, which may cause

activation of suitable workflows aimed at attaining

those results.

The BA reasons not only on goals but also on

workflows. Indeed, once a goal is triggered, it selects

the appropriate workflow by performing a semantic

matchmaking between the semantic IOPE description

of the user's high-level goal and the semantic profiles

of all the workflows available in the knowledge base

of the system (W3C, 2004). As a result, this process

will produce from zero to n workflows that are

semantically consistent with the goal, ranked in order

of semantic similarity with the goal.

For instance, as shown in Figure 1, the semantic

matchmaking process leads to two different

workflows associated, respectively, to the two high-

level goals improveHealth and improveMind

previously recognized. The semantic matchmaking

process starts from these goals and leads to the

desired workflow.

A MULTIAGENT SYSTEM SUPPORTING SITUATION AWARE INTERACTION WITH A SMART ENVIRONMENT

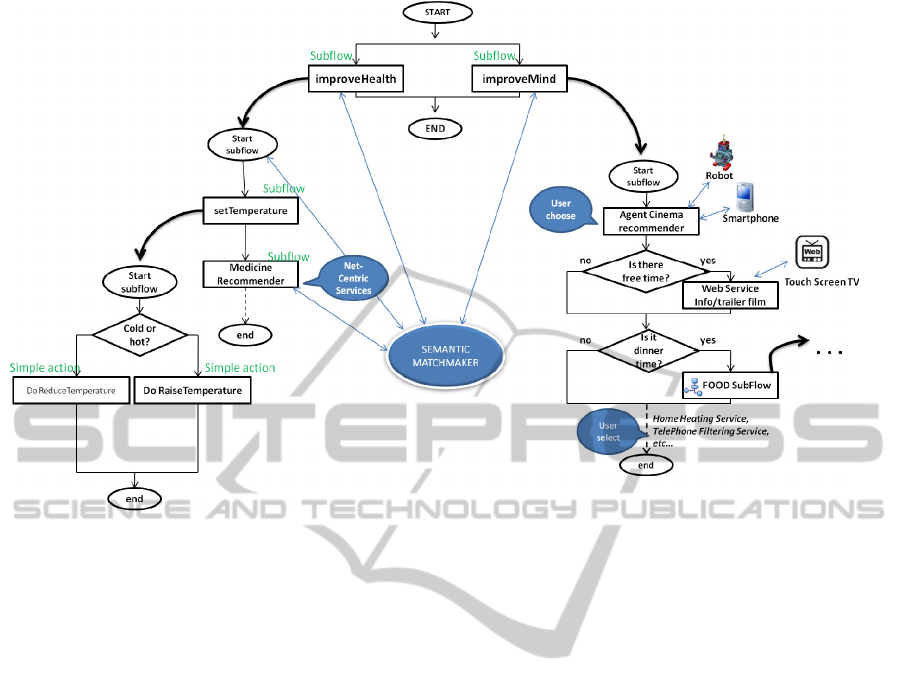

Figure 1: An example of a Smart Service Workflow composed by the Butler Agent.

The semantic matchmaking can also be used

within a workflow, to find both the most appropriate

subflows and services. In the simplest case, indeed,

the best workflow may consist of a sequence of

actions. Hence, the behavior implementation allows

to deal with complex workflows consisting of a flow

of actions and other sub-goals corresponding to

subflows, which are again processed according to

the matchmaking phase described above. In our

example, the main workflow includes two goals that

need to be executed by selecting two different

subflows corresponding, respectively, to each goal:

improveHealth and improveMind. These subflows

include both simple actions, that can be directly

executed, and subflows that need to be satisfied, such

as setTemperature. In this case, the BA will process

the information collected by the temperature sensors

in order to understand whether to raise or reduce the

environment temperature.

This hierarchical matchmaking process stops

when the resulting workflow is composed of simple

goals that can be directly satisfied by invoking a net-

centric service or through simple actions performed

on the effectors. In both cases, the BA asks to the HA

which EAs can satisfy each planned action and sends

a specific request to the EA in charge for handling

actions regarding changes of a particular parameter

(e.g., temperature, light, etc.). In particular, when the

goal satisfied by a workflow (or by part of it) regards

a communicative action, its execution is delegated to

the IAs. In this specific case, the HA returns to the

BA the list of agents that are responsible for

implementing the interaction with the user through

different modalities (e.g. on a touch screen, on the

smartphone or by using the social robot present in the

smart environment).

3.3 The Effector Agents

Effector agents are in charge of taking appropriate

decisions about actions to be executed on the

environment appliances and devices in order to fulfil

simple goals determined in the workflow by the BA.

To best satisfy the user needs, these agents

reason about different possible solutions to attain the

same goal. For instance, if the goal is reducing the

temperature, the EA in charge of temperature control

may decide whether turning on air conditioning or

opening the window; additionally, it decides how to

control those devices (in the former case, which fan

speed to select; in the latter case, how widely the

window must be opened). If the goal is reminding

Jim to take medicines and this can be done through a

Web service accessible on TV, the EA invokes it.

4 THE INTERACTOR AGENTS

Interactor Agents (IAs) satisfy the goal of interacting

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

with the user. Their behavior mainly consists in

executing communicative actions through different

interaction modalities and with different

communicative goals. IAs choose the most suitable

interaction metaphor according to the situation and to

the user’s needs and preferences. There are several

communicative goals that IAs may carry out:

Information Seeking: IAs exploit interaction with the

user to get hints on how to attain a simple goal and,

based on this, possibly learn new preferences of that

user with respect to the given context and situation,

in order to continuously and dynamically improve

adaptation.

Information Providing: this task involves the delivery

of information to the user when he requests

explanations about the SHE appliances behavior or

about the decision to include some specific subflows

in the main workflow built by the BA. E.g., referring

to the previous scenario, the user may ask the robot

to provide more justification for choosing a given

medicine. In this case the social robot may intervene

explaining to the user why that drug is suited for his

problem by showing the advantages of taking it. This

task may be seen as a simpler version of the

persuasion task described in (De Carolis et al., 2009).

Remind: this task may be implemented through

different interaction devices. The BA may choose the

more appropriate one according to the user

preferences and to the specific situation. For

example, if the object of the reminder is to take a

medicine, it might be useful to provide a reminder on

the smartphone.

4.1 Exploiting Pervasive Interaction

The general interaction behavior of the IA is

implemented according to the specific appliances to

which the IA instances are associated. The

interaction devices are distributed in the

environment and are selected according to the

specific interaction task to be carried out, the context

(e.g. how close is the device with respect to the

position of the user in the SHE), and the user

preferences.

Let’s refer to the scenario described earlier. Jim

is sitting in front of the TV and is bored, hence the

BA builds a workflow in order to satisfy the

ImproveMind goal. Starting from this data and the

information describing the situation, the SHE infers

that a possible goal of Jim is to WatchTV. This will

be obtained as a subflow of

ImproveMind through the

semantic matchmaking process, as described in the

previous section. It selects the workflow, shown in

Figure 1, for satisfying this goal according to the

context condition.

The BA starts the execution of the workflow and,

as a first service, it recommends to Jim a set of

movies that could be of interest to him . Jim may

accept the proposed service, or refuse it and select

another one. This interactive task is delegated by the

BA to the IA associated to the smartphone, since it is

the device that Jim can access immediately. Let’s

suppose that Jim accepts and selects the

recommended movie. Then, since it is almost dinner

time, the smart service recommends his favourite

take-away food, sushi. In this way, using the

interface on TV, Jim may evaluate the agent

proposal. He may accept, refuse or modify the

proposed services choosing among several other

services that are available in that situation.

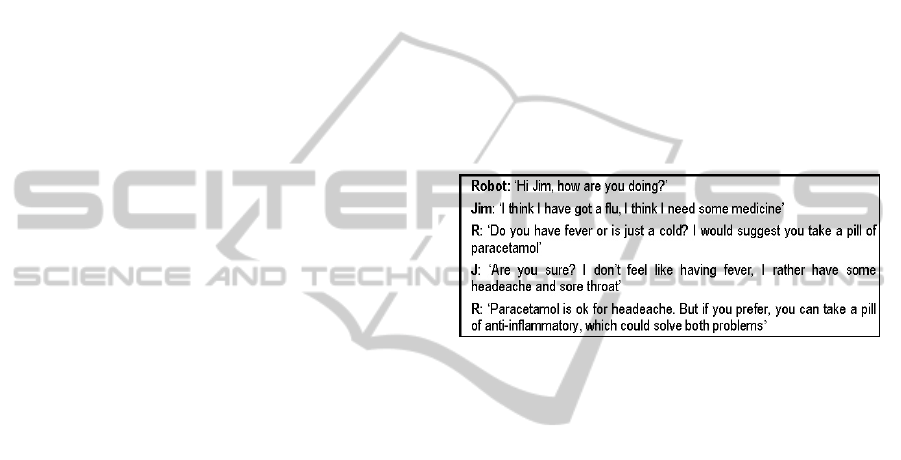

Figure 2: An example of interaction with the social robot.

Another example is provided by the subflow

called ‘

Medicine Recommender’ included in the

workflow in Figure 1. It may be satisfied differently

according to the specific situation of the user. Let’s

suppose, for example, that the information about the

user’s disease is not complete, that is the BA knows

that the user needs to improve his health because he

has got a flu but it is necessary to decide which is

the most suitable drug for him to take. In such a

situation, it is necessary to further investigate the

user's physical state in order to select the most

appropriate drug to suggest him. In Figure 2 we

provide an example of the interaction with the social

intelligent robot present in the house.

5 CONCLUSIONS AND FUTURE

WORK

This contribution shows a preliminary work towards

the development of a MAS aiming at handling the

situation-aware adaptation of a Smart Environment

behavior. In this MAS different types of agents

cooperate to the adaptation process, which is

performed at different levels, starting from the

interpretation of sensor data from Sensor Agents,

A MULTIAGENT SYSTEM SUPPORTING SITUATION AWARE INTERACTION WITH A SMART ENVIRONMENT

planning services satisfying the recognized user’s

goals and arriving to the decision on how to act on

devices from Effector Agents. Pervasive interaction

with the user is implemented through the Interactor

Agents’ behavior, which adapts the choice of the

most appropriate interaction methapor to the context

and to the user preferences and needs.

Still, open problems remain and will be the

subject of our future work. An open issue regards

how to reason on users’ reactions to the proposed

flow of activities in order to adopt the optimal

behavior of the SHE. In fact, when the user undoes

or gives a negative feedback to one or more actions

of the selected workflow, it is necessary to

understand if this is just an exception or if it must

affect the reasoning models, e.g. because there is: (i)

a change in the situation that has not been detected or

taken into account, (ii) a mistake in controlling the

effectors to achieve a simple goal, (iii) a mistake in

interpreting the user’s goals or in selecting or

composing the workflow.

Each of the latter cases determines which agent

in the MAS has made a wrong decision, and is to be

involved in theory refinement. Identification of the

specific case should be obtained by an analysis of

the user’s feedback, and introduces a related issue,

that is who is in charge of identifying the problem,

gathering the feedback and notifying it to the proper

agent that must activate its learning behavior. A

candidate for taking care of these activities is the

Interactor Agent, because it is equipped with the

skills necessary for the execution of communicative

goals.

Finally, in the near future we plan to collect more

examples of interaction with the system to simulate

and evaluate its behavior in all the possible situations

that are relevant for our application domain.

REFERENCES

Cavone, D., De Carolis, B., Ferilli, S., Novielli, N., 2011.

An Agent-based Approach for Adapting the Behavior

of a Smart Home Environment. In Proceedings of

WOA 2011, http://ceur-ws.org/Vol-741/ID14_Cavone

DeCarolisFerilliNovelli.pdf

De Carolis, B., Cozzolongo, G. and Pizzutilo, S., 2006. A

Butler Agent for Personalized House Control. ISMIS:

157-166.

De Carolis, B. Mazzotta, I. Novielli, N., 2009. NICA:

Natural Interaction with a Caring Agent. In Ambient

Intelligence, European Conference, AmI 2009,

Salzburg, Austria, November 18-21, vol. 5859/2009,

pages 159-163, ISBN: 978-3-642-05407-5, ISSN:

0302-9743 (Print) 1611-3349 (Online), DOI:

10.1007/978-3-642-05408-2_20, Springer Berlin /

Heidelberg, http://www.springerlink.com/content/463

6294560388663/ 2009.

Esposito, F., Fanizzi, N., Ferilli, S., Basile, T. M. A. and

Di Mauro, N., 2006. Multistrategy Operators for

Relational Learning and Their Cooperation.

Fundamenta Informaticae Journal, 69(4):389-409,

IOS Press, Amsterdam.

Falcone, R. and Castelfranchi, C, 2001. Tuning the

Collaboration Level with Autonomous Agents: A

Principled Theory. AI*IA: 212-224.

Ferilli S., Basile T. M. A., Di Mauro N., Esposito F., 2005.

On the LearnAbility of Abstraction Theories from

Observations for Relational Learning. In: J. Gama, R.

Camacho, G. Gerig, P. Brazdil, A. Jorge, L. Torgo.

Machine Learning: ECML 2005. P. 120-132, Berlin:

Springer, ISBN/ISSN: 3-540-29243-8.

Ferilli S., Esposito F., Basile T. M. A., Di Mauro N., 2005.

Automatic Induction of Abduction and Abstraction

Theories from Observations. In: S. Kramer, B.

Pfahringer. Inductive Logic Programming. p. 103-

120, Berlino: Springer, ISBN/ISSN: 3-540-28177-0.

Kim J. et al., 2004. An Intelligent Assistant for Interactive

Workflow Composition. 9th international conference

on Intelligent User Interfaces, pp:125-131, ACM

Press.

Meyer, H., 2007. On the Semantics of Service

Compositions. Lecture Notes in Computer Science,

Volume 4524/2007, 31-42.

Muggleton, S. H., 1991. Inductive Logic Programming.

New Generation Computing, 8(4):295-318.

Martin, D. Burstein, M. McDermott, D., McIlraith, S.

Paolucci, M., Sycara, K., McGuinness, D., Sirin, E.

and Srinivasan, N., 2007. “Bringing Semantics to Web

Services with OWL-S”, World Wide Web Journal,

Vol. 10, No. 3.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems
