QR CODE-BASED IDENTIFICATION WITH MOBILE DEVICES

Giovanni Schmid

and Francesco Rossi

High Performance Computing and Networking Institute (ICAR), Naples, Italy

University of Naples Parthenope, Naples, Italy

Keywords:

Identiﬁcation (entity authentication), Zero knowledge protocols, QR codes.

Abstract:

Mobile devices are becoming ubiquitous, getting rise to a pervasive network through which people can share

information and get also very complex services. A key factor for the security of both consumers and providers

in this emerging business scenario is the ability for a user or a service to reliably and efﬁciently authenticate

itself. In this paper, we consider a unidirectional visual channel of interaction between the user and the

service. Identiﬁcation indeed takes place by using a QR Code symbol which is displayed or scanned by the

mobile device of the user in the proximity of an access point for the service. We consider protocols for strong

authentication which, if correctly implemented, does not reveal any useful information both to the veriﬁer and

to any unauthorized observer (zero-knowledge protocols). Our experimental results show the feasibility of our

approach for a wide range of mass-market devices and applications, including physical access to restricted

or pay-per-use areas (military or parking zones, etc.), logical access to resources or services (e.g., ATMs,

computer systems and Internet services), and privacy-aware voting and testing centers.

1 INTRODUCTION

Thanks to computing and networking technologies,

and because of the incentives of availability, lower

costs and easier use, a variety of services requiring

interactions in the physical world with their users are

being digitalized, and somewhat virtualized and aug-

mented.

On the other side, as camera-equipped and

display-equipped mobile devices (in particular, smart-

phones and tablet PCs) approach ubiquity, they be-

come excellent platforms for the deployement to mil-

lion of users of the above services in a user-friendly

but secure way. Indeed, because of the general pro-

liferation of services at our disposal as mobile users,

these could act as consolidation platforms that avoid

the inconveniences and, in some cases, the secu-

rity threats deriving by using many different special-

purpose devices and tokens (e.g. identity cards, one-

time password generators, credit cards, membership

cards, etc.). Of course, one could object that the cen-

tralization of different security services is a threat in

itself. However, we believe that simple designs - com-

bined with software security principles and prudent

engineering practices - can result in multi-purpose,

service-oriented mobile platforms whose use would

be by far more secure and privacy-compliant than our

actual habits in managing an increasing number of

different tools.

In the present work, we propose to use the cam-

era or the display of a mobile device as a unilateral

visual channel to achieve strong entity and message

authentication thanks to Quick Response (QR) coding

(ISO/IEC, 2006b). Although today’s devices increas-

ingly feature convenient, wireless communication in-

terfaces (e.g. Bluetooth, WiMax and 802.11), the vi-

sual channel offers the advantage of being immune to

Man-in-the-Middle (MitM) (Menezes et al., 1997) at-

tacks in suitable usage contexts, when one or both the

parties in communication were not previously authen-

ticated. Indeed, conversely than the wireless channel,

the visual one can provide for demonstrative iden-

tiﬁcation (Balfanz et al., 2002) of the communicat-

ing devices. Moreover, by using the visual channel

we can deploy cryptographic protocols whose secu-

rity does not rely on those of the underlying wireless

transmission protocol and its related software subsys-

tem, which historically suffer of many vulnerabilities

(for a report on Bluetooth security, see for example

(Bialoglowy, 2010a; Bialoglowy, 2010b)).

In the following, we will focus on a client-server

architecture and two kind of application scenarios:

1. The enrollment of a user to a service and its subse-

quent secure accesses to it through personal iden-

Schmid G. and Rossi F..

QR CODE-BASED IDENTIFICATION WITH MOBILE DEVICES.

DOI: 10.5220/0003807200790086

In Proceedings of the 2nd International Conference on Pervasive Embedded Computing and Communication Systems (PECCS-2012), pages 79-86

ISBN: 978-989-8565-00-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tiﬁcation, eventually in pay-per-use mode;

2. A trusted service giving corroborate evidence to

users of having got a correct interaction and out-

put by it thanks to a service’s receipt, but in such

a way that the receipt does not transfer the above

evidence to unauthorized parties.

Examples ﬁtting in scenario 1 include physical ac-

cess to restricted or pay-per-useareas, such as parking

zones or military areas, or logical access to resources

or services like ATMs, Internet services and computer

systems. In this case the user acts as a prover, that is

she claims an identity to be proved, whilst the service

is the veriﬁer. Auditing and non-repudiation mecha-

nisms should be put in place at the server-side, expe-

cially in case of pay-per-use or critical services.

As per scenario 2, noticeable examples are those

of voting and testing centers. Conversely than in the

previous cases, the roles of prover and veriﬁer are

now played by the service and the user, respectively.

Moreover, user’s privacy concerns take now prece-

dence over service’s tracking issues. Suppose for ex-

ample an automated analysis facility for a given ge-

netic syndrome: a user would be sure to have cor-

rectly performed the test and to have got the right an-

swer, and she would perhaps share that result with

some physicians and other people. However, she

would be probably displeased if such analysis results

were made public or could be used against her as

proof of disease by a life insurance company.

For both application scenarios, we assume a uni-

directional visual channel built by displaying a single

QR Code symbol by the prover and by acquiring such

symbol by the veriﬁer through a QR Code scanner or

a camera.

The symbol contains the session transcript of

a zero-knowledge identiﬁcation protocol, that is a

strong identiﬁcation protocol which has the property

of not revealing any useful information both to the

veriﬁer and to any unauthorized observer. We con-

sider two of such protocols, one suitable for the re-

quirements of scenario 1 and the other ﬁtting those of

scenario 2.

We implemented a prototypal system and run ex-

perimental tests which show the feasibility and prac-

ticality of our approach.

The paper is organized as follows. Section 2 dis-

cusses related work. Sections 3 and 4 introduce to

the entity authentication problem and zero-knowledge

protocols, respectively. We focus in particular on two

protocols, suitable for the application scenarios dis-

cussed above. Section 5 serves as a brief introduc-

tion to QR Code technology, whilst in Section 6 we

outline the sequence of operations involved in QR-

Identity, a prototypal QR Code-based identiﬁcation

system implemented as a proof-of-concept of our ap-

proach. Some experimental results with QR-Identity

are reported in Section 7. They show the good per-

formance of the system, and the fact that, assuming a

correct scanning positioning, it is is immune both to

false positives and false negativesin various illumina-

tion conditions. Finally, Section 8 draws up conclu-

sions and future work.

2 RELATED WORK

A system that uses 2D barcodes and camera phones

as a visual channel was proposed in (McCune et al.,

2009). The authors used that channel for human-

veriﬁable authentication, providingthe user assurance

that her device is communicating with another de-

vice visually recognized by her. This is a special case

of demonstrative identiﬁcation (Balfanz et al., 2002),

which is used to rule out MitM attacks and allow-

ing the bootstrap of authentic public keys. The ap-

proach used in (McCune et al., 2009) can be proﬁtably

combined with ours to allow users in application sce-

nario 2 to acquire “at runtime” the service’s authentic

public-key thanks to the camera of their mobile de-

vices.

The visual channel available using barcode tech-

nology may have insufﬁcient bandwidth for an ef-

ﬁcient and robust implementation of cryptographic

techniques, also for some 2D barcode approaches. In

(McCune et al., 2009) the workaround was the use

of multiple symbols to encode hash function digests

of public-keys, at the dual cost of a degradation in

security and a major complexity (and errors) in the

scanning process. However, this and other older ap-

proaches intended to overcome the bandwidth limita-

tion of a visual channel, as that proposed in (Laur and

Nyberg, 2006), appear awkward and all in all useless

after the standardization of 2D barcodes which are ca-

pable of encoding thousands of alphanumeric charac-

ters in just one code symbol.

Although we chose QR Codes (ISO/IEC, 2006b)

for our implementation, some other standardized 2D

barcode technologies exist which can accomplish the

requirements of the application scenarios considered

in Section 1, e.g. Data Matrix (ISO/IEC, 2006a)

and Aztec Code (ISO/IEC, 2008). A comparison be-

tween these technologies was outside the scope of our

present work.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

3 ENTITY AUTHENTICATION

Entity authentication (in the following also referred as

identiﬁcation) is perhaps the most basic security ser-

vice. It is a functionality required by any access con-

trol framework both in physical (e.g. gates and guard

stations) and logical security domains (as in computer

moreover, it is a pre-requisite for authenticated keys

exchange in network protocols, which in turn is re-

quired in secure communications.

The general setting for an entity authentication

protocol involves a prover or claimant A and a ver-

iﬁer B. B is presented with the supposed identity of A,

and the goal of the protocol is to give B corroborate

evidence that the identity of the claimant is indeed A.

The most basic objective of an identiﬁcation protocol

just states its effectiveness:

• Completeness: in the case of honest parties A and

B, B - at least with overwhelming probability -

will complete the protocol having accepted A’s

identity.

Protocols trying to satisfy only the completeness

property are called weak identiﬁcation protocols. Ex-

amples are ﬁxed password schemes; they are sub-

jected to replay attacks (Menezes et al., 1997), ex-

haustive password search, password-guessing and

dictionary attacks (Menezes et al., 1997). Therefore,

we will focus only on strong identiﬁcation protocols,

that is protocols having the following two security ob-

jectives:

• No-impersonation: the probability is negligible

that any party C different from A, carring out the

protocol and playing the role of A, can cause B to

complete the protocol accepting A’s identity.

• No-transferability: the probability is negligible

that B can reuse a previous identiﬁcation by A

to successfully impersonate A in an identiﬁcation

session with a third party C.

Ideally, in strong identiﬁcation protocols no-

impersonation and no-transferability properties

should remain true also if:

• a (polinomially) large number of previous proto-

col executions between A and B has been run, and

eventually observed by C;

• C has participated in previous protocol execution

with either A or B, and;

• multiple instances of the protocol, possibly initi-

ated by C, may be run simultaneously.

The meanings of the adjectives overwhelming and neg-

ligible depend on the application, but generally imply that

the probabilities of failure are not of practical importance.

Strong identiﬁcation protocols achieve their objec-

tives through a challenge-response interaction be-

tween the veriﬁer and the prover: B generates a

time-variant challenge for A, and A demonstrates the

knowledge of a secret, associated by construction

with her identity, by performing a suitable crypto-

graphic operation on the challenge. The output of the

above cryptographic operation is the response, and it

depends on both A’s secret and B’s challenge.

Challenge-response identiﬁcation protocols can

be based both on symmetric-key techniques and

asymmetric-key ones. In the ﬁrst case, the claimant

and the veriﬁer share a secret key, and large systems

require a trusted on-line server to effectively man-

age keys for all the couples of communicating par-

ties. In our architecture, the role of trusted on-line

server could be well implemented at the server side

of the application. However, that would result in a

server database containing the secrets of all the users

enrolled with the service, a condition which exposes

to massive identity thefts and, for some application

scenarios, to the “big-brother” issue.

Public-key based protocols are immune to these

drawbacks, since no secret must be shared by the

claimant and the veriﬁer. There are two most typical

ways in which public-key based identiﬁcation proto-

cols can be obtained, which consist in using asymmet-

ric techniques for realizing the challenge-response in-

teraction:

• A decrypts a challenge encrypted by B under its

public key, or alternatively;

• A digitally signs a challenge that B will verify.

The asymmetric system used for such mechanisms

should not be susceptible to chosen-ciphertext attacks

(Menezes et al., 1997), otherwise C may attempt to

extract information by impersonating B and chosing

strategic rather than random challenges. Although

this concern may be addressed by incorporating a ran-

dom number (a so called confounder) into the data

over which the response is computed, a more radical

approach consists in turning to zero-knowledge pro-

tocols. These have indeed the property of not even

reveal any partial information which makes C’s task

any easier whatsoever, no matter how many protocol

executionsC could have been monitored.

4 ZERO-KNOWLEDGE

PROTOCOLS

Zero-knowledge protocols were introduced in (Gold-

wasser et al., 1987) (see also (Goldwasser et al.,

1989)), as special cases of interactive proof systems,

QR CODE-BASED IDENTIFICATION WITH MOBILE DEVICES

where tipically the proverA and the veriﬁer B repeat a

three-moves commit-challenge-responseprotocol un-

til B rejects a response from A, or otherwise the prob-

ability of cheating by A lowers under a previous estab-

lished security threshold (in which case B accepts A’s

claim). The set of commit-challenge-response moves

related to a protocol session is called a protocol tran-

script, and if the transcript represents a (probabilistic)

proof of knowledge of a secret (e.g. a private key)

by A, then the interactive system is said an interactive

proof system of knowledge.

Technically speaking, the zero-knowledge prop-

erty for an interactive proof system of knowledge, as

reformulated by (Feige et al., 1988), can be stated as

follows:

• Zero-knowledge: the system admits a simulator,

that is a polynomial time algorithm which can

produce, upon input of the assertion to be proven

but without interaction with the real prover A (i.e.

without knowledge of A’s secret), transcripts that

are probabilistically indistinguishable from those

resulting from interaction with A.

Thus, the zero-knowledge property implies the no-

disclosure properties previouslystated for ideal strong

authentication systems, but in a stronger sense, since

any number of protocol runs does not increases the

chances of subsequent impersonations or identity

transfers even by computationally unbounded adver-

saries

Compared to protocols based on asymmetric en-

cryptions or signatures, zero-knowledge protocols of-

fer no degradation of security with usage, being in

particular immune to chosen-text attacks. Moreover,

in some cases they are between one and two orders of

magnitude most efﬁcient - in terms of modular mul-

tiplications performed by the prover - than an RSA

private-key operation (Menezes et al., 1997). This is

particularly appealing for our application scenario 1

(see Section 1), being the prover constrained by the

computational and power autonomy limits of mass-

market mobile devices.

For our prototypal implementation (see Section

6) we have selected Schnorr identiﬁcation protocol

(Schnorr, 1990; Schnorr, 1991) and Jakobsson signa-

ture protocol (Jakobsson et al., 1996). Both are zero-

knowledge protocols based on the discrete logarithm

problem (Menezes et al., 1997), and - as such - they

can take great advantage in term of memory require-

ments (key sizes), computations (number of modular

operations) and communication bandwidth (transcript

This assertion refers speciﬁcally to perfect zero-

knowledge. In computational zero-knowledge the assertion

remains true only for polinomially bounded adversaries.

sizes) if reformulated in the arithmetic framework of

elliptic curve cryptography (Hankerson et al., 2004).

Schnorr protocol is suitable in application scenar-

ios like the ﬁrst one described in Section 1, whilst

Jakobbson protocol ﬁts the requirements demanded

by the voting center scenario described therein.

Jakobsson signature protocol allows for desig-

nated veriﬁers at the cost of some more computational

efforts both at server-sideand client-side, and a bigger

transcript. The veriﬁer B is designated in the sense

that he (and he only) can simulate correct protocol

transcripts. This means that a third party C cannot be

convinced by B of a successful A’s identiﬁcation pre-

viously occured with him. Thus, Jakobsson protocol

is suitable when a user B whishes to have a receipt R

corroborating his correct interaction with a service A

and its output, avoiding that any other partyC can get

the same evidence from R.

For both protocols, we are interested in their non-

iteractive versions, since in any case we assumed a

unidirectional visual channel used only by the prover.

That can be easily obtained from protocol’s original

versions thanks to the Fiat-Shamir heuristic (Fiat and

Shamir, 1987), which consists in replacing the ran-

dom challenge of the veriﬁer with a pseudo-random

hash digest of the concatenation of the prover’s iden-

tiﬁer (or the message being signed by her) with the

commitment. Actually, the Fiat-Shamir heuristic

transforms an interactive proof of knowledge system

into a non-interactive digital signature scheme. How-

ever, since the adoption of the visual channel implies

the presence of the prover A during a protocol ses-

sion, this turns out again into an identiﬁcation session,

provided that previous transcripts are recorded by the

veriﬁer to avoid replay attacks.

5 QR CODES

QR (Quick Response) Code is a two dimensional

Barcode developed by Denso Wave Corporation and

now established as an ISO (ISO/IEC18004) standard

(ISO/IEC, 2006b). QR Codes data encoding capacity

depends on their version, each version being charac-

terized by having a different number of modules, that

is the black and white dots that make up a QR Code.

A QR Code is omni-directional readable through po-

sition detection patterns located at three of its four

corners. Moreover, it has error correction capability:

data can be restored even if the QR Code is partially

dirty or damaged. Information is coded in vertical

and horizontal directions, so the last version (version

40) can encode up to 4,296 alphanumeric characters,

several hundred times more data than traditional bar-

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

codes.

This high capacity in data encoding and the error

correction capability are very important for our ap-

proach, making QR Codes very suitable for the appli-

cation scenarios depicted in Section 1. As shown in

Section 6.4, it is possible to encode an identiﬁcation

protocol transcript in just a single QR Code of suitable

version, avoiding the display of more than one image

that would result in a more complex, slow and error-

prone protocol. Various running tests with a previous

prototype (see Section 7) show indeed that the adop-

tion of a coding scheme producing multiple images

for a single session (e.g. coding the protocol tran-

script by means of naive binary matrices) could result

in high transmission times and high false negatives in

authentication, because of severe limitations imposed

by mass-market displays and acquisition devices.

Figure 1 depicts a QR code resulting from an iden-

tiﬁcation session with the Schnorr zero-knowledge

protocol. The code has version 13, error correction

level H (High)

, and contains an item description 55

characters long for a total of 231 characters protocol

transcript. In this case, the minimum QR symbol size

is of 57.75 mm for a scanning distance of 150 mm.

Figure 1: A QR code resulting from an identiﬁcation ses-

sion and having a minimum scanning distance of 150 mm.

6 A QR CODE-BASED

IDENTIFICATION SYSTEM

As a proof-of-concept of our approach, we developed

QR-Identity, a prototypal client-server application im-

plementing both Schnorr and Jakobsson non interac-

tive protocols, and which uses QR Codes symbols to

convey protocol transcripts through the visual channel

provided by the display of a mobile phone at the client

side and a webcam at the server side. The application

This is the highest correction level, with a maximum of

30% restorable codewords.

allows the owner of the mobile phone to perform iden-

tiﬁcation or signature sessions w.r.t. an access control

point implemented through a webcam-equipped lap-

top

6.1 Application Workﬂow

Restricting for brevity our description to scenario 1

of Section 1, the goal of QR-Identity is to allow the

owner (and only the owner) of a mobile phone to get

a service thanks to a visual identiﬁcation session re-

alized via a QR Code symbol. To obtain the service

(see Section 1 for a list of possible services), the user

has to use its mobile device to generate and display a

single QR Code symbol in proximity of the service’s

access point, getting back the service feedback in case

of a successfull identiﬁcation, and nothing otherwise.

Since we make use of asymmetric cryptography, the

identiﬁcation process assumes that the service has got

an authentic user’s public key. This is achieved by

means of a one-time, suitable enrollment phase of the

user with the given service. Scopes of the enroll-

ment phase are both user’s registration in a service’s

database and the creation of a tamperproof copy of the

client component of QR-Identity for such a user.

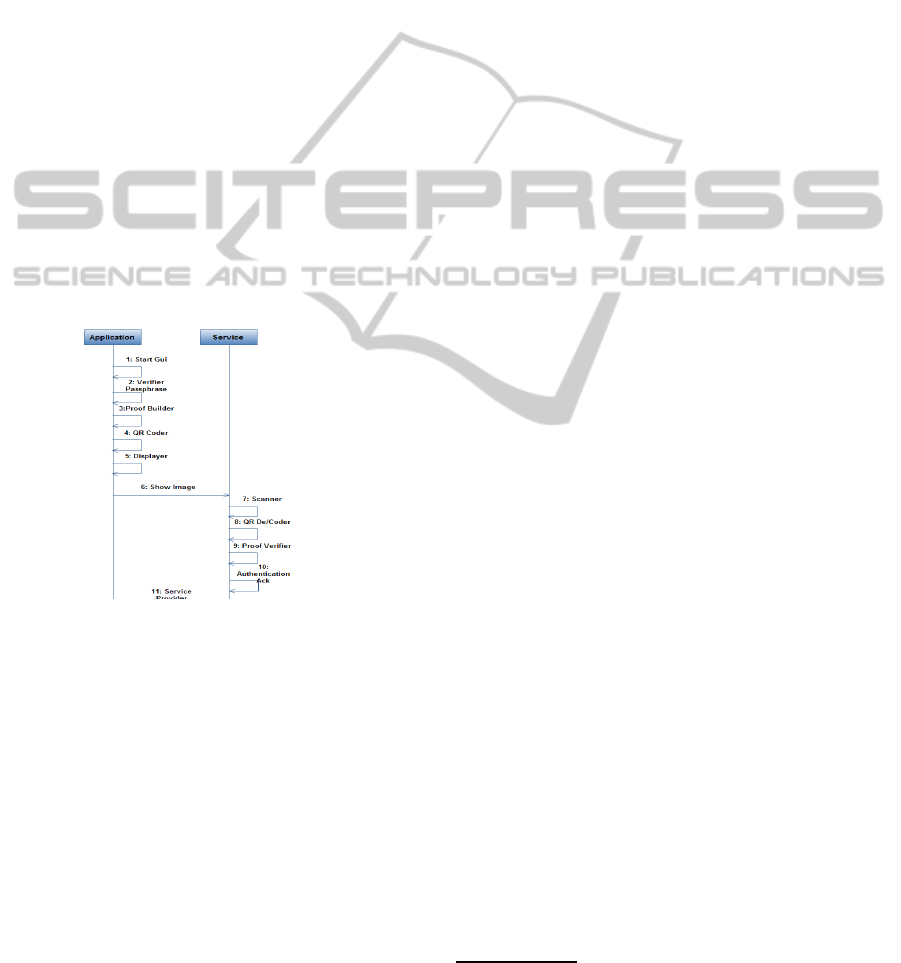

Figure 2: Sequence diagram of the enrollment phase for

QR-Identity.

We suppose that the user registers itself to the

service through the service website and a standard

HTTPS connection. The registration process (see Fig-

ure 2) requires the input of information that properly

identiﬁes users according to service’s requirements,

plus the choice of a passphrase P as authentication to-

ken to access QR-Identity client-side. After registra-

tion is successfully completed, the user can download

and install a trusted copy of the client component of

QR-Identity, released with the identiﬁer A of the user

w.r.t. the service and preconﬁgured to be accessed

We must stress here that, in the cases for which we con-

sidered the Jakobsson protocol (i.e. the application scenario

2 of Section 1), the QR Code symbol should actually be

displayed at the server side and captured through the user’s

camera-equipped mobile phone. We considered this aspect

uninﬂuential for our proof-of-concept

QR CODE-BASED IDENTIFICATION WITH MOBILE DEVICES

only with the passphrase P deﬁned during the reg-

istration process. The authenticity and tamperproof

properties of a such client component are guaranteed

by a suitable digital signature generated by the service

and added to the code.

To access the application, the user has to input

P, which is also used to encrypt on disk her private

key thanks to a symmetric cipher (e.g. AES (FIPS,

2001)). At its ﬁrst run, the client of QR-Identity gen-

erates a couple (a, ˜a) of private-public keys for A and,

by connecting through the login coordinates (A, P), it

registers ˜a as A’s authentic public key in the service’s

database.

After the out-of-band, one-time enrollment phase

described above, the user can access the service a po-

tentially unlimited number of times through the iden-

tiﬁcation process described in Figure 3. The sequence

diagram depicted therein reﬂects the software mod-

ules composing the application both at the client-side

and at the server-side. As stated in Section 1, the

client-side acts as prover in case of application sce-

nario 1, and as veriﬁer in case of scenario 2. For the

server-side, roles are obviously inverted.

Figure 3: Sequence diagram of the identiﬁcation phase for

QR-Identity.

6.2 Computational Costs and

Bandwidth

The computational costs for our application are

mainly related to the modular arithmetic computa-

tions (exponentiations in the ﬁrst place and, sec-

ondary, multiplications) which are required by prover

and veriﬁer to create and verify a protocol tran-

script, respectively, since the transmission of tran-

scripts along the visual channel occurs with almost

no delay.

A Schnorr protocol identiﬁcation session requires

one modular exponentiation and one modular multi-

plication by the prover, whereas the veriﬁer has to

perform two modular exponentiations and one mod-

ular multiplication.

A signature veriﬁcation session with Jakobsson

protocol requires instead four modular exponentia-

tions and two modular multiplications by the prover,

whilst the veriﬁer must perform six modular exponen-

tiations and three modular multiplications.

Bandwidth occupancy of the visual channel is par-

ticularly relevant w.r.t. the robustness of the applica-

tion, since too big transcripts result in QR code sym-

bols that are difﬁcult to scan.

Assuming an identiﬁer A 64 bits long and for the

system parameters the default sizes of |p| = 1024 and

|q| = 160 bits, a Schnorr protocol session results in

a transcript of 1264 bits, including separators. Thus,

Schnorr identiﬁcation transcripts can be conveniently

coded by using a QR Code version 12 symbol with

the highest error correction level H (ISO/IEC, 2006b).

The adoption of the highest error correction level is

motivated by the fact that, depending on the operat-

ing environment (illumination, presence of shadows,

light reﬂections, occlusions, etc.), the visual channel

is generally affected by noise.

With the same sizes for p, q, and assuming 256

bits

for the receipt R, Jakobsson transcript takes in-

stead 2824 bits including separators, requiring a ver-

sion 20 symbol for the H error correction level.

Both transcripts, public-key sizes, and computa-

tions can be substantially reduced by considering ver-

sions of the above protocols based on elliptic curve

cryptography, as we did in QR-Identity (see Section

6.4). This is especially advisable for applications like

those described in scenario 2 of Section 1. In this

case, in particular, the transcript sizes for Schnorr and

Jakobsson scale down to 584 and 1416 bits, respec-

tively, allowing ligther symbols (i.e. versions 8 and

13) to encode sessions.

6.3 Security Considerations

Since 2D barcodes are intended to be machine read-

able only, a human cannot distinguish between a valid

and a tampered code. In many usage scenarios, that

circumstance turns out in 2D barcodes as possible at-

tack vectors toward automatic readers. (Kieseberg

et al., 2010) gave a comprehensive analysis of QR

code tampering in view of obtaining DOS or vari-

ous command injection attacks. These threats how-

ever do not apply for our usage scenarios, where bar-

code symbols do not code cleartext information to ac-

cess some service or resource, but are instead crypto-

According to (ISO/IEC, 2006b), alphanumeric encod-

ing requires about 5.5 bits/char. Thus 256 bits corresponds

to about forthy ﬁve alphanumeric characters.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems

graphic tokens that have to be processed by a control

enforcement point. Moreover, in our case symbols

are displayed at video rather than printed on paper.

Code tampering based attacks are thus ruled out, and

the only threat to be considered is symbol cloning for

identiﬁcation thieft purposes, which on the other hand

is nulliﬁed by the immunity of the visual channel to

MitM attacks and by the adoption of strong identiﬁ-

cation protocols.

6.4 Implementation Details

Although we deployed QR-Identity on a Samsung

S5660 with Android OS (client-side) and a x86-based

laptop with Windows Vista OS (server-side), it can

be easily ported to a wide range of hardware devices

and operating systems. It was indeed developed in

the Java programming language. Besides portabil-

ity, Java offers a complete set of APIs both for or-

dinary and elliptic curve cryptography (through the

proprietary java SE 6 (Sun-Oracle, 2010) or the open-

source Bouncy Castle (Bouncy-Castle, 2011) crypto

package). Moreover, the JRS-257 standard (Java-

Community, 2011) has been published which adheres

to ISO/IEC18004.

At the server side, we used the Bouncy Castle

package both to implement public key cryptography

on elliptic curves and to do hash computations. At

the client side, we instead used for all crytographic

computations the Spongy Castle(Tyley, 2011) library,

a special porting of Bouncy Castle for the Android

operating system.

Barcode management was realized both in client

and server through the Zxing library (ZXing-

Community, 2011), which currently is the most

adopted open-source, multi-format 1D/2D Barcode

image processing library.

7 EXPERIMENTAL RESULTS

The main critical aspect of identiﬁcation systems

based on barcodes is the fact that symbols could be

not readeable because of a wrong scanning distance

or other factors such as optical occlusions and back-

ground “noise” in the scanning environment. Of

course the scanning range decreases as symbol ver-

sion is increased, so our ﬁrst test set was to check the

practicality of our approach in term of admissible dis-

tances between the user’s mobile phone and the cam-

era of the service’s access point.

Figure 4 shows a comparison of the scanning

range for four QR Code symbols having the same size

of 45 mm (which can be displayed on the majority of,

Figure 4: Scanning range of four QR code symbols having

the same size (45 mm) but different versions.

if not all, the mobile phones nowadays on the market),

and whose versions include those effectively used by

QR-Identity (see Section 6.4). The results show a

scanning range from about 150 mm to about 200 mm

for all the considered symbol versions, which has to

be considered viable for many usage scenarios.

The second test set simulated scanning environ-

ment contexts that could not allow symbol decoding.

We did precisely the following three kinds of tests:

• Scene Background Noising. For a correct acqui-

sition of a symbol, it is very important that the

symbol is detached from the background. We con-

sidered three working hypothesis: uniform back-

ground, low and high noised background. The

background was reproduced as a black and white

pattern. In all cases symbols were correctly de-

coded thanks to the position detection patterns in-

cluded in the QR Code structure.

• Partial Occlusion of Position Detection Patterns.

Damaging or partially covering one or more de-

tection patterns resulted in no acquisition of sym-

bols. Instead, symbol decoding was possible in

case of data areas partially occluded or damaged,

provided that the error correction level parameter

was adequately set.

• Addition of Faked Position Detection Patterns.

The addition of false position detection patterns

did not affect negatively the decoding process,

since it makes use of spatial information that

avoid the recognition of faked corner in the scene.

All tests were made with day brightness conditions,

and without shadows or light variations.

8 CONCLUSIONS AND FUTURE

WORK

In this work we propose to use the camera or the dis-

play of a mobile device as a unilateral visual chan-

nel to achieve strong entity and message authentica-

tion thanks to Quick Response coding. The joint use

QR CODE-BASED IDENTIFICATION WITH MOBILE DEVICES

of a visual channel and zero-knowledge protocols re-

sults in very efﬁcient, reliable identiﬁcation and sig-

nature systems suitable for various usage scenarios in

which a contactless interaction between the user and

the service access point is required or preferred. As a

proof-of-concept of our approach, we developed QR-

Identity, a prototypal client-server application which

allows the owner of the mobile phoneto perform iden-

tiﬁcation or signature sessions w.r.t. an access control

point implemented through a webcam-equipped lap-

top. The experimental results show the good perfor-

mance of QR-Identity, and the fact that, assuming a

correct scanning positioning, it is is immune both to

false positives and false negatives in various illumina-

tion conditions.

Future work will include a comparison of QR

Codes with other 2D barcodes such as Aztec codes

and Matrix Data, through the realization a compre-

hensive test-set verifying their readability in pres-

ence of occlusions, shadows, rotations, light reﬂec-

tions, etc. Moreover, we are working on new zero-

knowledge protocols having speciﬁc security proper-

ties, and whose computational costs allow their uti-

lization in scenarios like those considered in this pa-

per.

REFERENCES

Balfanz, D., Smetters, D., Stewart, P., and Wong, H. C.

(2002). Talking to strangers: authentication in ad-

hoc wireless networks. In Symposium on Network and

Distributed Systems Security (NDSS). Internet Con-

sortium.

Bialoglowy, M. (2010a). Bluetooth security review, part 1.

http://www.symantec.com/connect/articles/bluetooth-

security-review-part-1.

Bialoglowy, M. (2010b). Bluetooth security review, part 2.

http://www.symantec.com/connect/articles/bluetooth-

security-review-part-2.

Bouncy-Castle (2011). Crypto apis version 1.46.

http://www.bouncycastle.org/.

Feige, U., Fiat, A., and Shamir, A. (1988). Zero-knowledge

proofs of identity. Journal of Cryptology, 1.

Fiat, A. and Shamir, A. (1987). How to prove your-

self: practical solutions of identiﬁcation and signature

problems. In Advances in Cryptology - CRYPTO 86,

A.M Odlyzko (Ed.), LNCS 263. Springer.

FIPS (2001). Federal Information Processing Standards

Publication 197 - AES.

Goldwasser, S., Micali, S., and Rackoff, C. (1987). The

knowledge complexity of interactive proof systems. In

Advances in Cryptology - CRYPTO.. Springer.

Goldwasser, S., Micali, S., and Rackoff, C. (1989). The

knowledge complexity of interactive proof systems.

SIAM Journal on Computing, 18(1).

Hankerson, D., Menezes, A., and Vanstone, S. (2004).

Guide to Elliptic Curve Cryptography. Springer.

ISO/IEC (2006a). Information technology - Automatic iden-

tiﬁcation and data capture techniques - Data Matrix

bar code symbology speciﬁcation.

ISO/IEC (2006b). Information technology - Automatic

identiﬁcation and data capture techniques - QR Code

2005 bar code symbology speciﬁcation.

ISO/IEC (2008). Information technology - Automatic iden-

tiﬁcation and data capture techniques – Aztec Code

bar code symbology speciﬁcation.

Jakobsson, M., Sako, K., and Impagliazzo, R. (1996). Des-

ignated veriﬁer proofs and their applications. In EU-

ROCRYPT 96, U. Maurer (Ed.), LNCS 1070. Springer.

Java-Community (2011). Java community pro-

cess: Contactless communication api.

http://www.jcp.org/en/jsr/detail?id=257.

Kieseberg, P., Leithner, M., Mulazzani, M., Munroe, L.,

Schrittwieser, S., Sinha, M., and Weippl, E. R. (2010).

Qr code security. In Fourth International Workshop

on Trustworthy Ubiquitous Computing (TwUC 2010).

ACM.

Laur, S. and Nyberg, K. (2006). Efﬁcient mutual data

authentication using mutually authenticated strings.

In Cryptology and Network Security (CANS), LNCS

4301. Springer.

McCune, J., Perrig, A., and Reiter, M. K. (2009). Seeing-is-

believing: using camera phones for human-veriﬁable

authentication. Int. J. Security and Networks, 4(1-2).

Menezes, A., van Oorschot, P., and Vanstone, S. (1997).

Handbook of Applied Cryptography. CRC Press.

Schnorr, C. P. (1990). Efﬁcient identiﬁcation and signatures

for smart cards. In Advances in Cryptology - CRYPTO

89, G. Brassard (Ed.), LNCS 435. Springer.

Schnorr, C. P. (1991). Efﬁcient signature generation by

smart cards. Journal of Cryptology, 4.

Sun-Oracle (2010). Javaplatform standard edition 6 release.

http://www.oracle.com/technetwork/java/javase/over

view/index-jsp-136246.html.

Tyley, R. (2011). Spongycastle crypto apis.

https://github.com/rtyley/spongycastle/.

ZXing-Community (2011). Zxing - open-source, multi-

format 1d/2d barcode image processing library.

http://code.google.com/p/zxing/.

PECCS 2012 - International Conference on Pervasive and Embedded Computing and Communication Systems
